Supera SMX5-1 User manual

SMX5-1, SMX7-1
MIXERS
INSTRUCTION MANUAL
This manual contains important information regarding your Supera® unit. Please read this manual thoroughly prior to equipment set-up, operation and mainte-
nance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.

FEATURES
1. Planetary transmission at super high speed, mixing can be completed in the
shortest time.
2. Full mechanical drive and reliable performance
3. Constant force moment with stepless speed control
4. Head can be raised
5. Overload protection
6. Switch lock
MAIN TECHNICAL PARAMETERS
MAIN PARTS OF MIXER
1. Label
2. Stirring shaft
3. Stainless bowl
4. Base
5. Connecting know
6. Speed control switch
7. Power cord
8. Power switch
(may choose the fitting):
a. Normal switch
b. Electromagnetic switch (opens safety guard)
Model
Total
Weight
(lbs)
Speed of
Stirring
Shafe
(r/min)
Power (w)
Overall
Dimensions
(inch)
SMX5-1
37.5
75-660
200
19.5 x 13 x 20
SMX7-1
40
75-660
280
19.5 x 13 x 20
©SUPERA V.1.0 | October 2014
INSTRUCTION
MANUAL

4. Procedure of starting mixer: After materials are filled in, lower the head and
tighten connecting knob (5), turn speed control switch (6) to lowest speed,
turn power switch (7) on and then set required speed gradually after stirrer is
in normal operation.
5. When operation is completed, turn speed control switch to the lowest speed
first, then turn power switch off and unplug the unit.
ACCESSORIES AND FUNCTIONS
1. Wire stirrer: Used for stirring liquid ingredients, such as cream and eggs.
2. Flat stirrer: Used for stirring batters, powder, and shredded ingredients, such
as filling.
3. Hook stirrer: Used for stirring more sticky ingredients, such as dough.
NOTES
1. Electric outlet must be provided with a good ground wire to ensure mixer’s
good ground through it. There will be an electric shock if no ground wire or an
improper grounding is mounted. The ground wire can never be connected
with a gas pipe, water pipe, lightning rod or telephone line. Electric leakage
should be checked after the mixer installation.
2. Don’t place your hand into stirring bowl during operation.
3. Make sure the mixer is unplugged before installation.
4. Don’t operate mixer beyond the limited time to avoid reducing its lifespan.
5. The mixer should be mounted on a stable and clean surface. Keep it away
from overheated and over wet places. Keep the unit away from equipment
that has a strong electromagnet or can produce a strong electromagnet.
6. Keep the mixer clean. Unplug it before maintenance. Clean this unit with soft
damp cloth. Don’t clean it with liquid or spray detergent.
OPERATION
1. The standard operating valve alternating current that this mixer uses is AC V/
HZ. (Please use electric outlet with 3 wide contacts and good grounding)
2. Installation of stirrer: Loosed connecting knob (5), raise head and fix it. Place
stirrer on stirring shaft and turn it 45° counter clockwise.
3. Installation of stainless bowl: Place stainless bowl on bowl seat and turn bowl
to fix it.
INSTRUCTION
MANUAL
©SUPERA V.1.0 | October 2014

©SUPERA V.1.0 | October 2014
INSTRUCTION
MANUAL

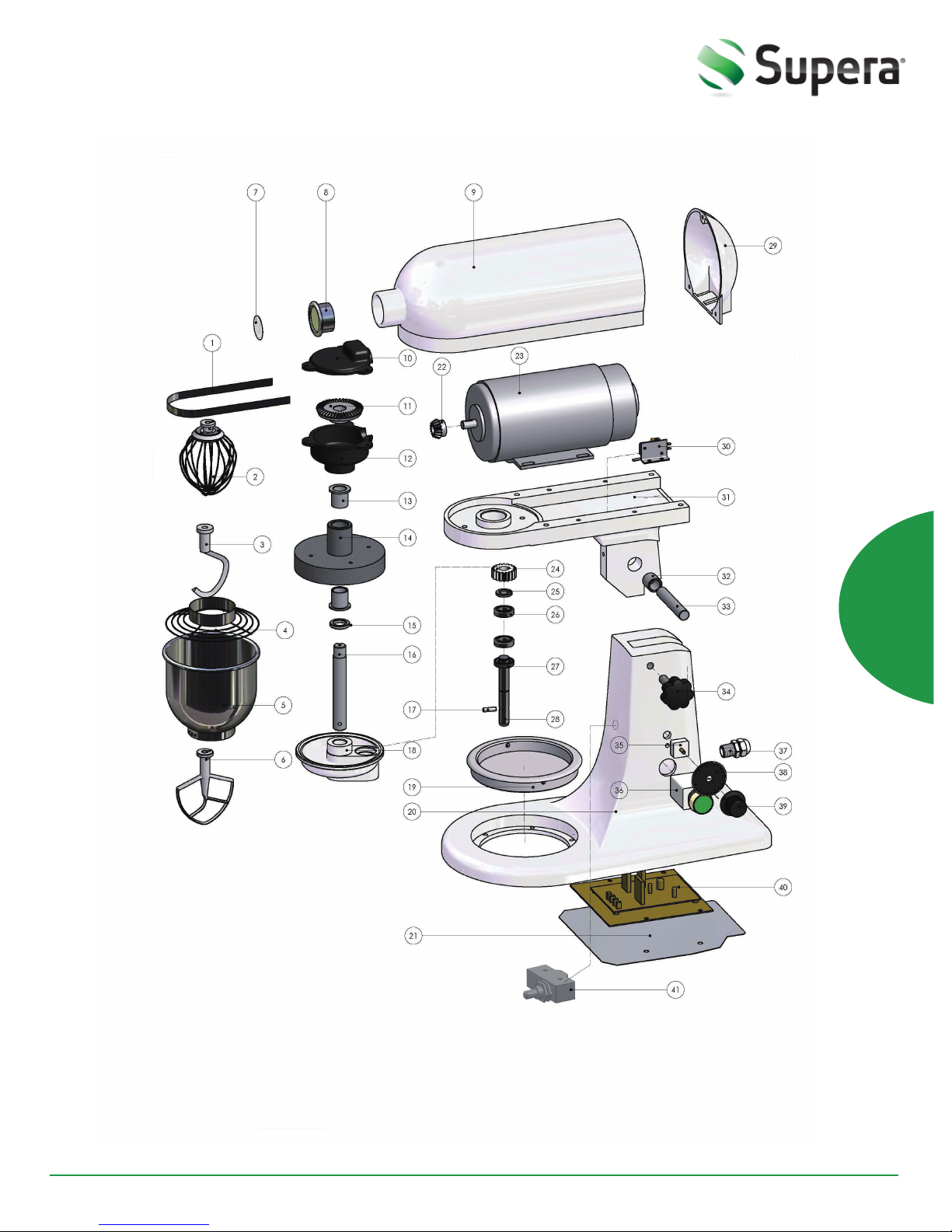

FOOD MIXER PARTS OF SMX5-1 AND SMX7-1
1 7-1 Long labels
2 7-2 Wire whip
3 7-3 Hook
4 7-4 Safety guard
5 7-5 Bowl
6 7-6 Flat
7 7-7 Round stickers
8 7-8 Front cover
9 Cover7-9
10 7-10 Upper cover of gear
11 7-11 Large spiral bevel gear
12 7-12 Lower cover of gear
13 7-13 Gear set
14 7-14 Inner gear
15 7-15 Ring gear lining
16 7-16 Gear shaft
17 Pin 7-17
18 7-18 Operation frame
19 7-19 Bowl seat
20 Base7-20
21 7-21 Toe-boards
22 7-22 Small spiral bevel gear
23 Motor7-23
24 7-24 Planet gear
25 7-25 Planet gear pad
26 7-26 gear
27 7-27 Oil seal 24X12X5
28 7-28 Planet shaft
29 7-29 Back cover
30 7-30 Distance switch
31 7-31 Rotating base
32 7-32 Shaft set
33 7-33 Rotating shaft
34 7-34 Plum wrench
35 7-35 Switch base
36 7-36 Power switch
37 7-37 Waterproof joint
38 7-38 Speed mark
39 7-39 Speed control
40 PCB7-40
41 7-41 travel switch
SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME

INSTRUCTION
MANUAL
©SUPERA V.1.0 | October 2014

INSTRUCTION
MANUAL
©SUPERA V.1.0| October 2014
TROUBLE AND SOLUTION
WARNING!
If the equipment is out of function, please have it is serviced by a professional.
DECLARATION OF CONFORMITY
Equipment Type:
Model:
Number:
Certificate:
Fuse tube was blown Replace the ruse with a new
one (5A)
Stirrer strikes on bowl Stirrer is deformed Check and correct the stirrer
Improper stirrer is
mounted
Check voltage
Decrease materials
Choose proper stirrer
Trouble Reason Solution
Power line is connected
improperly Check the plug
Stirring shaft doesn't
work after the mixer
starts
Motor temperature is
overheating and rotating
speed slows down
Voltage is too low
Overloaded
Supera Food Mixer

www.SuperaCo.com
© Supera 2014 Version 1 | October 2014
LIMITED WARRANTY
SUPERA PLANETARY MIXER EQUIPMENT MODELS:
Planetary Countertop Mixers: [SMX5-1, SMX7-1, SMX10-1, SMX20-1]
Planetary Floor Mixers: [SMX30-1]
SUPERA, LLC warrants to the original purchaser of new equipment that said equipment, when installed in accordance with
our instructions within North America and subjected to normal use, is free from defects in material or workmanship for one
year. Warranty includes onsite service calls within 60 miles of an authorized service company. End user is responsible for
all extra travel and mileage at prevailing rates and for original call to Supera expressing need for warranty service. Any
service provided without authorization from Supera, LLC will not be covered by Supera, LLC.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. SUPERA, LLC
EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. SUPERA, LLC HAS FINAL DESCRETION ON ALL
WARRANTY REQUESTS.
SUPERA, LLC’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY LIMITED TO REPAIRING
AND REPLACING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP WITHIN THE
APPLICABLE WARRANTY PERIOD. All repairs pursuant to this Warranty will be performed by an Authorized Designated
SUPERA, LLC Service Location during normal working hours. This warranty does not cover services performed at
overtime or premium labor rates. End user is responsible for the difference between normal service rates and premium
service rates. This warranty does not cover any service technician errors. IN NO EVENT SHALL SUPERA, LLC BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY, INCLUDING,
WITHOUT LIMITATION, LOSS OF PROPERTY, PERSONAL INJURY, LOSS OF BUSINESS OR PROFITS OR OTHER
ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGES, WHETHER IN NEGLIGENCE, WARRANTY,
STRICT LIABILITY, OR OTHERWISE.
This warranty is given only to the first purchaser from a retail dealer. No warranty is given to subsequent transferees.
Installation in a residential application will void all warranties.
Warranty does not cover product failures caused by: failure to maintain, neglect, abuse, damage due to excess water,
fire, normal wear, improper set up and use. Periodic maintenance is not covered. Warranty does not cover service
requests for free replacement and/or recall parts.
THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE STATEMENT BETWEEN THE
BUYER AND SELLER. SUPERA, LLC NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS TO ASSUME FOR IT
ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SAID EQUIPMENT.
Example of items not covered under warranty, but not limited to only these items:
1. Acts of God, fire, water damage, burglary, accident, theft.
2. Freight damage.
3. Improper installation or alteration of equipment.
4. Use of generic or after market parts.
5. Repairs made by anyone other than a SUPERA, LLC designated servicer.
6. Lubrication.
7. Expendable wear parts, adjustable feet, blown fuses, lamps, etc.
8. Cleaning of equipment.
9. Misuse or abuse.

Supera Customer Care Toll-Free Service Line:
1-866-953-3288
For additional product and warranty information,
please visit our website at:
www.SuperaCo.com
