Superior Lighting LED-9610 Series User manual

Superior Lighting 1-800-545-7778
3530 NW 53rd St Fort Lauderdale, FL 33309 www.Superiorlighting.com
Instruction and Installation Manual
LED-9610 series Grow Light
Instructions for use of LED Grow Lights
Warning: LED-9610 series Grow Lights are for indoor use only. Do not expose to water drip or spray.
Do not expose the lights to physical harm such as impact or severe environmental conditions.
Working temperature is-20°C to 40°C.
Warning:
When installing LED-9610 series Grow Lights, ensure that the power outlets are properly grounded
and have adequate capacity. If there is any doubt, please consult an electrician. Please ensure that there is
adequate clearance for airow around the lights. A minimum of 12 inches of clearance are recommended
above the light and 2 inches at the sides.
Warning: LED grow lights can cause eye damage. Avoid looking directly at the lights when they are on. Use
shielding and light blocking glasses to protect your eyes.
Warning: Never place the lamp “face down” on a surface, as it may damage the lenses.
Warning: When connecting lights in a “daisychain” fashion, the total power used must not exceed
1,100 watts at 120 volts or 2,200 watts at 240 volts. The remote control can control up to 8 xtures.
Recommendation: It is highly recommended that surge suppressors are installed to protect your grow light
investment. Power surges are one of the leading causes of premature grow light failure.
Note: LED-9600 series grow lights are equipped with thermostatic fans. The fans will generally turn on a
few minutes after the grow light is turned on. Fans may continue to run a few minutes after it is turned o.
General Instructions
Growing conditions vary widely by location and crop. It is recommended that growers use a PAR meter to
position the light so that it provides the correct amount of light for the plant. Generally these grow lamps
are mounted between 18 and 36 inches from the plants.
If lamps are being used to replace HID grow lights, it is recommended to use 50 watts of LED grow lights for
each 100 watts of HID lighting replaced. If grow lights are used as supplementary lighting is added to
accelerate the growth of plants, please closely monitor of nutrient and water feeds, as they may need
adjustmentdueto faster growth.
If you have further questions, please contact us by submitting a request to
[email protected]

Specication Sheet
LED-9611G
Grow LightFixture
Description:
LED-9611G is a 180 watt grow light xture with an aluminum body.
The xture will automatically accept an input voltage from 100277
volts. Many features are incorporated to benet growers including:
• 3 Channel light controls allows for 4 modes of operation
including Veg / Grow / Flower / Allon.
• Remote Control allows for dimming and programming of
the grow lights. (Available as an accessory)
• Daisy Chainable– allows multiple lights to use the same
power source and program or remote control.
• Multiple band spectrum is well proven for growing. The
standard spectrumincludes LEDs with wavelengths of
390nm, 430nm, 460nm, 620nm, 660nm, and 740nm. It
also has white LEDs with 2000k and 6500k.
Applications:
These xtures are designed for indoor growers, and are suitable for
a wide variety of plants. The lights can be used for all phases of
growing as they are dimmable, programmable, and have individually
controllable Veg, Grow, and Flower channels.
This can be used for a small growing area, or multiple units can be
daisy chained together to cover a large area with an even light
distribution.
Notes:
• Installing surge/lightning protectors is highly recommended to eliminate
premature failure caused by surges and other power uctuations
• All specication information falls within a +/- 5% range and is subject to
change without notice.
• Light Ecient Design is providing this information to the general public.
Please note that all products contained herein are trademarked,
copyrighted and/or have patents pending. Any use of these designs is
strictly prohibited without prior written consent. Light Ecient Design
protects its proprietary information vigorously in the courts of the United
States of America.
Superior Lighting 1-800-545-7778
3530 NW 53rd St Fort Lauderdale, FL 33309 www.Superiorlighting.com

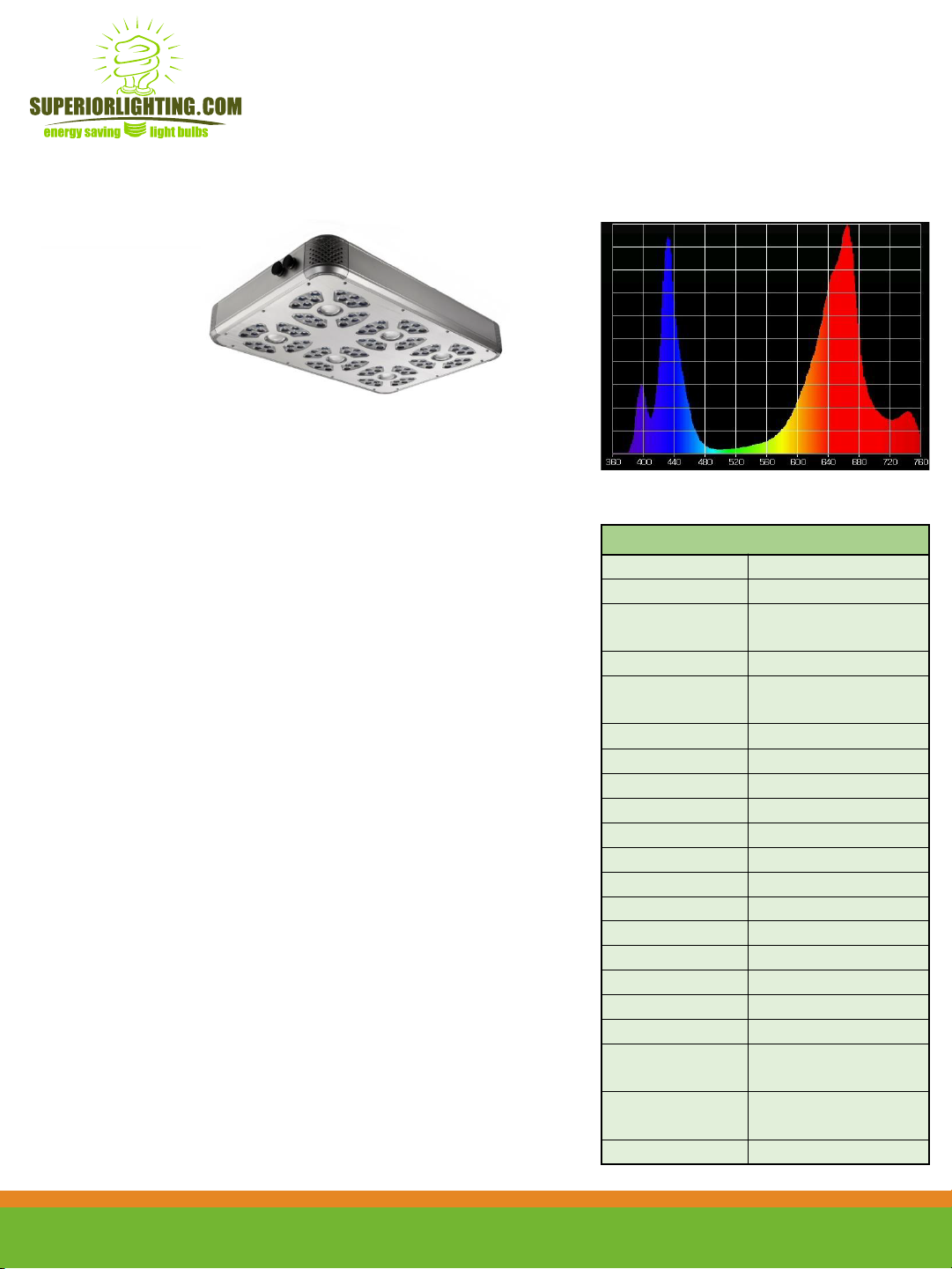

Spectrum Chart (All-on)
Intensity
Wavelength
Technical Specications
Type Fixture / Panel
Mounting Straps – Included
Housing
Material Aluminum
Input Voltage 100-277 VAC
Power
Consumption 180 Watts
PAR Output Center
1 foot 908 µmol/m2/s
2 feet 385 µmol/m2/s
3 feet 215 µmol/m2/s
4 feet 123 µmol/m2/s
LED Colors UV, B, R, FR, White
Dimmable Yes – 3 channel
Beam Angle 78°and 105°
Rated LED Life 50,000 hours
Dimensions
L x W x H 15 x 9 x 3 inches
Weight 6.6 lbs
Certications CE, FCC, ROHS
Options: Remote Control,
Daisy Chain Cables
Mercury/Lead
content None
Warranty 2 year limited

Specicaon Sheet
LED-9613G
Grow Light Fixture
Description:
LED-9613G is a 360 wagrow light re with an aluminum body.
The re will automacally accept an input voltage from 100-277
volts. Many features are incorporated to b growers including:
•3 Channel light controls allows for 4 modes of opon
including Veg / Grow / Flower / All-on.
•Remote Control allows for dimming and programming of
the grow lights. (Available as an accessory)
•Daisy Chainable – allows muple lights to use the same
power source and program or remote control.
•Muple band spectrum is well proven for growing. The
standard spectrum includes LEDs with wavelengths of
390nm, 430nm, 460nm, 620nm, 660nm, and 740nm. It
also has white LEDs with 2000k and 6500k.
Applications:
These res are designed for indoor growers, and are suitable for
a wide variety of plants. The lights can be used for all phases of
growing as they are dimmable, programmable, and have individually
controllable Veg, Grow, and Flower channels.
This can be used for a medium growing area, or muple units can
be daisy chained together to cover a large area with an even light
distribuon.
Notes:
•Installing surge/lightning protectors is highly recommended to eliminate
premature failure caused by surges and other power uctuans
•All specican informan falls within a +/- 5% range and is subject to
change without noce.
•Light Ecient Design is providing this informan to the general public.
Please note that all products contained herein are trademarked,
copyrighted and/or have patents pending. Any use of these designs is
strictly prohibited without prior wrien consent. Light Ecient Design
protects its proprietary informan vigorously in the courts of the United
States of America.
Light Eient Design Tel: [phone]
188 S. Northwest Highway. Cary, IL 60013. www.SimuLightLED.com
Spectrum Chart (All-on)
Intensity
Wavelength
Technical Specications
Type Fixture / Panel
Mounting Straps – Included
Housing
Material Aluminum
Input Voltage 100-277 VAC
Power
Consumption 360 Watts
PAR Output Center
1 foot 1,116 µmol/m2/s
2 feet 655 µmol/m2/s
3 feet 360 µmol/m2/s
4 feet 224 µmol/m2/s
LED Colors UV, B, R, FR, White
Dimmable Yes – 3 channel
Beam Angle 78°and 105°
Rated LED Life 50,000 hours
Dimensions
L x W x H 15 x 15 x 3 inches
Weight 11.6 lbs
Certications CE, FCC, ROHS
Options: Remote Control,
Daisy Chain Cables
Mercury/Lead
content None
Warranty 2 year limited
Superior Lighting
3530 NW 53rd St Fort Lauderdale, FL 33309 www.Superiorlighting.com
1-800-545-7778

Specicaon Sheet
LED-9614G
Grow Light Fixture
Descripon:
Enhanced Full Spectrum LED grow light with 540 waactual power
draw. The light spectrum includes a mixture of full spectrum and
single color LEDs to combine the b of both. Many features
are incorporated to b growers including:
• help direct the light into the plants for beer light
pon and eeness.
•3 Channel light controls allows for 4 modes of opon
including Veg / Grow / Flower / All-on.
•Remote Control allows for dimming and 24-hour
programming of the grow lights. (able as an
accessory)
•Daisy Chainable – allows muple lights to use the same
power source and program or remote control.
•Enhanced Full Spectrum is well proen for growth and
owering. The center COB proides a full spectrum of
high power lighng opmized for plant growth. The
supplemental LED hae waelengths of 390nm, 430nm,
460nm, 620nm, 660nm, 740nm and white.
Applicaons:
These res are designed for indoor growers, and will increase the
growth rate and yield of a wide ariety of plants. The lights can be
used for all phases of growing as they are dimmable, programmable,
and hae indually controllable Veg, Grow, and Flower channels.
Notes:
•Installing surge/lightning protectors is highly recommended to eliminate
premature failure caused by surges and other power uctuans
•All specican informan falls within a +/- 5% range and is subject to
change without noce.
Light Eient Design Tel: [phone]
188 S. Northwest Highway. Cary, IL 60013. www.SimuLightLED.com
Spectrum Chart (All-on)
Intensity
Waelength
Technical Specicaons
Type Fixture / Panel
Mounng Straps – Included
Housing
Material Aluminum
Input Voltage 100-277 VAC
Power
Consu 540 Wa
PAR Output Center
1 foot 1,352 µmol/m2/s
2 feet 899 µmol/m2/s
3 feet 485 µmol/m2/s
4 feet 333 µmol/m2/s
LED Colors Enhanced Full Spectrum
Dimmable Yes – 3 channel
Beam Angle 78°and 105°
Rated LED Life 50,000 hours
Dimensions
L x W x H 21 x 15 x 3 inches
Weight 15.3 lbs
Cercaons CE, FCC, ROHS
Opons: Remote Control,
Daisy Chain Cables
Mercury/Lead
content None
Warranty 2 year limited
Superior Lighting
3530 NW 53rd St Fort Lauderdale, FL 33309 www.Superiorlighting.com
1-800-545-7778
