• Avoid contact with hard or sharp items. Do not rest your bike with the top tube of the frame against a column
or corner of a building.
• When xing the wheel, place the entire bike in a stand and clamp the seatpost and avoid high side loads; this
especially applies when replacing the bottom bracket and cranks/crankset. High loads can lead to damage
of the seatpost or frame.
• When transporting the bike on a car, use a bike carrier that xes the bike using the seatpost or front wheel
axle. Do not x the bike to the frame.
• Frames are not suitable for use on stationary bicycles xed to the
rear stay. The bike then cannot move, which leads to excessive load
on the end of the frame. This can cause damage to the frame.
• The frame is not suitable for the xture of any children's seats or
carriers.
• If you are transporting the bike in a box, make sure that the bike is
kept safe, for instance by using a soft foam cover. Make sure that
there are no foreign items or that excessive pressure or force from
these items cannot break or damage the frame. Please keep in mind that the warranty does not apply to
damage caused during transit.
• Neither the frame nor the carbon components can ever come in contact with high temperatures such as those
used in the case of powder spraying or cauterizing varnish. Such temperatures can damage the frame and
components. Also avoid leaving the bike in a car in case of strong solar radiation. Similarly, do not keep your
bike in the vicinity of sources of high temperatures.
SUPERIOR SERVICE
MANUAL
Superior would like to congratulate you on the purchase of your new bicycle. We place great emphasis on the choice
of materials and their processing so as to ensure the highest quality of our products, a long service life and great
functionality.
The Servis Manual contains and species certain rules that should be followed if you want to enjoy your high-quality
Superior product for many years to come. You have received the Operating Manual with your bike.
Superior supplies high-quality bicycles exclusively for specialized shops. These products are already partially pre-
assembled.
The nal assembly of a bike for riding can only be carried out by an authorized Superior dealer. This particularly
applies to the basic conguration of suspension components, the front and back derailleurs and braking systems.
This will ensure maximum safety when using the product.
WARNING
WARNINGS RELATED TO
MECHANICAL WORK
Specialized skills and tools are required to
congure and tune the bike. These tasks should
only be carried out by employees at an authorized
service station. Riding a bike that has not been
correctly congured and assembled can be
dangerous. Even a seemingly minor deciency,
such as a loose screw, can cause a crucial part to
break over time and the loss of control of the bike,
leading to an accident. Therefore, we recommend
that you leave any repairs and maintenance for
your bicycle to an authorized service centre. Your
safety depends on the correct maintenance of the
bike. Employees of authorized service stations
have special qualications and know-how.
WARNING
Any adjustments and modications can lead to
the frame, fork or other parts becoming unsafe.
The use of an unapproved component or the
incorrect assembly of parts can lead to excessive
wear and tear of the bike or its parts. Adjustments
to the frame, fork or other components can have
a negative impact on the handling of the bike and
may lead to a fall. Do not grind off, drill or le any
parts; do not remove backup safety elements,
do not install incompatible forks and do not
make any other similar unauthorized changes.
Before you install any accessories on your
bicycle, or replace any part, always consult the
service centre staff to make sure the particular
accessory or part is compatible and safe to use.
Type-2 operating conditions
Riding on paved roads and unpaved and gravel roads and trails with moderate grades.
In this set of conditions, contact with irregular terrain and loss of tire contact with the
ground may occur. Drops are intended to be limited to 15 cm (6 in.) or less.
BIKE CATEGORY
PREVENTING DAMAGE
This bikes are equipped with only front suspension fork with short travel and are constructed for “standard” rides,
assuming adherence to type-2 operating conditions:
SERVICE INTERVALS
• Large-scale service – at an authorized service centre, at least 1× per year or after 200 hours of riding.
• Check the tightening of moving parts before and after each ride. The prescribed torques of individual joints
(see the diagram below) must be strictly observed.
• Bearings and pivots should be lubricated at least 1× per half a year.
• Consult your dealer about the exact service plan and maintenance schedule of your bicycle. The dealer shall
propose the schedule depending on the model of your bicycle and the way you use it. The service intervals
stated above are the recommended maximum intervals for regular bicycle maintenance, i.e. they cannot be
extended under any circumstance. If you ride your bicycle more intensively, or if your dealer advises you to, we
recommend that you shorten the intervals and extend the scope of tasks carried out. For example, if you ride
your bicycle in adverse climatic conditions, over hard terrain or if you have equipped your bicycle with specic
components with a different service interval and scope of regular maintenance stated by their manufacturer
(exact instructions regarding the service of particular components will be provided by your dealer).
SETTING THE FORK
SETTING THE REBOUND FOR THE FORK
• Rebound is a term used to describe the speed of the fork returning to its original position after absorbing a
shock. The control for adjusting the rebound is usually located at the lower end of the fork leg.
• When sitting on the saddle, ride off an edge of approx. 10 -15 cm in height.
• If the fork rocks 1 or 2 times, the rebound is set correctly.
• If the fork rocks more than 3 times, the rebound is too fast.
• If the fork does not rock at all, the rebound is too slow.
CONFIGURING THE FORK STIFFNESS (SAG)
• The fork must always be unlocked while being congured.
• Move the rubber indication ring located on the inner fork leg to the dust cap.
• Sit on the bicycle with your full weight and then get off it carefully, without rocking the bike.
• Check the position of the ring and make sure that the fork is set in accordance with the values stated in the
chart (see below), or adjust the pressure in the fork as needed.

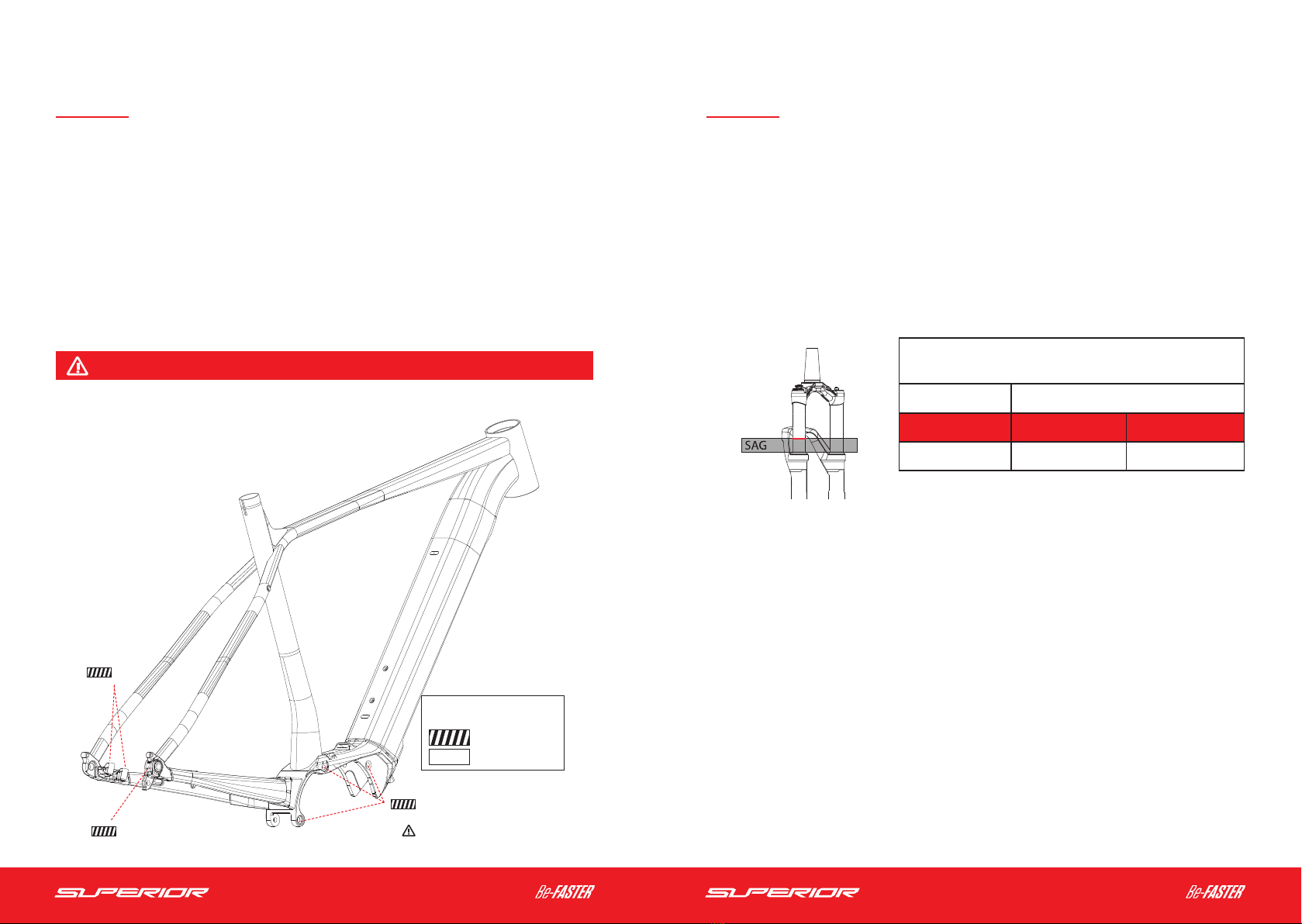

max. 1Nm (no laser marking)
Blue nylock
No nylock
THREAD LOCKING AGAINST
SPONTANEOUS RELEASE
4 Nm
MOTOR SCREWS
10 - 12.5 Nm
It is necessary to tighten the
screws on the right side rst,
then the screws on the left side!
Depending on your riding style and the way you use your bike,
the sag should range between 15-25% of the travel
Fork
SAG % mm
Travel 65 mm 15 - 20 % 9 -13 mm
WARNING
The warranty may be voided if the service intervals and prescribed torques are not adhered to.
Tighten the screws of the motor plastic cover only to 0.6 Nm!
SERVICE
A1
A3
A2
B2
B1

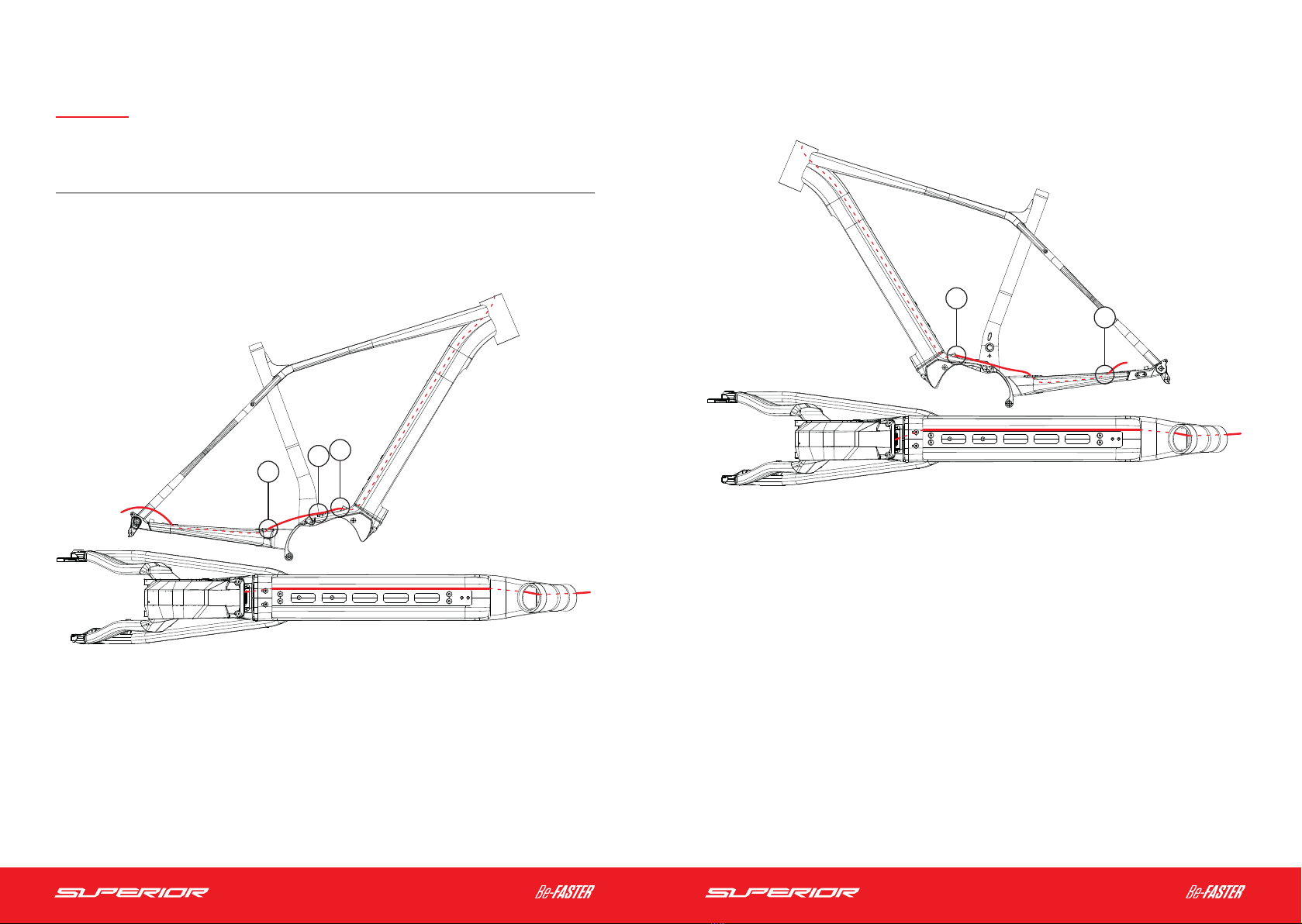

1 REPLACING THE REAR DERAILLEUR CABLE
1.1 Slide the old cable out from the guide in the frame.
1.2 Slide a new cable in the frame through the hole A1 and pull it out through the head tube upwards.
1.3 Slide the cable through the hole A2 in the right chain stay.
1.4 Fix the cable to the hitch A3 using a tying strip.
REPLACING THE CABLES AND HOSES
Ducts are made using guiding tunnels inside of the bicycle frame. The ducts allow easy and quick replacement of
cables and hoses within their full length without need to break them.
2 REPLACING THE HYDRAULIC HOSE OF THE REAR BRAKE
2.1 Slide the old hose out from the guide in the frame.
2.2 Slide a new hose in the left chain stay through hole B1.
2.3 Put the hose from the inner side under the main pivot.
2.4 Insert the hose through the hole B2 in the frame and slide the head tube out upwards.
C2
C1
1
2
3 REPLACING THE TELESCOPIC SEATPOST CABLE
3.1 Slide the old cable out from the guide in the frame.
3.2 Slide a new cable in the frame through the hole C1 and pull it out through the head tube upwards.
3.3 Slide the cable in through the hole C2 and pull it through the seatpost tube.
4 FASTENING THE CABLES, HYDRAULIC HOSE AND DISPLAY CABLE
4.1 Fasten the cables, hydraulic hose and display cable to the docking station bar using tying strips.
4.2 Tighten the telescopic seatpost cable so that it would remain movable.
4.3 Put the foam Jagwire SFA07A5M sleeve on the cables, hydraulic hose and display cable in length only up to
the headset.
5 PULLING THE CABLES, HYDRAULIC HOSE AND DISPLAY CABLE THROUGH
THE HEADSET AND SPACER RINGS
5.1 Pull the cables, hydraulic hose and display cable through the headset bearing lid and spacer rings so that the
telescopic seatpost cable and display cable would be positioned on the right-hand side when viewing from the
front (1).
5.2 Pull the shifting cable and rear brake hydraulic hose through so that they would be positioned on the left-hand
side when viewing from the front (2).
COMPATIBILITY
Brake Rotors Front Ø 160 -180 mm
Rear Ø 140 -180 mm
Tyre max. 29 x 2.60”
Chainring 1× max. number of teeth 38
Crankset Q factor min. 168 mm
Headset ACROS AZX-581, ZERO STACK, 1-1/8“X1.5“, BLOCKLOCK
Bottom Bracket Shimano STePS Middle Drive Unit
Seatpost Clamp Ø 34.9 mm min. clamp height 10 mm
Seatpost Ø 30.9 mm
min. insertion
/ frame size 100 mm / 15.5”-21.0”
max. insertion
/ frame size
140 mm / 15.5”
175 mm / 17.5”
225 mm / 19.0”
270 mm / 21.0”
Fork Travel 65 mm
SERVICE
SMART TIPS
To improve handling and comfort and to prevent defects, we recommend installing a tubeless
system.
10
9
11
7
12
88
13
15 1614
12
10
63
17
20
11 12
4
5
21
19
18
14
15
13 7
8
9
18 22

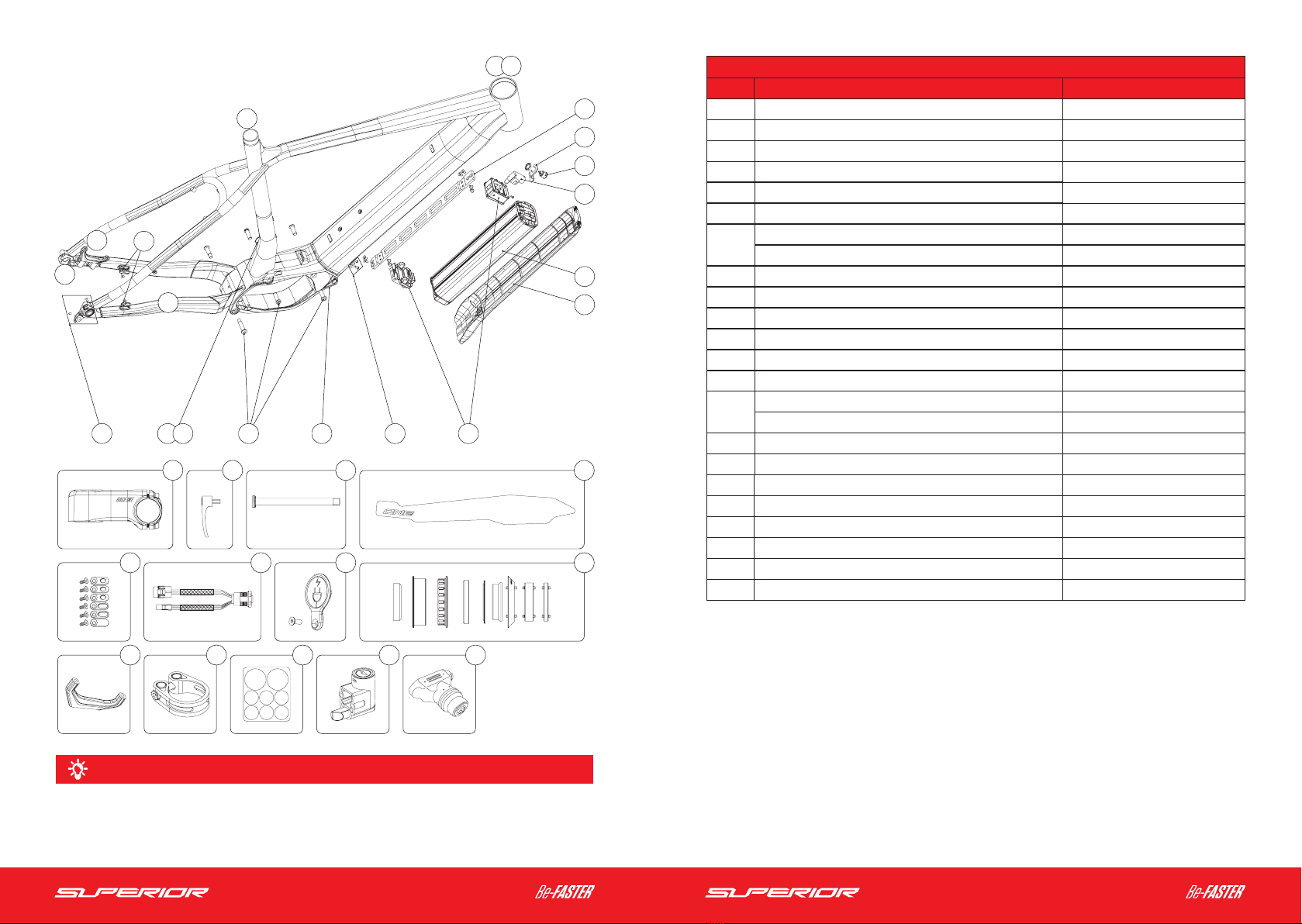

ORIGINAL ACCESSORIES
ART. NO. ITEM BFI PRODUCT CODE
1DERAILLEUR HANGER 598.1303.00010
7MOTOR SCREW SET 598.1303.00022
3COVER LOCKHOLD 013.0017.00016-372
4DOCK PLATE 095.0010.00018-372
5POWER SWITCH HANGER 095.0010.00019-372
6SKID PLATE 013.0019.00001-372
7STEM 60 MM 036.2553.00036-196
STEM 80 MM 036.2433.00021-196
8E-THRU AXLE 598.1303.00019
9FRAME PROTECTOR CH/S 087.8000.00022-196
10 INTERNAL CABLE ROUTING SET 013.0003.00129-372
11 CHARGER 095.0008.00019-396
12 CHARGER COVER 095.0010.00023-372
13 HEADSET 009.1205.00002-389
14 DB MOUNT 160 MM 069.0017.00002-372
DB MOUNT 180MM 069.0017.00003-372
15 SEATPOST CLAMP 011.0302.00096-196
16 FRAME PROTECTOR 087.7000.00009-196
17 BATTERY MOUNT 095.0013.00022-396
18 BATTERY MOUNT LOCK 098.0002.00093-276
19 BATTERY 503 WH 095.0003.00073-396
20 BATTERY COVER 013.0020.00003-196
21 POWER BUTTON 095.0016.00003-396
22 CHARGING ADAPTER 095.0012.00007-396
