Superior STANDARD SERIES and User manual

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 1
Unvented Gas Log Room Heaters
P/N 903623 REV. M 12/2007
MODELS
STANDARD SERIES
FOR USE ONLY WITH DECORATIVE TYPE UNVENTED ROOM
HEATERS.
FOR YOUR SAFETY: Do not store or use gasoline
orotherflammablevaporsorliquidsinthevicinity
of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
Follow your gas suppliers instructions.
• If your gas supplier cannot be reached, call the
fire department.
Installationandservicemustbeperformedbyaquali-
fied installer, service agency or the gas supplier.
CAREFULLYREVIEWTHEINSTRUCTIONSSUPPLIEDWITH
THE DECORATIVE TYPE UNVENTED ROOM HEATER FOR
THE MINIMUM FIREPLACE SIZE REQUIREMENT.
DO NOT INSTALL THE APPLIANCE IN THIS FIREBOX, UN-
LESS THIS FIREBOX MEETS THE MINIMUM DIMENSIONS
REQUIRED FOR THE INSTALLATIONS.
This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed.
Provisionsforadequatecombustionandventila-
tion air must be provided. Refer to Combustion
and Ventilation Air Section, Page 3.
Due to high temperatures, the appliance should be located out
of traffic and away from furniture or draperies.
Do not place clothing or other materials on or near this
appliance.
IMPORTANT: READ AND UNDERSTAND THESE INSTRUCTIONS
COMPLETELY BEFORE INSTALLING YOUR UNVENTED ROOM
HEATER.
*Note:Manualcontrol modelsare alsodesigncertified foruse asvented
gas log sets.
VFGL-18VSN-4 Series VFGL-18MSN-4 Series*
VFGL-18VSP-4 Series VFGL-18MSP-4 Series*
VFGL-24VSN-4 Series VFGL-24MSN-4 Series*
VFGL-24VSP-4 Series VFGL-24MSP-4 Series*
VFGL-28VSN-4 Series VFGL-28MSN-4 Series*
VFGL-28VSP-4 Series VFGL-28MSP-4 Series*
WARNING:IMPROPERINSTALLATION,ADJUSTMENT,AL-
TERATION, SERVICE OR MAINTENANCE CAN CAUSE IN-
JURY OR PROPERTY DAMAGE. REFER TO THIS MANUAL.
FOR ASSISTANCE OR ADDITIONAL INFORMATION CON-
SULT A QUALIFIED INSTALLER, SERVICE AGENCY OR THE
GAS SUPPLIER.
WARNING:IFTHEINFORMATIONINTHISMANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SIONMAYRESULTCAUSINGPROPERTYDAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
WARNING: DO NOT BUILD A WOOD FIRE. DO NOT BURN
WOOD OR OTHER MATERIAL IN THESE APPLIANCES.
INSTALLATION AND
OPERATING INSTRUCTIONS
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
US

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
2
TABLE OF CONTENTS
General Information......................... page 2
Inventory ......................................... page 2
Tools Required ................................ page 2
Important Safety Information .......... page 2
Codes .............................................. page 3
Combustion and Ventilation Air ....... page 3
Preinstallation.................................. page 4
Clearances ....................................... page 4
Installation....................................... page 6
Gas Pressure Check......................... page 7
Flame Appearance ........................... page 8
Operation......................................... page 8
Cleaning and Servicing .................... page 8
Replacement Parts .......................... page 8
Optional Equipment/Accessories ..... page 9
Heater Specification Chart ............... page 10
Heater Technical Detail Chart ........... page 10
Troubleshooting Guide .................... page 11
Operating Instructions – Manual ..... page 12
Operating Instructions – Millivolt .... page 14
Replacement Parts List.................... page 16
GENERAL INFORMATION
TheseUnventedGas Log RoomHeatersincor-
porate unitized ceramic fiber logs which glow
realistically when the heater is operating.
The log sets covered in this document are
manually controlled heater rated units. These
unitsareequippedwitheitherastandardmanual
gas valve or a millivolt gas valve. The control
knobissettothedesiredposition,whichmain-
tains a continuous gas burning rate.
A spark ignition system (piezo) allows the gas
pilot to be lit without the use of matches or
batteries and permits operation of the heater
during a power outage.
These heaters are fitted with a specially de-
signed pilot utilizing an oxygen depletion sen-
sor (ODS) which responds to the amount of
oxygen available in the room and shuts the
heater off before the oxygen level drops below
18%. Thepilot can berelit only when fresh air
is available. Refer to the Combustion and Ven-
tilation Air section.
WARNING: THIS APPLIANCE IS FOR IN-
STALLATION ONLY IN A SOLID FUEL
BURNINGFIREPLACEWITHAWORKING
FLUEORANAPPROVEDVENTLESSFIRE-
BOX ENCLOSURE.
Minimum Fireplace (Firebox) Size
Log Set Height Depth Width
18" Models 16" 14" 20" Front
19" Rear
24" Models 16" 14" 35" Front
27" Rear
28" Models 16" 14" 38" Front
30" Rear
Table 1
Do not install these Unvented Gas Log Room
Heaters in a bedroom or a bathroom as all
units exceed maximum allowable BTU/hr in-
put of 10,000.
Checktheinventorylisttobesurethatyouhave
allthenecessarypartsinusablecondition.Also
check for concealed damage.
Inventory
Unvented gas log room heater
Two (2) screws
Bag of decorative volcanic rock
Ceramic fiber log set
Installation and Operating Instructions
Tools and Supplies Normally Required
Externalregulator(Propanemodelsonly)
Manual shut-off valve
Sediment trap
Piping complying with local codes
Pipe compound
Pipe wrench
Tee joint
Screwdriver
IMPORTANT SAFETY INFORMATION
INSTALLER:PLEASELEAVETHESEINSTRUC-
TIONS WITH THE OWNER.
OWNER: PLEASE RETAIN THESE INSTRUC-
TION FOR FUTURE REFERENCE
IMPORTANT:READTHESEINSTALLATIONIN-
STRUCTIONSCAREFULLY BEFORE INSTALL-
ING OR TRYING TO OPERATE THIS HEATER.
WARNING: FAILURE TO COMPLY WITH
THEINSTALLATIONANDOPERATINGIN-
STRUCTIONSPROVIDED INTHISDOCU-
MENTWILLRESULTINANIMPROPERLY
INSTALLED AND OPERATING APPLI-
ANCE, VOIDING ITS WARRANTY. ANY
CHANGE TO THIS APPLIANCE AND/OR
ITSOPERATINGCONTROLSISDANGER-
OUS. IMPROPERINSTALLATIONORUSE
OF THIS APPLIANCE CAN CAUSE SERI-
OUS INJURY OR DEATH FROM FIRE,
BURNS, EXPLOSION OF CARBON MON-
OXIDE POISONING.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning are similar to
thefluwithheadaches,dizzinessand/ornau-
sea.Ifyouhavethesesigns,obtain fresh air
immediately. Turn off the gas supply to the
applianceandhaveitservicedbyaqualified
professional, as it may not be operating
correctly.
•Duetohightemperatures,theheatershould
belocatedoutoftrafficandawayfromfurniture
and draperies.
•Children and adults should be alerted to the
hazardofhighsurfacetemperatureandshould
stay away to avoid burns or clothing ignition.
•Young children should be carefully super-
visedwhen theyare in the same roomwith the
heater.
•Do not place clothing or other flammable
material on or near the heater.
•Any safety screen or guard removed for
servicing the heater must be replaced prior to
operating the heater.
•Installation and repair should be done by a
qualified service person. The heater should be
inspectedbefore useand atleast annuallyby a
professional service person. More frequent
cleaning may be required due to excessive lint
from carpeting, bedding material, etc.
It is
important that control compartments, burn-
ers and circulating air passageways of the
heater be kept clean.
•Allow the heater to cool before servicing.
Always shut off the gas to the heater while
performing service work.
•Do not install the heater in a bedroom or
bathroom.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 3
•The installation must conform with local
codesor,intheabsenceoflocalcodeswiththe
National Fuel Gas Code, ANSI Z223.1.
•The heater and its individual shut-off valve
must be disconnected from the gas supply
pipingsystemwhileperforminganytestsofthe
gas supply piping system at pressures in ex-
cess of 1/2 psig.
•The heater must be isolated from the gas
supply piping system by closing its individual
manualshut-offvalveduringanypressuretest-
ing of the gas supply piping system at test
pressures equal to or less than 1/2 psig.
•Keep heater area clear and free from com-
bustible materials, gasoline and other flam-
mable vapors and liquids.
•Do not use this heater if any part has been
under water. Immediately call a qualified ser-
vice technician to inspect the room heater and
to replace any part of the control system and
any gas control which has been under water.
•InputratingsareshowninBTUperhourand
areforelevationsupto4,800feet.Donotinstall
thisheateratanelevationabove4,800feetifthe
gassupplyhasnotbeenderatedforthateleva-
tion. Consult your local gas supplier. (For op-
eration at elevations above 4,800 feet, equip-
ment ratings shall be reduced at the rate of 4
percent for each 1,000 feet above sea level
beforeselectingappropriatelysizedequipment.)
•Ensurethat the heateris clean whenoperat-
ing.Excessivedustaccumulationontheburner
and/orlogs will increasethe amount ofcarbon
monoxide formation and could lead to carbon
monoxide poisoning and/or death.
CODES
Adheretoalllocalcodesorintheirabsencethe
latest edition of The National Fuel Gas Code
ANSIZ223.1orNFPA54whichcanbeobtained
from The American National Standards Insti-
tute, Inc. (1430 Broadway, New York, NY,
10018)orNationalFireProtectionAssociation,
Inc.(Batterymarch Park, Quincy,MA, 02269).
MassachusettsAndNewYorkRequire-
ments
Theseappliancesareapprovedforinstallation
in the following USA locations listed in the
following:
Massachusetts:
These fireplaces are approved for installation
intheUSstate of Massachusettsifthe follow-
ing additional requirements are met-
• Installation and repair must be done by a
plumberorgasfitterlicensedintheCommon-
wealth of Massachusetts.
•Theflexiblegaslineconnectorusedshallnot
exceed 36 inches (92 centimeters) in length.
• The individual manual shut-off must be a T-
handle type valve.
•Vent-FreeappliancesmayNOTbeinstalledin
bedrooms or bathrooms.
• A working smoke detector must be installed
in the area where vent-free appliances are
installed.
Seller of unvented propane or natural gas-
fired supplemental room heaters shall pro-
videtoeachpurchaseracopyof527CMR30
upon sale of the unit.
New York:
These fireplaces are approved for installation
in the US state of New York, but not in New
York city.
Stateorlocalcodesmayonlyallowoperationof
thisappliance(manualversiononly)inavented
configuration.Check your stateor localcodes.
Superior Unvented Gas Log Room Heaters are
certified by OMNI to ANSI Z21.11.2 standard.
These gas log room heaters may be used as a
spaceheatsourceforaroominconjunctionwith
an approved unvented firebox. Additionally,
manuallycontrolledunitsaredesigncertifiedby
OMNI to ANSI 21.60 as a vented gas log set.
Assuch,manuallycontrolledunitsmaybeused
as a vented gas log set in any wood-burning
fireplacethathasbeenproperlyconstructedto
code,andinthecaseoffactorybuiltfireplaces,
installedincompliancewithmanufacturerslist-
ing and installation instruction.
Useofthemanuallycontrolledlogsetscovered
by this manual in a properly vented wood-
burning fireplace which has had the damper
blocked open as detailed in these installation
instructionsprecludeconsiderationofthecom-
bustion and ventilation air and clearance to
combustible restrictions discussed herein.
COMBUSTION AND VENTILATION AIR
These heaters shall not be installed in a con-
fined space. The heater may be located in
unusually tight construction provided the
space is unconfined, or if confined, is pro-
videdwithtwopermanentopenings commu-
nicating directly with an additional room(s)
of sufficient volume so that the combined
volume of all connected spaces meets the
criteria for an unconfined space, (National
Fuel Gas Code ANSI Z223.1 (latest edition),
Section5.3). Generally 50ft 3per1,000 BTU
inputofalloperatingappliancesinthespace.
The National Fuel Gas Code defines a con-
fined space as a space whose volume is less
than50 ft 3per1,000BTU/Hr(4.8m3perkw)
oftheaggregateinputratingofallappliances
installed in that space and an unconfined
space as a space whose volume is not less
than50ft 3per1,000BTU/Hr(4.8 m3perkw)
oftheaggregateinputratingofallappliances
installed in that space. Rooms communicat-
ingdirectlywiththespaceinwhichtheappli-
ances are installed, through openings not
furnishedwithdoors,areconsideredapartof
the unconfined space.
Unusually tight construction is defined as
construction where:
a. wall and ceilings exposed to the outside
atmosphere have a continuous water vapor
retarderwitha ratingorone perm orless with
openings gasketed or sealed, and
b. weatherstripping has beenadded on oper-
able windows and doors, and
c.caulkingorsealantsareappliedtoareassuch
as joints around window and door frames,
between sole plates and floors, between wall-
ceiling joints, between wall panels, at penetra-
tions for plumbing, electrical, and gas lines,
and at other openings.
Usethefollowingequationstodetermineifyou
have a confined or unconfined space.
1.Determine the volume of space — ft 3.
Length x Width x Height = _____ ft 3
(Includeadjoiningroomswithdoorlesspas-
sageways or ventilation grills between
rooms.)
Example:24'(L)x16'(W)x8'(H)=3072ft 3

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
4
Thespaceinthepreviousexampleisaconfined
spacebecause the actual BTU/Hr usedis more
than the maximum BTU/Hr the space can sup-
port. You must provide additional fresh air.
Your options are:
a.Rework equations adding the space of ad-
joiningroom(s).Iftheextravolumeprovides
an unconfined space, then remove door or
add ventilation grills between rooms. Refer
to National Fuel Gas Code, ANSI Z223.1,
Section 5.3.
b.Ventroomdirectlytotheoutdoors.Referto
National Fuel Gas Code, ANSI Z223.1, Sec-
tion 5.3.
c. Install a lower BTU/Hr heater, such as a
24,000 BTU/Hr, to make the area an uncon-
fined space.
If the actual BTU/Hr used is less than the
maximumBTU/Hr the space can support,then
thespaceisanunconfinedspace.Youwillneed
noadditionalfreshairventilationforanuncon-
fined space.
2.Divide the volume of space by 50 ft 3to
determine the maximum BTU/Hr the space
can support.
______ (volume of space – ft 3)/ 50 ft 3=
(Maximum BTU/Hr the space can support)
Example: 3072 ft 3/ 50 ft 3= 61.44
or 61,440 BTU/Hr the space can support.
3.Add the BTU/Hr of all the fuel burning appli-
ances in the space.
Vent-Free heater _______ BTU/Hr
Gas appliance #1* _______ BTU/Hr
Gas appliance #2 + _______ BTU/Hr
Total = _______ BTU/Hr
Example:
Vent-free heater 32,000 BTU/Hr
Gas appliance #1 35,000 BTU/Hr
(water heater) Total = 67,000 BTU/Hr
*Do notinclude direct-ventgas appliances.
Direct-ventissealedcombustion and draws
combustion air from the outdoors.
4. Compare the maximum BTU/Hr the space
can support with the actual amount of BTU/
Hr used.
_________ BTU/Hr
(max. the space can support)
_________ BTU/Hr
(actualamountofBTU/Hrused)
Example:
61,440 BTU/Hr
(max. the space can support)
67,000 BTU/Hr
(actualamountofBTU/Hrused)
WARNING: IF THE AREA IN WHICH THE
HEATERMAYBEOPERATEDISSMALLER
THAN THAT DEFINED AS AN UNCON-
FINED SPACE, PROVIDE ADEQUATE
COMBUSTIONANDVENTILATIONAIRBY
ONE OF THE METHODS DESCRIBED IN
THE NATIONAL FUEL GAS CODE, ANSI
Z223.1, SECTION 5.3 OR APPLICABLE
LOCAL CODES.
PREINSTALLATION
WARNING: BEFORE INSTALLING IN A
SOLID FUEL BURNING FIREPLACE, THE
CHIMNEY FLUE AND FIREBOX MUST BE
CLEANED OF SOOT, CREOSOTE, ASHES
ANDLOOSEPAINTBYAQUALIFIEDCHIM-
NEY CLEANER.
Note:Illustrationsshowninthismanualreflect
“typical”installationswithnominaldimensions
and are for reference only. Actual installations
mayvarydue toindividualdesign preferences.
However,alwaysmaintainminimumclearances
tocombustiblematerialsanddonotviolateany
specificinstallationrequirements.RefertoFig-
ures 1 through 7 for clearances.
Note:Thefollowingstepsrepresentthenormal
sequence of installation. Each installation is
unique,however, and might requirea different
sequence.
When local codes require the damper to be
fixedopen,adamperstopmustbeinstalledto
prevent full closure of the fireplace damper
and provide a minimum 29 square inch flue
opening at all times. Refer to accessories for
damper clamp.
If damper clamp is not available, the damper
maybefixedopeninthefollowingmanner. Drill
aholeintheendofthedamper. Screwinabolt
of sufficient size and adjust to provide the
minimum 29 square inches of flue opening.
CAUTION:HEATERSCREATEWARMAIRCUR-
RENTS. THESE CURRENTS MOVE HEAT TO
WALLSURFACESNEXTTOHEATER.INSTALL-
INGHEATERNEXTTOVINYLORCLOTHWALL
COVERINGSOR OPERATING HEATER WHERE
IMPURITIES IN THE AIR (SUCH AS TOBACCO
SMOKE) EXISTS, MAY DISCOLOR WALLS.
• Turnoffgassupplytothefireplaceorfirebox.
• Position heater in fireplace or firebox.
• Connect gas line.
•Secure heater.
• Assemble logs and test flame.
• Sprinklevolcanicrockoverbaseplateinfront
of and below the main burner.
Check Gas Type
This heater can only be connected to the gas
type specified on the heater rating plate. This
heater can not be modified in the field for a
differentgastype.Ifthegassupplydiffers,DO
NOTINSTALLtheheater.Contactyourdealerto
obtain the correct heater.
CLEARANCES
WARNING: DO NOT INSTALL THIS GAS
HEATER:
• IN SLEEPING QUARTERS, BATH-
ROOMS, A MOBILE HOME, OR A REC-
REATIONAL VEHICLE.
• WHERE CURTAINS, FURNITURE,
CLOTHINGOROTHERFLAMMABLEOB-
JECTS ARE LESS THAN 42" FROM THE
FRONT OF THE GAS HEATER.
• IN HIGH TRAFFIC AREAS.
• IN WINDY OR DRAFTY AREAS.
Ensuretheminimumclearancesshownin Fig-
ures1through7 aremaintained.Leftandright
clearances are determined when facing the
front of the heater.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 5
Noncombustible Material Requirements with No Mantel Installed
(A) Noncombustible Material Measurement Requirements for Safe Installation
12" or more Adjustable canopy not required.
8" minimum to 12" Install adjustable canopy, P/N 053752
(
Figure 3 ).
Less than 8" Extend noncombustible material to at least
8" and install adjustable canopy ( Figure 3 ).
or
Extend noncombustible material to a height
of at least 12".
Table 2
Noncombustible Material Heights and Mantel Location
Requirements for Safe Installation
with Wood Mantel, Shelf or
Noncombustible Material Measurement Other Combustible Projection
12" or more Adjustablecanopynotrequired.Observepro-
files shown in
Figure 4 .
8" minimum to 12" Install adjustable canopy and observe pro-
files shown in
Figure 5 .
or
Extend heat resistant material to at least 12"
and observe profiles shown in
Figure 4 .
Table 3
8" or More of
Noncombustible
Material
Heater in Fireplace
or Firebox
Adjustable
Canopy
Step 4. Wood mantel, shelf or combustible
projection requirements: To install a wood
mantel, shelf or other combustible projection
directly above the fireplace (firebox), refer to
Table 3 and to Figures 4 and 5 for installation
profiles.
Ifyourmantelprofileisunsafe,youmayeither:
•Raisethemanteltoanacceptableheight,or
•Remove the mantel.
Example:Thebottomofthemantelmayproject
from the wall a maximum of 2-1/2" at a mini-
mumof28"abovetheopening.Thetopshelfof
the mantel may project a maximum of 6" at a
minimum of 34-1/2" above the opening.
Figure 4
Figure 3
Step3.Noncombustiblematerials(minimum
requirements):Toinstalltheroomheaterwith-
out wood mantels, shelves or other combus-
tible projections directly above the opening of
the fireplace (firebox) refer to Figure 2 and
Table2. Notethatatleast8"ofnoncombustible
material must be installed above the heaters
described in this manual.
Noncombustible materials, such as slate and
marble, must be at least 1/2" thick.
Figure 2
Noncombustible
Material
A
Heater in Fireplace
or Firebox
Follow these instructions carefully to ensure
safeinstallation.Failuretofollowtheserequire-
ments may create a fire hazard.
Step 1. Sidewall Clearances: Thesidesof the
fireplaceopeningmustbeatleast16"fromany
combustible side wall ( Figure 1 ).
Figure 1
Step2.CeilingClearance:Theceilingmustbe
at least 42" from the top of the heater opening
( Figure 1 ).
16"
Min.
42"
Min.
Heat Resistant
Material 12"
28"
34-1/2"
38-5/8"
42"
10"
2-1/2"
6"
8" Ceiling

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
6
To avoid any movement of the heater during
operation, attach the grate to the floor of the
fireplaceor fireboxusing the screws provided.
Slots along the back flange of the log set are
provided. After centering the grate correctly,
markthepositionsofthebottomoftheslotson
the fireplace/firebox floor. Drill two (2) 9/64"
diameterholeswithmasonrydrillapproximately
1/2" deep.
Preliminarily anchor the grate to the fireplace/
firebox floor with the two (2) screws provided
(
Figure 8 ). Loosen screws and proceed with
the installation.
Anchor Screw
(Both Sides)
Alternate
Location
Figure 8
Step 2. Connecting Gas Line – Aqualified gas
applianceinstallermust connect thegasroom
heater to the gas supply.
Consult all local codes.
Route gas line using techniques and materials
prescribedbylocaland/ornationalcodes.Only
use pipe of ¹⁄₂" or greater diameter to allow full
gas volume to the gas fireplace. Undue pres-
sure loss will occur if the pipe is too small.
An ANSI approved manual shut-off valve and
unionmustbeinstalledupstream of theheater
within the fireplace cavity when rigid pipe is
used.
Ensure that a sediment trap is installed up-
stream of the heater within the structures
piping system to prevent moisture and con-
taminants from passing through the pipe to
the heater controls and burners ( Figure 9 ).
Failureto do socould prevent the heater from
operating reliably.
IMPORTANT: HOLD HEATER REGULATOR
WITH A WRENCH TO PREVENT MOVEMENT
WHEN CONNECTING TO INLET PIPING
An external regulator must be used on all pro-
pane(L.P.G.)heaters,inadditiontotheregula-
torfittedtotheheater,toreducethesupplytank
pressure to 13" w.c. (maximum).
Example:Thebottomofthemantelmayproject
from the wall a maximum of 2-1/2" at a mini-
mum of 8" above the opening. The top shelf of
the mantel may project a maximum of 6" at a
minimum of 14-1/2" above the opening.
Figure 5
Step 5. Floor clearance: If combustible floor-
ingmaterials,suchas carpeting orasphalttile,
are to be located within 14" of the fireplace or
fireboxopening,theroomheaterbasemustbe
at least 5" above the combustible flooring ma-
terial ( Figure 6 ).
Figure 6
The room heater base may be lower than 5"
above the combustible flooring materials if
the combustible flooring materials are more
than14"fromthefireplaceorfireboxopening
( Figure 7 ).
Figure 7
Heat Resistant
Material
14-1/2"
18-5/8"
22-1/2"26"
10"
2-1/2"
6"
8"
12"
8"
Min.
Hood (Canopy)
Combustible
Material
5" Min.
Combustible
Material
Combustible
Material
Can be less
than 5"
14" Min.
(Both Sides Of Opening)
INSTALLATION
WARNING: DO NOT ALLOW FANS TO
BLOW DIRECTLY INTO THE FIREPLACE.
AVOID ANY DRAFTS THAT ALTER
BURNER FLAME PATTERNS.
WARNING: DO NOT USE A BLOWER IN-
SERT, HEAT EXCHANGER INSERT OR
OTHER ACCESSORY NOT APPROVED
FOR USE WITH THIS HEATER.
This appliance must not be operated without a
fireplace screen installed. Fireplace screens
mustnotimpairthefreeflowofcombustionair
to the appliance.
Donotburnsolidfuelsinanyfireplaceequipped
with this listed unvented gas room heater.
WARNING: INSTALLED DECORATIVE
GLASS DOOR ENCLOSURES MUST BE
FULLYOPENED WHEN OPERATING THIS
LISTEDUNVENTED GAS ROOM HEATER.
Anyoutsideairductsand/orashdumpsthatare
part of the original solid fuel burning fireplace
system must be fully closed and sealed at the
time of installation of this listed unvented gas
room heater.
WARNING: SPECIAL CARE IS REQUIRED
IF YOU ARE INSTALLING THE UNIT INTO
ASUNKENFIREPLACE.YOUMUSTRAISE
THE FIREPLACE FLOOR TO ALLOW AC-
CESSTOGASLOGCONTROLS.THISWILL
INSURE ADEQUATE AIR FLOW AND
GUARD AGAINST SOOTING. RAISE THE
FIREPLACEFLOORUSINGNONCOMBUS-
TIBLE MATERIALS.
A qualified gas appliance installer must install
this heater.
Check gas type: The gas supply must be the
sameasstatedontheheater’sratingplate.If
the gas supply is different, DO NOT INSTALL
theheater.Contactyourdealerforthecorrect
model.
Step 1. Placement of Heater – Center the
heater in the fireplace or firebox. Make certain
the grate front feet sit inside the front edge of
the fireplace or firebox.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 7
Union
Regulator
Fireplace or
Firebox Wall
Wall
Shut-Off
Key
3"
Manual
Shut-Off
Valve
Fireplace or
Firebox Wall
Sediment
Trap Down

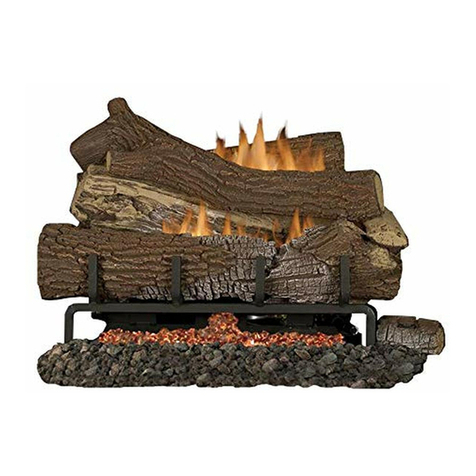

Each heater includes a unitized set of ceramic
fiber logs. The heater and logs are assembled
asshown in Figure11 . Handlethese logs with
greatcare.Thelogscanbeeasilydamaged,but
when handled properly they can provide years
of performance and enjoyment.
Manual Valve
Pressure Test Point
Millivolt Valve
Pressure Test Point
On Front Of Valve
Periodicallyverifyproperpositioningofalllogs.
Figure 11
Millivolt Log Set
Shown, Manual
Similar
Figure 9
WARNING: CONNECTING DIRECTLY TO
ANUNREGULATEDPROPANETANKMAY
CAUSE AN EXPLOSION.
The heater gas inlet connection is 3/8" NPT at
the regulator, located on the right side facing
theheater. If aleft side connectionis required,
the connection pipe may be piped under the
rearoftheappliancetoendatthelefthandside
for connection to the inlet.
When tightening up the joint to the regulator
hold the regulator securely with a wrench to
prevent the regulator from moving.
Checking Gas Connections: Turn on gas sup-
ply and test for gas leaks using a gas leak test
solution (also referred to as bubble leak solu-
tion). NOTE: using a soapy water solution
(50%dishsoap,50%water)isaneffectiveleak
test solution, but it is not recommended, be-
causethesoapresiduethatisleftonthepipes/
fittings can result in corrosion over time.
A. Light the appliance (refer to the lighting
instructions label in the control compartment
or on pages 12 or 14).
B.Brushalljointsandconnectionswiththegas
leaktest solutionto check for leaks. If bubbles
are formed, or gas odor is detected, turn the
gas control knob (off/pilot/on) to the “OFF”
position. Either tighten or refasten the leaking
connection, then retest as described above.
C. When the gas lines are tested and leak free,
be sure to rinse off the leak testing solution.
D. Observe the individual tongues of flame on
the burner. Make sure all ports are open and
producing flame evenly across the burner. If
any ports are blocked, or partially blocked,
clean out the ports.
WARNING: DO NOT PLACE ANY LAVA
ROCKONLOGSORBURNERS.THISMAY
CAUSE SOOTING. ONLY PLACE LAVA
ROCK ON FLOOR OF FIREPLACE.
WARNING: FAILURE TO POSITION THE
PARTSIN ACCORDANCEITHTHESE DIA-
GRAMSORFAILURETOUSEONLYPARTS
SPECIFICALLY APPROVED WITH THIS
HEATER MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
Gas Pressure Check
Theheaterregulatorcontrolstheburnerpres-
surewhichshouldbecheckedatthepressure
test point (1/8" NPT plugged tap) located at
thebottomof theregulator(on manual mod-
els)or onthe controlvalve itself(on Millivolt
models), identified A for the manifold side
and E for inlet pressure. Ensure operatilng
pressures are within the limits specified in
the techinical chart on page 10.
Figure 10
The pressure should be checked with the gas
heaterburning andthe controlset tohigh (3).
The pressure regulator on manual models is
preset and locked to avoid tampering. If the
pressure is not as specified in the Technical
DetailsChartonpage10,replacetheregulator
with P/N 110351 for natural gas and P/N
110352 for propane (L.P.G.) heaters.
Replace the test point plug after pressure
measurement ensuring no gas leaks.
Step 3. Secure the log set within the firebox
using the screws and drilled holes discussed
in Step 2.
Step 4. Assembling the Logs
WARNING: DO NOT ADD EXTRA LOGS OR
ORNAMENTSSUCHASPINECONES,VER-
MICULITEORROCKWOOL.USINGTHESE
ADDED ITEMS CAN CAUSE SOOTING.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
8
In normal operation, at full rate, after 15 min-
utesthefollowing flameappearanceshould be
observed:
CAUTION: YOU MUST KEEP CONTROL AR-
EAS, BURNERS AND CIRCULATING AIR PAS-
SAGEWAYSOFFIREPLACE CLEAN. INSPECT
THESE AREAS OF FIREPLACE BEFORE EACH
USE. HAVE FIREPLACE AND CHIMNEY (IF
APPLICABLE) INSPECTED YEARLY BY A
QUALIFIED SERVICE PERSON. FIREPLACE
MAYNEED MORE FREQUENT CLEANING DUE
TOEXCESSIVELINTFORMCARPETING,BED-
DING MATERIAL, ETC.
Onlylimitedcleaningwillberequiredunderthe
normal use of the heater. Dust the front grate,
thetop ofthe piezo cover and the control knob
occasionally. Do not use cleaning fluids to
clean the logs or any other part of the room
heater.
Remove the logs, gently handling at each end.
Useavacuumcleanertoremovelooseparticles
from the base and from around the burners.
Glovesare recommended toprevent the fibers
from pricking your skin. If the skin is pricked,
wash gently with soap and water. Replace the
logsasdetailedinStep4AssemblingtheLogs.
If, after a period of use, the flames start to
exhibit unusual shapes and behavior, or the
burnersfailtoignitesmoothly,thentheburner
holes may require some cleaning. If this hap-
pens, contact your nearest dealer to get the
appliance serviced.
REPLACEMENT PARTS
An exploded view of the room heater with
numbered parts and a parts list can be found
on pages 16 and 17. All parts should be or-
dered through your Lennox distributor or
dealer.Partswillbeshippedatprevailingprices
at time of order.
When ordering repair parts, always give the
following information:
1. The model number of the heater.
2. The serial number of the heater.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the heater.
If you encounter any problems or have any
questions concerning the installation of this
heater,please contact yourdistributor. For the
name of your nearest distributor contact:
LHP
1110 West Taft Avenue
Orange, CA 92865
CLEANING AND SERVICING
WARNING: TURN OFF THE UNVENTED
GASROOMHEATERANDALLOWTOCOOL
BEFORE CLEANING.
RearBurnerCharacteristics– Therearflames
should be yellow. The flames should extend
about3–4"abovethefrontlogfornaturalgas
and 2 – 3" above for propane (L.P.G.) gas
(
Figure 14 ).
Figure 14
Main Burner Characteristics – The flames at
the front burner holes will be blue becoming
orange as they hit the bark-like texture of the
base and front face of the log.
OPERATION AND CARE OF YOUR
APPLIANCE
1. Appliance operation may be controlled
throughtheON/OFFunitrockerswitch,located
in the control compartment, or through a re-
motely located optional wall switch or wall
thermostat.
2. Thermostat units are equipped with a two
stage(HI,LOW)gascontrolvalve.Tocyclethe
burnerbetweentheHIandLOWsettings,rotate
the control knob clockwise and counterclock-
wise respectively.
3.When litforthefirsttime,theappliancewill
emit a slight odor for an hour or two. This is
due to the “burn-in” of the internal paints and
lubricantsusedinthemanufacturingprocess.
For the first few hours, operate the appliance
with doors and windows open to encourage
the dissipation of odor.
Flame Appearance
REFER TO THE OPERATING INSTRUCTIONS
LOCATED AT THE BACK OF THIS MANUAL
BEFORELIGHTINGTHEHEATERTOOBSERVE
THE FLAMES.
Flames from the pilot, front and rear burner
should be visually checked as soon as the
heater is installed. In addition a periodic visual
check of the flames should be made. The pilot
flameshouldalwaysbepresentwhentheheater
is in operation ( Figure 12 ).
WARNING: NO ADJUSTMENTS ARE TO
BE MADE TO THE ODS PILOT SYSTEM.
TAMPERING WITH THIS SYSTEM CAN
BE EXTREMELY HAZARDOUS.
Figure 12
An incorrect pilot flame pattern is shown in
Figure 13 . This pilot flame will cause the
thermocoupletocool. Whenthethermocouple
cools, the log set will shut off. If pilot flame
pattern is incorrect, or if log set shuts off,
contact your service representative.
Figure 13

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 9
ACCESSORIES
Decorative
Volcanic Stone P/N 110791 FDVS
Black P/N 053752 AC - BLK
Adjustable Canopy
Damper Clamp P/N 110701 DCK
Thermostat P/N 064248 WTK
Wall Switch Kit P/N 064035 FWSK
OPTIONAL EQUIPMENT
Alloptions areavailable inkit form, are easy to
install and are packaged complete with all re-
quired parts and instructions. Some of the
optionkitsneedtobefittedpriortocompleting
the installation of the appliance. The following
paragraphs detail the kit options available.
The appliances covered in this manual are
heater rated and produce a great deal of heat.
Decorative brass trim pieces and hoods may
tarnishbecauseoftheir proximitytotheheater
opening and front face. Tarnishing of these
pieces is normal, unavoidable and should be
expected.
Remote Control Kits
Models RCL and RCL-STAT add the conve-
nience of remote control for your appliance.
The kits include a wireless, hand held trans-
mitter and a receiver. This special receiver
permits either manual or remote control
modes.Bothreceiverandtransmitteroperate
on standard 9 volt batteries (not included).
Refer to the RCL and RCL-STAT installation
instructions for specific details.
Damper Clamp Kit
A Damper Clamp Kit is available for use when
required by local codes. Using the damper
clamp to fix open the fireplace damper will
allow this vent free product to be utilized as a
vented decorative gas log set, (see details on
pages 3 and 4).
Wall Switch Kit*
An optional wall switch kit can be installed
along with all vent-free appliances. The kit
consists of a standard UL wall switch with
cover plate. This kit provides for remote (wall)
operation of the appliance. Replace the wall
switch and cover plate of this kit with the
componentsoftheFWSKandyoucanhavetrue
remote control of your vent-free appliance,
turning it on and off from your favorite easy
chair. The wall switch kit should be installed
along with the appliance.
Remote Control Kit (Standard) P/N H0249 RCL
Remote Control Kit (Deluxe) P/N H0251 RCL-STAT
Wall Thermostat Kit*
A wall thermostat kit is available for use with
these appliances. The wall thermostat is de-
signed to be wired directly to the appliance
millivolt gas control circuit and provide auto-
matic On/Off control of the appliance to main-
tain a desired temperature within the room.
Decorative Volcanic Stone
The decorative volcanic stone, Model FDVS,
can be used to enhance the look of your appli-
ance. Spread the decorative volcanic stone
evenly around the bottom of the firebox.
Adjustable Canopy
An attractive black canopy kit is available for
usewiththeseVFappliances. Thecanopykitis
designed to be fitted to the wall above the
firebox opening. In addition to providing an
aesthetically pleasing appearance, the canopy
reducesheateffects todecorativemantles and
finish materials located directly above the fire-
place opening. The canopy kit includes the
necessary attaching hardware.
*Use 18GA, solid two conductor wire to
connect these kits to the appliance.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
10
UNVENTED GAS LOG ROOM HEATER SPECIFICATION CHART
Model No. Valve Operation BTU/hr Input Gas Type
* Manual control models are also design certified for use as vented gas log sets.
UNVENTED GAS LOG ROOM HEATER TECHNICAL CHART
BTU/HR Regulator Gas Inlet Valve
Model No. High Gas Type Ignition Pres. Setting Pressure** Operation
* Manual control models are also design certified for use as vented gas log sets.
** For the purpose of input adjustment.
VFGL - 18N 25,000 Natural Piezo 5" w.c. Max. 10.5" w.c. Manual*/Millivolt
Min. 6" w.c.
VFGL - 18P 25,000 Propane/LPG Piezo 10" w.c. Max. 13" w.c. Manual*/Millivolt
Min. 11" w.c.
VFGL - 24N 32,000 Natural Piezo 5" w.c. Max. 10.5" w.c. Manual*/Millivolt
Min. 6" w.c.
VFGL - 24P 32,000 Propane/LPG Piezo 10" w.c. Max. 13" w.c. Manual*/Millivolt
Min. 11" w.c.
VFGL - 28N 32,000 Natural Piezo 5" w.c. Max. 10.5" w.c. Manual*/Millivolt
Min. 6" w.c.
VFGL - 28P 32,000 Propane/LPG Piezo 10" w.c. Max. 13" w.c. Manual*/Millivolt
Min. 11" w.c.
VFGL - 18 MSN-4 Manual* 14,000 - 25,000 Natural
VFGL - 18 MSP-4 Manual* 14,000 - 25,000 Propane/LPG
VFGL - 24 MSN-4 Manual* 17,000 - 32,000 Natural
VFGL - 24 MSP-4 Manual* 17,000 - 32,000 Propane/LPG
VFGL - 28 MSN-4 Manual* 17,000 - 32,000 Natural
VFGL - 28 MSP-4 Manual* 17,000 - 32,000 Propane/LPG
VFGL - 18 VSN-4 Millivolt 19,500 - 25,000 Natural
VFGL - 18 VSP-4 Millivolt 19,500 - 25,000 Propane/LPG
VFGL - 24 VSN-4 Millivolt 25,000 - 32,000 Natural
VFGL - 24 VSP-4 Millivolt 25,000 - 32,000 Propane/LPG
VFGL - 28 VSN-4 Millivolt 25,000 - 32,000 Natural
VFGL - 28 VSP-4 Millivolt 25,000 - 32,000 Propane/LPG

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 11
1. When igniter button is
pressed, there is no spark
at ODS/pilot.
2. Heater produces unwanted
odors.
3. Heater shuts off in use
(ODS operates).
4. Gas odor even when control
knob is in “OFF” position.
5. When igniter button is
pressed, there is spark at
ODS/pilot, but no ignition.
6. ODS/pilot lights, but flame
goes out when control knob
is released.
7. Burner does not light after
ODS/pilot is lit.
8. Delayed ignition of burner.
9. Burner backfiring during
combustion.
10. Slight smoke or odor during
initial operation.
11. Heater produces a whistling
noise when burner is lit.
Replace igniter.
Replace igniter.
Reconnect igniter cable.
Free igniter cable if pinched by any metal or tubing. Keep igniter cable dry.
Tighten nut.
Replace igniter cable.
Replace piezo igniter.
Ventilate room. Stop using odor-causing products while fireplace is running.
Locate and correct all leaks.
Open window and/or door for ventilation.
Contact local gas company.
Clean ODS/pilot.
Locate and correct all leaks (see Checking Gas Connections, page 6).
Replace control valve.
Turn on gas supply or open manual shut-off valve.
Turn control knob to pilot position.
Press in control knob while in pilot position.
Continue holding down control knob. Repeat igniting operation until air is
removed.
Replace ODS/pilot assembly or get it serviced.
Replace gas regulator.
Press in control knob fully.
After ODS/pilot lights, keep control knob pressed in 30 seconds.
Fully open manual shut-off valve.
Hand tighten until snug, then tighten ¹⁄₄ turn more.
1). Contact local gas company.
2). Replace ODS/pilot assembly or get pilot serviced.
Replace thermocouple.
Replace control valve.
Clean burner or replace burner orifice.
Replace burner orifice.
Contact local gas company.
Contact local gas company.
Clean burner or replace burner orifice.
Clean burner or replace burner orifice.
Replace burner.
Replace gas regulator.
Problem will stop after a few hours of operation. Superior recommends
running the heater with the excess ventilation for the first few hours.
Turn control knob to “LO” position and let warm up for a minute.
Operateburneruntilairisremovedfromline.Havegaslinecheckedbylocalgas
company.
Clean burner or replace burner orifice.
A. Igniter electrode positioned wrong.
B. Igniter electrode broken.
C. Igniter electrode not connected to igniter cable.
D. Igniter cable pinched or wet.
E. Piezo igniter nut is loose.
F. Broken igniter cable.
G. Bad piezo igniter.
A. Heater burning vapors from paint, hair spray, glues, etc.
B. Gas leak. See Warning statement on the front page.
A. Not enough fresh air is available.
B. Low line pressure.
C. ODS/pilot is partially clogged.
A. Gas leak. See Warning statement on the front page.
B. Control valve defective.
A. Gas supply turned off or manual shut-off valve closed.
B. Control knob not in “PILOT” position.
C. Control knob not pressed in while in “PILOT” position.
D. Air in gas lines when installed.
E. ODS/pilot is clogged.
F. Gas regulator setting is not correct.
A. Control knob not fully pressed in.
B. Control knob not pressed in long enough.
C. Manual shut-off valve not fully open.
D. Thermocouple connection loose at control valve.
E. Pilot flame not touching thermocouple, which allows
thermocouple to cool, causing pilot flame to go out. This
problem could be caused by one or both of the following:
1). Low gas pressure
2). Dirty or partially clogged ODS/pilot
F. Thermocouple damaged.
G. Control valve damaged.
A. Burner orifice is clogged.
B. Burner orifice diameter is too small.
C. Inlet gas pressure is too low.
A. Manifold pressure is too low.
B. Burner orifice is clogged.
A. Burner orifice is clogged or damaged.
B. Burner damaged.
C. Gas regulator defective.
A. Vapors from paint or curing process of logs.
A. Turning control knob to “HI” position when burner is cold.
B. Air in gas line.
C. Dirty or partially clogged burner orifice.
OBSERVED PROBLEM POSSIBLE CAUSE REMEDY
TROUBLESHOOTING GUIDE FOR VENT-FREE GAS PRODUCTS

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
12
OPERATING INSTRUCTIONS — MANUAL CONTROL MODELS
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
1. Stop! Read the safety information above.
2. Make sure manual shut-off valve is fully open.
3. Refer to
Figure 15 to locate gas control knob and piezo.
4. Depress control knob in and turn clockwise to the
“OFF” position (
Figure 16 ).
5. Wait 5 minutes to clear out any gas. Then smell for gas,
including near the floor. If you smell gas, STOP! Follow “B” in
the safety information above. If you do not smell gas, go to the
next step.
6. The pilot is located on the right side in front of the burner
(
Figure 17 ).
7. Depress control knob in and turn counterclockwise
to the “IGN” position (
Figure 18 ). Press the control knob all
the way in for 5 seconds.
Note: If you are running the heater for the first time it will be
necessary to press the control knob all the way in for 30
seconds to allow air to bleed out of the gas piping.
MANUAL MATCH LIGHTING PROCEDURE — EMERGENCY ONLY
1. If the pilot cannot be lit with the piezo igniter, the heater can be
manually lit with a match.
2. With the right hand, depress and turn the control knob
counterclockwise to the “IGN” position. Hold in the
knob.
TO TURN OFF GAS TO APPLIANCE
1. Depress and turn control knob clockwise to the “OFF”
position ( Figure 18 ).
3. Light the match and hold the flame to the end of the pilot and
ignite the pilot.
4. Continue to hold control knob for an additional 10 seconds to
insure pilot remains lit.
5. Release the control while turning control knob to desired
setting.
8. With the control knob pressed in, push in and release the
piezo igniter button to light the pilot.
9. Hold the control knob in for a further 10 seconds to prevent
the flame failure detector from shutting off the gas while the
probe is warming up.
10. Release the control knob while turning counterclockwise
to the preferred setting.
•If the knob does not pop out when released, stop and
immediately call your service technician or gas supplier.
•If the pilot will not stay lit after several tries, depress and
turn the gas control knob clockwise to “OFF”
and wait 30 seconds. Depress and turn knob counter-
clockwise to “IGN” and press igniter button
again. If your pilot does not relight depress and turn
control knob clockwise to “OFF” and call your
service technician or gas supplier.
11. Wait 30 seconds before readjusting the heater when the
control knob has been turned down to a lower setting.
•Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand, do
not try to repair it, call a qualified service technician. Forced or
attempted repair may result in a fire or explosion.
D. Do not use this heater if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
A. This heater has a pilot which must be lit by hand. When
lighting the pilot, follow these instructions exactly.
B. BEFORE OPERATING smell all around the heater area for gas.
Be sure to smell next to the floor because some gas is heavier
than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone
in your building.
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 13
Figure 16
Figure 15
Control Knob Locations Pilot Location
Turn Control Knob to “OFF” Position (Manual) Turn Control Knob to “IGN” Position (Manual)
Figure 18
Figure 17
Pilot
O
F
F
I
G
N
L
O
W
H
I
O
F
F
I
G
N
L
O
W
H
I
Millivolt Model
Piezo Gas Control
Knob
Flame Adjustment
Knob

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
14
OPERATING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
1. Stop! Read the safety information above.
2. Make sure manual shut-off valve is fully open.
3. Locate gas control knob and piezo.
4. Depress control knob in and turn clockwise to the
“OFF” position (
Figure 19 ).
5. Wait 5 minutes to clear out any gas. Then smell for gas,
including near the floor. If you smell gas, STOP! Follow “B” in
the safety information above. If you do not smell gas, go to the
next step.
6. The pilot is located on the right side in front of the burner
(
Figure 20 ).
7. Depress control knob in and turn counterclockwise
to the “PILOT” position (
Figure 21 ). Press the control knob all
the way in for 5 seconds.
Note: If you are running the heater for the first time it will be
necessary to press the control knob all the way in for 30
seconds to allow air to bleed out of the gas piping.
MANUAL MATCH LIGHTING PROCEDURE — EMERGENCY ONLY
1. If the pilot cannot be lit with the piezo igniter, the heater can be
manually lit with a match.
2. With the right hand, depress and turn the control knob
counterclockwise to the “ON” position. Hold in the
knob.
TO TURN OFF GAS TO APPLIANCE
1. Depress and turn control knob clockwise to the “OFF”
position ( Figure 19 ).
3. Light the match and hold the flame to the end of the pilot and
ignite the pilot.
4. Continue to hold control knob for an additional 10 seconds to
insure pilot remains lit.
5. Release the control while turning control knob to desired
setting.
•Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand, do
not try to repair it, call a qualified service technician. Forced or
attempted repair may result in a fire or explosion.
D. Do not use this heater if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
A. This heater has a pilot which must be lit by hand. When
lighting the pilot, follow these instructions exactly.
B. BEFORE OPERATING smell all around the heater area for gas.
Be sure to smell next to the floor because some gas is heavier
than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone
in your building.
8. With the control knob pressed in, push in and release the
piezo igniter button to light the pilot.
9. Hold the control knob in for a further 10 seconds to prevent
the flame failure detector from shutting off the gas while the
probe is warming up.
10. Release the control knob while turning counterclockwise
to the "ON" Position (
Figure 22 ). Then adjust
"HI"-"LOW" knob to prefered setting.
•If the knob does not pop out when released, stop and
immediately call your service technician or gas supplier.
•If the pilot will not stay lit after several tries, depress and
turn the gas control knob clockwise to “OFF”
and wait 30 seconds. Depress and turn
knob counterclockwise to
“IGN” and press igniter button again. If
your pilot does not relight depress and
turn control knob clockwise
to “OFF” and call your service technician or gas supplier.
11. Wait 30 seconds before readjusting the heater when the
control knob has been turned down to a lower setting.
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 15
Note: Knob cannot be turned from “PILOT” to “OFF”
unless the knob is pushed in slightly. Do not force.
Figure 19
Pilot Location
Figure 20
Pilot
Figure 21
Turn Control Knob to “OFF” Position Turn Control Knob to “PILOT” Position
EA
TPTH TP TH
P
I
L
O
T
H
I
L
O
W
P
I
L
O
T
O
N
it
O
F
F
EA
TPTH TP TH
P
I
L
O
T
H
I
L
O
W
P
I
L
O
T
O
N
it
O
F
F
Figure 22
Turn Control Knob to “ON” Position
EA
TPTH TP TH
P
I
L
O
T
H
I
L
O
W
P
I
L
O
T
O
N
it
O
F
F

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
16
REPLACEMENT PARTS LIST
18N/18P 24N/24P 28N/28P
No. Description Part No. Part No. Part No.
1. Valve - Manual (Natural) 110331 110331 110331
Valve - Manual (Propane, L.P.G.) 110331 110331 110331
2. Valve, Millivolt (Natural) 903489 903489 903489
Valve, Millivolt (Propane, L.P.G.) 901917 901917 901917
3. Pilot (Natural) 110345 110345 110345
Pilot (Propane, L.P.G.) 110341 110341 110341
4. Pilot, Millivolt (Natural) 110344 110344 110344
Pilot, Millivolt (Propane, L.P.G.) 901915 901915 901915
5. Regulator (Natural) 110351 110351 110351
Regulator (Propane, L.P.G.) 110352 110352 110352
6. Front Burner 110281 110282 110282
7. Rear Burner (Natural) 113301 110302 110302
Rear Burner (Propane, L.P.G.) 113301 110302 110302
8. Crossover Burner 110321 110321 110321
9. Piezo 111061 111061 111061
10. Piezo Wire 110361 110361 110361
11. Log Assembly – Split Oak 100104 100105 100106
12. Control Knob - Manual 110401 110401 110401
13. Injector, Burner (Natural) 110381 110383 110383
Injector, Burner (Propane, L.P.G.) 110382 110384 110384
14. Injector, Crossover Burner (Natural) 110387 110387 110387
Injector, Crossover Burner (Propane, L.P.G.) 110388 110388 110388

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 17
REPLACEMENT PARTS
1
2
5
9
10
13
14
12
87
6
11
4
3

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE.
18 NOTE: THIS PAGE INTENTIONALLY LEFT BLANK.

NOTE: DIAGRAMS & ILLUSTRATION NOT TO SCALE. 19
NOTE: THIS PAGE INTENTIONALLY LEFT BLANK.

The manufacturer reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
Printed in U.S.A. © 1997 by Lennox Hearth Products
P/N 903623 REV. M 12/2007
LHP
1110 West Taft Avenue
Orange, CA 92865
