Superior TF18NE User manual

Installation and Operation Instructions
Superior™ Unvented (Vent-Free) Gas Log Heater
P/N126818-01 Rev. A 01/2014 Models
TF18NE TF18PE TF2430NE TF2430PE
P126818-01
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where not
prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built
fireplace or in a listed ventless firebox enclosure. It is design-certified for these installations in accordance
with ANSI Z21.11.2. Exception: DO NOT install this appliance in a factory-built fireplace that includes
instructions stating it has not been tested or should not be used with unvented gas logs.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be provided. Refer to Air for Combustion and Ventilation
section on page 6 of this manual.
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
—Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
—WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
—Installation and service must be performed by a qualified installer, service agency or the gas supplier.

SAFETY
WARNING: Improper
installation, adjustment,
alteration, service or main-
tenance can cause injury
or property damage. Refer
to this manual for correct
installation and operation-
al procedures. For assis-
tance or additional infor-
mation consult a qualied
installer, service agency
or the gas supplier.
WARNING: This ap-
pliance is for installation
only in a solid-fuel burning
masonry or UL127 factory-
built replace or in a listed
ventless rebox enclosure.
It is design-certified for
theseinstallationsinaccor-
dance with ANSI Z21.11.2.
Exception: DO NOT install
this appliance in a factory-
built replace that includes
instructions stating it has
not been tested or should
not be used with unvented
gas logs.
WARNING: This is an
unvented gas-red heat-
er. It uses air (oxygen)
from the room in which
it is installed. Provisions
for adequate combustion
and ventilation air must
be provided. Refer to Air
for Combustion and Ven-
tilation section on page 6
of this manual.
This appliance may be in-
stalled in an aftermarket,*
permanently located,
manufactured (mobile)
home, where not prohib-
ited by local codes.
This appliance is only for
use with the type of gas
indicated on the rating
plate. This appliance is
not convertible for use
with other gases.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
TABLE OF CONTENTS
Safety .................................................................. 2
Product Identication........................................... 5
Local Codes......................................................... 5
Unpacking............................................................ 5
Product Features................................................. 6
Air For Combustion and Ventilation..................... 6
Installation ........................................................... 8
Operation........................................................... 22
Inspecting Burners............................................. 28
Cleaning and Maintenance................................ 29
Wiring Diagram.................................................. 30
Specications .................................................... 30
Troubleshooting................................................. 31
Parts .................................................................. 38
Accessories ....................................................... 42
Replacement Parts............................................ 42
Service Hints ..................................................... 42
Technical Service............................................... 42
Warranty ............................................................ 43

WARNING: Do not allow fans
to blow directly into the replace.
Avoid any drafts that alter burner
ame patterns. Ceiling fans can
create drafts that alter burner ame
patterns. Altered burner patterns
can cause sooting.
Due to high temperatures, the ap-
pliance should be located out of
trafc and away from furniture and
draperies.
Do not place clothing or other
ammable material on or near the
appliance. Never place any objects
on the heater.
Heater base assembly becomes
very hot when running heater. Keep
children and adults away from hot
surface to avoid burns or clothing
ignition. Heater will remain hot for a
time after shutdown. Allow surface
to cool before touching.
Carefully supervise young children
when they are in the room with heater.
When using the hand-held remote
accessory, keep selector switch in
the OFF position to prevent children
from turning on burners with remote.
You must operate this heater with
the replace screen and hood in
place. Make sure replace screen
and hood are in place before running
heater. The replace screen shall
have openings for introduction of
combustion air.
Keep the appliance area clear and
free from combustible materials,
gasoline and other ammable va-
pors and liquids.
WARNING: This product con-
tains and/or generates chemicals
known to the state of California
to cause cancer or birth defects
or other reproductive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op-
erate or service this replace.
Improper use of this replace
can cause serious injury or
death from burns, re, explo-
sion, electrical shock and carbon
monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the u,
with headaches, dizziness or nausea. If you
have these signs, the replace may not be
working properly. Get fresh air at once! Have
replace serviced. Some people are more af-
fected by carbon monoxide than others. These
include pregnant women, people with heart or
lung disease or anemia, those under the inu-
ence of alcohol and those at high altitudes.
Natural and Propane/LP gases are odorless. An
odor-making agent is added to these gases.
The odor helps you detect a gas leak. How-
ever, the odor added to the gas can fade. Gas
may be present even though no odor exists.
Make certain you read and understand all
warnings. Keep this manual for reference. It
is your guide to safe and proper operation of
this replace.
WARNING: Any change to
this heater or its controls can
be dangerous.
WARNING: Do not use a
blower insert, heat exchanger
insert or other accessory not ap-
proved for use with this heater.
SAFETY
Continued

www.SuperiorFireplaces.US.com 126818-01A4
SAFETY
Continued
1. This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases.
2. Do not place propane/LP supply tank(s)
inside any structure. Locate propane/LP
supply tank(s) outdoors (propane/LP units
only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions
• if you cannot reach your gas supplier,
call the re department
4. This heater shall not be installed in a
bedroom or bathroom.
5. Before installing in a solid fuel burning re-
place, the chimney ue and rebox must
be cleaned of soot, creosote, ashes and
loose paint by a qualied chimney cleaner.
Creosote will ignite if highly heated. A dirty
chimney ue may create and distribute
soot within the house. Inspect chimney
ue for damage. If damaged, repair ue
and rebox before operating heater.
6. Do not burn solid-fuel in a replace in
which a vent-free room heater is installed.
7. If replace has glass doors, never operate
this heater with glass doors closed. Any
glass doors shall be fully opened when
the appliance in operation. If you operate
heater with doors closed, heat buildup
inside replace will cause glass to burst.
Make sure there are no obstructions
across openings of replace.
8. To prevent the creation of soot, follow the
instructions in Cleaning and Maintenance,
page 33.
9. Before using furniture polish, wax, carpet
cleaner or similar products, turn heater off. If
heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls and furniture.
10. This heater needs fresh, outside air ven-
tilation to run properly. This heater has an
Oxygen Depletion Sensing (ODS) safety
shutoff system. The ODS shuts down the
heater if enough fresh air is not available.
See Air for Combustion and Ventilation,
page 6. If heater keeps shutting off, see
Troubleshooting, page 35.
11. Do not run heater
• where ammable liquids or vapors are
used or stored
• under dusty conditions
12. Do not use this heater to cook food or burn
paper or other objects.
13. Do not use heater if any part has been ex-
posed to or under water. Immediately call
a qualied service technician to inspect
the room heater and to replace any part
of the control system and any gas control
which has been under water.
14. Do not operate heater if any log is broken.
Do not operate heater if a log is chipped
(dime-sized or larger).
15. Turn heater off and let cool before servic-
ing, installing or repairing. Only a qualied
service person should install, service or
repair heater.
16. Make sure the remote is set to the OFF
position when you are away from home
for long periods of time.
17. Operating heater above elevations of
4,500 feet may cause pilot outage.
18. To prevent performance problems, do
not use propane/LP fuel tank of less than
100 lb. capacity (propane/LP units only).
19. Provide adequate clearances around air
openings.

www.SuperiorFireplaces.US.com
126818-01A 5
PRODUCT IDENTIFICATION
Figure 1 - Product Identication
LOCAL CODES
Glowing
Embers
Chassis
UNPACKING
CAUTION: Do not remove the
data plates from the grate as-
sembly. The data plates contain
important warranty and safety
information.
1. Remove logs and heater base assembly
from carton(s).
Note: Do not pick up heater base assem-
bly by burners. This could damage heater.
Always handle base assembly by grate.
2. Remove all protective packaging applied
to logs and heater for shipment.
3. Check heater for any shipping damage.
If heater is damaged call INNOVATIVE
HEARTH PRODUCTS at 1-800-655-2008
for replacement parts before returning to
dealer.
Install and use heater with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel
Gas Code, ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
State of Massachusetts: The installa-
tion must be made by a licensed plumber
or gas fitter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
Left
Side
Right
Side
Front

www.SuperiorFireplaces.US.com 126818-01A6
OPERATION
This heater is clean burning. It requires no
outside venting. There is no heat loss out a
vent or up a chimney. Heat is generated by
both realistic ames and glowing coals. This
heater is designed for vent-free operation with
ue damper closed. It has been tested and ap-
proved to ANSI Z21.11.2 standard for unvented
heaters. State and local codes in some areas
prohibit the use of vent-free heaters.
PRODUCT FEATURES
SAFETY DEVICE
This heater has a pilot with an Oxygen Deple-
tion Sensing (ODS) safety shutoff system. The
ODS/pilot is a required feature for vent-free
room heaters. The ODS/pilot shuts off the
heater if there is not enough fresh air.
ELECTRONIC IGNITION SYSTEM
This heater has an electronic ignitor to light
heater fuel supply.
AIR FOR COMBUSTION AND VENTILATION
WARNING: This heater shall
notbe installed in aroomorspace
unless the required volume of
indoorcombustionairisprovided
by the method described in the
National Fuel Gas Code, ANSI
Z223.1/NFPA 54, the International
Fuel Gas Code, or applicable
local codes. Read the following
instructionstoinsureproper fresh
air for this and other fuel-burning
appliances in your home.
Today’s homes are built more energy efcient
than ever. New materials, increased insulation
and new construction methods help reduce
heat loss in homes. Home owners weather
strip and caulk around windows and doors to
keep the cold air out and the warm air in. Dur-
ing heating months, home owners want their
homes as airtight as possible.
While it is good to make your home energy
efcient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning ap-
pliances need fresh air for proper combustion
and ventilation.
Exhaust fans, replaces, clothes dryers and
fuel burning appliances draw air from the house
to operate. You must provide adequate fresh
air for these appliances. This will insure proper
venting of vented fuel-burning appliances.
PROVIDING ADEQUATE
VENTILATION
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation.
All spaces in homes fall into one of the three
following ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 6 through 8 will help
you classify your space and provide adequate
ventilation.
Unusually Tight Construction
The air that leaks around doors and windows
may provide enough fresh air for combustion
and ventilation. However, in buildings of un-
usually tight construction, you must provide
additional fresh air.
Unusually tight construction is dened as
construction where:
a. walls and ceilings exposed to the out-
side atmosphere have a continuous
water vapor retarder with a rating of
one perm (6 x 10-11 kg per pa-sec-m2) or
less with openings gasketed or sealed
and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to
areas such as joints around window
and door frames, between sole plates
and oors, between wall-ceiling joints,
between wall panels, at penetrations
for plumbing, electrical and gas lines
and at other openings.
If your home meets all of the three criteria
above, you must provide additional fresh air.
See Ventilation Air From Outdoors, page 8.
If your home does not meet all of the three
criteria above, proceed to Determining Fresh-
Air Flow For Heater Location, page 7.

www.SuperiorFireplaces.US.com
126818-01A 7
AIR FOR COMBUSTION AND VENTILATION
Continued
Conned and Unconned Space
The National Fuel Gas Code, ANSI Z223.1/
NFPA 54 denes a conned space as a space
whose volume is less than 50 cubic feet per
1,000 Btu/hr (4.8 m3per kw) of the aggregate
input rating of all appliances installed in that
space and an unconned space as a space
whose volume is not less than 50 cubic feet
per 1,000 Btu/hr (4.8 m3per kw) of the ag-
gregate input rating of all appliances installed
in that space. Rooms communicating directly
with the space in which the appliances are
installed*, through openings not furnished
with doors, are considered a part of the un-
conned space.
* Adjoining rooms are communicating only if
there are doorless passageways or ventilation
grills between them.
DETERMINING FRESH-AIR FLOW
FOR HEATER LOCATION
Determining if You Have a Conned or
Unconned Space
Use this work sheet to determine if you have
a conned or unconned space.
Space: Includes the room in which you will install
replace plus any adjoining rooms with door-
less passageways or ventilation grills between
the rooms.
1. Determine the volume of the space (length
x width x height).
Length x Width x Height =__________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room
is supplied with grills or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
________ (volume of space) x 20 = (Maxi-
mum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20
= 51,200 (maximum Btu/Hr the space can
support)
3. Add the Btu/Hr of all fuel burning appliances
in the space.
Vent-free replace __________ Btu/Hr
Gas water heater* __________ Btu/Hr
Gas furnace __________ Btu/Hr
Vented gas heater __________ Btu/Hr
Gas replace logs __________ Btu/Hr
Other gas appliances* + _________ Btu/Hr
Total = _________ Btu/Hr
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water heater __________ Btu/Hr
Vent-free replace + _________ Btu/Hr
Total = _________ Btu/Hr
4. Compare the maximum Btu/Hr the space
can support with the actual amount of Btu/
Hr used.
______Btu/Hr (maximum the space can
support)
______Btu/Hr (actual amount used)
Example: 51,200 Btu/Hr (maximum the
space can support)
73,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the above example is a conned
space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can sup-
port. You must provide additional fresh air. Your
options are as follows:
A. Rework worksheet, adding the space of an
adjoining room. If the extra space provides
an unconned space, remove door to adjoin-
ing room or add ventilation grills between
rooms. See Ventilation Air From Inside
Building, page 8.
B. Vent room directly to the outdoors. See
Ventilation Air From Outdoors, page 8.
C. Install a lower Btu/Hr replace, if lower Btu/
Hr size makes room unconned.
If the actual Btu/Hr used is less than the maxi-
mum Btu/Hr the space can support, the space is
an unconned space. You will need no additional
fresh air ventilation.
WARNING: If the area in which
the heater may be operated does
not meet the required volume for
indoor combustion air, combus-
tion and ventilation air shall be
provided by one of the methods
described in the National Fuel
Gas Code,ANSI Z223.1/NFPA54,
the International Fuel Gas Code,
or applicable local codes.
40,000
33,000
73,000

www.SuperiorFireplaces.US.com 126818-01A8
AIR FOR COMBUSTION AND VENTILATION
Continued
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
and one within 12" of the oor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT: Do not provide openings
for inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.
Figure 3 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
INSTALLATION
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining
unconned space. When ventilating to an
adjoining unconned space, you must provide
two permanent openings: one within 12" of the
ceiling and one within 12" of the oor on the
wall connecting the two spaces (see options
1 and 2, Figure 2). You can also remove door
into adjoining room (see option 3, Figure 2).
Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.

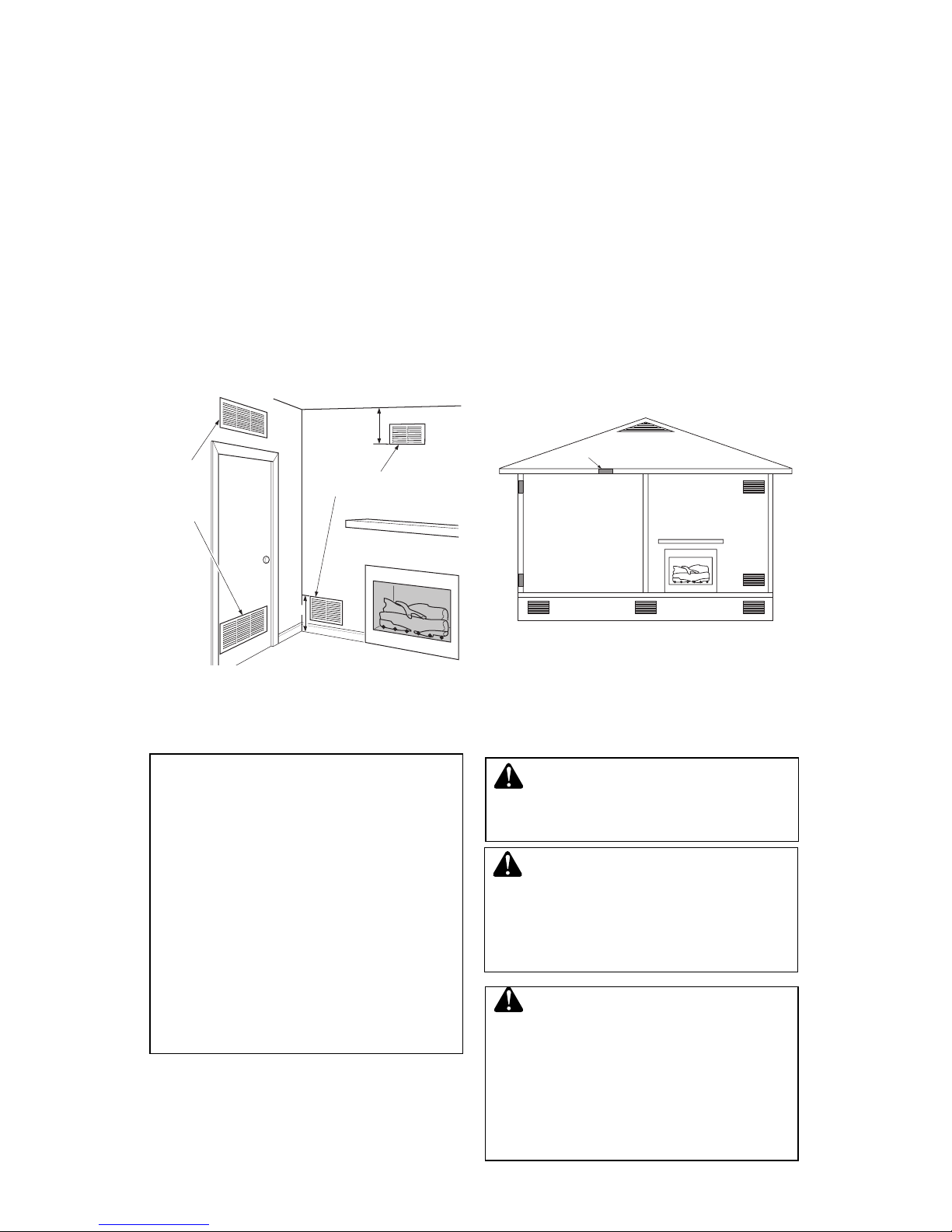

Figure 2 - Ventilation Air from Inside Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills Into
Adjoining
Room,
Option 1
12"
12"
NOTICE: This heater is intended
for use as supplemental heat.
Use this heater along with your
primary heating system. Do not
install this heater as your pri-
mary heat source. If you have a
central heating system, you may
run system’s circulating blower
while using heater. This will help
circulate the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.
WARNING: A qualied ser-
vice person must install heater.
Follow all local codes.
WARNING: Any outside air
ducts and/or ash dumps in the
replace shall be permanently
closed at time of appliance in-
stallation.
WARNING: Seal any fresh
air vents or ash clean-out doors
located on oor or wall of re-
place. If not, drafting may cause
pilot outage or sooting. Use a
heat-resistant sealant. Do not
seal chimney ue damper.

www.SuperiorFireplaces.US.com
126818-01A 9
LOG SIZING REQUIREMENTS
Log
Size
Minimum Firebox Size
Height Depth Front
Width
Rear*
Width
18" 19" 14" 28" 20"
24" 19" 14" 32" 22"
30" 19" 14" 40" 30"
WARNING: Before installing
in a solid fuel burning replace,
the chimney ue and rebox
must be cleaned of soot, creo-
sote, ashes and loose paint by
a qualified chimney cleaner.
Creosote will ignite if highly
heated. A dirty chimney ue may
create and distribute soot within
the house. Inspect chimney and
rebox ue for damage. If dam-
aged, repair ue and rebox
before operating heater.
WARNING: Never install the
heater
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, cloth-
ing or other ammable objects
are less than 36" from front, 42"
from top of heater; for side clear-
ances see Figure 4, page 10
• in high trafc areas
• in windy or drafty areas
CAUTION: This heater creates
warmaircurrents. Thesecurrents
move heat to wall surfaces next
to heater. Installing heater next
to vinyl or cloth wall coverings or
operatingheaterwhereimpurities
(such as, but not limited to, to-
bacco smoke, aromatic candles,
cleaning uids, oil or kerosene
lamps, etc.) in the air exist, may
discolor walls or cause odors.
IMPORTANT:Vent-free heaters add moisture
to the air. Although this is benecial, installing
heater in rooms without enough ventilation
air may cause mildew to form from too much
moisture. See Air for Combustion and Ventila-
tion, page 6.
CHECK GAS TYPE
Use the correct type of gas (natural or propane/
LP). If your gas supply is not the correct gas
type, do not install heater. Call dealer where
you bought heater for proper type heater.
WARNING: This appliance is
equipped for either natural gas
or propane/LP gas but not both.
Gas type is indicated on the rat-
ing plate. Field conversion is not
permitted.
INSTALLATION AND CLEARANCES
FOR VENT-FREE OPERATION
WARNING: Maintain the
minimum clearances. If you can,
provide greater clearances from
oor, ceiling and adjoining wall.
MINIMUM FIREPLACE CLEARANCE TO
COMBUSTIBLE MATERIALS
Side Wall 16", Ceiling 42"
Floor 5", Front: 36"
Carefully follow the instructions below. This
will ensure safe installation into a masonry,
UL127-listed manufactured replace or listed
vent-free rebox.
Minimum Clearances For Side Combustible
Material, Side Wall and Ceiling
A. Clearances from the side of the replace
cabinet to any combustible material and
wall should follow diagram in Figure 4,
page 10.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material
and protrudes 3 1/2" from the wall. This
combustible material must be 4" from the
side of the replace cabinet (see Figure
4, page 10).
INSTALLATION
Continued

www.SuperiorFireplaces.US.com 126818-01A10
INSTALLATION
Continued
Note: When installing your gas logs into
a manufactured rebox, follow rebox
manufacturer’s instructions for minimum
clearances to combustible materials.
B. Clearances from the top of the replace
opening to the ceiling should not be less
than 42".
Figure 5 - Heat Resistant Material (Slate,
Marble, Tile, etc.) Above Fireplace
Noncombustible
Material Distance (A)
Requirements for Safe
Installation
1 2" or more Noncombustible material
OK.
Between 8" and 12" 24" or 30" Models: Install
replace hood accessory
(GA6050 or GA6053 see
Accessories, page 48).
18" Model: Noncombus-
tible material OK.
Less than 8" Noncombustible material
must be extended to at
least 8". See Between 8"
and 12", above. If you can-
not extend material, you
must operate heater with
ue damper open.

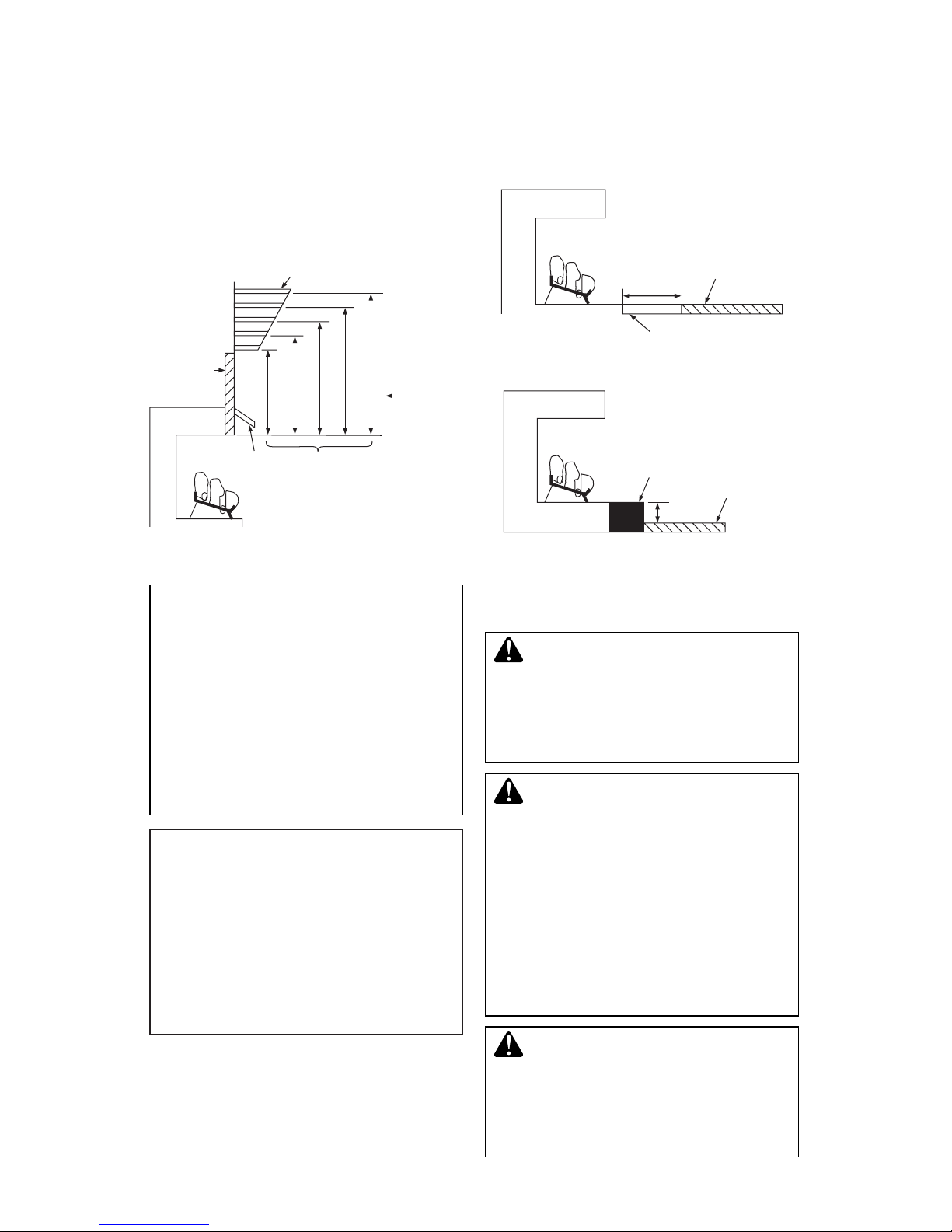

Figure 6 - Minimum Mantel Clearances
Without Using Hood
Minimum Non-
Combustible
Material
Minimum Non-
Combustible
Material Height
Distances to
Underside of
Mantel
Top of Fireplace
Opening
Underside of
Mantel Shelf
12"
8"
(A)
18"
14"
20"
17"
22"
19"
24"
20"
All minimum
distances are
in inches
Log Set
24"/30" Models
18" Model
2
1/2
"
6"
8"
10"
Mantel Shelf

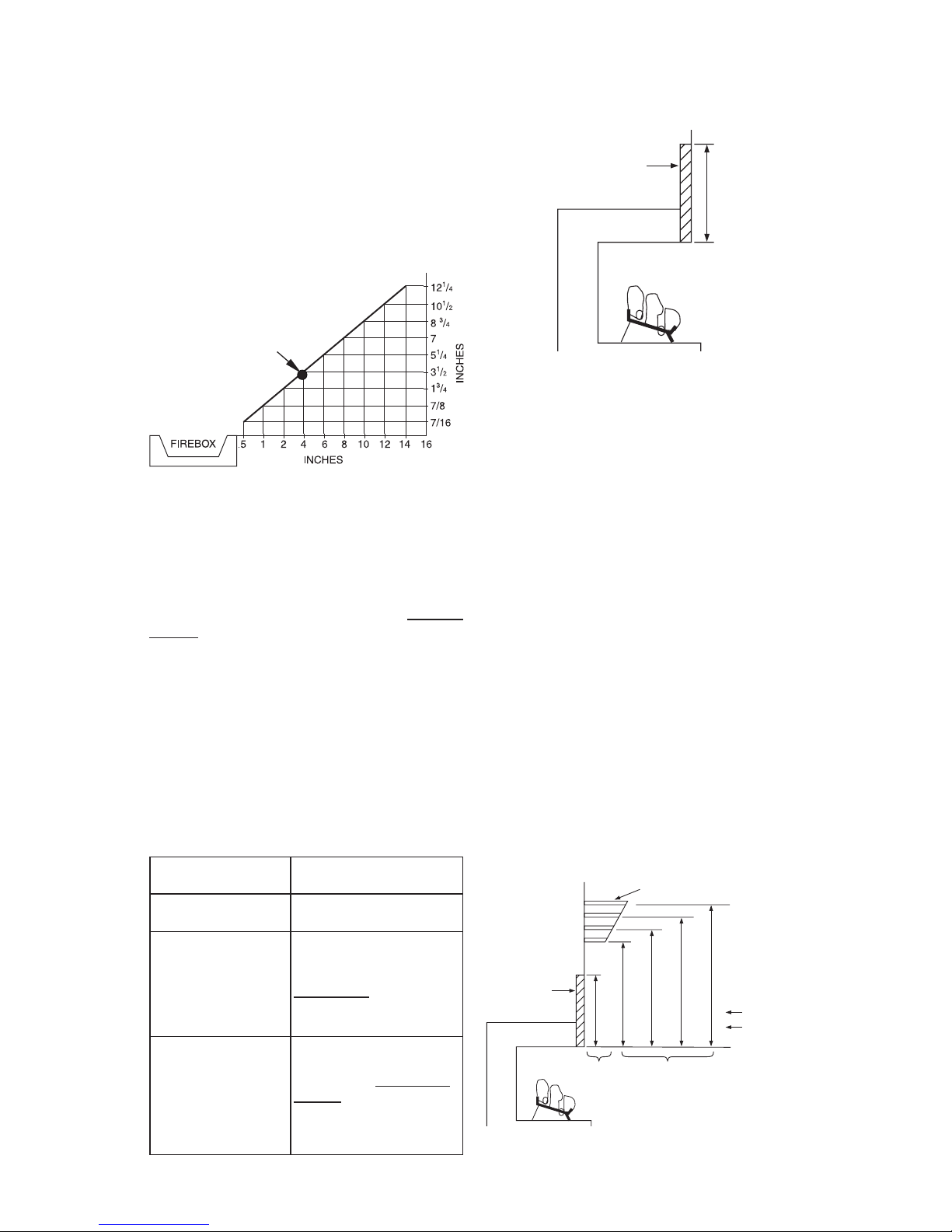

Figure 4 - Minimum Clearance for
Combustible to Wall
*Minimum 16" from Side Wall
*
Example
Minimum Noncombustible Material
Clearances
If Not Using Mantel
Note: If using a mantel proceed to If Using
Mantel. If not using a mantel, follow these
instructions.
You must have noncombustible material(s)
above the replace opening. Noncombustible
materials (such as slate, marble, tile, etc.) must
be at least 1/2" thick. With sheet metal, you
must have noncombustible material behind
it. Noncombustible material must extend at
least 8" up (for all models). If noncombustible
material is less than 12", you must install the
replace hood accessory (24" and 30" Models
Only). See Figure 5 for minimum clearances.
If Using Mantel
You must have noncombustible material(s)
above the replace opening. Noncombus-
tible materials (such as slate, marble, tile,
etc.) must be at least 1/2" thick. With sheet
metal, you must have noncombustible ma-
terial behind it. Noncombustible material
must extend at least 8" up (for all models). If
noncombustible material is less than 12", you
must install the replace hood accessory (24"
and 30" Models Only). Even if noncombustible
material is more than 12", you may need the
hood accessory to deect heat away from
your mantel shelf. See Figure 5 and Figures
6 and 7, page 11, for minimum clearances.
MANTEL CLEARANCES
In addition to meeting noncombustible mate-
rial clearances, you must also meet required
clearances between replace opening and
mantel shelf. If you do not meet the clearances
listed below, you will need a hood.
Determining Minimum Mantel Clearance
If you meet minimum clearance between
mantel shelf and top of replace opening, a
hood is not required (see Figure 6).
Heat Resistant
Material
(A)

www.SuperiorFireplaces.US.com
126818-01A 11
INSTALLATION
Continued
Determining Minimum Mantel Clearance
When Using a Hood
If minimum clearances in Figure 6, are not
met, you must have a hood. When using a
hood there are still certain minimum mantel
clearances required. Follow minimum clear-
ances shown in Figure 7, when using hood.
Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Figure 7 - Minimum Mantel Clearances
When Using Hood
Minimum
Noncombustible
Material
8"
Min.
12" 15" 18"
All minimum
distances are
in inches
Log Sets
18", 24",
30" & 36"
Models
20"
2
1/2
"
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood
(GA6050 or
GA6053)
Top of
Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
pliance at least 5" above the top surface
of combustible ooring including tile and
carpet. (see Figure 9).
NOTICE: Surface temperatures
of adjacent walls and mantels be-
come hot during operation. Walls
and mantels above the rebox
may become hot to the touch.
If installed properly, these tem-
peratures meet the requirement
of the national product standard.
Follow all minimum clearances
shown in this manual.
NOTICE: If your installation does
not meet the minimum clear-
ances shown, you must do one
of the following:
• operate the logs only with the
ue damper open
• raise the mantel to an accept-
able height
• remove the mantel
FLOOR CLEARANCES
A. If installing appliance on the oor level,
you must maintain the minimum distance
of 14" to combustibles (see Figure 8).
B. If combustible materials are less than
14" to the replace, you must install ap-
INSTALLING HEATER BASE
ASSEMBLY
WARNING: You must secure
this heater to replace oor. If
not, heater will move when you
adjust controls. Moving heater
may cause a gas leak.
WARNING: If installing in a
sunken replace, special care
is needed. You must raise the
replace oor to allow access to
heater control panel. This will in-
sure adequate air ow and guard
against sooting and controls
being damaged. Raise replace
oor with noncombustible mate-
rial. Make sure material is secure.
CAUTION: Do not pick up
heater base assembly by burn-
ers. This could damage heater.
Only handle base assembly by
grates.
14"
Min.
Combustible
Material
Noncombustible Material
Hearth
5"
Min.
Combustible
Material

www.SuperiorFireplaces.US.com 126818-01A12
INSTALLATION
Continued
IMPORTANT: Make sure the heater burners
are level.
Installation Items Needed
• hardware package (provided with heater)
• approved exible gas hose and ttings (only
provided with TF burner system series) (if
allowed by local codes)
• sealant (resistant to propane/LP gas, not
provided)
• electric drill with 3/16” masonry drill bit
1. Apply pipe joint sealant lightly to male
threads of the 3/8 NPT side of gas tting
and connect to inlet side of gas control.
Remove gas tting from exible gas hose
(provided) before connecting to elbow
(see Figure 10).
2. Position heater base assembly in re-
place.
3. Mark screw locations through holes in
front panel of base (see Figure 11). If
installing in a brick-bottom replace, mark
screw locations in mortar joint of bricks.
4. Remove heater base from replace.
5. Drill holes at marked locations using 3/16"
drill bit.
6. Attach base, through holes in back side pan-
els of base, to replace oor using masonry
screws provided in hardware package (see
Figure 11).
7. Connect to gas supply. See Connecting
To Gas Supply.
Figure 10 - Attaching Flexible Gas Hose
to Heater Gas Regulator
Figure 11 - Attaching Base to Fireplace
Floor
Masonry Screw
CONNECTING TO GAS SUPPLY
WARNING: This appliance
requires a 3/8" NPT (National
Pipe Thread) inlet connection to
the pressure regulator.
WARNING: A qualied ser-
vice person must connect heater
to gas supply. Follow all local
codes.
CAUTION: Never connect
propane/LP replace directly
to the propane/LP supply. This
heater requires an external regu-
lator (not supplied). Install the
external regulator between the
heater and propane/LP supply.
WARNING: Never connect
natural gas replace to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
Heater Gas
Regulator
Flexible Gas Hose (if
allowed by local codes)

www.SuperiorFireplaces.US.com
126818-01A 13
Installation Items Needed
Before installing heater, make sure you have
the items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved exible gas line with gas con-
nector (if allowed by local codes) (not
provided)
* An equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge
connection. Purchase the optional equipment
shutoff valve from your dealer.
For propane/LP units, the installer must
supply an external regulator. The external
regulator will reduce incoming gas pressure.
You must reduce incoming gas pressure to
between 11" and 14" of water. If you do not re-
duce incoming gas pressure, heater regulator
damage could occur. Install external regulator

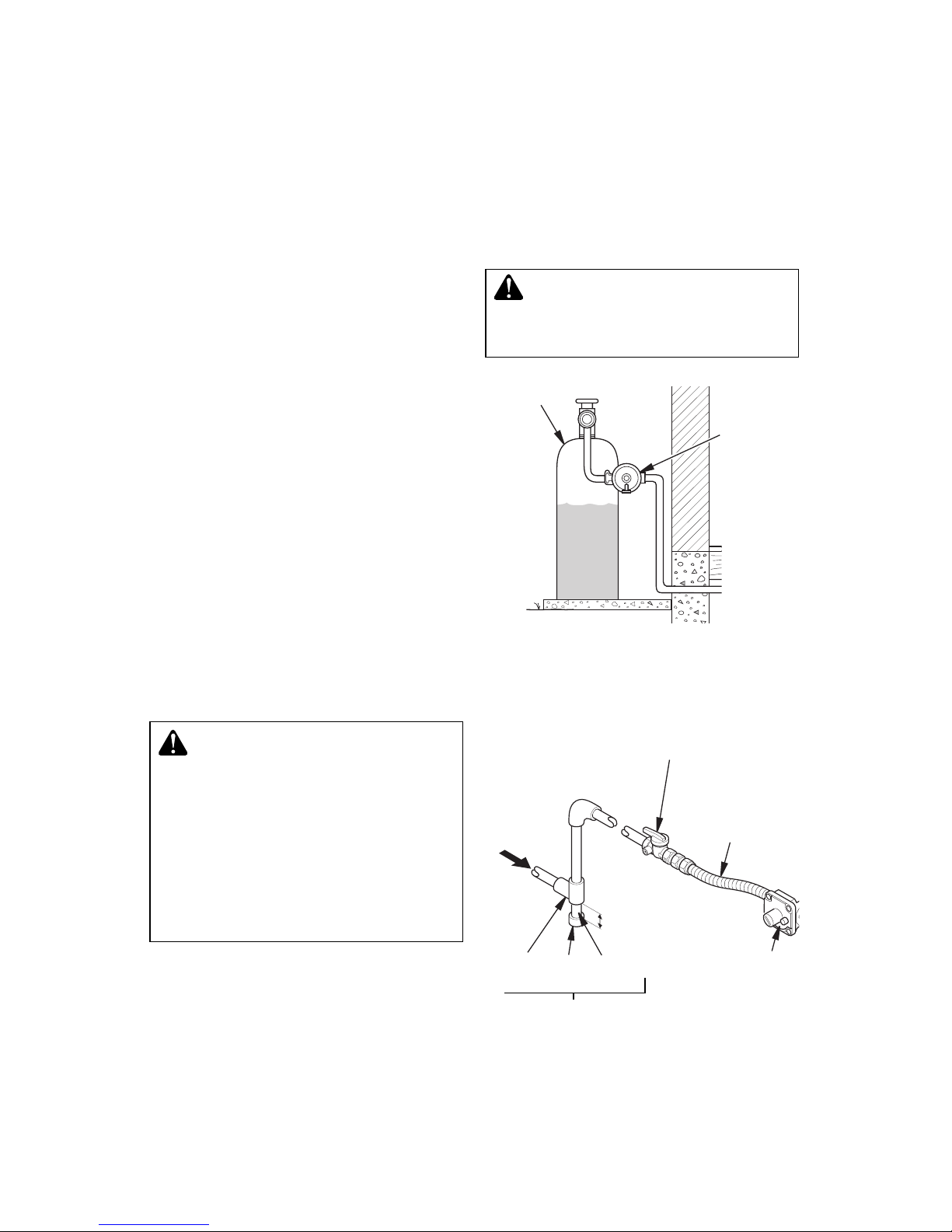

with the vent pointing down as shown in Figure
12. Pointing the vent down protects it from
freezing rain or sleet.
CAUTION: Use only new,
black iron or steel pipe. In-
ternally-tinned copper tubing
may be used in certain areas.
Check your local codes. Use
pipe of 1/2" diameter or greater
to allow proper gas volume to
heater. If pipe is too small, undue
loss of volume will occur.
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from heater (see
Figure 13).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment
shutoff valve is for turning on or shutting off
the gas to the appliance.
Propane/LP
Supply Tank External
Regulator
with Vent
Pointing
Down
Figure 12 - External Regulator With Vent
Pointing Down
INSTALLATION
Continued
Check your building codes for any special
requirements for locating equipment shutoff
valve to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could
result in clogged heater valves.
WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.
* Purchase the optional equipment shutoff
valve from your dealer.
**Minimum inlet pressure for purpose of input
adjustment.

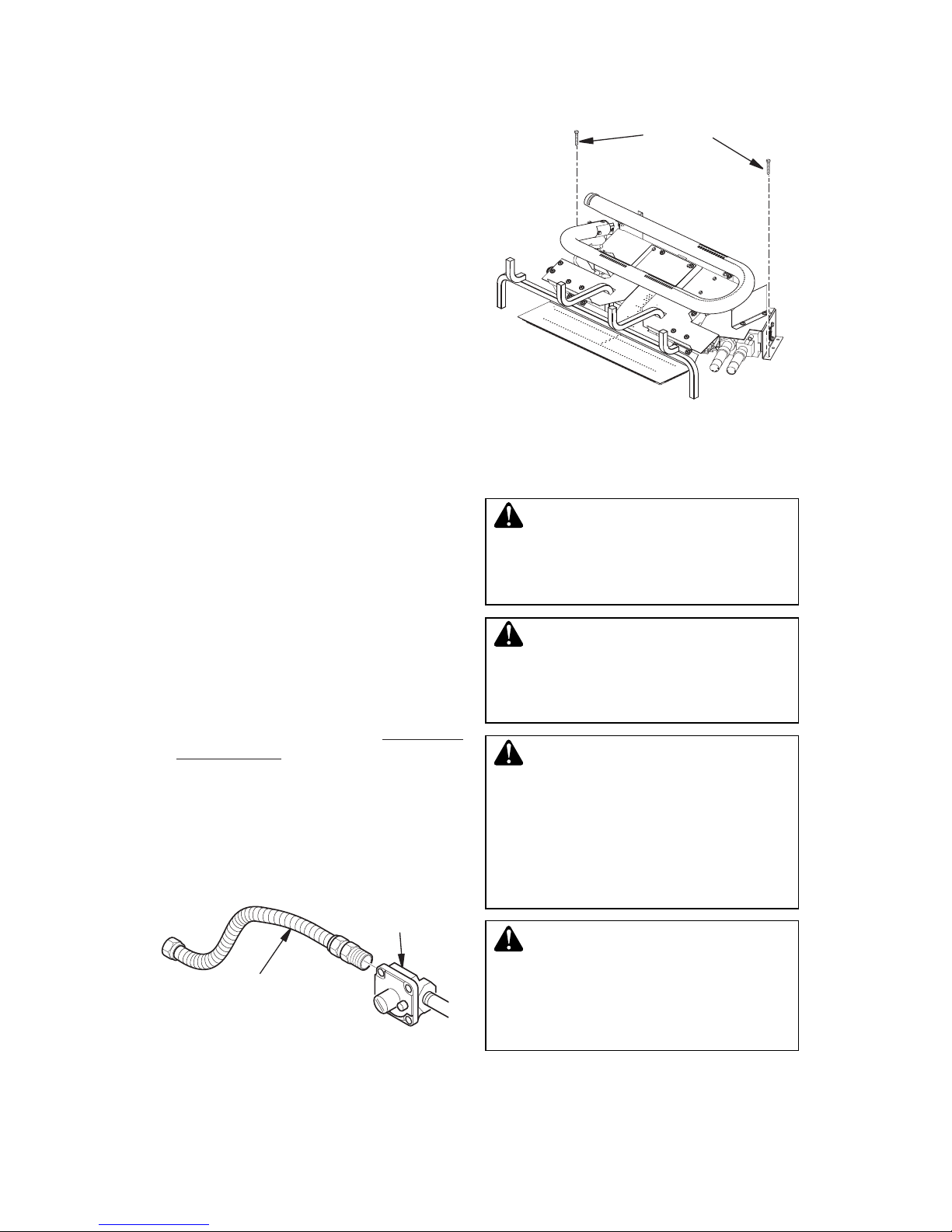

Figure 13 - Gas Connection
Tee Cap Pipe
Joint Nipple
3" Minimum
Gas
Regulator
PROPANE/LP From
External Regulator
(11" W.C.** to 14"
W.C. Pressure)
NATURAL From
Gas Meter (5" W.C.**
to 10.5" W.C.
Pressure)
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved
Flexible Gas
Hose (if allowed
by local codes)
Sediment Trap

www.SuperiorFireplaces.US.com 126818-01A14
INSTALLATION
Continued
We recommend that you install a sediment
trap in supply line as shown in Figure 13, page
13. Locate sediment trap where it is within
reach for cleaning. Install in piping system
between fuel supply and heater. Locate sedi-
ment trap where trapped matter is not likely
to freeze. A sediment trap traps moisture and
contaminants. This keeps them from going
into heater controls. If sediment trap is not
installed or is installed wrong, heater may
not run properly.
CAUTION: Avoid damage to
gas control. Hold gas control
with wrench when connecting it
to gas piping and/or ttings.
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an
open ame to check for a leak.
Apply a noncorrosive leak detec-
tion uid to all joints. Bubbles
forming show a leak. Correct all
leaks at once.
CAUTION: Make sure exter-
nal regulator has been installed
between propane/LP supply
and heater. See guidelines un-
der Connecting to Gas Supply,
page 12.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect appliance with its appliance
main gas valve (control valve) and equip-
ment shutoff valve from gas supply piping
system. Pressures in excess of 1/2 psig
(3.5 kPa) will damage heater regulator.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to
all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff
valve to gas supply. Check reconnected
ttings for leaks.
Test Pressures Equal To or Less Than 1/2
PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Fig-
ure 14).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve
for propane/LP gas or opening main gas
valve located on or near gas meter for
natural gas or using compressed air.
3. Check all joints from gas meter to equip-
ment shutoff valve for natural gas or
propane/LP supply to equipment shutoff
valve for propane/LP (see Figure 15 or
Figure 16, page 15). Apply noncorrosive
leak detection uid to all joints. Bubbles
forming show a leak.
4. Correct all leaks at once.
Figure 14 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff
Valve
Figure 15 - Checking Gas Joints
(Propane/LP Only)
Control Valve
Location
Propane/LP
Supply Tank
Equipment
Shutoff Valve

www.SuperiorFireplaces.US.com
126818-01A 15
Figure 19 - Touch Pad Control Cable
Figure 20 - Connecting end of Touch Pad
Cable
Touch Pad Wire
Harness
Touch Pad Control
PRESSURE TESTING HEATER GAS
CONNECTIONS
1. Open equipment shutoff valve (see Figure
14, page 14).
2. Open main gas valve located on or near
gas meter for natural gas or open propane/
LP supply tank valve.
3. Make sure control knob of heater is in the
OFF position.
4. Check all joints from gas meter to equipment
shutoff valve for natural gas or propane/LP
supply to equipment shutoff valve for pro-
pane/LP (see Figure 15, page 14 or Figure
16). Apply noncorrosive leak detection uid
to all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operation, page 26).
Check all other internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Ap-
pliance, page 26.
Gas Meter
Figure 16 - Checking Gas Joints (Natural
Gas Only)
Control Valve
Location
Equipment Shutoff Valve
INSTALLATION
Continued
POWER SUPPLY AND BATTERY
INSTALLATION
It is helpful to have a ashlight so you can
see the connections as described below. Lo-
cate the battery power supply. It is the black
box with the red and black wires. Locate the
control module (see Figure 17). Connect the
battery power supply to the control module
by plugging the battery power supply to the
mating receptacle on the control module. The
receptacle is located on the side of the black
control module next to the word “SUPPLY”
which is molded in the control module’s black
housing (see Figure 17). Be certain to push
the plug fully into the receptacle. Install bat-
teries in the battery power supply and hand
held remote control.
TOUCH PAD INSTALLATION
Locate the touch pad wire harness and the
touch pad control (see Figure 18). They are
shipped from the factory in the clear plastic
bag with your owner’s manual. Connect the
black plastic connectors together as shown
in Figure 19. Connect the remaining end
with the white plastic connector to the control
module in the socket marked TOUCH LED
(see Figure 20).
NOTE: The touch pad includes a red LED
display light. If the LED remains on, the black
plug is connected upside down. You must
unplug the touch pad control from the touch
pad wire harness, turn over, and reconnect.

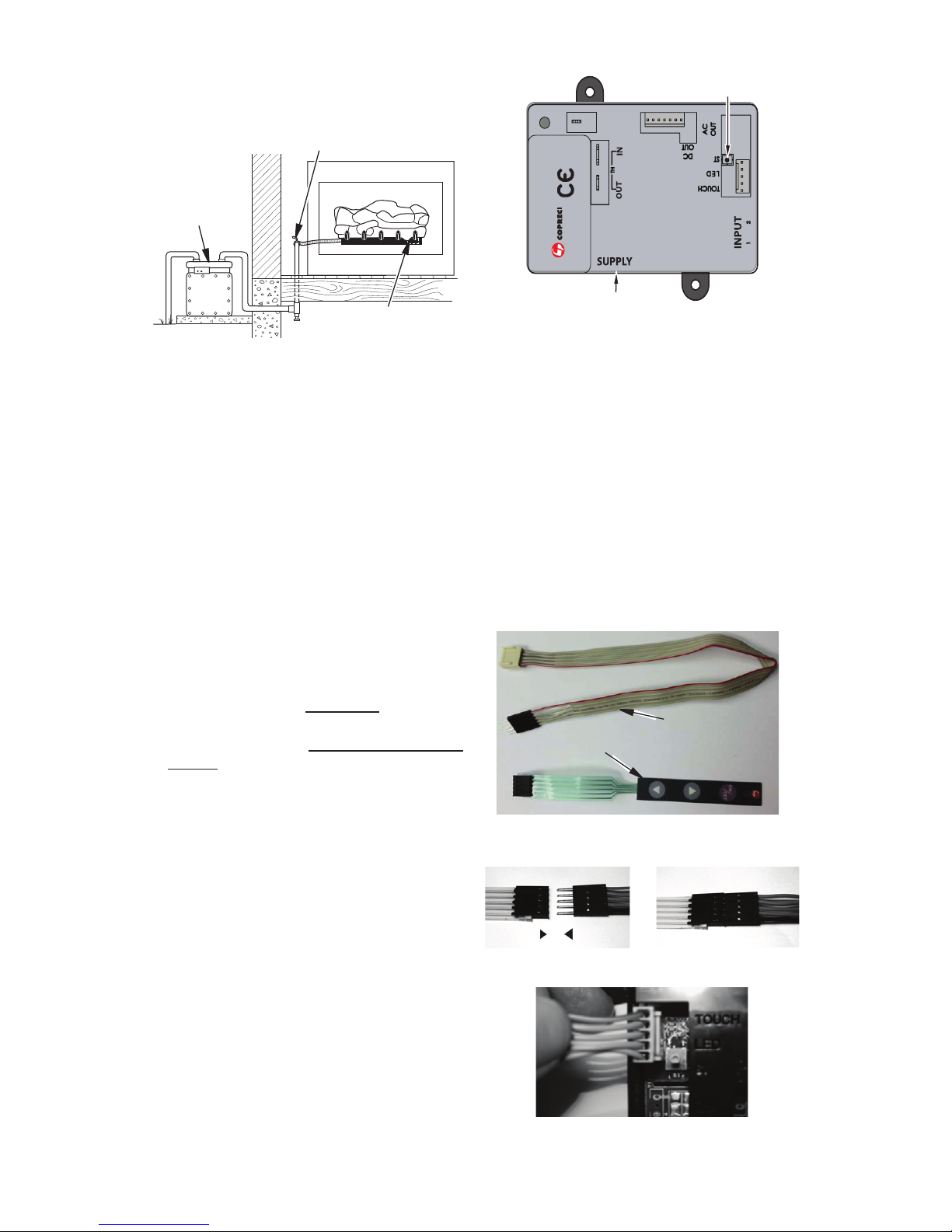

Figure 17 - Control Module
S1 Button
Connect Battery Plug Here
Figure 18 - Touch Pad Wire Harness and
Touch Pad Control

www.SuperiorFireplaces.US.com 126818-01A16
INSTALLATION
Continued
INSTALLING LOGS, EMBERS AND
LAVA ROCK
WARNING: Failure to posi-
tion the parts in accordance
with these diagrams or failure
to use only parts specically
approved with this heater may
result in property damage or
personal injury.
TF Series Burner System - Log
Compatibility Chart
Burner System
Models
Fiber Log
Models
Concrete Log
Models
TF18NE
TF18PE LTF18-MM LTF18-RS
TF2430NE
TF2430PE
LTF24-MM
LTF30-MM
LTF24-RS
LTF30-RS

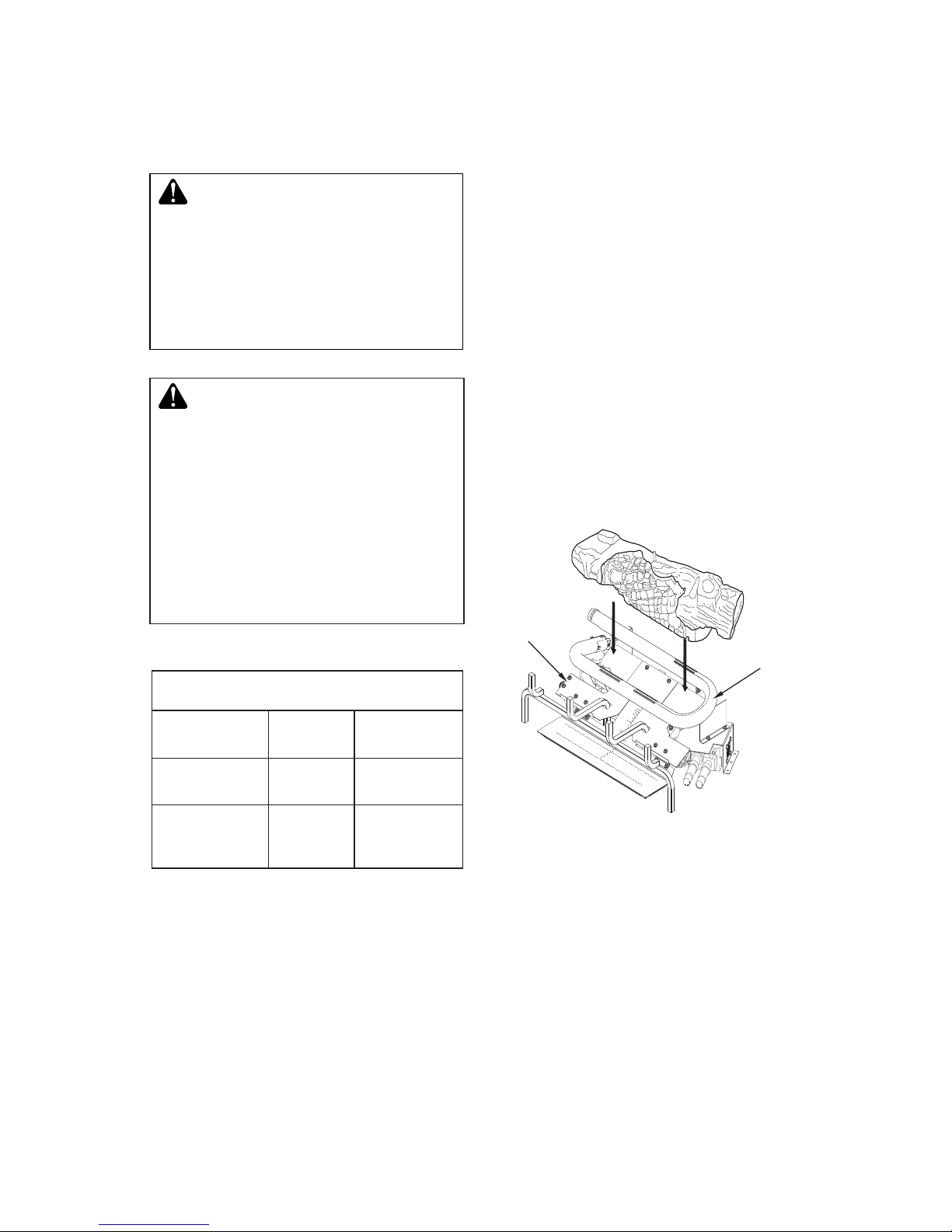

Figure 21 - TF Series Burner System-
Log Compatibility Chart
CAUTION: After installa-
tion and periodically thereafter,
check to ensure that no ame
comes in contact with any log.
With heater set to Hi, check to
see if ames contact any log. If
so, reposition logs according to
log installation instructions in
this manual. Flames contacting
logs will create soot.
LTF(18,24,30)-MM LOG PLACEMENT
It is very important to install the logs exactly as
instructed. Do not modify logs. Only use logs
supplied with heater or as identied for use
with the heater as shown in Figure 21, page
16. Each log includes reference numbers
formed in the bottom or back of the log. The
circled number indicates the order it is placed
on the burner system. The remaining numbers
indicate the size burner system the logs are
designed to t. For example, the rst log for
a 24 inch burner system will include a circled
1 and also a 24. The circled 1 indicates this
is the rst log to be installed. The 24 indicates
this log belongs to a 24 inch log set. See page
46 for reference numbers detail.
1. Place the rear log (#1) on base assembly
as shown in Figure 22. Log will t over
right end of burner and rest in middle of
U-burner.
1
Figure 22 - Installing Log # 1
''U'' -
Burner
Base
assembly

www.SuperiorFireplaces.US.com
126818-01A 17
INSTALLATION
Continued
2. Place the middle log (#2) in front of the U-
burner and against the edges of the plate
as shown in Figure 23.

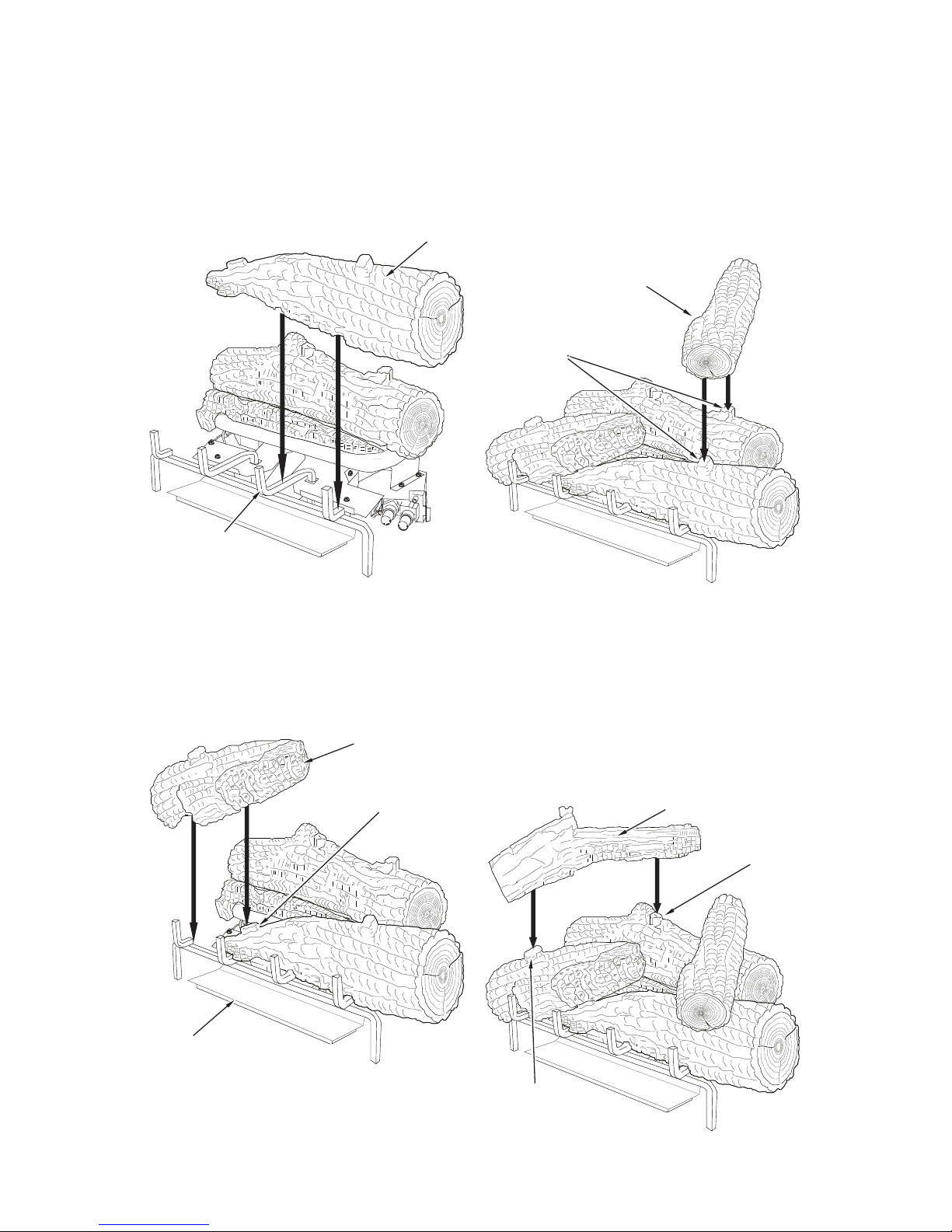

Figure 26 - Installing Log # 5
Figure 25 - Installing Log # 4
Figure 24 - Installing Log # 3
Figure 23 - Installing Log # 2
2
3
3. Place the front left log (#3) onto the base
assembly between the middle log (#2) and
the grate ngers. The back of the front left
log (#3) will rest against the front of the
middle log (#2). The notch at the end of
the front left log (#3) will t around the grate
bar. See Figure 24.
4
5
Metal
Pin
Rectangular
Peg
4. Place the front right log (#4) onto the base
assembly between the middle log (#2) and
the grate. The back of the front right log
(#4) will rest against the front of the middle
log (#2). The notch in the end of the front
right log (#4) will t around the grate bar.
See Figure 25.
5. Place the left back top log (#5) on top of
the rear log (#1). Match the rectangular peg
on top of the left side of the rear log (#1)
with the rectangular hole on the bottom of
the left back top log (#5). Match the metal
pin on the top of the rear log (#1) with the
round hole in the bottom of the left back top
log (#5). See Figure 26.
6. Place the left top forked log (#6) on the top
of the middle log (#2). Match the rectangu-
lar projection on top of the middle log (#2)
with the rectangular hole on the bottom of
the left top forked log (#6). Match the metal
pin on the top of the middle log (#2) with
the round hold in the bottom of the left top
forked log (#6)See Figure 27, page 22.
7. Place the right rear chunk log (#7) on top
of the middle log (#2) and rear log (#1) as
shown in Figure 28, page 18. Match the
round peg on the top of the rear log (#1)
with the round hole on the bottom of the
right rear chunk (#7) log and square peg
on the top of the middle log (#2) with the
square hole on the bottom of the right rear
chunk log (#7).

www.SuperiorFireplaces.US.com 126818-01A18
INSTALLATION
Continued
Figure 30 - Installing Log # 9
Figure 29 - Installing Log # 8
Figure 28 - Installing Log # 7
Figure 27 - Installing Log # 6
6
8. Place the front right mid log (#8) on top of
the front right log (#4) as shown in Figure
29. Match the round metal pin on the top of
the front right log (#4) with the round hole
on the bottom of the front right mid log (#8).
9. Place the top right log (#9) on top of the
right rear chunk log (#7) and front right mid
log (#8) as shown in Figure 30. Match the
round peg on the top of the right rear chunk
log (#7) with the round hole on the bottom
of the top right log (#9) and square peg on
the top of the front right mid log (#8) with
the square hole on the bottom of the top
right log (#9).
7
10. Place the right rear top log (#10) on top
of the right rear chunk log (#7) as shown in
Figure 31, page 19. Match the rectangular
peg on the top of the right rear chunk log
(#7) with the rectangular hole on the bottom
of the right rear top log (#10).
11. Place the left top log (#11) on top of the left
back top log (#5) and left top forked log (#6)
as shown in Figure 32, page 19. Match the
round peg on the top of the left top forked
log (#6) with the round hole on the bottom
of the top left log (#11) and rectangular peg
on the top of the left back top log (#5) with
the rectangular hole on the bottom of the
top left log (#11).
8
9
Rectangular
Peg
Round
Peg
Metal Pin
Metal Pin
Round
Peg
Square Peg
Square Peg

www.SuperiorFireplaces.US.com
126818-01A 19
Figure 31 - Installing Log # 10
Figure 32 - Installing Log # 11
INSTALLATION
Continued
10
11
Figure 33 - Final Assembly
Square Peg
Round
Peg
Figure 34 - Installing Bottom Ember Log
Figure 35 - Installing Rear Log
LTF(18,24,30)-RS LOG PLACEMENT
It is very important to install the logs exactly
as instructed. Do not modify logs. Only use
logs supplied with heater or as identied for
use with the heater as shown.
1. Place bottom ember log on base as-
sembly as shown in Figure 34. The log
should t over the left side of the burner
and rest in the middle of the U-burner.
2. Place the rear log on the base assembly
as shown in Figure 35. The rear log has
grooves in the bottom which will allow
the log to sit on the burner and behind
the bottom ember log
Rear Log
Base Assembly
Burner
Tube
Bottom Ember Log
Burner Tube

www.SuperiorFireplaces.US.com 126818-01A20
INSTALLATION
Continued
Figure 36 - Installing Right Front Log
Figure 37 - Installing Left Front Log
Figure 38 - Installing Right Crossover
Log
Figure 39 - Installing Left Crossover Log
3. Place the right front log onto the base
and grate assembly as shown in Figure
36. The log has notches in the bottom
for the grate.
4. Place the left front log onto the base and
the right front log as shown in Figure 53.
The left front log has a notch on the bot-
tom that will line up with the projection
on the right front log.
5. Place the right crossover log onto the
rear log and the right front log as shown
in Figure 38. The right crossover log has
notches in the bottom that will line up
with the projections on the rear log and
the right front log.
6. Place the left crossover log onto the
rear log and the left front log as shown
in Figure 39. The left crossover log has
notches in the bottom that will line up
with the projections on the rear log and
the left front log.
Base
Assembly
Grate
Assembly
Left Front Log
Rectangular
Projection
Right Front Log
Right Crossover Log
Projections for
Sitting Log
Projection for
Sitting Log
Projection for
Sitting Log
Left Crossover Log
