Supermicro SuperServer SYS-211E-FRN2T User manual

USER’S MANUAL
Revision 1.0
SuperServer®
SYS-211E-FRN2T
SYS-211E-FRDN2T

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes
no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update
or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note:
For the most up-to-date version of this manual, please see our website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual
at any time and without notice. This product, including software and documentation, is the property of Supermicro and/
or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except
as expressly permitted by the terms of said license.
IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIALDAMAGESARISING FROM THE USE OR INABILITYTO USE THIS PRODUCT
OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER
MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED
OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the
State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution
of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in industrial environment for Class A device or in residential
environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case you will be required to correct the interference at your own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only
to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate”.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment,
nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical

property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products
for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully
indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and
proceedings of any kind arising out of or related to such ultra-hazardous use or sale.
Manual Revision 1.0
Release Date: May 04, 2023
Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this

to herein are trademarks or registered trademarks of their respective companies or mark holders.
Copyright © 2023 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America

3
Preface
Preface
About this Manual
This manual is written for professional system integrators and PC technicians. It provides
information for the installation and use of the server. Installation and maintenance should be
performed by experienced technicians only.

updates on supported memory, processors and operating systems (http://www.supermicro.
com).
Notes
For your system to work properly, please follow the links below to download all necessary
drivers/utilities and the user’s manual for your server.
• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: https://www.supermicro.com/wdl
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
If you have any questions, please contact our support team at:
[email protected]m
This manual may be periodically updated without notice. Please check the Supermicro website
for possible updates to the manual revision level.
Secure Data Deletion
A secure data deletion tool designed to fully erase all data from storage devices can be found
on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/
Lot9_Secure_Data_Deletion_Utility/
Warnings
Special attention should be given to the following symbols used in this manual.
Warning! Indicates high voltage may be encountered when performing a procedure.
Warning! Indicates important information given to prevent equipment/property damage


4
Contents
Contents
Chapter 1 Introduction
1.1 Overview...............................................................................................................................9
1.2 System Features ................................................................................................................11
Front View .........................................................................................................................11

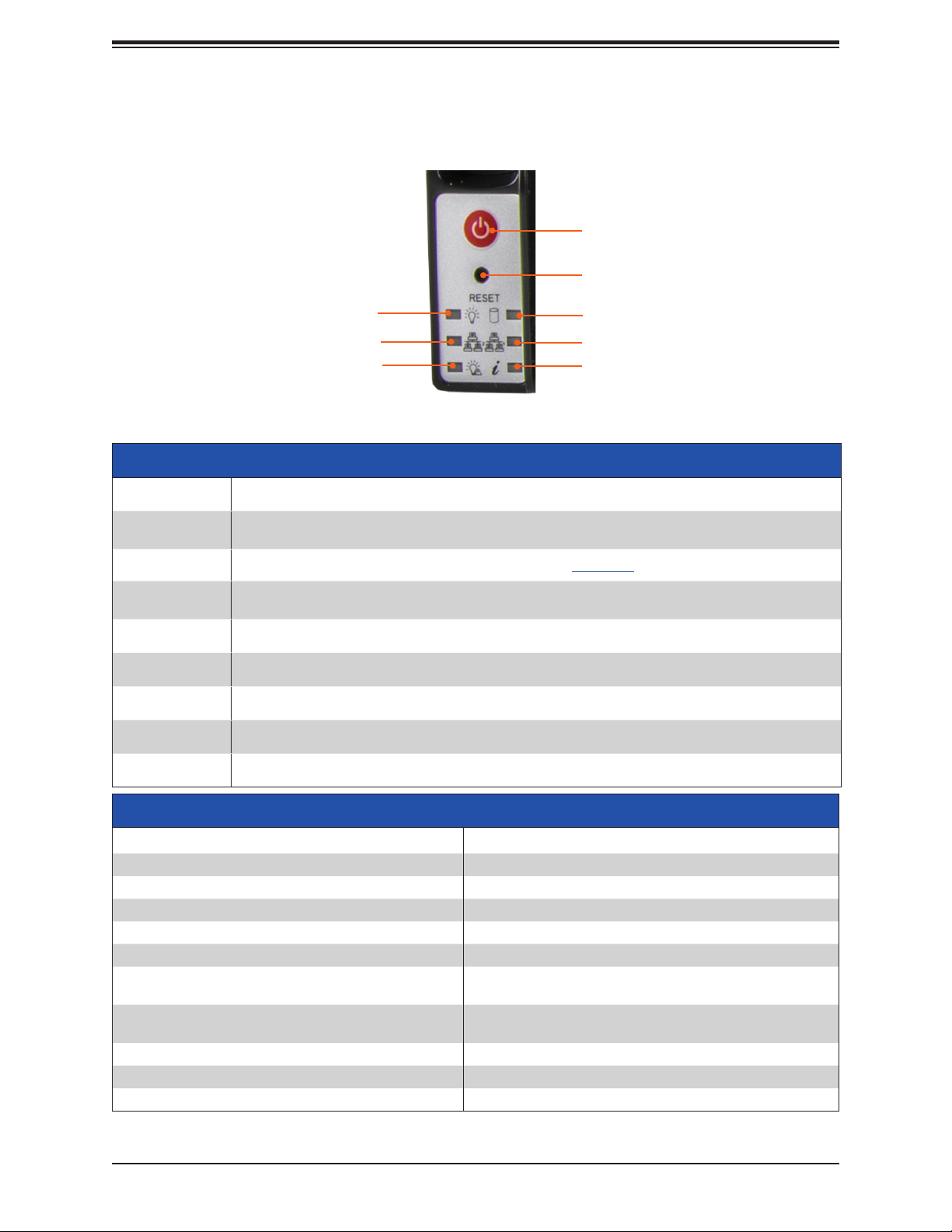

Control Panel.................................................................................................................13

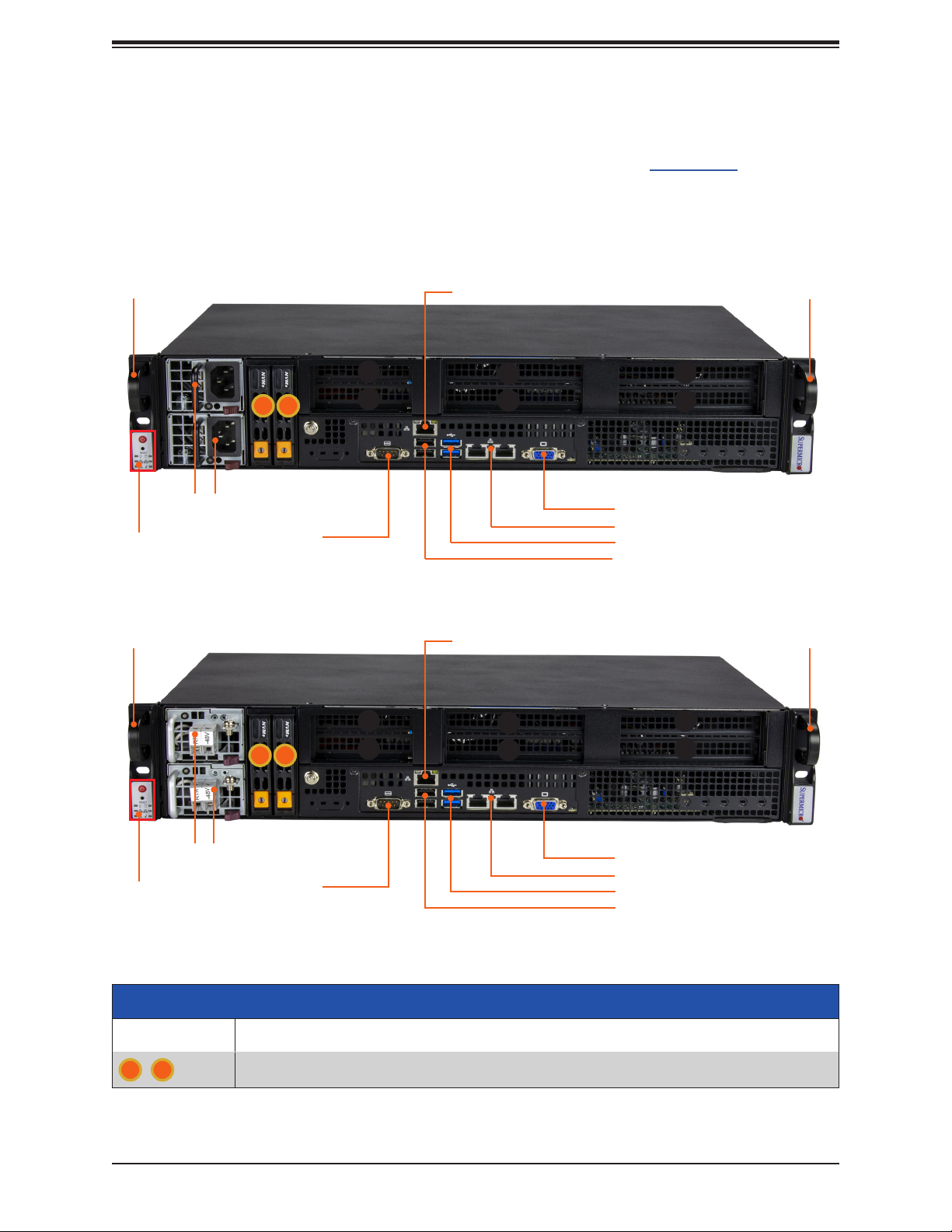

Rear View..........................................................................................................................14
1.3 System Architecture ...........................................................................................................15
Main Components .............................................................................................................15
1.4 Motherboard Layout ...........................................................................................................16
Quick Reference Table......................................................................................................17
Motherboard Block Diagram .............................................................................................19
Chapter 2 Server Installation
2.1 Overview.............................................................................................................................20
2.2 Preparing for Setup ............................................................................................................20
Choosing a Setup Location...............................................................................................20
Rack Precautions ..............................................................................................................20
Server Precautions............................................................................................................21
Rack Mounting Considerations .........................................................................................21
Ambient Operating Temperature....................................................................................21
 ............................................................................................................................21
Mechanical Loading.......................................................................................................22
Circuit Overloading ........................................................................................................22
Reliable Ground.............................................................................................................22
2.3 Identifying the Rack Rails ..................................................................................................23
Locking Tabs .....................................................................................................................23
2.4 Installing the Inner Rails.....................................................................................................24
2.5 Installing the Outer Rails to the Rack ................................................................................25
2.6 Installing the Server into the Rack.....................................................................................26
2.7 Removing the System from the Rack ................................................................................27
Chapter 3 Maintenance and Component Installation
3.1 Removing Power ................................................................................................................28
3.2 Accessing the System........................................................................................................29
3.3 Static-Sensitive Devices......................................................................................................30

5
Contents
Precautions .......................................................................................................................30
3.4 Processor and Heatsink Installation...................................................................................31
The 4th Generation Intel Xeon Scalable Processor .........................................................31
Overview of the Processor Carrier Assembly ...................................................................32
Overview of the CPU Socket ............................................................................................32
Overview of the Processor Heatsink Module....................................................................33
Creating the Processor Carrier Assembly.........................................................................34
Assembling the Processor Heatsink Module ....................................................................35
Preparing the CPU Socket for Installation........................................................................36
Installing the Processor Heatsink Module.........................................................................37
Removing the Processor Heatsink Module.......................................................................38
3.5 Memory Support and Installation .......................................................................................39
General Guidelines for Optimizing Memory Performance ................................................40
DIMM Installation ..............................................................................................................41
DIMM Removal .................................................................................................................41
3.6 Motherboard Battery...........................................................................................................42
3.7 Storage Drives....................................................................................................................43
Drive Carrier Indicators ....................................................................................................43
Installing Drives.................................................................................................................44
Installing M.2 Solid State Drives.......................................................................................46
3.8 Expansion Cards ................................................................................................................47
Installing Expansion Cards into Left Bracket....................................................................48
Installing Expansion Cards into Center Bracket ...............................................................50
Installing Expansion Cards into Right Bracket..................................................................52
3.9 System Cooling ..................................................................................................................54
Fans ..................................................................................................................................54
Air Shroud .........................................................................................................................55
Installing the Air Shroud ................................................................................................55
3.10 Power Supply ....................................................................................................................56
3.11 BMC Reset ........................................................................................................................58
Chapter 4 Motherboard Connections
4.1 Power Connections ............................................................................................................59
4.2 Headers and Connectors ...................................................................................................60
4.3 Input/Output Ports ..............................................................................................................64
4.4 Jumpers..............................................................................................................................67

6
Contents
How Jumpers Work...........................................................................................................67
4.5 LED Indicators....................................................................................................................70
4.6 Front Control Panel ............................................................................................................71
Chapter 5 Software
5.1 Microsoft Windows OS Installation.....................................................................................74
5.2 Driver Installation................................................................................................................76
5.3 SuperDoctor®5...................................................................................................................77
5.4 BMC....................................................................................................................................78
BMC ADMIN User Password ............................................................................................78
Chapter 6 Optional Components
6.1 Optional Parts List...............................................................................................................79
6.2 Intel Virtual RAID on CPU (VROC)....................................................................................80
Requirements and Restrictions.........................................................................................80
Supported SSDs and Operating Sytems ..........................................................................80
Additional Information .......................................................................................................81
Hardware Key ...................................................................................................................81
Enabling NVMe RAID........................................................................................................82
Status Indications..............................................................................................................85
Hot Swap Drives ...............................................................................................................85
Hot-unplug .....................................................................................................................85
Hot-plug .........................................................................................................................85
Chapter 7 Troubleshooting and Support
7.1 Information Resources .......................................................................................................86
Website .............................................................................................................................86
Direct Links for the SYS-211E-FRN2T/211E-FRDN2T System.....................................86
Direct Links for General Support and Information .......................................................86
7.2 Baseboard Management Controller (BMC)........................................................................87
7.3 Troubleshooting Procedures .............................................................................................88
General Technique ............................................................................................................88
No Power ..........................................................................................................................88
No Video ...........................................................................................................................89
System Boot Failure .........................................................................................................89
Memory Errors ..................................................................................................................89
 ...........................................................................89
When the System Becomes Unstable ..............................................................................89

7
Contents
7.4 Crash Dump Using BMC....................................................................................................91
7.5 UEFI BIOS Recovery .........................................................................................................92
Overview ...........................................................................................................................92
Recovering the UEFI BIOS Image....................................................................................92
Recovering the Main BIOS Block with a USB Device......................................................92
7.6 CMOS Clear .......................................................................................................................97
7.7 Where to Get Replacement Components..........................................................................98
7.8 Reporting an Issue .............................................................................................................98
Technical Support Procedures ..........................................................................................98
Returning Merchandise for Service...................................................................................98
Vendor Support Filing System ..........................................................................................99
7.9 Feedback............................................................................................................................99
Appendix A Standardized Warning Statements for AC Systems
Appendix B Standardized Warning Statements for DC Systems
Appendix C System Specications

8
Contents
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Sales Inquiries)
[email protected] (Gov. Sales Inquiries)
[email protected] (Technical Support)
[email protected] (RMA Support)
[email protected] (Webmaster)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (Sales Inquiries)
[email protected] (Technical Support)
[email protected] (RMA Support)
Website: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Email: [email protected] (Sales Inquiries)
[email protected] (Technical Support)
[email protected] (RMA Support)
Website: www.supermicro.com.tw

9
Chapter 1: Introduction
Chapter 1
Introduction
1.1 Overview
This chapter provides a brief outline of the functions and features of the SuperServer
SYS-211E-FRN2T/211E-FRDN2T. This system is based on the X13SEM-TF motherboard
and the CSE-211M-R000NDP chassis.

System Overview
Motherboard X13SEM-TF
Chassis CSE-211M-R000NDP
Processor
Support Single 4th Generation Intel® Xeon® Scalable processor up to 270W TDP
Memory Eight DIMM slots (1DCP), up to 2TB DDR5 4800MT/s ECC RDIMM/RDIMM-3DS
Drive Support Two 2.5" NVMe drive bays
Two M.2 slot M-key 22110/2280
Expansion Slots
Default:
Slot 1: PCIe 5.0 x16 (HHHL)
Slot 2: PCIe 5.0 x8 (HHHL)
Slot 3 & Slot 4: Disabled
Slot 5 & 6: PCIe 5.0 x16 (FHHL)
*Option 1:
Slot 1: PCIe 5.0 x16 (HHHL)
Slot 2: Disabled
Slot 3: PCIe 5.0 x16 (FHHL)
Slot 4: PCIe 5.0 x8 (FHHL)
Slot 5 & 6: PCIe 5.0 x16 (FHHL)
*Option 2:
Slot 1: PCIe 5.0 x8 (HHHL)
Slot 2: PCIe 5.0 x8 (HHHL)
Slot 3: PCIe 5.0 x16 (FHHL)
Slot 4: PCIe 5.0 x8 (FHHL)
Slot 5 & 6: PCIe 5.0 x16 (FHHL)
Note: For Expansion slots Option 1 and Option 2, the system can only support up to
225W CPU and will require the installation of additional components.
I/O Ports
Two 10G BASE-T ports
Two USB 3.0 ports
Two USB 2.0 ports
One VGA port
One dedicated IPMI port
One COM port
System Cooling Four 8-cm heavy duty fans
One air shroud
Power SYS-211E-FRN2T: 800W AC redundant power supplies
SYS-211E-FRDN2T: 600W DC redundant power supplies
Form Factor 2U: 17.2 x 3.5 x 11.8in. / 436.88 x 88.9 x 436.88mm (WxHxD)

10
Chapter 1: Introduction
A Quick Reference Guide can be found on the product page of the Supermicro website.
The following safety models associated with SYS-211E-FRN2T/211E-FRDN2T have been

and 211M-6D(DC).

11
Chapter 1: Introduction
1.2 System Features
The following views of the system display the main features. Refer to Appendix C for additional

Front View
Logical Storage Drive Numbers
Item Description
0, 1Two 2.5" NVMe storage drive bays (logical drive numbers shown)
Figure 1-1. Front View - SYS-211E-FRN2T
0 1
Control Panel
800W Redundant Power Supplies
3
4
5
6
VGA Port
Two USB 3.0 Ports
RJ45 10GbE LAN Ports
Two USB 2.0 Ports
COM Port
Dedicated IPMI LAN Port Handle
1
2
Handle
Figure 1-2. Front View - SYS-211E-FRDN2T
0 1
Control Panel
600W Redundant Power Supplies
3
4
5
6
VGA Port
Two USB 3.0 Ports
RJ45 10GbE LAN Ports
Two USB 2.0 Ports
COM Port
Dedicated IPMI LAN Port Handle
1
2
Handle

12
Chapter 1: Introduction
Expansion Slot Locations
Item Description
1
Default: PCIe 5.0 x16 (HHHL)
Option 1: PCIe 5.0 x16 slots (HHHL)
Option 2: PCIe 5.0 x8 slots (HHHL)
2
Default: PCIe 5.0 x16 (HHHL)
Option 1: Disabled
Option 1: PCIe 5.0 x8 slots (HHHL)
3
Default: Disabled
Option 1: PCIe 5.0 x16 (FHHL)
Option 2: PCIe 5.0 x16 (FHHL)
4
Default: Disabled
Option 1: PCIe 5.0 x8 (FHHL)
Option 2: PCIe 5.0 x8 (FHHL)
5PCIe 5.0 x16 (FHHL)
6PCIe 5.0 x16 (FHHL)
Expansion Slot BIOS Settings
Expansion Slot Motherboard Slot BIOS Advanced Settings
1, 2 slimSAS (0/1) IOU 4
3 7 IOU 0
4N/A N/A
5 6 IOU 1
6 4 IOU 3
System Features: Front
Feature Description
Server Handles Two handles supporting server removal
Control Panel Front control panel with LEDs and buttons (see the following page)
Power Supplies SYS-211E-FRN2T: 800W AC redundant power supplies
SYS-211E-FRDN2T: 600W DC redundant power supplies
COM Port One serial communication port
LAN Ports One dedicated BMC LAN port, two RJ45 10GbE LAN ports
USB Ports Two USB 2.0 ports and two USB 3.0 ports
VGA Port One video port

13
Chapter 1: Introduction
Control Panel Features
Feature Description
Power button The main power switch applies or removes primary power from the power supply to the server
but maintains standby power.
BMC button This button can also be used to reset the BMC. See Chapter 3.
Power LED Indicates power is being supplied to the system power supply units. This LED is illuminated
when the system is operating normally.
HDD 
NIC (LAN1) LED 
NIC (LAN2) LED 
Power Fail LED Indicates a power supply module has failed.
Information LED Alerts operator to several states, as noted in the table below.
Information LED
Color, Status Description
Red, solid An overheat condition has occurred.
Red, blinking at 1Hz Fan failure, check for an inoperative fan.
Red, blinking at 0.25Hz Power failure, check for a non-operational power supply.
Red, solid, with Power LED blinking green Fault detected
Blue and red, blinking at 10 Hz Recovery mode
Blue, solid UID has been activated locally to locate the server in a
rack environment.
Blue, blinking at 1Hz UID has been activated using the BMC to locate the
server in a rack environment.
Blue, blinking at 2Hz BMC is resetting
Blue, blinking at 4Hz BMC is setting factory defaults
Blue, blinking at 10Hz with Power LED blinking green 
Control Panel
Figure 1-3. Control Panel
Power
HDD
BMC Reset
NIC (LAN1) LED
Information LED
NIC (LAN2) LED
Power Fail LED
Power LED

14
Chapter 1: Introduction
Rear View
Figure 1-4. Rear View
System Features: Rear
Feature Description
Fans Four internal fans
Fans

15
Chapter 1: Introduction
Figure 1-5. Main Component Locations
1.3 System Architecture
