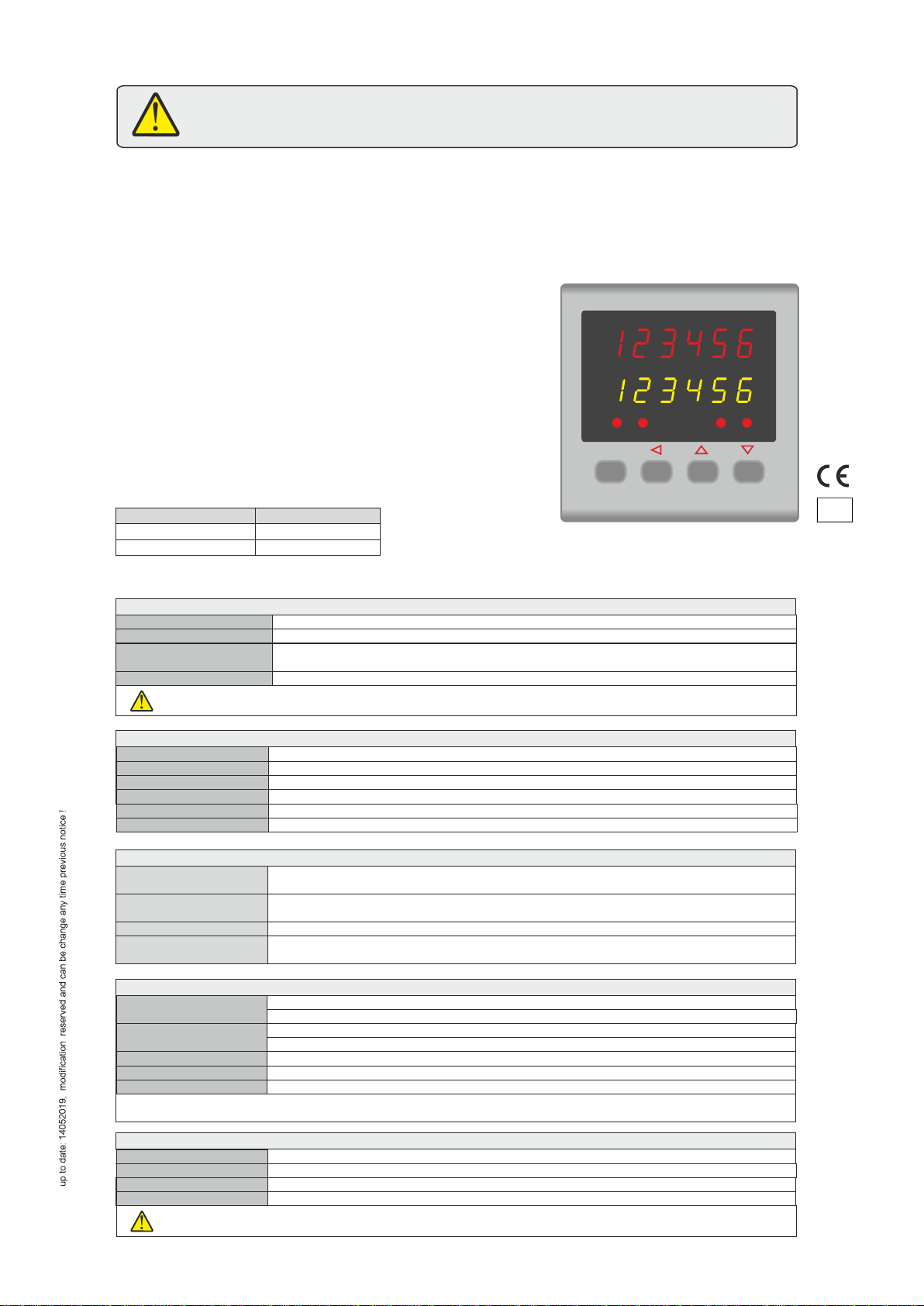

SURAN ENDA ETS762 User manual

Counting inputs
(INA, INB) 3 channels (5V to 30V pulses)
40ms, 20ms, 10ms, 1ms, 0.5ms, 0.1ms, 50 (selectable by programming)ms
* 72x72mm sized.
* 2x6 digits display.
* Easy to use by front panel keypad.
* On and Off times of the input pulses can be selected.
* Sampling time can be adjusted between 0.2s and 16.0s.
* Output can be energized while process value is greater or lower than the
preset value.
* Ti utput operation.
* Display configuration can be adjusted. .
* Easy connection by removable screw terminals.
* Haing CE mark according to European Norms.
* Sensor type can be selected as PNP or NPN.
* Selectable functional reset.
* Double set-points control is made by 2 relays outputs.
me delay can be included to the o
* Output can be energized continuously or just for a time interval of 0.1
to 999.9 seconds.
* Decimal point can be adjusted between 1. and 5. digits.
* Prescaler factor can be adjusted between 0.00001 and 999.999 for calibration.
* Parameter access protection on 3 levels
Minimum On and Off times
for pulses
ENDA ETS762 TACHO LINE/SPEED METER
Thank you for choosing ENDAETS762 TACHOMETER.
INPUTS
Adjustable between 0.2s and 16.0s.
Sampling time
Supply Voltage Order Code
230V AC +10% -20% ETS762
24V AC ±10% ETS762-24AC
ENDA PRESET TACHO/LINE SPEED METER
IN A IN B OUT1 OUT2
PRESET RESET
SET
ETS762
Read this document carefully before using this device. The guarantee will be expired by
damaging of the device if you don't attend to the directions in the user manual. Also we don't
accept any compensations for personal injury, material damage or capital disadvantages.
ENVIRONMENTAL CONDITIONS
Height Max. 2000m
Ambient/storage temperature
Max. relative humidity 0 ... +50°C/-25 ... +70°C (with no icing)
Rated pollution degree
TECHNICAL SPECIFICATIONS
80 up to 31 decreasing linearly 50 at 40 .% %°C °C
According to EN 60529 Front panel : IP60
Rare panel : IP20
Do not use the device in locations subject to corrosive and flammable gases.
Supply 230V AC +10% -20%, 50/60Hz or 24V AC ±10%, 50/60Hz
Power consumption Max. 7VA
2.5mm² screw-terminal connections
Wiring
Date retention
EMC
Safety requirements EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B for the EMC standard)
EEPROM (Min. 10 years)
EN 61010-1: 2001 (pollution degree 2, overvoltage category II)
ELECTRICAL CHARACTERISTICS
OUTPUTS
Control output (OUT1) Relay : 250V AC, 2A (for resistive load), NO+NC
Control output (OUT2)
Open collector output (S.S. OUT1): Max. 30V DC, 100mA.
Relay : 250V AC, 2A (for resistive load), NO+NC
Auxiliary power supply Open collector output (S.S. OUT2): Max. 30V DC, 100mA.
12V DC, Max. 50mA (without regulation)
.Mechanical 30.000.000 operation; Electrical 300.000 operation
Life expectancy for relays
Note : Relay and S.S.OUT outputs are in synchronization . When OUT1 relay is energized S.S. OUT1 transistor goes into saturation.
Similarly, when OUT2 relay is energized S.S. OUT2 transistor goes into saturation.
HOUSING
Housing type Suitable for flush-panel mounting according to DIN 43 700.
Dimensions W72xH72xD97mm
Weight Approx. 405g (after packing)
Enclosure material Self extinguishing plastics
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
PNP: 5V to 30V pulse with adjustable pulse time between 2ms and 50ms.
NPN: GND terminal is connected to the RESET IN or HOLD IN terminal.
RESET and HOLD inputs
Accuracy ±%0.1
RoHS
conform
english
1. / 5 ETS762-E-14052019

TERMS
( 2 ) Digital display
( 4 ),( 5 ),( 6 ),( 7 ) Keypad
Panel cut-out
Connection
cables
Depth
97mm 75mm
DIMENSIONS
68 mm
+0.7
Rubber packing
Flush mounting
clamp
Panel
1
2
ENDA PRESET TACHO/LINE SPEED METER
IN A IN B OUT1 OUT2
PRESET RESET
SET
ETS762
ENDA PRESET TACHO/LINE SPEED METER
IN A IN B OUT1 OUT2
PRESET RESET
SET
ETS762
3 HOLD IN
4 RESET IN
5 S.S. OUT2
6 S.S. OUT1
7 IN B
8 IN A
9 GND
10 +12V 50mA
11
12
13
14
15
16
17
18
OUT1
AC 250V 2A
RESISTIVE
LOAD
OUT2
AC 250V 2A
RESISTIVE
LOAD
ENDA
INDUSTRIAL
ELECTRONICS
ETS762
SN: XXXXXXXXX
230V AC +10% -20%
50/60Hz 7VA
3 HOLD IN
4 RESET IN
5 S.S. OUT2
6 S.S. OUT1
7 IN B
8 IN A
9 GND
10 +12V 50mA
11
12
13
14
15
16
17
18
OUT1
AC 250V 2A
RESISTIVE
LOAD
OUT2
AC 250V 2A
RESISTIVE
LOAD
ENDA
INDUSTRIAL
ELECTRONICS
ETS762-24AC
SN: XXXXXXXXX
24V AC ±10%
50/60Hz 7VA
input
type
Set.dsp.
config
Digital display (1) : 9.1mm
Digital display (2) : 7.1mm
4 red LEDs
6 digits, seven segment red LED
6 digits, seven segment yellow LED
Micro switch
Character height
( 3 ) State indicators
( 1 ) Digital display
Push up the flush-mounting
clamp in direction as
shown in the figure above.
Then, pull out the clamp in
direction
- 1
- 2.
For removing mounting clamps:
Note 1) While panel mounting, additional distance required for
connection cables should be considered.
2) Panel thickness should be maximum 10mm.
3) If there is no 90mm free space at back side of the device,
it would be difficult to remove it from the panel.
CONNECTION DIAGRAM
ENDA ETS762 is intended for installation in control panels. Make sure that the device is used only for intended
purpose. During an installation, all of the cables that are
connected to the device must be free of energy. The device must be protected against inadmissible humidity,
vibrations, severe soiling and make sure that the operation temperature is not exceeded. All input and output
lines that are not connected to the supply network must be laid out as shielded and twisted cables. These cables
should not be close to the power cables or components.
The shielding must be grounded on the instrument side.
The installation and electrical connections must be
carried on by a qualified staff and must be according to the relevant locally applicable regulations.
12
11
184-253V AC
50/60Hz 7VA
Switch
Fuse
F 100 mA
250V AC
Neutral
Line
SUPPLY :
NOTE :
Fuse should
be connected.
230V AC Supply
Cable size: 1,5mm²
1) Mains supply cords shall meet the requirements of IEC 60227
or IEC 60245.
2) In accordance with the safety regulations, the power supply
switch shall bring the identification of the relevant instrument
and it should be easily accessible by the operator.
Note :
Holding screw 0.4-0.5Nm Equipment is protected throughout
by DOUBLE INSULATION.
(3) State indicators shows the state of the device.
(7) Used for selecting run or programming modes or for adjusting parameters.
(4) Used for adjusting the preset values in the run mode.
Increment or parameter selection key during programming mode.
(5) Decrement or reset key in the run mode.
Decrement or parameter selection key during programming mode
(6) Used for selecting preset1, preset2 or user defined message in the run mode.
Used for selecting s or parameter to be changed in the programming mode.oPtion.
(2) The value of the parameter selected by parameter during run mode.
Parameter value during programming mode.
(1) The value of the measurement selected by parameter during run mode.
Parameter name during programming mode.
2. / 5 ETS762-E-14052019

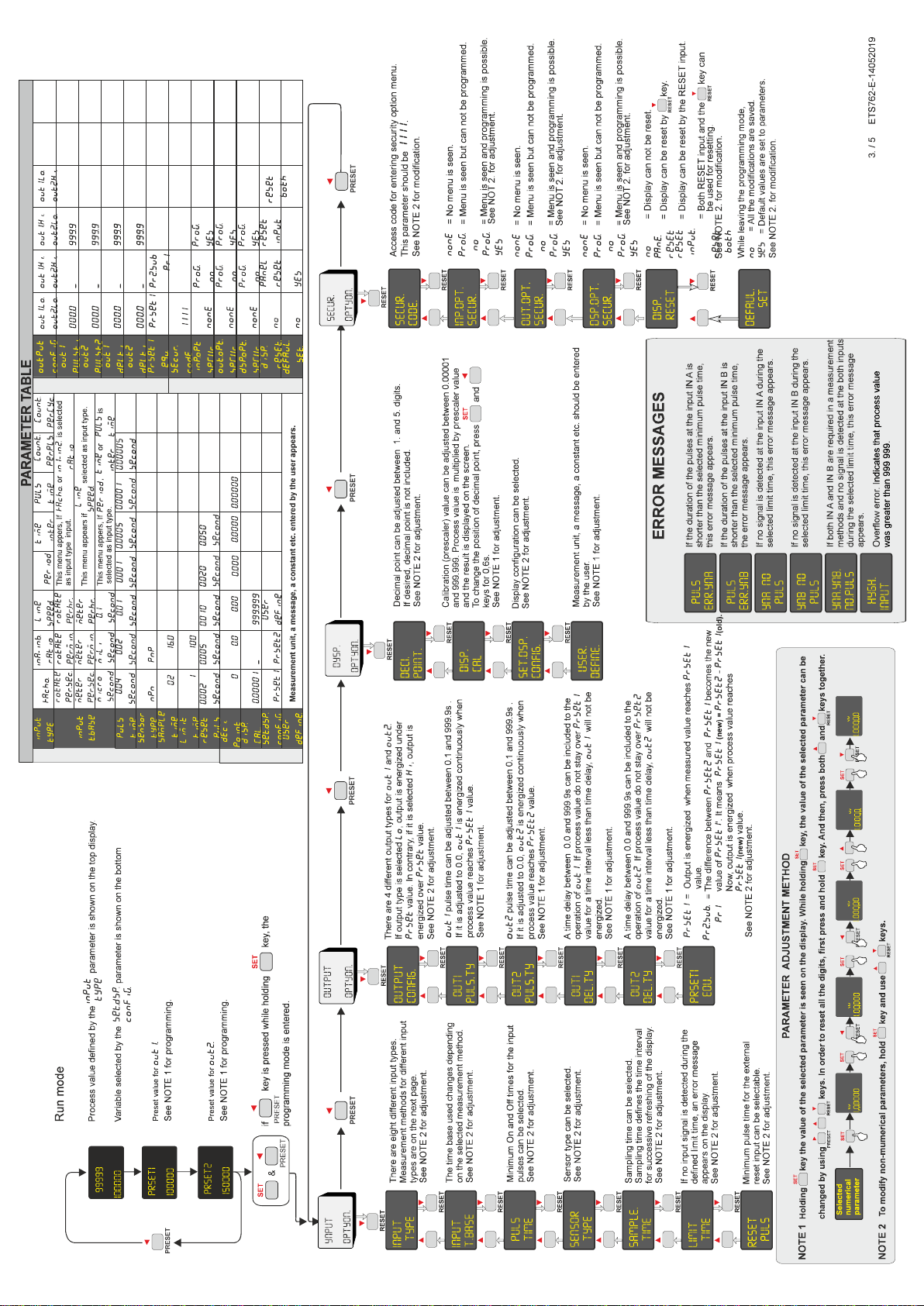

output oPTIoN.
DisP. oPTIoN.
SEcur. oPTIoN.
input oPTIoN.

PNP PROXIMITY SWITCH
GND
OUT
+ 12V
PNP PROXIMITY SWITCH
PNP PROXIMITY SWITCH GND
+ 12V
+ 12V
GND
OUT
OUT
TYPICAL SENSOR CONNECTIONS
TERMINAL CONNECTIONS
Terminal descriptions
3 : Hold input
4 : Reset input
5 : Solid state out2 (Max 30V 100mA open collector NPN)
6 : Solid state out1 (Max 30V 100mA open collector NPN)
7 : IN Ainput (Max 30V 10kHz)
8 : IN B i input (Max 30V 10kHz)
9 : GND
10 : +12V 50mA auxiliary power supply
11,12 : SUPPLY inputs
13,14,15 : 1. relay output (Max 2A250V AC)
16,17,18 : 2. relay output (Max 2A250V AC)
230V AC Supply
Switch
Cable size: 1,5mm²
Fuse
F 100 mA
250V AC
230V AC Supply
Switch
Cable size: 1,5mm²
Fuse
F 100 mA
250V AC
3 HOLD IN
4 RESET IN
5 S.S. OUT2
6 S.S. OUT1
7 IN B
8 IN A
9 GND
10 +12V 50mA
11
12
13
14
15
16
17
18
OUT1
AC 250V 2A
RESISTIVE
LOAD
OUT2
AC 250V 2A
RESISTIVE
LOAD
ENDA
INDUSTRIAL
ELECTRONICS
ETS762
SN: XXXXXXXXX
230V AC +10% -20%
50/60Hz 7VA
3 HOLD IN
4 RESET IN
5 S.S. OUT2
6 S.S. OUT1
7 IN B
8 IN A
9 GND
10 +12V 50mA
11
12
13
14
15
16
17
18
OUT1
AC 250V 2A
RESISTIVE
LOAD
OUT2
AC 250V 2A
RESISTIVE
LOAD
ENDA
INDUSTRIAL
ELECTRONICS
ETS762
SN: XXXXXXXXX
230V AC +10% -20%
50/60Hz 7VA
3 HOLD IN
4 RESET IN
5 S.S. OUT2
6 S.S. OUT1
7 IN B
8 IN A
9 GND
10 +12V 50mA
11
12
13
14
15
16
17
18
OUT1
AC 250V 2A
RESISTIVE
LOAD
OUT2
AC 250V 2A
RESISTIVE
LOAD
ENDA
INDUSTRIAL
ELECTRONICS
ETS762
SN: XXXXXXXXX
230V AC +10% -20%
50/60Hz 7VA
NOTE: NPN PROXIMITY SWITCH connection is the same as PNP PROXIMITY SWITCH connection.
E-mail : [e-mail]
Internet : www.suran-elektronik.de
Tel.: [phone] / 625 617
Fax: [phone]
SURAN Industrieelektronik
Im Mitteldorf 26 / D-72160 Horb a.N 5. / 5 ETS762-E-14052019
