Sure Comfort SCT200DV User manual
!FOR YOUR SAFETY!
Do not store or use gasoline or other
flammable vapors or liquids or other
combustible materials in the vicinity of
this or any other appliance. To do so may
result in an explosion or fire.
WHAT TO DO IF YOU SMELL GAS
● Do not try to light any appliance.
● Do not touch any electrical switch; do not
use any phone in your building.
● Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
● If you cannot reach your gas supplier, call
the fire department.
● Do not return to your home until authorized
by the gas supplier or fire department.
Improper installation, adjustment,
alteration, service or maintenance can cause
property damage, personal injury or death.
Refer to this manual. Installation and service
must be performed by a qualified installer,
service agency or the gas supplier.
WARNING: If the information in these instructions is not followed exactly,
a fire or explosion may result, causing property damage, personal injury or death.
!
The purpose of this manual is twofold: one, to provide the installer with
the basic directions and recommendations for the proper installation
and adjustment of the water heater; and two, to the owner–operator,
to explain the features, operation, safety precautions, maintenance and
troubleshooting of the water heater. This manual also includes a parts
list.
It is very important that all persons who are expected to install, operate
or adjust this water heater read the instructions carefully so they may
understand how to perform these operations. If you don’t understand
these instructions or any terms within it, seek professional advice.
Any questions regarding the operation, maintenance, service or warranty
of this water heater should be directed to the seller from whom it was
purchased. If additional information is required, refer to the section on
If You Need Service.
Do not destroy this manual. Please read carefully and keep in a safe
place for future reference.
!
Recognize this symbol as an indication of Important Safety
Information!
!
California Proposition 65 Warning:This product contains
chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
Tankless
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
®
!Warning: This water heater is not suitable
for use in manufactured (mobile) homes!
Sure Comfort
Safety Information
Installation Instructions
Operating Instructions
Care and Cleaning
Troubleshooting Tips
Customer Service
You can find them on a label on the appliance.
Proof of the original purchase date is needed to obtain service
under the warranty.
Inside you will find many helpful hints on how to use and
maintain your water heater properly. A little preventive care
on your part can save you time and money over the life of your
water heater.
You’ll find many answers to common problems in
the Troubleshooting Guide. If you review the chart of
Troubleshooting Tips first, you may not need to call for service.
Your safety and the safety of others are very important. There
are many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
!This is the safety alert symbol. Recognize this symbol
as an indication of Important Safety Information!
This symbol alerts you to potential hazards that can
kill or hurt you and others.
All safety messages will follow the safety alert symbol and
either the word “DANGER”, “WARNING”, “CAUTION”
or “NOTICE”.
These words mean:
!DANGER An imminently hazardous situation
that will result in death or serious
injury.
!WARNING A potentially hazardous situation that
could result in death or serious injury
and/or damage to property.
!CAUTION A potentially hazardous situation that
may result in minor or moderate
injury.
Notice: Attention is called to observe a
specified procedure or maintain
a specific condition.
Qualified Installers Only!
Be sure to read and understand the entire Use and Care Manual before attempting to install or operate this
water heater. It may save you time and money. Pay particular attention to the Safety Instructions. Failure to
follow these warnings could result in serious bodily injury or death. Should you have problems understanding
the instructions in this manual, or have any questions, STOP, and get help from a qualified service technician,
or the local gas utility.
Failure to install and properly vent the water heater to the outdoors as outlined in the
Venting Section of the Installation Instructions in this manual can result in unsafe operation
of the water heater. To avoid the risk of fire, explosion or asphyxiation from carbon
monoxide, never operate this water heater unless it is properly vented and has an adequate
air supply for proper operation.
Be sure to inspect the vent terminal, the air intake, and the concentric vent system on the
water heater for proper installation at initial start-up; and at least annually thereafter. Refer
to the Care and Cleaning section of this manual for more information regarding concentric
vent system inspection.
Gasoline, as well as other flammable materials and liquids (which include, but are not
limited to adhesives, solvents, paint thinners etc.), and the vapors they produce are
extremely dangerous. DO NOT handle, use or store gasoline or other flammable or
combustible materials anywhere near or in the vicinity of a water heater or any other
appliance. Be sure to read and follow the labels on the water heater, as well as the warnings
printed in this manual. Failure to do so can result in property damage, bodily injury or
death.
DANGER
FLAMMABLES
Flammable Vapors
Water heater has a main
burner flame.
The main burner flame:
1. which can come on
at any time and
2. will ignite flammable
vapors.
Vapors:
1. cannot be seen,
2. are heavier than air,
3. go a long way on the
floor and
4. can be carried from
other rooms to the
main burner flame by
air currents.
Vapors from flammable
liquids will explode and
catch fire causing death or
severe burns.
Do not use or store flammable
products such as gasoline,
solvents or adhesives in the
same room or area near the
water heater.
Keep flammable products:
1. far away from heater,
2. in approved containers,
3. tightly closed and
4. out of children's reach.
Installation:
Do not install water heater
where flammable products will
be stored or used unless the
main burner flame is at least
18" above the floor. This will
reduce, but not eliminate, the
risk of vapors being ignited
by the main burner flame.
Read and follow water heater warnings and instructions. If
owners manual is missing, contact the retailer or manufacturer.

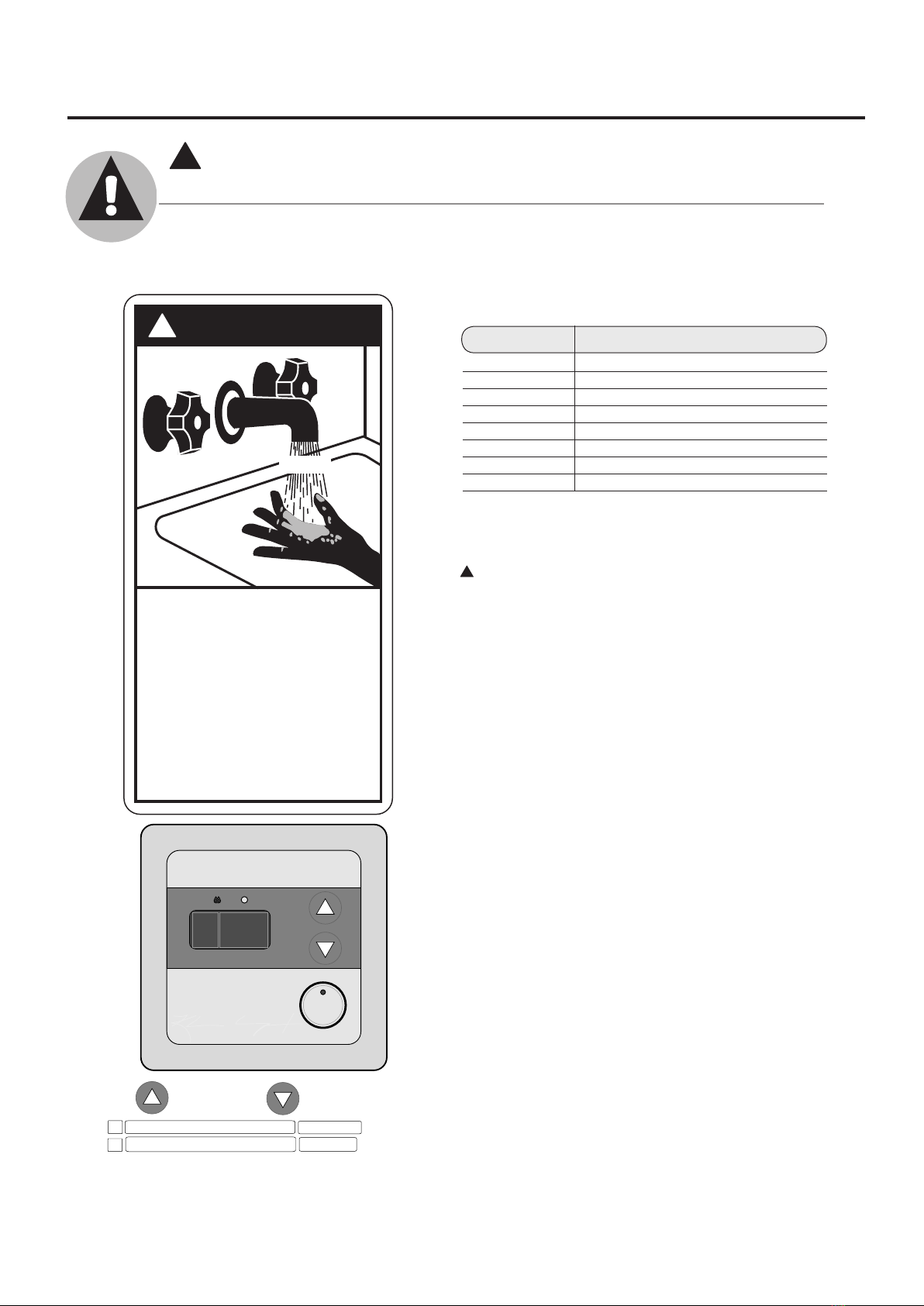

Time/Temperature Relationship in Scalds
120°F (49°C) More than 5 minutes
125°F (52°C) 11/2 to 2 minutes
130°F (54°C) About 30 seconds
135°F (57°C) About 10 seconds
140°F (60°C) Less than 5 seconds
145°F (63°C) Less than 3 seconds
150°F (66°C) About 11/2 seconds
155°F (68°C) About 1 second
DANGER: Households with small children, disabled
or elderly persons may require a 120°F (49°C) or lower
temperature setting to prevent contact with “HOT” water.
Notice:
Notice:
DANGER
!
HOT
Water temperature over 125°
can cause severe burns
instantly or death from scalds.
Children, disabled and elderly are
at highest risk of being scalded.
See instruction manual before
setting temperature at water
heater.
Feel water before bathing or
showering.
Temperature limiting valves are
available, see manual.
BURN
F
!
Safety and energy conservation are factors to be considered when selecting the water
temperature setting of a water heater’s remote control. Water temperatures above
125°F (52°C) can cause severe burns or death from scalding. Be sure to read and follow
the warnings outlined on the label pictured below.
!
°F
PRIORITY
POWER
ON/OFF
Higher (Hotter) Lower (Cooler)
100 102 104 106 108 110 112 114 116 118 120*
38 39 40 41 42 43 44 46 47 48 49*
85
29
125 130 140 °F
52 54 60
°C
Notice:
Display
shows
°F only.
Both LP and natural gas have an odorant added to aid in detecting a gas leak. Some
people may not physically be able to smell or recognize this odorant. If you are unsure or
unfamiliar with the smell of LP or natural gas, ask the gas supplier. Other conditions, such as
“odorant fade”, which causes the odorant to diminish in intensity, can also hide or camouflage
a gas leak.
● Water heaters utilizing LP gas are different
from natural gas models. A natural gas
water heater will not function safely on LP
gas and vice versa.
● No attempt should ever be made to
convert the water heater from natural gas
to LP gas. To avoid possible equipment
damage, personal injury or fire, do not
connect the water heater to a fuel type not
in accordance with the unit data plate;
propane for propane units and natural gas
for natural gas units. These units are not
certified for any other fuel type.
● LP appliances should not be installed below
grade (for example, in a basement) if such
installation is prohibited by federal, state
and/or local laws, rules, regulations or
customs.
● Propane or LP gas must be used with great
caution. It is heavier than air and will
collect first in lower areas, making it hard
to detect at nose level.
● Before attempting to light the water heater,
make sure to look and smell for gas leaks.
Use a soapy solution to check all gas fittings
and connections. Bubbling at a connection
indicates a leak that must be corrected.
When smelling to detect a gas leak, be sure
to sniff near the floor also.
● Gas detectors are recommended in LP
and natural gas applications and their
installation should be in accordance
with the detector manufacturer’s
recommendations and/or local laws,
rules, regulations or customs.
● It is recommended that more than one
method, such as soapy solution, gas
detectors, etc., be used to detect leaks
in gas applications.
Notice: If a gas leak is present or suspected:
● Do not attempt to find the cause yourself.
● Do not try to light any appliance.
● Do not touch any electrical switch.
● Do not use any phone in your building.
● Leave the building immediately and make
sure your family and pets leave also.
● Leave the doors open for ventilation and
contact the gas supplier, a qualified service
agency or the fire department.
● Stay away from the building until the
service call has been made, the leak is
corrected and a qualified agency has
determined the area to be safe.
!
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury or
loss of life.
California Law requires that water heaters must be braced, anchored or strapped to resist
falling or horizontal displacement due to earthquake motions. For water heaters up to 52
gallon capacity, a brochure with generic earthquake bracing instructions can be obtained from:
Office of the State Architect, 1102 Q Street, Suite 5100, Sacramento, CA 95814 or you may call
916-445-8100 or ask a water heater dealer.
However, applicable local codes shall govern installation. For residential water heaters
of a capacity greater than 52 gallons or tankless-style, consult the local building jurisdiction
code for acceptable bracing procedures.
Have the installer show you the location of the gas shut-off valve and how to shut it off
if necessary. Turn off the manual shut-off valve if the water heater has been subjected
to overheating, fire, flood, physical damage or if the gas supply fails to shut off.
● Read this manual entirely before installing
or operating the water heater.
● Use this appliance only for its intended
purpose as described in this Use and Care
Manual.
● Be sure your appliance is properly installed
in accordance with local codes and the
provided installation instructions.
● Do not attempt to repair or replace any
part of your water heater unless it is
specifically recommended in this manual.
All other servicing should be referred to a
qualified technician.
Installing the water heater :
This water heater must be installed in accordance with these instructions, local codes, utility company
requirements and/or in the absence of local codes, use the latest edition of the American National Standard/
National Fuel Gas Code. A copy can be purchased from either the American Gas Association, 400 North
Capitol Street Northwest, Washington, DC 20001 as ANSI standard Z223.1 or National Fire Protection
Association, 1 Batterymarch Park, Quincy, MA 02269 as NFPA 54. In Canada, the latest edition of the CSA
B149.1 Natural Gas and Propane Installation, and the Canadian Electrical Code, CSA C22.1 Part 1, in the
absence of local codes.
Location of Water Heater
The water heater should not be located in
an area where leakage of the heat exchanger
or connections will result in damage to the
area adjacent to it or to lower floors of the
structure.
When such areas cannot be avoided, it is
recommended that a suitable catch pan,
adequately drained to a safe location be
installed under the water heater.
●
● should
Category III
●
●
●
●
● Do not
● Do not
● Do not
● Do not
●
●
!WARNING:
Combustible construction
refers to adjacent walls
and ceilings and should not
be confused with
combustible or flammable
products and materials.
Combustible and/or
flammable products and
materials should never be
stored in the vicinity of this
or any gas appliance.
0” (Zero)
(0 cm)
1/2” (min)
(1.3 cm)
1/2” (min)
(1.3 cm)
12” (min)
(30 cm)
(24” (61cm) minimum is
recommended for service)
0” (Zero)
(0 cm)
Installing the water heater:
Corrosive Atmospheres
NOTICE: The water heater
should not be installed near
an air supply containing
halogenated hydrocarbons
and/or other corrosives.

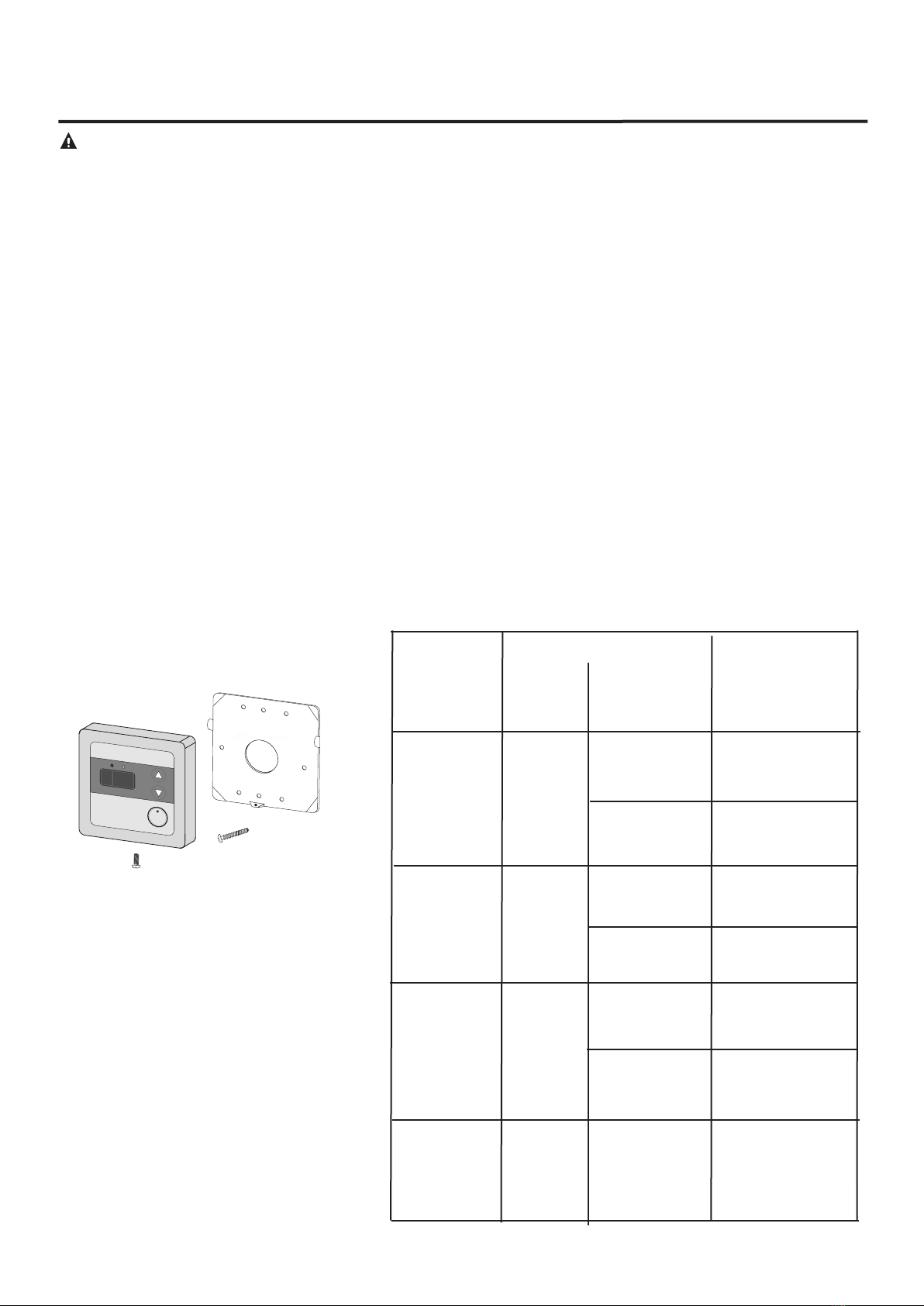

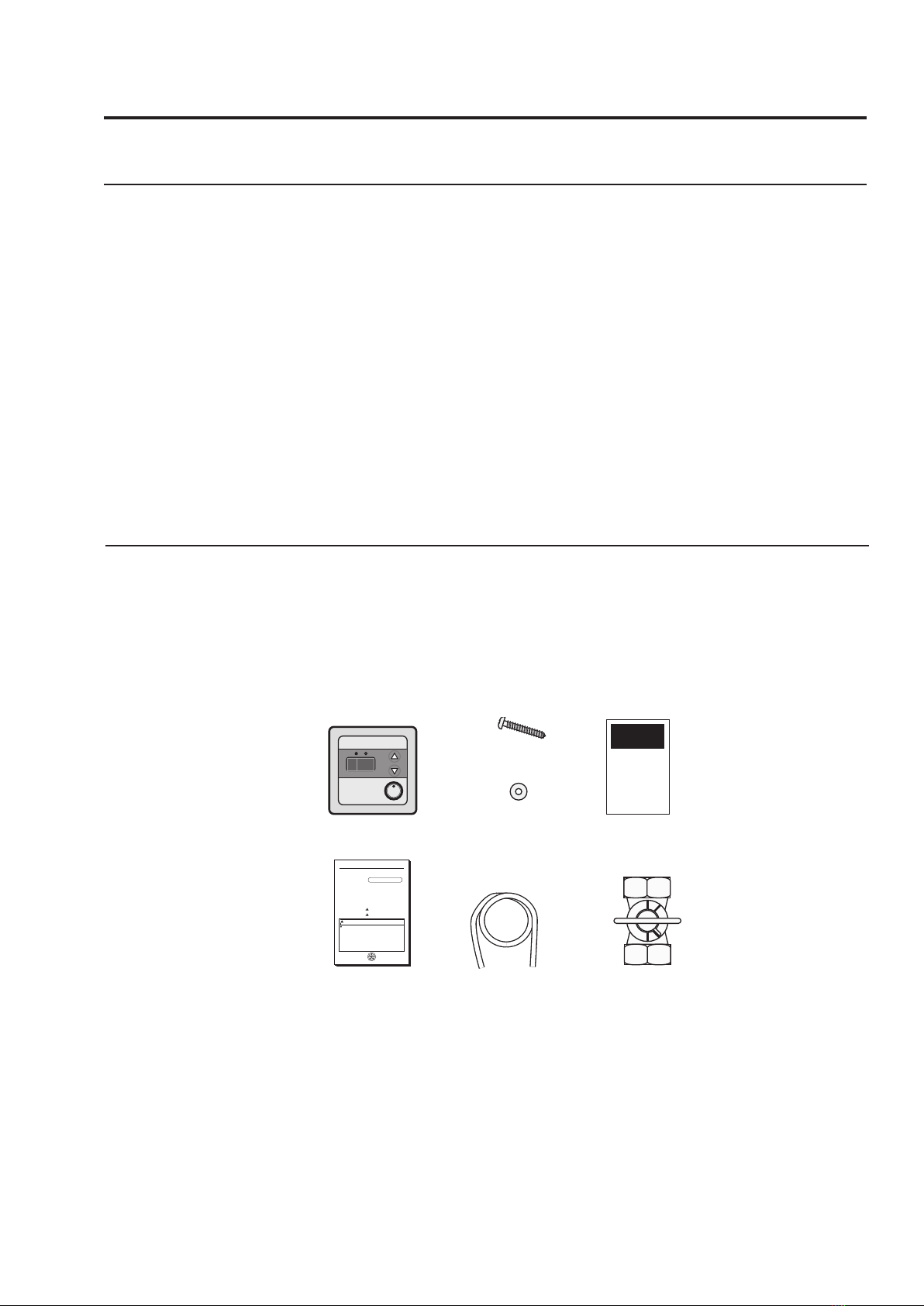

Manual Appliance
Gas Shut-off Valve
Wood Screw x 5pcs.
Washer x 4 pcs.
Use & Care Manual
Tankless Unit
FOR YOUR SAFETY!
—Do not store or use gasoline or other
flammable vapors or liquids or other
combustible materials in the vicinity of this or
any otherappliance. To do so may result in an
explosion or fire.
—WHATTO DO IF YOU SMELL GAS
●Do not try to light any appliance.
● Do not touch any electrical switch; do not
use any phone in your building.
● Immediately call your gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instructions.
● If you cannot reach your gas supplier, call
the fire department.
● Do not return to your home until authorized
by the gas supplier or fire department.
— Improperinstallation, adjustment,
alteration, service or maintenance can cause
property damage, personal injury, or death .
Referto this manual. Installation and service
must be performed by a qualified installer,
service agency or the gas supplier.
!
WARNING: If the information in these instructions is not followed exactly,
a fire or explosion may result causing property damage, personal injury or death.
!
The purpose of this manual is twofold: one, to provide the installer with
the basic directions and recommendations forthe properinstallation and
adjustment of the water heater; and two, to the owner–operator, to
explain the features, operation, safety precautions, maintenance and
troubleshooting of the water heater. This manual also includes a parts
list.
It is imperative that all persons who are expected to install, operate or
adjust this water heater read the instructions carefully so they may
understand how to perform these operations. If you don’t understand
these instructions orany terms within it, seek professional advice.
Any questions regarding the operation, maintenance, service or
warranty of this waterheater should be directed to the seller from whom
it was purchased. If additional information is required, refer to the
section on How to Obtain Service Assistance.
Do not destroy this manual. Please read carefully and keep in a safe
place forfuture reference.
Recognize this symbol as an indication of Important Safety
Information!
California Proposition 65 Warning: This product contains
chemicals known to the State of California to cause cancer, birth
defects orother reproductive harm.
!
!
Use & Care Manual
With Installation Instructions for the Installer
Printed in USA
Water Heaters
Residential Gas
Warning: This waterheater is not suitable for
use in manufactured (mobile) homes!
Tankless
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
®
°F
PRIORITY
POWER
ON/OFF
Remote Control
Assembly Kit
fo etacifitreC
detimiL
ytnarraW
Warranty
Remote Control Cable
Inspect Shipment
The water heater must be installed with a 3”/5” diameter UL approved Category III Concentric Stainless
Steel appliance concentric vent pipe or Sure Comfort approved concentric vent pipe.
Venting
DO NOT
DO NOT
Notes on pre-existing vent:
See the back page of this manual
for additional requirements for the
Commonwealth of Massachusetts.
DANGER: Failure to
install the appliance vent
adapter and properly vent the
water heater to the outdoors
as outlined in the Venting
section of this manual will
result in unsafe operation of
the water heater, causing death,
serious injury, explosion,
or fire. To avoid the risk
of fire, explosion, or
asphyxiation from carbon
monoxide, NEVER operate the
water heater unless it is
properly vented and has
adequate air supply for proper
operation as outlined in the
Venting section of this manual.
WARNING: Use only 3”/5”
UL approved Category III
Concentric Stainless Steel vent
material or Sure Comfort
approved concentric vent
material. No other vent
material is permitted.
WARNING: Follow
concentric vent
manufacturer’s installation
instructions and their
recommended clearances to
combustibles.
NO! YES!
Venting Lengths
MAXIMUM VENT LENGTH:
MINIMUM VENT LENGTH
Notice:
Vent Seam
Installing the water heater:

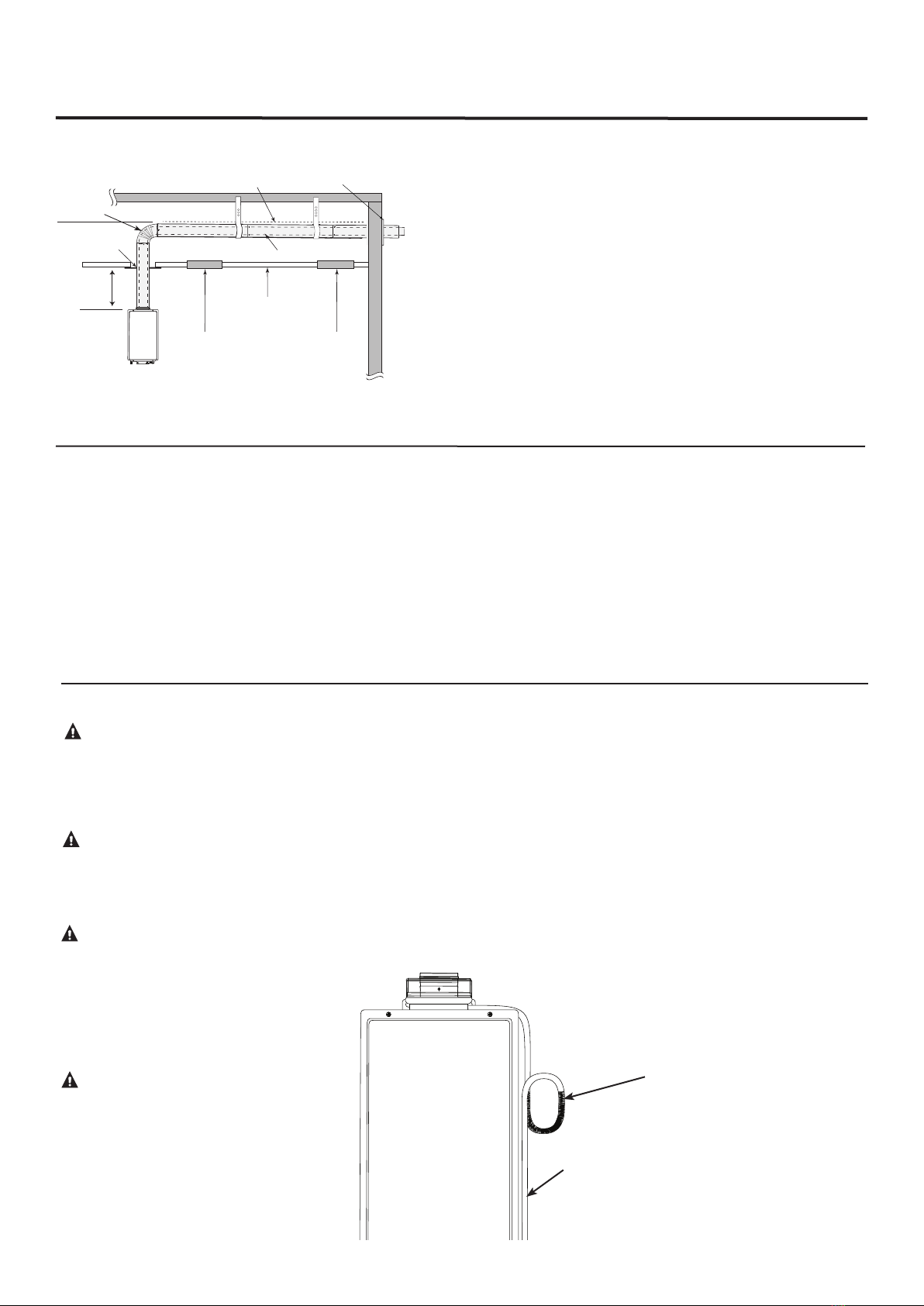

Venting Through Closed Spaces
downward slope
1/4" per foot
Ceiling
Vent Pipe
Wall Plates
Board
Inspection
Fire
Stop
Access Panel #1
Inspection
Access
Panel #2
94° Elbow
(optional)
(optional)
12” (min)
(30 cm)
Appliance Vent Adapter
Draining the Condensate
vented horizontally,
vented vertically,
CAUTION: Condensate
must drain away from the
water heater and should
not be allowed to enter the
water heater.
WARNING: Failure to
provide a vent condensate
drain close to the appliance
could allow acidic flue gas
condensate to enter into
appliance flueways, causing
premature failure of the
water heater.
CAUTION: Condensate
is known to be acidic; refer
to local, state (provincial)
or federal codes for proper
handling and discharge
methods.
WARNING: If the
condensate collector is not
used, the drain fitting must
be capped to prevent
exhaust gases and
condensate from entering
the building. The cap is
supplied on the water
heater.
D
V
V
E
FIXED
CLOSED
O
P
ERA
BL
E
O
PE
R
A
BL
E
FIXE
D
CLOSED
v
v
B
L
F
C
B
v
vv
X
B
B
B
A
J
B
I
H
X
v
M
K
v
G
A

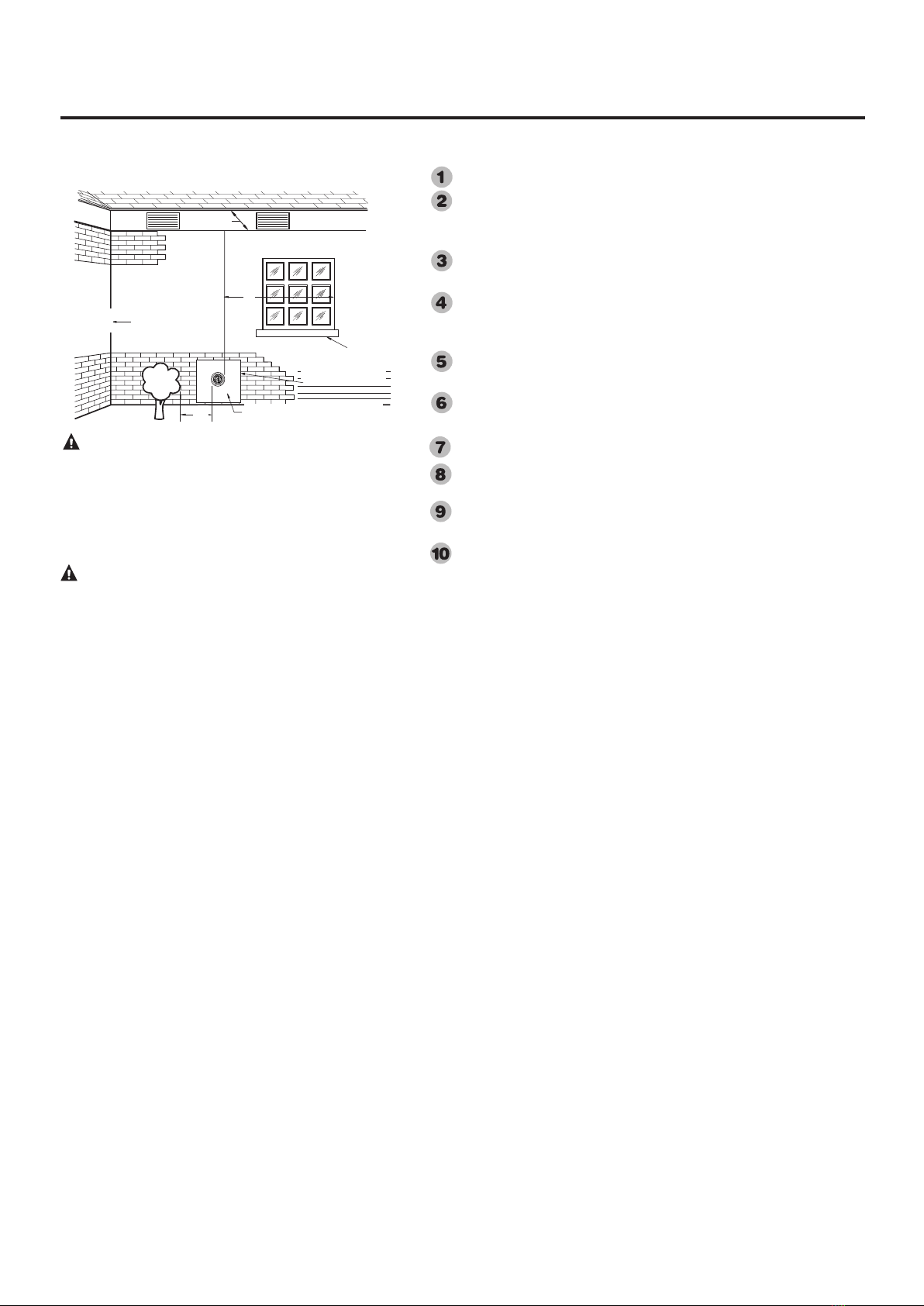

VVENT TERMINAL XAIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED

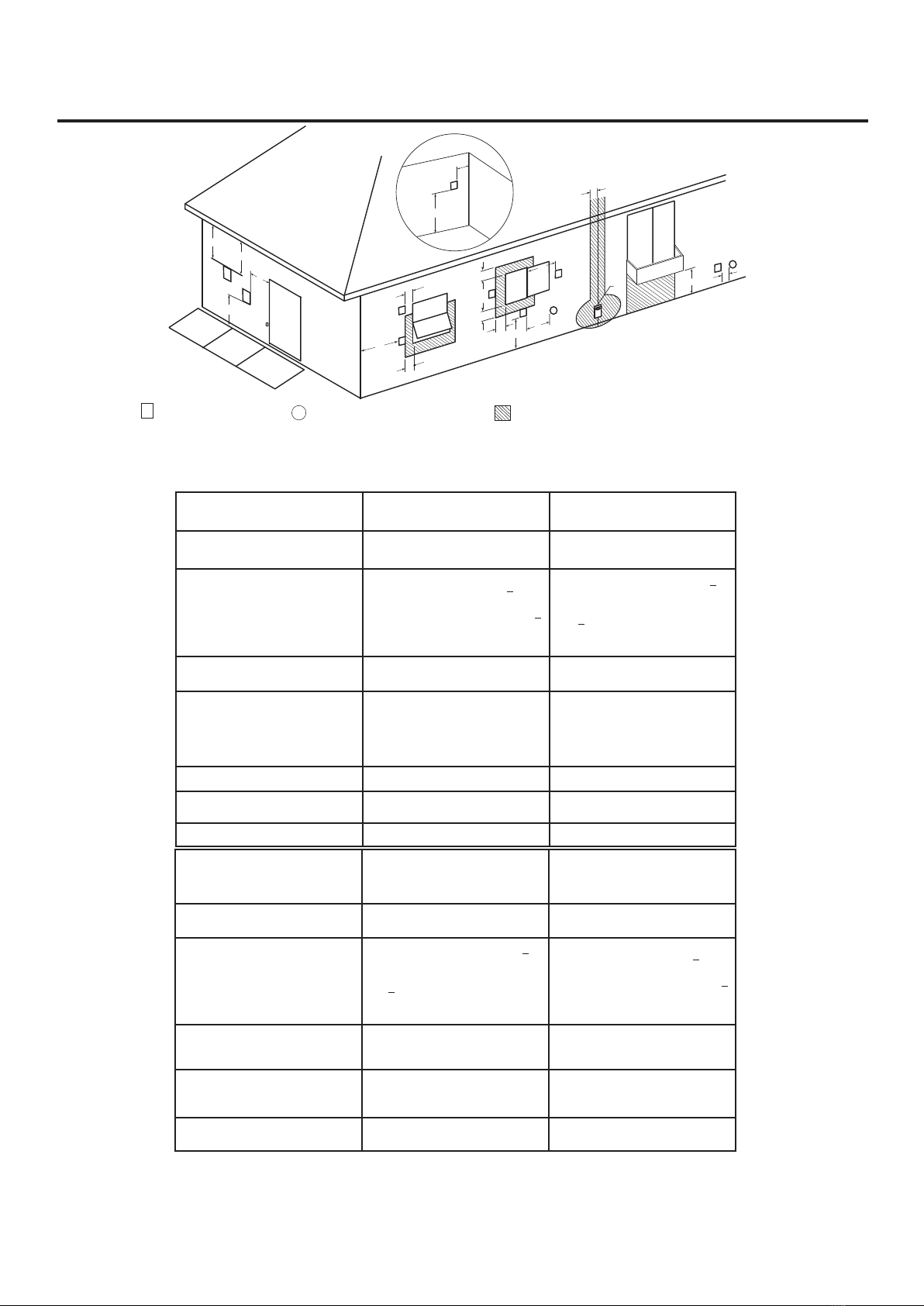

Horizontal Vent Terminal Location
Canadian Installations 1US Installations 2
Installing the water heater:
Additional Considerations
Indoor Water Heater
WARNINGMoisture in the flue gas will condense as it
leaves the vent terminal. In cold weather this condensate can
freeze on the exterior wall, under the eaves and on
surrounding objects. Some discoloration to the exterior of
the building is to be expected. However, improper location
or installation can result in severe damage to the structure
or exterior finish of the building
WARNINGFor multiple unit installation, a minimum
distance between vent terminations must be maintained to
prevent recirculation of vent gases. Maintain a center-to-center
distance between vent terminations of 19 inches (48 cm) for two
unit installation. Maintain a center-to-center distance between
vent terminations of 21 inches (53 cm) for three or more unit
installation.

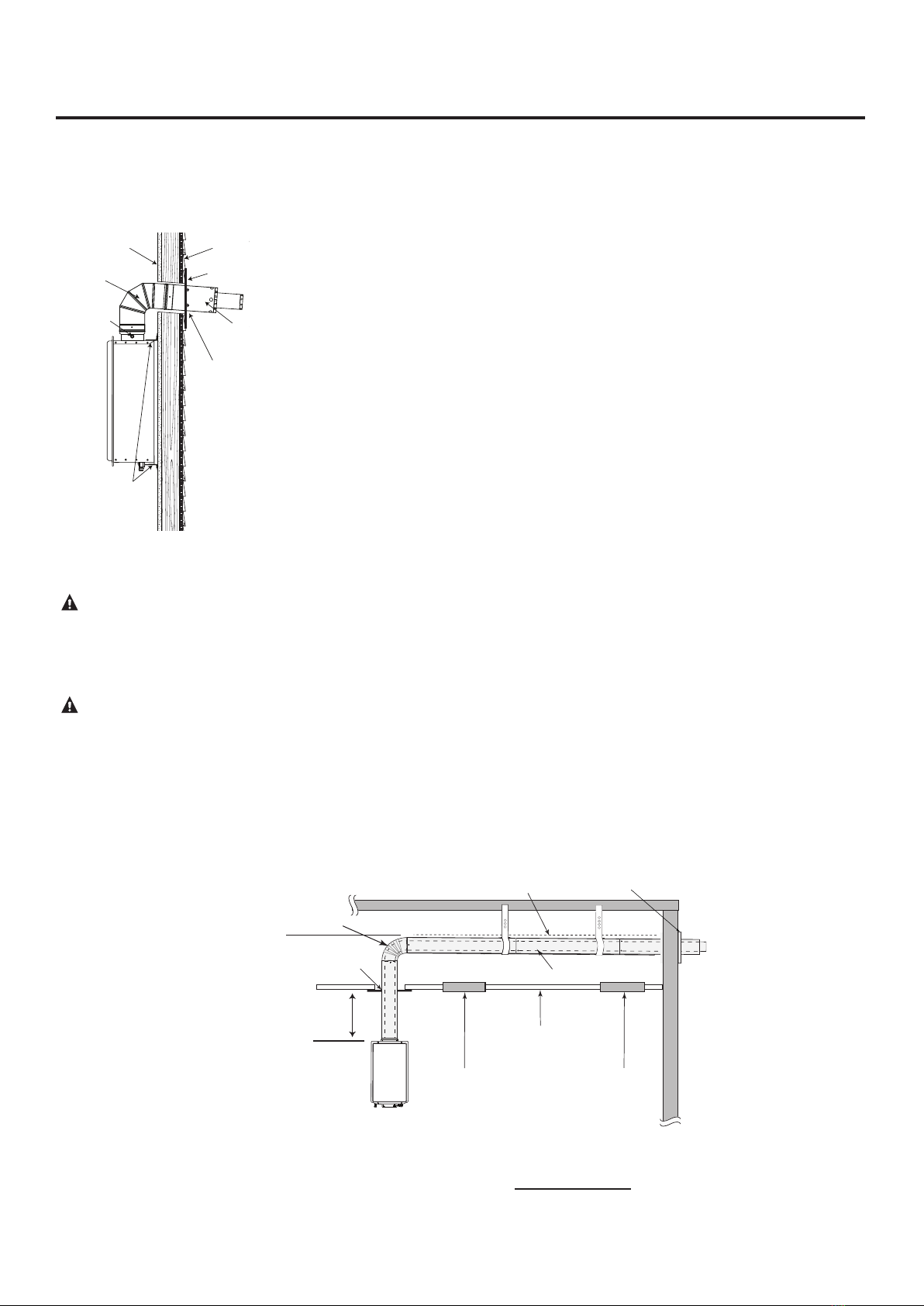

Example A: Typical Horizontal Termination
w/ 1/4” per foot DOWNWARD Slope
Installing the water heater:
94° Elbow Wall Plate
Water
Heater
Horizontal Vent
Te
rmination
Exterior
Wall
Interior Wall
Condensate
Drain Line
Connection
Mounting
Brackets
Side View
Caulk for
W
eather Seal
WARNING: Use Sure
Comfort approved
Category III vent material
only. No other vent material
is permitted.
CAUTION: Refer to the
vent manufacturer’s
installation instructions as
design might vary from
manufacturer to
manufacturer.
Horizontal Vent Installation continued.
downward slope
1/4" per foot
Ceiling
Vent Pipe
Wall Plates
Board
Inspection
Fire
Stop
Access Panel #1
Inspection
Access
Panel #2
94° Elbow
(optional)
(optional)
12” (min)
(30 cm)
Installing the water heater:
Vertical Vent Installation
Chase Requires
0" (0 cm) Clearance
to Combustibles
Firestop
Firestop/Support Plate
Adjustable
Roof
Flashing
Concentric
Vent Pipe has
0” Clearance
Requirment
Storm
Collar
Support
Clamp
1/4" per foot upward
slope on horizontal run
Vertical
Termination
Air Intake
3“/ 5” Concentric Pipe
Condensate
Drain Line
Form a Trap
in the drain
line.
To Drain: Dispose
of condensate in
accordance to
local codes
Support
Hanger

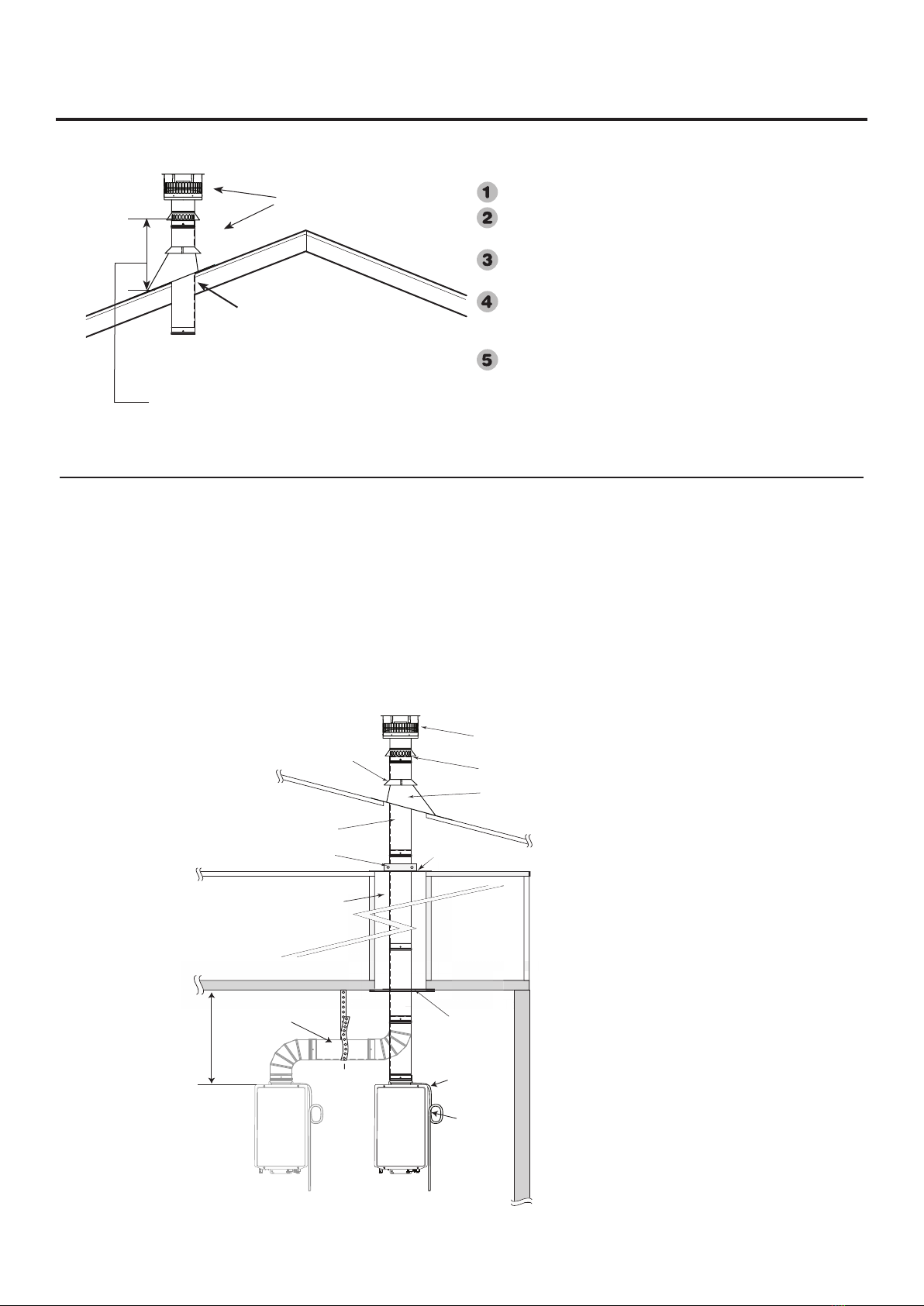

Vertical Vent Installation
with Horizontal offset
Straight Vertical
Vent Installation
12” (min)
(30 cm)
Standard Vertical Vent Termination
Vertical Vent Termination Location
Notice: Only Sure Comfort
approved termination
and parts should be used
during installation.
Notice: Follow vent
manufacturer’s installation
instructions and their
required clearances to
combustibles as required.
Only Sure Comfort
approved termination
and parts should be used
during installation.
Water Supply Connections
IMPORTANT: Do not
apply heat to the HOT or
COLD water connections. If
sweat connections are used,
sweat tubing to adapter
before fitting adapter to
the water connections on
heater. Any heat applied
to the water supply fittings
will permanently damage
the internal components
of the water heater.

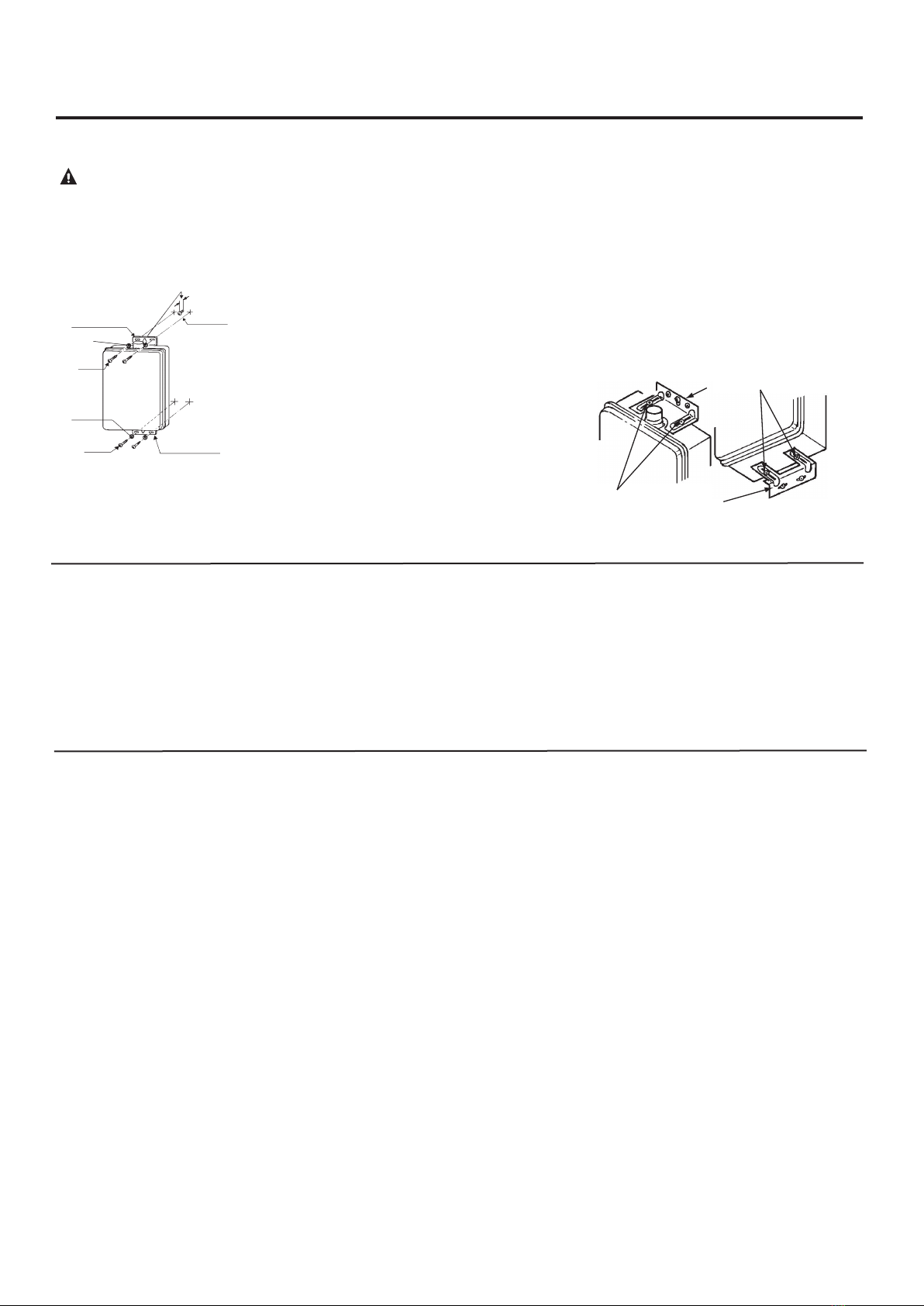

Mounting the Water Heater
Bracket
Bracket
Adjustment Screws
Adjustment Screws
TOP
BOTTOM
Upper Bracket
Washer
Washer
Wood
Screw
Wood
Screw
Wood
Screw Lower Bracket
1/8" (.32 cm)
Clearance
●
●
●
●
●
●
Gravity water pressure is
not recommended
CAUTION:
Reinforcement of the wall is
required in case the wall is
not strong enough to hold
the appliance.
Thermal Expansion
Notice: Due to cold
enviroments, ice may
potentially accumulate at
the water connections. In
this case, please insert the
power cord of the water
heater into an electrical
outlet. The ice should melt
withing approximately 10
minutes and at this time the
water connections can be
made.
Installing the water heater:
Water Supply Connections, continued
Notice:
Notice:
Notice: If multiple water heaters are
installed in a manifold system, the
water piping must be in “Parallel”. A
water pressure of 40 psi (276 kPa) is
recommended for each water heater for
proper operation of the water heaters.
Alternate Water Piping Arrangement
with Optional Valve Kit
●
●
●
Notice
Notice
Water Filter
Check Valve
Water Inlet
Clean the
Water Filter
Water
Nipple
Air
Relief
Valve
Hot
Water
Tap
Drain Valve
CAUTION: This water
heater must only be used with
the following water supply
system conditions:
● With clean, potable water
free of corrosive chemicals,
sand, dirt or other
contaminates.
● With inlet water
temperatures above 32°F
(0°C), but not exceeding
120°F (49°C).
● With recommended water
quality (see chart bellow).
● DO NOT reverse the hot
and cold water connections.
The water heater will
not operate.
Notice: Use only teflon tape on
cold and hot water connections and
lines.
This appliance is not
intended for space heating
application. Do not
connect this heater to
waterlines previously
used for space heating
or non-potable water
distribution. All water
piping and components
shall be suitable for
potable water.
pH TDS (Total
Dissolved Solids)
Free Carbon
Dioxide (CO2)
Total
Hardness Aluminum Chlorides Copper Iron Manganese Zinc
6.5 to 8.5 Up to 500 mg/L Up to 15mg/L
Up to 200
mg/L
Up to 0.2
mg/L
Up to 200
mg/L
Up to 1.0
mg/L
Up to 0.3
mg/L
Up to 0.05
mg/L
Up to 1.0
mg/L
Relief Valve
A new pressure relief valve, complying
with the Standard for Relief Valves and
Automatic Gas Shut-Off Devices for Hot
Water Supply Systems, ANSI Z21.22/
CSA 4.4, must be installed at the hot water
outlet connection of the water heater at
the time of installation. Local codes shall
govern the installation of relief valves.
●
●
●
●
●
●
●
Notice
Notice
Notice
Relief
Valve
Pressure
Relief
Valve
Discharge
Water
Shutoff
Drain
Valve
Valve
Hot Water
Supply
Union
Outlet
Drain
Tube to
suitable
drain
Cold
Water
Supply
Inlet
Line
Notice
NOTICE: For installations above 3,280
feet (1,000 m) elevation, contact a quaili-
fied service technician to make the proper
altitude adjustment. See page 35 for ad-
ditional information.
Do not install this water heater at eleva-
tions above 3,280 feet (1,000 m) without
the proper adjustement. Please contact
your installer, local gas supplier, place of
purchase or the Customer Service phone
number as listed in this Use & Care Manu-
al for more information.
High Altitude
Installing the Main Remote Control:
WARNING: Do not attempt to convert this water heater for use with a different type of gas other than the type shown
on the rating plate. Such conversion could result in hazardous operating conditions.
Gas Supply
NOTICE:
Manual
Gas
Supply
Line
Shutoff
Manual Gas
Appliance
Shutoff
Union
Sediment Trap
Cap
(Valve)
(Supplied)
Leak Testing
WARNING: Never use
an open flame to test for
gas leaks, as property
damage, personal injury,
or death could result.
Pressure Testing the Gas Supply System
WARNING: Install a gas
pressure regulator, in the
gas supply line, which does
not exceed the maximum
supply pressure.
DO NOT use an industrial
type gas regulator.
Remote Control Installation
● DO NOT
●
●
●
●
●
●
●
NOTICE: Only one of each type of remote
controls can connect to the water heater.
Therefore, a maximum of three controls
can connect to the water heater.
No other manufacturer’s controls are
suitable for use with this water heater.
DO NOT attempt to disassemble the
remote control.
WARNING: Field wiring connections and electrical grounding must comply with local codes, or in
the absence of local codes, with the latest edition of the National Electrical Code, ANSI/NFPA 70, or
in Canada, Canadian Electrical Code, CSA C22.1 Part 1.
°F
PRIORITY
POWER
ON/OFF
MAIN
Control
Base Plate
Control screw
Mounting Screw x 2
NOTICE: The provided
remote control will allow
a maximum temperature
setting of 120°F (49°C).
Temperatures of up to
140°F (60°C) can be
achieved with the MAIN
(UMC-117) remote control.
Only qualified service
personnel should perform
this adjustment.
NOTICE: An optional
cable (EZ Link Cable™)
can be purchased
separately to manifold two
heaters together.
Remote
Control
Model
Number
Remote
Control
Description
Temperature
Set Point
Range
Availability
Installing the Main Remote Control:
WARNING: Field wiring connections and electrical grounding must comply with local codes, or
in the absence of local codes, with the latest edition of the National Electrical Code, ANSI/NFPA 70,
or in Canada, Canadian Electrical Code, CSA C22.1 Part 1.
NOTICE: Remote control
cable is included in the
carton. The remote control
cable is not polarity sensitive.
Do Not apply sealant to the
remote control cable.
It is not recommended to
have wiring exposed.
Use only 18 AWG thermostat
wire.
Do not use network cable,
telephone phone wire or any
twisted pair cable.
Remote Control Installation
Connecting the MAIN (UMC-117 ) remote
control to the water heater:
●
●
●
●
●
●
●
●
Connecting the remote control to the water
heater:
●
●
●
NOTICE: The remote control connection
terminals are not polarity sensitive.
●
●
●
●
●
Remote
Control
Projections
Suitable
Wall Anchors
Base Plate
Screws
Control
Screw
Remote Control
Cable Wall
Penetration
This manual suits for next models
8
Table of contents
Popular Water Heater manuals by other brands
AquaMAX
AquaMAX AQM 32 Instructions for installation, use and maintenance
WAHLBACH
WAHLBACH WWH10D user manual
Ecoplus
Ecoplus SWBC-3.0H-A/P Installation instructions manual
Promax
Promax Transport Tank 1200L Handbook
Heat-Flo
Heat-Flo SSL-10 instruction manual
Concept2
Concept2 50 RS Instructions for use and maintenance
STIEBEL ELTRON
STIEBEL ELTRON DCE 3-1 Trend Operation and installation
Fondital
Fondital LIPARI TN 11i Installation, use and maintenance guide
STIEBEL ELTRON
STIEBEL ELTRON MINI-E 2-1 Operation and installation manual
DeDietrich
DeDietrich SR 130 Installation, user and service manual
Noritz
Noritz N-0631S owner's guide
STIEBEL ELTRON
STIEBEL ELTRON DHC 6 EC Operation and installation instructions
