Sure-Lites INV Series Owner's manual

Installation And
Operation Instructions
INV
INVINV
True
Sinusoidal
Output Power
INV375 Model
INV600 Model

READ AND FOLLOW ALL SAFETY INSTRUCTIONS
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS:
• Do not use outdoors.
• Do not let power supply cords touch hot surfaces.
• Do not mount near gas or electric heaters.
• Use caution when servicing batteries. Battery acid can cause burns to skin and eyes. If
acid is spilled on skin or in eyes, ush acid with fresh water and contact a physician immedi-
ately.
• Equipment should be mounted securely in locations and at heights where it will not be read-
ily subjected to tampering by unauthorized personnel.
• The use of accessory equipment not recommended by the MANUFACTURER may cause an
unsafe condition.
• The AC voltage rating of this equipment is specied on the product label. Do not connect
equipment to any other voltage.
• Do not use this equipment for other than its intended purpose.
• Servicing of this equipment should be performed by qualied service personnel.
SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
Please read this manual thoroughly before operating the INV Inverter System.

Description Page
Specications
Receiving, Moving and Storing Systems and Batteries
Shipping Damage
Temporary Storage of Units and Batteries
Installation Requirements
Operating Environment
High Altitude Operation
Cabinet Mounting 5
Tools Required 5
Mounting Hardware
Knockout Locations
Cabinet Mounting....................................
AC Connections 6
AC Wiring Preparations 7
AC Input Voltage Selector Plug Installation 7

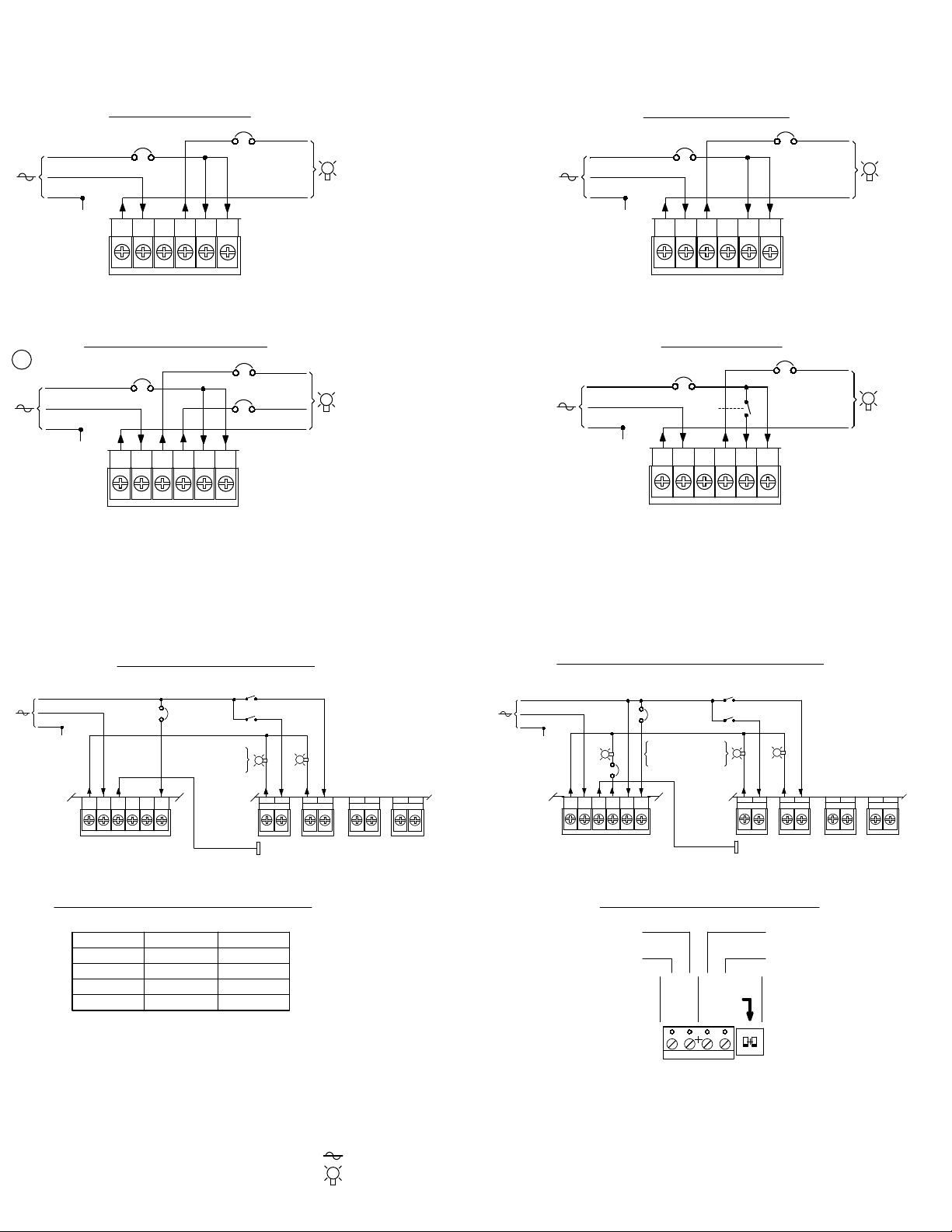

AC Input/output Wiring Connections to Terminal Block 7
Battery Information...9
Tools...9

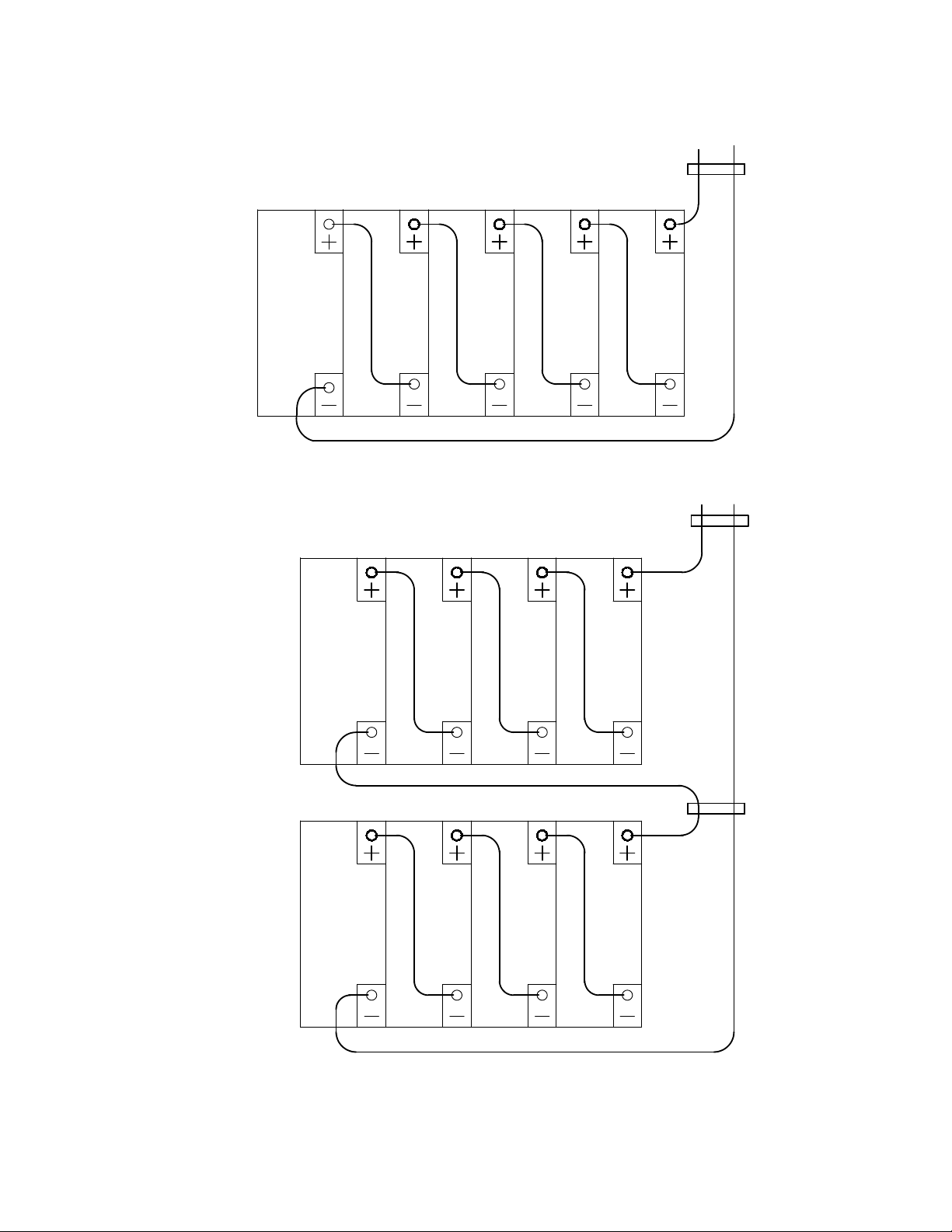

Battery installation and Connection
Battery Voltage Check2
Final Installation Checklist2
System Start-Up Procedure2
System Test2
Safe Shut Down Procedure 4
Routine System Maintenance 4
Manual Routine Inverter Tests 4
Routine Battery Inspection and Maintenance 5
Battery Replacement Procedure 5
Battery Disposal 5
10System Self Test / Diagnostics .3
110.1 Self Test / Diagnostic Functions .3
110.2 Self Test / Diagnostic Indication..3

•Input voltage: Universal 120 or 277Vac.
• Input frequency: 60HZ ±2%
• Input surge protection: Meets UL 924
• Output voltage: Universal 120 or 277Vac, 60HZ. Other voltages available upon request
• Output regulation: (static) ±5% based on a 0% - 100% resistive load
• Minimum loading: none required
• Output distortion: Less than 3% THD linear load
• Load power factor: .44 lead to .44 lag
• Output frequency: ±0.3 Hz during emergency
• Time to transfer to inverter after a utility power failure: <1 second
• Battery type: Maintenance free sealed Lead Calcium or Nickel Cadmium
• Battery charger: Fully automatic dual-mode with temperature compensation
• Recharge time: Meets UL requirements (96 Hours)
• Battery protection: Automatic low-battery voltage disconnect and reverse polarity protection.
• Standard batteries: Sealed Lead-Calcium: 7-year life, Sealed Nickel Cadmium: 15-year life
• Battery voltage: 60Vdc or 96Vdc (depends on model)
• Runtimes: 90 minutes standard.
• Operating temperature : 20ºC to 30ºC (68ºF to 86ºF)
• Relative humidity: 95% non-condensing
Note: Lead Calcium battery performance rated at 25°C (77°F) for load.
Table 1 Electrical &
System weights shown include installed batteries
MODEL INPUT/OUTPUT CAPACITY SYSTEM SYSTEM NUMBER BATTERY BATTERY AC INPUT THERMAL
NUMBER VOLTAGE For 11/2 Hrs. WEIGHT EFFICIENCY OF VOLTAGE CURRENT CURRENT (MAX) OUTPUT (BTUs)
(Watts/VA) Lbs. Kg. (Full Load) BATTERIES (VDC) (Amps) 120VAC 277VAC On-Line Emergency
INV375 120/277VAC 375/375 113 51.3 98% 5 60 7.3 3.43 1.49 11 205
INV600 120/277VAC 600/600 172 78.1 98% 8 96 7.1 5.50 2.38 15 275
INV375 INV600
18.0” (37.5cm) 16.625" (42.2275cm)
18.0” (37.5cm) 25.25" (64.135cm)
8.25" (20.32cm)
8.25" (20.32cm)

Inverter system batteries are shipped separately.
Carefully inspect all cartons upon receipt for evidence of shipping damage.
Notify carrier immediately of leaking or damaged cartons for possible concealed damage.
For temporary storage of INV inverter systems and batteries prior to installation, select a clean, cool,
dry location with normal ventilation for human habitation and level floors.
Storage Temperature:
Store all batteries at 0° to +40° C (32° to +104° F). Batteries will have a longer shelf life if stored at 15°
C (60° F). The INV electronics and battery cabinets may be stored at -20° to +60° C (-4° to +140° F).
Lengthy storage of batteries will cause irreversible damage to the cells.
Failure to connect INV inverter system batteries to an energized charging circuit within 90 days from
the date of shipment will void the battery warranty.
Explosive - Can Cause Blindness Or Other Severe Injuries
Every type of battery can produce hydrogen gas, even sealed, maintenance-free batteries. The gas is
vented through the vent caps and into the air. Do not allow smoking, sparks, or flames in battery
stor-age location because hydrogen is concentrated under the vent cap of each cell of the battery.
Hydro-gen is highly explosive, and is hard to detect because it is colorless, odorless, and lighter than
air.
Install the INV inverter system in a clean, cool, dry place with normal ventilation for human habitation
and in such a location to hamper vandalism but allow easy access for testing and maintenance.
INV inverter Systems are UL Listed for 20° to 30° C (+ 68° to +86° F) operation.
Battery performance and service life is maximized if the operating temperature is maintained at 25° C
(77° F).
Lead Calcium batteries will be less efficient at temperatures below 20° C (68° F), and high tempera-
tures will reduce battery life. Typically, at 35° C (95° F), battery life will be half of what it would be at
normal temperature of 25° C (77° F). At 45° C (113° F), battery life will be one-fourth of normal.
The air around the unit must be clean, dust-free, and free of corrosive chemicals or other contami-
nants. Do not place the INV inverter system or batteries in a sealed room or container.
CAUTION: Never Install Batteries in A Sealed Room Or Enclosure
The maximum operating temperature drops 1° Celsius per 300 meters (2° F per 1000 feet) above sea
level. Maximum elevation is 3000 meters (10,000 feet).
The following tools are required to install the system:
Socket Set, Phillips Screwdriver, Diagonal Wire Cutters, Long Nose Pliers, Electrical Tape, Digital
Volt-Ohm Meter, Safety Glasses with Side Shields, Small Punch (knockout removal), Hammer,
Elec-tric Drill, Wood or Masonry Bits, Level.
