Surewood Cabinetry Lazy Susan User manual

Surewood Cabinets
Compass Manufacturing International / Louisville, KY / www.cmiproduct.com
Lazy Susan Base Corner Cabinet (LSB)- Assembly Instructions
(Includes 30”, 36”, 42” High)
Parts included
2 -Side Panels, 1 Left and 1 Right
2 -Back panels 1 Left and 1 Right
1 -Bottom Panel with attached Spin tray
1 –Shelf with attached spin tray
1 -Top Panel
1 -Diagonal Back Panel
2 -pcs. Face Frame 1 Left 1 Right
2 –pcs toe kick 1 Left 1 Right
1 - Package of Screws & Brackets.
2 –Door Hinges

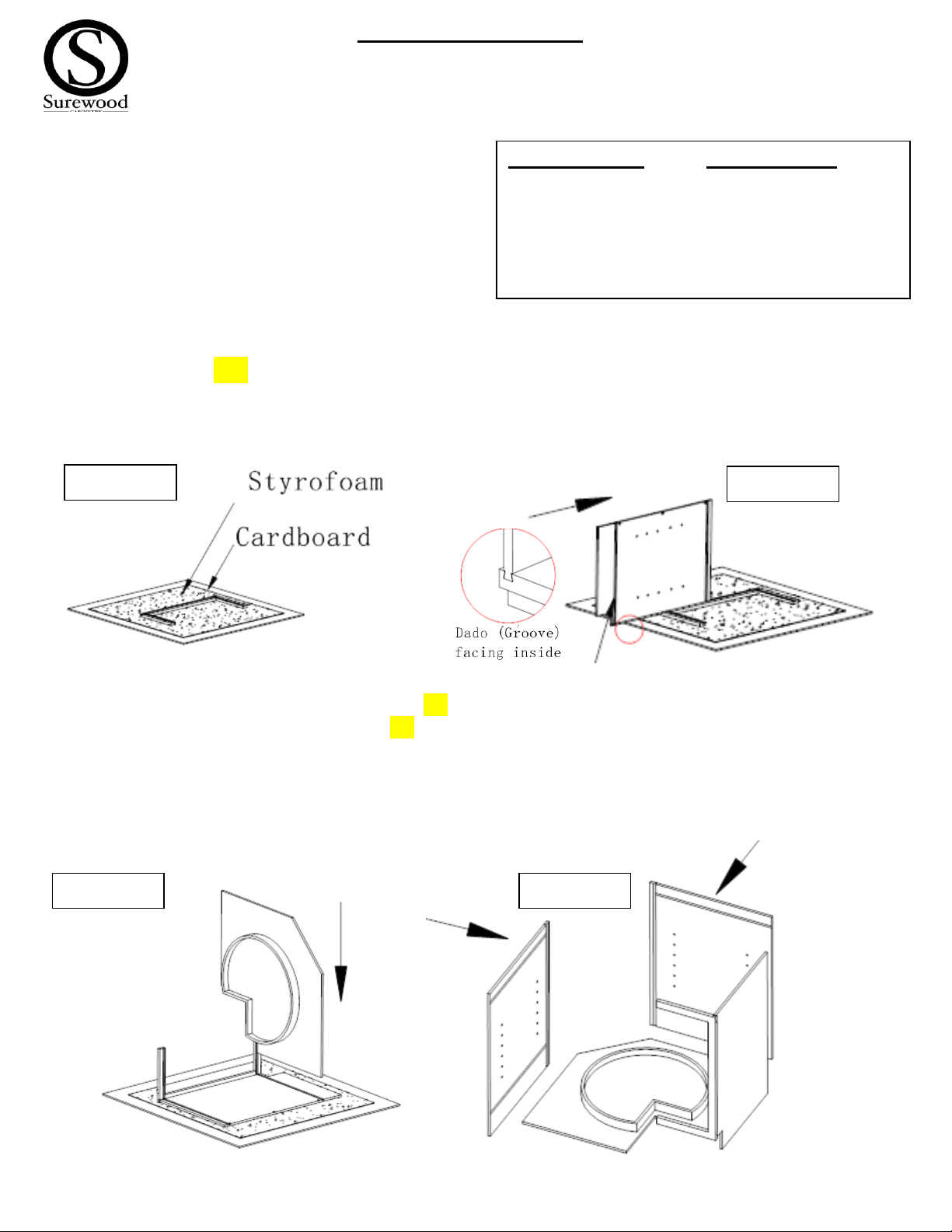

1. Identify all parts. TIP: We would suggest that 2 people do the assembly of the LSB cabinets.
2. You have 1 (qty) box for your LSB cabinet containing all the parts listed above.
3. Make sure to have clean clear area to work with so the cabinet does not get scratched (carpet, foam, rubber mat). Lay
Face Frame of Cabinet face down on soft smooth protected surface (Diagram A).
4. Slide left side panel into left slot on face frame making sure the pre-cut slots & shelf holes in the panel are facing
towards the inside of the cabinet (Diagram B). TIP: Pre-fit the side panels into the Face Frame and if they seem too
tight lightly sand the edge of the dovetail. TIP: Placing a thin bead of wood glue in the grooves before sliding the
panels in will help with the sturdiness of the cabinets. If the panel is a little too tight to slide freely, use a rubber
mallet and wood block to gently tap into place.
5. Repeat step 4 with the right side panel.
6. Slide bottom panel (with Spin tray attached) into Dado (grooves) in the Frame Face and side panels (Diagram C).
Tools Required Tools Optional
Philips Screwdriver Power Drill/Screw driver
Wood/Rubber Mallet Power Pin gun w/ 5/8” pins
Hard Wood Block Square
Utility Knife
Fine Sandpaper 240 grit
Tape Measure
Small wood chips or toothpicks
Diagram A
Diagram C
Diagram B
Diagram D

7. Attach right back and left back (Diagram D). Line up the bottom with the Dado’s (grooves) in the left and right back
panels. Push into place and screw into place using ¾” screws provided (Diagram E). MAKE SURE SCREW HEADS ARE
PAST THE SURFACE OF THE SIDE PANEL. TIP: A small bead of glue in the grooves (dado) will help strengthen the
cabinet. TIP: If you should strip the screw just back it out and put in a wood chip or a couple of tooth picks and put
the screw back in. BE CAREFUL!
8. Attach the left side panel with Face Frame attached to the bottom and left back panel (Diagram E).
9. Use the ¾” screws provided to screw the Face Frame together at the top and bottom (Diagram F).
10. Use the small metal “L” brackets to secure the side panels to the back panels. Use the smaller screws provided.
(Diagram G).
11. Place the shelf clips at the desired location then set the shelf with spin tray attached on to the clips. Make sure the
shelf sets down onto the clips properly (Diagram H).
12. Place the top panel into the Dado (grooves) on the Face Frame, Sides and back panels (Diagram I).
13. Slide diagonal back panel into place using the Dado (grooves) in the left and right back panels (Diagram J).
14. Use ¾” screws to secure diagonal back panel to top and bottom panels.
Diagram F
Diagram G
Diagram E
Diagram H

15. Install hinges on door at top and bottom (Diagram K).
16. Mount hinge brackets onto Face Frame of cabinet to allow for appropriate hinging.
17. Place cabinet on its side to install toe kick (Diagram L).
18. Install plastic clips on side panels so top of clip is flush with edge of notch for toe kick. Do this on both sides.
19. Screw the 2 pieces of toe kick together at the “L” joint with screws provided (Diagram M).
20. Put screws in other side of plastic clips to secure toe kick to the cabinet.
If you have any questions please contact the dealer you purchased the cabinets from or contact us through our
web site at www.cmiproduct.com
