SURF & TURF SORRENTO Parasol User manual

Sorrento Parasol Instructions

General Information
Do not leave the parasol open when unattended, particularly in windy conditions.
The parasol should be securely strapped when closed, especially in strong winds
and adverse weather conditions.
Any modifications to your parasol, except those made by Surf & Turf Instant Shelters Ltd.
may invalidate the warranty.
The parasol should be clean and dry prior to storing away for any extended periods
of time. This will prevent mould from developing
Inspect the installation fitting / base on a regular basis and tighten if required.
The Sorrento parasol is principally intended for use in low to moderate wind conditions
which will provide you with many hours of protection from the sun and light rain. You
will get maximum benefit from your parasol when you use it in accordance with our
instructions and in the weather conditions for which it is designed for.
SORRENTO PARASOL

1. Remove the strap from the canopy.
2. Gently spread the canopy arms open
with your hands (refer Figure A).
3. Ensure the turning knob for the slider
can move freely (refer Figure B). Insert
the winder handle (30) into the hole on
the side of the mast and rotate in a
clockwise direction.
4. Continue winding until the canopy is
fully open and the edge of the canopy is
firm (refer Figure C). Note: The winder
handle will become a little harder to wind
as the parasol is fully open. Stop winding
when the canopy is taut/firm. Do not
overwind.
5. Once the canopy is fully opened, hold
the turning knob (20) and push the slider
up until the canopy is at the desired tilt
angle. Tighten the knob (20) clockwise to
secure the parasol at that angle.
Important: The slider knob (20) must be
done up tightly, especially when used in
exposed locations. The parasol should
not be tilted when windy.
6. When the slider is pushed up to the
highest point, the locking pin (20) will
automatically engage, locking the canopy in
the horizontal position. The optimum strength
of the parasol is reached only when the
canopy is in the horizontal position, with the
slider at its maximum height and the locking pin
(20) engaged.
7. The tilt angle of the canopy can be adjusted as
required at any time by loosening the slider knob
(20), pulling the locking pin outward and sliding
the slider up and down the mast. Note: The
locking pin will only engage at the horizontal level.
Gently spread the canopy arms open
Figure A
Ensure tilt knob is loose (turn anti-clockwise)
when opening and closing parasol
Figure B
Edge of canopy should be tight
Figure C
TO OPEN PARASOL

Ensure tilt knob in loose (turn-clockwise) when
closing parasol
Figure A
Fit the cover bag over mast and frame and zip up
Figure B
2. Turn the slider tilt knob (20) anti-clockwise
until loose, hold the slider tilt knob and pull the
slider down the mast towards the ground. If the
canopy is in the horizontal position, pull the
locking pin out first.
3. Fold the canopy neatly when storing for
extended periods of time to reduce the risk of
damage to the canopy caused by constant
rubbing against the parasol frame. To do this,
stand in front of the canopy and take hold of the
front two panels, pull them away from the
parasol towards your body and roll them together
back towards the parasol frame. Hold the rolled
panels with one hand, while grabing a third
panel, tightly folding it over the roll to hold it in
place, alternate folding over the remaining five
panels from left to right.
4. Secure folded panels in place with the canopy
strap, wrapping it around the mast and canopy.
Gently push the folded canopy back against the
mast so that it is compact. Important: When the
parasol is closed it should always be firmly
strapped.
5. FITTING THE OPTIONAL COVERBAG: Stand
in front of the folded canopy and open the
coverbag zip completely. Use the handle rod to
lift the coverbag behind the mast and up as high
as possible to clear the top of the parasol. Pull
the coverbag down over the top of the mast and
canopy. Zip the coverbag closed. The zip should
be on the front side of the canopy, not at the
back of the mast.
1. Rotate the winder handle (30) in an
anti-clockwise direction. The canopy will begin to
collapse. Continue winding in an anti-clockwise
direction until the canopy is mostly closed and
the canopy arms are pointing almost vertically
down to the ground.
TO CLOSE PARASOL

Lift rotation handle
Figure A
Rotate the parasol by using the handle
Figure B
Align the indicator arrow with a notch
Figure C
There are 16 pre-determined location holes
in the spigot. These location holes are
found at every 22.5 degrees interval around
the spigot base. They are located where
indicated on the spigot base and are under
the nylon indexing shield (34) which acts as
a dust cover for the holes not in use.
1. Pull the rotation lift handle (35) out from
the mast cavity (refer Figure A)
2. Lift up on the handle and feel the
resistance from the spring that houses
the rotating lock pin (36).
WARNING: In lifting this handle you are
not attempting to lift the whole parasol,
rather just the spring on the rotating lock
pin that locates the rotation lock pin.
Do not apply too much force when
lifting up on the handle.
3. By using the rotating lift handle (35) as a
lever you may rotate the parasol on the
base (refer Figure B) until you arrive at
the new required position.
NOTE: There is some resistance to
rotation as the weight of the parasol
when opened and friction need to be
overcome. For easier rotation close
the parasol canopy first.
4. Each position is marked by a notch on the
spigot base. Align the indicator arrow
with a notch (refer Figure C). Once
aligned with a notch, lower the rotating handle
down to locate the rotating lock pin.
WARNING: Do not force the rotating handle down
if the indicator arrow is between notch positions.
The rotating handle should close down easily.
If any resistance is encountered do not force it,
rotate the parasol further slightly to locate the correct hole position.
TO ROTATE PARASOL

Slide stay block up the mast
Figure A
Screw stays into stay block
Figure B
Align the indicator arrow with a notch
Figure C
Your Sorrento parasol can be fitted
with an optional stabilising bar to assit its
performance in a wider range of wind
conditions.
Note: The Sorrento parasol does not need to
be fitted with the stabilising bar for normal
operation in calm to moderate wind conditions.
However for higher wind environments or for
commercial applications is it advisable to fit the
stabilising bar to add stability to the parasol.
1. Slide the stabiliser arm block (38) up the
internal mast housing to a height roughly the
same as the height of the stabiliser bars when
standing vertical (refer Figure A).
2. Attach the threaded stainless screw (with
the two aluminium stays attached) to the stay
block and tighten the screw sufficiently for the
stay block to remain in position without sliding
down the mast (refer Figure B).
3. Swing either aluminum stay arm off the
ground and attach to the parasol arms (refer
Figure C) using the black ‘screw in’ fittings.
4. You may need to loosen the locking knob
(refer Figure B) and adjust up or down the
mast for the stabiliser arms to reach the
correct position on the arms (refer Figure C).
Once both stabiliser arms have been attached,
tighten the central threaded-locking knob to
lock in position (refer Figure C).
Caution: Do not use tension as this may distort
the parasol arms. Reverse the process to remove
the stabilising bar. It must be removed to close the
parasol or tilt the canopy. Important: Your Sorrento parasol even when fitted with the stabilising bar, is
not a permanent, all-weather structure. We recommend the parasol should be closed and folded when
not in use and never left open in strong winds.
TO USE (OPTIONAL) STABILISER BARS

Simple Maintenance Instructions:
If you have a cover bag, we recommend you use it whenever the parasol is closed.
This will greatly extended the life of the canopy.
In coastal or metropolitan environments it is beneficial to periodically wash your parasol
using fresh water from a hose. This includes the canopy and frame.
Should the 16 rotating-mechanism stop-pin holes becoming filled with sand or dust etc.,
remove the parasol from its spigot the remove the spigot from the parasol base plate.
Clean out the 16 rotating-mechanism stop-pin holes and apply some grease or lubricant
to the spigot shaft.
When the parasol is closed for extended periods of time, it is best to fold the acrylic
canvas canopy as shown previously. This will prolong the new look of the canvas,
preventing marking caused by “pinching” in the aluminium frame.
TO CLOSE PARASOL

Note:
When the Sorrento is closed, the swivel
connection is near the top of the mast.
When the Sorrento is open, swivel connection
is lower down inside the mast.

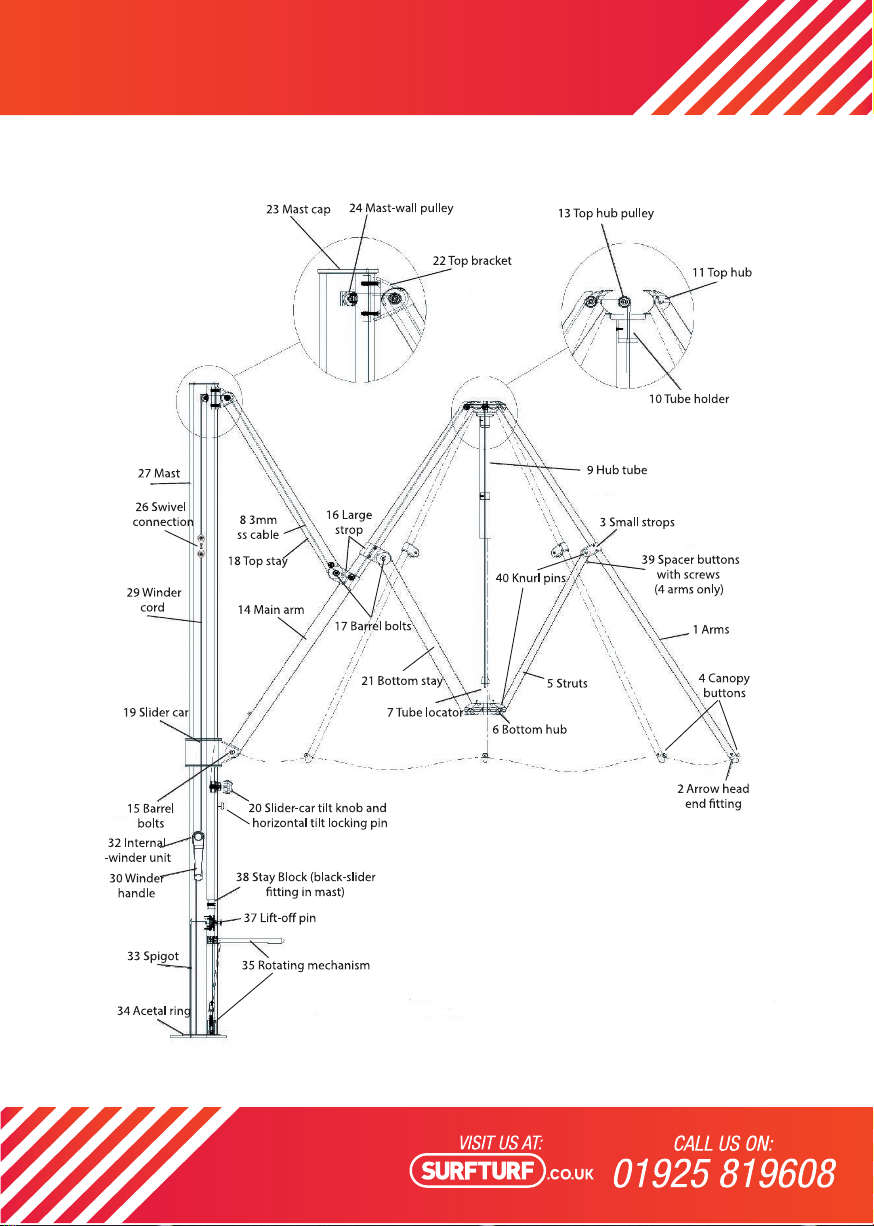

PARTS IDENTIFICATION

Maintenance Instructions For Your Sorrento Parasol:
Be careful when closing the parasol to ensure that the canopy does not get
caught or “pinched” by the parasol arms. This is particularly important before storing
the parasol away for extended periods of time or if the parasol is to be laid
horizontally for storage. Damage to the fabric caused by “pinching” is not covered
by warranty.
In coastal or metropolitan environments it is beneficial to wash off any dirt, pollen
sand salt residue from the parasol frame and fabric using a hose or soft bristle
brush.
Periodic spraying of silicon spray into the gear box through the winder hole will
assist operation and prolong the life of the winder unit.
If you have purchased a protective cover bag it is advisable to use it if the parasol
is not to be used for some time. The parasol must be dry before being packed in a
cover bag.
Inspect the installation fitting/base on a regular basis and tighten as necessary.
Periodically check all the connecting brackets and joints of the parasol to ensure
that all bolts/fittings are tight and secure. Tighten any bolts as required.
General Information:
You will get maximum benefit from your parasol when you use it in accordance with
our instructions and in the weather conditions for which it was designed.
Do not leave the parasol open when unattended, particularly in windy conditions.
The parasol shoud be closed and securely strapped in strong winds and adverse
weather conditions.
Always secure your parasol to an appropriate footing/base.
Any modifications to your parasol, except those made by Surf & Turf Instant Shelter Ltd.
may invalidate the warranty.
Make sure the parasol is dry and clean prior to storing away for extended periods
of time to prevent mould from developing.
PARASOL CARE

HOW TO CLEAN YOUR OUTDOOR PARASOL FABRIC
Recasens acrylic canvas fabric is water and mould repellent and will last a very
long time if maintained well. However, over time, the accumulation of dust,
pollution particles, organic plant matter, pollen and general dirt can embed itself
into the fabric and shorten the life of it.
It is a good idea to periodically give your parasol fabric a light brush down with
a soft bristled brush/broom and water from a garden hose. This will help to
dislodge and remove loose dust and dirt that has settled on the fabric before it
can embed itself deeply. Although mould will not grow directly on clean
acrylic canvas, as dirt and organic matter embeds itself into the fabric the mould
will be able to grow on the embedded dirt and organic matter, so it is best to
remove dirt early.
How To Clean Light Dirt And Marks From Your Outdoor Parasol Fabric:
Depending on how often you use your parasol, you may eventually need to give
it a more thorough wash to remove any embedded dirt or early signs of mould
growth. To do this you will need to mix warm water and sugar soap in a bucket.
Use a soft bristled brush (or a long broom) to generously work this soapy water
into a lather over the parasol fabric. Focus mostly on the areas with the most dirt
or stains, then allow the soapy water to soak into the parasol fabric.
Once you are finished soaking the parasol fabric, rinse it thoroughly with a hose
until all soap residue is removed, and then air dry the fabric.
Once you have finished soaking the parasol fabric, rinse it thoroughly with a hose
until all the soap residue is removed, and then air dry the fabric.
Recasens fabrics also has the highest possible UV protection rating of UPF 80
according to the European UV standard 801, cutting out the maximum amount
of harmful UV light for excellent sun protection.
Recasens 100% Solution-Dyed Acrylic Canvas Fabric
Surf & Turf uses the finest marine grade solution-dyed acrylic canvas fabric
manufactured by S.A. Recasens in Spain. This premium outdoor fabric has the
best available colour fastness rating of 7.8 out of 8.
PARASOL CARE

How To Remove Heavy Dirt Or Mould From Your Outdoor Parasol Acrylic
Canvas Fabric:
If you have heavy dirt or mould growth in your acrylic canvas fabric and the
instructions above have not removed it, you may need to repeat the instructions
again, but add between half and one cup of bleach to the bucket of soapy water.
The acrylic canvas fabric used by Instashade should not fade or lose colour when
using bleach (diluted with water) when cleaning. Feel free to test the bleach
mixture on the canopy strap first to check that there is no colour loss.
The best way to remove heavy dirt and mould is to remove the canopy from the
parasol and soak it in warm water with something like bleach or “Vanish Oxi
Action”. You might need to change the water and repeat this process until all the
dirt or stains are removed. It is then essential that the fabric is thoroughly rinsed
with water to remove any cleaning product. A good way to do this is to put the
fabric through a gentle machine wash with cold water and washing detergent.
Once this is done, put the parasol fabric back on to the parasol frame wet and
then allow to air dry..
PARASOL CARE

PARASOL BASE CARE
SUMMARY
Do not let dirt build up on the bases. Cleaning with mild soap and water,
and seasonal touch-up of any scratches, chips or occasional rust seepage
from crevices or hidden, unfinished surfaces inherent in some designs is all
that is required. Never leave bases standing in water. To keep your bases
looking their best, you may wish to store them when not in use for any
extended period of time.
Brush off dust and dirt with a soft brush. NEVER brush with stiff brushes
since this can damage the fabric finish.
Brush off dust and dirt with a soft brush. NEVER brush with stiff brushes
since this can damage the fabric finish.
Remove the roof fabric from the parasol.
Prepare a solution of something like bleach or “Vanish Oxi Action” in
warm water (no more than 30°c).
Scrub with a soft brush, allowing the solution to penetrate the fabric.
Spray the parasol with clean water. If a hose is used, avoid high preassure.
Light Cleaning
Deep Cleaning
Prepare a solution of sugar soap in warm water (no more than 30°c)
and apply it to the fabric and stitching.
Scrub with a soft brush, allowing the solution to penetrate the fabric.
Rinse with water to remove all traces of soap.
Let air dry and do not close the parasol until the canvas is completely dry.
You may need to change the water and repeat if necessary.
Ensure that all the product is rinsed from the fabric put on a gentle
machine was on a Gentle Machine wash with cold water and laundry
detergent.
Let air dry and do not close the parasol until the canvas is
completely dry.
PARASOL CARE

SORRENTO PARASOL

Surf & Turf Instant Shelters Ltd
Unit 7 Tatton Court, Kingsland Grange, Warrington, Cheshire WA1 4RR
01925 819608 [e-mail]
