Sussex Calibre Series User manual

sussextaps.com.au
Tapware is to be installed by a Licensed
Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa.
Maximum water temperature is 65 deg.c.
Calibre Shower Mixer System
Product code: Available opons:
CSMS Shower Mixer System
INSTALLATION GUIDE
1
MIXER DRESS KIT
Remove Mixer protective cover.
Using silicone, seal the wall surface around the Mixer.
Apply a small amount of silicone to the rear of the backplate
prior to mounting onto the wall.
Fit the Handle Body onto the Mixer Cartridge Lever ensure
the Handle is fully engaged.
Secure the Handle Body by tightening the Set screw using
the Allen Key provided (tighten well).
64 mm
Backplate
Finished
Wall Surface
Set
Screw
Handle
Body
Apply Silicone
Masterfit
Apply Silicone
Stud Face
Handle
Lever
2
HAND SHOWER FIT OFF
align with the Backplate.
Secure the Hand Shower Post by tightening the Set Screw.
Connect the Hand Shower Hose to Post.
To complete installation, operate the Mixer(s) checking the
NOGGING
Backplate
Hand Shower Post
Hand Shower
Hose Connection
Hand Held
Shower
Masterfit
Stud Face
Finished
Wall Surface
Set
Screw
O-Rings
Check
Valve
Check
Valve
1
MIXER DRESS KIT
Remove Mixer protective cover.
Using silicone, seal the wall surface around the Mixer.
Apply a small amount of silicone to the rear of the backplate
prior to mounting onto the wall.
Fit the Handle Body onto the Mixer Cartridge Lever ensure the
Handle is fully engaged.
Secure the Handle Body by tightening the Set screw using the
Allen Key provided (tighten well).
80 mm
Backplate
Finished
Wall Surface
Set
Screw
Handle
Body
Apply Silicone
Masterfit
Apply Silicone
Stud Face
2
HAND SHOWER FIT OFF
Apply a small amount of grease to the O-rings of the fitting.
Carefully fit the Hand Shower Post ensuring the locating pins
align with the Backplate.
Secure the Hand Shower Post by tightening the Set Screw.
Connect the Hand Shower Hose to Post.
To complete installation, operate the Mixer(s) checking the
NOGGING
Backplate
Hand Shower Post
Hand Shower
Hose Connection
Hand Held
Shower
Masterfit
Stud Face
Finished
Wall Surface
Set
Screw
O-Rings
-
-
-
-
-
-
-
-

sussextaps.com.au
Tapware is to be installed by a Licensed
Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa.
Maximum water temperature is 65 deg.c.
Calibre Shower Mixer System
Product code: Available opons:
CSMS Shower Mixer System
INSTALLATION GUIDE
Tapware is to be installed by a Licensed
Plumber in accordance with AS/NZS 3500:2003
Recommended working water pressure 300-500 kpa.
Maximum water temperature is 65 deg.c.
sussextaps.com.au
1
PIPE CONNECTIONS
individual Hot/C old inlet ports).
Flush all water feed lines. All lines must be free from any dirt and
Connect Hot and Cold lines to the corresponding 1/2 ” BSP ports
by operating the Mixer Cartridge.
Leave the Mixer(s) in the closed position and replace the Mixer
protective cover.
Store the Dress Kit in a safe place until required (see Dress
Finishing Guide)
PLUMBER NOTE:
On-site high pressure line testing must be conducted with
the Mixer in the closed position. (STATIC TEST ONLY)
Under no circumstances is the Mixer to be opened when
exceeding the maximum stated water pressure.
At the completion of the testing, do not relieve any high pressure
by opening the Mixer.
Exposing the internals of the Mixer Cartridge to higher than

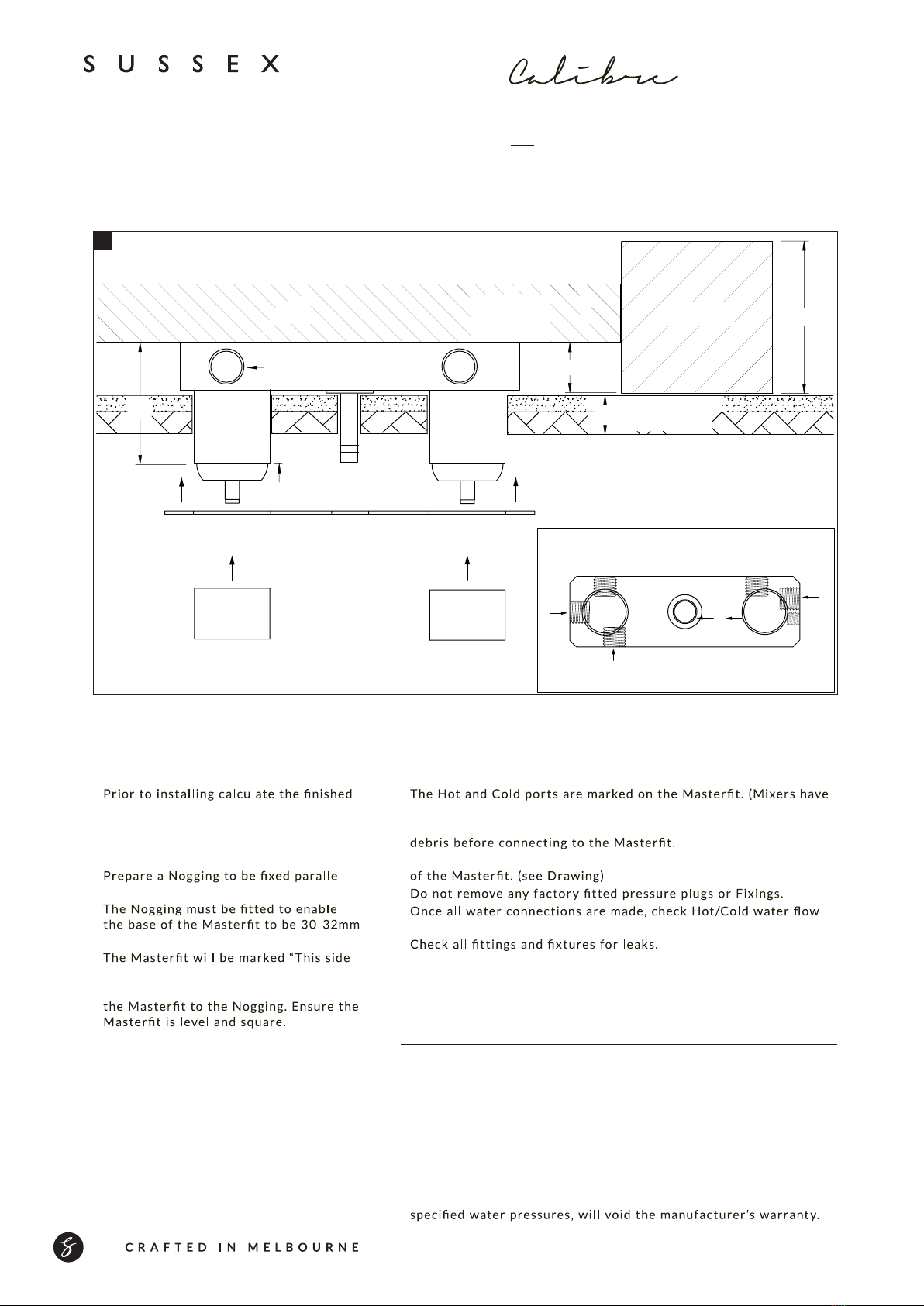

ROUGH IN PLUMBING
Wall thickness, maximum is 30mm thick.
contact manufacturer for further options.
If Wall thickness is greater than 30mm,
contact manufacturer for further options.
between the Wall Studs.
back from the Stud Face.
Up” to indicate orientation.
Using the screws (x4) provided, mount
Masterfit
NOGGING STUD
Back Plate
Handle Body
30-32 mm
Wall Covering
Max. 30mm
90
70
Hot 1
Overhead
Shower
Cold 2
Mixer 1
Hot 2
Mixer 2
Cold 1
Outlet 2
Pipe Connections
Shower
Outlet
This
side
up
Min.
8mm
Hand Shower
Outlet Fitting
View from above
Note: The diverter is of the dial type, rotate handle to
Mixer 1 Mixer 2
--
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
