Operator’s Manual
HIGH PRESSURE CLEANER
AMD005284
WARNING: Read the instructions before using the machine.

1
Suyncll
Thank you for choosing Suyncll.
Your satisfaction is our greatest motivation.
1.If you are not satisfied, don't worry.
Within 12 months, we will provide timely and effective online
after-sales service after your purchase.
2.How to install the machine?
✔Search Suyncll on Facebook Or Youtube to get installation
videos and troubleshooting;
✔Follow the instructions below to install;
3.How To Get Help？
EM：[email protected]
FB：@SuyncllUS

2
Contents
Section
Page
Important Safety Precautions, Tips 3
Warnings, and Usage Instructions 4-6
Assembly Instructions 7-11
Operating Instructions 11-13
Using Detergents 14-15
Clean-up and Storage 15-16
Cleaning Tips 16-17
Technical data 17
Troubleshooting Tips 18
CE Declaration 19

3
IMPORTANT SAFETY TIPS
Never point the high-pressure nozzle at people or animals.
Never drink alcohol or use drugs while operating the pressure cleaner.
Never operate the pressure cleaner while standing in water.
Never touch the electrical plug with wet hands.
Never let electrical connections rest in water.
Never operate pressure cleaner without the water turned on.
Never use hot water with this pressure cleaner.
IMPORTANT SAFETY PRECAUTIONS
WARNING: When using this product, basic precautions should
always be followed, including the following:
1.
Read all instructions before using the product. Save all safety instructions.
2.
Do not operate the pressure cleaner when fatigued or under the influence of alcohol or
drugs.
3.
Risk of injection or injury – do not direct the high pressure water stream at any people
or animals.
4.
Do not allow children to operate the pressure cleaner at any time.
5.
To reduce the risk of injury, close supervision is necessary when the pressure cleaner
is used near children.
6.
Know how to stop the unit and reduce pressure immediately. Be completely familiar
with the controls.
7.
Stay alert – always be aware of where you are directing the high pressure spray
8.
Keep cleaning area clear of all people.
9.
Keep good footing and balance at all times – do not overreach or stand on an unstable
support.
10.
The work area should have adequate drainage to reduce the possibility of a fall due to
slippery surfaces.
11.
Follow the maintenance instructions specified in the manual.
12.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do not
touch plug with wet hands.

4
GENERAL SAFETY PRECAUTIONS
1.
Intended for outdoor household use only.
2.
High-pressure hose can develop leaks from wear, abuse, kinking etc. Do not use a
damaged hose.
3.
Do not use the pressure cleaner in areas near combustible materials, combustible fumes, or
dust.
4.
Some chemicals or detergents may be harmful if inhaled or ingested causing severe injury.
Use a respirator or mask whenever there is a chance that vapors may be inhaled. Read all
instructions included with the mask so you are certain the mask will provide the necessary
protection against inhaling harmful vapors.
5.
Before starting the pressure cleaner in cold weather, check all of the parts of the equipment
and be sure that ice has not formed. Do not store the unit anywhere that the temperature will
fall below 0C (32F).
6.
DO NOT MAKE ANY MODIFICATIONS TO ANY OF THE COMPONENTS! Units with
broken or missing parts, or without the protective housing or covers should NEVER be
operated
7.
Keep the high-pressure hose connected to the pressure cleaner and the spray gun while the
system is pressurized. Disconnecting the hose while the unit is pressurized is dangerous,
and may cause injury.
8.
Do not leave the pressure cleaner unattended while the power switch is ON.
9.
Keep water spray away from electrical wiring or fatal electric shock may result.
SYMBOLS
The labels on your tools and manual may show symbols. These represent important information
about the product or instruction on its use.
Indicates a potential personal injury hazard.
Double-insulated construction
Do not expose to rain or use in damp locations.
To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Always wear safety goggles or safety glasses with side shields and, as
necessary, a full face shield when operating this product.
To reduce the risk of injection or injury, never direct a water stream towards
people or pets or place any body part in the stream.
Leaking hoses and fittings are also capable of causing injection injury.

5
Do not hold hoses or fittings.
To reduce the risk of injury from kickback, hold the spray lance securely with both
hands when the machine is on.
Failure to use in dry conditions and to observe safe practices can result in
electric shock.
Warning! Never point the gun to human, animals, the machine body, power
supply or any electric appliances
Machine not intended to be connected to the potable water mains
Waste electrical products should not be disposed of with household waste,
please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
SERVICING OF A DOUBLE-INSULATED APPLIANCE
In a double-insulated product, two systems of insulation are provided instead of grounding. No
means of grounding is provided on a double-insulated product, nor should a means for grounding
be added to the product. Servicing a double-insulated product requires extreme care and
knowledge of the system, and should be done only by qualified service personnel. Replacement
parts for a double-insulated product must be identical to the parts they replace. A double-
insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED”.
This symbol may also be marked on the product.

6
USE OF EXTENSION CORDS
Use of an extension cord with this product is NOT RECOMMENDED. If you must use an
extension cord, use only extension cords that are intended for outdoor use. These cords are
identified by a marking “ACCEPTABLE FOR USE WITH OUTDOOR APPLIANCES, STORE
INDOORS WHILE NOT IN USE.” Use only extension cords having an electrical rating not less
than the rating of the product. Examine extension cord before use. DO NOT USE DAMAGED
EXTENSION CORDS! Do not pull on cord to disconnect from receptacle, always disconnect by
pulling on plug. Keep cord away from heat and sharp edges. Always disconnect the extension
cord from the receptacle before disconnecting the product from the extension cord.
WARNING – To reduce the risk of electrocution, keep all connections dry and off the ground. Do
not touch the plug with wet hands.
-Do not use the appliance if a supply cord or important parts of the appliance are
damaged, e.g. safety devices, high pressure hoses, trigger gun.
-If an extension cord is used, the plug and socket must be of watertight construction.
-WARNING: Inadequate extension cords can be dangerous.
-Remove the plug from the socket-outlet during cleaning or maintenance and when
replacing parts or converting the machine to another function.
PROPER USE OF THE PRESSURE CLEANER
THIS UNIT IS INTENDED FOR USE WITH COLD WATER ONLY!
DO NOT USE HOT WATER IN THIS PRESSURE CLEANER.
1.
Operate the pressure cleaner at no more than the fluid pressure rated for the pressure
cleaner. Never run the pressure cleaner without a water supply. Running the unit without
a water supply will cause irreparable damage to the unit.
2.
Make sure that the water supply you use for the pressure cleaner is not dirty, sandy, and
does not hold any corrosive chemical products. Using a dirty water supply will
compromise the long life of the pressure cleaner.
3.
CAUTION - The pressure cleaner can be used for a variety of applications including
washing cars, boats, patios, decks, garages etc. where high pressure is necessary to
remove dirt and debris.
High-pressure water flow can damage the work surface if not used properly! See
the section titled “Operating Instructions” for more details. Always test the spray in an
open area first.
4.
NEVER move the unit by pulling on the high pressure hose. Use the handle provided on
the top of the unit.
5.
Always hold the high pressure gun and wand with two hands. Keep one hand on the
gun/trigger, while supporting the wand with the other hand (see diagram).
6.
When dispensing detergent, the pressure cleaner applies detergent to the cleaning area
at low pressure only. Once the detergent has been applied, spray the detergent off of the
work area by using the adjustable nozzle.

7
ASSEMBLY INSTRUCTIONS
Unpacking The Carton
After opening the carton, please remove all parts and check them against the following list of
components that are included:
1. Handle 2.Holder
3.Switch 4. Cleaning pot hook
5. Cleaning pin 6. Water inlet connector
7. Cleaning pot 8. Nozzle
9. Extension Wand 10. Gun
11. Power cord hook 12.High pressure hose
56
1
2
3
47

8
Due to transportation and packaging, some of the accessories may be supplied disassembled.
Please follow the assembly instructions.
Step 1
Install gun hook and power cord hook,(For both model A/B&C/D)
Step 2
Screw the washer handle tight to the main body as below fig. The screws will be packed together
with the main body, pls kindly check and find it when unpacked.
Step 3

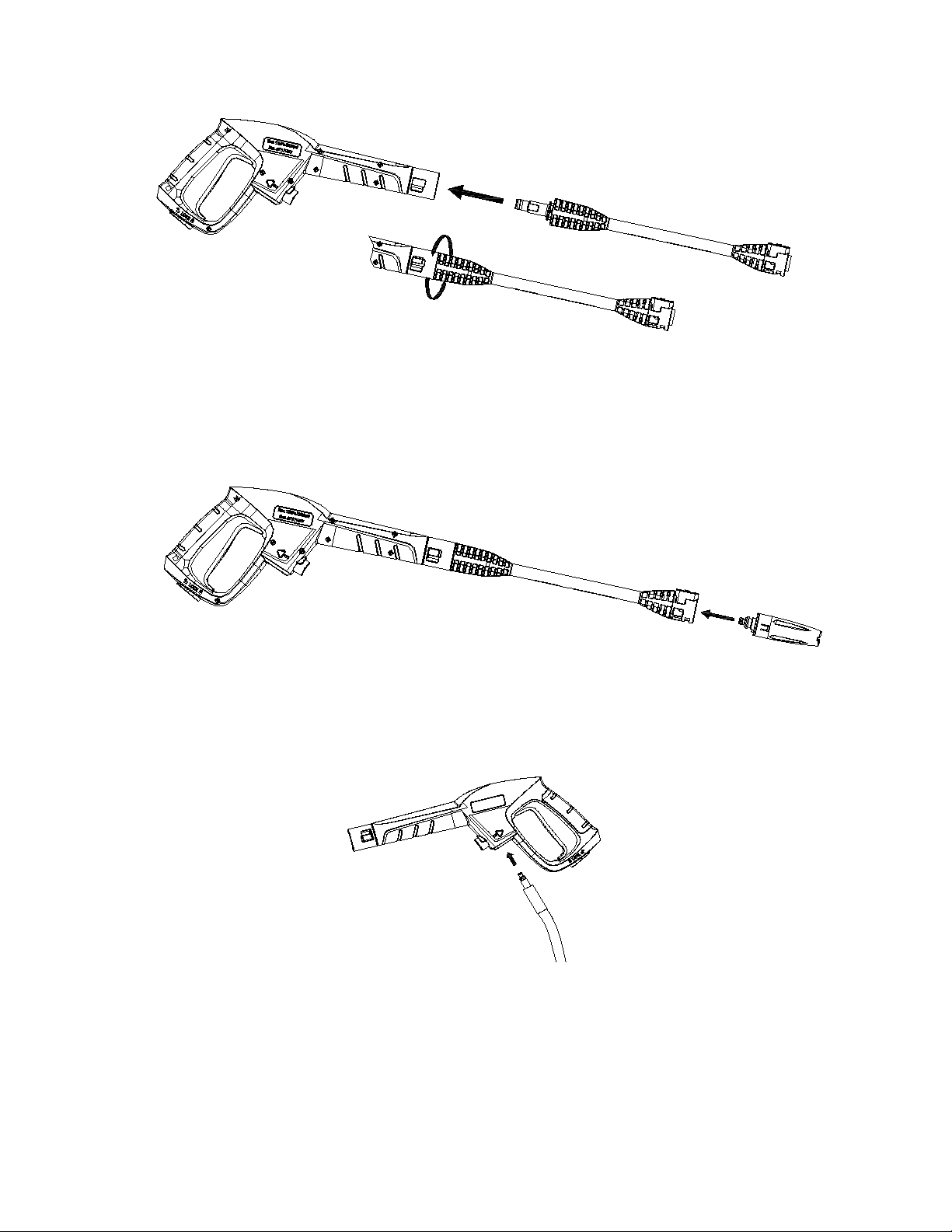

AInsert the extension wand(K) into the gun. Push and turn the adjustable nozzle clockwise onto
the gun(J) until hand tight to lock it in place. When the pieces are joined properly, you cannot
separate the two components by pulling straight out on the adjustable nozzle. All attachments
must be inserted into the gun for proper use.

9
B，Insert the spray adjustable nozzle(D) into the extension wand(K) , as quick-connect type , you
just need push it onto extension wand(K) directly and powerful until hand tight to lock it in place.
When the pieces are joined properly, you cannot separate the two components by pulling straight
out on the extension wand(K) . Insert the Turbo nozzle in the same manner, depending upon
which attachment is best suited to the surface you are cleaning. Only one attachment can be
inserted into the.extension wand(K) at a time. All attachments must be inserted into the
extension wand(K) for proper use.
Step 4
Attach the high pressure hose(C) to the gun(J). Insert and quick-connect it tight to avoid
leakage.When the pieces are joined properly, you cannot separate the two components by pulling
straight out from the gun(J). Push the hose lock button, then you can pull out high pressure
washer.
Step 5
Attach the high pressure hose(C) to the pressure cleaner water outlet. Insert and quick-connect it
tight to avoid leakage.When the pieces are joined properly, you cannot separate the two
components by pulling straight out from the water outlet. Push the “Button” according to the
direction of arrow, then you can pull out the high pressure hose.
10
9
8
10
10
12

10
Step 6
Connect the garden hose adaptor (female coupler) to the water inlet of the pressure washer, then thread your
garden hose (male end) into the garden hose adaptor . The garden hose must have an internal diameter of at
least 13 mm (1/2 in.) and must be reinforced. The water supply must be at least equal to the washer delivery
capacity.
This end to the
water inlet on
the unit
Garden hose
(male end)
Water inlet
(female coupler)
Garden
hose
Step 7
Attach the hose connector to pressure washer. Before attaching the connector to the
male fitting, remove the plastic cap, which is inserted onto the male fitting on the
pressure washer before shipping. This plastic cap can be discarded once removed. After
both components have been installed, attach the garden hose with connector screw on
the pressure washer. Connect the garden hose to the waterspout. Finally, connect the
hose connector to the faucet.
12

11
OPERATING INSTRUCTIONS
THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY! DO NOT USE HOT
WATER IN THIS PRESSURE CLEANER!
Starting Up
After connecting the pressure cleaner to your cold water supply, proceed as follows:
-Make sure that the on/off switch is in the off position.
-Connect the garden hose to the inlet fitting.
-Attach the hose to the gun as per assembly instruction step #1.
-Insert the adjustable spray nozzle into the gun as per assembly step #3.
-Connect the high pressure hose to the high pressure outlet fitting as per assembly step
#4.
-Connect the garden hose to the high pressure washer inlet fitting as per assembly step#5.
-Open the water supply valve completely.
-Before turning the unit on, press the gun trigger to bleed all the remaining air out of the
pump and hose.
-Start the pressure cleaner by turning the on/off switch to the on position and squeeze the
trigger. REMINDER: Motor does not run continuously, only when the trigger is squeezed.
WARNING – RISK OF INJECTION! Unit will start spraying when trigger is squeezed.
When turning the unit off after use, high pressure still exists inside the hose and
unit. Point the gun in a safe direction and discharge the excess pressure. NEVER
direct the high pressure water stream at people or animals.
Automatic On/Off
The pressure cleaner is equipped with an automatic on/off switch. The pressure cleaner will only
run when the power switch is in the ON position and the trigger on the gun is squeezed. When
you release the trigger to stop spraying water through the gun, the motor on the pressure cleaner
will automatically shut off. Simply squeeze the trigger again to resume using the cleaner. To stop

12
using the pressure cleaner, release the trigger and switch the unit to the OFF position. The unit
should be turned completely OFF while not in use or while unattended.
Bleeding the Gun
It is very important to bleed the gun before using the pressure cleaner. Refer to the “Assembly
Instructions” to assemble the pressure cleaner. To bleed the gun, simply connect the garden
hose to the pressure cleaner and squeeze the trigger BEFORE turning the electrical supply on.
This allows any air trapped inside the pressure cleaner and gun to be removed before using the
unit. Continue holding trigger for approximately one minute to allow any excess air out of the unit.
Water will flow through the gun at low pressure during this procedure. For more bleeding tips, see
the section titled “Operating Instructions.”
Gun Safety Lock
This pressure cleaner is equipped with a gun trigger safety lock. When not using the pressure
cleaner, use the safety lock to keep from accidentally engaging the high pressure spray.
Lock
Unlock

13
Adjustable Spray Nozzle
The adjustable nozzle will allow you to use any variety of spray patterns from a full fan spray
(Diagram 1) to a direct stream spray (Diagram 2). When using the pressure washer to clean wood
decks, siding, vehicles etc., always start using the fan spray and begin spraying from a minimum
36” away to avoid damaging the surface of the material you are cleaning. Always begin by
spraying in a testing area free and clear of people and objects.
-Warning: High pressure jets can be dangerous if subject to misuse. The jet must not be
directed at persons, live electrical equipment or the appliance itself.
-Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
-
Unblock lance
When the nozzle is clogged, it will cause the pump to build pressure and may cause unit to surge,
you can clean the nozzle inserting needle into the tip to rid of the deposits.
For the adjustable nozzle, you can lubricate the nozzle collar(high pressure to low pressure) by
using non-water soluble grease regularly.
Diagram1
Diagram 2

14
USING DETERGENTS
THE PRESSURE CLEANER WILL DISPENSE DETERGENT AT LOW PRESSURE. USE THE
ADJUSTABLE SPRAY NOZZLE TO RINSE CLEAN.
BIODEGRADABLE DETERGENTS ARE SPECIFICALLY FORMULATED TO
PROTECT THE ENVIRONMENT AND YOUR PRESSURE CLEANER. THESE
DETERGENTS WILL NOT CLOG THE FILTER AND WILL PROTECT THE INTERNAL PARTS
OF THE PRESSURE CLEANER FOR A LONGER LIFE.
Step 1
Separate the nozzle from the detergent container by turning the detergent reservoir counter
clockwise and separating the two components.
detergent fluid
Step 2
Fill the detergent container with approved detergent. Pour the detergent slowly into the reservoir
using a funnel. Re-attach the two components by re-inserting the nozzle back onto the detergent
reservoir and turning clockwise.
Step 3
To apply the detergent cleanser to your working area, attach the detergent nozzle to the gun.
Turn the pressure cleaner switch to the ON position. Pull the trigger to operate the unit. The
pressure cleaner will mix the detergent with water. Do not allow the detergent to dry on the object
you are cleaning.

15
WARNING: NEVER USE PRODUCTS WITH BLEACH OR CHLORINE
OR ANY OTHER CORROSIVE MATERIALS, INCLUDING LIQUIDS CONTAINING SOLVENTS
(I.E. GAS, OILS ETC), TRI-SODIUM PHOSPHATE PRODUCTS, AMMONIA, OR ACID-BASED
CLEANERS. THESE CHEMICALS WILL HARM THE UNIT AND CAUSE DAMAGE TO THE
SURFACE BEING CLEANED. ALWAYS READ THE LABEL.
-E. GAS, OILS ETC), TRI-SODIUM PHOSPHATE PRODUCTS, AMMONIA, OR ACID-
BASED CLEANERS. THESE CHEMICALS WILL HARM THE UNIT AND CAUSE
DAMAGE TO THE SURFACE BEING CLEANED. ALWAYS READ THE LABEL.
CLEAN-UP AND STORAGE
Shutting Down the Pressure Cleaner
WHEN FINISHED USING THE PRESSURE CLEANER,
FOLLOW THESE STEPS TO SHUT
DOWN THE UNIT:
Turn the pressure cleaner to the OFF position.
Turn off the water supply.
Before disconnecting high-pressure hose connection, point the gun in a safe direction
and discharge the high-pressure water.
Disconnect high-pressure hose from the pressure cleaner and gun.
Disconnect garden hose from the pressure cleaner.
Remove quick coupler fitting from garden hose and attach to the nipple portion of the
fitting installed on the pressure cleaner for storage.
Remove excess water from the pump by tipping the unit on both sides to drain any
remaining water from inlet and outlet fittings.
Remove Water Intake Filter and flush with water to remove dirt or debris. Return
filter once cleaned.
Drain detergent reservoir and flush with running water.
Wipe away any remaining water on all parts and fittings.
Engage the gun safety lock.
Store the pressure cleaner, parts, and accessories in an area with a temperature
above 0°C (32° F).
Winterizing and Long-Term Storage
FOLLOW ALL OF THE ABOVE SHUT-DOWN PROCEDURES,
ADDING THE FOLLOWING STEPS….

16
After disconnecting the water supply, and before disconnecting the high-pressure hose,
turn the pressure cleaner on for 2-3 seconds, until any remaining water in the pump exits.
TURN UNIT OFF IMMEDIATELY.
CONTINUED USE OF THE PRESSURE CLEANER WITHOUT
WATER SUPPLY ATTACHED WILL CAUSE
SEVERE DAMAGE TO THE UNIT!
Always store the pressure cleaner, parts, and accessories in an area with a temperature
above 0° C (32° F).
WARNING: FAILURE TO COMPLY WITH THESE
STORAGE INSTRUCTIONS WILL RESULT IN
DAMAGE TO THE PUMP ASSEMBLY.
Maintenance
This pressure cleaner is supplied with a closed lubrication system, so no addition of oil is
needed.
Check all hoses and accessories for damage prior to use.
Check the inlet filter periodically for deposits. Clean this filter regularly for maximum
performance.
CLEANING TIPS
WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND CLEAR OF PEOPLE AND
OBJECTS BEFORE YOU SPRAYAT THE INTENDED CLEANING SURFACE.
Wood and Vinyl Decks
Rinse deck and surrounding area with fresh water. If using detergent, fill the detergent reservoir
and apply to the area being cleaned at low pressure. For optimal results, reduce your work area
to smaller sections and clean each section one at a time. Allow the detergent to rest on the
surface for a few minutes and then rinse at high pressure. DO NOT LET THE CLEANSER DRY.
Always clean from left to right and top to bottom for best results. Rinse at high pressure using
the fan spray keeping the tip of the spray nozzle at least 6-9 inches from the cleaning surface.
Maintain a further distance from the cleaning area when using a direct spray. Caution: For softer
woods, increase the distance from the cleaning area.
Cement Patios, Stone, and Brick
Rinse cleaning and surrounding area with fresh water. If using detergent, fill the detergent
reservoir and apply to the area being cleaned at low pressure. Rinse at high pressure using the
fan spray in a sweeping motion keeping the tip of the spray nozzle at least 3-6 inches from the
cleaning surface. Maintain a further distance from the cleaning area when using a direct spray.
Cars, Boats, and Motorcycles

17
Rinse cleaning and surrounding area with fresh water. If using detergent, fill the detergent
reservoir and apply to the area being cleaned at low pressure. To achieve the best results, clean
one side at a time. Allow the detergent to rest on the surface for a few minutes, but do not let the
detergent dry. Rinse at high pressure using the fan spray in a sweeping motion keeping the tip
of the spray nozzle at least 8 inches from the cleaning surface. Maintain a further distance from
the cleaning area when using a direct spray. Wipe surface dry for a polished finish.
Barbecue Grills, Power Equipment, and Garden Tools
Rinse cleaning and surrounding area with fresh water. If using detergent, fill the detergent
reservoir and apply to the area being cleaned at low pressure. Allow the detergent to rest on the
surface for a few minutes, but do not let the detergent dry. Rinse at high pressure using the fan
spraykeeping the tip of the spray nozzle at least 1-3 inches from the cleaning surface. Maintain a
further distance from the cleaning area when using a direct spray.
TECHNICAL DATA
Model AMD005284
Main Voltage AC 120V
Main Frequency 60 Hz
Power 1800 W
Rated Pressure 3000 PSI
Max. Pressure 3500 PSI
Rated Flow 2.6 GPM
Max Flow 2.8 GPM
Max. pressure
water supply
174 PSI
Max. water
temperature
40°C
Level of sound pressure measured
LPA (sound pressure) dB (A) 79.0
LWA (sound power) dB (A) 91.6
LWA (guaranteed sound power level) dB (A) 95
Weighted root mean square acceleration value: < 0,381 m/s2
GUARANTEE
Refer to the enclosed guarantee conditions for the terms and conditions of guarantee.
ENVIRONMENT
Should your machine need replacement after extended use, do not put it in the domestic way

18
TROUBLESHOOTING TIPS
Disconnect the unit from the electrical power supply before carrying out maintenance on the
machine or when checking that its parts are in proper working order.
To avoid unnecessary hassles, consult the folloing table before contacting customer service
with any mechanical issues.
Problems
Possible Cause
Possible Solution
Machine can’ start
Electrical socket is faulty
Voltage is inadequate
Power cord is not plugged in
Check plug, socket, fuses
Check whether the voltage is
adequate
Plug in power cord
The pump does not reach
adequate pressure or fluctuates
Water inlet filter is clogged
Pump is drawing air
Suction valves are clogged/worn
Diameter of garden
hose too
small
Water supply is restricted
Insufficient water supply
Remove and clean filter
Tighten connections/bleed
system
Clean or replace valves
Replace with ¾ inch garden
hose
Check hose for kinks or leaks
Fully open water source
The pressure cleaner can’t
maintain pressure
Excessive air in waterline and
pump
Turn unit and water supply off/
Bleed system/Hold trigger
down
Unusual noise
Intake is blocked
Valves are worn, dirty, or
clogged
Water filter is blocked
Check the intake valves

Check, clean or replace
valves
Check, clean, or replace filter
Machine starts and stops by
itself together with sharp noise
Pump bypass valve or gun is
leakage
Please email to:
[e-mail] for
technical assistance, we will
guide maintenance based on
actual situation
Machine can start, but no water
comes out from nozzle
Water left in pump, hoses or
accessories was frozen
No water supply
Water inlet filter blocked
Nozzle blocked
Put machine outdoor and wait
for frozen to thaw
Connect inlet water supply
Clean the water inlet filter
Clean the nozzle with nozzle
pin

19
EC Declaration of Conformity
We hereby declare that the design, construction and the model for the device with the standard
and the requirements of safety and health of the EU's consistent policy.
The statement will prove ineffective if the device is being modified without our approval.
Type of instrument: Pressure Cleaner AMD005284
Anwenbare EU guidelines:
• EU Machinery Directive 2006/42/EC
• EU Low Voltage Directive 2006/95/EC
• EU Directive Electromagnetic Compatibility 2004/108/EC
Applied harmonized standards:
EN60335-2-79：2009
EN 60335-1/A13:2008
EN 55014-1:2006
EN 55014-2/A1:2001
EN 61000-3-2:2006
EN 61000-3-3/A2:2005
EN 62233:2008
MADE IN CHINA
