Owner's Manual
HMH-100
Harmonica Microphone Kit

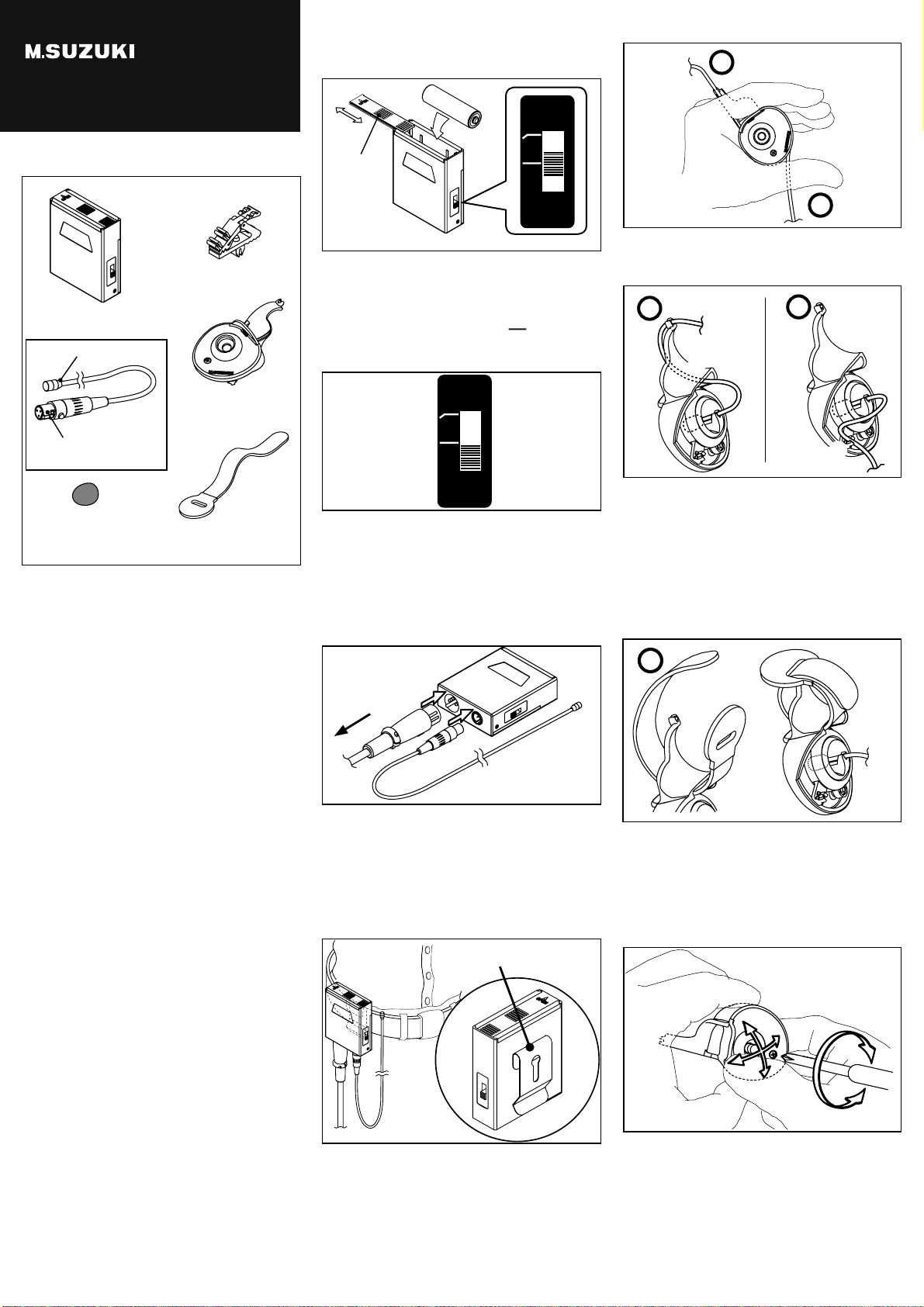

COMPONENTS
SAFETY INSTRUCTIONS
Microphone, Power Module
CCAUTION
Do not disassemble or modify.
Do not drop or knock the unit.
Do not expose to moisture or touch with wet
hands.
It may cause injury or malfunction.
Never use or store the unit in places that are:
Subject to extreme temperatures (e.g., direct sunlight in an
enclosed vehicle, near a heating duct, on top of heat-gener-
ating equipment)
If you experience problems or malfunction
Refer to ‘Troubleshooting’. If problem persists, turn the
power o and consult the purchased store or dealer.
How to care
Wipe this equipment with a dry cloth. Do not use alcohol,
thinners, or benzene.
Battery
CDANGER
In case of battery leakage do not allow the liquid
to touch your skin.
If the battery liquid gets into your eye, wash with clear water
immediately and seek medical attention.
Do not touch battery liquid with bare hands.
CWARNING
Do not allow children to play with the micro-
phone.
Do not expose to re, heat, disassemble, or mod-
ify.
Do not reverse the battery polarity.
Do not charge dry cell batteries.
CCAUTION
Switch o when not in use.
Failing to turn o the unit may cause battery leakage due
to exhaustion.
Remove the battery as soon as it becomes ex-
hausted.
Remove the battery when not in use.
Dispose of old batteries safely and legally.
Power Module
Lavalier Clip
Microphone
Eyeball style Holder
Wind Shield Hook and Loop
Fastner
HOW TO USE
Installing a Battery
Open the battery lid located on the power module.
Insert the dry cell battery (AA / R6P: available sepa-
rately) observing polarity (+/-). Close the battery lid.
Do not use rechargeable batteries. They do not perform
well due to insucient voltage.
Set the power module switch to “ ”.
Set the switch to the “OFF” position when the per-
formance ends.
Using with phantom power
e battery is not required if your audio equipment
has a phantom power supply.
When a Phantom Power supply is connected, the unit
is ON regardless of the Power Switch position.
Attach the Power Module
Attach the power module using included belt-clip
onto a belt or other suitable location on your clothing.
Use a pocket if clothing does not have a belt.
Hook-Up
Connect the microphone to the “mini-XLR” jack on
the power module and suitable microphone cable
(XLR type: available separately) into the standard
“XLR” jack.
Both plugs have a lock function. Press the button to
unlock and remove the cable.
Using the "Eyeball" holder
e HMH-100 is most effective when used with the
“Eyeball” holder due to the close proximity of the mi-
crophone to the Harmonica.
ⒶBring the cable to the back of the hand
Using the “Eyeball” holder in this way will obtain
good playability. It is advantageous to pass through
the sleeve. See illustration above.
ⒷBring the cable to the front of the hand
Alternatively you may pass the cable in front of your
hand. Refer to the illustration above.
Ensure the cable is handled gently, do not pull or bend
the cable.
ⒸWith the hook and loop fastener
e “Eyeball” holder can be used with the included
hook and loop fastener thus avoiding accidental drop-
ping of the microphone because the hook and loop
fastener is attached to the operators finger.
②
①
③
A
①
②
B
C
Changing ‘direction’
e “Eyeball” holder can switch ‘direction’ depending
on your playing style.
To alter the direction, use a Phillips #1 screwdriver
and loosen the screw. Change direction of the holder
and tighten the screw to secure.
Tighten
Loosen
OFF
Mic Unit
Mini XLR Plug
⊕
OFF
Battery
Lid
⊖
Power On, Low-Cut
Power On, Flat
Power O
Belt-Clip
XLR
mini-
XLR
To audio
equipment

①
②
③
①
②③
Using lavalier clip
It is possible to attach the microphone onto a lapel or
neck-tie. However, loudness is slightly less than when
used with the “Eyeball” holder.
Attach the microphone to the lavalier clip arranging
the cable as shown in the illustration above.
Ensure the cable is handled gently, do not pull or bend
the cable.
Reduce wind noise
We recommend using the included wind shield (pop
filter) with your HMH-100 microphone to reduce
wind noise. It is also possible to reduce wind noise by
setting the switch to the “ ” position which cuts
low frequency.
ⒶAttach to clothing
ⒷWith the hook and loop fastener
e lavalier clip can also be used with the hook and
loop fastener attached to your finger as shown in the
above illustration. is avoids accidental dropping of
the microphone when the hand has opened.
is is effective due to the close proximity of the mi-
crophone to your harmonica.
SPECIFICATIONS
Type........................ Back Electret Condenser Microphone
Polar Pattern ........... Omni-directional
Frequency Range.....50 to 18,000 Hz
Output Impedance.. 250 Ω
Sensitivity................-49 dB ±3 dB (battery), -47 dB ±3 dB
(phantom) (0 dB = 1 V/Pa, 1 kHz)
Power Supply .......... Dry Cell Battery (AA / R6P), Phantom
Power DC 9 to 52 V
Power Current.........0.5 mA (microphone), 0.8 mA (power
module)
Battery Life .............about 1000 hours
Dimensions............. ø5 x 8.4 mm (microphone), 76 x 64 x 29
mm (power module)
Cable Length...........1.5 m
Weight .................... 14 grams (microphone), 150 grams
(power module without battery)
Output Jack ............XLR (power module)
TROUBLE SHOOTING
The sound is quiet or distorted.
e battery has exhausted. Install new battery.
A part has broken.
We sell consumable parts separately. Please consult
your dealer or store.
LIMITED WARRANTY
1. is product is warranted to be free from manufactur-
ing defects for one (1) year from the original date of
purchase.
2. If the product malfunctions during the warranty pe-
riod, request repair and present the warranty card.
3. e repair is for a fee in these cases;
a. e malfunction is caused by injurious handling in
transport after purchase.
b. e malfunction is due to misuse, or abuse.
c. e malfunction is due to disaster, for example; fire,
earthquake, flood, and theft.
d. Travel expenses to the distant land.
e. e malfunction is due to unauthorized repair, modifi-
cation, or abnormal voltage.
f. Replacement of consumable parts.
g. If warranty card does is not available, or the details
(date, store name etc.) are blank.
e warranty card does not limit your legal rights.
To store:
e warranty card is to clarify the service and duty to
the customer. Fill the purchase date, store name, ad-
dress and phone number.
Privacy policy
We use your personal information for transport and
service. Personal information is administered closely
in line with the privacy policy of Suzuki Musical
Instrument Mfg. Co., Ltd., we do not share this in-
formation outside of our company or our associated
companies.
Manufacturer:
2-25-12 Ryoke , Naka-ku,
Hamamatsu 430-0852
JAPAN
E-mail: [email protected]
web site: http://www.suzuki-music.co.jp/
00457-50043 130419
3104-MH-190-A
Printed in Philippines
OFF
Wind Shield
