Suzuki 2010 VZ800L0 Manual

VZ800L0 (’10-MODEL) 1
CONTENTS
VZ800L0 (’10-MODEL)
© COPYRIGHT SUZUKI MOTOR CORPORATION 2009
This manual describes service specifications, service data and servicing procedures which dif-
fer from those of the VZ800K9 (’09-model).
NOTE:
• Any differences between the VZ800K9 (’09-model) and VZ800L0 (’10-model) in specifi-
cations and service data are indicated with an asterisk mark (*).
• Please refer to the VZ800K9 (’09-model) service manual for details which are not given
in this manual.
INFORMATION LABELS ..................................................................................... 3
SPECIFICATIONS ................................................................................................ 4
SENSOR ............................................................................................................... 5
HO2 SENSOR INSPECTION ...................................................................... 5
HO2 SENSOR REMOVAL/INSTALLATION ............................................... 5
EXTERIOR PARTS............................................................................................... 6
REMOVAL ................................................................................................... 6
REMOUNTING ............................................................................................ 7
FRONT FORK....................................................................................................... 8
REMOVAL AND DISASSEMBLY ............................................................... 8
INSPECTION ............................................................................................. 11
REASSEMBLY AND REMOUNTING........................................................ 12
IGNITION SYSTEM ............................................................................................ 16
IGNITION COIL PRIMARY PEAK VOLTAGE INSPECTION ................... 16
SPEEDOMETER AND PILOT LAMP BOX ........................................................ 17
DESCRIPTION .......................................................................................... 17
SPEEDOMETER/HEADLIGHT COVER BRACE
REMOVAL AND DISASSEMBLY ............................................................. 18
LAMPS................................................................................................................ 21
HEADLIGHT, BRAKE/TAIL LIGHT,
LICENSE PLATE LIGHT AND TURN SIGNAL LIGHT............................. 21
WIRING HARNESS ROUTING........................................................................... 23
CABLE ROUTING .............................................................................................. 25
FRONT BRAKE ROUTING ................................................................................ 26
SPEED SENSOR HARNESS ROUTING............................................................ 27

2 VZ800L0 (’10-MODEL)
VZ800L0 (’10-MODEL)
CONTENTS
COUNTRY AND AREA CODES
The following codes stand for the applicable country(-ies) and area(-s).
MODEL CODE COUNTRY or AREA EFFECTIVE FRAME NO.
VZ800
E-02
E-03
E-19
E-24
E-28
E-33
U.K.
U.S.A. (Except for california)
E.U.
Australia
Canada
California (U.S.A.)
JS1B4111200100926
–
JS1VS56A A2100001 –
JS1B4111100109993 –
JS1B4111300101636
–
JS1VS56A A2100001 –
JS1VS56A A2100001 –
VZ800UE E-19 E.U. JS1B4211100100232 –
HEAD LIGHT INSTALLATION .......................................................................... 28
REAR COMBINATION LAMP INSTALLATION ................................................ 29
FRAME HEAD COVER CUSHION INSTALLATION......................................... 30
LEFT SIDE COVER CUSHION INSTALLATION .............................................. 30
TAIL LAMP INSTALLATION ............................................................................. 31
IGNITION COIL INSTALLATION....................................................................... 32
SEATLOCK CABLE ROUTING......................................................................... 33
REAR FENDER INSTALLATION ...................................................................... 34
REAR FRAME INSTALLATION ........................................................................ 35
TIGHTENING TORQUE ..................................................................................... 36
ENGINE..................................................................................................... 36
CHASSIS .................................................................................................. 36
SERVICE DATA................................................................................................. 37
WIRING DIAGRAM ............................................................................................ 39
For E-02, 19, 24........................................................................................ 39
For E-03, 28.............................................................................................. 40

VZ800L0 (’10-MODEL) 3
INFORMATION LABELS
A: Attached
VZ800L0
1Tire information label A
Except for E-03, 33
For E-03, 33

4 VZ800L0 (’10-MODEL)
SPECIFICATIONS
DIMENSIONS AND CURB MASS
Overall length ......................................................................................* 2 420 mm (95.3 in)...............E-02, 19, 24
* 2 395 mm (94.3 in)...............E-03, 28, 33
Overall width .......................................................................................* 890 mm (35.0 in)
Overall height ......................................................................................* 1 105 mm (43.5 in)
Wheelbase .......................................................................................... 1 655 mm (65.2 in)
Ground clearance................................................................................ 140 mm (5.5 in)
Seat height.......................................................................................... 700 mm (27.6 in)
Curb mass...........................................................................................* 269 kg (593 lbs)
ENGINE
Type..................................................................................................... Four-stroke, liquid-cooled, OHC, 45-degree, V-twin
Number of cylinders ............................................................................ 2
Bore .................................................................................................... 83.0 mm (3.268 in)
Stroke.................................................................................................. 74.4 mm (2.929 in)
Displacement ...................................................................................... 805 cm3(49.1 cu. in)
Compression ratio............................................................................... 9.4 : 1
Fuel system ........................................................................................ Fuel injection
Air cleaner........................................................................................... Non-woven fabric element
Starter system..................................................................................... Electric
Lubrication system .............................................................................. Wet sump
Idle speed ........................................................................................... 1 100 ± 100 r/min
DRIVE TRAIN
Clutch.................................................................................................. Wet multi-plate type
Transmission ....................................................................................... 5-speed constant mesh
Gearshift pattern ................................................................................. 1-down, 4-up
Primary reduction................................................................................ 1.690 (71/42)
Secondary reduction ratio ................................................................... 1.000 (30/30)
Gear ratios, Low ................................................................................ 2.461 (32/13)
2nd ................................................................................. 1.631 (31/19)
3rd.................................................................................. 1.227 (27/22)
4th .................................................................................. 1.000 (25/25)
Top ................................................................................. 0.814 (22/27)
Final reduction ratio............................................................................. 3.503 (17/15 × 34/11)
Drive system ....................................................................................... Shaft Drive
CHASSIS
Front suspension................................................................................. Inverted telescopic, coil spring, oil damped
Rear suspension ................................................................................. Link type, coil spring, oil damped
Front fork stroke .................................................................................. 140 mm (5.5 in)
Rear wheel travel ................................................................................ 105 mm (4.1 in)
Caster ................................................................................................. 33° 15’
Trail...................................................................................................... 141 mm (5.6 in)
Steering angle..................................................................................... 38° (right & left)
Turning radius ..................................................................................... 3.0 m (9.8 ft)
Front brake .......................................................................................... Disc brake
Rear brake .......................................................................................... Drum brake
Front tire size ...................................................................................... 130/90-16 M/C 67H, tubeless
Rear tire size....................................................................................... 170/80-15 M/C 77H, tubeless
ELECTRICAL
Ignition type......................................................................................... Electronic ignition (Transistorized)
Ignition timing...................................................................................... 7° B.T.D.C. at 1 100 r/min
Spark plug........................................................................................... NGK: DR7EA or DENSO: X22ESR-U
Battery................................................................................................. 12 V 36.0 kC (10 Ah)/10 HR
Generator............................................................................................ Three-phase A.C. generator
Main fuse ............................................................................................ 30 A
Fuse ....................................................................................................* 10/10/10/10/15/15 A
Headlight............................................................................................. 12 V 60/55 W (H4)
Brake/Tail light..................................................................................... LED
Front turn signal/Position light............................................................. 12 V 21/5 W .................E-03, 28, 33
Front turn signal light........................................................................... 12 V 21 W ....................E-02, 19, 24
Rear turn signal light ........................................................................... 12 V 21 W
Position/Parking light........................................................................... 12 V 5 W ......................E-02,19,24
License plate light ............................................................................... 12 V 5 W
Speedometer light............................................................................... LED
High beam indicator light .................................................................... LED
Turn signal indicator light .................................................................... LED
Neutral indicator light .......................................................................... LED
Coolant temperature indicator light ..................................................... LED
Oil pressure indicator light .................................................................. LED
FI indicator light................................................................................... LED
CAPACITIES
Fuel tank, including reserve .............................................................. 15.0 L (4.0/3.3 US/Imp gal).....................E-33
15.5 L (4.1/3.4 US/Imp gal).....................Others
Engine oil, oil change ........................................................................ 3 000 ml (3.2/2.6 US/Imp qt)
with filter change ............................................................. 3 400 ml (3.6/3.0 US/Imp qt)
Overhaul.......................................................................... 3 700 ml (3.9/3.3 US/Imp qt)
Final gear oil ....................................................................................... 200 – 220 ml (6.8/7.0 – 7.4/7.7 US/Imp oz)
Coolant................................................................................................ 1.75 L (1.8/1.5 US/Imp qt)
These specifications are subject to change without notice.

VZ800L0 (’10-MODEL) 5
SENSOR
HO2 SENSOR INSPECTION
The heated oxygen sensors are installed on the front exhaust pipe and rear muffler.
(VZ800K9 32 to 35)
NOTE:
Difference between L0-MODEL and K9-MODEL is addition of HO2 sensor to E-03, 28.
HO2 SENSOR REMOVAL/INSTALLATION
(VZ800K5 5-78 and VZ800K9 69)

6 VZ800L0 (’10-MODEL)
EXTERIOR PARTS
REMOVAL
SEAT
• Remove the left frame cover. (Below)
• Pull the seat lock cable 1and remove the front seat 2.
• Remove the rear seat 3by removing the bolts.
FRAME COVER
• Remove the left frame cover 1with the ignition key.
: Hooked part
• Remove the right frame covers 2by removing the bolts.

: Hooked part
* Wait until the engine and exhaust pipe are cool
enough to touch with bare hands before draining oil.
* Be careful not to scratch the frame covers.

VZ800L0 (’10-MODEL) 7

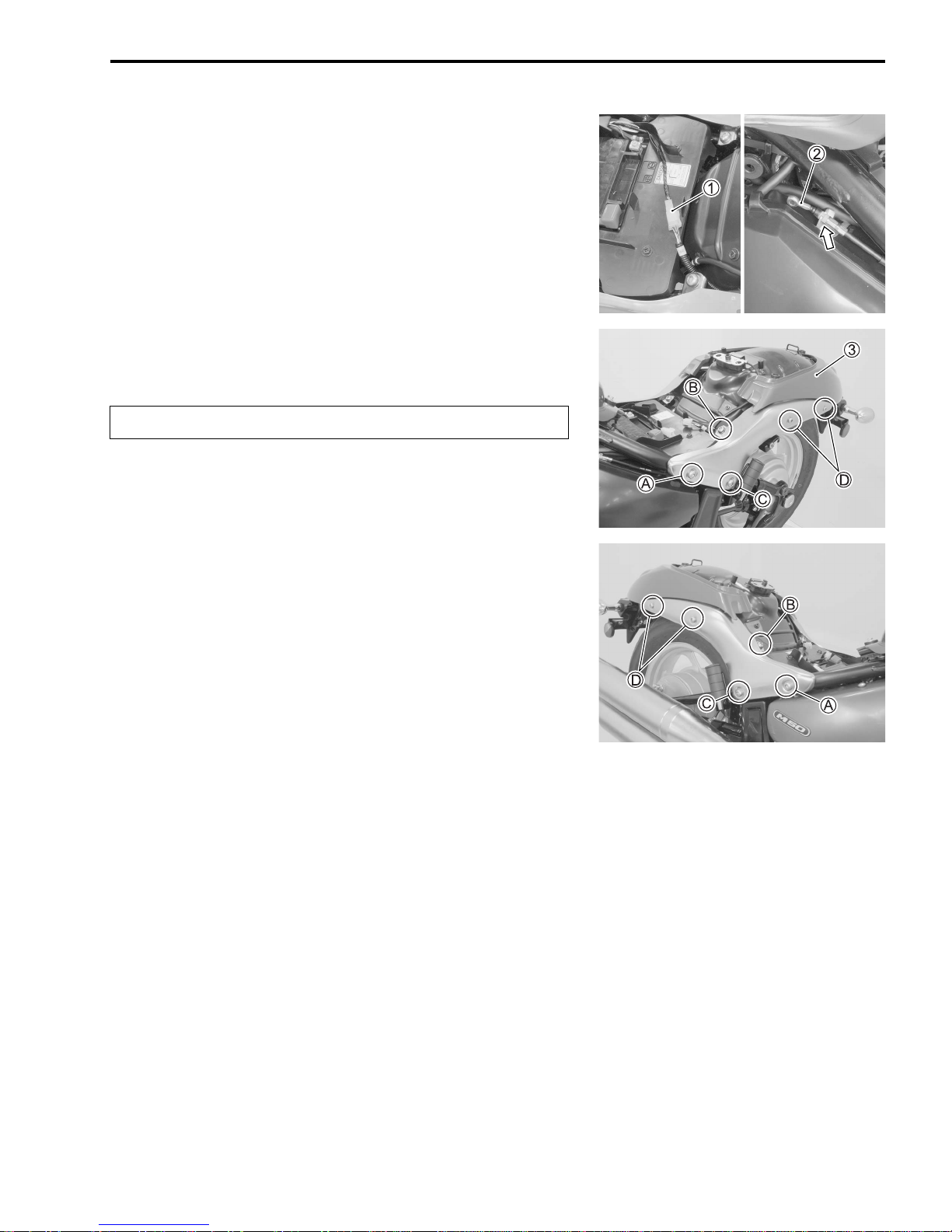

REAR FENDER
• Remove the front and rear seat. (Page 6)
• Disconnect the coupler 1.
• Remove the seat lock cable 2.
• Remove the left and right side rear frame.
• Remove the rear fender 3.

NOTE:
If necessary disassemble the rear fender 3. (Page 34)
NOTE:
* When installing the rear frame bolts, apply a small quantity of
THREAD LOCK to its mounting bolts and tighten them to the
specified torque.
* After temporary tightening, tighten the bolts to the specified
torque in order of A→B→C.(Page 35)
99000-32030: THREAD LOCK SUPER “1303”
Rear frame mounting bolt A,B,C (M10):
50 N·m (5.0 kgf-m, 36.0 lbf-ft)
Rear fender brace bolt D: 23 N·m (2.3 kgf-m, 16.5 lbf-ft)
REMOUNTING
Remount the seats, frame covers and rear fender in the reverse
order of removal.
Be careful not to scratch the rear fenders.

8 VZ800L0 (’10-MODEL)

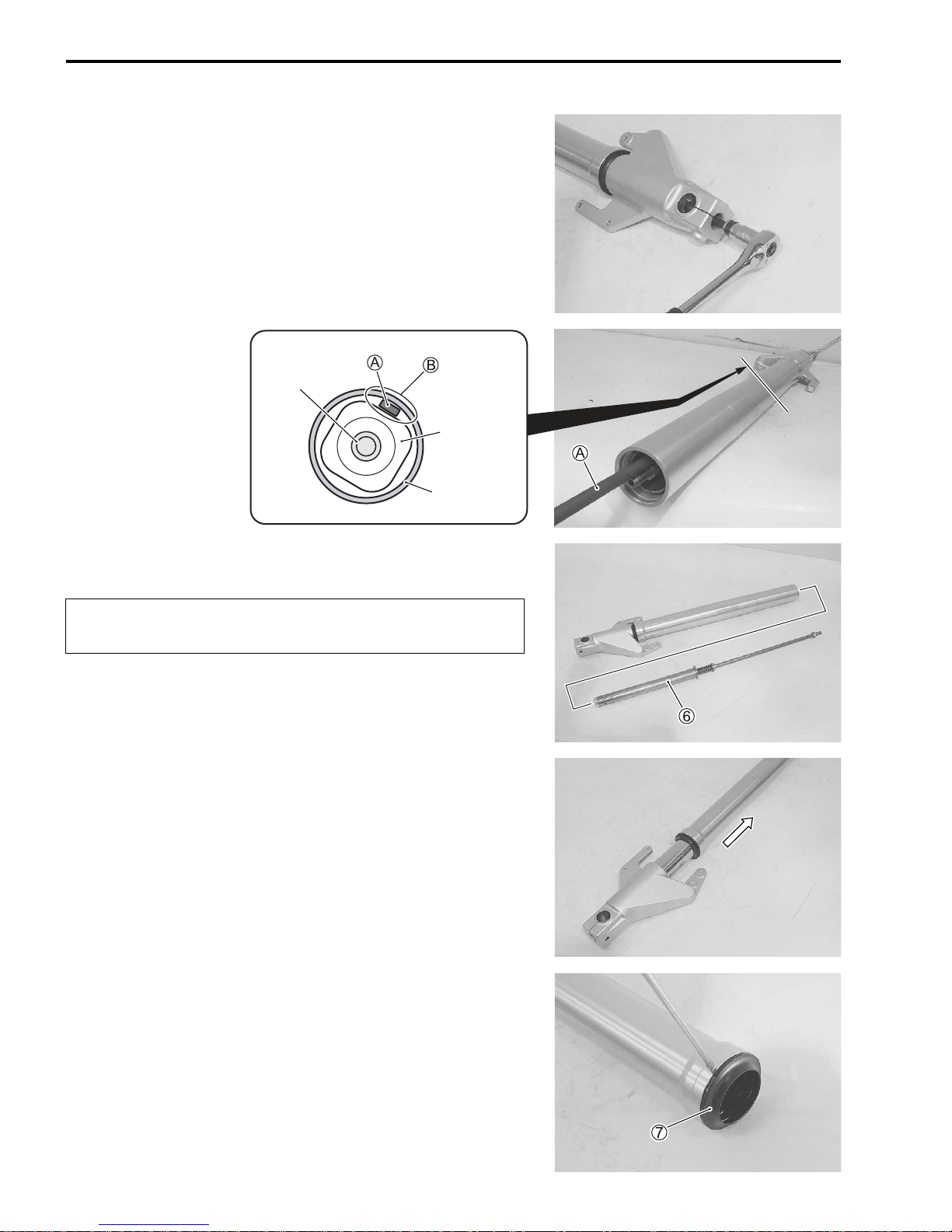

FRONT FORK
REMOVAL AND DISASSEMBLY
• Remove the front wheel. (VZ800K5 8-7)
• Remove the front brake caliper. (VZ800K5 8-52)
• Remove the front fender.
• Loosen the front fork upper clamp bolt 1.
NOTE:
Slightly loosen the front fork cap bolt 2before loosening the
lower clamp bolt to facilitate later disassembly.
• Loosen the front fork lower clamp bolt 3.
• Remove the front fork.
NOTE:
Hold the front fork by the hand to prevent sliding out of the steer-
ing stem.

VZ800L0 (’10-MODEL) 9

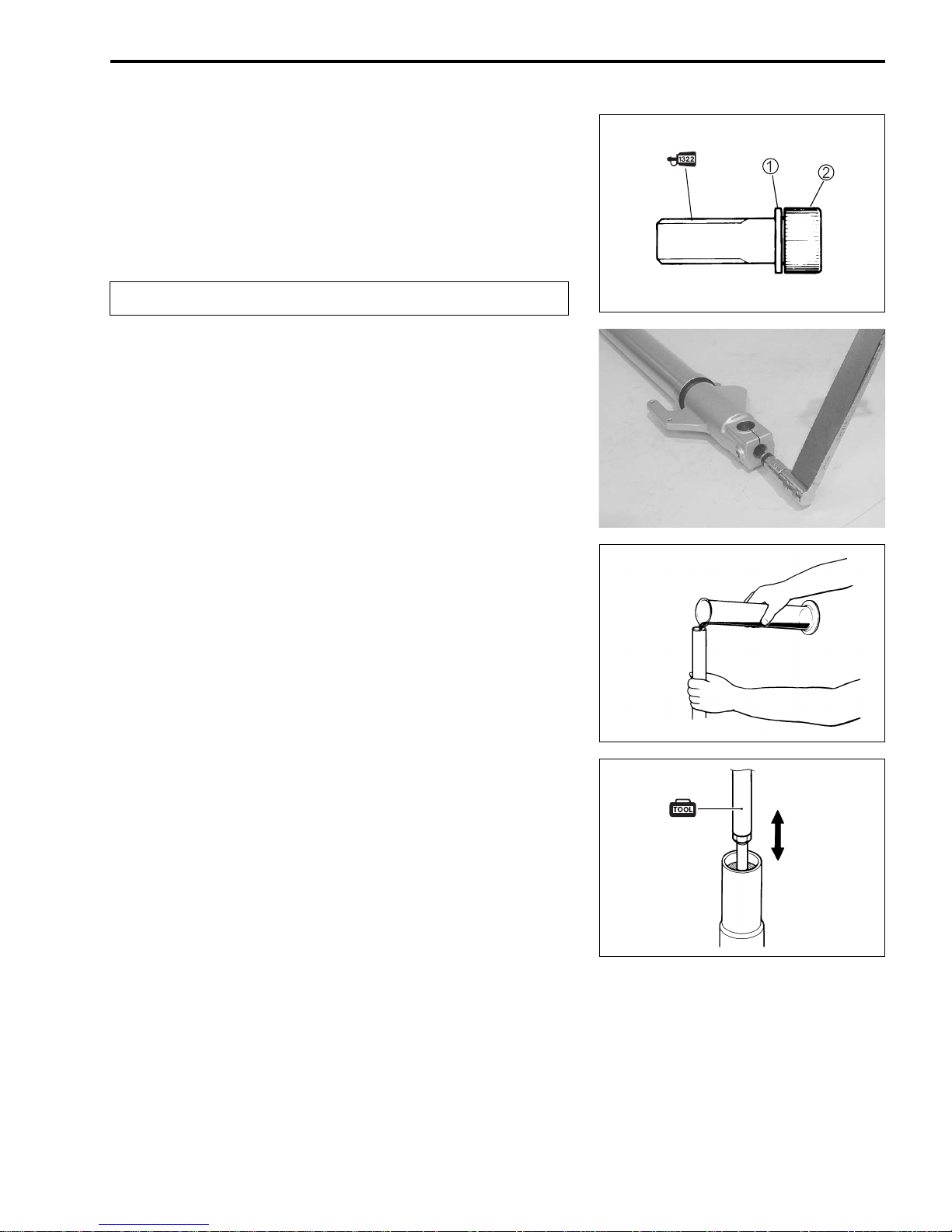

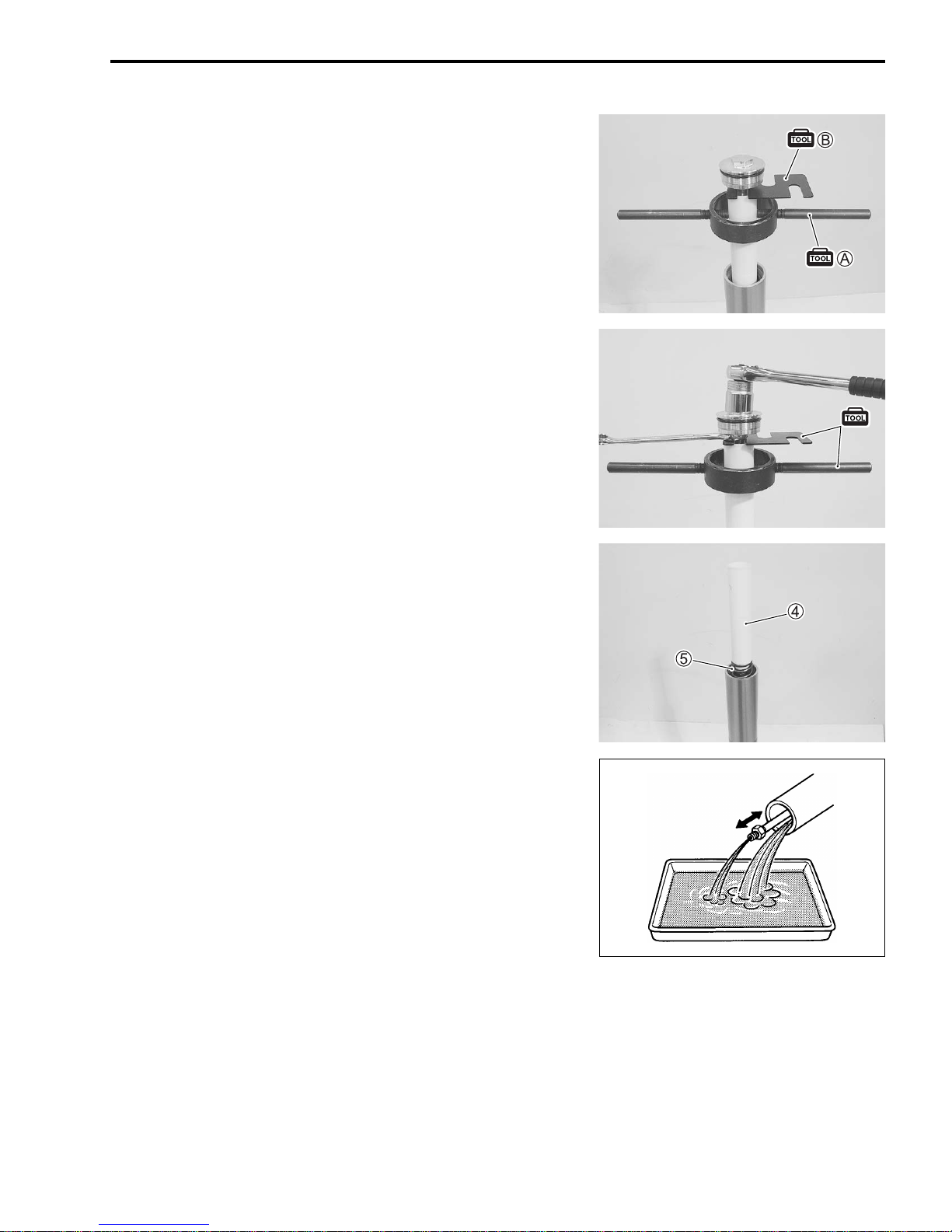

• Separate the front fork cap bolt from the front fork.
• Compress the front fork spring with the special tool Aand
insert the special tool Bbetween the lock-nut and the spacer.
09940-94930: Front fork spacer holder A
09940-94922: Front fork spring stopper plate B
• Remove the front fork cap bolt from the inner rod by loosening
the lock-nut.
• Compress the fork spring with the special tool and remove the
special tool.
• Remove the spacer 4and spring 5.
• Invert the front fork and stroke the inner rod several times to
let out fork oil.
• Under the inverted condition of front fork, drain oil completely
by holding the fork for a while.

10 VZ800L0 (’10-MODEL)
• Remove the damper rod bolt.
NOTE:
If the damper rod bolt cannot be removed, insert an appropriate
rod A, for example, long flat blade screwdriver, into the gap B
between inner tube and damper rod to prevent the damper rod
from rotating.
• Remove the inner rod/damper rod (cartridge) 6.

• Extract the outer tube from the inner tube.
NOTE:
Be careful not to damage the “ANTI-FRICTION” metals.
• Remove the dust seal 7.
Inner rod
Damper rod
Inner tube
Do not disassemble the inner rod/damper rod (car-
tridge).

VZ800L0 (’10-MODEL) 11
• Remove the oil seal stopper ring 8.
• Remove the oil seal 9with the special tool.
09913-50121: Oil seal remover

• Remove the oil seal retainer 0.
INSPECTION
INNER AND OUTER TUBES
• Inspect the inner tube outer surface and outer tube inner sur-
face for scratches.
• Inspect the “ANTI-FRICTION” metal surfaces for scratches.
• If any defects are found, replace them with a new one.

FORK SPRING
Measure the fork spring free length.
If it is shorter than the service limit, replace it with a new one.
Front fork spring free length:
Service Limit: 374 mm (14.7 in)
The removed oil seal must be replaced with a new one.
Do not remove the “ANTI-FRICTION” metal Aand B.
Upper side
Lower side

12 VZ800L0 (’10-MODEL)
DAMPER ROD
Move the inner rod by hand to examine it for smoothness.
If any defects are found, replace inner rod/damper rod (car-
tridge) with a new one.
REASSEMBLY AND REMOUNTING
Reassemble and remount the front fork in the reverse order of
removal and disassembly. Pay attention to the following points:
OIL SEAL AND DUST SEAL
• Install the dust seal, oil seal stopper ring, oil seal and oil seal
retainer onto the inner tube.
1Dust seal
2Oil seal stopper ring
3Oil seal
4Oil seal retainer

• Insert the inner tube into the outer tube and fit the oil seal and
dust seal with the special tool.
09940-52861: Front fork oil seal installer set
NOTE:
Stamped mark on the oil seal should face outside.
* When installing the oil seal to outer tube, be careful
not to damage the oil seal lip.
* Do not use solvents for washing to prevent oil seal
damage.
* Apply fork oil to the Anti-friction metals and lip of the
oil seal.
* Make sure that the oil seal stopper ring has been fit-
ted securely.

VZ800L0 (’10-MODEL) 13
DAMPER ROD BOLT
• Insert the inner rod/damper rod (cartridge) into the inner tube
with the gasket 1fitted, apply the damper rod bolt 2.
• Apply THREAD LOCK to the damper rod bolt.
99000-32110: THREAD LOCK SUPER “1322”
or equivalent

• Tighten the damper rod bolt to the specified torque.
NOTE:
If the damper rod rotates, an action should be taken to prevent it
from rotating. (Page 10)
Damper rod bolt: 23 N·m (2.3 kgf-m, 16.5 lbf-ft)
FORK OIL
• Place the front fork vertically without spring.
• Compress it fully.
• Pour specified front fork oil up to the top level of the outer
tube.
Capacity (each leg): 541 ml (18.3/19.0 US/lmp oz)
99000-99044-L01: SUZUKI FORK OIL L01
or an equivalent fork oil
• Move the inner rod slowly with the special tool ten times and
more until no more bubbles come out from the oil.
09940-52841: Front fork Inner rod holder
NOTE:
Refill front fork oil up to the top of the outer tube so that bubbles
are visible while bleeding air.
Replace the gasket with a new one.

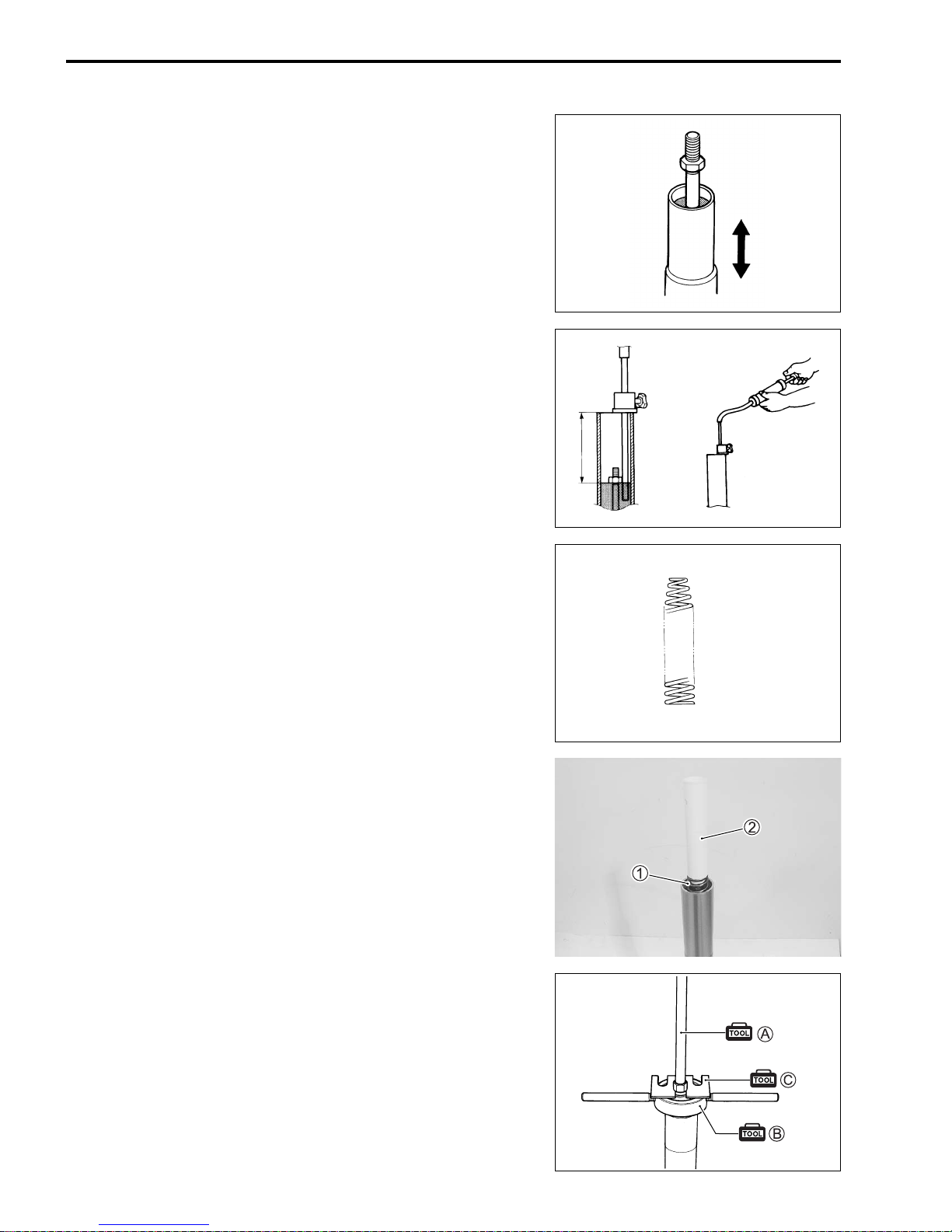

14 VZ800L0 (’10-MODEL)
• Refill specified front fork oil up to the top level of the outer
tube again. Move the outer tube up and down several strokes
until no more bubbles come out from the oil.
• Keep the front fork vertically and wait 5 – 6 minutes.
NOTE:
* Always keep oil level over the cartridge top end, or air may
enter the cartridge during this procedure.
* Take extreme care so as to pump out air completely.
• Hold the front fork vertically and adjust fork oil level with the
special tool.
NOTE:
When adjusting the fork oil level, compress the outer tube fully
without the fork spring.
Fork oil level: 153 mm (6.02 in)
09943-74111: Front fork oil level gauge
FORK SPRING
• Install the fork spring as shown in the illustration.
• Install the spring 1and spacer 2.
FRONT FORK CAP BOLT
• Pull up the inner rod with the special tool A.
• Compress the spring with the special tool Band then insert
the special tool Cbetween the lock-nut and the spacer.
09940-52841: Front fork inner rod holder A
09940-94930: Front fork spacer holder B
09940-94922: Front fork spring stopper plate C
Upper side
Lower side

VZ800L0 (’10-MODEL) 15
• Slowly turn the cap bolt 1until the inner rod is lightly seated.
• Hold the cap bolt 1and tighten the lock-nut 2to the speci-
fied torque.
Inner rod lock-nut: 15 N·m (1.5 kgf-m, 11.0 lbf-ft)
• Remove the special tools.
• Apply fork oil to the O-ring and temporarily tighten the fork cap
bolt 1to the outer tube.
99000-99044-L01: SUZUKI FORK OIL L01
or an equivalent fork oil

• Install the front fork to the steering stem and steering stem
upper bracket.
• Align the upper surface of the outer tube with the upper sur-
face of the steering stem upper bracket and tighten the front
fork lower clamp bolt 3to the specified torque.
Front fork lower clamp bolt 3: 33 N·m
(3.3 kgf-m, 24.0 lbf-ft)
• Tighten the front fork cap bolt 4to the specified torque and
recheck the front fork upper surface height.
Front fork cap bolt 4: 23 N·m (2.3 kgf-m, 16.5 lbf-ft)
• Tighten the front fork upper clamp bolt 5to the specified
torque.
Front fork upper clamp bolt 5: 23 N·m
(2.3 kgf-m, 16.5 lbf-ft)
• Remount the front fender.
• Remount the front brake caliper. (VZ800K5 8-52)
• Remount the front wheel. (VZ800K5 8-10 to -11)
Use a new O-ring to prevent oil leakage.

16 VZ800L0 (’10-MODEL)
IGNITION SYSTEM
IGNITION COIL PRIMARY PEAK VOLTAGE INSPECTION
(VZ800K9 Page 56)
NOTE:
Difference between L0-MODEL and K9-MODEL is addition of twin spark plug to E-03, 28.

VZ800L0 (’10-MODEL) 17
SPEEDOMETER AND PILOT LAMP BOX
DESCRIPTION
This speedometer mainly consists of the stepping motor, LCD (Liquid Crystal Display) and LED (Light Emit-
ting Diode). This speedometer is light, thin and of high response compared to those currently in use
because of this composition.
The speedometer pointer is driven by the stepping motor.
The LCD indicates Odo/Trip 1/Trip 2/Clock/Fuel level and FI (DTC) respectively.
NOTE:
* If the engine stop switch is turned OFF while the ignition switch is ON, the LCD displays “CHEC”. But it is
not a malfunction.
* This condition implies that speedometer receives no signal from the ECM.
* In that case, they are restored to normal indication by turning the engine stop switch to RUN position.
LED (Light Emitting Diode)
LED is used for the illumination light and each indicator light.
LED is maintenance free. LED is less electric-power consuming and stronger to vibration resistance com-
pared to the bulb.
1Adjuster switch (Odo/Trip/Clock) 6LED (Turn signal indicator light)
2LED (Engine coolant temperature indicator light) 7LED (High-beam indicator light)
3LED (Oil pressure indicator light) 8LED (Neutral indicator light)
4Speedometer 9LED (FI indicator light)
5LCD (Odo/Trip A/Trip B/Clock/Fuel level)

18 VZ800L0 (’10-MODEL)

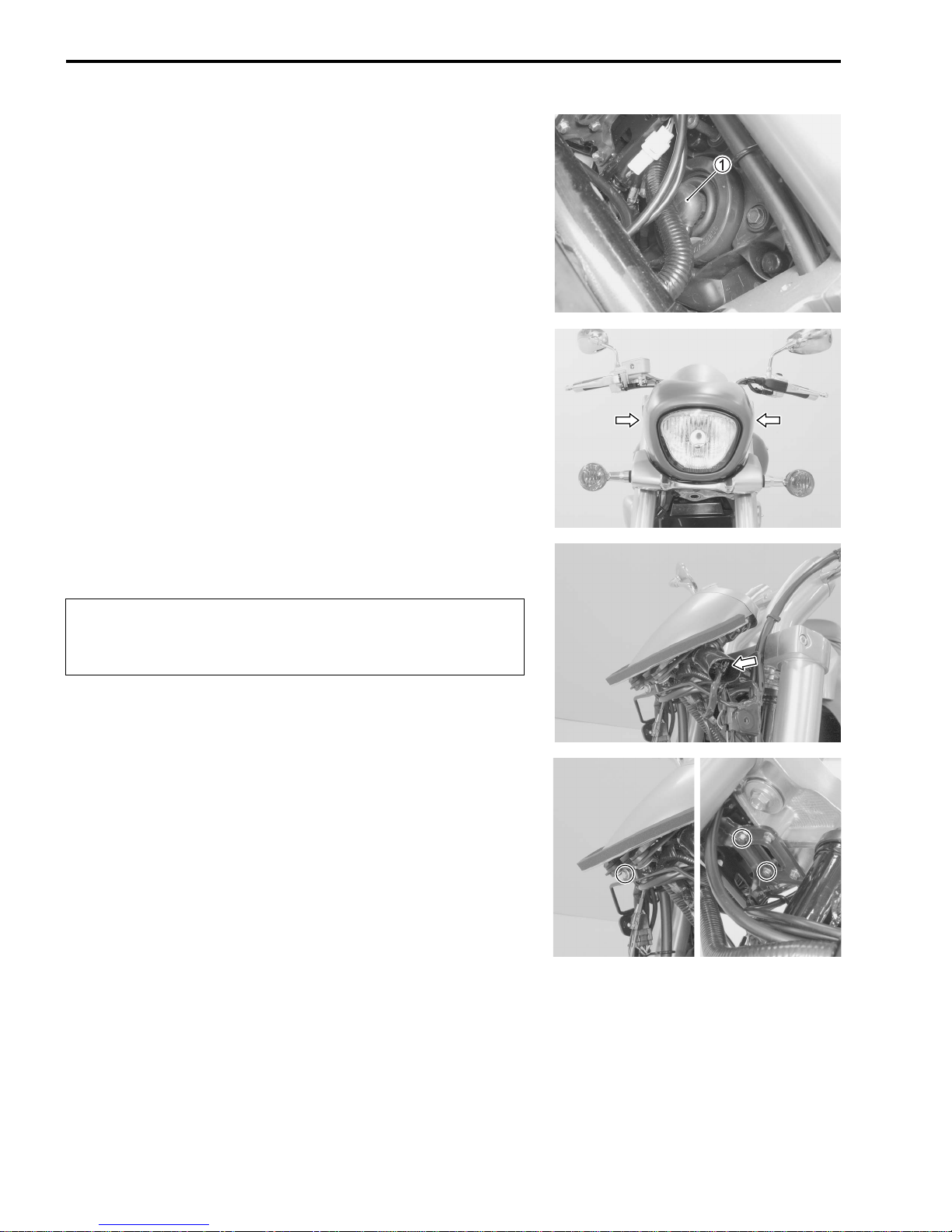

SPEEDOMETER/HEADLIGHT COVER
BRACE REMOVAL AND DISASSEMBLY
• Disconnect the headlight coupler 1.
• Remove the headlight. (Page 28)
• Disconnect the speedometer lead wire coupler.

• Remove the speedometer.
When disconnecting and reconnecting the speedome-
ter coupler, make sure to turn OFF the ignition switch,
or electronic parts may get damaged.

VZ800L0 (’10-MODEL) 19
• Disconnect the clamps 2.
• Disconnect the speed sensor coupler 3, handlebar switch
couplers 4and front turn signal light couplers 5.
• Remove the headlamp brace 6.
