Suzuki Gasket set sv650y User manual

Suzuki Worldwide Motorcycle-ATV Page: 1 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG1 GASKET SET

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

Part No

11401-20861

11141-20F00

11173-19F00

11241-19F00

11242-19F00

11482-19F00

11483-19F00

11484-19F01

12837-24A10

14181-22D01

09161-11008

09280-22008

09280-46006

Description

Gasket Set

• . Gasket, Cylinder Head

• . Gasket, Cylinder Head Cover

• . Gasket, Cylinder Front

• . Gasket, Cylinder Rear

• . Gasket, Clutch Cover Inner

• . Gasket, Magneto Cover

• . O Ring,clutch Cover Outer

• . Gasket, Tnsn Adjuster

• . Gasket, Exhaust Pipe

• . Washer

• . O Ring (d:3.1 Id:22.7)

• . O Ring

Suzuki Worldwide Motorcycle-ATV Page: 2 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG1A FRONT CYLINDER HEAD

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

Part No

11101-20F00

11101-20F10

11115-18D72

09206-08001

09103-06026

11141-20F00

04211-13189

11161-33E00

11191-13E00

09160-10082

09103-10272

07120-06403

09103-06103

07120-06123

09168-06023

09482-00456

09482-00457

09482-00458

09482-00459

09482-00460

09482-00461

13101-20F00

09280-46006

02122-06163

09402-56208

11171-19F00

11171-19F20

11173-19F00

09106-07009

09106-07010

09161-11008

11192-13E00

01550-10807

Description

Head Assy, Cylinder Front

• . Guide, Valve

• . Pin (6.2x8x11)

• . Bolt (6x39)

Gasket, Cylinder Head

Bolt, Cylinder Head Side Face

Washer, Head Cover

Washer (10.5x19x2.0)

Bolt (10x160)

Bolt

Bolt (6x70)

Bolt

Gasket (5.8x13x1.2)

Spark Plug (ngk,cr8e)

Spark Plug (denso,u24esr-n)

Spark Plug (ngk,cr9e)

Spark Plug (denso,u27esr-n)

Spark Plug (ngk,cr10e)

Spark Plug (denso,u31esr-n)

Pipe Assy, Intake Front

• . O Ring

Screw

Clamp

Cover, Cylinder Head Front

Gasket, Cylinder Head Cover

Bolt (7x17.5)

Bolt (7x31)

Washer

Cushion, Head Cover Bolt

Bolt

Suzuki Worldwide Motorcycle-ATV Page: 3 of 88

SV650Y (SV650Y E2)

Catalogue Title:

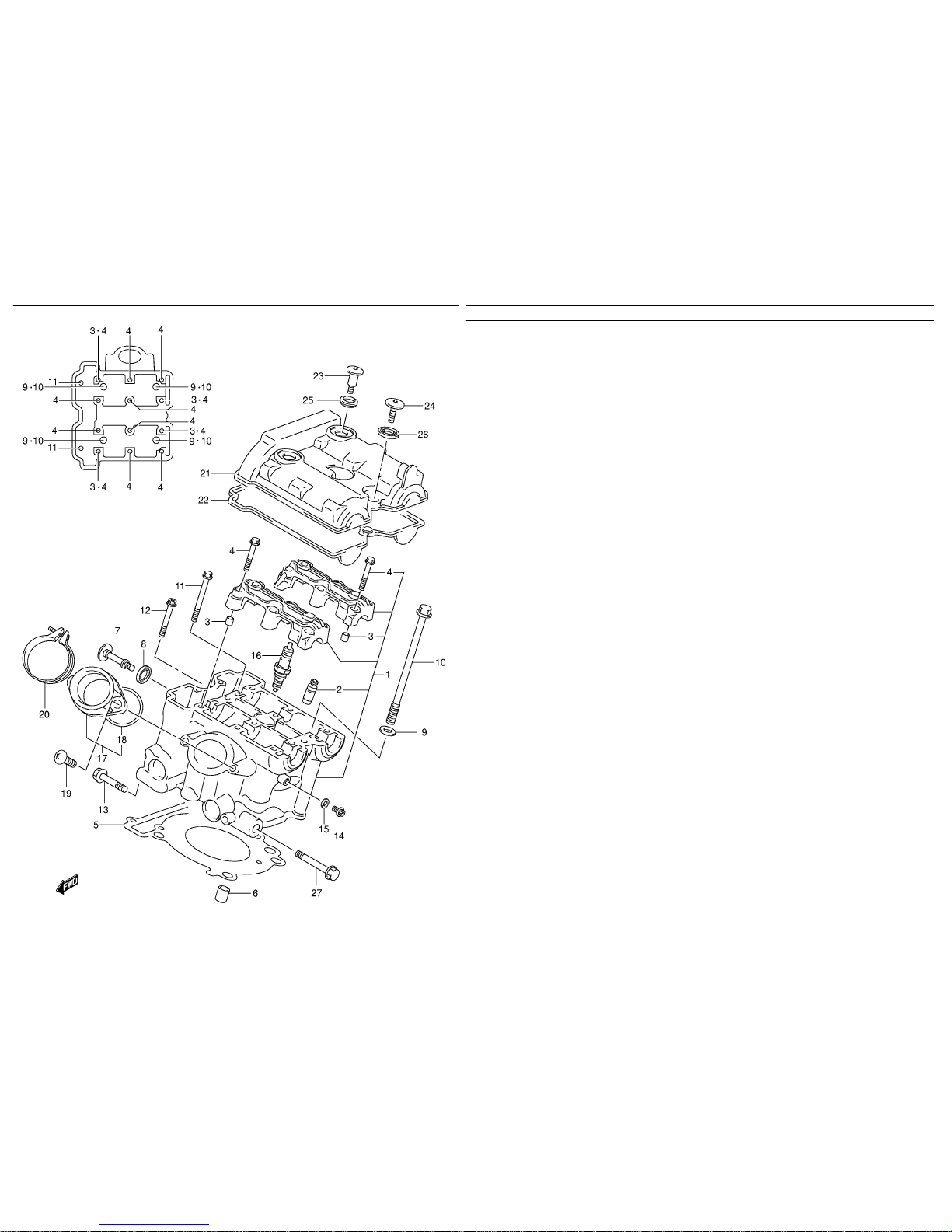

FIG2 REAR CYLINDER HEAD

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

Part No

11103-20F00

11103-20F10

11115-18D72

09206-08001

09103-06026

11141-20F00

04211-13189

11161-33E00

11191-13E00

09160-10082

09103-10272

09103-06103

07120-06403

01550-10557

07120-06123

09168-06023

09482-00456

09482-00457

09482-00458

09482-00459

09482-00460

09482-00461

13102-20F00

09280-46006

02122-06163

09402-56208

11172-19F00

11172-19F20

11173-19F00

09106-07009

09106-07010

09161-11008

11192-13E00

01550-10807

Description

Head Assy, Cylinder Rear

• . Guide, Valve

• . Pin (6.2x8x11)

• . Bolt (6x39)

Gasket, Cylinder Head

Bolt, Cylinder Head Side Face

Washer, Head Cover

Washer (10.5x19x2.0)

Bolt (10x160)

Bolt (6x70)

Bolt

Gasket (5.8x13x1.2)

Spark Plug (ngk,cr8e)

Spark Plug (denso,u24esr-n)

Spark Plug (ngk,cr9e)

Spark Plug (denso,u27esr-n)

Spark Plug (ngk,cr10e)

Spark Plug (denso,u31esr-n)

Pipe Assy, Intake Rear

• . O Ring

Screw

Clamp

Cover, Cylinder Head Rear

Gasket, Cylinder Head Cover

Bolt (7x17.5)

Bolt (7x31)

Washer

Cushion, Head Cover Bolt

Bolt

Suzuki Worldwide Motorcycle-ATV Page: 4 of 88

SV650Y (SV650Y E2)

Catalogue Title:

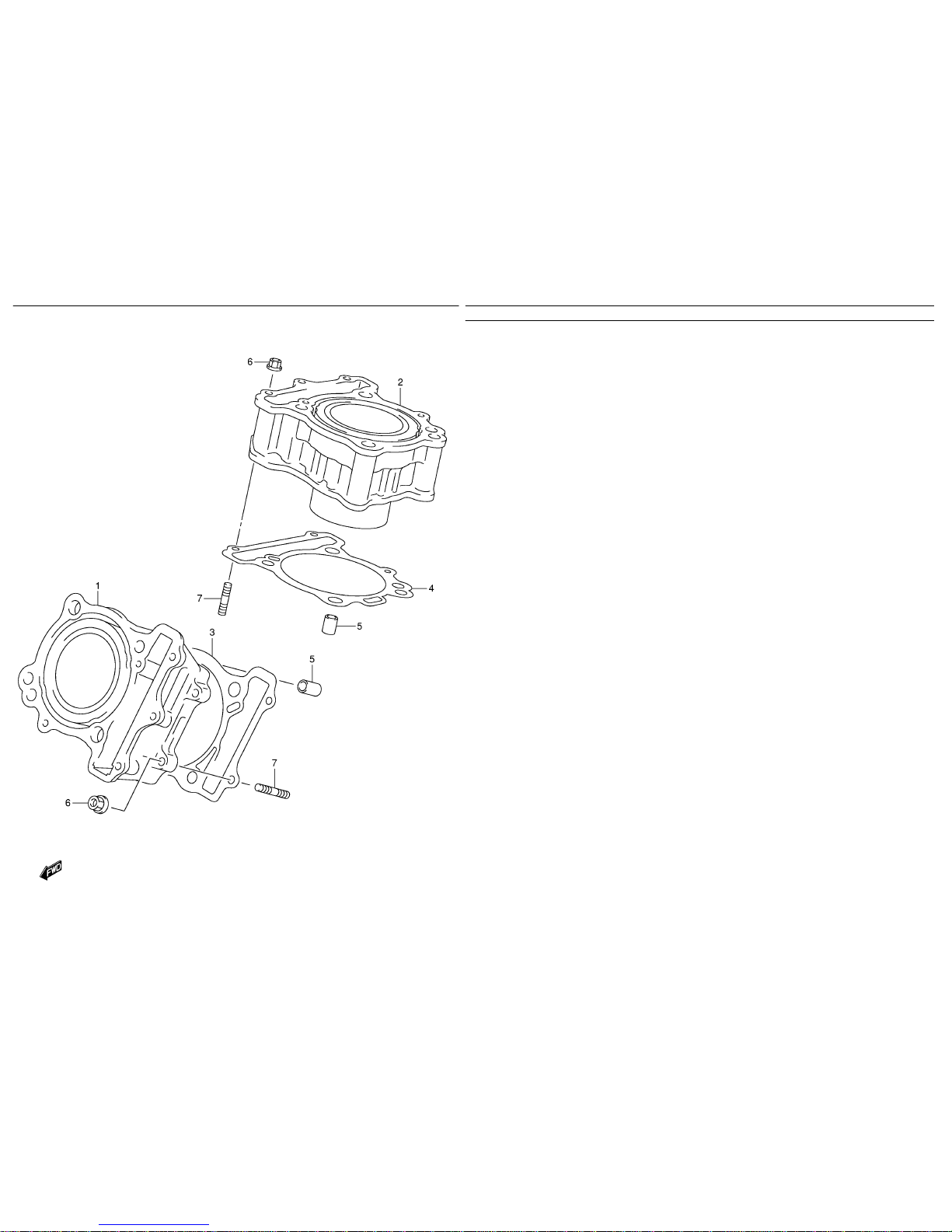

FIG3 CYLINDER

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

Part No

11210-20F00-0F0

11210-20F10-0F0

11220-20F00-0F0

11220-20F10-0F0

11241-19F00

11242-19F00

04211-13189

08316-10063

01421-06253

Description

Cylinder, Front

Cylinder, Rear

Gasket, Cylinder Front

Gasket, Cylinder Rear

Nut

Stud Bolt

Suzuki Worldwide Motorcycle-ATV Page: 5 of 88

SV650Y (SV650Y E2)

Catalogue Title:

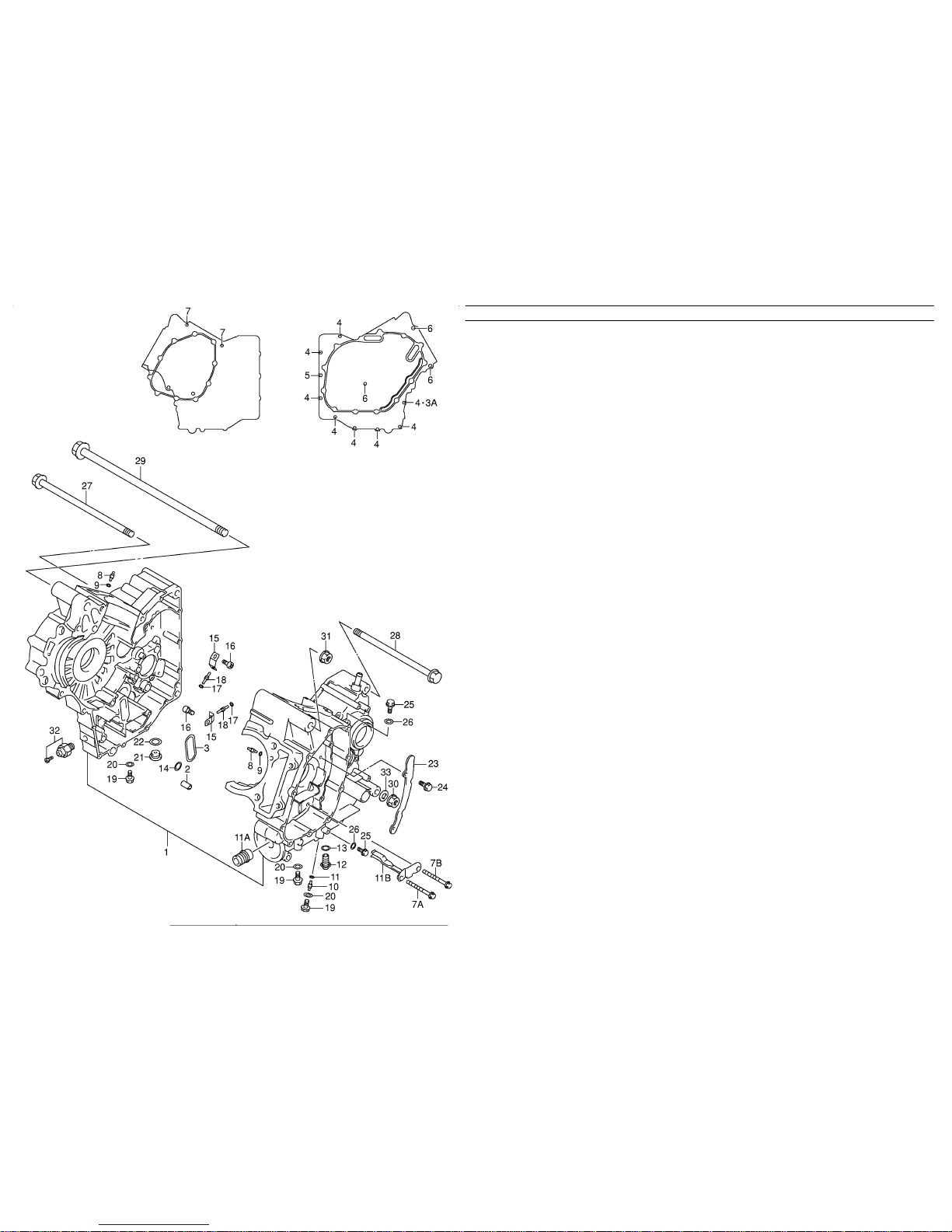

FIG4 CRANKCASE (MODEL X/Y)

Block No. Block Title.

Ref No

1

2

3

3a

4

5

6

7

7a

7b

7c

7d

8

9

10

11

11a

11b

11c

11d

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

Part No

11301-20830

11301-20831

11301-20835

11301-20840

09206-11017

11315-19F00

09168-06023

01547-06503

01547-06507

07120-08553

07120-08803

01500-08903

09103-08066

11322-20F00

09103-08066

09493-28010

09280-04004

09493-28010

09280-04004

16591-06B00

11391-20F00

11391-20F10

11391-20F20

09247-12106

09168-12002

09280-12009

16438-19F00

09106-06075

09280-04004

09493-26007

01550-08123

09168-08029

09248-16012

09168-16002

11323-19F00

01547-06123

01550-06123

09168-06023

09103-10226

09103-10041

09103-12054

08319-31107

09159-10058

08319-31128

37820-33D00

09160-10060

Description

Crankcase Set

• . Pin (11x20)

• . O Ring, Crankcase

• . Gasket (5.8x13x1.2)

• . Bolt

• . Bolt (8x95)

• . Bolt (8x90)

• . Bolt (8x95)

• . Jet, Oil Gallery Cylinder

• . O Ring (d:1.2,id:4.0)

• . Jet, Oil Gallery Mission

• . O Ring (d:1.2,id:4.0)

• . Union, Oil Filter Stand

• . Plate, Oil

Plug (12x20)

Gasket (12.1x16.2x3.7)

O Ring (d:1.9,id:12.6)

Plate, Piston Cooling Jet

Bolt (6x12)

O Ring (d:1.2,id:4.0)

Jet (130)

Bolt

Gasket

Plug

Gasket (16x22x2)

Plate, Oil Separator

Bolt

Gasket (5.8x13x1.2)

Bolt (10x260)

Bolt (10x215)

Bolt (12x310)

Nut

Switch Assy, Oil Pressure

Washer (10.5x22x2.3)

Suzuki Worldwide Motorcycle-ATV Page: 6 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG4A CRANKCASE (MODEL K1/K2)

Block No. Block Title.

Ref No

1

2

3

3a

4

5

6

7

7a

7b

8

9

10

11

11a

11b

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

Part No

11301-20850

09206-11017

11315-19F00

09168-06023

01547-06503

01547-06507

07120-08553

07120-08803

11322-20F00

09103-08066

09493-28010

09280-04004

09493-28010

09280-04004

16591-06B00

11391-20F20

09247-12106

09168-12002

09280-12009

16438-19F00

09106-06075

09280-04004

09493-26007

01550-08123

09168-08029

09248-16012

09168-16002

11323-19F00

01547-06123

01550-06123

09168-06023

09103-10226

09103-10041

09103-12054

09159-10058

08319-31128

37820-33D10

09160-10060

Description

Crankcase Set

• . Pin (11x20)

• . O Ring, Crankcase

• . Gasket (5.8x13x1.2)

• . Bolt

• . Bolt (8x90)

• . Bolt (8x95)

• . Jet, Oil Gallery Cylinder

• . O Ring (d:1.2,id:4.0)

• . Jet, Oil Gallery Mission

• . O Ring (d:1.2,id:4.0)

• . Union, Oil Filter Stand

• . Plate, Oil

Plug (12x20)

Gasket (12.1x16.2x3.7)

O Ring (d:1.9,id:12.6)

Plate, Piston Cooling Jet

Bolt (6x12)

O Ring (d:1.2,id:4.0)

Jet (130)

Bolt

Gasket

Plug

Gasket (16x22x2)

Plate, Oil Separator

Bolt

Gasket (5.8x13x1.2)

Bolt (10x260)

Bolt (10x215)

Bolt (12x310)

Nut

Switch Assy, Oil Pressure

Washer (10.5x22x2.3)

Suzuki Worldwide Motorcycle-ATV Page: 7 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG5 CRANKCASE COVER

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

13a

14

15

16

17

18

19

20

21

22

23

Part No

11340-19F00

11971-33210

11482-19F00

04211-09149

09103-06204

09103-06205

11370-19F00

11484-19F00

11484-19F01

09103-06180

09103-06207

09259-20008

09280-17003

11361-19F00

01547-06457

11351-19F00

11483-19F00

04211-09149

01547-06357

01547-06657

09168-06023

09259-26012

09280-22008

09248-16012

09168-16002

Description

Cover, Clutch Inner

• . Lens, Oil Level Check

Gasket, Clutch Cover Inner

Bolt

Cover, Clutch Outer

O Ring, Clutch Cover Outer

Bolt

Plug

O Ring (d:3.1,id:16.8)

Cover, Engine Sprocket

Bolt

Cover, Magneto

Gasket, Magneto Cover

Bolt

Gasket (5.8x13x1.2)

Plug

O Ring (d:3.1,id:22.7)

Plug

Gasket (13.8x18.8x0.4)

Suzuki Worldwide Motorcycle-ATV Page: 8 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG6 CRANKSHAFT

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

Part No

12000-20840

12228-19F00-0A0

12228-19F00-0B0

12228-19F00-0C0

12228-19F00-0D0

12228-19F00-0E0

12228-19F00-0F0

12228-19F00-0G0

12228-19F00-0H0

12228-19F00-0I0

12228-19F00-0J0

12229-19F10-0A0

12229-19F10-0B0

12229-19F10-0C0

12160-20F00

12163-17C50

12165-27A50

12164-46E01-0A0

12164-46E01-0B0

12164-46E01-0C0

12164-46E01-0D0

21111-20F00

21112-19F00

12731-19F00

17451-19F00

12541-20F00

09126-06011

12111-20F00-0F0

12140-20F00

12151-05A00

09381-20004

12100-20F00-050

12100-20F00-100

Description

Crankshaft Set

• . Washer, Thrust (t:1.925)

• . Washer, Thrust (t:1.95)

• . Washer, Thrust (t:1.975)

• . Washer, Thrust (t:2.0)

• . Washer, Thrust (t:2.025)

• . Washer, Thrust (t:2.05)

• . Washer, Thrust (t:2.075)

• . Washer, Thrust (t:2.1)

• . Washer, Thrust (t:2.125)

• . Washer, Thrust (t:2.15)

Bearing, Crankshaft (green)

Bearing, Crankshaft (black)

Bearing, Crankshaft (brown)

Connecting Rod Assy

• . Bolt, Connecting Rod

• . Pin, Connecting Rod

Bearing, Crank Pin (green)

Bearing, Crank Pin (black)

Bearing, Crank Pin (brown)

Bearing, Crank Pin (yellow)

Gear, Primary Drive

Bolt, Primary Drive Gear

Sprocket, Cam Chain Drive

Gear, Water Pump Drive

Retainer, Crankshaft Brg Lh

Screw

Piston

Ring Set, Piston

Pin, Piston

Circlip

Piston Set (os:0.5)

Piston Set (os:1.0)

Suzuki Worldwide Motorcycle-ATV Page: 9 of 88

SV650Y (SV650Y E2)

Catalogue Title:

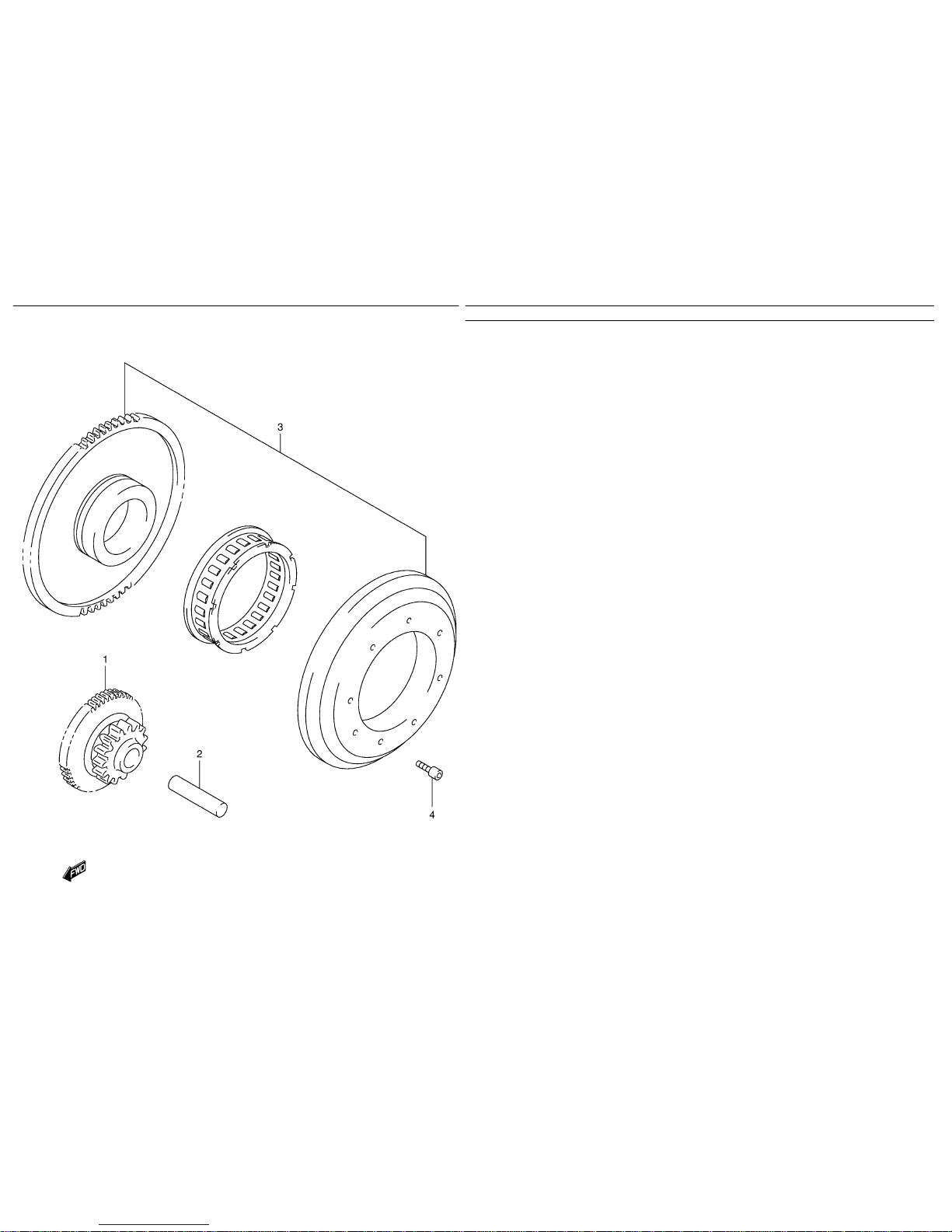

FIG7 STARTER CLUTCH

Block No. Block Title.

Ref No

1

2

3

4

Part No

12611-20F01

09206-12001

12600-20840

07130-08163

Description

Gear, Starter Idle

Clutch Set, Starter

Bolt

Suzuki Worldwide Motorcycle-ATV Page: 10 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG8 CAM SHAFT / VALVE

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Part No

12710-20F00

12720-20F00

12730-20F00

12740-20F00

12800-05820

99000-69491

12911-46E00

12912-20F00

12920-33E10

12931-33E10

12933-39E00

09289-04002

12932-17E50

12891-17E00

12892-05C00-120

12892-05C00-125

12892-05C00-130

12892-05C00-135

12892-05C00-140

12892-05C00-145

12892-05C00-150

12892-05C00-155

12892-05C00-160

12892-05C00-165

12892-05C00-170

12892-05C00-175

12892-05C00-180

12892-05C00-185

12892-05C00-190

12892-05C00-195

12892-05C00-200

12892-05C00-205

12892-05C00-210

12892-05C00-215

12892-05C00-220

Description

Cam Shaft, Intake Front

Cam Shaft, Exhaust Front

Cam Shaft, Intake Rear

Cam Shaft, Exhaust Rear

Shim Set, Tappet

• . Case, Tappet Shim

Valve, Intake

Valve, Exhaust

Spring Set, Valve

Retainer, Valve Spring

Seat, Valve Spring

Oil Seal (4.5x10x8)

Cotter, Valve

Tappet

Shim, Tappet (t:1.20)

Shim, Tappet (t:1.25)

Shim, Tappet (t:1.30)

Shim, Tappet (t:1.35)

Shim, Tappet (t:1.40)

Shim, Tappet (t:1.45)

Shim, Tappet (t:1.50)

Shim, Tappet (t:1.55)

Shim, Tappet (t:1.60)

Shim, Tappet (t:1.65)

Shim, Tappet (t:1.70)

Shim, Tappet (t:1.75)

Shim, Tappet (t:1.80)

Shim, Tappet (t:1.85)

Shim, Tappet (t:1.90)

Shim, Tappet (t:1.95)

Shim, Tappet (t:2.00)

Shim, Tappet (t:2.05)

Shim, Tappet (t:2.10)

Shim, Tappet (t:2.15)

Shim, Tappet (t:2.20)

Suzuki Worldwide Motorcycle-ATV Page: 11 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG9 CAM CHAIN

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

Part No

12760-19F00

12771-19F00

12782-19F00

07130-06123

12811-19F00

12812-35C00

08211-06181

12830-19F11

12837-33E00

12834-33E00

12837-24A10

07130-06253

Description

Chain, Cam Shaft Drive

Guide, Cam Chain No.1

Guide, Cam Chain No.2

Bolt

Tensioner, Cam Chain

Bolt, Cam Chain Tensioner

Washer

Adjuster Assy, Tensioner

• . Gasket, Tensioner Adjuster

• . Plug, Tensioner Adjuster

Gasket, Tensioner Adjuster

Bolt

Suzuki Worldwide Motorcycle-ATV Page: 12 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG10 CARBURETOR

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

21a

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

Part No

13201-20F00

13201-20F30

13202-20F00

13202-20F30

13502-07F00

13481-19F00

13507-33E00

13501-33E00

13418-33E00

09280-05004

13481-33E00

13382-44030

13394-17E60

13387-44030

13383-33E00

13258-33E00

13667-20F00

02112-04123

09493-34003

09493-32007

09492-30013

13291-29900

13268-48700

13279-19F10

13279-33E00

13295-29900

13281-05A00

13508-17C00

09492-17016

09492-15017

13385-33E00

09491-27014

13376-19F00

13254-92910

13370-20F00

13250-33E00

13602-05A10

02112-05127

13247-02340

13247-33E00

13502-10F00

13417-19F00

13480-10F00

13601-04148

13411-01400

13417-07F00

13278-18E20

13418-19F00

13681-04010

13421-19F00

13601-05148

13267-44B00

Description

Carburetor Assy, Front

Carburetor Assy, Rear

• . Cover Assy, Diaphragm

• . Spring

• . Diaphragm

• . Valve, Piston

• . Holder

• . O Ring (d:1.9,id:4.8)

• . Spring

• . Washer

• . E Ring, Multiple Jet Knzzel

• . Ring

• . Needle, Jet (6e38-54-2)

• . O Ring

• . Funnel

• . Screw

• . Jet, Pilot Air (170)

• . Jet, Pilot Air (160)

• . Jet, Pilot Air (150)

• . Washer

• . Spring

• . Adjuster (2,1/2)

• . Adjuster (2,3/4)

• . Adjuster (3,1/2)

• . O Ring

• . Plug

• . Cap

• . Jet, Pilot (17.5)

• . Jet, Pilot (15)

• . Holder, Jet

• . Jet, Main (137.5)

• . Filter

• . Float Pin

• . Valve Assy, Needle

• . Float Assy

• . Screw

• . Screw, Drain

• . Screw

• . Cover Assy

• . Spring

• . Diaphragm Assy

• . Screw

• . Plunger, Starter

• . Spring

• . O Ring

• . Holder, Guide

• . Cap, Carburetor

• . Plate

• . Screw

Suzuki Worldwide Motorcycle-ATV Page: 13 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG10 CARBURETOR

Block No. Block Title.

Ref No

46 Part No

13271-44B00 Description

• . Spring

Suzuki Worldwide Motorcycle-ATV Page: 14 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG11 CARBURETOR FITTINGS

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

Part No

13684-48B10

13684-19F00

13684-19F10

13684-19F20

13685-48B00

13671-19F00

13686-19F00

13671-19F10

09352-50903-600

13482-20F00

13447-20F00

13602-05109

13612-19F00

13324-19F00

13267-19F00

13271-33C00

13580-19F00

13602-19B50

13553-19F00

13563-19F00

13615-45010

13279-19F00

13650-25E01

13655-25E00

09407-18402

13683-10D20

13684-20F30

09352-50901-600

13685-48B00

Description

Hose

Hose (5.3x10.5x125)

Hose (11x15x90)

Hose (5.3x10.5)

Nipple

Clip

Hose (7x11x250)

Clip

Hose (5x9x600)

Plate

Screw

Bolt

Nut

Adjust Screw Assy

Spring

Sensor Assy

Screw

Lever Assy

Washer

Plate, Idle Adjust

Heater Assy, Carburetor

Thermo Switch, Heater

Clamp, Thermo Switch

Hose (5x9x60)

Hose (5x9x40)

Hose (5x9x600)

Nipple

Suzuki Worldwide Motorcycle-ATV Page: 15 of 88

SV650Y (SV650Y E2)

Catalogue Title:

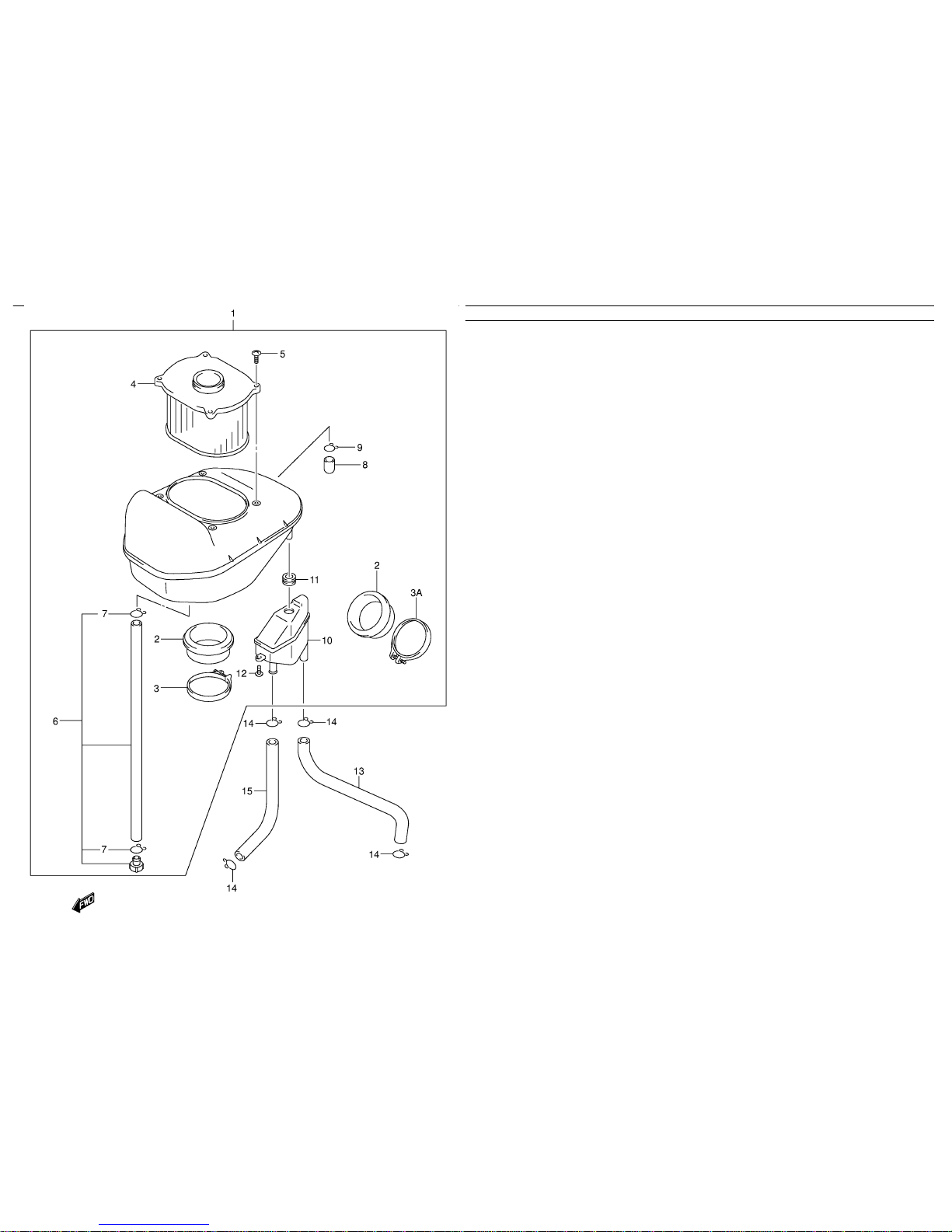

FIG12 AIR CLEANER

Block No. Block Title.

Ref No

1

2

3

3a

4

5

6

7

8

9

10

11

12

13

14

15

Part No

13700-20F00

13700-20F10

13700-20F01

13700-20F11

13881-20F00

13170-20F10

13170-20F00

09402-72203

13780-20F00

02142-05203

13870-19F00

13870-20F10

13870-20F11

09401-14301

13859-41B10

09401-14301

13840-20F00

13840-20F01

09308-13001

03142-05163

13851-20F00

13851-20F10

09401-15101

09355-11165-600

Description

Cleaner Assy, Air

• . Tube, Outlet

• . Clamp, Outlet Tube Front

• . Clamp, Outlet Tube Rear

• . Filter, Air Cleaner

• . Screw

• . Tube, Drain

•• .. Clip

• . Plug

• . Clip

• . Tank, Oil Return

•• .. Grommet

• . Screw

Tube, Breather Crankcase

Clip

Tube, Breather Cylinder (11x16x600)

Suzuki Worldwide Motorcycle-ATV Page: 16 of 88

SV650Y (SV650Y E2)

Catalogue Title:

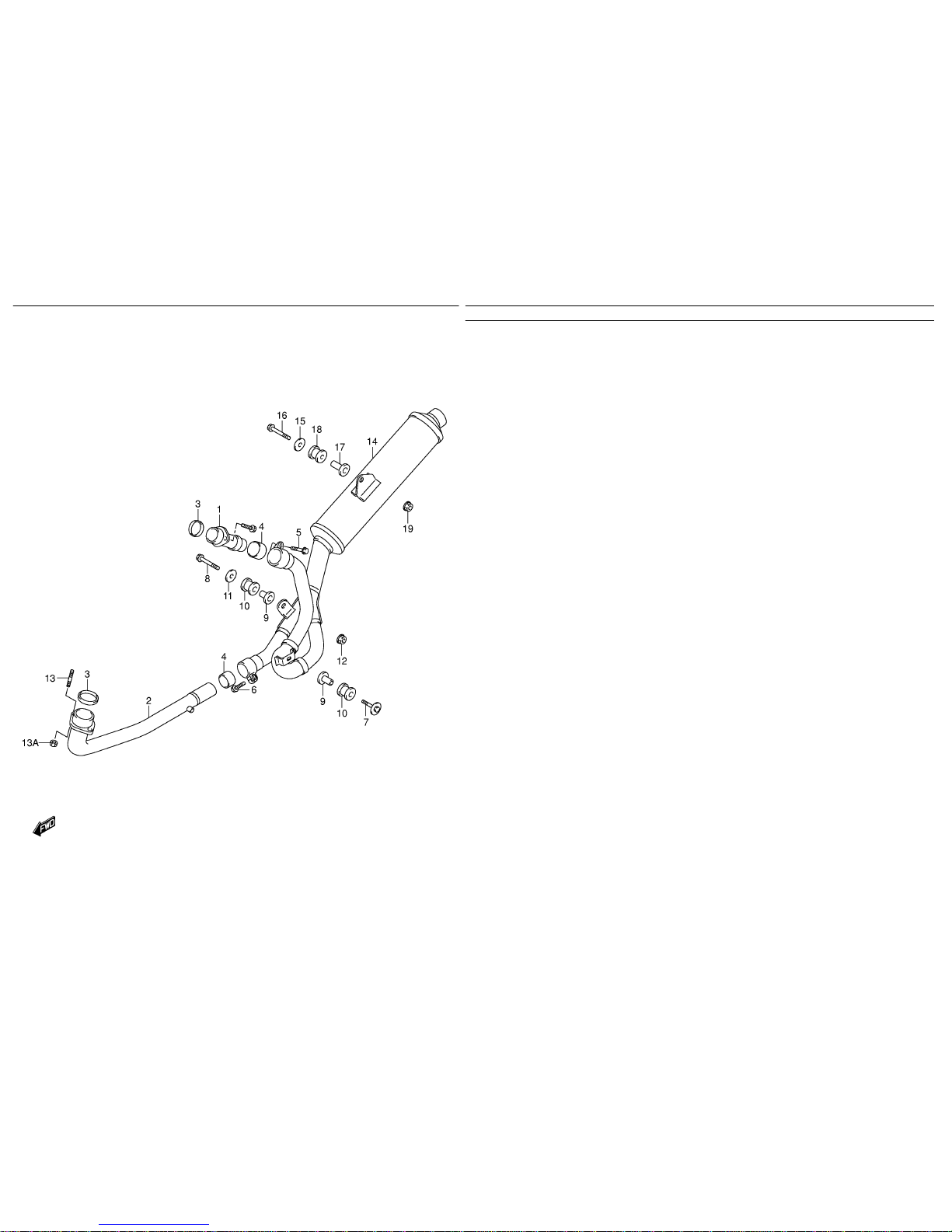

FIG13 MUFFLER

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

13a

14

15

16

17

18

19

Part No

14150-19F00

14160-19F10

14181-22D01

14771-32E00

07120-08403

09118-08068

01550-08457

09180-08152

09320-12048

09160-08138

08361-25088

01421-08253

08319-31087

14305-19F11-H01

09160-08140

01550-08457

09180-08156

09320-12049

08361-25088

Description

Pipe, Exhaust Rear

Pipe, Exhaust Front

Gasket, Exhaust Pipe

Connector, Muffler

Bolt

Bolt (8x40)

Bolt

Spacer (8.6x12x24.2)

Cushion

Washer (8.5x30x2.3)

Nut

Bolt, Stud (8x25)

Nut

Muffler

Washer (8.5x33x2.6)

Bolt

Spacer (8.6x12x25.5)

Cushion

Nut

Suzuki Worldwide Motorcycle-ATV Page: 17 of 88

SV650Y (SV650Y E2)

Catalogue Title:

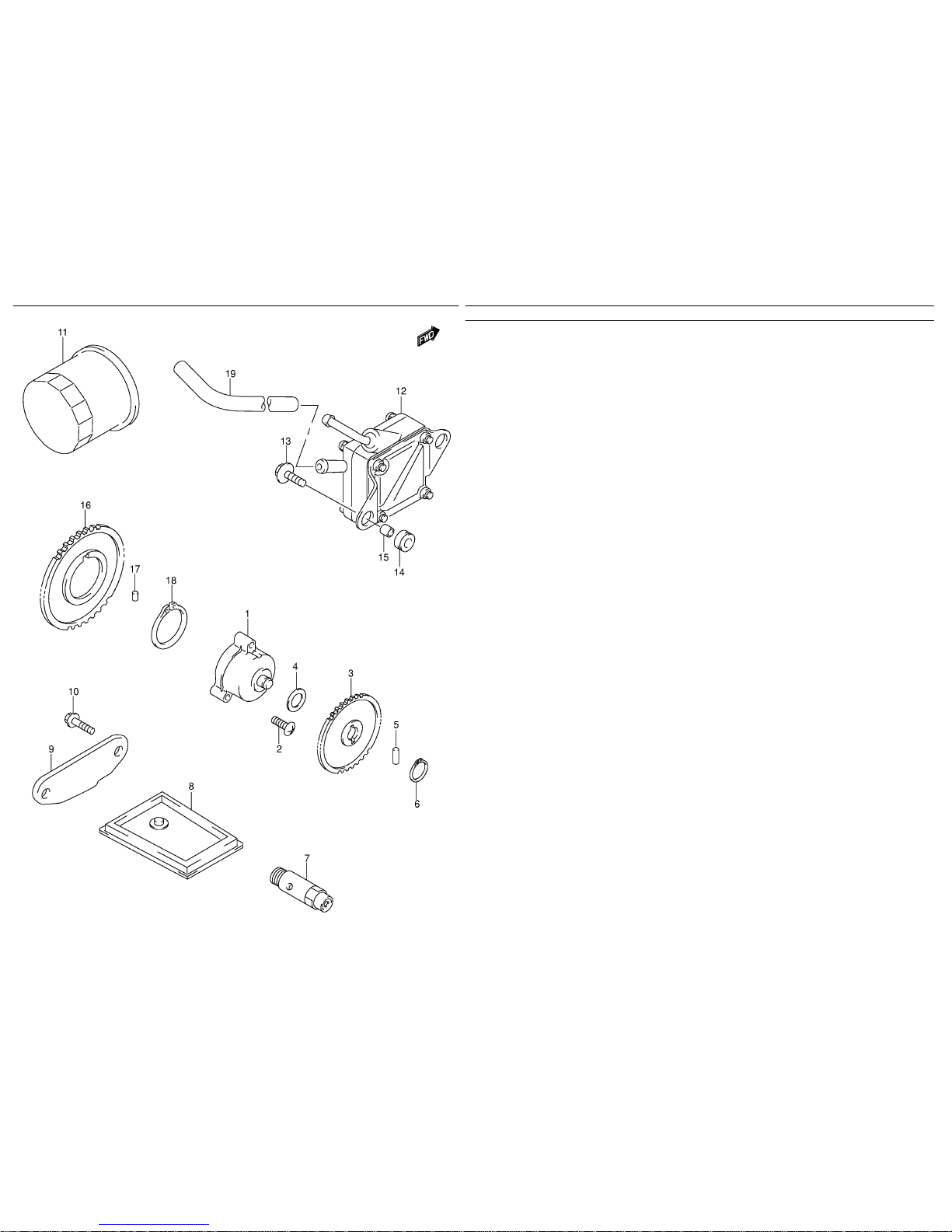

FIG14 OIL PUMP / FUEL PUMP

Block No. Block Title.

Ref No

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

Part No

16400-20F00

02112-06253

16331-48E00

09181-10158

09261-04009

08331-31106

16440-17C20

16520-32E00

16523-48E00

01547-06123

16510-34E00

15100-19F00

09116-06115

09320-09036

09180-06257

16321-19F00

09261-06002

08331-31383

09355-50105-600

Description

Pump Assy, Engine Oil

Screw

Gear, Oil Pump Driven (nt:34)

Shim

Pin (4x15.8)

Circlip

Valve Assy, Oil Relief

Strainer, Engine Oil

Cap, Oil Strainer

Bolt

Filter Assy, Engine Oil

Pump Assy, Fuel

Bolt, Fuel Pump

Cushion, Fuel Pump

Spacer, Fuel Pump

Gear, Engine Oil Pump Drive

Roller (od:6,l:6)

Circlip

Hose, Vacuum

Suzuki Worldwide Motorcycle-ATV Page: 18 of 88

SV650Y (SV650Y E2)

Catalogue Title:

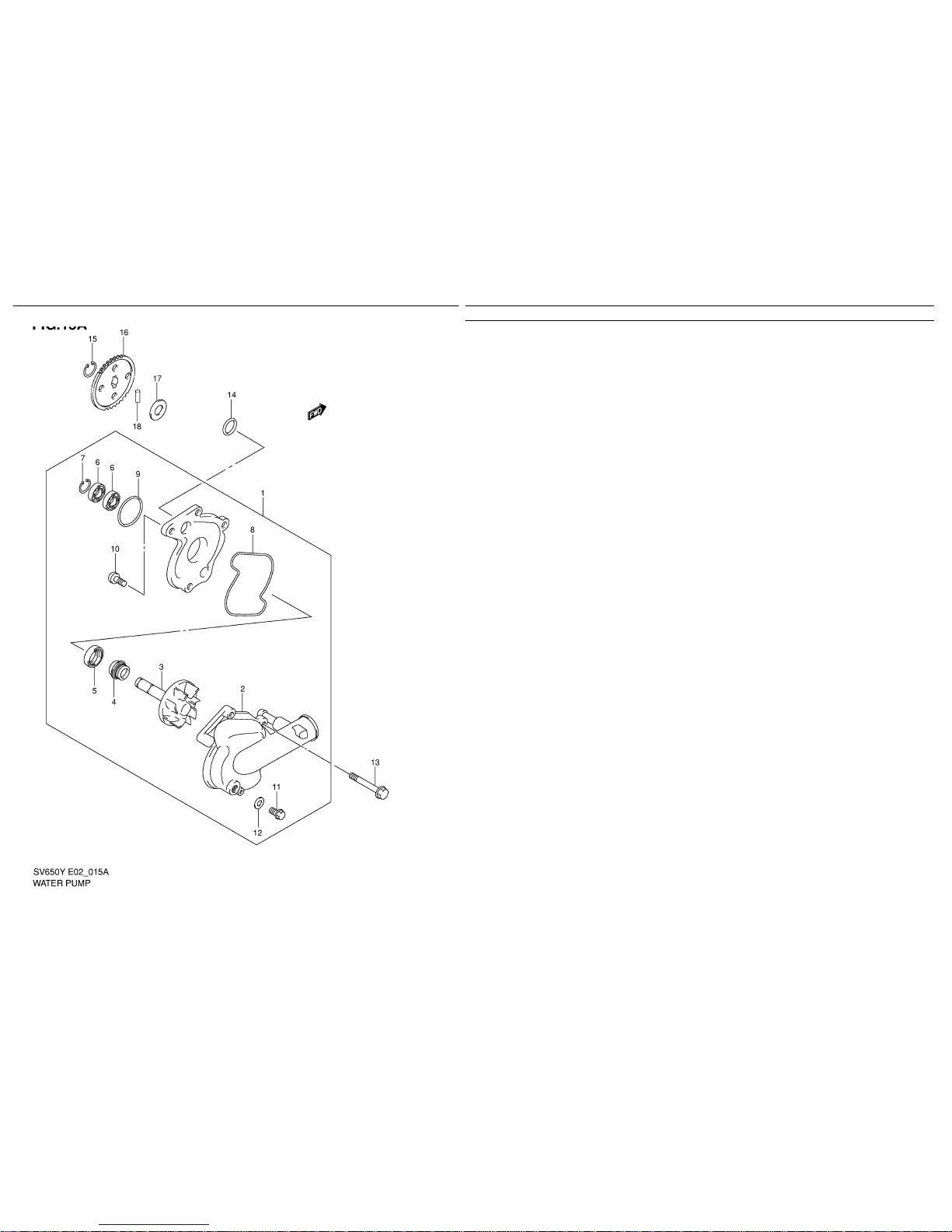

FIG15 WATER PUMP (MODEL X/Y)

Block No. Block Title.

Ref No

1

2

3

3a

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

Part No

17400-19F02

17411-19F00

17491-19F01

17533-02F00

17511-19F00

09100-06162

09164-06006

09168-06025

17470-02F10

09283-10004

09262-10014

08332-11086

17418-19F00

17435-33400

02112-06163

17415-14300

09168-08008

09103-06206

09280-22001

08331-31106

17461-19F00

09181-10158

09261-04002

Description

Pump Assy, Water

• . Case, Water Pump

• . Impeller, Water Pump

• . Washer, Impeller

• . Shaft, Water Pump

• . Bolt (6x13)

• . Lock Washer

• . Gasket (6x15x2.2)

• . Seal, Mechanical

• . Oil Seal (10x21x5)

• . Bearing (10x26x8)

• . E Ring

• . O Ring

• . Screw

• . Bolt, Drain

• . Gasket (8.2x14x1)

Bolt

O Ring (d:2.4,id:21.8)

Circlip

Gear, Water Pump Driven

Shim

Roller

Suzuki Worldwide Motorcycle-ATV Page: 19 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG15A WATER PUMP (MODEL K1/K2)

Block No. Block Title.

Ref No

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

Part No

17491-19F10

17470-02F10

09283-10004

08110-69000

08332-11086

17418-19F00

17435-33400

02112-06163

17415-14300

09168-08008

09103-06206

09280-22001

08331-31106

17461-19F00

09181-10158

09261-04002

Description

• . Impeller/shaft

• . Seal, Mechanical

• . Oil Seal (10x21x5)

• . Bearing

• . E Ring

• . O Ring

• . Screw

• . Bolt, Drain

• . Gasket (8.2x14x1)

Bolt

O Ring (d:2.4,id:21.8)

Circlip

Gear, Water Pump Driven

Shim

Roller

Suzuki Worldwide Motorcycle-ATV Page: 20 of 88

SV650Y (SV650Y E2)

Catalogue Title:

FIG16 RADIATOR

Block No. Block Title.

Ref No

1

4

5

6

7

8

9

Part No

17710-19F00

17800-19F10

01550-06103

09148-06015

09320-10042

09180-06290

09118-06097

Description

Radiator Assy, Water

Fan Assy, Radiator

Bolt

Nut

Cushion

Spacer (6.5x10x12)

Bolt (6x25)

Suzuki GASKET SET SV650Y User manual

Popular Motorcycle manuals by other brands
