SVBONY SV405CC User manual

User Manual
SV405CC

To Customers--------------------------------------------------------
Package List---------------------------------------------------------
Camera Appearance Introduction-----------------------------
Camera Specifications--------------------------------------------
Camera Software Installation Settings-----------------------
How to Use the Camera-------------------------------------------
Structure Dimension Figure-------------------------------------
Performance Chart-------------------------------------------------
Other Special Functions------------------------------------------
Equipment Care and Maintenance-----------------------------
Quality Assurance---------------------------------------------------
DE:13-26
FR:27-40
IT:41-54
ES:55-68
RU:69-82
JP:83-94
01
01
01
02
03
05
07
07
10
10
11
CONTENT
EU Importer：Address：Uetzenacker 29,38176 wendeburg
Name：Germany Retevis Technology GmbH

1.To Customers
Hello, friends! Please download SV405CC User Manual pdf file or print this file.
SVBONY has the rights to modify this document without prior notice. Please
download the latest version from our official website.
Thanks for purchasing your new SVBONY astronomy camera! This manual will
give you a brief introduction of the SV405CC camera. Please read this manual
completely before using it. If you have any questions, please feel free to contact
us:
Facebook: www.facebook.com/svbony
For software installation instructions and other technical support, please email
us: [e-mail]
3. Camera Appearance Introduction
Radiator
USB3.0 Data
Interface Refrigeration
Power Interface
Drying Chamber
Cooling Fan
Protecting and
Sealing Windows
(AR coating)
2. Package List
①Camera Bag x 1
②SV405CC Camera x 1
③ 2 inch Cover x 1
④ M42-M48 Ring x 1
⑤T2-1.25 inch Adapter x 1
⑥1.25-inch T-Adapter x 1
⑦M42M-M48F-16.5L x 1
⑧M42M-M42F-21L x 1
⑨T2 Adapter x 1
⑩User Manual x 1
USB3.0 Data Cable x 1
01

4. Camera Specification
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
SV405CC
SONY IMX294 CMOS
4144*2822
11.7 megapixel
4.63μm
19.2mm*13mm
23.2mm
19FPS
Rolling Shutter
Type-B USB 3.0
DDR3 256M
0.05ms-2000s
1.2e
75%
63ke
14bit
Display on software
TEC Semiconductor
2-Stage Refrigeration
Support
Any Resolution Supported
BIN1,BIN2,BIN3,BIN4
Windows, Linux,
Mac OS, Chrome OS
AR Coating
2″ / 1.25″ / M42X0.75
6.5mm
＜300MA
＜30MA
Model
Sensor
Image Resolution
Total Pixels
Pixel Size
Target Size
Diagonal
Maximum Frame Rate
Shutter Type
USB Type
Cache
Time of Exposure
Readout Noise
QE Peak
Full Charged
ADC
Temperature Display
Cooling System
Digital Noise Reduction
ROI
Pixel Binning
Operating System
Protective Window Optical Glass
Camera Interface Specifications
Back Intercept
Working Current
Stand-by Current
02

5. Camera Software Installation Settings
5.1 Camera Driver Installation
1. Driver Download
Please download the latest driver from the SVBONY official website.
https://www.svbony.com/Support/SoftWare-Driver/

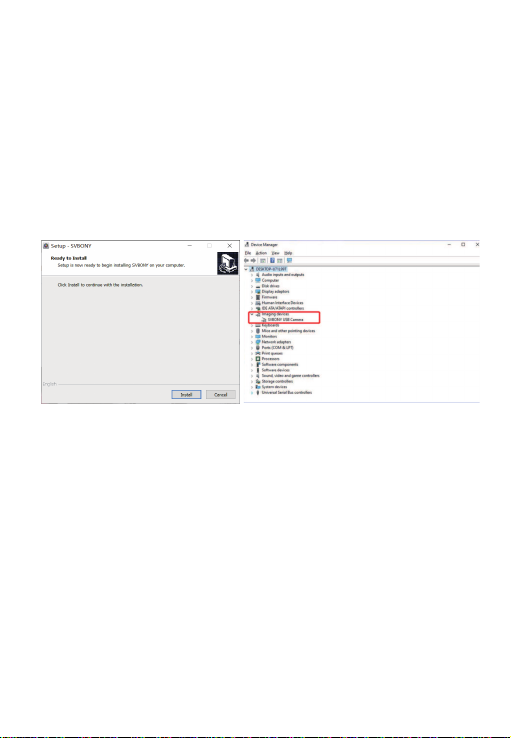

2. Install the Windows Driver
①Double-click the driver installation package, select the language, and enter the
installation page
②Click install and wait for completion
③Check the driver installation. After the installation is complete, connect the
camera to the USB port of the computer via a USB cable, and the camera will
automatically recognize it.
④Check the camera status in the device manager
Note: Please do not connect the camera before installing the driver.
5.2 Image Software Installation
1. Installation and Use of Image Software
①Use the Sharpcap software to download the latest version from the sharpcap
official website.
②Click install, set the installation path (default), and the installation is complete.
③After the installation is complete, perform a preliminary test. Open the
software, find the model of Svbony Camera in the camera drop-down menu and
click connect.
④Set the Image storage path.
⑤The introductory operation guide of sharpcap can be viewed in the "Help"
option of the software. At the same time, the download of PDF format files is
provided under "Documents" on the homepage of sharpcap official website,
which can be downloaded and studied.
03

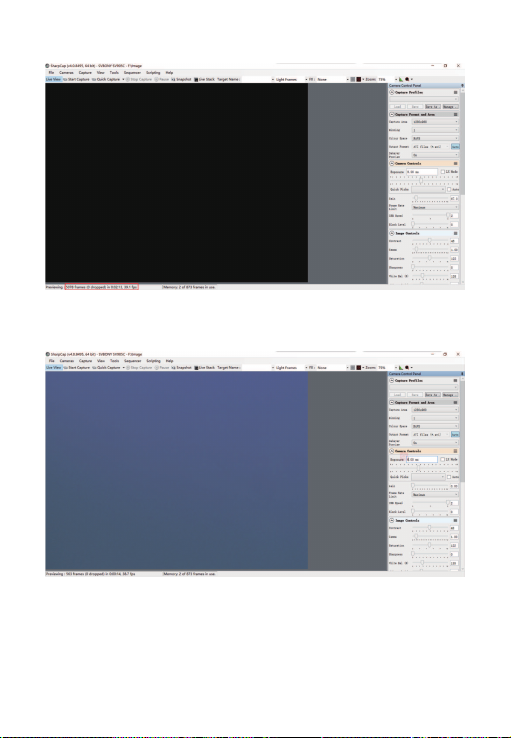

5.3 Image Software checking
1. Check the frame rate

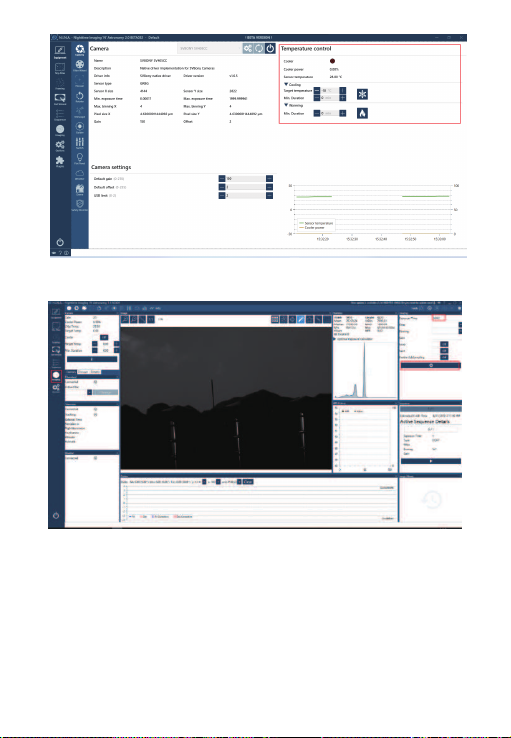

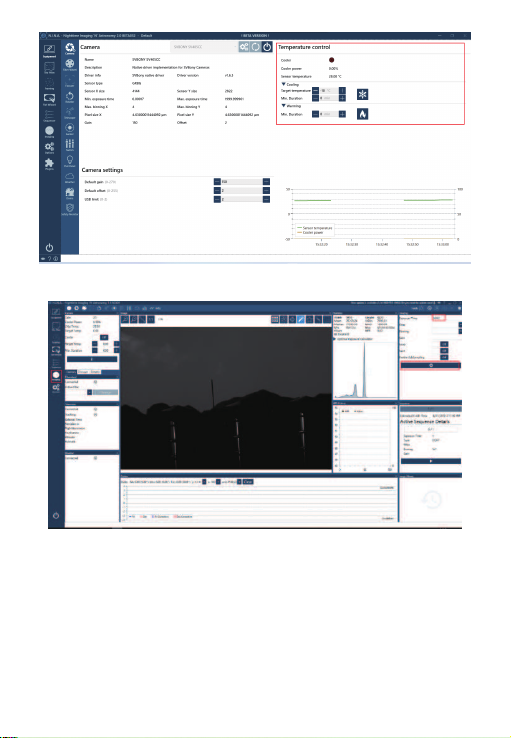

5.4 Using N.I.N.A
Launch N.I.N.A. —Nighttime Imaging ‘N’ Astronomy. Drive connect via ASCOM
driver. Turn on the refrigerator to set the temperature.
2. Remove the camera dust cover, adjust the exposure time, and the preview
interface will have light and dark changes, indicating that the work is normal.
04

6.How to Use the Camera
SV405CC can be connected to filters, telescopes, or camera lenses through
adapters. Most adapters have already included. The rest adapters can be
purchased directly from our official website.
Official website link: http://www.svbony.com/
Set the exposure time to capture the image.
05

6.1 Accessories Connection Diagram
6.2 Connection Diagram of External Device
SV405CC
Guide camera
USB Cable
AutoGuide Cable
Mount
Guide Scope
Main
Imaging Scope
Main
Imaging Cam
AutoGuider
Port
06

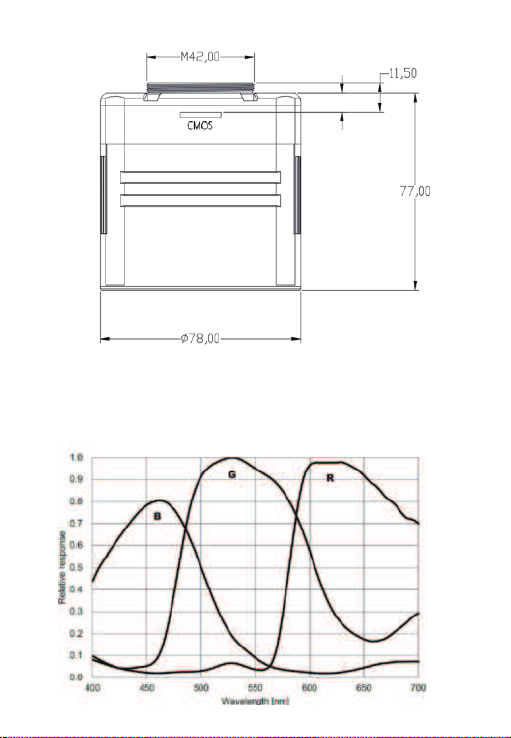

7. Structure Dimension
8. Performance Chart
8.1 QE Curve & Readout Noise
QE curve and readout noise are the most important parameters to measure
camera performance. Higher QE and lower readout noise are necessary
conditions to improve the image signal-to-noise ratio.
07
6.50

Readout noise includes pixel noise, circuit noise, and ADC quantization noise.
The lower the readout noise, the better. As shown in the figure, the readout noise
of the SV405CC is very low compared with conventional CCD cameras. Built-in
HCG mode, which can effectively reduce readout noise at high gain, so that the
camera maintains the same wide dynamic range as at low gain. When the gain is
120, the HCG mode is automatically turned on, the readout noise is as low as
1.2e, and the dynamic range can still reach a level close to 14bit. The parameter
settings are also different depending on your shooting target. Turn down the
gain, the dynamic range will become larger, suitable for long exposures. Increase
the gain, the readout noise will be further reduced, which is suitable for short
exposure or lucky imaging.
8.2 Power Consumption
The SV405CC camera is a low-power camera. When the camera is powered by
a USB cable, the maximum power consumption is 1.85W. But for cooling
function, you need to use a 12V@5A power adapter (D5.5*2. lmm, center
positive), or you can use a lithium battery (supports a wide range of 11V to 15V).
The picture below is the cooling efficiency diagram of our freezer camera. A
cooling temperature difference of 30 degrees only requires a current of 0.5A.
8.3 TEC Cooling System
The TEC cooling system of the SV405CC camera can precisely control the
temperature of the sensor. Different from the traditional CCD, the SV405CC
camera has ultra-low readout noise, efficient cooling and adjustable gain. It is no
longer necessary to use ultra-long exposures to capture targets, which greatly
reduces the requirements for the camera system and guide star system.
However, if short exposures are used (e.g. less than 100ms), cooling has little
08

effect on the image. The cooling system can be set to a minimum of 35~40°C
below the ambient temperature (Tested based on ambient temperature of 30°C).
Please note that the maximum temperature difference may fluctuate after
pro-longed use. Meanwhile, when the ambient temperature decreases, the
cooling temperature difference will also decrease accordingly. The figure below is
the dark current curve of the SV405CC sensor between -20°C and 35°C.
8.4 AR Coating Filter
The SV405CC camera sensor is equipped with a protective window and uses an
AR coated filter.
09

9. Other Special Functions
9.1 DDR High-speed Memory
The SV405CC camera has a built-in 256MB (2Gb) DDR3 high-speed memory to
buffer image data to ensure stable data transmission. And it can effectively
reduce the glow effect caused by slow readout speed.
9.2 Ultra-short Back Intercept
The back intercept of the SV405CC can be shortened to 6.5mm, allowing
compatibility with more devices and lenses.
9.3 Pixel Binning
The SV405CC camera supports Bin1, Bin2, Bin3, Bin4 software pixel binning
modes.
10. Equipment Care and Maintenance
Protect the Refrigerator
Thermal shock should be avoided when using the camera. The so-called thermal
shock refers to the internal strong stress that the refrigerator has to bear due to
the principle of thermal expansion and contraction when the temperature of the
refrigerator suddenly rises or falls. Severe thermal shock can shorten the life of
the cooler or even damage it completely. Therefore, when you start using the
cooler to adjust the temperature of the CMOS, you should avoid turning on the
cooler to maximum power at once. Instead, the power of the cooler should be
gradually increased. Before disconnecting the power supply, if the power of the
cooler is relatively high, the power of the cooler should be gradually reduced,
and then disconnect the power supply.
CMOS Care and Maintenance
Cleaning of CMOS Sensors and Optical Window
If you find dust on the CMOS sensor, you can remove the front half of the
camera. Then use the cleaning kit for DSLR camera sensors to clean the CMOS
sensor. You must be careful when cleaning it. You can also use a DSLR cleaning
tool or lens tissue to clean it. Be careful not to use too much force, because the
coating of the CMOS sensor is very fragile and can be scratched easily. The
general identification of whether the dust is on the sensor or on the window glass
is as follows.
10

Dry Camera CMOS Chamber
The CMOS sensor is located in the CMOS chamber. There is a hole on the side
of the front of the camera. If moisture in the CMOS chamber fogs the sensor
glass, you can dry it by connecting a silicone tube through this hole. Please put
an effective silica gel desiccant in the silica gel stick and make sure that there is
cotton inside to prevent silica gel from entering the CMOS chamber.
Prevent Fogging of Optical Windows in CMOS Sealed Chamber
If the ambient humidity is very high, the optical window of the CMOS sealed
chamber may have condensation problems. The camera has a built-in heating
plate that heats the sensor to prevent fogging. In most cases, its effect is very
noticeable. If the fogging problem persists, please try the following methods:
1. Avoid the camera facing the ground. Cold air is denser than hot air. If the
camera is facing down, it will be easier for the cold air to come into contact with
the glass and cause it to cool and fog.
2. Increase the temperature of the CMOS sensor. You can raise the temperature
of the CMOS sensor a little to prevent glass fogging.
3. Check whether the heating plate is working. If the heating plate is not working,
the glass will be very easy to fog up. Under normal circumstances, the
temperature of the heating plate can reach 65-70°C under the environment of
25°C. If it does not reach this temperature, it is possible that the heating plate is
damaged and you can contact us to replace the heating plate.
Quality Assurance
The SV405CC camera warranty time is one year. Within warranty period, if the
camera fails to function, we will provide free after-sales maintenance service.
Besides the warranty days, we provide life-long maintenance services and
charge only the parts that need repair or replacement. The buyer will pay for the
postage of returning camera to factory to be repaired. Within the warranty period,
if the following condition occurs, certain maintenance costs will be charged.
1. The malfunction and damaged caused by incorrect use, the unauthorized
repairs and alteration.
2. The damage caused by fire, flood, earthquake, other natural disasters and
secondary product damage.
3. The product malfunction caused by the fall and transportation failures after
purchase.
4. The malfunction and damaged caused by the other barriers (man-made
factors or external device).
5. Purchase without the warranty card and purchase invoices.
11

FCC Requirements:
•Products authorized under Part 15 using SDoC or Certification require a label
containing one of the following compliance statements
(1)Receivers associated with licensed device service operaions:
This device complies with part 15 of the FCC Rules. Operation is subject to the
condition that this device does not cause harmful interference.
(2)Stand-alone cable input selector switch:
This device complies with part 15 of the FCC Rules for use with cable television
service.
(3)All other devices:
•This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CE Requirements:
•(Simple EU declaration of conformity) Hong Kong Svbony Technology Co.,Ltd
declares that the equipment type is in compliance with the essential
requirements and other relevant provisions of RED Directive 2014/30/EU and the
ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full text of
the EU declaration of conformity is available at the following internet address:
www.svbony.com.
•Disposal
The crossed-out wheeled-bin symbol on your product, literature, or packaging
reminds you that in the European Union, all electrical and electronic products,
batteries, and accumulators (rechargeable batteries) must be taken to
designated collection locations at the end of their working life. Do not
dispose of these products as unsorted municipal waste. Dispose of
them according to the laws in your area.
IC Requirements:
CAN ICES-3(B)/NMB-3(B)
Avoid Choking Hazard
Small Parts. Not for children under 3 years.
Approved Accessories
ATTENTION!
Before using this device, read this guide which contains important
operating instructions for safe usage and control for compliance
with applicable standards and regulations.
•This device meets the regulatory standards when used with the
Svbony accessories supplied or designated for the product.
•For a list of Svbony-approved accessories for your item, visit the
following website: http://www.Svbony.com
WARNING
12

1. An Kunden
Hallo Freunde! Sie können die PDF-Datei des SV405CC-Benutzerhandbuchs
herunterladen oder diese Datei ausdrucken. SVBONY behält sich das Recht vor,
dieses Dokument ohne vorherige Ankündigung zu ändern. Bitte laden Sie die
neueste Version von unserer offiziellen Website herunter.
Vielen Dank für den Kauf Ihrer neuen SVBONY-Astronomiekamera! Dieses
Handbuch gibt Ihnen eine kurze Einführung in die Kamera SV405CC. Bitte lesen
Sie dieses Handbuch vollständig, bevor Sie es verwenden. Bei Fragen können
Sie sich gerne an uns wenden:
Facebook: www.facebook.com/svbony
Für Anweisungen zur Softwareinstallation und andere technische Unterstützung
senden Sie uns bitte eine E-Mail: [e-mail]
2.Paketliste
①Kamera Tasche x 1
②SV405CC kamera x 1
③2” Kamerakappe x 1
④M42-M48 ring x 1
⑤T2-1.25” Adapter x 1
⑥1,25-Zoll-T-Lauf x 1
⑦M42-M48F-16.5L x 1
⑧M42-M42F-21L x 1
⑨T2 Adapter x 1
⑩Benutzerhandbuch x 1
USB3.0-Datenkabel x 1
3.Aussehen der Kamera Einführung
USB3.0-
Datenschnittstelle Kühlleistung-
sschnittstelle Fenster schützen
und versiegeln
(AR-Coating)
Trockenkammer
Kühler
Lüfter
13

4. Camera Specification
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
SV405CC
SONY IMX294 CMOS
4144*2822
11.7 Megapixel
4.63μm
19.2mm*13mm
23.2mm
19FPS
Rolltor
Type-B USB 3.0
DDR3 256M
0.05ms-2000s
1.2e
75%
63ke
14bit
Anzeige auf Software
TEC-Halbleiter
2-stufige Kühlung
Unterstützung
Jede unterstützte Auflösung
BIN1,BIN2,BIN3,BIN4
Windows, Linux,
Mac OS, Chrome OS
AR-Beschichtung
2″ / 1.25″ / M42X0.75
6.5mm
＜300MA
＜30MA
Modell
Sensor
Bildauflösung
Gesamtpixel
Pixel Größe
Zielgröße
Diagonale
Maximale Framerate
VERSCHLUSSART
USB-Typ
Zwischenspeicher
Belichtungszeit
Ausleserauschen
QE-Spitze
Voll aufgeladen
ADC
Temperaturanzeige
Kühlsystem
Digitale Rauschunterdrückung
ROI
Pixel-Binning
Betriebssystem
Schutzfenster aus optischem Glas
Spezifikationen der Kameraschnittstelle
Lagerfeuchtigkeit
Arbeitsstrom
14

5. Installationseinstellungen der Kamerasoftware
5.1 Installation des Kameratreibers
1. Treiber herunterladen
Sie können den neuesten Treiber von der offiziellen SVBONY-Website
herunterladen.
https://www.svbony.com/Support/SoftWare-Driver/
2. Installieren Sie den Windows-Treiber
①Doppelklicken Sie auf das Treiberinstallationspaket, wählen Sie die Sprache
aus und rufen Sie die Installationsseite auf
②Klicken Sie auf Installieren und warten Sie auf den Abschluss
③Überprüfen Sie die Treiberinstallation. Nachdem die Installation abgeschlos-
sen ist, schließen Sie die Kamera über ein USB-Kabel an den USB-Anschluss
des Computers an und die Kamera erkennt sie automatisch.
④Überprüfen Sie den Kamerastatus im Geräte-Manager
Hinweis: Bitte schließen Sie die Kamera nicht an, bevor Sie den Treiber installiert
haben.
5.2 Installation der Aufnahmesoftware
1. Installation und Verwendung der Aufnahmesoftware
①Verwenden Sie die Sharpcap-Software, um die neueste Version von der
offiziellen Sharpcap-Website herunterzuladen.
②Klicken Sie auf Installieren, legen Sie den Installationspfad (Standard) fest und
die Installation ist abgeschlossen.
③Führen Sie nach Abschluss der Installation einen Vortest durch. Öffnen Sie die
Software, suchen Sie das Modell der Svbony-Kamera im Kamera-Drop-
down-Menü und klicken Sie auf Verbinden.
④Stellen Sie den Aufnahmespeicherpfad ein.
⑤Die einführende Bedienungsanleitung von Sharpcap kann in der „Hilfe“-Option
der Software eingesehen werden. Gleichzeitig wird auf der Homepage der
offiziellen Sharpcap-Website unter „Dokumente“ der Download von Dateien im
PDF-Format bereitgestellt, die heruntergeladen und studiert werden können.
15

5.3 Überprüfung der Schießsoftware
1. Überprüfen Sie die Bildrate
5.4 Verwendung von N.I.N.A
Schalten Sie N.I.N.A. – Nächtliche Bildgebung „N“ Astronomie. Verbinden Sie
sich über den ASCOM-Treiber.
Schalten Sie den Kühlschrank ein, um die Temperatur einzustellen.
2.Entfernen Sie die Staubabdeckung der Kamera, stellen Sie die Belichtungszeit
ein, und die Vorschauoberfläche ändert sich hell und dunkel, was darauf
hinweist, dass die Arbeit normal ist.
16

6.Verwendung der Kamera
SV405CC kann über Adapter an Filter, Teleskope oder Kameraobjektive
angeschlossen werden. Die meisten Adapter sind bereits enthalten. Die
restlichen Adapter können direkt auf unserer offiziellen Website erworben
werden.
Link zur offiziellen Website: http://www.svbony.com/
Stellen Sie die Belichtungszeit ein, um das Bild aufzunehmen.
17

6.1 Zubehör Anschlussplan
6.2 Anschlussdiagramm des externen Geräts
18
SV405CC
Guide camera
USB Cable
AutoGuide Cable
Mount
Guide Scope
Main
Imaging Scope
Main
Imaging Cam
AutoGuider
Port
