Sven IHOO T100U User manual

OPERATION
MANUAL
IHOO T100U
5.1 Active Home Theater
Speaker System
ZZZ.sveQ.ѵ

1
2
2
2
6
10
11
ENG
Operation Manual
1
Operation Manual IHOO T100U
Technical support is on www.sven.Н.
Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted eԚorts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
.............
2. PACKAGE CONTENTS............................................................. ............
3. SAFETY PRECAUTIONS .................................................. ...................
4. TECHNICAL DESCRIPTION .................................................... ................
5. PREPARATION AND OPERATION .......................................... ......................
6. TROUBLESHOOTING...............................................................
.................
7. TECHNICAL SPECIFICATIONS .................................................... ...........
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the ԛrm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the number of
the wall mount corresponds to that in the warranty card. Remember: in case of warranty card loss
or discrepancy of numbers you forfeit the right for warranty repairs.
• Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.

2. PACKAGE CONTENTS
• Subwoofer — 1 pc
• Satellites — 5 pcs
• Remote control (RC) — 1 pc
• RC batteries (ƴƴƴ type) — 2 pcs
• FM antenna — 1 pc
• Audio cable — 5 pcs
• 2RCA to 2RCA stereo signal cable — 3 pcs
• 2RCA to mini-jack (Ø 3.5 mm) signal cable — 3 pc
• Operation manual — 1 pc
• Warranty card — 1 pc
3. SAFETY PRECAUTIONS
•To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service
and repairs should be performed only by qualiԛed specialists in an authorized service center. The
list of authorized service centers is available on www.sven.ԛ.
•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the
power ampliԛer or the ground, for it causes damage to the power ampliԛer output stage.
•Do not touch the HTSS power cord plug pins for 2 seconds after unplugging it from the mains.
•Do not put foreign objects inside the holes of the MSS.
•Protect the HTSS from high humidity, water and dust.
•Protect the HTSS from heating: do not locate it near heating appliances or expose to direct
sunlight.
•Do not place sources of open Ԝame on or near the HTSS.
•Do not place the HTSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When
operating the MSS, do not put any devices on it, do not cover it with cloth or other objects
preventing it from cooling.
•Do not clean the HTSS with chemicals, use dry soft cloth only.
4. TECHNICAL DESCRIPTION
ƫHǂǂ T100U 5.1 Home Theater Speaker System (HTSS) is designed for creating a home theater.
The multichannel 5.1 ampliԛer built into the subwoofer enables to connect the HTSS to virtually any
audio source.
HTSS special features
•Easy connection to various audio devices
•Built-in FM tuner
•LED display
•Built-in player for audio ԛles from external storage devices
•USB Ԝash port and SD card slot
•Auxiliary switchable stereo input (AUX)
•Operation controls on the front panel
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.
ENG
2
5.1 Active Home Theater
Speaker System

• Remote control
•Complete power switch-oԚand StandBy mode
• Magnetic shielding
• Wooden (MDF) subwoofer and satellite cabinets
HTSS design
aLED display
bIR: IR remote control receiver
cPower LED
dBASS: bass level control button
eTREBLE: treble level control button
f–: volume/timbre down button
gSTANDBY: HTSS on/oԚbutton
h+: volume/timbre up button
iSOUND: sound mode selection button
(STEREO, PROLOGIC 5.1 emulation)
jINPUT: input switch button (STEREO, 5.1,
TUNER, USB/SD)
kSD: slot for connecting an SD card
containing ǀDŽ3 audio ԛles
lUSB: USB port for connecting a USB
Ԝash drive containing ǀDŽ3 audio ԛles
m: previous track (pressed short)/
rewind (pressed and held down)
n: play / pause
o: next track (pressed short)/ forward
(pressed and held down)
a
fe g hi j
b
c
d
Fig. 1. Subwoofer control panel
Fig. 2. Subwoofer top panel
m
k l
no
ENG
3
IHOO T100U
Operation Manual

Fig. 3. Subwoofer rear panel
Subwoofer rear panel
aFM ANT: FM antenna input jack
bAUX R/L: line stereo input
cDVD(5.1CH) F.R./F.L.: right/left front channel input
dDVD(5.1CH) S.R./S.L.: right/left rear channel input
eDVD(5.1CH) C: center channel input
fDVD(5.1CH) S.W.: subwoofer input
gFRONT RIGHT: front right speaker input
hFR. LT.: front left speaker input
iCENTER: center speaker input
jREAR RIGHT:rear right speaker input
kREAR LEFT: rear left speaker input
lPOWER ON/OFF: power switch
mPower cord
a
c
d
e
f
b
g
h
i
j
k
l
m
FM ANT
ENG
4
5.1 Active Home Theater
Speaker System

Installing RC batteries
• Open the battery compartment on the back of the remote control.
• Insert the included AAA batteries.
• Close the battery compartment.
Notes:
• Use the RC at an angle no more than 30° at a distance of no
more than 7 meters.
• Direct the remote control at the LED display on the subwoofer.
• If the RC does not work, check the batteries or replace the discharged batteries with new
ones.
• Remove the batteries from the RC if you don’t intend to use it for a long time (more than a
week).

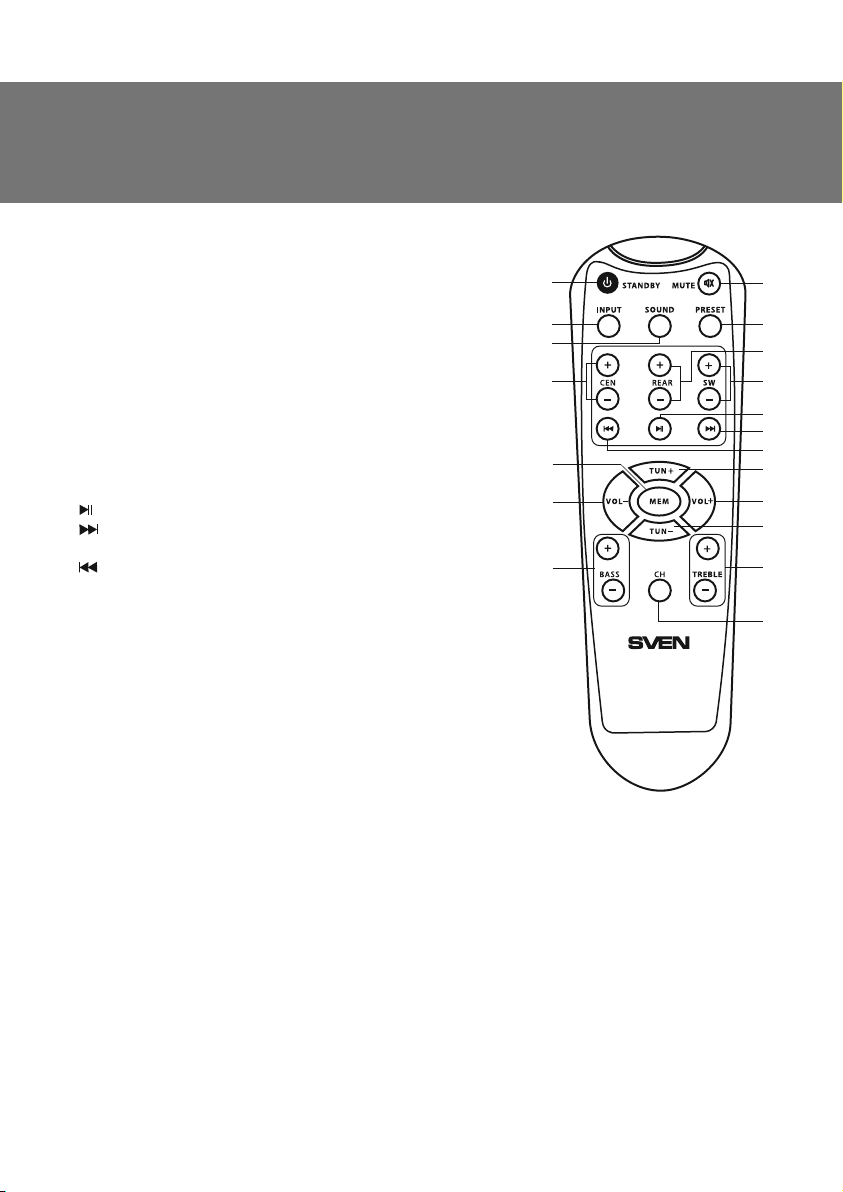

Fig. 4. Remote control
Remote control
aSTANDBY: HTSS on/oԚbutton
bINPUT: input switch button (STEREO, 5.1, TUNER,
USB/SD)
cSOUND: sound mode selection button (STEREO,
PROLOGIC 5.1 emulation)
dCEN +/–: center channel volume up/down
eMEM: memorize selected radio frequency
fVOL +/–: master volume up/down
gBASS +/–: bass level up/down
hMUTE: sound oԚ/on
iPRESET: return to default settings
jREAR +/–: rear channels volume up/down
kSW +/–: subwoofer volume up/down
l: play / pause
m: previous track (pressed short)/ rewind (pressed and
held down)
n: previous track (pressed short)/ rewind (pressed and
held down)
oTUN +/–: scan radio stations up/down the frequency
range; when held down, frequencies are scanned and
memorized automatically
pTREBLE +/–: treble level up/down
qCH: switch on/oԚradio station scanning with TUN +/–
buttons
h
k
m
l
n
o
f
ib
j
o
p
q
d
g
f
e
a
c
ENG
5
IHOO T100U
Operation Manual

5. PREPARATION AND OPERATION
Speaker placement
• To achieve optimum sound, it’s recommended that you place the speakers according to Fig. 5.
The center and front speakers should be located along an imaginary circle with the distance
between the listener and the center channel speaker as a radius, and the listener’s head as the
center. Each of the three speakers should be placed at equal distance from the listener. The front
speakers and the listener make up an equilateral triangle. The rear speakers are placed at the
same distance from the listener (on the imaginary circle, too) at an angle of nearly 110° to the
Listener - Display axis.
• Avoid placing your speakers in the corners and close to walls, as this can lead to unwanted
resonance and distortions. If possible, place them at least 20 cm away from walls.
• For more accurate perception, the tweeters should be at the listener’s ear level.
• Do not locate the speakers in niches. Such placement can aԚect the sound badly, especially in
the lows.
• The subwoofer emits non-directional sound, therefore it can be located in any place of the room
where it sounds the best.
Fig. 5. Speaker placement
A
AA
A
A
A
30° 30°
110° ± 10° 110° ± 10°
Front right
speaker
Front left
speaker
Subwoofer
Rear left
speaker Rear right
speaker
Center
speaker
ENG
6
5.1 Active Home Theater
Speaker System

Connecting speakers to the subwoofer
•Connect the speakers to the subwoofer as shown in Fig. 6 using the included audio cables. Mind
that the red (+) terminals of the speakers should be connected to the red terminals of the subwoofer
(+ о+), while black (–) terminals of the speakers should be connected to the black terminals of the
subwoofer (– о–).
• Check the correctness of connection polarity and absence of contact between bared wires and
metal parts of the equipment (see connection diagram in Fig. 6).
Installing and connecting the FM antenna
• Insert the included indoor FM antenna into the FM ANT ajack on the subwoofer rear panel, as
shown in Fig. 6. Install the FM antenna in such a way that reception quality is satisfactory, and then
ԛx the position of the antenna.
Fig. 6. Speaker connection diagram
FM ANT
Front right
speaker
Front left
speaker
Rear left
speaker Rear right
speaker
Center
speaker
FM-antenna
ENG
7
IHOO T100U
Operation Manual

2RCA to 2RCA
signal cables
5.1-channel sound card
Note. In buildings with weak FM signal use an outdoor 75 Ohm FM antenna. Typically, a
three-element antenna is enough, but in areas with weak FM signal it is necessary to use
an FM antenna with 5 or more elements.
Preparations
IHOO T100U speaker system can be connected to virtually any audio source: DVD/CD/MP3 player,
PC sound card, etc. (see connection diagram, Fig. 7).
Caution! Before making any connections, make sure the MSS is off and unplugged.
•To connect the HTSS to PC sound cards, ǀDŽ3/CD players, use the 2RCA to mini-jack signal cab-
les from the package. Connect the RCA jacks and mini-jacks, as shown in Fig. 7.
•To connect the speakers to a CD/DVD/AUX player or TV use the included 2RCA to 2RCA stereo
signal cables (see Fig. 7).
2RCA to mini-jack
signal cables
2RCA to mini-jack
signal cable
DVD player
Fig. 7. Connection to audio sources
Sound card,
CD player,
MP3 player
ENG
8
5.1 Active Home Theater
Speaker System

Switching on
•Adjust the volume level to the minimum and connect the power cord mto the mains outlet.
•Switch on the HTSS power supply with the POWER ON/OFF switch (l, ON position) on the
subwoofer rear panel. The power LED con the front panel will illuminate. Press the STANDBY a
button on the RC or STANDBY gbutton on the subwoofer control panel, and the LED display (a,
Fig. 1) will illuminate. The STANDBY function is designed for switching the system on/oԚquickly
and saving electricity.
Selecting audio source
• The HTSS has two stereo audio inputs (AUX and DVD(5.1CH)) on the subwoofer rear panel and an
SD slot and USB port on its top panel. The system will automatically enter the Player mode when a
USB device is connected to the USB port lor an SD card is inserted into the corresponding slot
k. According to the necessary connection, select the audio source with the INPUT jbutton on
the control panel or button bon the RC. The subwoofer LED display awill show the input
selected.
Notes:
•If the USB port and SD card slot are used at once, you can select the necessary source
by successively pressing the INPUT jbutton on the subwoofer front panel or button bon
the RC.
•SD/USB Оash storage devices with capacity higher than 8Gb may work incorrectly – data
processing may be delayed.
Master volume control
• Adjust (increase/reduce) the master volume with buttons VOL+/– fon the RC.
Subwoofer and satellite speaker volume control
• The bass and treble level can be adjusted with BASS +/– gand TREBLE +/– pbuttons
respectively on the RC.
• The rear and center speaker volume can be adjusted with REAR +/– jand CEN+/– dbuttons
on the RC. The SW +/– kRC buttons are used for adjusting the subwoofer volume control.
Pro.logic 3D sound effect
• This feature can be activated if the sound is played via the stereo input. To use this feature, press
the SOUND cbutton on the remote control or SOUND ibutton on the subwoofer control panel.
The LED dieplay awill show Pro.Logic. The processed stereo signal will play from 5 satellite
speakers and the subwoofer. Press these buttons again to deactictivate this feature.
Switching off the sound
• Press the MUTE hbutton on the RC to switch oԚthe sound. Press this button again to switch the
sound on.
FM tuner mode
•The FM mode is selected with the INPUT jbutton on the subwoofer control panel or INPUT b
button on the RC.
Auto radio station search
•Press and hold down the TUN+ obutton on the RC for more than 1.5 seconds to activate the auto
radio station search and memorizing (no more than 30 stations).
•To tune to the memorized radio stations, press the CH qbutton on the RC, and then select the
necessary channel with the TUN+/– obuttons.
ENG
9
IHOO T100U
Operation Manual

Manual radio station search
•To select the necessary frequency, press the TUN+/– obuttons short (frequency range 87.5 –
108 MHz with a tuning step of 50 kHz). Then press the MEM tbutton on the RC to memorize the
selected radio frequency. The memorized frequencies are automatically numbered CH01 to CH30.
Note. The number of stations and reception quality depend on reception conditions.
Returning to default settings
• Press the PRESET ibutton on the RC to return to default settings.
Notes:
• If the HTSS is left unused for a long period of time, mind to switch it off with the POWER
switch (l, OFF position) and unplug the power cord from the mains socket.
• To improve the sound quality, use the Line-Out port of your sound card.
10. TROUBLESHOOTING
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The HTSS does
not turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of
sound.
The remote control
is not working.
The FM tuner is not
working.
Cause
The HTSS isn’t connected to a mains outlet.
The power switch is oԚ.
Volume level is set at minimum value.
Improperly connected audio source.
Volume level is set at its minimum value.
Large amplitude of the input signal.
The batteries are discharged.
There is direct sunlight.
Obstacle between the remote control and
the subwoofer receiver.
The FM tuner is not connected.
Poor reception of the antenna.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect audio sources correctly.
Adjust the volume control knob.
Turn down the source volume
and the HTSS volume.
Replace batteries with new ones.
Change the subwoofer or remote
control location.
Change the subwoofer or remote
control location.
Connect the FM antenna.
Connect an outdoor FM antenna.
ENG
10
5.1 Active Home Theater
Speaker System

ENG
11
IHOO T100U
Operation Manual
Parameter, measurement unit
Output power (RMS), W
subwoofer
satellites
Frequency response, Hz
subwoofer
satellites
Frequency bands: USW, MHz (50 kHz step)
S/N ratio, dB
Speaker driver size, mm:
subwoofer
center speaker (2 × woofer/mid-range + tweeter)
front speakers (woofer/mid-range + tweeter)
rear speakers (woofer/mid-range)
Power supply, V/Hz
Input power, W
Magnetic shielding
Dimensions (W × H × D), mm:
subwoofer
center speaker
front speakers
rear speakers
Weight, kg
Value
150 (50 + 5 × 20)
50
5 × 20
40 – 125
125 – 22 000
87.0 – 108.0
75
Ø 165
2 × Ø 115 + Ø 25
Ø 115 + Ø 25
full-range Ø 115
~220 ± 10%/50
180
front and center speakers
200 × 410 × 350
400 × 140 × 150
168 × 300 × 220
150 × 180 × 150
19.88
7. TECHNICAL SPECIFICATIONS
Notes:
•Technical speciНcations given in this table are supplemental information and cannot give
occasion to claims.
•Technical speciНcations are subject to change without notice due to the improvement of
SVEN production.

ǀǢǘǙǟǰ: IHOO T100U
ƼǠǣǢǤǦǙǤ ǖDŽǢǥǥǜǜ: ǂǂǂ «DžƾƴǁƸƼdžDŽƹƿ», 111024,
DŽLj, Ǘ. ǀǢǥǞǖǔ, ǧǟ. ƴǖǜǔǠǢǦǢǤǡǔdz, ǘ. 65, ǥǦǤ. 1.
LJǣǢǟǡǢǠǢǫǙǡǡǔdz ǢǤǗǔǡǜǛǔǪǜdz ǖDŽǢǥǥǜǜ: ǂǂǂ «DŽdž-Lj»,
105082, Ǘ. ǀǢǥǞǖǔ, ǧǟ. LjǤǜǘǤǜǩǔ ǑǡǗǙǟǰǥǔ, ǘ. 75, ǥǦǤ. 5.
LJǥǟǢǖǜdz ǗǔǤǔǡǦǜǝǡǢǗǢ ǢǕǥǟǧǚǜǖǔǡǜdz ǥǠǢǦǤǜǦǙ
ǖǗǔǤǔǡǦǜǝǡǢǠ ǦǔǟǢǡǙ ǜǟǜ ǡǔ ǥǔǝǦǙ www.sven.ѵ.
ƷǔǤǔǡǦǜǝǡǯǝ ǥǤǢǞ: 12 ǠǙǥ. DžǤǢǞ ǥǟǧǚǕǯ: 5 ǟǙǦ.
ǃǤǢǜǛǖǢǘǜǦǙǟǰ: «Džƶƹǁ ǃdžƹ. ƿǜǠǜǦǙǘ», 176
Ƹǚǧ NjǜǔǦ DŽǢǧǘ, д02-02, DžǜǡǗǔǣǧǤ, 427447.
ǃǤǢǜǛǖǙǘǙǡǢ ǣǢǘ ǞǢǡǦǤǢǟǙǠ «DžǖǙǡ DžǞǔǡǘǜǡǔǖǜdz
ƿǜǠǜǦǙǘ», 48310, Ljǜǡǟdzǡǘǜdz, ƾǢǦǞǔ, ƾǢǦǢǟǔǩǘǙǡǦǜǙ, 15.
DžǘǙǟǔǡǢ ǖƾǜǦǔǙ.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
д02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
2.0 Multimedia Speaker System
Automatic Voltage Regulator
DžǦǔǕǜǟǜǛǔǦǢǤ ǡǔǣǤdzǚǙǡǜdzDžǦǔǕǜǟǜǛǔǦǢǤ ǡǔǣǤdzǚǙǡǜdz
Automatic Voltage Regulator
2.0 Multimedia Speaker System2.0 Multimedia Speaker System
SPS-619
5.1 Active Home Theater
Speaker System
IHOO T100U
