SVP HDE-70 User manual

HDE-70
H.264 –4:2:2 - 10 bits
Decoder
MANUAL V6.9

I
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Contents
Chapter 1: Introduction
This first chapter provides a general description of the HDE-70 decoder
equipment.
Chapter 2: Technical features
This second part offers a detailed description of the decoder’s physical and
environmental characteristics.
Chapter 3: Decoder operation and Menus
This third part provides the user all the necessary information to control and
operate the equipment properly. It is detailed the function of each button on
the keyboard. It is also explained how the information is shown on the
display, decoder menus, etc.
Chapter 4: GPS
This fourth chapter indicates the operation of the HDE-70 GPS system and
specifies the parameters that are shown in the GPS screen.
Chapter 5: Web Server
This fifth chapter provides a detailed description of the Web Server tool.
This feature allows controlling the HDE-70 decoder through a website.
Chapter 6: Equipment Installation
This chapter indicates the available connections of the decoder, their
characteristics and the installation of the decoder.

II
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Dear Customer,
We would like to thank you for selecting this equipment and welcome you to
the SVP’s growing family of products.
We are sure that the addition of this equipment will cause you a complete
satisfaction in your existing installation.
Please read these instructions carefully, and keep them in hand in case you
have to refer to them.

III
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
About this manual
This user’s guide provides indications and explanations about how to set up
the HDE-70 decoder easily for the most common use cases.
This document is intended to help first time users:
-To find their way around the GUI.
-To understand the different possibilities of the HDE-70 decoder.
-To configure the HDE-70 for their specific configurations.
Symbols
The symbols that appear in this manual are:
An information message which indicates explanations for the
proper operation of the equipment.
It advices users that if they do not take, avoid or make specific
actions, several damages could appear in the device.
In the places where this symbol appears it means that by
pressing the Down button of the equipment the user can
access to the next screen.
This symbol means that pressing the OK button in the options
where this symbol appear, the user can access to the submenu
related to that option or can change the value of the
parameter.
<> These symbols mean that the parameter can be modified in the
same screen with the right and left keys.

IV
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Important Notes
1. This device has the ASI and IP outputs available when the input is ASI.
Besides, it has also the ASI output available when the input is IP.
2. The decoder must be well chilled. Some space must be left next to the
sides of the HDE-70 decoder for ventilation purposes. This is especially
important when it is installed in a rack case.
3. If you wish to install the rack mount demodulator unit horizontally,
guides should be used, due to the weight of the equipment.
4. It is not advisable to use a power supply lead with a cross-section less
than that of the lead supplied, since this would cause a drop in the
supply voltage and deficient operation of the equipment.
5. Only authorized personnel should open the product and any repair or
warranty will be invalidated if the seals are broken.

V
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
First Aid in Case of Electric Shock
DO NOT TOUCH THE VICTIM WITH YOUR BARE HANDS until the circuit is
broken. SWITCH OFF. If this is not possible, PROTECT YOURSELF with DRY
insulating material and pull the victim clear of the conductor.
If breathing has stopped, indicated by unconsciousness, lack of respiratory
movements and a ‘blue’ look to cheeks, lips, ears and nails, START
RESUSCITATION AT ONCE.
EMERGENCY RESUSCITATION –THE EXPIRED AIR METHOD
(Approved by the Royal Life Saving Society)
1. If possible, lie the victim on his back with his head slightly higher
than his feet. Clear the mouth and throat of any obvious obstruction.
2. Kneel on one side of the victim, level with his head. LIFT THE JAW
AND TILT THE HEAD BACK AS FAR AS POSSIBLE (Figs. 1a and 1b)
3. One of the following may happen:
a) Breathing may begin and consciousness
returns.
b) Breathing may begin but consciousness NOT
returns. Turn the victim on his side and ensure
that the airway is kept clear.
c) Breathing may return but be NOISY which
means that the airway is not fully clear. Try to
clear the airway.
4. IF THERE NO SIGN OF BREATHING:
a) Check that the head is still tilted back.
b) Take a deep breath.
c) Pinch the victim’s nose and blow firmly into his
mouth (Fig. 2). As you do, the chest will RISE.
d) Turn your head away and take another breath,
watching for the chest to FALL (Fig. 3).
5. Start with four quick breaths and then continue with
one breath every five seconds (i.e. 12 times a
minute). This should be continued until the victim
revives or a doctor certifies death.
6. As consciousness returns the victim will start to
breathe on his own, and a ‘pink’ color replaces the
‘blue’ look: this is the time to stop resuscitation.
Continue to hold his chin up and so keep the airway clear.
7. In the case of injuries to the mouth, it may be necessary to use
mouth-to-nose resuscitation. Seal the victim’s mouth with your cheek
and blow firmly into his nose, proceeding as above.

VI
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
8. In the case of severe facial injuries it may be necessary to do a
manual method of artificial respiration (Silvester-Brosch or Holger
Nielsen). Briefly, these methods apply compression to ribcage with
the victim lying on his back (S-B) or face down (H.N.) with associated
movement of his arms up and out. The cycle of movement should
take about five seconds, i.e. the normal breathing phase.
9. Whatever the method, it is ESSENTIAL to commence resuscitation
WITHOUT DELAY and to send for medical assistance immediately.
TREATMENT FOR BURNS
If the victim is also suffering from burns, then, without hindrance to
resuscitation, observe the following:
a) DO NOT ATTEMP TO REMOVE CLOTHING ADHERING TO THE BURN.
b) If possible alleviate the pain from the burnt part by immersing in
cold water.
c) If help as available or as soon as resuscitation is no longer required
the wound should be covered with a DRY clean dressing.
d) Oil or grease in any form should not be applied.
e) If severely burnt, get the victim to hospital immediately.

1
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Main Index
Chapter 1: Introduction ....................................................................... 4
Chapter 2: Technical features............................................................... 5
Chapter 3: Decoder Operation and Menus.............................................. 8
3.1 Display and LEDs..................................................................... 8
3.1.1 1st Main Screen for the ASI Input ......................................... 9
3.1.2 1st Main Screen for the IP Input ..........................................10
3.2 Decoding Example ..................................................................11
3.3 TFT Screen ............................................................................12

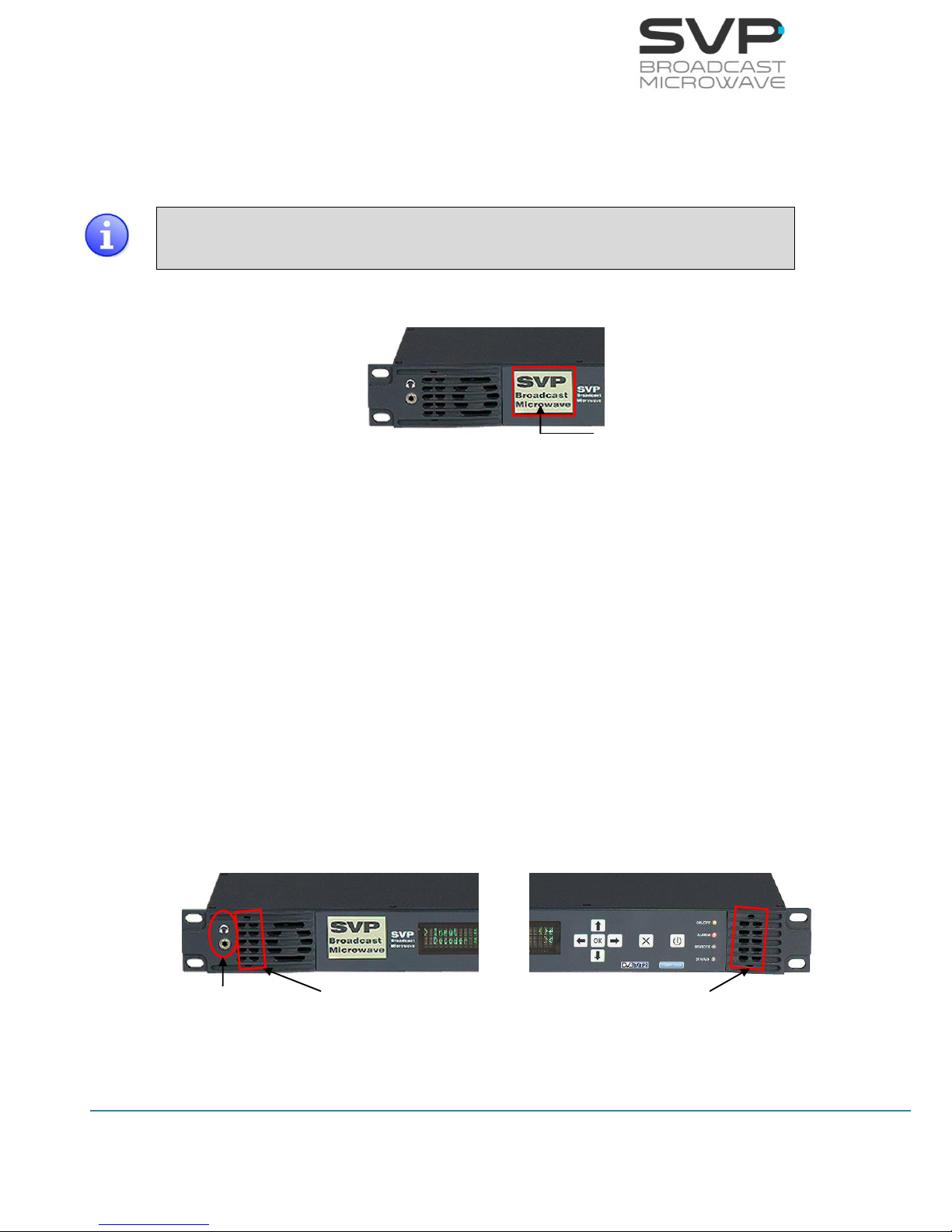

3.4 Speaker & Headphones audio outputs .......................................12

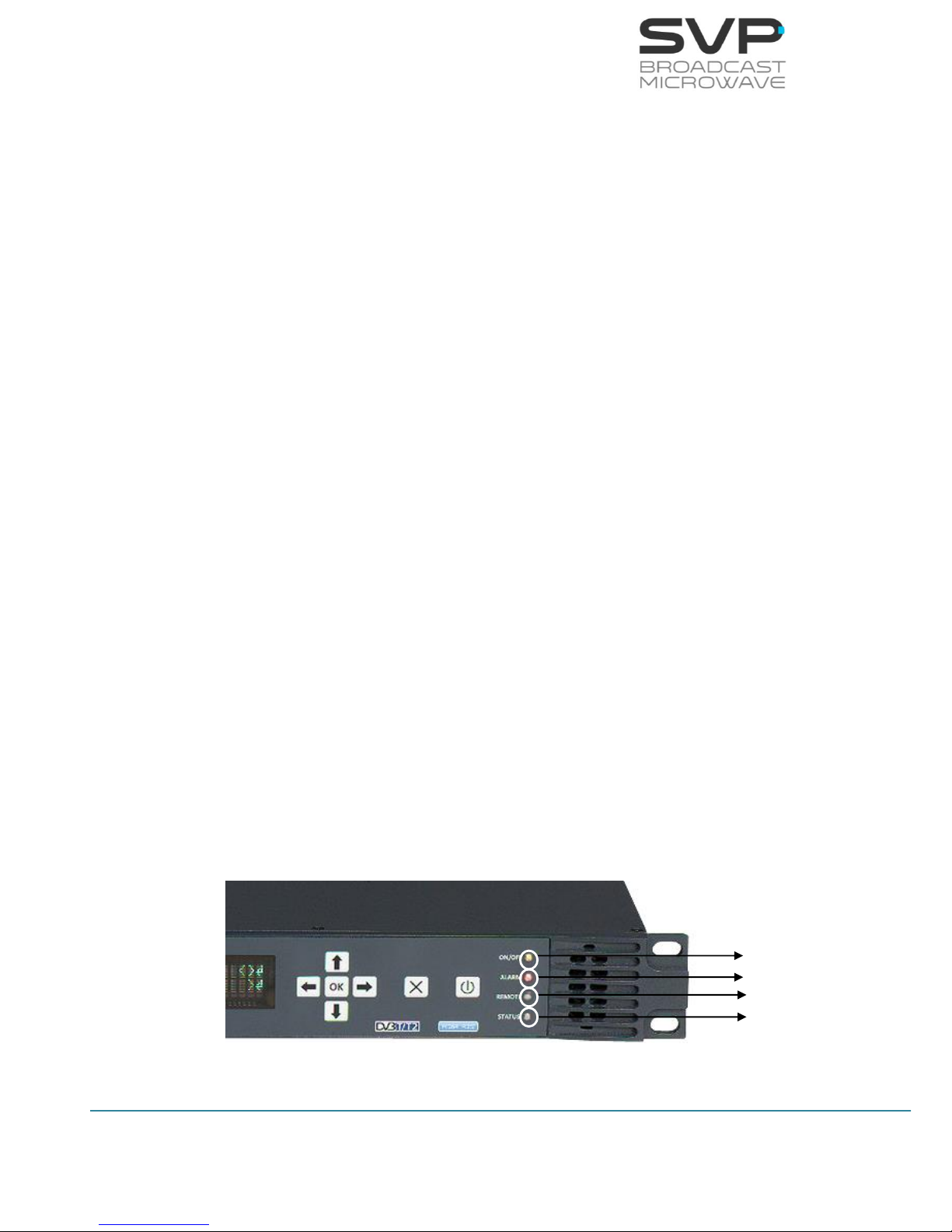

3.5 LEDs .....................................................................................13
3.6 Front panel ............................................................................14
3.6.1 ON/OFF Button .................................................................14
3.6.2 OK Button ........................................................................15
3.6.3 Cross Button ....................................................................15
3.6.4 Left and Right Button ........................................................15
3.6.5 Up and Down Button .........................................................16
3.7 Menus ...................................................................................17
3.7.1 Menu Navigation ...............................................................21
3.7.2 Menu Structure.................................................................22
3.7.2.1 Input Select Menu .......................................................23
3.7.2.1.1 ASI .......................................................................23
3.7.2.1.2 IP .........................................................................25
3.7.2.2 Decoder Menu.............................................................30
3.7.2.2.1 Mode Screen ..........................................................31
3.7.2.2.2 Decoder Video Format Screen...................................33
3.7.2.2.3 Decoder Encoding System Screen .............................34
3.7.2.2.4 Decoder Audio Status Screen ...................................35
3.7.2.2.5 Decoder Data Screen...............................................36
GPS Screen ......................................................................37
3.7.2.2.6 Decoder GenLock Screen .........................................39
3.7.2.2.7 Decoder Frame Error Screen ....................................39
3.7.2.2.8 Decoder Frame Without Signal Screen .......................40
3.7.2.3 Autotracking Menu.......................................................41
3.7.2.4 CA-BISS Menu ............................................................45
3.7.2.5 IP Output Menu ...........................................................47
3.7.2.6 Unit ...........................................................................50
3.7.2.6.1 Unit Video Monitor Screen........................................51
3.7.2.6.2 Unit Audio Monitor Screen........................................51
3.7.2.6.3 Unit Alarms Screen .................................................52

2
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
3.7.2.6.4 Unit Monitor Screen.................................................53
3.7.2.6.5 Unit Webserver & SNMP Screen ................................55
3.7.2.6.6 Unit Miscellaneous Screen ........................................57
3.7.2.6.7 Unit Firmware Screen ..............................................61
Chapter 4: GPS .................................................................................66
4.1 Introduction...........................................................................66
4.2 Main Screen...........................................................................66
4.3 GPS Screen............................................................................67
4.4 Application example................................................................68
Chapter 5: Web Server.......................................................................70
5.1 Introduction...........................................................................70
5.2 Web Page Overview ................................................................73
5.2.1 ASI INPUT........................................................................73
5.2.2 IP INPUT..........................................................................73
5.2.3 DECODER.........................................................................76
5.2.4 Autotracking.....................................................................81
5.2.5 DESCRAMBLING................................................................86
5.2.6IP Output .........................................................................87
5.2.7 UNIT ...............................................................................89
5.3 Web Page Setup Notes ............................................................95
5.4 SNMP ....................................................................................95
5.4.1 SNMP commands ..............................................................96
Chapter 6: Equipment Installation .......................................................97
6.1 Introduction...........................................................................97
6.2 Connections ...........................................................................97
6.2.1 Power supply....................................................................98
AC Power supply .......................................................................98
DC Power supply ..................................................................... 100
6.2.2 DVB-ASI Transport Stream............................................... 101
DVB-ASI Transport Stream Input .............................................. 101
DVB-ASI Transport Stream Output ............................................ 101
6.2.3 Video Outputs................................................................. 102
6.2.4 Genlock ......................................................................... 103
Genlock Input ......................................................................... 103
Genlock Output ....................................................................... 103
6.2.5 Transport Stream over IP................................................. 104
Transport Stream over IP Input and Output ................................ 104
6.2.6 Audio output .................................................................. 105
6.2.7 GPS / Data..................................................................... 106
GPS/Data Input....................................................................... 106
GPS / DATA Output.................................................................. 108

3
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
6.2.8 Remote control ............................................................... 110
6.2.9 USB............................................................................... 111

4
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Chapter 1: Introduction
The new HDE-70 features H.264 and MPEG-2 decoding for high definition
(HD) and standard definition (SD) signals. H.264 compression makes
possible HD signal transmission and reception using 40% lower bitrate than
conventional MPEG-2 systems. Moreover, HDE-70 works in 4:2:2 with 10
bits.
This device decodes input TS signals of up to 320 Mbps and offers the
highest video quality with minimum end to end latency available in the
market, 33ms. For added security, encrypted transmitted signal can be
decrypted using BISS or AES decryption technology.
It features Video over IP and remote control via the Ethernet port. So, this
decoder provides a choice of IP or ASI network interfaces allowing
deployment of services over IP networks or traditional video networks.
The HDE-70 has been designed to be 1U rack mountable.
SVP has reached the state of the art and the HDE-70 decoder has been
designed to be used in broadcast, security and military applications.

5
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Chapter 2: Technical features
Decoder:
H.264: Profiles: Baseline, Main, High
High 422
Support 10 bits
Level: 4.1 –4.2
Latency: 33 ms and Standard Delay
MPEG-2: Profiles: 422P@HL, MP@HL, 422P@ML,
MP@ML
Latency: 33 ms and Standard Delay
Audio Decoder: MPEG-1 Layer I/II
Max. input bitrate: 320 Mbps
Genlock input: Black burst or tri-level, Genlock loop
Decryption:
BISS: BISS-1 and BISS-E
AES: AES-128 and AES-256 (Optional)
Video:
Outputs: 3G-SDI
HD-SDI
SD-SDI
HDMI (1.4)
Composite video (PAL/NTSC)
Formats: 1080p (1920x1080) –23.98/ 24/ 25/
29.97/ 30/ 50/ 59.94/ 60 Hz
1080i (1920x1080) –50/ 59.94/ 60 Hz
720p (1280x720) –23.98/ 24/ 25/ 29.97/
30/ 50/ 59.94/ 60 Hz
576i (720x576) –50 Hz
480i (720x480) –59.94 Hz

6
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Audio:
Output: HDMI/ SDI embedded/ AES Digital/
Analogue
Analogue: 2 Stereo/ 4 Mono
SDI embedded: 1 Group (4 audio channels)
AES/EBU: 2 Stereo channels
Data Channels:
Data channel: User data or GPS
Data rate: 1.200 to 57.600 bps
ASI and IP:
Outputs and Inputs: ASI Transport Stream (EN50083-9)
Transport Stream over IP
(SMTP2022/CoP3) - FEC
Max. TS packets / IP packet: 7
Control and Monitorization:
Control Interfaces: Front panel & display
Web browser
SNMP
Monitoring: Decoder parameters
Alarms, warnings and logbook
Video & Audio: TFT Video screen 2”
2x Stereo loud-speakers
Earphone output
Power Supply:
AC input: 100 to 240 V
DC input: 11 to 36 V
Consumption: < 30 W

7
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Mechanical:
Size: 1 RU, 255 mm (10 inches) depth
Weight: 3 Kg (6.6 lb)
Environmental:
Temperature range: -10 to 45 ºC
Height: 4.500 m
Humidity: 95%

8
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
Chapter 3: Decoder Operation and Menus
This section contains all the necessary information to operate, control and
configure the HDE-70 decoder.
3.1 Display and LEDs
To turn the equipment on and off, press the On/Off button. When the
equipment is turned on, the display will show the start-up message (model
of the equipment), and then it will display the main screen where there are
displayed the most important parameters of the received signal.
Next, there are shown the linkages between the input and the character
displayed in the principal screen:
Audio
A
Data
DATA
D
GPS
G
Table 3.1 Linkages between the input and the character displayed
Next, the main screen for each input type (ASI or IP) is shown:

9
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
3.1.1 1st Main Screen for the ASI Input
In the table below, the function of each parameter is explained. These
values are numbered in the order they appear in the main screen (the first
one is the one allocated in the first line beginning from the left, the second
one the next at the right …).
Parameter nº
Function
1
Input signal type (ASI)
2
Received bitrate (Mbps)
3
Video Codification (H.264 / MPEG-2)
4
Video Format (1080p, 1080i, 720p, 576i, 480i)
5
Video options:
Profile (4:2:0 or 4:2:2)
Delay (Standard (S), Low delay (L) or Super Low delay (SL))
6
Characters 1 (Audio 1) and 2 (Audio 2):
Audio status indication (Audio 1 and 2 not darkened -> audio
received / darkened -> audio not received)
Character 3:
Data status indication (not darkened -> data received /
darkened -> data not received)
7
Number of services available
8
Name of the selected service
Table 3.2 Main screen for ASI input
Figure 3.1 Main screen 1 ASI
ASI: 9.9Mb H.264 576/50i 420/S AAD
(06 services) PROGRAM 001
Received Signal Type
Bitrate
Video
Codification
Output Video
Signal Format
Profile
Delay
Audio Status
Data Status
Number of
services
Name of the
Selected service

10
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
3.1.2 1st Main Screen for the IP Input
In the table below, the function of each parameter is explained. These
values are numbered in the order they appear in the main screen (the first
one is the one allocated in the first line beginning from the left, the second
one the next at the right …).
Parameter nº
Function
1
Input signal type (IP)
2
Received bitrate (Mbps)
3
Video Codification (H.264 / MPEG-2)
4
Video Format (1080p, 1080i, 720p, 576i, 480i)
5
Video options:
Profile (4:2:0 or 4:2:2)
Delay (Standard (S), Low delay (L) or Super Low delay (SL))
6
Characters 1 (Audio 1) and 2 (Audio 2):
Audio status indication (Audio 1 and 2 not darkened -> audio
received / darkened -> audio not received)
Character 3:
Data status indication (not darkened -> data received /
darkened -> data not received)
7
Number of services available
8
Name of the selected service
Table 3.3 Main screen for IP input
Figure 3.2 Main screen 1 IP
IP: 7.8Mb H.264 576/50i 420/S AAD
(06 services) PROGRAM 001
Received Signal Type
Bitrate
Audio/Video
Codification
Output Video
Signal Format
Decoder
Profile
Delay
Audio Status
Data Status
Number of
services
Name of the
Selected service

11
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
3.2 Decoding Example
Next, a reception example and the image that appears in the monitor
screen are shown.
Example (IP)
Setup:
Received signal type (IP)
Bitrate: 8 Mbps
Audio/Video codification: MPEG2
Input video signal format: 576/50i
Decoder profile: 4:2:0
Delay: Low delay
Audio status: Audio1 analogue (enabled), Audio2 AES/EBU (disabled)
Data status: GPS
Number of services: 6 services
Name of the selected program: PROGRAM 001
Figure 3.3 HDE-70 Monitor screen. Example
The audio 2 status indicator is darkened because it is only receiving one
audio signal. If two audio signals are received, then this field will not be
darkened.
The data status field indicates with a darkened character that no data is
being received. If the ‘G’ character appears and it is not blinking, it means
that the GPS in the transmitter is connected to the satellites.
If before the audio status a padlock appears, it means that the received
signal is encrypted.
IP: 8.0Mb MPEG2 576/50i 420/L AAG
(06 services) PROGRAM 001
darkened
blinking
padlock

12
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
3.3 TFT Screen
The HDE-70 decoder has a TFT 2” screen which allows the user watching
the received video signal throughout this screen.
This TFT screen receives the video signal from the Composite Video output.
While there is no video signal received, the TFT screen will show an image
of the company.
Next, a figure in which the TFT screen appears is shown.
Figure 3.4 TFT 2” screen
3.4 Speaker & Headphones audio outputs
The HDE-70 decoder has two possible direct audio outputs from which the
user can hear the audio signal directly. These outputs consist of a connector
to which headphones can be connected and two speakers, one situated in
the right side of the device and the other one in the left side. These audio
outputs can be configured following these steps (they are detailed in
chapter 3.7.2 in the Unit Menu section):
1. Go to the Unit menu.
2. Go to the Audio Monitor option and select Audio 1 or Audio 2 with
right and left keys.
3. Press the OK button to configure the Audio Volume and the Audio
Speaker.
4. Select Audio Volume and press right and left keys to configure the
intensity of the volume.
5. Select Audio Speaker and press right and left keys to enable or
disable the two speakers.
Figure 3.5 Speakers & Headphones audio outputs
TFT 2” screen
Right Speaker
Headphones
connector
Left Speaker

13
HDE-70 H.264 –4:2:2 –10 bits Decoder
MANUAL V6.9
3.5 LEDs
The HDE-70 decoder has 4 Leds on its front panel that show the information
detailed below.
The ON/OFF provides the following information:
If the Led is off, the equipment is not being fed.
If the Led flickers are red, there is power into the equipment but it is
turned off.
The Led lights up in green when the equipment is turned on.
The ALARM LED provides the following information:
The Led lights up in red when any alarm occurs.
The different alarms that can appear in the device are:
-Input Signal Not Present
-No Video Present
-DC Voltage Low
-DC Voltage High
-High Temperature
The REMOTE LED provides the following information:
The Led lights up in green when the user is connected remotely to the
device.
The STATUS LED provides the following information:
The LED lights up when a change in the configuration of the device is
being processed.
Figure 3.6 HDE-70 LEDs
ON/OFF LED
ALARM LED
REMOTE LED
STATUS LED
