swamp PBO-15BM User manual

Product Manual
PBO-15BM

• Bi-amped 2-way Configuration
• USD/SD MP3 Input
• Bluetooth Conne tivity
• Mi / Line Inputs
Features
• Total: 250 Watts RMS / 500 Watts Peak
• Tweeter: 50 Watts RMS / 100 Watts Peak
• Woofer: 200 Watts RMS / 400 Watts Peak
• 15" Woofer with 60oz Magnet and 75mm Voi e Coil
Specifications
• 44mm Titanium Diaphragm Driver
• Frequen y Response: (+/-3dB) 48Hz - 20KHz
• Sensitivity: 98dB (1W/1m)
• Treble and Bass EQ Controls
• Link Output
•Dimensions (WxHxD): 460x 690 x 380 mm
• Weight:
• Impedan e: 8ohm

1. SD Card input - MP3 format
2. MP3 / Bluetooth level - Gain ontrol
3. MIC-1 input level - Gain ontrol
4. LINE input level - Gain ontrol
5. Main volume ontrol - Speaker output
level
6. Treble EQ Control (-12db to +12db)
7. Bass EQ Control (-12db to +12db)
8. LED indi ator - Power on
9. LED indi ator - Input level too high,
distortion
10. 240V power input - IEC
11. USB Memory input - MP3 format
12. MIC input - XLR balan ed
13. MIC input - 1/4" TRS Balan ed
14. RCA Line input - Left & Right
15. Line input - Balan ed XLR
16. Line output - 1/4" balan ed, link out
17. Line output - XLR balan ed, link out
18. Power swit h - On/Off

This symbol on the produ t or on its pa kaging indi ates that this produ t shall not be
treated as household waste. Instead it shall be handed over to the appli able olle tion
point for the re y ling of ele tri al equipment. By ensuring this produ t is disposed of
orre tly, you will help prevent potential negative onsequen es for the environment and
human health, whi h ould otherwise be aused by inappropriate waste handling of this
produ t. The re y ling of materials will help to onserve natural resour es. For more
detailed information about re y ling of this produ t, please onta t your lo al ity offi e,
your household waste disposal servi e or the shop where you pur hased the produ t.
RISK OF E ECTRIC SHOCK
DO NOT OPEN

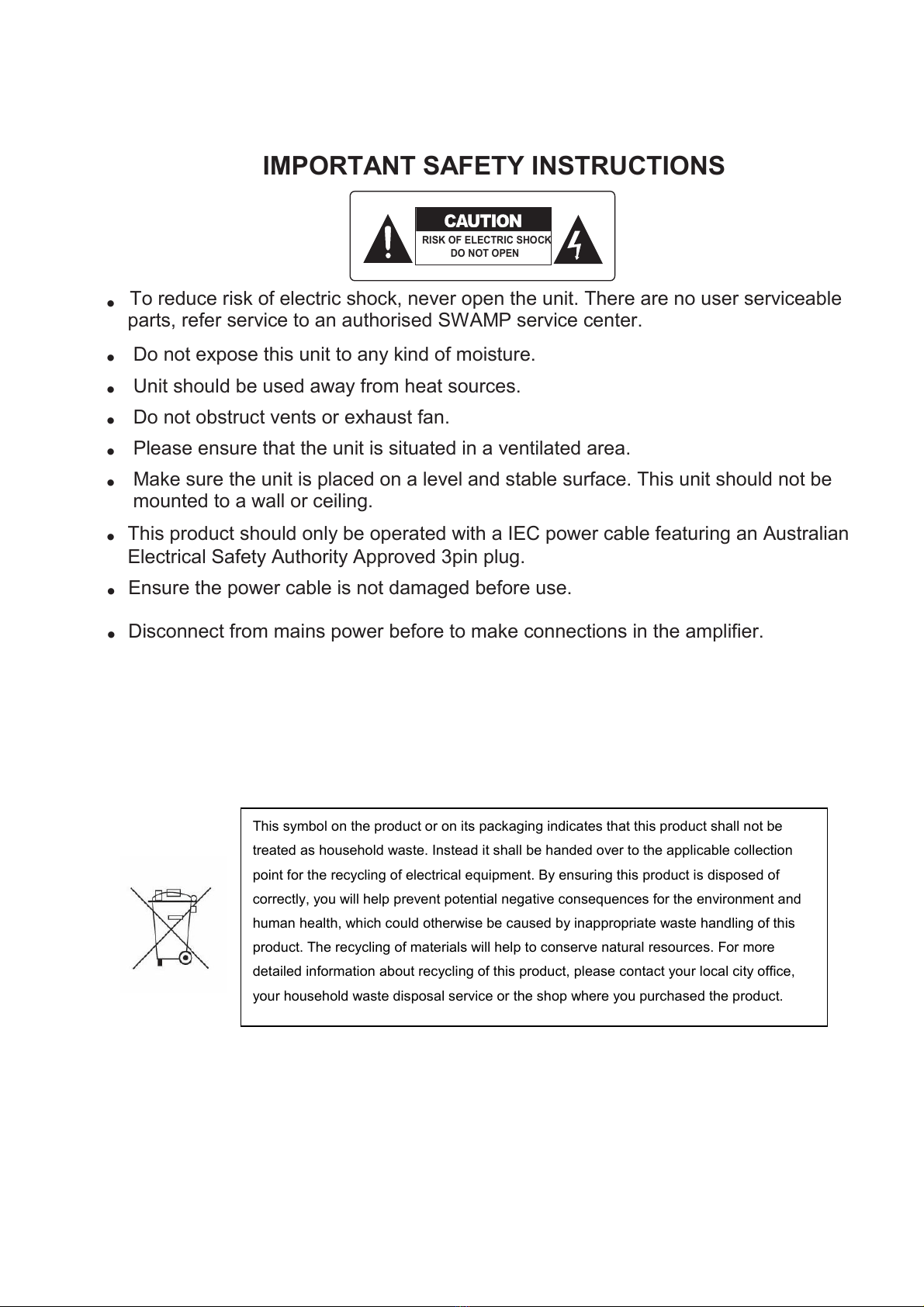

IMPORTANT SAFETY INSTRUCTIONS
•To redu e risk of ele tri sho k, never open the unit. There are no user servi eable
parts, refer servi e to an authorised SWAMP servi e enter.
•Do not expose this unit to any kind of moisture.
•Unit should be used away from heat sour es.
•Do not obstru t vents or exhaust fan.
•Please ensure that the unit is situated in a ventilated area.
•Make sure the unit is pla ed on a level and stable surfa e. This unit should not be
mounted to a wall or eiling.
•This produ t should only be operated with a IEC power able featuring an Australian
Ele tri al Safety Authority Approved 3pin plug.
•Ensure the power able is not damaged before use.
•Dis onne t from mains power before to make onne tions in the amplifier.
