SWEDX XV1-40TV V3 User manual

User’s Guide
XV1-40TV V3
XV1-46TV V3
Design and specifications are subject to change without notice.
European Version V3

Design and specifications are subject to change without notice.
2

Design and specifications are subject to change without notice.
3
INDEX
Introduction 4
Basic operation 5
Contents 6
Control buttons 7
Remote control buttons 8
Basic Operation 9
Volume Control 9
OSD Menu Structure 9
OSD Menu Operation 10
TV Mode ? Picture Menu 10
TV Mode ? Sound Menu 10
ITV Mode ? Advance Menu 11
TV Mode ? OSD Menu 11
TV Mode ? TV-channel Menu 11
TV Mode ? TV-channel Menu ? Auto Scan 12
TV Mode ? TV-channel Menu ? Manual Search 12
TV Mode ? TV-channel Menu ? Channel Edit 12
TV Mode ? PIP Menu 13
PC Mode ? Picture Menu 14
PC Mode ? Geometry Menu 14
Scart Mode ? Picture Menu 14
Scart Mode ? Sound Menu 15
Scart Mode ? Advance Menu 15
Scart Mode ? OSD Menu 15
Scart Mode ? PIP Menu 15
YPBPR Mode ? Picture Menu 16
YPBPR Mode ? Sound Menu 16
YPBPR Mode ? Advance Menu 16
YPBPR Mode ? OSD Menu 16
YPBPR Mode ? PIP Menu 16
Troubleshooting 18
Warranty and Service 19
Connections on the rear of the LCD-TV 7
Wall mode 17
Desk mode 17
Accessories 21

Introduction
Thank you for buying SWEDX LCD-TV. Please read this manual thoroughly before operating the
TV. Make sure the display was not damaged in transit. Should the TV be damaged, please
contact your dealer and do not install it. Check that you have all the accessories according to the
model.
Safety precaution
• Do not place the TV on unstable places, from which it may fell off.
• Do not expose the TV to extreme temperature and humid environment.
• Avoid subjecting the TV to direct sunlit and other heat sources.
• Do not put the TV into any liquid.
• Do not put anything inside the TV, or place water container on top of the TV.
• In thunder rainy days (especially with lightening), please plug out the power plug and antenna
plug.
• Do not step on the power cable, or tangle them together
• Avoid overload of the exterior electric outlet to prevent fire hazard of electric shock.
• Clean the TV with dry and soft cloth (without evaporative matter).
• lf your TV is broken, do not repair it by yourself, but contact the maintenance personnel.
• lf the remote control is left unused for a longtime, please take the batteries out and store them
in dry places.
• Avoid dropping the remote control.
• lf the LCD TV is installed for exhibition purpose, please do not place the overheated part on
the ground or carpet to prevent accident.
Please install the TV at proper position, such as wall or ceiling. Please install it under the
guidance of professional staff. (When used or exhibit, please do not place the TV horizontally or
vertically on the ground.)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1)this device may not cause harmful interference.
(2)this device must accept any interference received, including interference that may cause
undesired operation.
This equipment should avoid from water drops and things that fill with liquid, such as vases,
cannot be placed on this equipment.
This equipment is predeterminated to work constantly (unless adding switch on this equipment)
Please disconnect the power cord if this equipment will not be used for a long time.
Precautions When Displaying a Still Image
A still image may cause permanent damage to the TV screen.
• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen
image retention.
This image retention is also known as "screen burn".
To avoid such image retention, reduce the degree of brightness and contrast of the screen
when displaying a still image.
• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders
displayed on the left, right and center of the screen caused by the difference of light emission
on the screen. Playing a DVD or a game console may cause a similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may
produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.
Design and specifications are subject to change without notice.
4

Basic operation
Preparation
• Put the TV on a stable surface.
• Do not fix the TV with others fixations than those provided or suggested by the manufacturer.
• If you have a wall mount, check that it is steady.
• Do not place any material on the TV.
• Do not block or cover the ventilation openings on the TV.
• The TV must be plugged with a tension source of 110-240 volts and 50 Hz.
• Power cord and cables must be properly routed and protected to prevent people from
stepping on them and causing the TV to fall.
• Keep the power cord away from any heat source. Possible fire hazard.
Heating sources and humidity
• Keep the TV dry and away from humidity.
• Keep the TV away from heat sources.
Cleaning and maintenance
• Unplug the TV before cleaning it. Do not use solvents or liquids to clean the TV.
• Only clean the TV with a soft and dry cloth.
• In case of troubleshooting, do not use spare parts other than those suggested by the
manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits fire or
others incidents. Please contact a technical authorized by SWEDX brand.
Departure in holidays
• Unplug the LCD-TV during lightning storms or when unused for long periods of time.
• Use AC 100--240V 50-60 Hz power outlet for the TV power supply.
• lf the screen of TV is not on, please press the power button on the remote control or on the
TV.
• lf you want to shut off the TV temporary, please press the power button on the remote control
or on the TV.
• lf you want to shut off the TV completely, please switch off the power ON/OFF.
• In TV/AV state, the TV will enter idle state if there is no signal input within 15 minutes.
• ln PC state, the TV will enter idle state if there is no signal input within 40 seconds.
• The setting and tuning of picture and sound will be saved when the TV is shut off, which will
be working in the pre-shut off state when the TV is turn on again.
• lf PC signal source is used, please first set the resolution of the PC display card as the
following modes: (1024*768 60 Hz, 800*600 60 Hz, 640*480 60 Hz)
• lf there is line-by-line output of the signal used by the user, signal source with line-by-line
output is recommended.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER(OR BACK). REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
Design and specifications are subject to change without notice.
5

Contents
XV1-40TV / XV1-46TV Included items:
+ AAA-Battery -
+ AAA-Battery -
2 x AAA Battery
Remote Control
User’s Guide AC Cable Aerial Cable LCD-TV
XV1-40TV / XV1-46TV Wall-Mount Accessories. Not included:
Screw A
Parts A. Wall-
mounting. 2pcs. Plug Screw B
6
Design and specifications are subject to change without notice.

1 2 345555 6 713 12
1098 14 15
MENUMENU
SELECTSELECT
ON / OFFON / OFF
SOURCESOURCE
EXITEXIT MENU
SELECT
CHCH
CH
CHCH
CH
VOLVOL
VOL
ON / OFF
SOURCE
EXIT
1345
7
VOLVOL
VOL
2 6
Connections on the rear of the LCD-TV
1. Power switch Switch to turn the LCD-TV On/Off
2. Power connector 110-240 Volt
3. HDMI connection
5. PC/VGA connection
PC/VGA Audio-in
Component (YPbPr) 2 Component (YPbPr)
Component (YPbPr) 1 Component (YPbPr)
9. AV Composite video (AV)
10. S-video S-video
Audio in Shared Audio-input for Component (YPbPr) 2, Av1 &
12.
AC power input terminal
1 High-definition multimedia interface
480i/p, 576i/p, 720p, 1080i/p
nput terminal
Audio-input terminal of PC/VGA
7. input terminal
Note: Acceptable video signal 480i/p, 576i/p, 720p, 1080i/p
Note: Acceptable video signal 480i/p, 576i/p, 720p, 1080i/p
input terminal
input terminal
Scart 1 Scart input terminal. Full
Note: Acceptable video signal 480i/p, 576i/p, 720p, 1080i/p
4. HDMI 2 connection High-definition multimedia interface
Note: Acceptable video signal
PC i
6.
8. input terminal
11. S-video
13. ANT-in (analog) A signal must be received by from one of the following sources:
An outdoor aerial / A cable television network / A satellite network
14. Scart 2 Scart input terminal. Half
15. Headphone Input terminal for headphone
1. Source/Exit: Choose the input source / Exit the OSD menu
2. Vol: Decrease and increase the audio volume / Navigate the OSD menu
3. LED: Power indicator
4. ON/OFF: Power switch
5. IR: Remote control Infra Red receiver
6. CH: Zap the channels / Navigate the OSD menu
7. Select/Menu: Select in the OSD menu / Activate the OSD menu
ON/OFF SELECT EXIT
MENU SOURCE VOL+VOL-CH+CH-
6 2 71
43,5
Control buttons:
The control buttons’s outlook on your SWEDX LCD-TV is on of the following:
7
11
Design and specifications are subject to change without notice.
0
I

Design and specifications are subject to change without notice.
POWER SOURCE
MUTE SLEEP STILL INFO.
DUAL I-II ARC PSM SSM
+
VOL
CH
321
65
4
987
PRE/CH
PC
HDMI
DBV
TV
MENU EXIT
ENTER
Scart
MENU
TTX ON MIX SIZE HOLD
CANCEL INDEX TIME REVEAL
RED GREEN YELLOW BLUE
S.SELECTPIP
POSITIONSIZE
TIME
SUB-T
TV/RD
FAV
ITEM
EPG
0-/--
+
DVB
1
2
3
4
5
30
31
32
33
29
28
7
8
9
10
11
12
13
14
15
38
39
40
41
42
16
18
19
17
43
45
46
44
20
21
47
48
22
23
24
25
26
27
49
50
51
52
34
35
36
37
1. On/Off button
2. Turn On/Off TV
speakers
3. Enter sleep mode in
certain chosen time
4. Select between
Mono/Stereo audio if
available
5. Picture size selection
6. Number buttons for
direct channel access
7. One/Two-digit channel
selection
8. Shortcut to HDMI1
input. Press Twice to
access HDMI2
9. Shortcut to PC input
10. Menu display. In OSD
sub-menu press to
access previous menu
11. Navigation button UP
12. Confirm/activate
button
13. Navigation/adjust
button LEFT
14. Navigation button
DOWN
15. Menu display for DVB
16. Activate Teletext
17. Alter Teletext mix
18. Teletext cancel
19. Teletext index
20. Fastext topic selection
in Teletext RED
21. Fastext topic selection
in Teletext GREEN
22. Item selection in DVB
23. Alter TV/Radio in DVB
24. Display time in DVB
25. Display EPG in DVB
26. Display favorite
channels in DVB
27. Display subtitles in
DVB
Buttons 15, 22, 23, 24,
25, 26, 27 and 38 are
available if DVB-module
is installed.
28. Flash when a button
is pressed
29. Available source
selection
6
Remote control buttons
30. Use to see
information about the
current source
31. Picture freeze
32. Alter sound mode
33. Alter picture mode
34. Volume increase
35. Volume decrease
36. Next channel
37. Previous channel
38. Shortcut to DVB
39. Shortcut to TV
40. Exit the OSD
41.
42.
Navigation/adjust
button RIGHT
Shortcut to Scart1
input. Press Twice to
access Scart2
43. Hold Teletext
44. Teletext size selection
45. Reveal Teletext
46. Display time in
Teletext
47. Fastext topic
selection in Teletext
Blue
48. Fastext topic
selection in Teletext
Yellow
49. Alter sound source in
PIP/POP between
main and sub
sources.
50. PIP/POP/ On/Off
51. PIP position
52. PIP size
8

Basic Operation
Turning LCD-TV On/Off
Press Power button on the remote control or the On/Off button on the
control buttons. The LCD will turn on and you will be ready to use its
features.
Select Source
Press Source button on the remote control. Then you can see the
source list menu shown to the left. Press Navigation Up/down button
on the remote control to select the source and confirm by pressing
Enter.
Volume Control
Press VOL+ / VOL- button on the remote control to
adjust the volume level.
Press MUTE button on the remote control when you need to mute the sound or change the
volume level to 0.
VOLUME 29
Source
PC
HDMI 1
HDMI 2
TV
AV
SVIEDO
SCART1
SCART2
YPBPR
YPBPR2
Design and specifications are subject to change without notice.

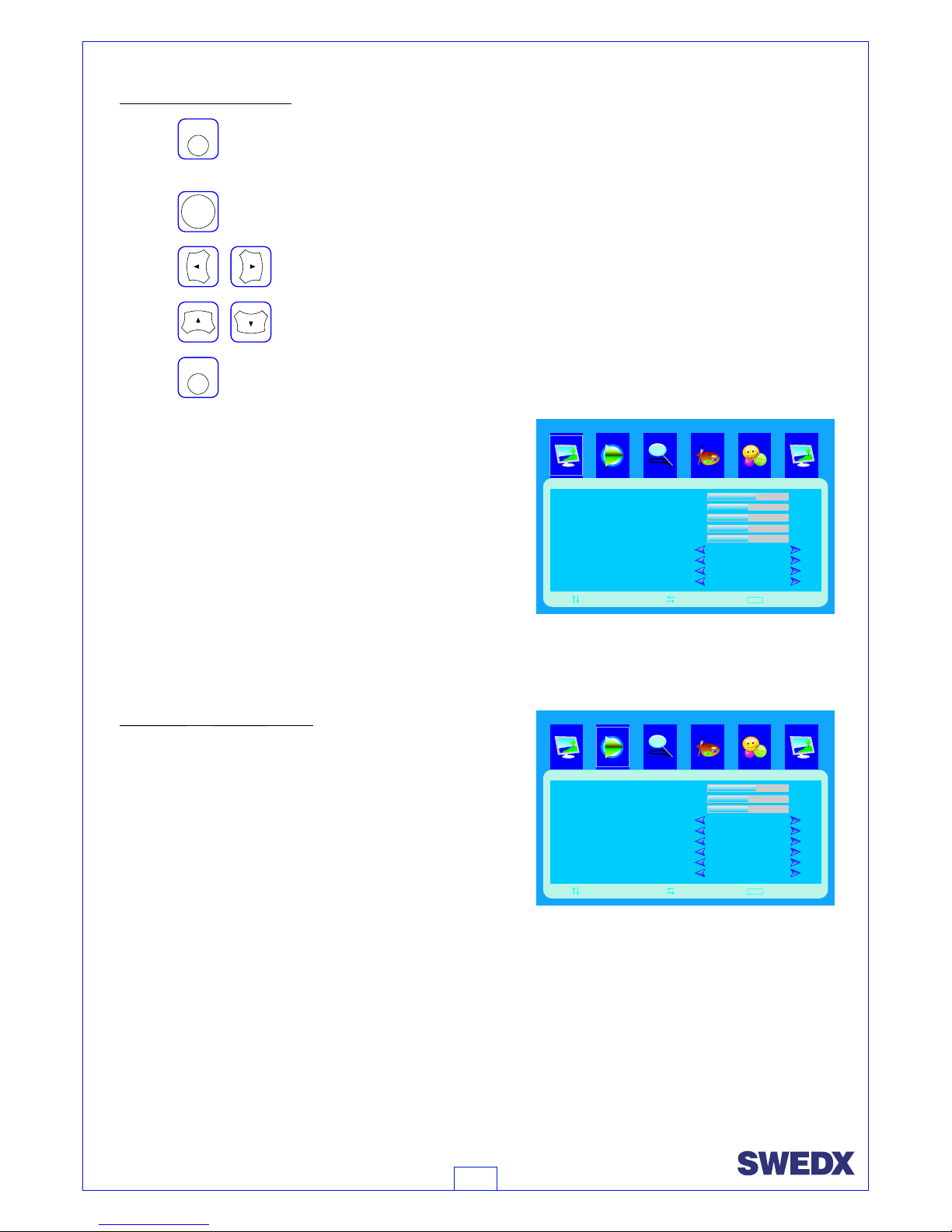

OSD Menu Structure
• OSD (On Screen Display) allows users to control
or adjust various features and settings in
accordance with his/her preferences.
• Press the MENU button on the remote control to
see the main OSD menu.
Example of OSD Menu:
• Main Menu: Press the MENU button on the remote
control to enter the main OSD menu.
First, select Main menu item you need with the
.
To select a main menu items, just press Enter or Navigation buttons on the Remote Control.
• Sub-Menu: Each menu item has its own sub-menu items to set.
• Sub-Menu items:
A: If there is a part, the item has a sub-menu. You can enter the sub-menu and adjust
an item you need.
Select sub-menu item with buttons on the remote control and press buttons
to enter the sub-menu or change the value.
? &
& ? &
B: If there is no ? part, the item has adjustable values. Use the ? & buttons to adjust the
values.
C: If the sub-menu item is grey colored, it means this item is not available in the particular
mode.
?
?
?
?
buttons
9
:OK
C O N T R A S T
B R I G H T N E S S
C O L O R M O D E
S C A L E
A U T O S I Z E
N O R M A L
6 0
5 0
: S E L : A D J : E X I T
MENU
P C

Design and specifications are subject to change without notice.
TV Mode
Menu
PICTURE MODE: STANDARD, DYNAMIC, SOFT
and PERSONAL.
NOISE REDUCE: OFF, LOW, MID and HIGH.
? Picture Menu
In this you can change the following parameters:
CONTRAST: 0 - 100.
BRIGHTNESS: 0 - 100.
SATURATION: 0 - 100.
SHARPNESS: 0 - 100.
COLOR TEMP.: NORMAL, WARM and COLD.
SCALE: FULL, ZOOM1, SUBTITLE,
REGULAR, PANORAMA and
14:9.
Refer to page 10 for OSD Menu Operation.
TV Mode Sound
SOUND MODE: STANDARD, NEWS, MUSIC and
PERSONAL.
Mode1, 2, 3, 4 and OFF.
1 - 12 and OFF.
SOUND EFFECT: Not available.
AUDIO MODE: MONO, STEREO AND II.
AVC: The source (cable or satellite box) may have a volume control that is set to a
high level. Turn on the Automatic Volume Control (AVC) to control it.
Refer to page 10 for OSD Menu Operation.
? Menu
In this Menu you can change the following parameters:
BASS: 0 - 100.
TREBLE: 0 - 100.
BALANCE: 0 - 100.
SUBWOOFER: ON - OFF.
AVC*: ON - OFF.
LOUDNESS:
SUPER BASS:
OSD Menu Operation:
Press button on the remote control to access the OSD Menu. Pressing the same button
again will move you backwards in the OSD structure.
Press button to confirm/select.
Use buttons to navigate or change the parameters of the current sub-menu.
Use buttons to navigate in the OSD Menu.
Press button to exit the OSD Menu.
MENU
ENTER
EXIT
10
C O N T R A S T
B R I G H T N E S S
HUE
S A T U R A T I O N
SHARPNESS
C O L O R T E M P.
S C A L E
P I C T U R E M O D E
N O I S E R E D U C E
N O R M A L
F U L L
P E R S O N A L
M I D
6 0
5 0
5 0
5 0
5 0
: S E L : A D J : E X I T
MENU
P I C T U R E
BASS
T R E B L E
B A L A N C E
S O U N D M O D E
S U B W O O F E R
A V C
L O U D N E S S
SUPER BASS
A U D I O M O D E
O F F
O F F
S T A N D A R D
O F F
O F F
S T E R E O
6 0
5 0
5 0
: S E L : A D J : E X I T
MENU
S O U N D

Design and specifications are subject to change without notice.
TV Mode ? Advance Menu
this Menu
ON TIMER*: 00:00 - 23:59 and OFF.
OFF TIMER*: 00:00 - 23:59 and OFF.
SLEEP TIMER: OFF, 15,30,45,60,90,120 minutes.
TTX LANGUAGE: WEST, EAST, RUSSIAN, ARABIC
and FARSI.
AUTO FORMAT*: ON - OFF.
9 WIN*: ON - OFF.
CLOCKER*: Set the TV time.
ON TIMER*: Turn ON the TV on given time.
OFF TIMER*: Turn OFF the TV on given time.
AUTO FORMAT: Auto-switch to SCART or SCART2 when
scart source signal is connected . Only in TV, AV,
SVIDEO, SCART AND SCART2 Mode.
9 WIN*: Activate 9 Win feature where you can watch 9 TV-
channels at the same time. Available only in TV mode.
Refer to page 10 for OSD Menu Operation.
In you can change the following parameters:
CLOCKER*: 00:00 - 23:59.
CH 2
CH 5
CH 1
CH 4
CH 3
CH 6
CH 9CH 8CH 7
11
TV Mode ? OSD Menu
this Menu
OSD H-POSITION*:0 - 100.
OSD V-POSITION*: 0 - 100.
OSD DURATION*: 5, 15, 30 AND 60 sec.
OSD HALFTONE*: 0 - 100.
INFORMATION*:
MEMORY RECALL*:
LANGUAGE: Change the OSD language.
OSD H-POSITION: Change the OSD position horizontally.
OSD V-POSITION: Change the OSD position vertically.
OSD DURATION: Change the duration time of the OSD.
OSD HALFTONE: Change the OSD background transparency.
INFORMATION: Display the current source information.
MEMORY RECALL: Reset all parameters to factory settings (not including tuned TV channels).
Refer to page 10 for OSD Menu Operation.
In you can change the following parameters:
LANGUAGE*: English, Chinese (Sim), Chinese
(Td), Dutch, French, Spanish,
Italian, Russian and Swedish.
TV Mode ? TV-channel Menu
this Menu
l
SOUND SYSTEM: B/G, I, D/K, L, L
AUTO SCAN: Search TV channels automatically.
MANUAL SEARCH: Search TV channel manually.
CHANNEL EDIT: See TV-channel ? Channel Edit.
PROGRAM AREA: Activate settings for certain
country/system.
Refer to page 10 for OSD Menu Operation.
In you can change the following parameters:
COLOR SYSTEM: PAL, SECAM and AUTO.
C L O C K E R
O N T I M E R
O F F T I M E R
S L E E P T I M E R
T T X L A N G U A G E
A U T O F O R M A T
9 W I N
O F F
0 9 : 0 5
O F F
O F F
W E S T
0 8 : 0 5
O F F
0 0 : 0 0
: S E L : A D J : E X I T
MENU
A D V A N C E
O S D L A N G U A G E
O S D H - P O S I T I O N
O S D V - P O S I T I O N
O S D D U R A T I O N
O S D H A L F T O N E
I N F O R M A T I O N
M E M O R Y R E C A L L
E N G L I S H
6 0 S E C
5 0
5 0
5 0
: S E L : A D J : E X I T
MENU
O S D
C O L O R S Y S T E M
S O U N D S Y S T E M
A U T O S C A N
M A N U A L S E A R C H
C H A N N E L E D I T
P R O G R A M A R E A
A U T O
A U T O
O T H E R
: S E L : A D J : E X I T
MENU
T V - C H A N N E L

Design and specifications are subject to change without notice.

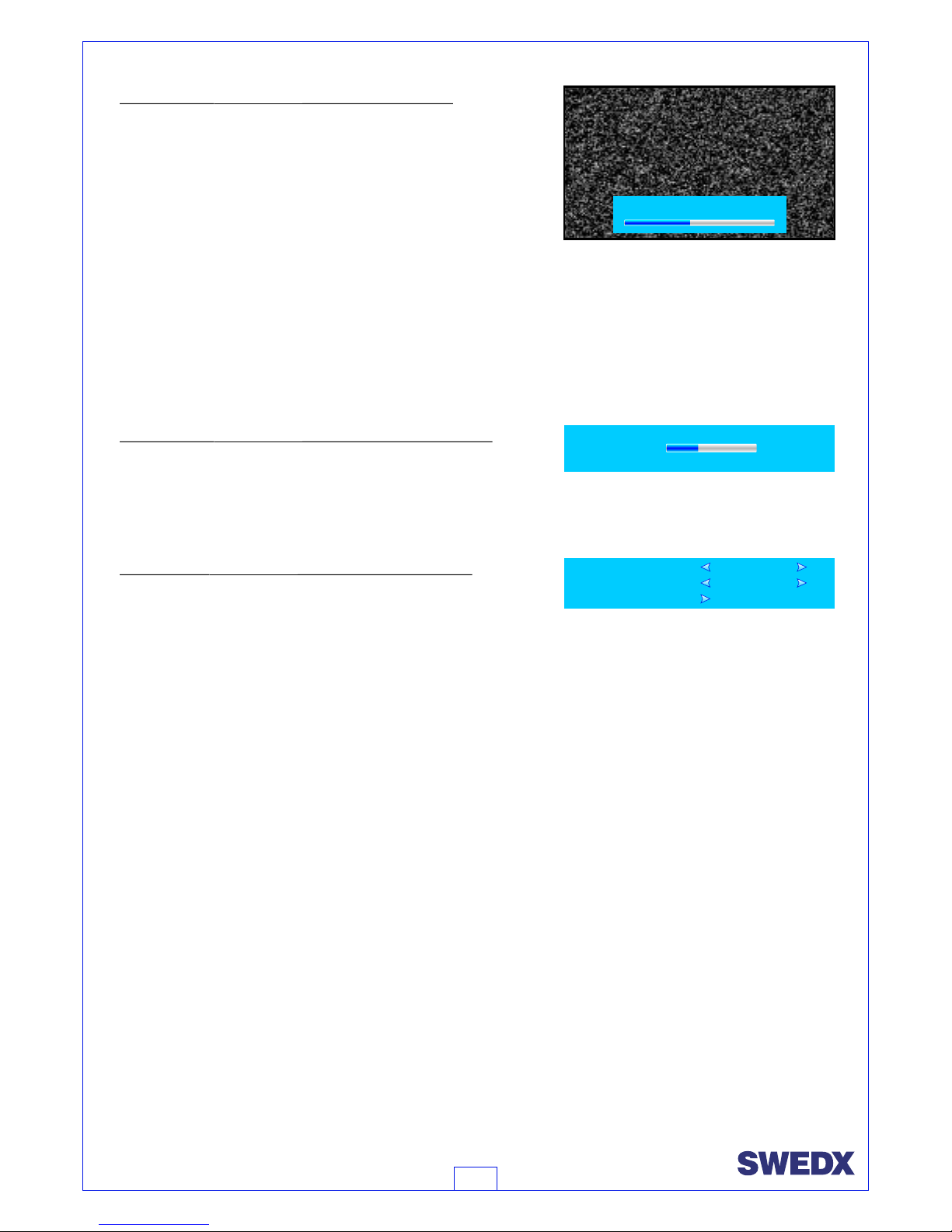

TV Mode ? Menu ? Auto Scan
In this Menu you can scan TV channels automatically.
When activating the Auto Scan an information box will
appear on the screen and display the scan progress.
In order to receive TV program, the signal should be
received from outdoor antenna, cable TV or satellite
broadcast network.
1. In these three cases, the input cable of antenna or TV
network should be plugged in the 75 Ohm coaxial cable jack at the rear of LCD-TV.
2. lf you are using indoor antenna and the effect of TV program is not satisfactory, you can
adjust the position of the antenna until the picture is clear.
When installing LCD TV, please use special 75 Ohm coaxial Cable. If other coaxial cable is used,
there may be noise and image disturbances.
Refer to page 10 for OSD Menu Operation.
TV-channel
CH590.70 MHZ 2
TV Mode ? Menu ? Manual Search
In this Menu you can scan TV channels manually. When
activating the Manual Scan an information box will appear
on the screen. Choose the channel number you want to
search manually and use the ? & buttons to start the search. When the desired channel is
found navigate to STORE and press ? button to store the tuned channel in the chosen position.
TV-channel
?
MANUAL S C A N
CHANNEL
790.70 MHZ
2
TV Mode ? Menu ? Channel Edit
In this Menu you can sort the TV channels manually.
When activating the Channel Edit a sub menu will appear
on the screen.
CHANNEL 1: Channel number.
SKIP: ON - OFF.
CHANNEL 2: Channel number.
EXCHANGE: Execute exchange between channel 1 and 2 positions.
AFC: ON - OFF.
FINE TUNING: Perform fine tuning for selected channel.
TV-channel FROM
TO
CONFIRM
5
1
12
STORE OK

Design and specifications are subject to change without notice.
13

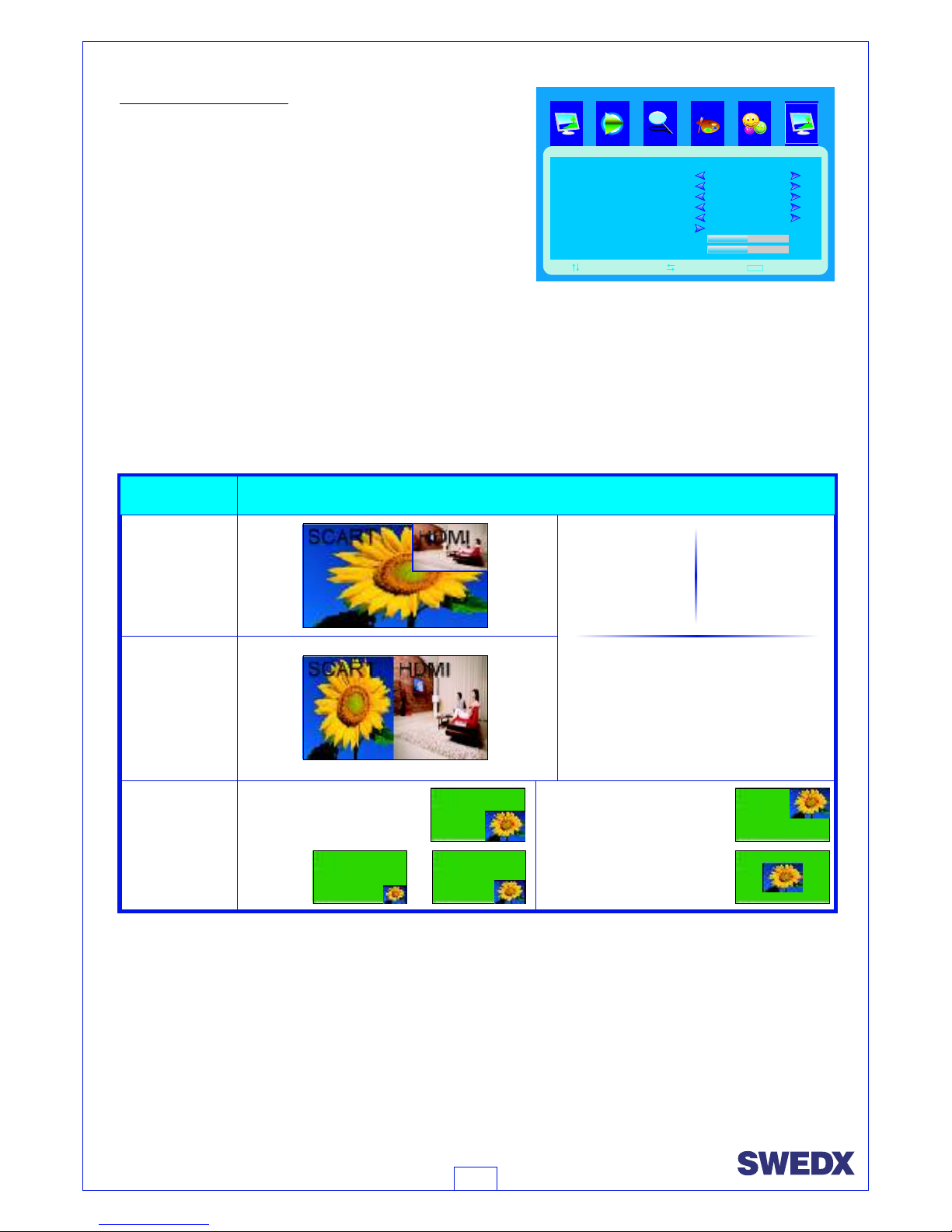

TV Mode ? PIP Menu
Menu
SOUND SOURCE*: MAIN or SUB
SWAP: Perform swap between main and
sub sources.
0 - 100. PIP window V-position.
BORDER COLOR: BLACK or BLUE. Change the
border color of the PIP/POP window.
SOUND SOURCE: Choose the source for the sound from main or sub sources.
In this you can activate the PIP function.
PIP: OFF, PIP and POP FULL.
SUB SOURCE: See description below.
SIZE: SMALL, MIDDLE or LARGE.
BORDER COLOR*: BLUE and BLACK.
H-POSITION: 0 - 100. PIP window H-position.
V-POSITION:
Refer to page 10 for OSD Menu Operation.
Function Description
PIP Group 1
PC
HDMI
HDMI2
YPBPR
YPBPR2
Group 2
TV
AV
SVIDEO
SCART
SCART2
In PIP and POP, it is possible to
choose a source from Group 1 as
main source together with a source
from Group 2 as a sub source or
vice versa. Example, PC+TV, or
SCART+HDMI.
PIP
Size &
Position
Choose between 3
PIP sizes.
Choose between 4
predefined positions
or create customs
positions with H and V-
position feature.
PIP
POP
SCART HDMI
SCART HDMI
M U L T I W I N D O W
S U B S O U R C E
S I Z E
B O R D E R C O L O R
S O U N D S O U R C E
S W A P
H - P O S I T I O N
V - P O S I T I O N
P I P
H D M I
L A R G E
B L U E
M A I N
: S E L : A D J : E X I T
MENU
P I P
5 0
5 0

Design and specifications are subject to change without notice.
PC Mode ? Geometry
In this Menu you can change the following parameters:
H-POSITION: 0 - 100.
V-POSITION: 0 - 100.
CLOCK: 0 - 100.
PHASE: 0 - 100.
Refer to page 10 for OSD Menu Operation.
Menu
14
C O N T R A S T
B R I G H T N E S S
C O L O R M O D E
S C A L E
A U T O S I Z E
N O R M A L
6 0
5 0
: S E L : A D J : E X I T
MENU
P I C T U R E
PC Mode ? Picture
Refer to page 10 for OSD Menu Operation.
Menu
In this Menu you can change the following parameters:
CONTRAST: 0 - 100.
BRIGHTNESS: 0 - 100.
COLOR MODE: NORMAL, WARM, COOL and
RGB. In RGB mode you can
change the level for RED, GREEN
and BLUE colors.
SCALE: NORMAL and CENTER.
AUTO SIZE: Optimize the scaling of the signal.
H - P O S I T I O N
V - P O S I T I O N
C L O C K
PHASE
6 0
6 0
5 0
5 0
: S E L : A D J : E X I T
MENU
G E O M E T R Y
Scart Mode ? Picture
Refer to page 10 TV Mode ? Picture Menu.
This Menu applies also to the following sources:
AV
SVIDEO
SCART2
Refer to page 10 for OSD Menu Operation.
Menu
C O N T R A S T
B R I G H T N E S S
HUE
S A T U R A T I O N
SHARPNESS
C O L O R T E M P.
S C A L E
P I C T U R E M O D E
N O I S E R E D U C E
N O R M A L
F U L L
P E R S O N A L
M I D
6 0
5 0
5 0
5 0
5 0
: S E L : A D J : E X I T
MENU
P I C T U R E

Design and specifications are subject to change without notice.
Scart Mode ? Sound
Refer to page 10 TV Mode ? Sound Menu.
This Menu applies also to the following sources:
AV
SVIDEO
SCART2
Refer to page 10 for OSD Menu Operation.
Menu
Scart Mode ? Advance Menu
Refer to page 11 TV Mode ? Advance Menu.
This Menu applies also to the following sources:
AV
SVIDEO
SCART2
Refer to page 10 for OSD Menu Operation.
Scart Mode ? OSD Menu
Refer to page 11 TV Mode ? OSD Menu.
This Menu applies also to the following sources:
AV
SVIDEO
SCART2
Refer to page 10 for OSD Menu Operation.
15
Scart Mode ? PIP Menu
Refer to page 13 TV Mode ? PIP Menu.
This Menu applies also to the following sources:
AV
SVIDEO
SCART2
Refer to page 10 for OSD Menu Operation.
BASS
T R E B L E
B A L A N C E
S O U N D M O D E
S U B W O O F E R
A V C
L O U D N E S S
SUPER BASS
A U D I O M O D E
O F F
O F F
S T A N D A R D
O F F
O F F
S T E R E O
6 0
5 0
5 0
: S E L : A D J : E X I T
MENU
S O U N D
C L O C K E R
O N T I M E R
O F F T I M E R
S L E E P T I M E R
T T X L A N G U A G E
A U T O F O R M A T
9 W I N
O F F
0 9 : 0 5
O F F
O F F
W E S T
0 8 : 0 5
O F F
0 0 : 0 0
: S E L : A D J : E X I T
MENU
A D V A N C E
O S D L A N G U A G E
O S D H - P O S I T I O N
O S D V - P O S I T I O N
O S D D U R A T I O N
O S D H A L F T O N E
I N F O R M A T I O N
M E M O R Y R E C A L L
E N G L I S H
6 0 S E C
5 0
5 0
5 0
: S E L : A D J : E X I T
MENU
O S D
M U L T I W I N D O W
S U B S O U R C E
S I Z E
B O R D E R C O L O R
S O U N D S O U R C E
S W A P
H - P O S I T I O N
V - P O S I T I O N
P I P
H D M I
L A R G E
B L U E
M A I N
: S E L : A D J : E X I T
MENU
P I P
5 0
5 0

Design and specifications are subject to change without notice.
16
YPBPR
Refer to page 10 TV Mode ? Sound Menu.
This Menu applies also to the following
sources:YPBPR2
YPBPR2
HDMI
HDMI2
Refer to page 10 for OSD Menu Operation.
Mode ? Sound Menu
YPBPR
Refer to page 11 TV Mode ? Advance Menu.
This Menu applies also to the following sources:
YPBPR2
HDMI
HDMI2
Refer to page 10 for OSD Menu Operation.
Mode ? Advance Menu
YPBPR
Refer to page 11 TV Mode ? OSD Menu.
This Menu applies also to the following sources:
YPBPR2
HDMI
HDMI2
Refer to page 10 for OSD Menu Operation.
Mode ? OSD Menu
YPBPR
Refer to page 13 TV Mode ? PIP Menu.
This Menu applies also to the following sources:
YPBPR2
HDMI
HDMI2
Refer to page 10 for OSD Menu Operation.
Mode ? PIP Menu
BASS
T R E B L E
B A L A N C E
S O U N D M O D E
S U B W O O F E R
A V C
L O U D N E S S
SUPER BASS
A U D I O M O D E
O F F
O F F
S T A N D A R D
O F F
O F F
S T E R E O
6 0
5 0
5 0
: S E L : A D J : E X I T
MENU
S O U N D
C L O C K E R
O N T I M E R
O F F T I M E R
S L E E P T I M E R
T T X L A N G U A G E
A U T O F O R M A T
9 W I N
O F F
0 9 : 0 5
O F F
O F F
W E S T
0 8 : 0 5
O F F
0 0 : 0 0
: S E L : A D J : E X I T
MENU
A D V A N C E
O S D L A N G U A G E
O S D H - P O S I T I O N
O S D V - P O S I T I O N
O S D D U R A T I O N
O S D H A L F T O N E
I N F O R M A T I O N
M E M O R Y R E C A L L
E N G L I S H
6 0 S E C
5 0
5 0
5 0
: S E L : A D J : E X I T
MENU
O S D
M U L T I W I N D O W
S U B S O U R C E
S I Z E
B O R D E R C O L O R
S O U N D S O U R C E
S W A P
H - P O S I T I O N
V - P O S I T I O N
P I P
H D M I
L A R G E
B L U E
M A I N
: S E L : A D J : E X I T
MENU
P I P
5 0
5 0
YPBPR
Refer to page 10 TV Mode ? Picture Menu.
This Menu applies also to the following sources:
YPBPR2
HDMI
HDMI2
Refer to page 10 for OSD Menu Operation.
Mode ? Picture Menu
C O N T R A S T
B R I G H T N E S S
HUE
S A T U R A T I O N
SHARPNESS
C O L O R T E M P.
S C A L E
P I C T U R E M O D E
N O I S E R E D U C E
N O R M A L
F U L L
P E R S O N A L
M I D
6 0
5 0
5 0
5 0
5 0
: S E L : A D J : E X I T
MENU
P I C T U R E

Wall mode
1. Unmount the base by removing the screws
at the base bottom. See figure A.
2. Drill the holes. The distance between the
holes centers is given below according the
model. See figure B
3. Install the plug, part A and the screws
according to the drawing to the right. See
figure C.
4. Install the Parts A according to the figure
B1. Avoid to install the part up&down.
5. Install the screws A on the rear of the LCD-
TV. See figure D.
5. Hang the LCD-TV on the installed Parts A.
The screws on the rear would fit in the
Holes X on Parts A. After fitting the screws
to the holes let the LCD-TV slide down to
the limits on Parts A. See figure E.
Distance between holes:
mm horizontally.
mm vertically between first and
second hole from the top.
mm vertically between second
and third hole from the top.
mm horizontally.
mm vertically between first and
second hole from the top.
mm vertically between second
and third hole from the top.
It is strongly recommended that you
connect all connections cables before
hanging the LCD-TV on the wall.
XV1-40: 1121
50
100
XV1-46: 1143
50
100
Desk mode
Install the base using the screws A and install
your LCD-TV in desired position. See figure A.
Design and specifications are subject to change without notice.
B
1121 mm
50
mm
Part A
Part A
Screw B
Hole X
C
Plug
Wall
1.
2.
E
Screw A
D
A
B1
17
100
mm

Troubleshooting
Before contacting SWEDX service or your dealer, perform the following simple checks. If you
cannot solve the problem using the instructions below, note the model and serial number of your
set and contact your local dealer.
Check that the mains lead has been connected to a wall socket.
Check that you have pressed the POWER button on the front of the TV.
Check the picture contrast and brightness settings.
Check the volume.
Check the volume.
Check whether the MUTE button has been pressed on the remote
control.
Adjust the color settings.
Check that the broadcast system selected is correct.
Try to identify the electrical appliance that is affecting the set and
move it further away.
Plug your set into a different mains socket.
Check the direction, location and connections of your aerial.
This interference is often due to the use of an indoor aerial.
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Turn off the TV and unplug the AC cable from the wall socket and
then plug the AC cable and turn on the TV.
Check that the signal cable is firmly connected to the source input.
Check that the source are turned on.
Check the maximum resolution and the frequency of the video
adapter..
Adjust the Brightness and Contrast.
No sound or picture
Normal picture but no
sound
No picture or black and
white picture
Sound and picture
interference
Blurred or snowy
picture, distorted sound
Remote control
malfunctions
“No signal”
message is displayed.
On PC mode, “Not
Supported Mode”
message is displayed.
The image is too light
or too dark.
Design and specifications are subject to change without notice.
18

Design and specifications are subject to change without notice.
Warranty and Service
The following terms apply only to new "in the original carton" SWEDX products marketed and
distributed by SWEDX, which are purchased and used by the original consumer purchaser. This
information is subject to the terms and conditions of the written SWEDX warranty statement
included with each product, and are available for examination from the dealer prior to purchase.
Depending on the model, your terms and conditions may be different from those shown below,
and this information is subject to change without prior notice. Unless specifically stated otherwise,
used and reconditioned products that are resold have no warranty from SWEDX and are
considered sold "AS-IS", however, the selling dealer may offer additional service options.
Warranty for SWEDX products:
Check with your dealer for the warranty period.
What the warranty covers:
SWEDX warrants your SWEDX display(s) against defects in material and workmanship during
the warranty period from SWEDX factory delivery date shown in the shipping documents. If a
product proves to be defective in material or workmanship during the warranty period, SWEDX
will, at its sole option repair or replace the product with a similar product, provided the purchaser
adheres to certain return authorization procedures and guidelines. SWEDX reserves the right to
charge customer in case of warranty conditions not are fulfilled.
Who the warranty protects:
This warranty is valid only for the first purchaser.
What the warranty does not cover:
1. Any product which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
A. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized
product modification, or failure to follow instructions supplied with the product.
B. Repair or attempted repair by anyone not authorized by SWEDX.
C. Any damage of the product due to shipment.
D. Removal or installation of the product.
E. Causes external to the product, such as electric power fluctuations or failure.
F. Use of supplies or parts not meeting SWEDX specifications.
G. Normal wear and tear.
H. Any other cause which does not relate to a product defect.
3. Cosmetic damage by purchaser, such as markings, discoloration, scratches, dents, anti-theft
devices markings, gouges or any other defacement.
4. Physically damaged products by purchaser, such as broken PCB, Housing, damaged LCD
Module.
5. No Defect Found (product returned to SWEDX as defective but failure is not duplicated by
SWEDX's test method.)
6. The product is not in accordance with the fault in the application
7. Timber is a lifelike natural material which can cause some little changes in the precision of the
produced product such as small openings line beside the connecting point and some other
small changes which are out of SWEDX control and don't make any effect for the product
functionality.
Dead on Arrival (DOA)
If the product fails within the manufacturer's DOA period, a replacement product will be offered.
Before contacting us:
In many cases, your TV may not need repair. Before you contact us, please consult the
troubleshooting section in your user's manual or SWEDX's FAQ web pages at
http://www.swedx.com to see if you can easily remedy the problem yourself.
19

How to get service:
For information on obtaining warranty service, contact SWEDX dealer (the place where you
bought your product) in first choice. If for any reason you can not contact your dealer, please
contact SWEDX Customer Service by visiting http://www.swedx.com.
SWEDX technical support services:
During the period of product warranty, we support your basic configuration, setup and
troubleshooting questions, and when required, we provide you with all instructions on how to
return your product for repair. For support inquiries, please visit http://www.swedx.com.
SWEDX reserves the right to make final decisions regarding problem determination and the
appropriate service option. Exchange units assume the remaining warranty of the original
product. Please refer to your SWEDX Limited Warranty Statement for complete terms and
conditions, as some models have other terms and conditions. Some limitations and restrictions
apply and these programs are subject to change without prior notice.
Limitation of liability
If your SWEDX product fails to work as warranted above, your sole and exclusive remedy shall
be repaired or replaced. SWEDX's maximum liability under this limited warranty is expressly
limited to the lesser of the price you have paid for the product or the cost of repairing or
replacement of any hardware components that malfunction in conditions of normal use. SWEDX
is not liable for any damages caused by the product or the failure of the product to perform,
including any lost profits or savings or special, incidental, or consequential damages. SWEDX is
not liable for any claim made by a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or a claim made, under this limited
warranty or as a tort claim (including negligence and strict product liability), a contract claim, or
any other claim. This limitation of liability cannot be waived or amended by any person. This
limitation of liability will be effective even if you have advised SWEDX.
Design and specifications are subject to change without notice.
20
