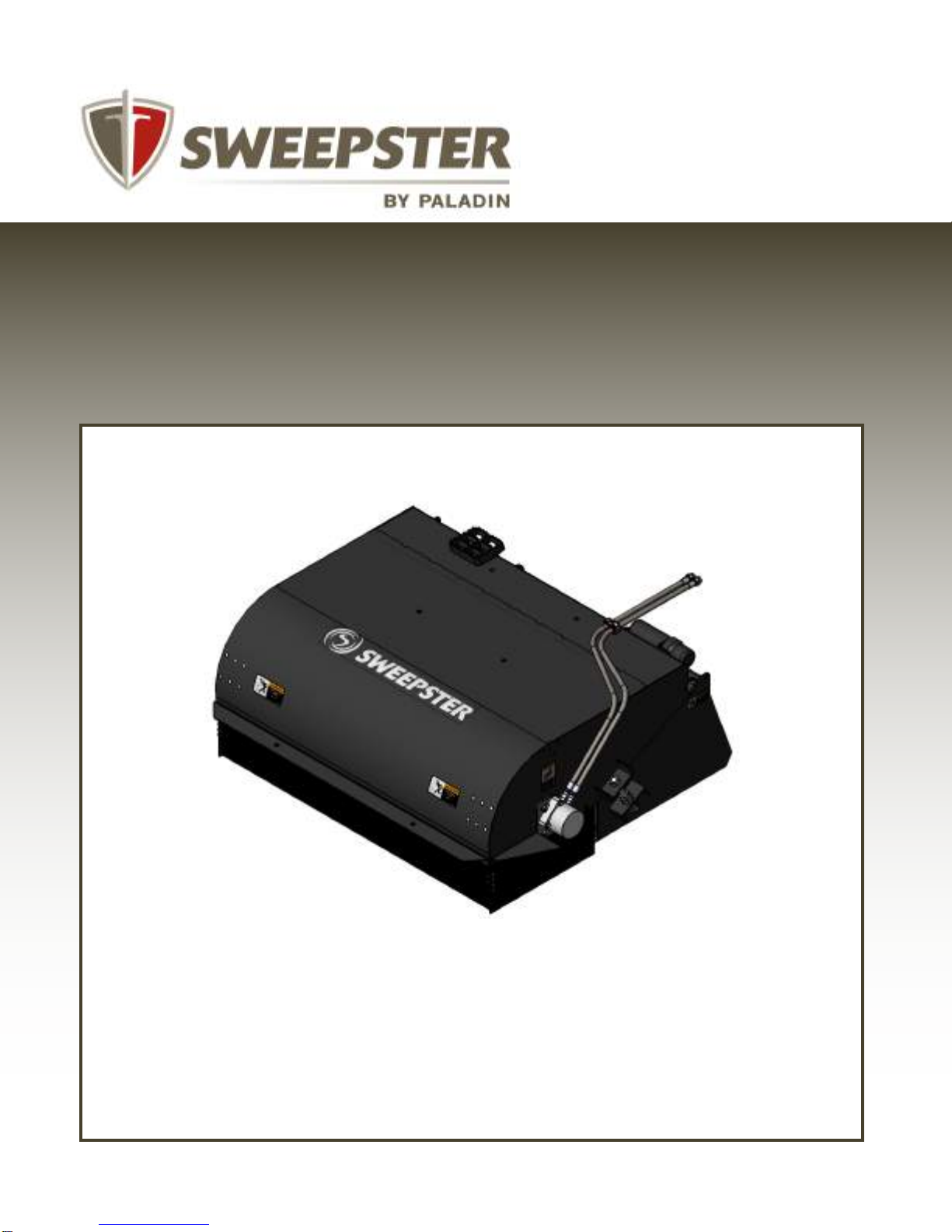

Sweepster 205 Series Product manual

1
800-456-7100 I www.paladinattachments.com 2800 N. Zeeb Rd., Dexter, MI. 48130, United States of America Copyright ©
OPERATOR’S AND PARTS MANUAL
205 Series
SB Hopper Broom
Cold Planer Special
Manual Number: 51-4178
Release Date: January 2014
Serial Number: 0913001 & Up
Rev. 1
Serial Number: ___________________
Model Number: ___________________

2
Notes

3
TABLE OF CONTENTS
INTRODUCTION..........................................................................................................................................4
SAFETY STATEMENTS...............................................................................................................................4
GENERAL SAFETY PRECAUTIONS........................................................................................................5-6
SAFETY SIGNS & LABELS .........................................................................................................................7
SERVICE & REPAIR - SAFETY...................................................................................................................8
OPERATION.................................................................................................................................................8
STORAGE..................................................................................................................................................10
PRODUCT INFORMATION........................................................................................................................11
MAINTENANCE .........................................................................................................................................12
REPLACING BRUSH SECTIONS..............................................................................................................13
MAINTENANCE SCHEDULE.....................................................................................................................14
MAINTENANCE RECORD.........................................................................................................................15
TROUBLESHOOTING ..........................................................................................................................16-17
ADJUSTING THE GUTTERBROOM..........................................................................................................18
CORE ASSEMBLY.....................................................................................................................................20
MOTOR ASSEMBLY..................................................................................................................................21
BEARING ASSEMBLY ..........................................................................................................................22-23
HOOD ASSEMBLY.....................................................................................................................................24
CUTTING EDGE KIT..................................................................................................................................25
GUTTERBROOM..................................................................................................................................26-27
DUST SUPPRESSION KIT...................................................................................................................28-29
BOLT TORQUE SPECIFICATIONS ...........................................................................................................30
HYDRAULIC TORQUE SPECIFICATIONS...........................................................................................31-32
WARRANTY...............................................................................................................................................33

4
INTRODUCTION
Purpose of Sweeper
This sweeper is designed solely for the use in
construction cleanup, road maintenance and similar
operations. Use in any other way is considered
contrary to the intended use. Compliance with and
strict adherence to operation, service and repair
conditions, as specied by the manufacturer, are
also essential elements of the intended use.
Contacting Sweepster
If you have any questions about information in this
manual or need to order parts, please call, write, fax
or e-mail SWEEPSTER.
Sweepster
2800 North Zeeb Road
Dexter, Michigan 48130
Phone: [phone]
Fax: [phone]
e-mail: [email protected]
For help with installation, operation or maintenance
procedures, contact our Technical Service
Department. Direct product questions and parts
orders to our Sales Department.
When ordering parts or accessories, be prepared to
give the following information:
• Sweeper model, serial number and date of
purchase
• Prime mover, make and model
• Part number, description and quantity
Terms Used in Manual
Right-hand, left-hand, front and rear are determined
from the operator’s perspective (either the
operator’s seat or standing behind a walk-behind
unit), facing forward in the normal operating
position.
Warranty
To validate the warranty for this unit, ll out the
warranty card or warranty pages located in the
back of this manual. Then send this information to
SWEEPSTER.
SAFETY STATEMENTS
DANGER! THIS STATEMENT IS USED
WHERE SERIOUS INJURY OR
DEATH WILL RESULT IF THE
INSTRUCTIONS ARE NOT
FOLLOWED PROPERLY.
WARNING! THIS STATEMENT IS USED
WHERE SERIOUS INJURY OR
DEATH COULD RESULT IF
THE INSTRUCTIONS ARE NOT
FOLLOWED PROPERLY.
CAUTION! THIS STATEMENT IS USED
WHERE MINOR INJURY COULD
RESULT IF THE INSTRUCTIONS
ARE NOT FOLLOWED PROPERLY.
NOTICE! THIS STATEMENT IS USED
WHERE EQUIPMENT OR
PROPERTY DAMAGE COULD
RESULT IF THE INSTRUCTIONS
ARE NOT FOLLOWED PROPERLY.
THIS SYMBOL BY ITSELF OR
USED WITH A SAFETY SIGNAL
WORD THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR
ATTENTION TO INSTRUCTIONS
INVOLVING YOUR PERSONAL
SAFETY OR THE SAFETY OF
OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN
RESULT IN INJURY OR DEATH.

5
GENERAL SAFETY PRECAUTIONS
WARNING! READ MANUAL PRIOR TO
INSTALL
Improper installation, operation,
or maintenance of this equipment
could result in serious injury or
death. Operators and maintenance
personnel should read this
manual as well as all manuals
related to this equipment and the
prime mover thoroughly before
beginning installation, operation,
or maintenance. FOLLOW ALL
SAFETY INSTRUCTIONS IN
THIS MANUAL AND THE PRIME
MOVERS MANUAL.
WARNING! READ AND UNDERSTAND ALL
SAFETY STATEMENTS
Read all safety decals and safety
statements in all manuals prior
to operating or working on this
equipment. Know and obey all
OSHA regulations, local laws
and other professional guidelines
for your operation. Know and
follow good work practices when
assembling, maintaining, repairing,
mounting, removing or operating this
equipment.
KNOW YOUR EQUIPMENT
Know your equipment’s capabilities,
dimensions and operations before
operating. Visually inspect your
equipment before you start, and
never operate equipment that is not
in proper working order with all safety
devices intact. Check all hardware to
assure it is tight. Make certain that all
locking pins, latches, and connection
devices are properly installed and
secured. Remove and replace any
damaged, fatigued or excessively
worn parts. Make certain all safety
decals are in place and are legible.
Keep decals clean, and replace them
if they become worn and hard to
read.
GENERAL SAFETY PRECAUTIONS
WARNING! PROTECT AGAINST FLYING
DEBRIS
Always wear proper safety glasses,
goggles or a face shield when driving
pins in or out or when operation
causes dust, ying debris, or any
other hazardous material.
WARNING! LOWER OR SUPPORT RAISED
EQUIPMENT
Do not work under raised booms
without supporting them. Do not use
support material made of concrete
blocks, logs, buckets, barrels or any
other material that could suddenly
collapse or shift positions. Make
sure support material is solid,
not decayed, warped, twisted, or
tapered. Lower booms to ground
level or onto blocks. Lower booms
and attachments to the ground
before leaving the cab or operator’s
station.
WARNING! USE CARE WITH HYDRAULIC
FLUID PRESSURE
Hydraulic uid under pressure can
penetrate the skin and cause serious
injury or death. Hydraulic leaks
under pressure may not be visible.
Before connecting or disconnecting
hydraulic hoses, read your prime
movers operator’s manual for
detailed instructions on connecting
and disconnecting hydraulic hoses or
ttings.
 •Keep unprotected body parts,
such as face, eyes, and arms as
far away as possible from a
suspected leak. Flesh injected with
hydraulic uid may develop
gangrene or other permanent
disabilities.
• If injured by injected uid, see a
doctor at once. If your doctor is not
familiar with this type of injury, ask
him to research immediately to
determine proper treatment.
