Sweepster CS Series User manual

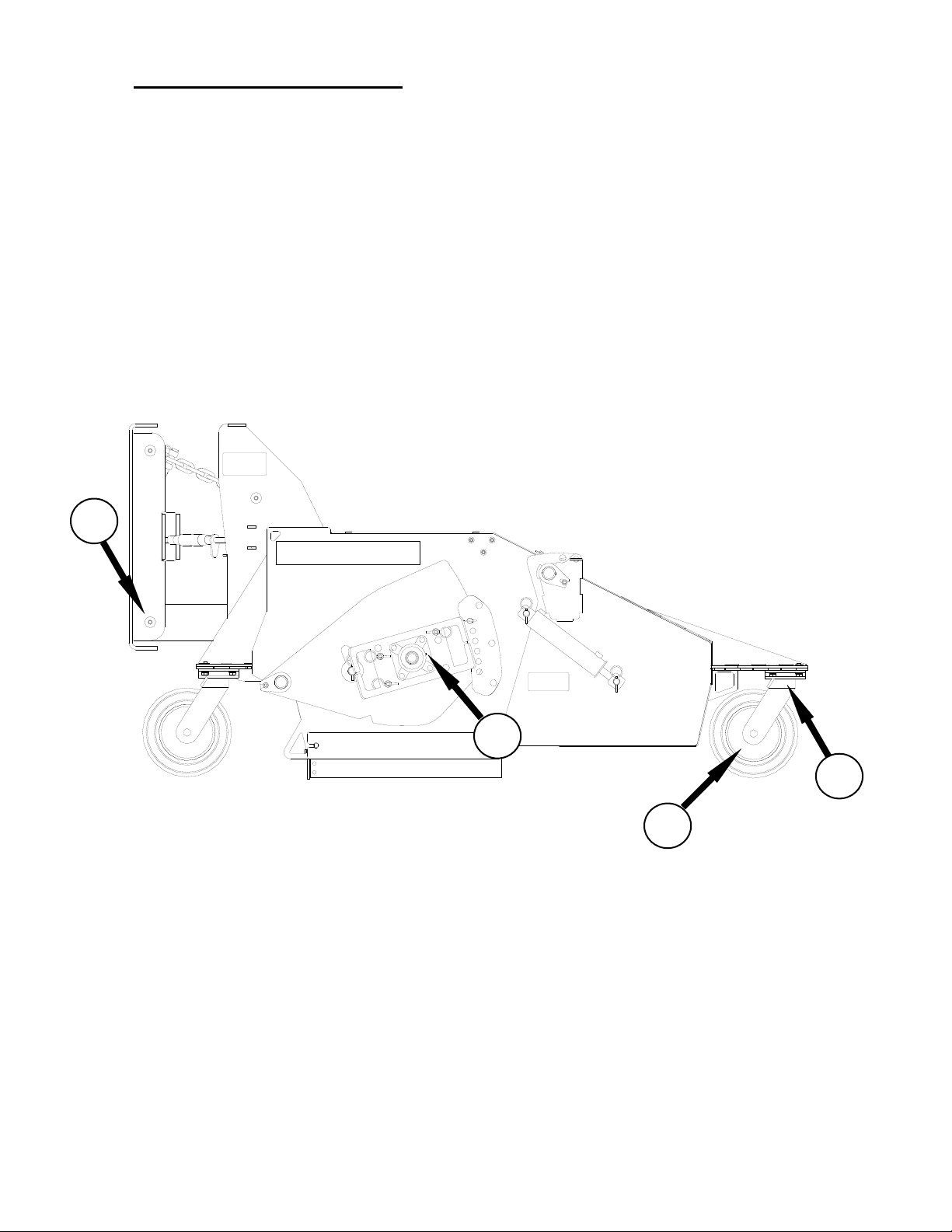

Right-hand, left-hand, frontrear

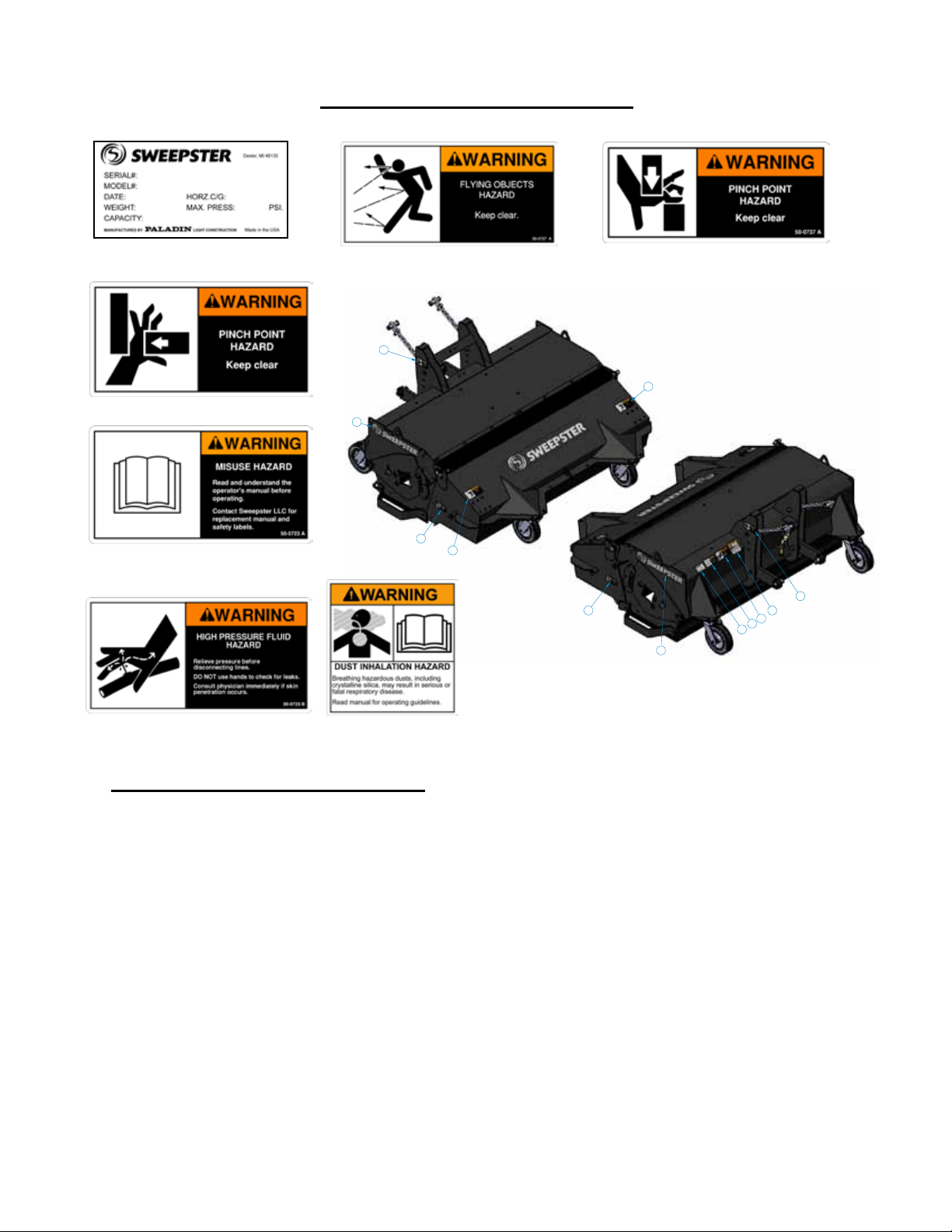

1. 50-0185 2 Label,Logo,Sweepster,Medium
2. 50-0252 1 Label,Logo,Sweepster,Large
3. 50-0634 1 Label,SerialNumber
4. 50-0644 2 Label,Warning,PinchArea
5. 50-0723 1 Label,Warning,MisuseHazard

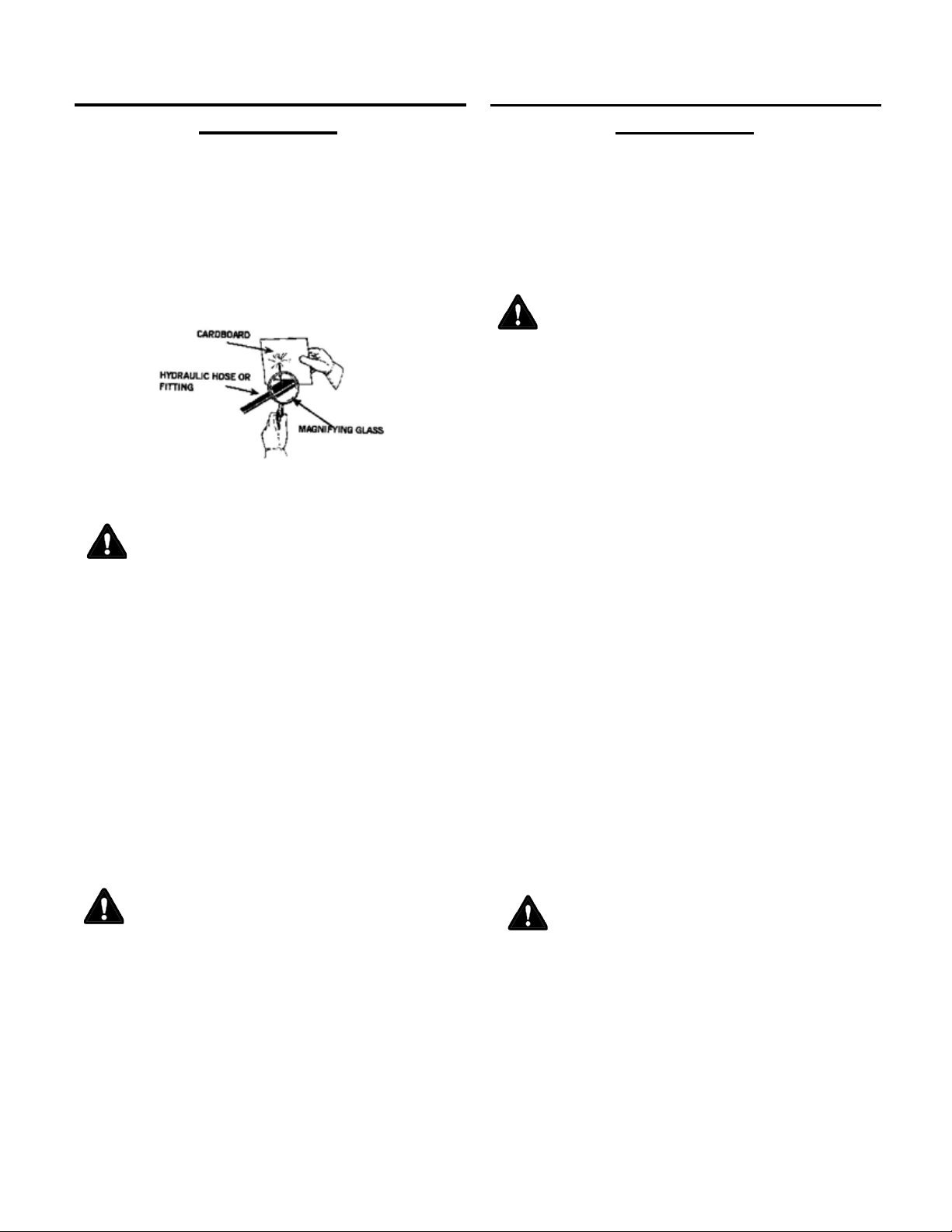

6. 50-0725 2 Label,Warning,HighPressureFluid
7. 50-0727 2 Label,Warning,FlyingObjects
8. 50-0737 2 Label,Warning,PinchPointHazard
9. 41043 1 Decal,Warning,HazardousDust
4
1
8
7
7
8
1
356
4
9

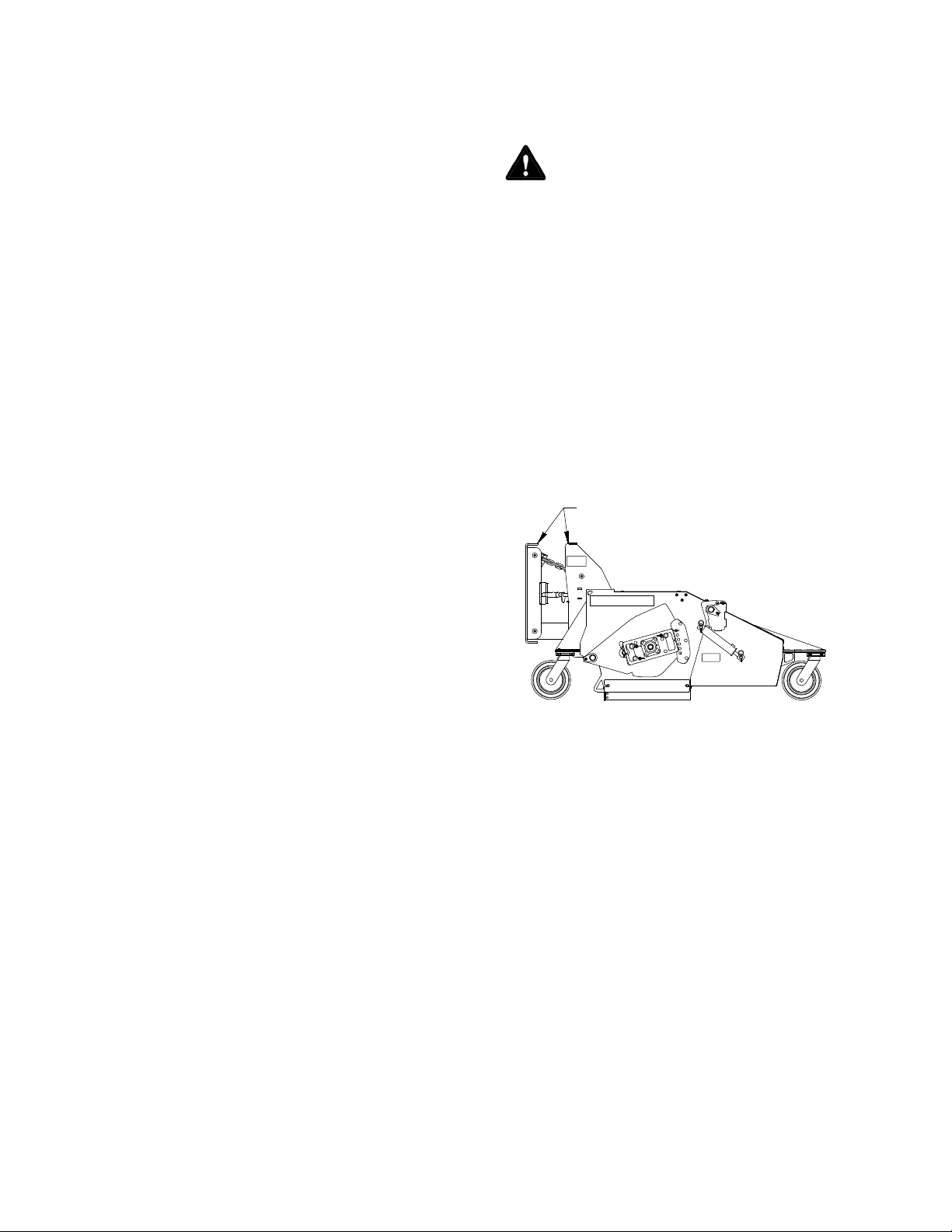

swingangle
Worn Section Standard Reference
Information
Section OD,
New
Ring ID Section
OD, Worn
Exposed
Bristle, Worn
Bristle
Length
Exposed
Bristle, New
24 6.38 17 3.8 8.50 7.5
26 8.00 18 4.0 9.00 8.0
32 10.00 22 5.0 11.00 10.0
36 10.00 24 6.0 13.00 12.0
36 10.63 25 6.0 12.69 11.4
46 19.38 34 6.0 13.31 12.1
1. 07-0244 2 Pin,Lynch,1/4
2. 07-3736 7 Washer,Flat,CL8.8,M8(6’)
07-3736 8 Washer,Flat,CL8.8,M8(7’)
07-3736 9 Washer,Flat,CL8.8,M8(8’)
07-3736 10 Washer,Flat,CL8.8,M8(9’)
3. 07-3740 7 Screw,
CL10.9,
M8-1.25x30mm(6’)
07-3740 8 Screw,
CL10.9,
M8-1.25x30mm(7’)
07-3740 9 Screw,
CL10.9,
M8-1.25x30mm(8’)
07-3740 10 Screw,
CL10.9,
M8-1.25x30mm(9’)
4. 07-3745 2 Washer,Flat,CL8.8,M10
5. 07-3747 8 Washer,Lock,Split,Medium,M10
6. 07-3748 8 Screw,
HHC,CL10.9,M10-1.5x25mm
7. 07-3749 2 Screw,CL10.9,M10-1.5x30mm
8. 07-3754 8 Washer,Flat,CL8.8,M12
9. 07-4622 2 Nut,Hex,Lock,CL10.9,M10-1.5
10. 07-6708 2 Pin,Quick,Release,Grip5/8x1
11. 07-6798 2 Caster,Assy,
10x2.75,12.25(CS26)
07-3516 2 Caster,Assy,Ply,KingpinlessCS32)
12. 07-7115 9 Nut,Insert,M8-1.25,Grip.70-.8mm
13.13-15618-6 1 Weld,Hopper,(6’)(CS26)
13-15618-7 1 Weld,Hopper,(7’)(CS26)
13-15618-8 1 Weld,Hopper,(8’)(CS26)
13-15874-8 1 Weld,Hopper,(8’)(CS32)
13-15874-9 1 Weld,Hopper,(9’)(CS32)
14.13-15640 2 Weld,Pin
15.13-15648-2 0 Plate,Retainer,Flap,(6’)(CS26)
13-15648-2 2 Plate,Retainer,Flap,(7’)(CS26)
13-15648-2 1 Plate,Retainer,Flap,(8’)(CS26/32)
13-15648-2 0 Plate,Retainer,Flap,(9’)(CS32)
16.13-15648-3 2 Plate,Retainer,Flap,(6’)(CS26)
13-15648-3 1 Plate,Retainer,Flap,(7’)(CS26)
13-15648-3 2 Plate,Retainer,Flap,(8’)(CS26/32)
13-15648-3 3 Plate,Retainer,Flap,(9’)(CS32)
17.13-15743-6 1 Flap,Hopper,(6’)(CS26)
13-15743-7 1 Flap,Hopper,(7’)(CS26)
13-15743-8 1 Flap,Hopper,(8’)(CS26/32)
13-15743-9 1 Flap,Hopper,(9’)(CS32)
18. LAF9853 12 Plug,.375,Plastic,Black
ReplacementPartsfor07-6798:
07-6520Caster,Rig,withAxleandNut
07-6522Spanner,Bushing,for3/4RollerBearing
07-6523Spacer
07-6524Bolt,1/2x51/2
07-6525Nut,Lock,Axle,1/2
07-6792Washer,Flat,Axle,3/4
07-6799Wheel,10x2.75,3/4RollerBearing
ReplacementPartsfor07-3516:
07-4879Caster,Frame
07-4578AxleAssembly
07-4588Wheel
28-9865BearingandSealKitforWheel
1. 07-01462Nut,Hex,Nylock,Gr2,3/4-10
2.07-02234Fitting,Zerk,Straight,1/8NPT
3. 07-024418Pin,Lynch,1/4
4. 07-24841Toplink,5/8Balls,127/8Cx181/4E
5. 07-30642Screw,HHC,Gr8,3/4-10x2
6. 07-32682Ring,Snap
7. 07-36842Washer,Flat,Gr8,3/4
8. 07-37362Washer,Flat,CL8.8,M8
9. 07-374031Screw,CL10.9,M8-1.25x30mm(6’)
07-374034Screw,CL10.9,M8-1.25x30mm(7’)
07-374037Screw,CL10.9,M8-1.25x30mm(8’)
07-374040Screw,CL10.9,M8-1.25x30mm(9’)
10. 07-37422Screw,HHC,CL10.9,M8-1.25x40mm
11. 07-37452Washer,Flat,CL8.8,M10
12. 07-374714Washer,Lock,Split,Medium,M10
13. 07-374910Screw,HHC,CL10.9,M10-1.5x30mm
14.07-37548Washer,Flat,CL8.8,M12
15. 07-422812Washer,Flat,CL8.8,M14
16. 07-46222Nut,Hex,Lock,CL10.9,M10-1.5
17. 07-67082Pin,QuickRelease,RingGrip
18. 07-67696Screw,HHC,CL10.9,M10-1.5x16mm
19. 07-67982Caster,Assy,10x2.75,12.25(CS26)
07-35162Caster,Assy,Kingpinless(CS32)
20.07-70172Screw,HHC,CL10.9,M8-1.25x60mm
21. 07-70932Pin,Toplink,.62-3.0
22. 07-71124Shackle,Anchor,7/16,3300lbs
23. 07-711533Nut,Insert,M8-1.25,Grip.70-3.8mm(6’)
07-711536Nut,Insert,M8-1.25,Grip.70-3.8mm(7’)
07-711539Nut,Insert,M8-1.25,Grip.70-3.8mm(8’)
07-711542Nut,Insert,M8-1.25,Grip.70-3.8mm(9’)
24. 07-711618Nut,Insert,M8-1.25,Grip3.8-7.9mm
25. 07-71204Washer,Plastic,.812x2x.1
26. 09-01564Flange,Bearing,Nylon
27.12-02928Pin,Hitch,1.122x4.0
28. 12-41502Weld,Link,Hitch,10.25
29. 12-98222Washer,Flat,12gax2.5x1.516
30.13-140836Stud,Mounting,Motor
31.13-15608-61Weld,Body,(6’)(CS26)Standard
13-15608-71Weld,Body,(7’)(CS26)Standard
13-15608-81Weld,Body,(8’)(CS26)Standard
13-15879-81Weld,Body,(8’)(CS32)Standard
13-15879-91Weld,Body,(9’)(CS32)Standard
13-15608-7V1Weld,Body,(7’)(CS26)VacuumOption
13-15608-8V1Weld,Body,(8’)(CS26)VacuumOption
13-15879-8V1Weld,Body,(8’)(CS32)VacuumOption
13-15879-9V1Weld,Body,(9’)(CS32)VacuumOption
32.13-156332Plate,Mounting,Motor(CS26)
13-158882Plate,Mounting,Motor(CS32)
33.13-156352Plate,Core,Adjustment
34.13-156362Plate,Spacer,Core,Adjustment
35.13-156382Plate,Guard,Side(CS26)
13-159052Plate,Guard,Side(CS32)
36.13-156402Weld,Pin
37.13-156462Plate,Retainer,Flap,Side(CS26)
13-159042Plate,Retainer,Flap,Side(CS32)
38.13-156472Flap,Side(CS26)
13-159032Flap,Side(CS32)
39.13-15648-20Plate,Retainer,Flap(6’)(CS26)
13-15648-26Plate,Retainer,Flap(7’)(CS26)
13-15648-23Plate,Retainer,Flap(8’)(CS26/32)
13-15648-20Plate,Retainer,Flap(9’)(CS32)
40.13-15648-36Plate,Retainer,Flap(6’)(CS26)
13-15648-33Plate,Retainer,Flap(7’)(CS26)
13-15648-36Plate,Retainer,Flap(8’)(CS26/32)
13-15648-39Plate,Retainer,Flap(9’)(CS32)
41.13-15742-61Flap,Rear(6’)(CS26)
13-15742-71Flap,Rear(7’)(CS26)
13-15742-81Flap,Rear(8’)(CS26/32)
13-15742-91Flap,Rear(9’)(CS32)
42.13-15744-61Flap,Seal(6’)(CS26)
13-15744-71Flap,Seal(7’)(CS26)
13-15744-81Flap,Seal(8’)(CS26/32)
13-15744-91Flap,Seal(9’)(CS32)
43.13-158272Chain,3/8,11Links,Gr43
This manual suits for next models
