Sweepster VRS Series User manual
Right-hand, left-hand, frontrear

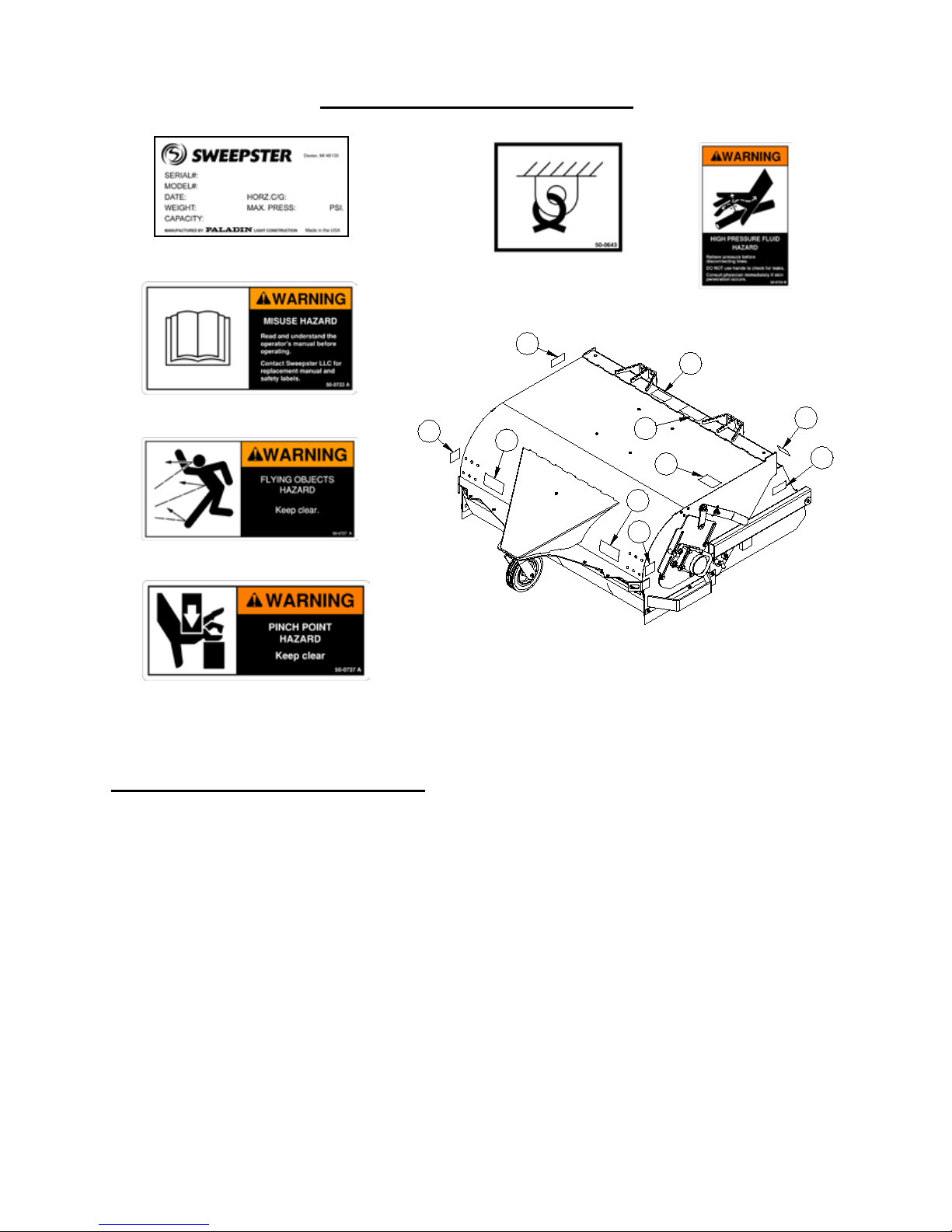

1. 50-0634 1 Label,SerialNumber
2. 50-0643 2 Label,TieDownPoint
3. 50-0723 1 Label,Warning,MisuseHazard
4. 50-0724 1 Label,Warning,HighPressureFluid
5. 50-0727 3 Label,Warning,FlyingObjects
6. 50-0737 2 Label,Warning,PinchPointHazard
5
2
46
3
51
6
25

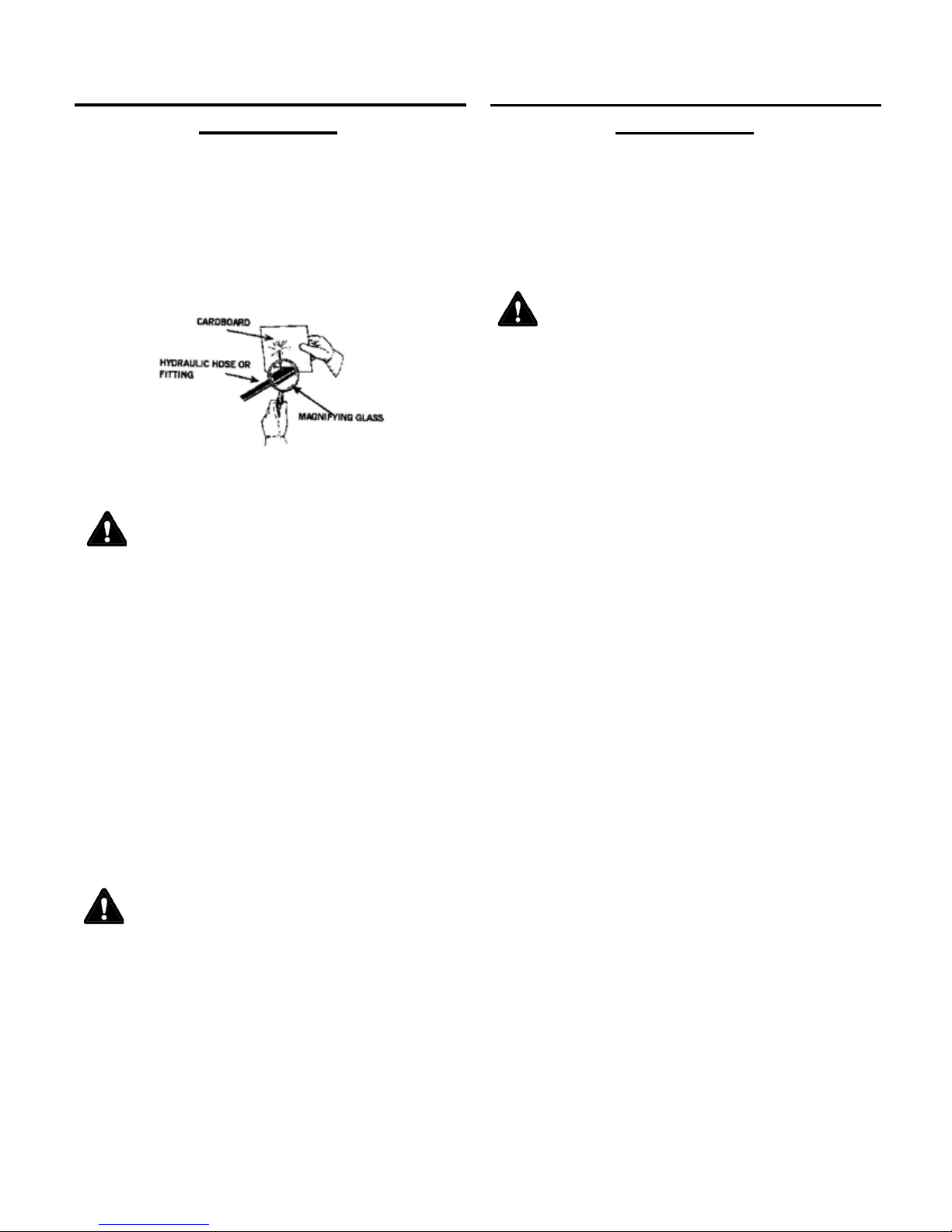

SAFETY LABELS
swingangle
5 FT.
73.1
69.8
Worn Section Standard Reference
Information
Section OD,
New
Ring ID Section
OD, Worn
Exposed
Bristle, Worn
Bristle
Length
Exposed
Bristle, New
24 6.38 17 3.8 8.50 7.5
26 8.00 18 4.0 9.00 8.0
32 10.00 22 5.0 11.00 10.0
36 10.00 24 6.0 13.00 12.0
36 10.63 25 6.0 12.69 11.4
46 19.38 34 6.0 13.31 12.1
1. 03-5224 2 Hose,1/2x96,10MOR,10FFS45
2. 07-0156 4 Washer,Flat,Gr8,1/2
3. 07-0244 2 Pin,Linch,1/4
4. 07-1714 1 Screw,HHC,Gr8,5/16-18x1
5. 07-1762 6 Washer
,Lock,Split,Medium,1/2,5ft
07-1762 7 Washer
,
Lock,Split,Medium,1/2,6ft
07-1762 8 Washer
,
Lock,Split,Medium,1/2,7ft
6. 07-1764 6 Nut,Hex,Gr8,1/2-13(5ft)
07-1764 7 Nut,Hex,Gr8,1/2-13(6ft)
07-1764 8 Nut,Hex,Gr8,1/2-13(7ft)
7. 07-1784 1 Screw,HHC,Gr8,5/16-18x21/2
8. 07-2952 20 Screw
,
HFH,CL10.9,M6-1x20,5ft
07-2952 23 Screw
,HFH,
CL10.9,M6-1x20,6ft
07-2952 26 Screw
,HFH,
CL10.9,M6-1x20,7ft
9. 07-2956 16 Nut,
Insert,
M6x1,Grip.027-.165,5ft
07-2956 18 Nut,
Insert,
M6x1,Grip.027-.165,6ft
07-2956 20 Nut,
Insert,
M6x1,Grip.027-.165,7ft
10. 07-3112 2 Fitting,Zerk,1/4-28,SelfTap
11. 07-3273 1 Washer,Lock,Split,Medium,5/16
12. 07-3311 2 Link,Quick,5/16
14. 07-3708 2 Bolt,Carriage,Gr5,1/2-13x11/2
15. 07-3709 2 Bolt,Carriage,Gr5,1/2-13x13/4
16. 07-3737 6 Nut,Hex,CL10,M8-1.25
17. 07-3738 6 Washer,Lock,Split,Medium,M8
18. 07-3745 4 Washer,Flat,CL8.8,M10
19. 07-3747 4 Washer,Lock,Split,Medium,M10
20. 07-3749 4 Screw
,
HHC,CL10.9,M10-1.5x30mm
21. 07-3922 6 Nut,
Insert
,
M6x1,Grip.165-.251,
5ft
07-3922 7 Nut,
Insert
,
M6x1,Grip.165-.251,
6ft
07-3922 8 Nut,
Insert
,
M6x1,Grip.165-.251,
7ft
22. 07-4037 4 Nut,Hex,Nylock,Gr8,1/2-13
23. 07-4454 6 Bolt,Plow.Gr8,1/2x11/2,5ft
07-4454 7 Bolt,Plow.Gr8,1/2x11/2,6ft
07-4454 8 Bolt,Plow.Gr8,1/2x11/2,7ft
24. 07-5933 6 Bolt,Carriage,CL8.8,M8-1.25x
5mm
25. 07-6521 1 Plate,Shim,1/4
26. 07-6682 1 Nut,Insert,M10-1.5
27. 07-6798 1 Caster,Assembly,10x2.75,5,6,7ft
07-3516 1 Caster,Assembly,Kingpinless,6HC
28. 07-6869 1 Manual,Holder
29. 07-6974 1 Edge
,Cut,
1/2x4x60.5,6Bolt,5ft
30. 07-6975 1 Edge,
Cut,1
/2x4x72.56,7Bolt,6ft
31. 07-6976 1 Edge,
Cut,
1/2x4x84.5,8Bolt,7ft
32. 07-7024 4 Washer,Belleville,1.063x1.496
33. 07-7157 2 Chain,1/4x66Links,Gr43
34. 09-0066 2ft Hose,LP,1FiberBraid
35. 105840 1 Washer,Fender
36. 13-10060 12 Finger,Apron
37. 13-11734 2 Weld,Pin,1x8
38.13-15218-5S 1 Weld,Body(5ft)
39.13-15218-6S 1 Weld,Body(6ft)
40.13-15218-7S 1 Weld,Body(7ft)
41. 13-15223 4 Tube,Round,1x.562x.375
42. 13-15246 2 Plate,Handle,Adjustment
43. 13-15262 2 Plate,Link,Adjustment,Motor
44. 13-15265 2 Flap,Side
45. 13-15267 2 Plate,1/8x11/4x23.5,withSlots
46. 13-15273 1 Flap,1/8x9x61.5,12Holes,5ft
47. 13-15274 1 Flap,1/8x9x73.5,14Holes,6ft
48. 13-15275 1 Flap,1/8x9x85.5,16Holes,7ft
49. 13-15276 3 Plate,1/8x11/4x60,6Slot,5ft
50. 13-15277 3 Plate,1/8x11/4x72,7Slot,6ft
51. 13-15278 3 Plate,1/8x11/4x84,8Slot,7ft
52. 13-15279 1 Flap,3/16x10x61.5,6Hole,5ft
53. 13-15280 1 Flap,3/16x10x73.5,7Hole,6ft
54. 13-15281 1 Flap,3/16x10x85.5,8Hole,7ft
55. LAF9853 12 Plug,.375,BlackPlastic
56. RHW8613 1 Weld,Plate
57. RHW8614 1 Cover,Plate
58. RHW8616 1 Hose,Cradle
59. RHW8618 1 Hose,Spring
60. RHW8642 8 Nut,Rivet,5/16-18,.15-.312Grip
61. RHW8645 5 Nut,Rivet,5/16-18,.027-.15Grip
ReplacementPartsfor07-6798:
07-6520Caster,Rig,withAxleandNut
07-6522Spanner,Bushing,for3/4RollerBearing
07-6523Spacer
07-6524Bolt,1/2x51/2
07-6525Nut,Lock,Axle,3/4
07-6792Washer,Flat,Axle,3/4
07-6799Wheel,10x2.75,3/4RollerBearing
