SWEGWAYFUN HUMMER User manual
User Manual
HUMMER
Thank you for your purchase of the SWEGWAYFUN All Terrain Hoverboard.
You're about to take the next step in the evolution of transportation. All
Terrain Hoverboard takes the fun of a skateboard, the ease of an electric
scooter, adds a touch of off-roading, and tops it off with a whole lot of
Swag.
To ensure your safety and the safety of others, Please read and follow the
guidelines in this User manual carefully and thoroughly before Gliding.
Happy Gliding
--The SWEGWAYFUN Team
•
3
[•0°
5
[APP]
a
-
{ ]
Before You Begin --------------1
1
Before You Begin
Before learning to ride your Scooter, you must read and follow all instructions and
warnings in this User Manual. It is important that you follow all safety warnings and
cautions that appear throughout the User Manual and that you use good judgment
when you ride your Scooter.
The Risk of Injury
The Scooter is a self-balancing, personal scooter that uses balancing technology.
Balancing technology cannot prevent injury if you do not ride the scooter safely
Whenever you ride the Scooter, you risk death or serious injury from loss of control,
collisions, and falls To reduce risk of injury, you must read and follow all instructions
and warnings in the user manual.
2
-
Powering On the Scooter
Power on your Scooter by pressing the Power button. The Power button is located on the
back side of the Scooter . The indicator lights will illuminate to indicate the power is ON.
-
Resetting the Scooter
0
Put the Scooter on a level surface where the wheels do not make contact with the
ground.
e
Press the Power Button for 3-5 seconds until caution light fiashes.
e
Tum OFF the scooter and tum ON again.
note ! The scooter has in built auto balance feature as such it will automatically stabilise.
-
4
5
o
Battery Indicator
An LED indicator is used to indicate battery level. When the light is green, it means that the scooter has enough power. When the
light turns red, you should charge it as soon as possible. Please check power level on the App before usage to ensure there is
enough power for the return trip. You may want to charge it every time after use.When power level is lower than 15%, the LED
indicator will flicker and the buzzer will sound .Sustained range will decrease during winter, because the battery performance
decreases quickly in cold conditions.
WARNING: It will notify you when the battery charge is dangerously low by slowing down and shaking the wheels when you are
riding it. If these warnings occur, immediately slow down and safely step off. Turn the unit off and Do not attempt to ride again until
the battery is recharged.
e� e
Staby
Trai �
«-·
0
,t . A
' "-
•� Download on the
App Store
� Google Play
1 -Bluetooth setting
2-
Speed
3-
Tripmeter
4-
0dom
eter
5-
Battery level
6-
Driving Mode
7 -Track routes
T
•
8- Turn on/off
Mc
9-Settings
6
7
To palr with a Bluetooth®device,
follow these steps:
8
Power on the scooter to automatically turn
on Bluetooth. The scooter will make a sound
to indicate that Bluetooth is on and awaiting
connection.
0
Using your Bluetooth enabled device, turn
on Bluetooth, Make it 'discoverable' if
needed, then search.
e
Select 'music' to begin connecting if you
would like to play music through your
scooter.
Resetting Bluetooth® Memory
T
o reset Bluetooth® Memory, resetting the Scooter
is n
eeded. Refer to Resetting the Scooter
(page 4)
To end the connection between the devices,
turn off bluetooth on your device.
password is (000000)
o
If connecting via the taotao app, the default
Before riding, make sure your Scooter is fully assembled and charged. Inspect
your Scooter before each use. Do not ride if any part is loose or damaged.
The Scooter is highly maneuverable and allows you to easily navigate around
obstacles. However, to prevent the loss of traction, you must always be careful when
riding and learn to identify and avoid unsafe surfaces. Slippery, icy, or wet surfaces,
loose materials (sand/gravel), steep slopes, and obstacles might affect the Scooter
performance.
Familiarize yourself with the indicator lights that may be displayed on the Scooter

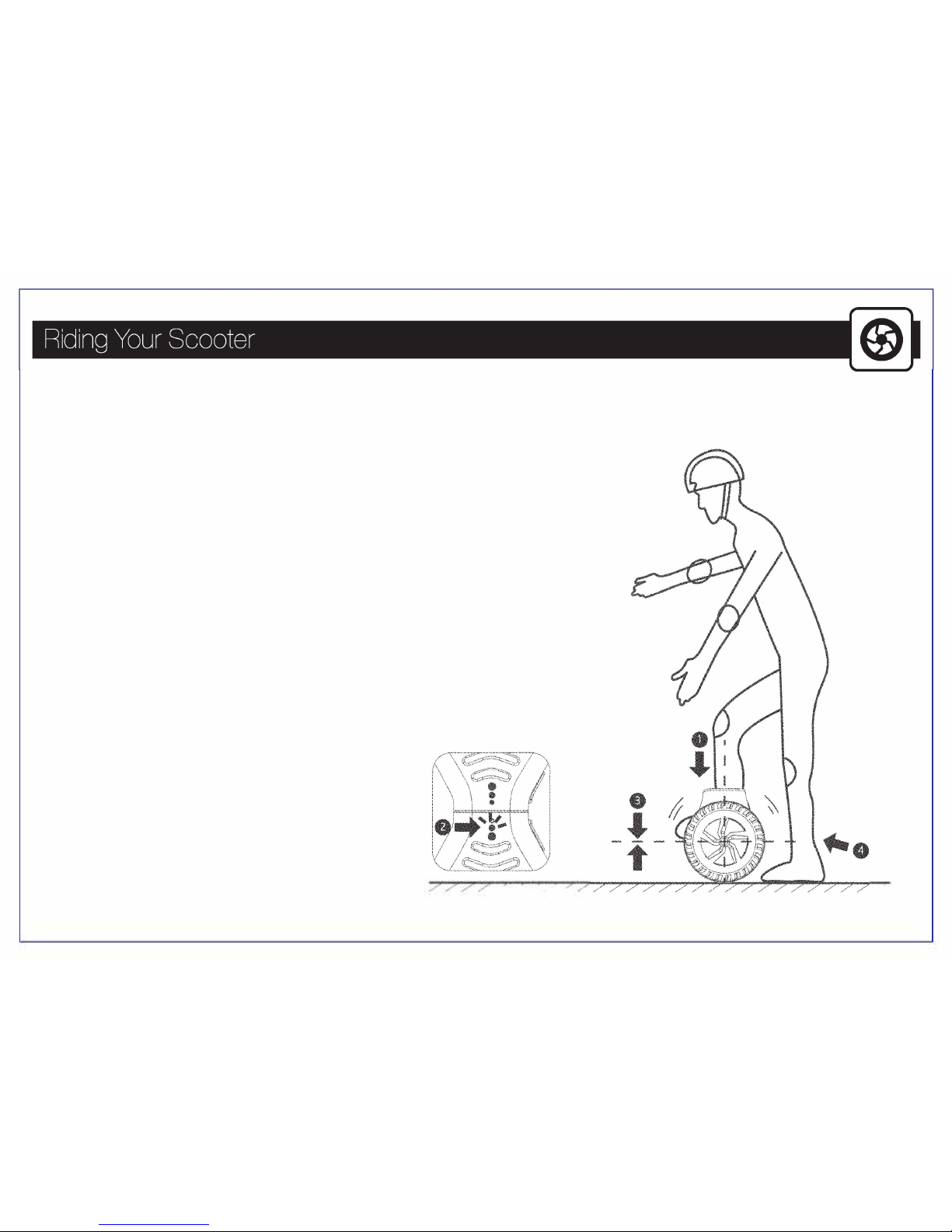

Step 1 . Power ON the Scooter by pressing the power button. Maks sure the Battery Status
Indicator light is on.
8
9
/
&
/
10
11
Make sure the scooter has
completely stopped and stable
before stepping
off.
Step
off
the
Scooter one foot at a time
S Ales
While operating, the Scooter can alert users if there are any irregularities in the system. If
the Scooter detects a fault in any of its redundant systems or the batteries are depleted
beyond their safe limit, it automatically slows down the motors, flashes Warning Indicator
light, emits a warning tone, and disables self balancing mode
Here are some reasons that will trigger the Warning Indicator light:
-
Irregular platform angle
-
Low Battery Voltage
-
Plugged in and Charging.
-
Platform distortion while riding. (System Shutdown)
-
Speed Umit reached
-
Scooter sways in position for more than 30 seconds.
-
Platform angle is greater than 35 degrees. (System Shutdown)
-
VVheels get stuck
-
Electrical Current Surge
12
•Do not get back on the scooter after untill the condition that caused the warning alert has been identified
and corrected
•Never restart and ride your scooter after it has indicated an ampty battery condition or shutdown due to low
battery. The Scooter may not have enough power to keep your balanced. If you restart and continue riding
you risk falling. Also, your risk damaging your batteries, resulting in reduced battery life and capacity.
VVhen riding the Scooter you risk serious injury from loss of control, collisions, and falls.
It is your responsibility to learn how to safely ride the Scooter in order to reduce this risk.
To ride safely you must follow all instructions in the user materials, including
the User Manual.
-
Always wear proper attire when using the Scooter , do not wear loose clothing that can
catch in the tires and prevent proper steering.
-
Never place anything on the foot mats except your feet
-
Avoid obstacles and surfaces that could result in a loss of balance or traction and cause a
fall.
-
Use caution when riding over any terrain change such as pavement to sand, grass or
speed bumps.
-
Avoid riding across steep slopes. Maintain both tires in contact with the ground.
-
Avoid holes, curbs, steps, and other obstacles.
-
Avoid riding over any surface where the bottom of the Scooter may impact any object
-
VVhen using in sidewalk, make sure that one wheel does not drop off the curb.
-
Use caution when riding in new environments.
-
Make sure you leave enough Wheel clearance.
-
Be careful and considerate of others while riding.
13
-
Always ride under control at a speed that is safe for you and those around you.
-
Always be prepared to stop.
-
Respect pedestrians by always y1elding the right of way.
-
Avoid startling pedestrians When approaching from behind, announce yourself and
slow down to walking speed when passing. Pass on the left whenever possible. When
approaching a pedestrian from the front, stay to the right and slow down
-
In heavy pedestrian traffic conditions, slow down and proceed at the pace of pedestrian
traffic. Pass only if there is ample space to do so safely. Do not weave in and out of
pedestrian traffic.
-
When riding with other Scooter riders, maintain a safe distance, identify hazards and
obstacles, and do not ride side-by-side unless there is plenty of room left for
pedestrians.
-
Cross roads at designated crosswalks or signaled intersections. Do not jaywalk/ride.
-
On� travel on a road when a pedestrian way is not available or when sidewalk use is not
allowed. Do not ride your Scooter on private property (inside or outside) unless you
have obtained permission to do so.
-
Learn about and obey applicable local laws and regulations.
-
Inspect your Scooter before each use.
-
Do not allow any person to use your Scooter unless that person has carefully read this
Manual.
14
-
Use caution on slopes. Use caution when ascending, descending, or crossing slopes.
When riding across any slope, lean uphill to maintain balance.
-
Always tum slowly and with caution. Fast turns can lead to loss of control and falls.
-
No passengers. The Scooter is designed for one rider Do not ride double or carry any
passengers Do not carry a child in your arms or in a child carrier while riding. Expectant
mothers should not ride the Scooter
-
Do not exceed the maximum weight limit (rider and all cargo) specified in this Manual. If
you exceed the maximum weight limit, you are at greater risk of falling and injury. Also,
the rider's weight must not be less than the minimum rider weight limit specified in this
Manual.
-
Do not step off the Scooter while moving. Always come to a stop before stepping off.
-
Be alert As with any other transportation device, you must be mentally alert to safely
ride. Do not attempt to ride if you are ill or if you cannot comply fully with the
instructions and warnings in this Manual. Do not ride under the influence of alcohol or
drugs. Avoid distractions. Do not use a mobile phone, or engage in any other activity
that might distract you or interfere with your ability to monitor your surroundings while
riding.
-
When riding, keep both feet on the foot mats. Be relaxed. Ride in a relaxed position
with your knees and elbows slightly bent and head up.
riving Safoly
Do not ride backwards for long periods of time. Instead, turn and ride forward. Riding
on the road. The Scooter is not intended or recommended for primary use on roads. If
you must ride on the road, or must cross the road, be extremely careful. Ride as far
away from traffic as possible. Check to make sure that riding on the road is allowed by
local law. Use the Beginner Setting and ride in areas free of obstacles and distractions
until you are comfortable using and maneuvering your Scooter . Practice at the
Beginner level until you can step on, ride forward and backward, turn, stop, and step
off without any problems.
