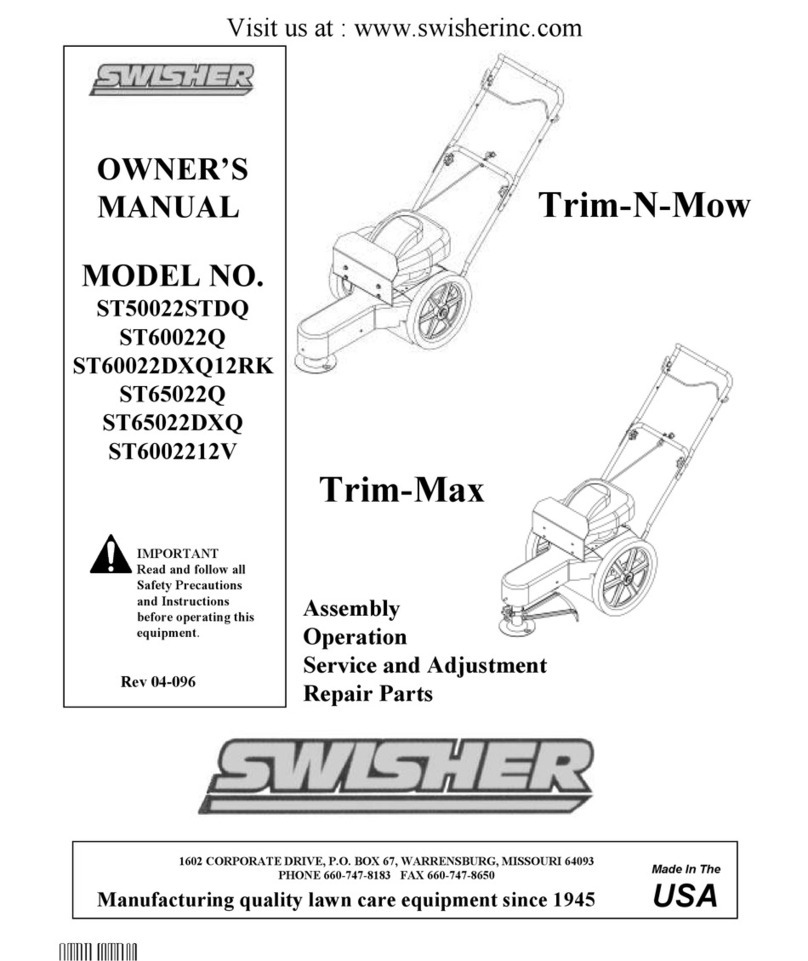

Swisher ST60022 User manual

OWNER’S
MANUAL
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
PHONE [phone] FAX [phone]
MODEL NO.
Manufacturing quality lawn care equipment since 1945
Assembly
Operation
Service and Adjustment
Repair Parts
Made In The
USA
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
IMPORTANT
10698 REV 11-255
Trim-N-Mow
Trim-Max
Visit us at : www.swisherinc.com
STARTING SERIAL # L211-255001
ST60022
ST60022-CA
ST65022DLX
ST65022DLX-CA
ST60022Q
ST60022Q-CA8
ST65022DXQ
ST65022DXQ-CA
ST67522Q
ST67522Q-CA

1) Engine Warranty All engines utilized on our products have a separate warranty extended
to them by the individual engine manufacturer. Any engine service
difficulty is the responsibility of the engine manufacturer and in no way
is Swisher or its agents responsible for the engine warranty. The Briggs
& Stratton Engine Service Hot-Line is 1-800-233-3723. The Tecumseh
Engine Service Hot-Line is 1-800-558-5402.
2) Commercial Use This product is not intended for commercial use and carries no
commercial warranty.
3) Limitation This warranty applies only to products which have been properly
assembled, adjusted, and operated in accordance with the instructions
contained within this manual. This warranty does not apply to any
product of Swisher that has been subject to alteration, misuse, abuse,
improper assembly or installation, shipping damage, or to normal wear
of the product.
4) Exclusions Excluded from this warranty are normal wear, normal adjustments, and
normal maintenance.
In the event you have a claim under this warranty, you must return the product to an authorized service
dealer. All transportation charges, damage, or loss incurred during transportation of parts submitted for
replacement or repair under this warranty shall be borne by the purchaser. Should you have any questions
concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number,
date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will
be needed before any warranty claim can be processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS STATED
HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not allow the limitation of
consequential damages or limitations on how long an implied warranty may last, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights and you may have other
rights, which vary from state-to-state. This is a limited warranty as defined by the Magnuson-Moss Act of
1975.
LIMITED WARRANTY
The manufacturer’s warranty to the original consumer purchaser is: This product is free from defects in
materials and workmanship for a period of two (2) years from the date of purchase by the original consumer
purchaser. We will repair or replace, at our discretion, parts found to be defective due to materials or
workmanship. This warranty is subject to the following limitations and exclusions:
2

•
Read, understand and follow all instructions in the manual and on the trimmer
before starting
• Read this manual carefully. Become familiar with the controls and how to
operate the unit properly.
• Only allow responsible adults, who are familiar with the instructions, to
operate the unit.
• Clear the area of objects such as rocks, toys, etc. that could be thrown by the
unit.
• Be sure the area is clear of other people before trimming. Stop the unit if
anyone enters the area.
• Be aware of the direction of the trimmer discharge and do not direct it at
anyone. Do not direct trimmer discharge at breakable objects, such as
windows, etc.
• Do not operate trimmer without all guards and shields in place.
• Never leave the machine running unattended.
• Trim only in daylight or good artificial light.
• Do not operate the trimmer while under the influence of alcohol or drugs.
• Watch for traffic when operating near roadways.
• Use the trimmer as the manufacturer intended and as described in the
manual.
• Do not operate trimmer if it has been dropped or damaged in any manner.
Always have the damage repaired before operating.
• Always wear safety glasses or eye shields when using the trimmer.
• Dress properly. Do not operate the trimmer when barefoot or wearing open
sandals. Wear only solid shoes for good traction when trimming. Wear long
sleeved shirts or jackets, also long pants. Do not trim in shorts.
• Keep your eyes and mind on your trimmer and the area being trimmed.
• Do not let other interests distract you.
• Do not put hands and feet near or under rotating parts.
• Before cleaning, inspecting or repairing your trimmer, stop the engine and
disconnect the spark plug wire and keep it away from the spark plug to
prevent accidental starting.
• Do not operate the trimmer if it vibrates abnormally. Excessive vibration is a
sign of damage. Stop the engine and safely check for damage and repair as
required.
• Do not operate the trimmer in wet grass, where good footing may not be
possible. Walk; never run
•
Stop the trimmer when crossing gravel drives, etc.
3
Safety Instructions
This Safety Alert Symbol indicates important messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the possibility of personal injury.

4
Slopesareamajor factor relatedtoloss of control andslipaccidents,
which canresult insevereinjury. All slopes requireextracaution. If you
feel uneasyon it donot trimit.
Slope Operation
• DO: Trim across the face of a slope and not up and down.
• DO: Remove objects such as rocks, tree limbs, etc.
• DO: Watch for holes, ruts or bumps. Tall grass can hide obstacles.
• DO NOT: Mow near drop-offs, ditches or embankments. The operator could
loose footing or balance.
• DO NOT: Trim excessively steep slopes
• DO NOT: Trim on wet grass. Reduced footing could cause slipping.
Children
• Keep children out of the area and under the watchful care of another
responsible adult.
• Be alert and turn the machine off if children enter the area.
• Before and when backing, look behind and down for small children.
• Never allow children to operate this machine.
•
Use extra care when approaching blind corners, shrubs, trees or other objects
that may obstruct vision.
•Use extra care handling gasoline and other fuels. They are flammable and
vapors are explosive.
•Use only an approved container.
•Never remove gas cap or add fuel with the engine running.
•Allow engine to cool before refueling. Do not smoke while refueling
•Never refuel the machine indoors.
•Never store the machine or fuel container where there is an open flame, such
as a water heater.
•Never run a machine inside a closed area.
•Keep nuts and bolts tight and equipment in good condition.
•Never tamper with safety devices.
•Keep machine free of grass, leaves or other debris build up. Clean oil or fuel
spillage. Allow machine to cool before storing.
•Stop and inspect the equipment if you strike an object. Repair if necessary
before restarting.
•Never make repairs or adjustments with the engine running.
Service

5
The operation of any cutter can encounter foreign objects to be thrown into the eyes, resulting in
severe eye damage. Always wear certified safety glasses or wide-vision safety goggles for over
spectacles before staring any cutting machine and while operating such a machine.
The operation of any cutter produces sound waves that are damaging to the human ear. Ear
protection is recommended.
CAUTION!
Tragic accidents can occur if the operator is not alert to the presence of children. Children
are often attracted to the machine and the mowing activity. Never assume that children
will remain where you last saw them.
Do not operate the trimmer if it vibrates abnormally. Excessive vibration is a sign of
Damage. Stop the engine and safely check for damage and repair as required
Trim-Max Decal
OD64 Trim-N-Mow Decal OD65
Caution Notice Decal
OD67
Trimmer Head
Instruction Decal
OD68

6
Handle Adjustment
Assembly
Contents of Box:
• Trimmer
• Parts bag containing:
• Manual
• Engine manual
• Safety goggles
• Bottle of engine oil
• 2 sets of .155 trimmer line
• Cable Clip
Tools Required:
• ½” wrench
Installation of handles:
• Remove loose fasteners from lower handles.
• Pivot handles up and align lower hole in handles with hole on trimmer frame. Install
hardware removed in previous step. Snug, but do not tighten bolts.
• Pivot upper handles to fit the lower handles. Tighten knobs.
• Adjust handles for comfortable operation.
• Tighten all bolts.

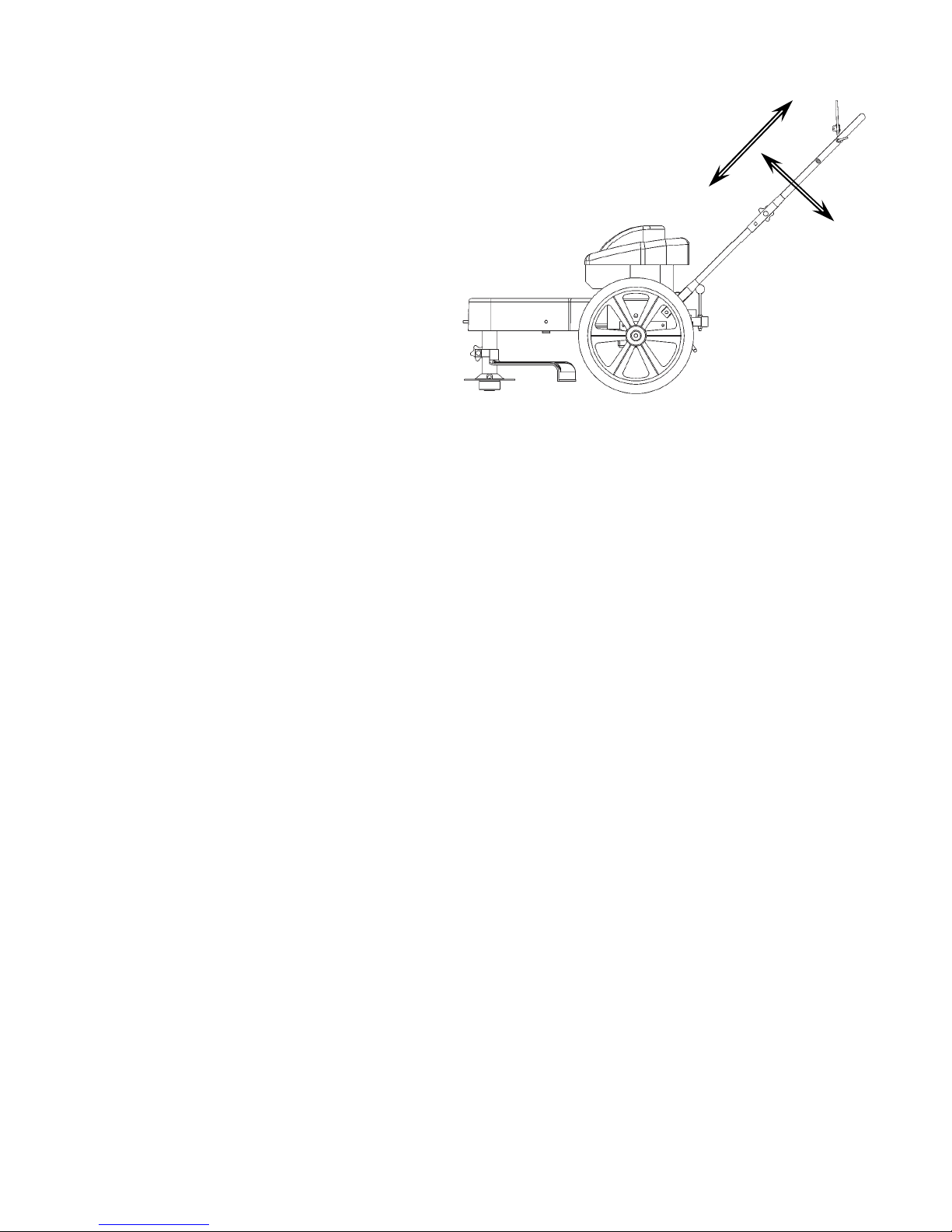

Handles may be adjusted up and down and in and out for comfortable operation.
Installation Of Wheels
Refer to Page 12 for illustration.
• Slide axle through the mounting plates.
• Install Conical springs with the large diameter side against the Axle Plate.
• Install Spring Retainer against the conical spring.
• Slip wheel on one side and install Cotter Pin.
• Bend cotter pin over to prevent it from falling out.
• Push the Axle completely over to the other side.
• Install the second wheel and insert cotter pin and bend. Some compression of the
conical springs is necessary .

To stop the trimmer:
• Release the control bail. Engine will stop immediately
To start the trimmer:
• Remove any built up debris from engine.
• Pull control bail against the handle and hold.
• Push primer button on engine as directed.
• Pull back sharply on recoil starter handle.
• Begin trimming.
Important! For safest operation, make sure debris is directed away from you and others.
Important! On 12 Volt Start units. For optimum battery performance, you should run engine
for at least 15 Minutes after start to keep battery charged.
To stop the trimmer:
• Release the control bail. Engine will stop immediately
To start the trimmer:
• Remove any built up debris from engine.
• Pull control bail against the handle and hold.
• Push primer button on engine as directed.
• Pull back sharply on recoil starter handle.
• Begin trimming.
Important! For safest operation, make sure debris is directed away from you and others.
Important! On 12 Volt Start units. For optimum battery performance, you should run engine
for at least 15 Minutes after start to keep battery charged.
7
Preparing Unit For First Use
Operation
Trimming Hints
Important! To ensure proper operation, clean the engine and trimmer
regularly. Remove any build up of chaff from the top of the engine.
• Fill engine crankcase with oil. A bottle has been provided with this unit. DO
NOT OVERFILL.
• Fill the engine fuel tank with gasoline. GASOLINE SHOULD BE ADDED
OUTSIDE IN A WELL-VENTILATED AREA.
• Check to ensure string has been installed properly. A diagram is provided just
above the wheel for proper installation.
• Do not lift the trimmer head when trimming. Let the head rest lightly touching the ground.
• Keep an eye on the length of the trimmer line. As the line gets shorter they become less
effective at cutting and will take longer to trim properly. Replace the line as necessary. (See
installing cutter line).
• Do not trim wet grass.
• Use caution when trimming slopes.
• Use the proper length on line. Using a line too long for the unit will cause stalling and
unacceptable operation.
Troubleshooting
•If engine will not start, remove and check air filter to make sure filter and
carburetor are clean.

8
Installing Trimmer Line
Trim-Max Operation
The Trim-Max trimmer is designed to also be used as an edge trimmer and to offset left
to right for easier close trimming.
Edge trimming/ Bevel Cutting
The trimmer disk may be tilted from horizontal to vertical so that it may be used as an
edge trimmer. The head may also be tilted slightly to trim closer. This may be handy for
trimming foundations without damaging the siding.
To Tilt:
• Stop unit.
• Make sure head is in the straight forward position. (see offset operation)
• Loosen the trimmer tilt clamp lever. (Clockwise)
• Tilt head to desired position.
• Tighten trimmer tilt clamp lever. (Counter Clockwise)
• Adjust Lower trimmer shield to keep debris from coming back at operator.
Offset trimming.
The trimmer head may be offset to the left or right to allow trimming under bushes, etc.
To Offset:
• Stop unit.
• Raise offset lever.
• Push or pull handles to achieve desired offset.
• Release offset lever. Make sure head has locked into position.
• Adjust lower trimmer shield to keep debris from coming back at operator.
Important! Note direction of debris when offsetting head.
Offsetting trimmer to the left is recommended.
Trim-Max Tilt Adjustment
Direction Of Debris
Trim-Max Pivot Adjustment
Step 1 Step 2 Step 3
Important! Use the proper length of line. Using a line too long for the unit will cause
stalling and unacceptable operation.
5+ HP use 18” String
Pre Cut Line Purchase P3618
• Loosely fold cutter line in half.
• (1) Place loop of line against outside of loop on the trimmer head.
• (2) Bring ends around and through the loop and over the cutter line loop.
• (3) Pull ends to tighten loop.

Engine
• Refer to the engine service manual provided with this unit.
Belt
• Occasionally check the belt for wear. A worn belt should be replaced.
Belt Adjustment
• The TRIM-N-MOW has an automatic belt tightener and needs no further adjustment
• The TRIM-MAX has an automatic belt tightener that automatically adjusts when the head is tilted. If
you do not regularly tilt the head on your trimmer, it is recommended that you loosen the head twice a
year. (See edge trimming)
Belt Replacement
• Remove front belt cover.
• Push trimmer head toward back of unit, compressing tensioner spring.
• Remove old belt.
• Install new belt by first routing belt under the engine and around the engine pulley.
• Push trimmer head toward back of unit, compressing tensioner spring.
• Install belt over front pulley.
• Release trimmer head. Ensure that belt is correctly installed in the groove of the engine and front
pulleys.
Re install front belt Cover.
9
Make sure your trimmer is in safe working condition by keeping the following guidelines in mind
every time you use your trimmer.
•
Keep trimmer in good operating condition and keep all guards and shields in place. DO NOT
operate this trimmer if any of the shields and guards are missing.
•
Check all fasteners for secure fit to keep equipment in safe working order. Make adjustments
as necessary.
• To reduce fire hazards, keep engine free of grass leaves or excessive grease.
• DO NOT operate trimmer with a damaged
or missing muffler. DO NOT tamper with exhaust
system; this may cause a fire hazard.
• DO NOT operate engine if air cleaner or the cover over the carburetor air intake is missing.
Removal of these parts could create a fire hazard.
• Before cleaning, making adjustments or repairing the trimmer, STOP engine, disconnect
spark plug wire and allow engine to cool.
• Handle Gasoline with care. DO NOT smoke or use open flame near gasoline. Use only
approved gasoline containers. Never fuel or run trimmer in poorly ventilated areas, such as a
garage or utility building.
• Always replace fuel tank cap. Be sure to clean up any spilled gasoline.
• Do not change the engine governor settings or over-speed the engine; severe injury or
damage may result.
• Never store mower, with gasoline in the tank, inside a building where fumes may reach an
open flame or spark. Always allow engine to cool before storing
NEVER ADD GASOLINE TO A HOT ENGINE – ALLOW ENGINE TO
COOL BEFORE ADDING GASOLINE
Trimmer Maintenance
WARNING – ALWAYS STOP ENGINE AND DISCONNECT SPARK PLUG
WIRE BEFORE PERFORMING ANY ADJUSTMENTS OR SERVICE

10
Trim-N-Mow
(Standard)
Item # Description Part # Item # Description Part #
1 Briggs & StrattonEngine N/A 16 Operator Presence Bail 10397
2 Trimmer Pulley& Washer 2065 17 3/16 X 1 KeyStock 9030
3 5/16-18 X 3/4 Serr Flg Bolt NB596 18 CotterPin NB126
4 SP Washer Bellvile NB607 19 Conical Spring 10004
5 Rear Cover 2026 20 Washer NB275
6 Belt Guard 2019 21 5/16-18 x3/4 SelfTapping Screw 26X249
7 Blade Belt 2113 22 Operator Presence Cable 2034B
8 Rubber Shield 2027 23 3/8-24 X 1 Engine BoltLocktite NB238N
9 Lower Motor Base 2006 24 5/16-18 X 2 Carriage Bolt NB587
10 5/16-18 X 1 1/4 Flange Bolt NB253 25 5/16-18 X 2 1/4 Flange Bolt NB622
11 5/16-18 Serrated Flange Nut NB170 26 14" Wheel 2002
12 Upper Motor Base 2005 27 Axle 14416
13 Lower Handle 10399TK 28 Spring Retainer T2PB
14 Black Plastic Knob 2030 29 Washer NB177
15 Upper Handle 10578TK
Color Paint Code
Texture Black TK
Texture Red TC
Paint Reference Chart

Trimmer Head Assembly for Deluxe and 12V Deluxe
Trimmer Head Assembly for Standard
11
Color Paint Code
Texture Black TK
Texture Red TC
Paint Reference Chart
Item # Qty. PART # Description
1 1 17665 Trimmer Head - Assembly (Std)
2 1 17651 Slide - Weldment
3 1 2024 Shaft - Spinner Standard
4 2 B985/8 Bearing - Sealed with 20mm Bore
5 2 NB149 Washer - 5/8 ID X 1 OD 14 Ga
6 1 NB595 Nut - 2 Way Locking Jam 5/8-11
7 1 NB598 Nut - Serr Flange, 5/8-11 Grade 2
8 1 NB586 Nut - Hex Jam 5/8-11
9 1 NB106 Bolt - 5/16"-18 X 2 3/4 Grade 5
10 1 NB181 Nut - Nyloc 5/16-18
11 1 2035 Roller - Threaded
12 1 2021 Disc - Trimmer Spinner Weldment
13 1 2049 Pulley - Blade 4.5"
14 2 15748 Head Brace - String Trimmer
6
13
3
5
4
12
8
2
14
7
4
1
5
10
11
14
9
Item # Qty, Part # Description
1 1 2107 Slide - Weldment, DLX Trimmer
2 1 2110 Head - Weldment DLX Punched
3 1 2033 Spring - Compression
4 1 2124 Shaft - Spinner Deluxe
5 2 B985/8 Bearing - Sealed with 20mm Bore
6 2 NB149 Washer - 5/8 ID X 1 OD 14 Ga
7 1 2049 Pulley - Blade 4.5"
8 1 NB595 Nut - 2 Way Locking Jam 5/8-11
9 1 2021 Disc - Trimmer Spinner Weldment
10 1 NB586 Nut - Hex Jam 5/8-11
11 1 NB598 Nut - Serr Flange, 5/8-11 Grade 2
12 1 2035 Roller - Threaded
13 1 2075 U-Bolt - Tilt Clamp
14 1 2068 Cap - Plastic 1-1/4"
15 1 2103A Handle - Pivot
16 1 2083 Handle - Bent
17 1 2079 Knob - Yellow
18 1 NB170 Nut - Serrated Flange 5/16-18
19 1 NB173 Nut - Jam 5/16-18
20 1 NB210 Nut - 5/16-18 Grade 2
21 1 NB181 Nut - Nyloc 5/16-18
22 1 NB594 Nut - Coupling 5/16 - 18 x 1 3/4
23 1 2078 Grip - Tilt Handle, Yellow
8
7
6
5
4
1
3
2
5
6
10
9
11
12
22
16 23
19
21
18
14
15
17
20
13

12
Item # Description Part #
1 16" Wheel 2003
2 Conical Spring 10004
3 Cotter Pin NB126
4 Wheel Bearing MWB
5 Axle 14416
6 Axle Plate 2106
7 Spring Retainer T2PB
8 Washer NB177
Item # Description Part #
1 Shield 2042
2 Spacer 2084
3 Knob 2030
4 Clamp 2043
5 Bolt NB110
6 Washer NB275
Service Part 2076 Parts Breakdown
Trim-Max Axle Setup

Deluxe
13
Color Paint Code
Texture Black TK
Texture Red TC
Paint Reference Chart
Item # Description Part # Item # Description Part #
1 Briggs & Stratton Engine N/A 17 Operator Presence Bail 10397
2 Engine Pulley- 6" 2065 18 5/16-18 X 1 1/2 Carriage Bolt NB587
3 3/16 X 1 KeyStock 9030 19 Spring 2069
4 SP Washer Bellville NB607 20 Pivot Stop 2040
5 Belt Guard 2119 21 Rear Cover 2126
6 Blade Belt 2113 22 Handle Grip, Pivot 2077
7 Lower Shield Sub Assy. 2076 23 Spacer B99S
9 Wear Strip 2116 24 5/16-18 X 3/4 Serr Flng Bolt NB596
10 Pivot Plate Weldment 2073 25 5/16-18 Serrated Flange Nut NB170
11 Lower Motor Base 2006 26 Washer NB275
12 5/16-18 X 1 1/4 Flange Bolt NB253 27 3/8-24 X 1 Engine Bolt Locktite NB238N
13 Upper Motor Base 2005 28 Operator Presence Cable 2034B
14 Lower Handle 10399TK 29 5/16-18 X 2 1/4 Serr Flg Bolt NB622
14 Lower Handle ST6002212V 10886TK 30 5/16-18 X 1/2 Serr Flng Bolt 26x249
15 Black Plastic Knob 2030 31 3/8-16 Nyloc Nut NB182
16 Upper Handle 10578TK 32 1/2-14 GA. Mach Washer NB177
1

14
12 Volt Deluxe
For Additional Parts
See Page 13
Item # Description Part #
Not Shown Wiring Harness 2120B
Not Shown KeySwitch 2102
Not Shown Keys For KeySwitch (set of two) KSK
2 Batteryfor String Trimmer 2101
3 BatteryCover 2105
4 5/16-18 x1 1/4 SelfTapping Screw 302636
5 Nut - Serr Flange 5/16-18 ZYCase Hrd NB170
6 Nut - Nyloc 5/16-18 ZY NB181
7 5/16-18 X 1 1/2 HexBolt NB254
8 Plate - 12V ST,Texture Black 2118TK
9 5/16-18 Nyloc Nut NB181
10 Bolt - Serr Flange, 5/16-18 X1 1/4ZYGr5 NB253
Color Paint Code
Texture Black TK
Texture Red TC
Paint Reference Chart

15
Notes
2102
2101

OWNER’S
MANUAL
Each trimmer has its own model number. Each engine has its
own model number. The model number for the trimmer will be
found on the left hand side of the motor base. The model
number for the engine will be found on the top of the blower
fan housing.
All trimmer parts listed herein may be ordered directly from
Swisher or your nearest Swisher dealer.
All engine parts may be ordered from the nearest dealer of the
engine supplied with your mower.
WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INFORMATION AVAILABLE:
* PRODUCT – TRIMMER
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________
TYPE - _______________
* PART NUMBER WITH PAINT CODE
* PART DESCRIPTION
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWISHER
1602 CORPORATE DRIVE
WARRENSBURG, MO 64093
PRINTED IN U.S.A.
Visit us at: www.swisherinc.com
MODEL NO.
STARTING SERIAL # L211-255001
ST60022
ST60022-CA
ST65022DLX
ST65022DLX-CA
ST60022Q
ST60022Q-CA8
ST65022DXQ
ST65022DXQ-CA
ST67522Q
ST67522Q-CA

MANUAL DEL
PROPIETARIO
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
TELÉFONO 660-747-8183 FAX [phone]
MODELO NO.
Fabricando equipos de calidad para el cuidado del césped, desde 1945
Ensamblaje
Funcionamiento
Servicio y ajuste
Piezas para reparación
Hecho en
EE.UU.
Lea y siga todas las adver-
tencias e instrucciones sobre
seguridad antes de poner en
funcionamiento este equipo.
IMPORTANTE
10698 REV 11-255
Trim-N-Mow
Trim-Max
Visítenos en: www.swisherinc.com
STARTING SERIAL # L211-255001
ST60022
ST60022-CA
ST65022DLX
ST65022DLX-CA
ST60022Q
ST60022Q-CA8
ST65022DXQ
ST65022DXQ-CA
ST67522Q
ST67522Q-CA

1) Garantía del motor Todos los motores que se utilizan en nuestros productos poseen una
garantía separada que las extiende el fabricante a cada motor.
Cualquier problema en el funcionamiento del motor es
responsabilidad del fabricante del motor y de ninguna manera
Swisher o sus agentes son responsables por la garantía del motor. El
teléfono de atención de Briggs & Stratton Engine Service Hot-Line es
1-800-233-3723. El teléfono de atención de Tecumseh Engine Service
Hot-Line es 1-800-558-5402
2) Uso Comercial Este producto no ha sido diseñado para uso comercial y no posee
garantía comercial.
3) Limitación Esta garantía se aplica sólo a los productos que se han ensamblado,
ajustado y operados correctamente de acuerdo con las instrucciones
contenidas en este manual. Esta garantía no se aplica a ningún
producto de Swisher que ha sido objeto de modificaciones, mal uso,
abuso, ensamblaje o instalación incorrectos, daños en el embarque, o
a un desgaste normal del producto.
4) Exclusiones Están excluidos de esta garantía el desgaste normal, los ajustes
normales y el mantenimiento normal.
En caso de que usted tenga un reclamo amparado por esta garantía, debe regresar el producto a un
representante de servicio autorizado. Todos los cargos de transporte, daños o pérdida que se produzcan
durante el transporte de las piezas suministradas para el cambio o reparación bajo esta garantía los
cubrirá el comprador. Si tiene preguntas relacionadas con esta garantía, por favor llámenos al número
gratis 1-800-222-8183. Antes de procesar cualquier reclamo cubierto por la garantía, necesitamos saber
el número del modelo, el número del serial y el nombre del distribuidor Swisher autorizado en donde
usted compró la podadora.
ESTA GARANTÍA NO SE APLICA A DAÑOS INCIDENTALES O CONSECUENCIALES Y
CUALQUIERA DE LAS GARANTÍAS IMPLÍCITAS SE LIMITAN AL MISMO PERIODO DE
TIEMPO ESTABLECIDO AQUÍ, PARA TODAS LAS GARANTÍAS EXPRESAS. Algunos estados
no permiten la limitación de los daños consecuenciales o las limitaciones en la duración de una garantía
implícita, así que las limitaciones o las exclusiones de arriba es posible que no apliquen para usted. Esta
garantía le otorga derechos legales específicos y usted puede tener otros derechos, los cuales varían de
un estado a otro. Esta es una garantía limitada de acuerdo a como se ha definido en la ley Magnuson-
Moss Act de 1975.
GARANTÍA LIMITADA
La garantía que el fabricante otorga al comprador original es: Este producto está libre de defectos en los
materiales y la mano de obra por un periodo de dos (2) años desde la fecha de compra por parte del
comprador consumidor original. Repararemos o cambiaremos, a nuestra discreción, las partes que se
determine estén defectuosas debido a los materiales o a la mano de obra. Esta garantía está sujeta a las
siguientes limitaciones y exclusiones:
2

•
Lea, comprenda y siga todas las instrucciones del manual y sobre la orilladora antes
de encenderla
• Lea cuidadosamente este manual. Familiarícese con los controles y cómo operar
correctamente la unidad.
• Sólo permita que los adultos responsables, que estén familiarizados con las
instrucciones operen la unidad.
• Limpie el área de objetos tales como rocas, juguetes, etc., que pudieran ser
arrojados por la unidad.
• Asegúrese de que no haya otras personas antes de hacer recortes. Detenga la
unidad si alguien entra al área.
• Esté alerta sobre la dirección de la descarga de la orilladora y no la dirija hacia
nadie.
• No dirija la descarga de la orilladora hacia objetos rompibles, tales como ventanas,
etc.
• No ponga en funcionamiento la orilladora sin que tenga colocadas todas las
protecciones y pantallas.
• Nunca deje la máquina funcionando sin supervisión.
• Pode sólo bajo la luz del día o con buena luz artificial.
• No opere la orilladora mientras esté bajo la influencia del alcohol o de drogas.
• Tenga cuidado con el tráfico cuando esté operando cerca de vías de comunicación.
•
Use la orilladora de acuerdo a lo proyectado por el fabricante y como se describe en
el manual.
• No ponga a funcionar la orilladora si se ha caído o está dañada de alguna forma.
Siempre haga que reparen los daños antes de ponerla a funcionar.
• Siempre use gafas de seguridad o protectores para los ojos cuando use la orilladora.
• Vístase adecuadamente. No opera la orilladora cuando esté descalzo o cuando use
sandalias abiertas. Use sólo zapatos sólidos para una buena tracción cuando esté
rebajando. Use camisas manga larga o chaquetas, también use pantalones largos.
No pode usando pantalones cortos.
• Mantenga los ojos y la mente en su orilladora y en el área que está podando.
• No permita que otros intereses lo distraigan.
• No coloque las manos y los pies cerca o debajo de las piezas rotatorias.
• Antes de limpiarla inspeccione o repare la orilladora, pare el motor y desconecte el
cable de la bujía y manténgalo lejos de la bujía para evitar un arranque accidental.
• No opere la orilladora si vibra anormalmente. La vibración excesiva es una señal de
daño. Pare el motor y revise cuidadosamente el daño y repárelo como sea
necesario.
• No ponga a funcionar la orilladora sobre grama húmeda, donde no sea posible una
pisada firme. Camine; nunca corra.
• Detenga la orilladora cuando cruce sobre sendas de grava, etc.
3
Instrucciones sobre seguridad
Este símbolo de alerta de seguridad indica mensajes importantes en
este manual. Cuando vea este símbolo, lea cuidadosamente el mensaje
que sigue y esté alerta a la posibilidad de lesiones personales

4
Las pendientes son un factor principal relacionado
con
la p
érdida de
control y de accidentes por resbalones, los cuales pueden ocasionar
lesiones graves. Todas las pendientes exigen mayor precaución. Si se
siente incómodo en una pendiente no realice la poda.
Funcionamiento en pendiente
•
SÍ: Pode a través de la cara de una pendiente y no arriba y abajo
•SÍ: Quite los objetos tales como rocas, ramas de árboles, etc.
•SÍ: Esté pendiente de los agujeros, los surcos o los topes. El césped alto puede
esconder los obstáculos.
•NO: Pode cerca de declives, zanjas o terraplenes. El operador podría perder
apoyo o balance.
•NO: Pode en exceso las pendientes pronunciadas
•NO: Pode sobre el césped húmedo. La pisada sin apoyo podría ocasionar
resbalones.
Niños
•
Mantenga a los niños fuera del área y bajo la supervisión de otro adulto
responsable.
•Esté alerta y apague la máquina si los niños entran al área.
•Antes y cuando repase, observe hacia atrás y hacia abajo si hay niños.
•Nunca permita que los niños pongan a funcionar esta máquina.
•Tenga mayor cuidado cuando se aproxime a las esquinas ciegas, arbustos, árboles
o hacia otros objetos que puedan obstruir la visión.
•Tenga mucho cuidado cuando manipule gasolina y otros combustibles. Son
inflamables y sus gases son explosivos.
•Use sólo un recipiente aprobado.
•Nunca quite la tapa de la gasolina o añada combustible con el motor encendido.
•Permita que el motor se enfríe antes de agregarle más combustible. No fume.
•Nunca recargue de combustible la máquina en ambientes interiores.
•Nunca almacene la máquina o el recipiente de combustible donde haya una llama
abierta, tal como un calentador de agua.
•Nunca ponga a funcionar una máquina en un área cerrada.
•Mantenga las tuercas y los pernos roscados apretados y el equipo en buena
condición.
•Nunca interfiera los dispositivos de seguridad
•Mantenga la máquina libre de grama, hojas o de otras partículas. Limpie los
derrames de aceite y de combustible. Permita que la máquina se enfríe antes de
almacenarla.
•Detenga e inspeccione el equipo si golpea un objeto. Repárelo, si es necesario,
antes de volverlo a encender.
•Nunca haga reparaciones o ajustes con el motor encendido.
Servicio
