Swiss Timing LISTO 920 User manual

3406.504.02
Version 2.0
Edition June 2012
LISTO 920
User’s Manual

Caution and safety precautions
Never use any other charger than the supplied or a type approved by Swiss Timing. This could
destroy the battery, cause damage to unit, and possible cause personal injury due to fire or/and
electrical shock.
Never bypass a power cord ground lead by breaking off the ground pin, or by using inappropriate
extension cords or adapters.
Never plug a power cord into the AC power source until you have made sure that all installation,
cabling and power levels, are proper, and that the applicable procedures in this manual have been
followed.
Protect the equipment against splashing, rain and excessive sun rays.
Never use the device if it is damaged or insecure.
Verify the selection of the power distribution.
Verify that the voltage quoted on the rating plate is the same as your voltage. Connect the appliance
only to power sockets with protective earth. The use of incorrect connection voids warranty.
This program may be modified at any time without prior notification.
Do not open the case; there is nothing that needs servicing inside it. Nevertheless, if the case must
be opened, you must call for some qualified personnel. The power supply cable must be
disconnected before opening the case.
During the transport of all Swiss Timing equipment delivered with a reusable carry case, the said
case should be used at all times. This is imperative to limit the damage, such as shocks or vibration
that can be caused to the units during transport.
The same cases should also be used when returning equipment to Swiss Timing for repair. Swiss
Timing reserves the right to refuse all guarantees if this condition is not fulfilled.
If the installation includes a horn, be sure to maintain a sufficient security distance from the public.
Documentation Updates
Swiss Timing Ltd. reserves the right to make improvements in the products described in this documentation
at any time without prior notice. Furthermore, Swiss Timing Ltd. reserves the right to revise this
documentation in its content at any time and without any obligation to notify any person or organization of
such revision.
Disclaimer
The information provided in this documentation has been obtained from sources believed to be reliable,
accurate and current. However, Swiss Timing Ltd. makes no representation or warranty, express or implied,
with respect, but not limited to, the completeness, accuracy, correctness and actuality of the content of this
documentation. Swiss Timing Ltd. specifically disclaims any implied warranty of merchantability, quality
and/or fitness for any particular purpose. Swiss Timing Ltd. shall not be liable for errors contained in this
documentation or for incidental or consequential damages in connection with the supply, performance or use
of this documentation.
Environment
This symbol indicates that this product should not be disposed with household waste. It has to be
returned to a local authorized collection system. By following this procedure you will contribute to
the protection of the environment and human health. The recycling of the materials will help to
conserve natural resources.
Copyright
© Swiss Timing Ltd.
All rights reserved.
This documentation may not, as a whole or in part, be copied, translated, reproduced, transmitted or reduced
and/or stored to any electronic medium or machine-readable form without the prior written consent of Swiss
Timing Ltd.

LISTO 920
P.O. Box 138, rue de l'Envers 1 Phone [phone]
2606 Corgémont, Switzerland Fax [phone]
www.swisstiming.com [e-mail]
SWISS TIMING LTD
TABLE OF CONTENTS
1 INTRODUCTION...........................................................................................................1
1.1 Concept........................................................................................................................1
1.2 General view.................................................................................................................1
1.2.1 Display...........................................................................................................1
1.2.2 Connections...................................................................................................2
1.2.3 Installation Instruction.....................................................................................2
1.2.4 Keyboard........................................................................................................3
2 GETTING STARTED....................................................................................................4
2.1 Charging the battery.....................................................................................................4
2.2 Power up ......................................................................................................................4
2.3 Countdown configuration (Programming mode)............................................................4
2.4 Yellow flag configuration...............................................................................................5
2.5 Brightness level ............................................................................................................5
3 OPERATION.................................................................................................................6
3.1 Connecting the installation............................................................................................6
3.2 Start to countdown........................................................................................................6
4 ELECTRICAL PROPERTIES .......................................................................................7
4.1 Power supply................................................................................................................7
4.2 LISTO Connectors pinning............................................................................................7
5 PROPERTIES...............................................................................................................8
5.1 LISTO Technical Features............................................................................................8
5.2 LISTO keyboard Technical Features.............................................................................8
6 STORAGE & MAINTENANCE .....................................................................................9
6.1.1 Test mode......................................................................................................9
7 SUMMARY OF IAAF RULES.....................................................................................10
8 APPENDIX..................................................................................................................11
8.1 Abbreviations and symbols.........................................................................................11

P.O. Box 138, rue de l'Envers 1 Phone [phone]
2606 Corgémont, Switzerland Fax [phone]
www.swisstiming.com [e-mail]
SWISS TIMING LTD
8.2 Index of figures...........................................................................................................11
8.3 Version history............................................................................................................11

LISTO 920
Version 2.0 3406.504.02 Page 1
1 INTRODUCTION
1.1 Concept
The LISTO 920 is a concentration clock, indicating the amount of time available to athletes before
they must perform their discipline.
1.2 General view

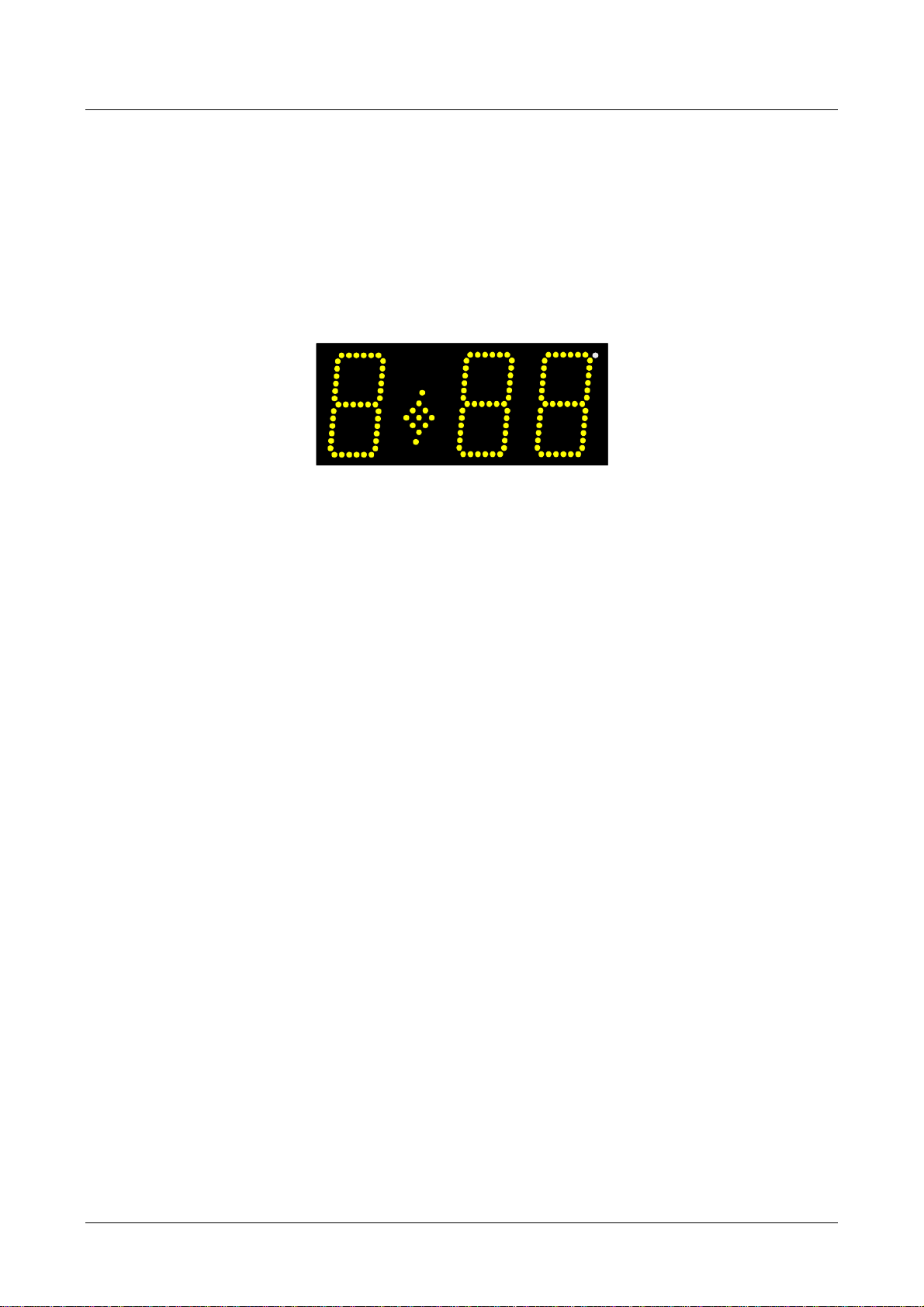

1.2.1 Display
The LISTO has a pixel-based display of 3 numbers and a yellow flag. All the dots are yellow.
The duration of the countdown can be set for any time up to a maximum of 9 minutes and 59
seconds (see chapter 3.3). By default, this value is configured to 1 minute.
The yellow flag (remaining time) can be set to a minimum of 5 seconds up to a maximum 35
seconds (see chapter 3.4). By default, this value is configured to 15 seconds.
The display brightness is done automatically with a sensor but can set manually (see chapter
3.6).
Figure 1 – Listo front view
Description
NUMBERS
Indication of the concentration time (minutes – seconds)
YELLOW FLAG
Indication of the yellow flag
Indication of the minutes / seconds separation
BRIG
. SENSOR
Location of the brightness sensor

Page 2 3406.504.02 Version 2.0
1.2.2 Connections
Figure 2 – Listo bottom view
Description
ON/OFF
On / Off switch
POWER
Battery charger connection
KEYBOARD
Keyboard connection
TRIPOD
Tripod fixing
3406.722 LISTO 920 concentration clock
1.2.3 Installation Instruction
The LISTO can be installed on a tripod (3/8" UNC thread) or placed on a table. For installation on a
tripod, a ‘hot-shoe’ fixing (option) can be used.

LISTO 920
Version 2.0 3406.504.02 Page 3

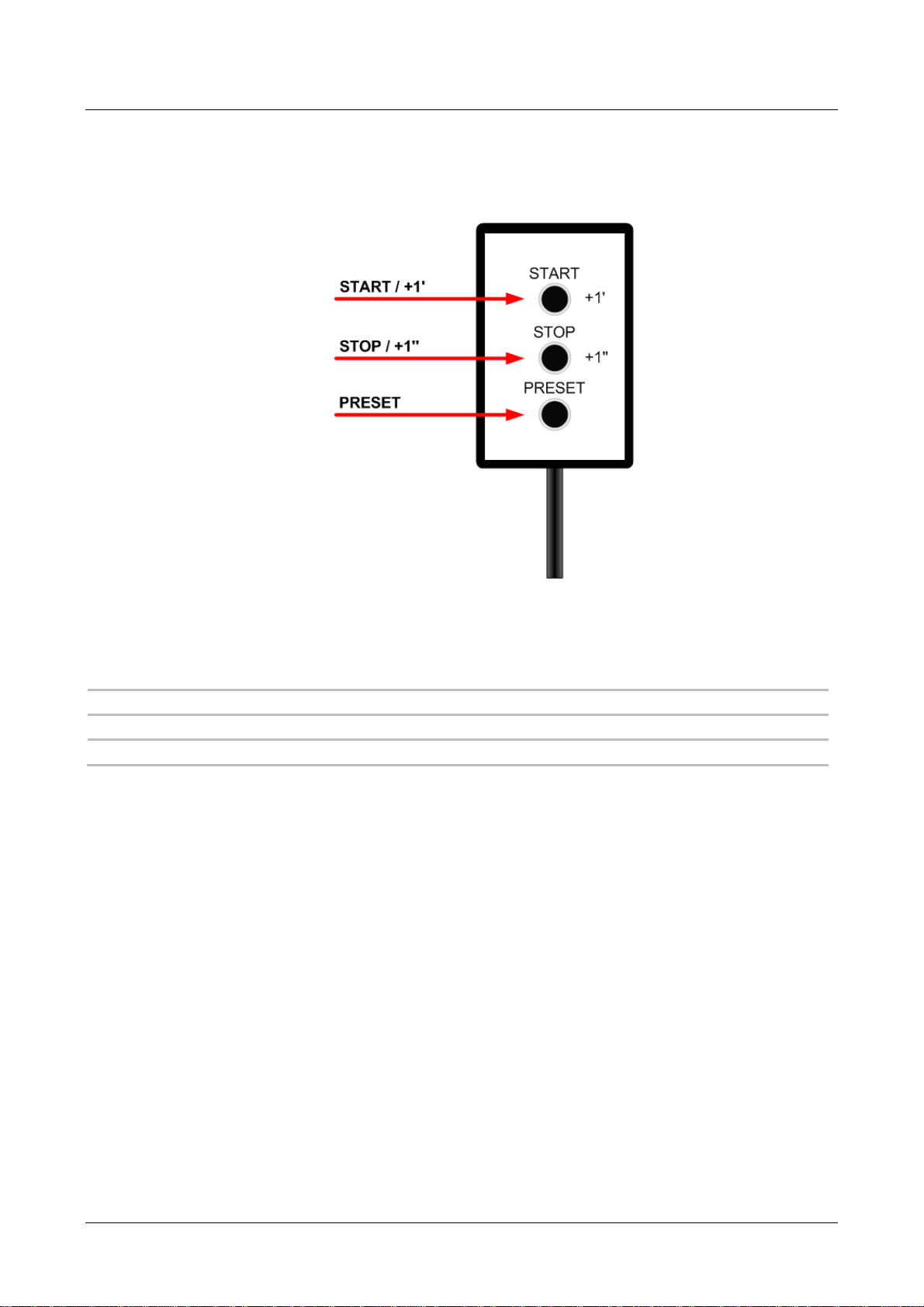

1.2.4 Keyboard
Figure 3 - Keyboard
Description
START / +1'
Start the countdown / Set up the minutes in the Programming mode
STOP / +1''
Stop the countdown / Set up the seconds in the Programming mode
PRESET
Reset the countdown clock / Selection of the Programming mode
3406.721 LISTO 920 Keyboard

Page 4 3406.504.02 Version 2.0
2 GETTING STARTED
2.1 Charging the battery
A battery charger can be plugged to POWER connector. The LISTO doesn't need to be switched on
for charging to take place, but it is possible to charge the LISTO during its use. The charger also acts
as external power when the LISTO is in use. If the LISTO is switched off and the battery is completely
discharged, a complete charge lasts about 7 hours.

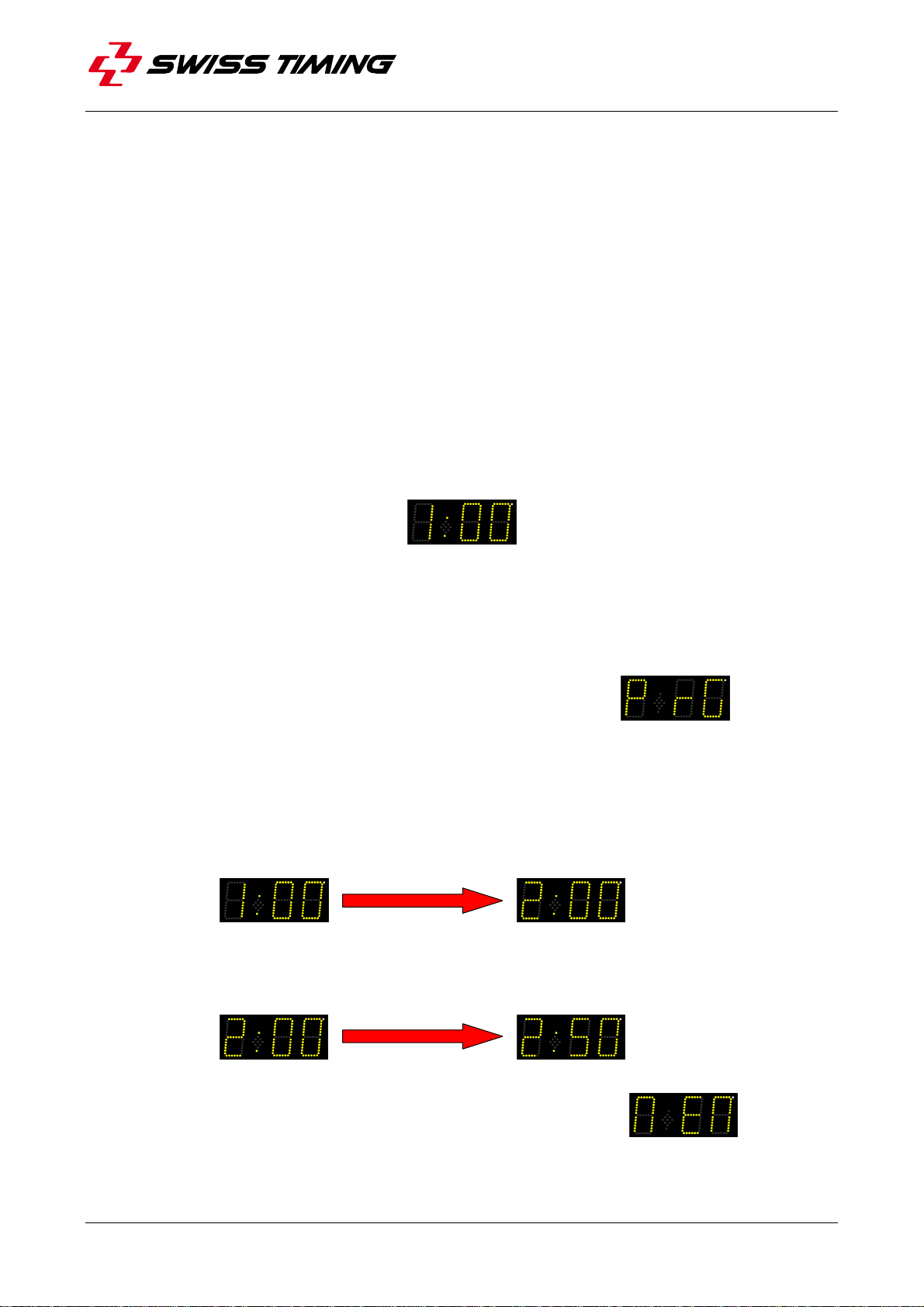

2.2 Power up
The LISTO switch on when the ON/OFF button is in the ‘I’ position.
The LISTO indicates the defined countdown and is set to 1 minute by default.
This value can be changed in the Programming mode (see chapter 2.3)
Figure 4 – Indication at power up
2.3 Countdown configuration (Programming mode)
The configuration of the countdown can be done connecting the keyboard to the KEYBOARD
connector.
The Programming mode is on while holding the PRESET button until appears then
releasing it.
After the Programming mode appears, you will able to change the countdown time.
Example : Changing from 1 minute to 2 minute 50 seconds
The minutes of the countdown can be increased by pressing the START button.
This value can be set from 0 to 9 minutes.
Figure 5 – Increasing the minutes
The seconds of the countdown can be increased by pressing the STOP button.
This value can be set from 0 to 59 seconds.
Figure 6 – Increasing the seconds
The storage of the value is done while holding the PRESET button until appears
then releasing it.

LISTO 920
Version 2.0 3406.504.02 Page 5
2.4 Yellow flag configuration
The configuration of the yellow flag can be changed unscrewing the LISTO front panel.
Figure 7 – Opening the front panel
The value can be set using the SW1 pins 1,2,3 located on the PCB (see picture below)
By default, the yellow flag is set to 15 seconds.
Figure 8 – Yellow flag configuration
2.5 Brightness level
The brightness of the display can be set manually using the SW2.
By default, the brightness is set to AUTO.
Figure 9 – Brightness
SW1
Seconds 1 2 3 4
5 ON OFF OFF OFF
10 OFF ON OFF OFF
15
ON
ON
OFF
OFF
20 OFF OFF ON OFF
25 ON OFF ON OFF
30 OFF ON ON OFF
35 ON ON ON OFF
Brightness
Level SW2
1 2 3 4
AUTO
O
FF
OFF
OFF
OFF
LOW ON OFF OFF OFF
…. ON ON OFF OFF
…. ON ON ON OFF
…. ON OFF ON OFF
…. ON OFF OFF ON
HIGH ON ON ON ON

Page 6 3406.504.02 Version 2.0
3 OPERATION
3.1 Connecting the installation
Connections have to be made at the bottom of the LISTO.
Figure 10 – Connections overview
3.2 Start to countdown
1. Connecting the installation according Figure 10.
2. Press the START button on the keyboard, the countdown starts.
3. To stop the countdown, press the STOP button on the keyboard.
4. When the countdown is below or equal the configured yellow flag (see chapter 2.4), the
yellow flag appears on the display.
Figure 11 – Yellow flag
5. To reset the countdown, press the PRESET button on the keyboard.

LISTO 920
Version 2.0 3406.504.02 Page 7
4 ELECTRICAL PROPERTIES
4.1 Power supply
The LISTO contains two 6V PB batteries. For the recharge, only use the charger provided (universal
entry 100 to 240VAC, 50-60Hz).
4.2 LISTO Connectors pinning
Connector Pinning
POWER
3PMT DIN
1 : +12 VDC
2 : NC
3 : GND
KEYBOARD
7PFT DIN
1 : Common
2 : Start
3 : Stop
4 : Preset
5 : NC
6 : NC
7 : NC

Page 8 3406.504.02 Version 2.0
5 PROPERTIES
5.1 LISTO Technical Features
Dimensions (without tripod): 460 x 270 x 95 mm
Weight of LISTO 920: 5.8 kg
Operating temperature: -15ºC to +45ºC
Autonomy of the internal battery at 25°C:
Brightness Level
AUTO
LOW
HIGH
LISTO 920
15 Hours 15 Hours 10 hours
5.2 LISTO keyboard Technical Features
Dimensions (without cable): 55 x 90 x 23 mm
Weight: 320 g
Cable length: 5 m

LISTO 920
Version 2.0 3406.504.02 Page 9
6 STORAGE & MAINTENANCE
6.1.1 Test mode
The Test mode is switch on when the SW1 pin 4 is in the ‘ON’ position.
On the display, all the dots blink simultaneously.
Figure 12 – Test mode

Page 10 3406.504.02 Version 2.0
7 SUMMARY OF IAAF RULES
This is a summary of IAAF rules for concentration time in athletics. It refers to the "IAAF
Competition Rules 2004 – 2005" handbook. Please check on the http://www.iaaf.org web-site for
rules change.
Rule 180.17:
An athlete in a field event who unreasonably delays making a trial, renders himself liable to
have that trial disallowed and recorded as a failure. It is a matter for the Referee to decide,
having regard to all the circumstances, what is an unreasonable delay.
The official responsible shall indicate to an athlete that all is ready for the trial to begin, and
the period allowed for this trial shall commence from that moment. If an athlete subsequently
decides not to attempt a trial, it shall be considered a failure once that period allowed for the
trial has elapsed.
For the Pole Vault, the time shall begin when the uprights have been adjusted according to
the previous wishes of the athlete. No additional time will be allowed for further adjustment.
If the time allowed elapses once an athlete has started his trial, that trial should not be
disallowed.
The following times should not normally be exceeded:
Individual Event
Number of athletes left in
the competition
High Jump
Pole Vault
Other
More than 3 1min 1min 1min
2 or 3 1.5min 2min 1min
1 3min 5min -
Consecutive trials 2min 3min 2min
Combined Events
Number of athletes left in
the competition
High Jump
Pole Vault
Other
More than 3 1min 1min 1min
2 or 3 1.5min 2min 1min
1 2min* 3min* -
Consecutive trials 2min 3min 2min
* When there is only one athlete left, the mentioned times will be followed in the first trial
only if the previous trial was made by the same athlete.
Note: a clock which shows the remaining time allowed should be visible to an athlete. In
addition, an official shall raise and keep raised a yellow flag, or otherwise indicate,
for the final 15 seconds remaining of the time allowed.

LISTO 920
Version 2.0 3406.504.02 Page 11
8 APPENDIX
8.1 Abbreviations and symbols
8.2 Index of figures
Figure 1 – Listo front view...............................................................................................................1
Figure 2 – Listo bottom view...........................................................................................................2
Figure 3 - Keyboard........................................................................................................................3
Figure 4 – Indication at power up....................................................................................................4
Figure 5 – Increasing the minutes...................................................................................................4
Figure 6 – Increasing the seconds..................................................................................................4
Figure 7 – Opening the front panel..................................................................................................5
Figure 8 – Yellow flag configuration................................................................................................5
Figure 9 – Brightness......................................................................................................................5
Figure 10 – Connections overview..................................................................................................6
Figure 11 – Yellow flag ...................................................................................................................6
Figure 12 – Test mode....................................................................................................................9
8.3 Version history
Version Date Modifications since last version
1.0 18/04/12 Initial version (3406.720)
2.0 04/06/12 LISTO new model (3406.722)

Page 12 3406.504.02 Version 2.0
NOTES

P.O. Box 138, rue de l'Envers 1 Phone [phone]
2606 Corgémont, Switzerland Fax [phone]
www.swisstiming.com [e-mail]
SWISS TIMING LTD
