Preface
1. All internal technologies of this product are protected, Including device, software and trademark. Reproduction in
wholeorinpartwithoutwrittenpermissionisprohibited.
2. ALL brands and trademarks of SWIT Electronics Co., Ltd. Are protected and other relative trademarks in this user
manualarethepropertyoftheirrespectiveowners.
3. Duetoconstanteffortof productdevelopment,SWITreservestherightto makechangesand improvementsto the
productdescribedinthismanualwithoutpriornotice.
4. Thewarrantyperiodofthisproductistwoyears,anddoesnotcoverthefollowing:
⑴Physicaldamagetotheproducts
⑵Any damage or breakdown caused by use, maintenance, or storage not according to the user manual’s
introductions.
⑶Theattenuationofsignalqualityresultingfrombeingusedinanyspecialenvironments.
⑷Anydamagecausedbynotpoweringtheproductbypackagesuppliedpoweradaptor.
⑸Any damage or breakdown not caused by the product’s design, workmanship, manufacturing, quality, or
unauthorizedrepairsorpartsreplacementorotheroperations.
5. Foranysuggestionsandrequirementsonthisproduct,pleasecontactus,pleasecontactusthroughphone,fax,Email,
etc.
Address：10HengtongRoad,NanjingEconomicandTechnologicalDevelopmentZone,
Nanjing210038,P.R.China
Tel：025-85805753
Fax：025-85805296
http：//www.swit.cc
Safety Precautions
Please follow the safety precautions before using . The following conditions are not covered by warranty.
1. Unauthorized repairs or other Unauthorized operations.
2. Inappropriate placement including but not limited to lighting, fire, exposure to rain, water or gas.
3. Using the wrong power supply
Warning
Do not get any liquid inside the products
Do not block the ventilation openings or put substances inside, in order to avoid short circuit,
fire or electric shock.
Do not place the product in the rain or moisture to avoid electric shock or fire.
Danger
Switch the power off before connecting other devices.
Power socket: Make sure the power socket under the voltage range of the product to avoid short circuit,
electric shock and fire.
Power cable: Make sure the power cable is not pressed or tightened by any items or weights.
Power Load：Do not exceed the load on the wall outlet, extension cable or other porous receptacle to avoid fire
or electric shock.
Lightning: Disconnect the power cable if it is lightning or not using in long period of time.
Working environment
Please don’t lay the product on any unstable place to avoid fallen damage.
Please don’t use the product in a place overheating, undercooling or with lots of moisture, or nearby strong
magnetic devices.
Please don’t lay the product on metal shelf, in order to ensure the effective wireless transmission.
Packing list
：
1. Transmitter 2.Receiver 3.Antenna*44.D-tap to lockable pole cable（0.6m）
5. Power adaptor 6.User manual 7.Warranty card 8. articulating arm
1. Product Introduction
FLOW10K includes transmitter and receive，adopts the latest encrypted transmission technology, Wireless
transmission of HD SDI and HDMI audio and video signals，dual SDI/HDMI digital audio transmission，Automatic
pairing connection，auto and manual frequency choose，equipped with DC power connector。Supports
HDMI&SDI signal wirelessly transmitted in 3000 meters scale(Line-of-sight)，stable signal quality，Can be used in
broadcast live program production, film and television crew director monitoring and other professional video field
2. Features
3G/HD/SD-SDI & HDMI wireless transmission
Support up to 1080P50/60Hz HD-SDI/HDMI Audio and video wireless transmission。
2000 meters transmission distance
In open outdoor area, the effective transmission distance is approx. 3000 meters (line of sight).
Wireless frequency
The system adopts 5180~5220MHz and 5760~5820MHz Wireless frequency band（FLOW6500 Tx）。
Frequency Band and Frequency point
CH00 5180MHz CH04 5780MHz
CH01 5200MHz CH05 5800MHz
CH02 5220MHz CH06 5820MHz
CH03 5760MHz / /
The system adopts 5182.5~5282.5MHz and 5762.5~5822.5MHz Wireless frequency band（FLOW6500 Rx）。
Frequency Band and Frequency point
CH00 5182.5MHz CH04 5782.5MHz
CH01 5202.5MHz CH05 5802.5MHz
CH02 5222.5MHz CH06 5822.5MHz
CH03 5762.5MHz / /
Connection mode
Support auto pairing connection & manual switching of frequency points & Multicast - 1 transmitter
to unlimited receivers
OLED information display
Display current transmission signal format, wireless channel, signal strength and other working
status and working parameters。
High quality & Wall through mode
Support 1 transmitter to unlimited receivers and High quality & Wall through mode choose.
Encryption
Support AES 128-bit encryption to protect the transmission.
All-Metal Shell
Both the transmitter and receiver adopt metal shell which is durable and solid.
All hardware design
The wireless system is hardware and plug-and-play designed, without installing software, easy to
set up.
◆ Multiple battery plates change
Transmitter can choose different battery plate according to demand.
Remark:

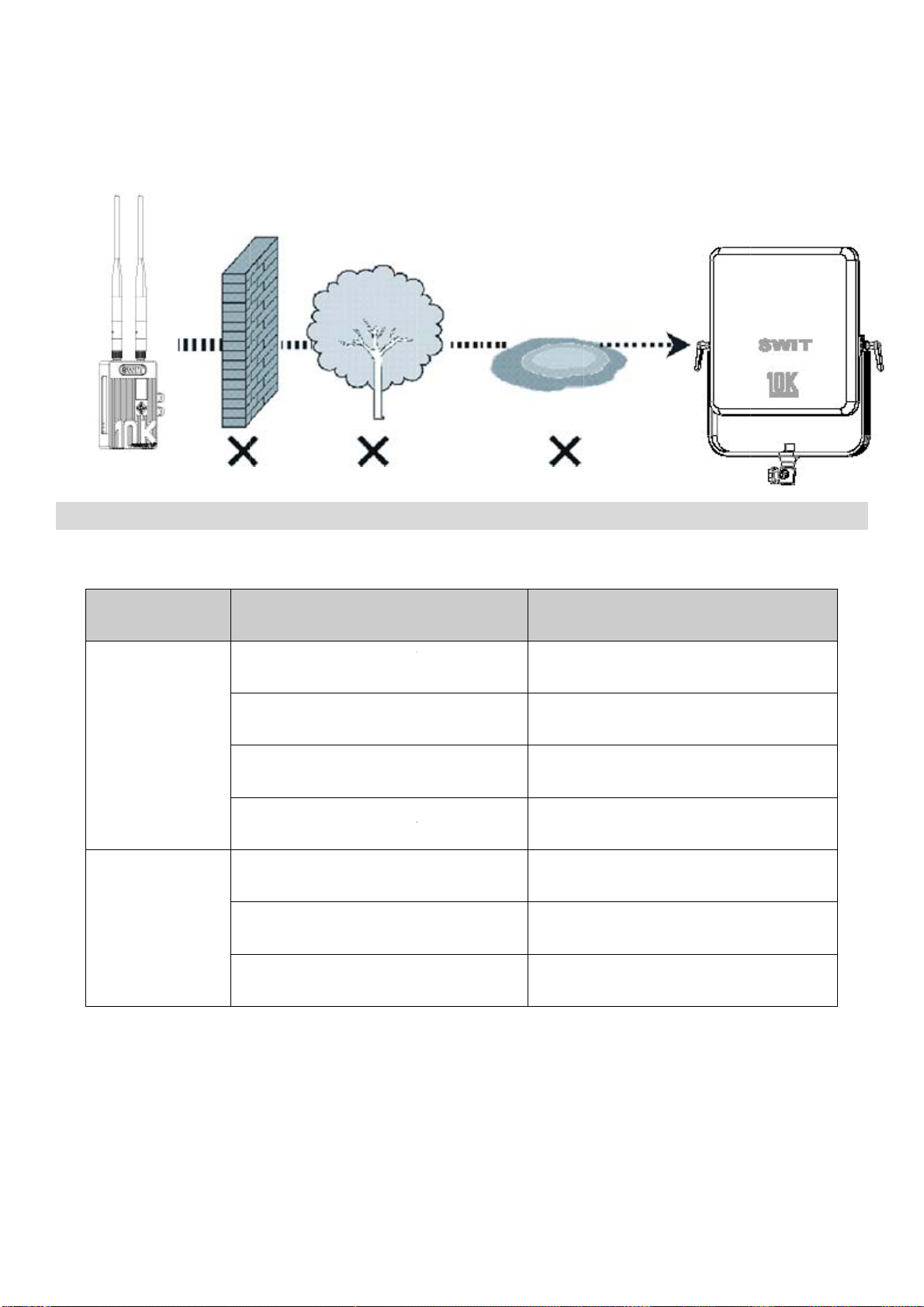

1. The transmission distance may be different, and depend on surroundings, radio wave conditions,
buildings, etc., the 2000 meters transmission distance may be not guaranteed in a complex environment.
2. The wireless transmission might be interrupted if there’re other devices of 5Ghz wireless bandwidth
used in the same location.
3. Signal reception may be affected by the position, height and angle of devices. If reception video
is not stable, please physically adjust placement for the optimized signal.
4. Set the antennas straight up and set receiver higher to enhance the transmission efficiency.
5. The product offers the AES 128-bit encryption to protect the wireless transmission. Please still be
aware of the intentional signal interception from third person. Do not use it for important communication.
3. Appearance Instruction
Transmitter FLOW10K
