SWIT FL-C60D User manual

FL-C60D
LED Spot Light
Ver: B
Tel:[phone]
Fax:[phone]
http://www.swit.cc
E-mail: [email protected]
USER MANUAL
SWIT Electronics Co.,Ltd.

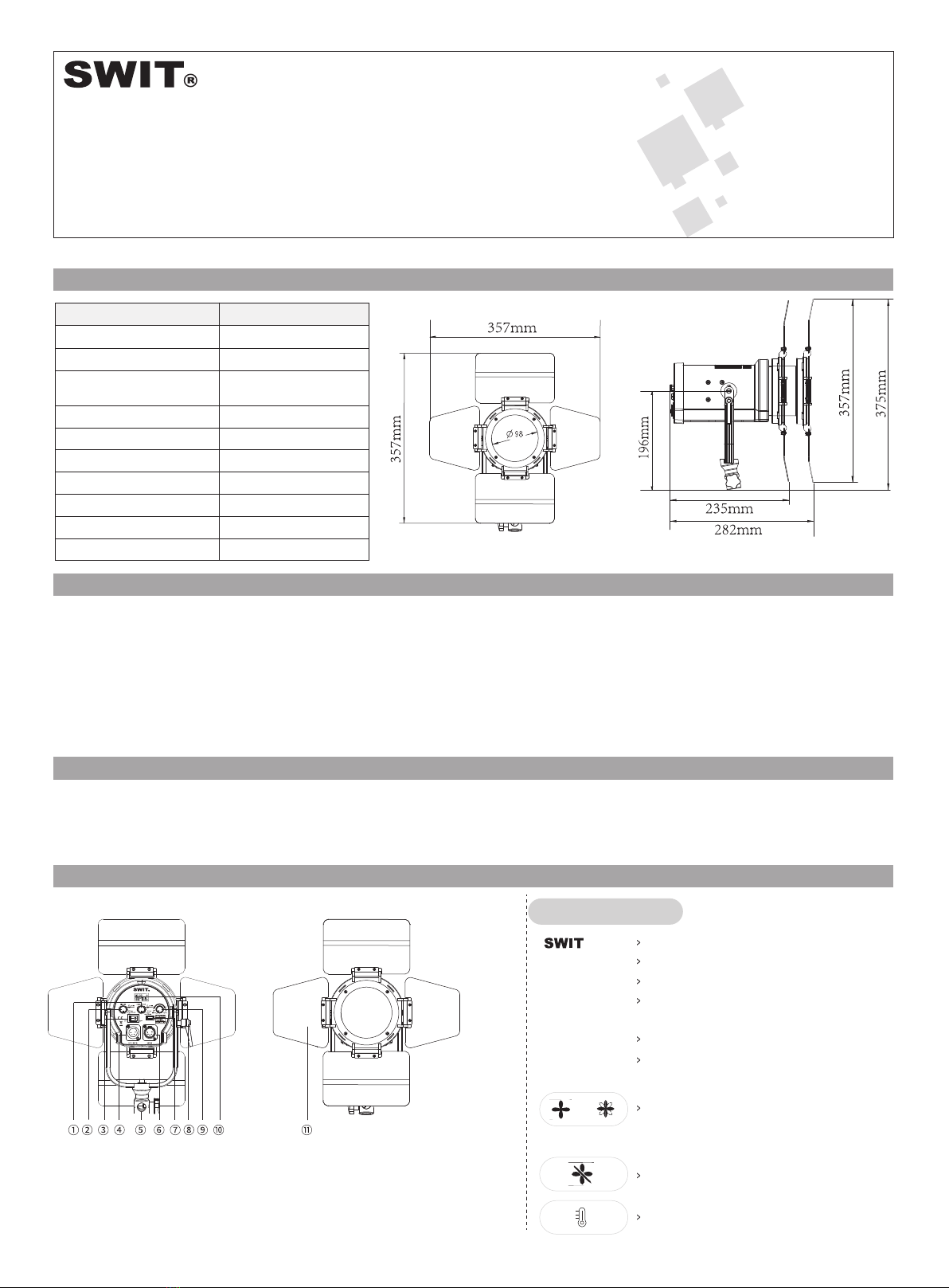

Specification
Caution
Cleaning
Appearance
Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference.
Model
Color temperature
Brightness
Max illuminance
Half-intensity Beam angle
CRI
TLCI
Working voltage
Power
Dimension
Weight
FL-C60D
2700K-8000K
0%-100%
Spot: 25000Lux@1m
Flood:4000Lux@1m
Spot:15º ； Flood:60º
95
97
DC 11-36V
Approx. 60W
as shown in the figure
Approx. 2.1kg
1. Do not disassemble the light or touch the interior of the light with metal objects, so as not to cause damage;
2. Please avoid storing lights in dusty or humid environment to avoid damaging or affecting the usage;
3. In order to avoid accidental dropping and damage of the barn doors during transportation, please reduce the light head to the minimum
position for storage;
4. When the environment temperature is lower than -2 °C, the trailing of LCD fan will not affect the use;
5. The USB interface is reserved. Please use it according to the specified environment of SWIT relevant products. It cannot be used for other
purposes to avoid losses;
6. Use this product only within the temperature range of -10 °C ~ 40 °C.
1. Please use a soft dry cloth to clean the Fresnel lens of this product, or use a soft cloth slightly dipped in neutral detergent, but wipe it with a
soft dry cloth after cleaning.
2. Do not wipe the front panel with wet cloth, anhydrous alcohol, gasoline or a mixture of anhydrous alcohol and ether, otherwise it may
damage the Fresnel lens.
① Color temperature knob
② Dimmer knob
③ POWER switch
④ DC 11-36V IN
⑤ Bracket connector
⑥ DMX IN
⑦ USB interface
⑧ Adjustable handle
⑨ Flood/Spotknob
⑩ LCD
⑪ Barn door
Rear View: Front View: LCD screen Display
Boot screen
DMX xxx Current DMX address, range: 001-512
Dimmer xxx% Current dimmer value, range: 0%-100%
Color xxxxK Current color temperature value,
range: 2700K-8000K
Under Vol. Under voltage
Over Vol. Over voltage
The fan running in normal mode, Dimmer
adjustable range 0%-100%.
Note: Dimmer≤50%, the fan icon still;
Dimmer＞50%, the fan icon rotating.
In Silent mode, the fan disabled, Dimmer
adjustable range 0%-50%.
The icon flashing, the light activating the
over-temperature protection function.
or
Fig.1 Fig.2

Usage
Usage
1. Installation
Install the product on the light stand or bracket according to the requirements, and adjust the beam angle through the adjustable handle
on the side of the light (Fig. 3 ⑧).
2. Power supply
The product is powered by batteries or power adaptors.
3. Dimmer and Color temperature setting and usage
This product has two adjustment modes of color temperature and dimmer: normal adjustment mode and fast adjustment mode. Press the
dimmer/color temperature knob (Fig. 3 ②/①) to switch the adjustment modes of corresponding dimmer or color temperature. The user
can quickly set the dimmer/color temperature by combining the two adjustment modes according to the usage requirements.
3.1 Normal adjustment mode
(1). Color temperature adjustment range: 2700K-8000K, adjustment step: 100K
(2). Dimmer adjustment range: 0%-100%, adjustment step: 1%
3.2 Fast adjustment mode
(1). Color temperature adjustment
In this mode, common color temperatures can be quickly selected: 2700K, 3200K, 4500K, 5600K, 6500K, 7200K, 8000K.
(2). Dimmer adjustment range: 0%-100%, adjustment step: 10%
4. DMX address setting and usage
4.1 DMX address setting
Long press the dimmer knob (Fig. 3 ②) for about 2s to enter the DMX address setting interface. The DMX address setting range is: 001-512.
The DMX address digit flashing indicates that the current address is selected. Rotate the dimmer knob (Fig. 3 ②) to set the current address,
and press the dimmer knob (Fig. 3 ②) to determine the current address setting and enter the next address setting. When the last address
setting is completed, press the dimmer knob (Fig. 3 ②) or wait for about 5s to exit the DMX address setting.
4.2 Light DMX Channel Definition
Connect DMX signal output device with this product and set the DMX address, and then use it normally.
The product occupies 3 DMX control channels. If the current DMX address is set to N, then N is dimmer control, N + 1 is color temperature
control, and N + 2 is Flood / Spot control.
For example:
DMX address
005
DMX control channel
005
006
007
Control function
Dimmer adjustment 0%-100%
Color temperature adjustment 2700K-8000K
Flood/ Spot control
5. The fan running mode selection
There are two running modes for the fan. The user can freely select according to the requirements by long pressing the color temperature
knob (Fig. 3 ①).
5.1 Normal Model
The fan runs in normal mode by default, and the dimmer adjustment range is 0% - 100%.
5.2 Silent mode
In this mode the fan stops running, and the dimmer adjustment range is 0% - 50%.
5.3 Switch between normal mode and silent mode
Long press the color temperature knob (Fig. 3 ①) for about 2s to switch between normal mode and silent mode.
6. Flood/Spot adjustment
The users can adjust the focus by rotating Flood/Spot knob (Fig.3 ⑨). Clockwise, Flood→Spot; Counterclockwise, Spot→Flood.
7. Over-temperature protection
In order to protect the light source from damage, this product has the over-temperature protection function. When the light source t
emperature is too high, the Dimmer will drop to 0%, and the Color parameter will remain unchanged. When the light source temperature
drops to the safe range, the product will return to the normal working state.
8. USB interface usage
The USB interface is reserved. Please use it according to the specified environment of SWIT relevant products. It cannot be used for other
purposes to avoid losses.
1
2
3
4
5
6
7
8
9
Packing details
FL-C60D
Power cable
Power adaptor
S-7200S（Battery plate with clamp）
S-7101（D-tap to 4-pin XLR DC Cable）
User manual
Warranty card
LA-WR8-R（optional）
LA-WR8（optional）
Package 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
The customer can purchase separately according to
the requirements.
