switel DPF962 User manual

DECT telephone set with
7" photoframe
Operating Instructions
DPF962

2
2
Operating Instructions 3. . . . . . . . . . . . . . . .
Declaration of Conformity 48. . . . . . . . . . . . .

1
Contents
3
1 Safety Information 4. . . . . . . . . . . . . .
2 Preparing the Telephone 6. . . . . . . . .
3 Operating Elements 9. . . . . . . . . . . . .
4 Preliminary Information 10. . . . . . . . . .
5 Menu Structure 13. . . . . . . . . . . . . . . .
6 Phone Book 15. . . . . . . . . . . . . . . . . .
7 Call Log 17. . . . . . . . . . . . . . . . . . . . .
8 Telephoning 19. . . . . . . . . . . . . . . . . .
9 Extending the Telephone System 24. . .
10 Special Functions 26. . . . . . . . . . . . . .
11 PABX / Supplementary Services 26. . . .
12 Starting the Picture Frame 28. . . . . . . .
13 Operating Elements 29. . . . . . . . . . . . .
14 Preliminary Information 32. . . . . . . . . .
15 Menu Structure 35. . . . . . . . . . . . . . . .
16 Telephoning 38. . . . . . . . . . . . . . . . . .
17 Call Log 39. . . . . . . . . . . . . . . . . . . . .
18 In Case of Problems 40. . . . . . . . . . . .
19 Technical Properties 43. . . . . . . . . . . .
20 Maintenance / Guarantee 45. . . . . . . . .
21 Index 46. . . . . . . . . . . . . . . . . . . . . . .

Safety Information
4
1 Safety Information
Please read this operating instruction manual thoroughly.
Intended use
The phone is suitable for telephoning within a public telephone
network system.
Only use the picture frame as described in this manual.
Any other use is considered unintended use. Unauthorised modifi-
cation or reconstruction is not permitted. Under no circumstances
open the devices or complete any repair work yourself.
Installation location
Prevent excessive exposure to smoke, dust, vibration, chemicals,
moisture, heat and direct sunlight.
Do not use the handset in potentially explosive areas.
Power adapter plugs
Attention: Only use the power adapter plugs supplied
because other power adapter plugs could damage the
devices. Ensure access to the power adapter plugs is
not obstructed by furniture or such.
Rechargeable batteries
Attention: Never throw batteries into a fire. Only use
batteries of the same type. Pay attention to correct pola-
rity. Incorrect polarity of the batteries represents a risk of
explosion during charging.
Power failure
The telephone cannot be used to make calls in the event of a
power failure. Always keep a cord connected telephone which op-
erates without an external power supply available in case of
emergency situations.

Safety Information
5
Medical equipment
Attention: Never use the telephone in the vicinity of me-
dical equipment. Effects on such equipment cannot be
fully ruled out.
DECT1telephones can cause an unpleasant humming sound in
hearing aids.
Disposal
In order to dispose of your device, take it to a collection
point provided by your local public waste authorities (e.g.
recycling centre). The adjacent symbol indicates that the
device must not be disposed of in normal domestic
waste! According to laws on the disposal of electronic
and electrical devices, owners are obliged to dispose of
old electronic and electrical devices in a separate
waste container.
Batteries must be disposed of at
the point of sale or at the appropri-
ate collection points provided by
the public waste authorities.
Packaging materials must be disposed of according to local re-
gulations.
1DECT: Digital Enhanced Cordless Telecommunication = Stan-
dard for cordless telephones.

2
Preparing the Telephone
6
2 Preparing the Telephone
Safety information
Attention: It is essential to read the Safety Information
in Chapter 1 before starting up.
Checking the package contents
The package contains:
Content DPF96x Model1
962 963 964 965
Base station with power
adapter plug
1 1 1 1
Charging station with power
adapter plug
− 1 2 3
Handset 1 2 3 4
Telephone connection cable 1 1 1 1
Batteries 2 4 6 8
Picture frame 1 1 1 1
Remote control with battery 1 1 1 1
Operating instructions 1 1 1 1
Connecting the base station
Attention: Position the base station at least 1 m away
from other electronic devices, otherwise there is a risk of
mutual disturbance.

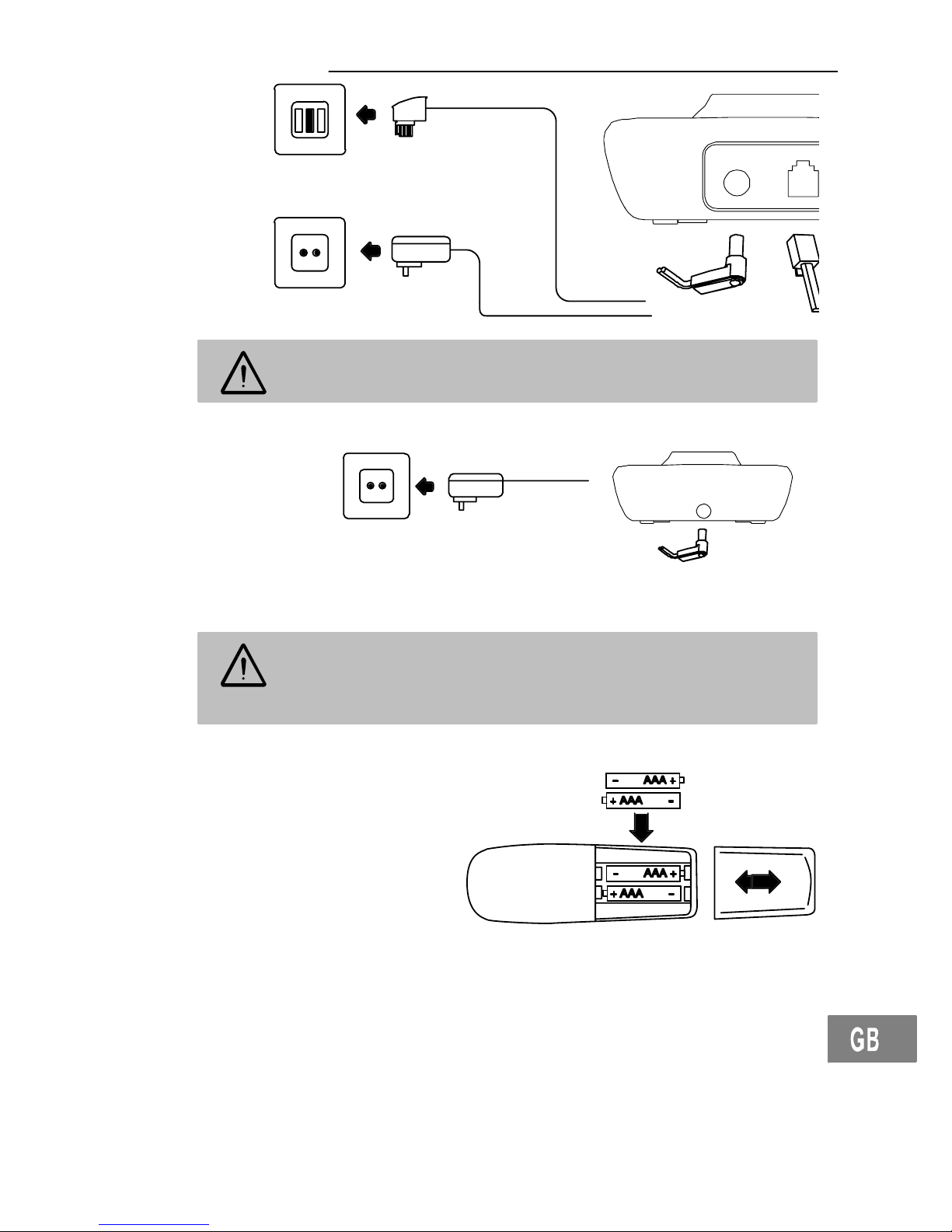

Connect the base station as illustrated in the diagram. For rea-
sons of safety, only use the power adapter plug and telephone
connection line supplied.
1Visit www.switel.com to find out whether the telephone/tele-
phone set is already available.

Preparing the Telephone
7
Mains power outlet
Telephone line socket
For the base station, use the power adapter plug label-
led with No. VD060025J and output data 6 V, 250 mA.
Connecting the charging station1
Connect the
charging sta-
tion as illus-
trated in the
diagram.
For safety reasons, only use the power adapter plug supplied.
For the charging station, use the power adapter plug la-
belled with No. VD060015D and output data 6 V,
150 mA.
Inserting the batteries
Insert the batteries in
the open battery com-
partment. Only use
batteries of the type
AAA NiMH 1.2 V. Pay
attention to correct
polarity. Close the
battery compartment
cover.
1Only applies to telephone sets with at least two handsets
Checking the package contents" (Chapter 2).
Mains power outlet

3
Preparing the Telephone
8
Charging the batteries
Before the handset is used for the first time, insert it in the
base station/charging station for at least 16 hours.
When the handset is properly inserted in the base station / charg-
ing station, you will hear an acoustic signal. The handset warms
up during the charging process. This is normal and does not
represent a risk. Do not charge the handset with charging units
from other manufacturers. The current battery charge status is
indicated in the display:
Full Half empty Low Empty
Setting the display language
Select the language required (also refer to Menu Structure"):
> SETUP MT > SPRACHE >...
(> SETUP HS > LANGUAGE >...)
Setting the time and date on the handset
The date and time are set using the menu (Chapter 5).
Automatic answering
When the AUTO TALK function is activated, a call is automatically
taken on removing the handset from the base station. The Auto
Talk function is activated and deactivated using the menu
(Chapter 5).
Private branch exchanges
The information in Chapter 11 explains how to install your tele-
phone in a private branch exchange.
Low−radiation operation (ECO mode)
In talk mode, radiation is reduced depending on the
distance between the handset and base station.

Operating Elements
9
3 Operating Elements
The buttons in this operating manual are subsequently depicted
with a uniform contour. Therefore, slight deviations in the appear-
ance of the symbols on the telephone buttons compared to those
depicted here are possible.

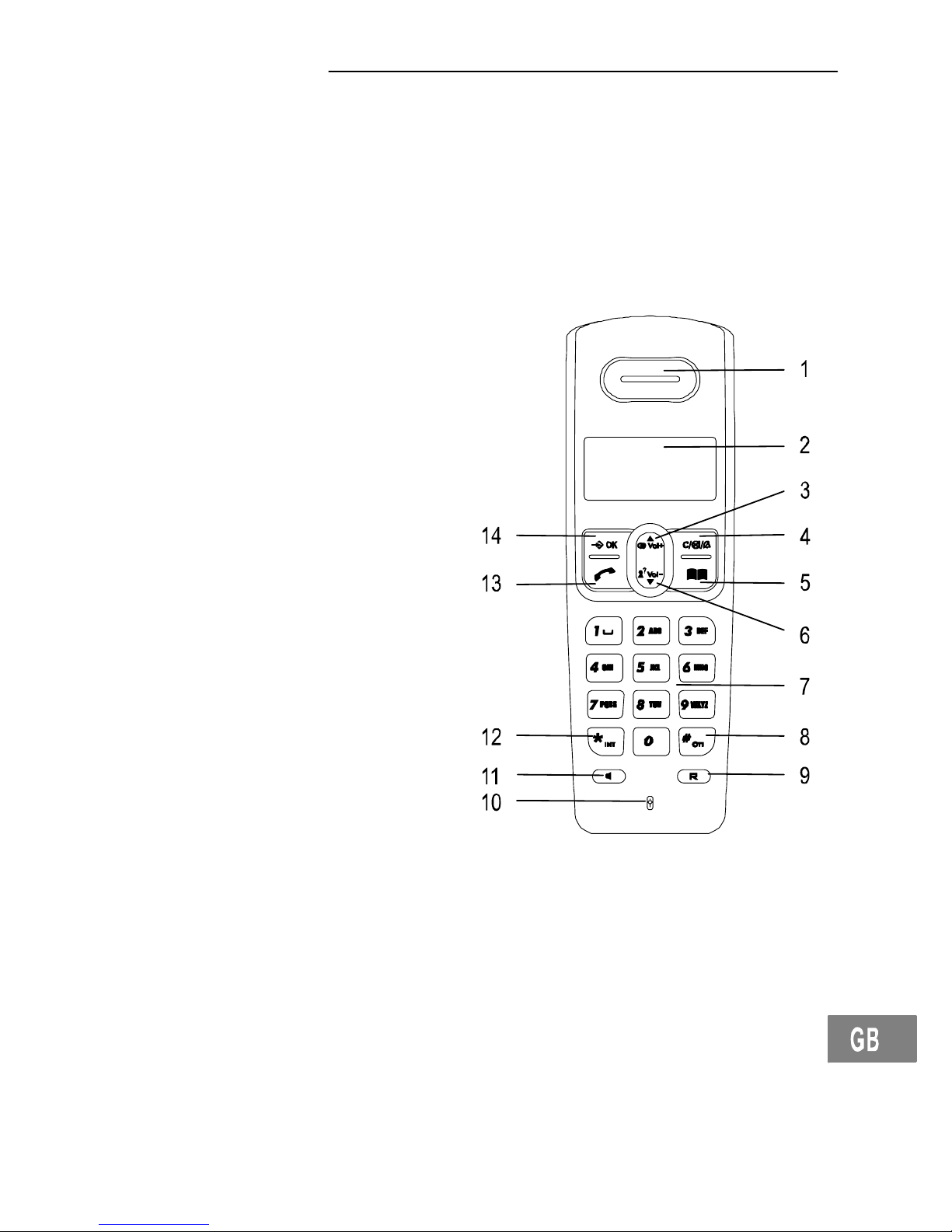

Handset
1 Loudspeaker
2 LC display
(liquid crystal display)
3 Arrow button, upwards
Redialling
Increase receiver volume
4 Delete entries
Muting function
Ringing tone on/off
5 Phone book
6 Arrow button, downwards
Call log
Lower receiver volume
7 Digit keys
8 #−button
Key lock
9 R−button
10 Microphone
11 Handsfree button
12 *−button
Internal call
13 Call/On−hook button
14 Save/Confirmation/Menu button

Preliminary Information
10

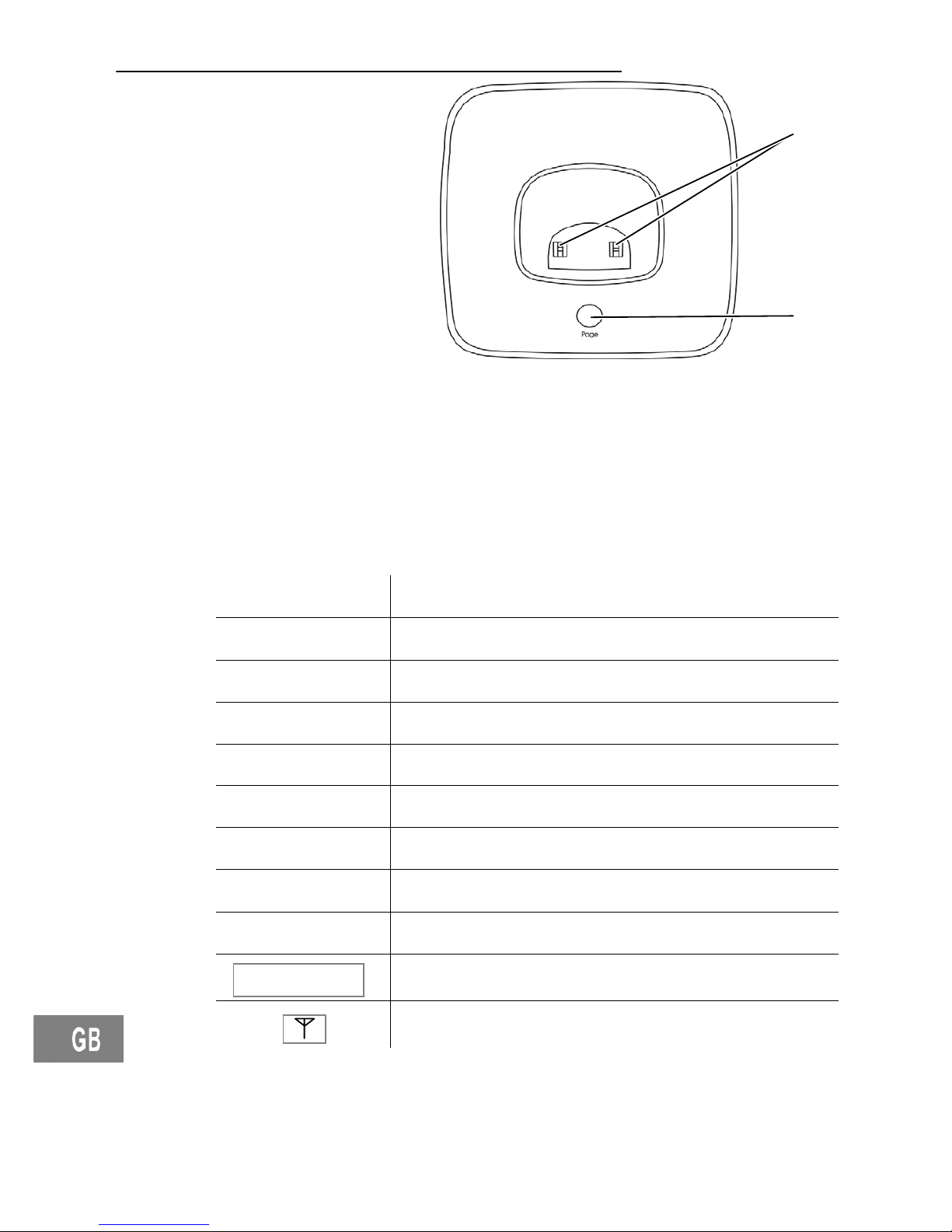

Base station
1 Charging contacts
2 Paging button
4 Preliminary Information
This chapter provides basic information on using the operating in-
struction manual and the telephone.
Description of operating sequences in the manual
Display Description
Displays the contour of buttons
Press the button depicted briefly
2 sec. Press the button depicted for 2 seconds
Press any button briefly
Enter digits or letters
{}Handset rings
Remove the handset from the base station
Place the handset in the base station
DELETE? Depicts text in the display
Depicts icons in the display
1
2
