Zeolite-61 (P/N HC10003) is a high purity natural zeolite. The surface area of Zeolite-61 is 100-times greater than
sand/anthracite thus allowing smaller particles to be trapped. Its larger surface area greatly improves water
clarity and increases the time between backwashes. This product is Certified to NSF/ANSI Standard 61.
BENEFITS
• Safe, natural, nontoxic, inexpensive replacement for
sand/anthracite and multimedia beds
• High surface area holds up to 55% its weight in
water and up to 2.1% nitrogen
• High potassium and low sodium content
• Long filter bed life (approx. 10 years)
• Reduced backwash time and frequency
• Certified to NSF/ANSI Standard 61
• Certified to NSF/ANSI Standard 372
APPLICATIONS
• Bottle water and drinking water plants
• Economical pre-filter for RO systems
• Well water and industrial wastewater filtration
• Cooling tower, chillers, heat exchanger water
filtration
Specifications
PartNumber........................ HC10003
Mineral . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Clinoptilolite zeolite
MeshSize.......................... 14x40
Particle Size . . . . . . . . . . . . . . . . . . . . . . . . 0.42 mm to 1.4 mm
Smaller than 0.42 mm . . . . . . . . . . Less than 2%
Larger than 1.4 mm . . . . . . . . . . . . . Less than 2%
Effective Size . . . . . . . . . . . . . . . . . . . . . . 0.62 mm (d10)
Uniformity Coefficient. . . . . . . . . . . . . . 1.6 (d60/d10)
Average Size . . . . . . . . . . . . . . . . . . . . . . . 0.88 mm (d50)
BET Surface Area . . . . . . . . . . . . . . . . . . 29.3 square meters/gram
Surface Absorption . . . . . . . . . . . . . . . . Hydrophillic
Porosity . . . . . . . . . . . . . . . . . . . . . . . . . . . . High porosity, irregular
surface
Surface Charge. . . . . . . . . . . . . . . . . . . . . Negative
Cation Exchange Capacity. . . . . . . . . . 1.5 to 1.8 meq/gram
(as ammonium, -N)
Water Retention (max.) . . . . . . . . . . . . Holds 55% of its weight
Hardness........................... Moh’sno.4
Service Flow Rate *. . . . . . . . . . . . . . . . . 10 to 20 gpm/sq.ft.
Backwash Rate (@ 60ºF) . . . . . . . . . . 12 to 22 gpm/sq.ft.
Backwash Expansion . . . . . . . . . . . . . . . 40 to 50%
Minimum Bed Depth. . . . . . . . . . . . . . . . 24 inches
Solids Loading. . . . . . . . . . . . . . . . . . . . . . High (1.7 x multimedia)
Filtration Rating (nominal) . . . . . . . . . 3 to 10 micron
Color................................ Lightgraygreen
Packaging. . . . . . . . . . . . . . . . . . . . . . . . . . . 55 lb (1 cu.ft.) bags, or
2,000 lb supersack
*A general sizing guideline for 5 micron filtration would be 15 gpm/sq.ft. service
flow rate.
This information has been gathered from standard materials and or test data
that is believed to be accurate and reliable. Nothing herein shall be determined to
be a warranty or representation expressed or implied with respect to the use of
such information or the use of the goods described for any particular purpose
alone or in combination with other goods or processes, or that their use does
not conflict with existing patent rights. No license is granted to practice any
patented invention. It is solely for your consideration, investigation and
verification.
Physical filtration barriers for accumulation or collection of
microorganisms in water that endanger human health have been
in focus during the last several years. Zeolite-61 will be an ideal
collector of pathogens such as Giardia, Cryptosporidium, and
other oocyst and protozoa and their spores. Most of these
organisms and their spores are in the size range of 0.5 to 10
micrometers (microns). In contrast, the water permeable pores
in Zeolite-61 are mostly smaller than 0.05 microns; therefore
the zeolite fragment or granule can surface collect a high
percentage of these microorganisms while the water passes
through the zeolite fragment. The U.S. drinking water standards
for microorganism pathogens and turbidity can be easily met
using a natural, low-cost material, such as Zeolite-61 rather
than sand which is chiefly quartz grains.

Filtration M edia
ZEOLITE-61
PARTICULATE REDUCTION MEDIA
SAFE WATER TECHNOLOGIES, INC.
996 BLUFF CITY BOULEVARD, ELGIN, IL 60120 USA
TELEPHONE [phone] • FACSIMILE 847 888 6924
E MAIL: [e-mail] • WEB SITE: www.swtwater.com
FORM 1324
EFFECTIVE
OCTOBER 2020

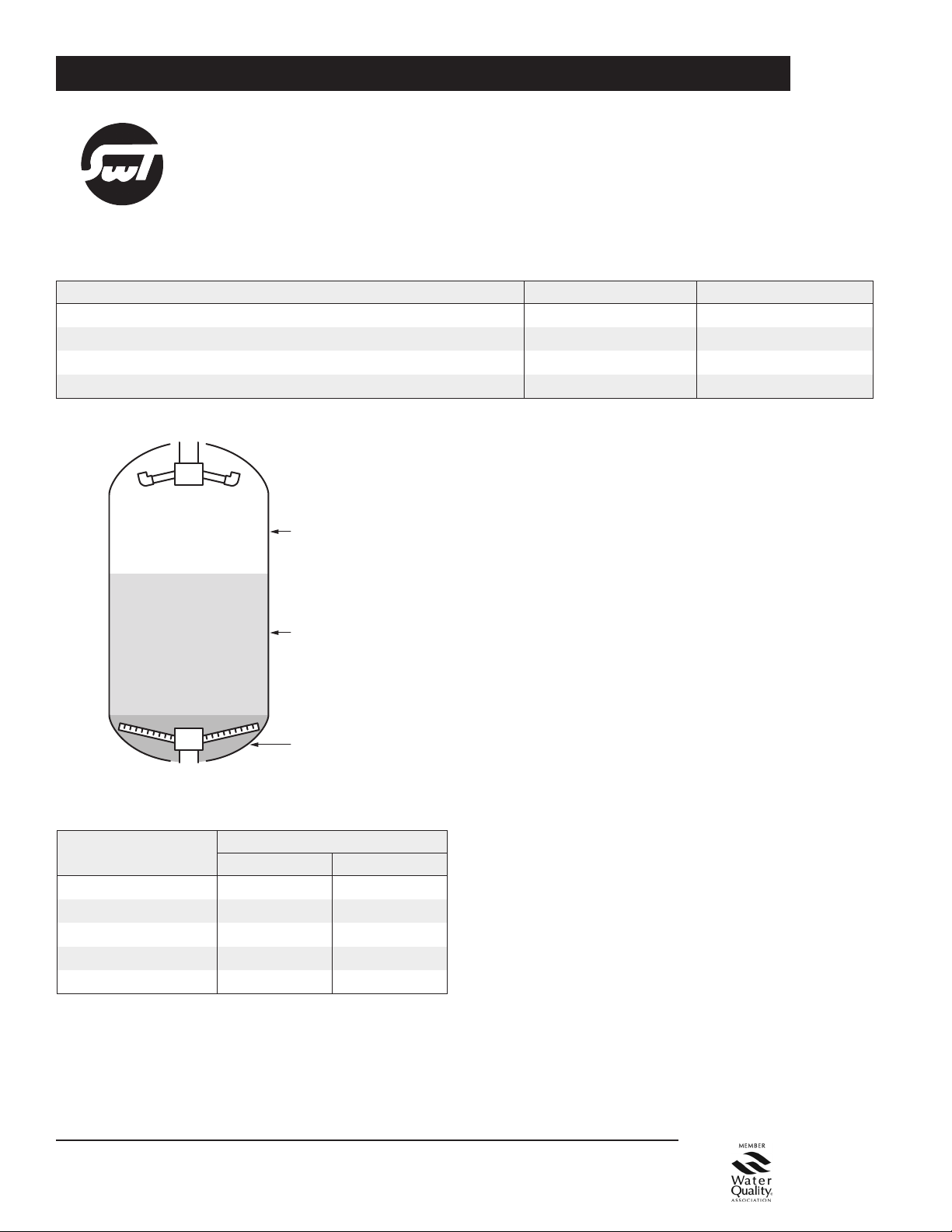

FREEBOARD
40 to 100%
ZEOLITE-61
30 to 48 inches
UNDERBEDDING
3 to 4 inches
above laterals
Zeolite-61 vs. Conventional Media Performance (Pressure Vessels)
Filter Media Filter Rating (nominal) Solids Loading Capacity
Sand (20 x 40 Mesh) ~20 micron 1x
Sand/Anthracite (20 x 40 Mesh & Anthracite) ~15 micron ~1.4x
Multimedia (8 x 12 Garnet, 30 x 40 Garnet, 0.45–0.55 Sand, Anthracite #1) ~12 micron ~1.6x
Zeolite-61 (14 x 40 Mesh) < 5 micron ~2.7x
Zeolite-61 Filter Loading and Startup
1. Load and level the underbedding.
2. Backwash for 20 to 30 minutes to clean and level the
underbedding.
3. Load the Zeolite-61.
4. Check that the correct backwash flow rate has been
determined based on the water temperature.
(See Typical Backwash Flow Requirements Table.)
5. Allow the tank to slowly ll with water from the bottom.
This is most easily accomplished by setting the control
valve to the backwash position and partially opening the
inlet valve until water flows from the drain line.
6. Allow the Zeolite-61 to soak for at least 30 minutes.
7. Fully open the inlet valve and set the control valve to the
backwash position.
8. Allow the lter to backwash for 20 to 30 minutes. Continue
the backwash until the water is clear and free of
particles.
9. Allow the lter to settle for 10 to 15 minutes. Do not allow
the control valve to enter the fast rinse cycle.
10. Allow the lter to backwash again for 15 to 20 minutes.
11. Allow the lter to fast rinse (downow) for 5 to 8 minutes.
12. The lter is now ready for service.
Optional Air Scour
Use 2 to 3 scfm/sq.ft. air @ 90 psi with 3 to 5 gpm/sq.ft. water
backwash (@77ºF).
NOTE: Above times are application dependent.
* 40% bed expansion for 50% freeboard.
Typical Backwash Flow Requirements
Water Temperature
Backwash Flow Rate
gpm/sq.ft. m/h
40ºF (4.5ºC) 12.5 30.6
50ºF (10ºC) 14.8 36.2
60ºF (16ºC) 17.2 42.0
70ºF (21ºC) 19.8 48.4
80ºF (27ºC) 22.3 54.5
*

Filtration M edia
ZEOLITE-61
PARTICULATE REDUCTION MEDIA
SAFE WATER TECHNOLOGIES, INC.
996 BLUFF CITY BOULEVARD, ELGIN, IL 60120 USA
TELEPHONE [phone] • FACSIMILE 847 888 6924
E MAIL: [e-mail] • WEB SITE: www.swtwater.com
FORM 1324
EFFECTIVE
OCTOBER 2020

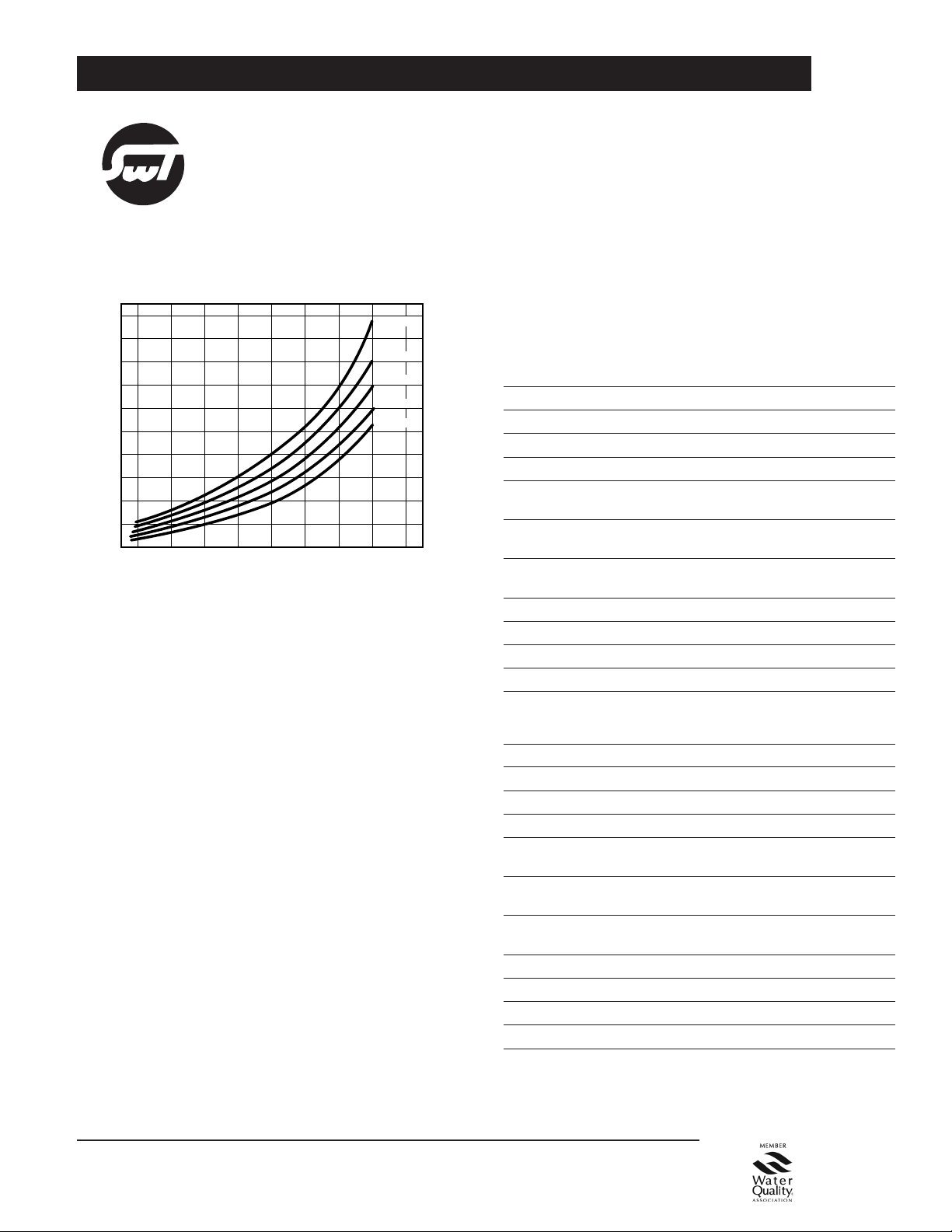

5 10 15 20 25 30 35 40 45
Flow Rate, gpm/ft2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
Pressure Drop, PSI/ft of bed depth
.14
.13
.11
.10
.08
.07
.06
.04
.03
.01
Pressure Drop, Kg/cm2
Flow Rate, m/h
12.2 24.4 36.7 48.9 61.1 73.3 85.6 97.8 110
Pressure Drop vs Flow Rate
50°F (10°C)
60°F (16°C)
70°F (21°C)
80°F (27°C)
40°F (4.4°C)
The examples below illustrate the advantages of Zeolite-61 by
comparing two systems designed for the same service flow; one
system based on Zeolite-61, and one multimedia system (gravel,
garnet, fine garnet, anthracite). Each system is based on best
design practices for the respective media.
EXAMPLE 1: 15 gpm Service Flow
Zeolite-61 Multimedia
Surface Loading 15 gpm/sq.ft. 5 gpm/sq.ft.
Surface Area Required 1.0 sq.ft. 3.0 sq.ft.
Tank Dimensions 14 x 65 inch 24 x 72 inch
Media Volume Required
(with underbedding) 3.7 cu.ft. 10.8 cu.ft.
Media Weight
(with underbedding) 216 lb 1,057 lb
Backwash Flow Required
@ 60ºF 17 gpm 51 gpm
Daily Backwash Volume 179 gallons 510 gallons
Filtration < 5 micron <10 micron
Ion Exchange Capacity 1.5–1.8 meq/g None
Comparative Cost 1x 3x
EXAMPLE 2: 45 gpm Service Flow
Zeolite-61 Multimedia
Surface Loading 15 gpm/sq.ft. 5 gpm/sq.ft.
Surface Area Required 3.0 sq.ft. 9.0 sq.ft.
Tank Dimensions 24 x 72 inch 42 x 72 inch
Media Volume Required
(with underbedding) 11 cu.ft. 35.3 cu.ft.
Media Weight
(with underbedding) 672 lb 3,469 lb
Backwash Flow Required
@ 60ºF 53 gpm 153 gpm
Daily Backwash Volume 556 gallons 1,530 gallons
Filtration < 5 micron <10 micron
Ion Exchange Capacity 1.5–1.8 meq/g None
Comparative Cost 1x 3.3x
