Sygonix 2338750 User manual

Operating elements
1
2
3
Location
• To optimize charging, place the solar panel (2) in a location exposed to maximum sunlight. Do not set up
the solar panel in the shade or under any cover.
• Do not install the product in the direct proximity of other light sources such as yard or street lights, other-
wise the product will not switch on automatically at nightfall.
• The product is suitable for use in unprotected outdoor areas. Do not submerge!
Mounting
This product comes with a wall mount kit and is designed to be mounted on wall.
When drilling or tightening screws, make sure there are no cables, wires, or pipes located un-
derneath the surface. Inadvertently drilling through electric cables can cause life-threatening
electric shock!
Check if the supplied screws are suitable for the mounting surface material. If in doubt consult a
professional.
When attaching the lamp case to the house number plate, make sure make sure no moisture
enters and the cable connection is not damaged.
1. Select a suitable wall surface (e.g. near a house door).
According to two screw holes on the house number
plate (3), mark two spots on the wall.
2. Using a drill, bore two holes on the marked spots.
3. Correctly orientate the plate: the front side faces out-
ward and the protruding edge faces upward.
Then secure two supplied dowels into the two drilled
holes, and secure two supplied screws into the two
dowels separately.
4. Attach the lamp case (1) onto the house number plate
as shown below. It should “click” into place.
5. Gently adjust the lighting angle as shown below.
For your house number, select numbers and/or letters from the supplied stickers and paste them
on the plate.
Solar charging
When using for the rst time or after prolonged periods of low sunlight, you should fully recharge the battery.
Operation
For rst time use, remove the battery insulation strip. See section “Operation - a) First time use
and light on”.
a) First time use and light on
This product comes with a battery installed. For rst time use, you must remove the battery insulation strip
to activate the power supply.
• Find the battery insulation strip on the bottom of the lamp case (1) and simply pull it out of the battery
compartment.
b) Notes on battery use and charging
• The batteries can be fully charged for eight hours in sunny weather, which can light the product for ap-
proximately eight hours.
• Keep the solar panel clean. Dust and dirt covering the solar panel reduces charging efciency.
• During extended periods without sufcient sunlight (especially in winter), the rechargeable battery charg-
es less energy during the day than the lights use at night. So it is possible that the rechargeable battery’s
charge state will only light the product for a brief time only.
• Cold temperatures adversely affect the battery life. To ensure long, error-free operation, we recommend
storing the product in a dry, warm location when not in use.
• You can remove the rechargeable batteries before storing the product and charge them with a suitable
charger. Observe all relevant information provided in these operating instructions regarding removing or
replacing the rechargeable batteries.
1 Lamp case
2 Solar panel
3 House number plate
Front side facing outward
Operating Instructions
Solar House Number Light
Item No. 2338750
Intended use
The product is intended to illuminate a house number which is pasted on the supplied house number plate.
2 LEDs serve as the illuminant. The light turns on automatically at nightfall. The product is powered by two
batteries that recharge via the integrated solar panel during the daylight hours.
The product has an IP44 ingress protection rating. It is splash proof and suitable for outdoor use. Do not
submerge!
For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product
for purposes other than those described above, the product may be damaged. In addition, improper use can
result in short circuits, res or other hazards. Read the instructions carefully and store them in a safe place.
Make this product available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company names and prod-
uct names are trademarks of their respective owners. All rights reserved.
Delivery content
• Solar house number light (2x rechargeable batteries inserted)
• 1x house number plate
• 2x screws
• 2x dowels
• 2x number stickers
• 1x letter sticker
• Operating instructions
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the QR
code shown. Follow the instructions on the website.
Explanation of symbols
The symbol with the exclamation mark in the triangle is used to indicate important information in
these operating instructions. Always read this information carefully.
This product is constructed according to protection class III.
The arrow symbol indicates special information and advice on operation.
Safety instructions
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become dangerous playing
material for children.
• Protect the product from extreme temperatures, strong jolts, ammable gases, steam and
solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and protect it
from any accidental use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height can dam-
age the product.
• Do not short circuit the battery terminals
• Consult an expert when in doubt about the operation, safety or connection of the product.
• Maintenance, modications and repairs must only be completed by a technician or an au-
thorised repair centre.
• If you have questions which remain unanswered by these operating instructions, contact our
technical support service or other technical personnel.
b) LED light
• Attention, LED light:
- Do not look directly into the LED light!
- Do not look into the beam directly or with optical instruments!
c) Rechargeable batteries
• Correct polarity must be observed while inserting the rechargeable battery.
• The rechargeable batteries should be removed from the device if it is not used for a long
period of time to avoid damage through leaking. Leaking or damaged rechargeable batteries
might cause acid burns when in contact with skin, therefore use suitable protective gloves to
handle corrupted (rechargeable) batteries.
• Rechargeable batteries must be kept out of reach of children. Do not leave rechargeable bat-
teries lying around, as there is risk, that children or pets swallow them.
• Rechargeable batteries must not be dismantled, short-circuited or thrown into re. Never re-
charge nonrechargeable batteries. There is a risk of explosion!

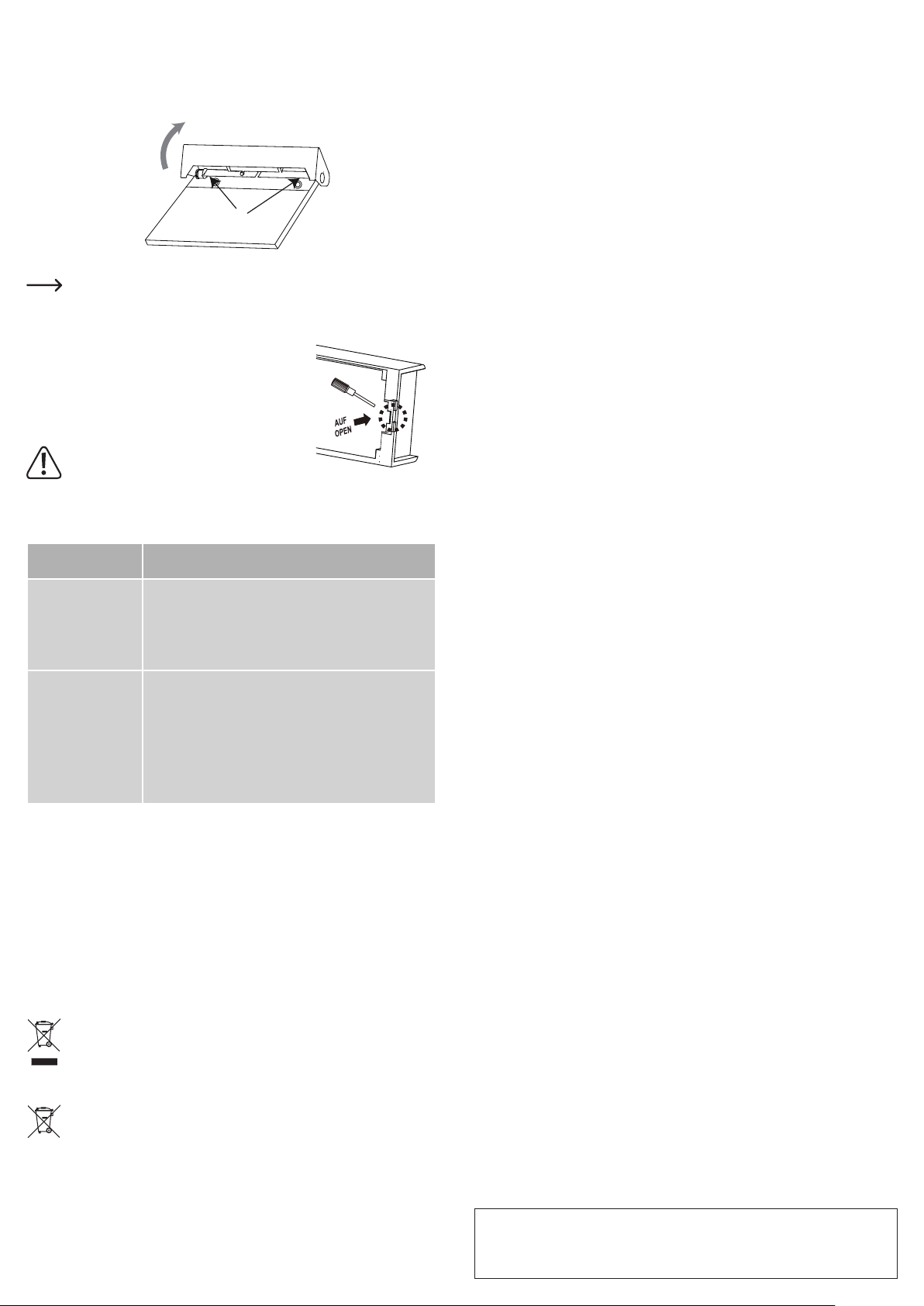

c) Detach the lamp case
To detach the lamp case (1) from the house number plate (3):
1. Carefully slide a at-blade screwdriver into the gap between the plate and tab of the lamp case while
simultaneously pulling that side of the lamp case away. The arrows on the drawing indicate the insertion
points.
2. Repeat the above steps for the other side.
d) Remove/Insert rechargeable batteries
Replace the rechargeable batteries if the illumination time reduces signicantly despite the bat-
teries being sufciently charged.
When replacing the rechargeable batteries, make sure no moisture enters and the cable con-
nection is not damaged.
1. Remove the lamp case (1) from the house number plate (see sec-
tion “Operation - c) Detach the lamp case”).
2. Find the battery compartment on the bottom of the lamp case.
Then use a at-blade screwdriver to remove the battery door on
the side marked with the open sign.
3. Replace the batteries matching polarities shown inside the com-
partment.
Only use rechargeable batteries of the same type and
specication as indicated in the section “Technical data”.
4. Replace the battery door. Then reattach the lamp case to the house number plate (see section “Mount-
ing”).
Troubleshooting
Problem Solution
The light does not
turn on automatically.
• There is a nearby light source which causes interference with
the product. Make sure the product is placed in darkness to
activate the light.
• The battery power is not sufcient to light the product. Charge
the batteries.
The light stays on for
short periods.
• Long periods of low sunlight (e.g. cloudy weather or in winter)
will cause the battery to recharge less during the day. We rec-
ommend to use a commercially available charger to charge the
batteries.
• The batteries are old and cannot store sufcient charge. Re-
place with new ones.
• See sections “Solar charging” and “Operation - b) Notes on bat-
tery use and charging”.
Care and cleaning
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can
cause damage to the housing and malfunctioning.
• Never point a water jet, e.g. of a high-pressure cleaning device, at the product.
• Besides occasional cleaning, the product is maintenance-free.
• Let the product cool down sufciently before cleaning.
• Use a clean, soft and dry cloth to clean the housing. For more stubborn dirt, slightly moisten the cloth
with lukewarm water.
• If necessary, remove any dust from the solar panel, as the charging current could otherwise decrease.
Disposal
a) Product
Electronic devices are recyclable waste and must not be disposed of in the household waste.
At the end of its service life, dispose of the product in accordance with applicable regulatory
guidelines.
Remove the rechargeable batteries and dispose of them separately from the product.
b) Rechargeable batteries
You as the end user are required by law (Battery Ordinance) to return all used rechargeable
batteries. Disposing of them in the household waste is prohibited.
Contaminated rechargeable batteries are labeled with this symbol to indicate that disposal in
the domestic waste is forbidden. The designations for the heavy metals involved are: Cd =
Cadmium, Hg = Mercury, Pb = Lead (name on rechargeable batteries, e.g. below the trash icon
on the left).
Used rechargeable batteries can be returned to collection points in your municipality, our stores or wherever
rechargeable batteries are sold.
You thus fulll your statutory obligations and contribute to the protection of the environment.
Technical data
Power supply........................................ 2x 1.2 V, 600 mAh NiMH, AA (HR6) rechargeable battery
Power consumption.............................. 2 x 0.075 W
Solar panel ........................................... 4 V, 150 mA, monocrystal
Illuminant type ...................................... LED
LED quantity......................................... 2 pcs
LED service life..................................... 25000 hours
Charging time ....................................... 8 hours (in optimum conditions)
Illumination time.................................... max. 8 hours with fully charged battery
Light output........................................... max. 10 lm
Light activation threshold...................... ≤10 lux
Colour temperature............................... 6000 K
Ingress protection................................. IP44
Protection class .................................... III
Material................................................. stainless steel + ABS + PMMA
Operating/Storage conditions............... -20 to +40 ºC, ≤100 % RH (non-condensing)
Dimensions (W x H x D) ....................... 230 x 200 x 60 mm
Weight .................................................. 636 g
