Congratulations on your purchase of Digital Photo Frame, model SDPF1089.
Before operating the units, please read this manual thoroughly, and retain it
for future reference. This manual will help you use many of the exciting and
useful features that will make your Digital Photo Frame viewing more
enjoyable.
This Digital Photo Frame lets you view digital pictures directly from your
camera's memory cards. You will be able to create a slideshow using multiple
transition effects or display one picture at a time.
This Digital Photo Frame is compatible with the following popular memory
card formats: USB, SD, MultiMedia Card, and Memory Stick.
AC power Wall adapter
Digital Photo Frame
User's Manual
Remote Control
Stand
Locate the removable easel and place in the corresponding holes at the back of
the unit.
Plug in the AC adaptor into power outlet. Plug the other end into the unit.
You can put SD / MMC / MS card or U disk to correct slot.
Note:
Please ensure that you have one photo file loaded onto the memory card.
Package Contents
Installing Your Unit
3

Main Unit Controls
678
1
2
4
3
5
MODEL: SDPF1089
DC INPUT: 5V 1A
IMPORTED BY:
CURTIS INTERNATIONAL LTD.
MADE IN CHINA
SD/MMC/MS MINI USB USB
DC IN 5V
1. DC in 5V 2. SD card slot
3. MINI USB port 4. USB port
5. ON/OFF : turn on and turn off the unit
6. : Use this button to move cursor up and down when at setting menu,
and at main menu, you can use this button to select media device.
: Use this button to move cursor left and right when at setting menu and
main menu. when playing JPEG files,press it to play prev/next JPEG
file.
7. OK: To confirm.
8. M: Press it to return the main menu at once.
4

SD/MMC/MS MINI USB USB
DC IN 5V
System Connection
Power connection
Plug one end of the supplied AC power Wall adapter into the DC input jack of
the machine, then plug the other end into the AC power receptacle. Please
refer to the illustration above.
Upon using an SD card, insert it to the corresponding slot flatly with the label
side backward.
Using your SD card
Note:
Please do not disconnect USB device or plug out SD/MMC/MS card while
they are working with the unit. Functional failure may occur in case of wrong
operations.
SD/MMC/MS MINI USB USB
DC IN 5V
5

ESC
OK
ZOOM SETUP
ROTATE
6
Using Your Remote Control
Button Description and Function:
Setup: To enter into setup menu
:
:
Esc: Return to the previous step.
: To confirm and play/pause.
ZOOM: when the picture is displaying, press "zoom" to zoom out the picture to
125%, 150%, 175%, 200%, 225%, 250%.
ROTATE: when displaying pictures, press it to rotate the picture to 90°, 180°,
270°, 0°.
Use this button to move cursor up and
down when at setting menu, and at main
menu, you can use this button to select
media device.
Use this button to move cursor left and
right when at setting menu and main menu.
when playing JPEG files, press it to play
prev/next JPEG file.
OK
ESC
OK
SETUP
ZOOM
ROTATE

Using Your Digital Picture Frame
On The Remote Control
Browsing Images
Calendar Setting
USB
CARD
Storage

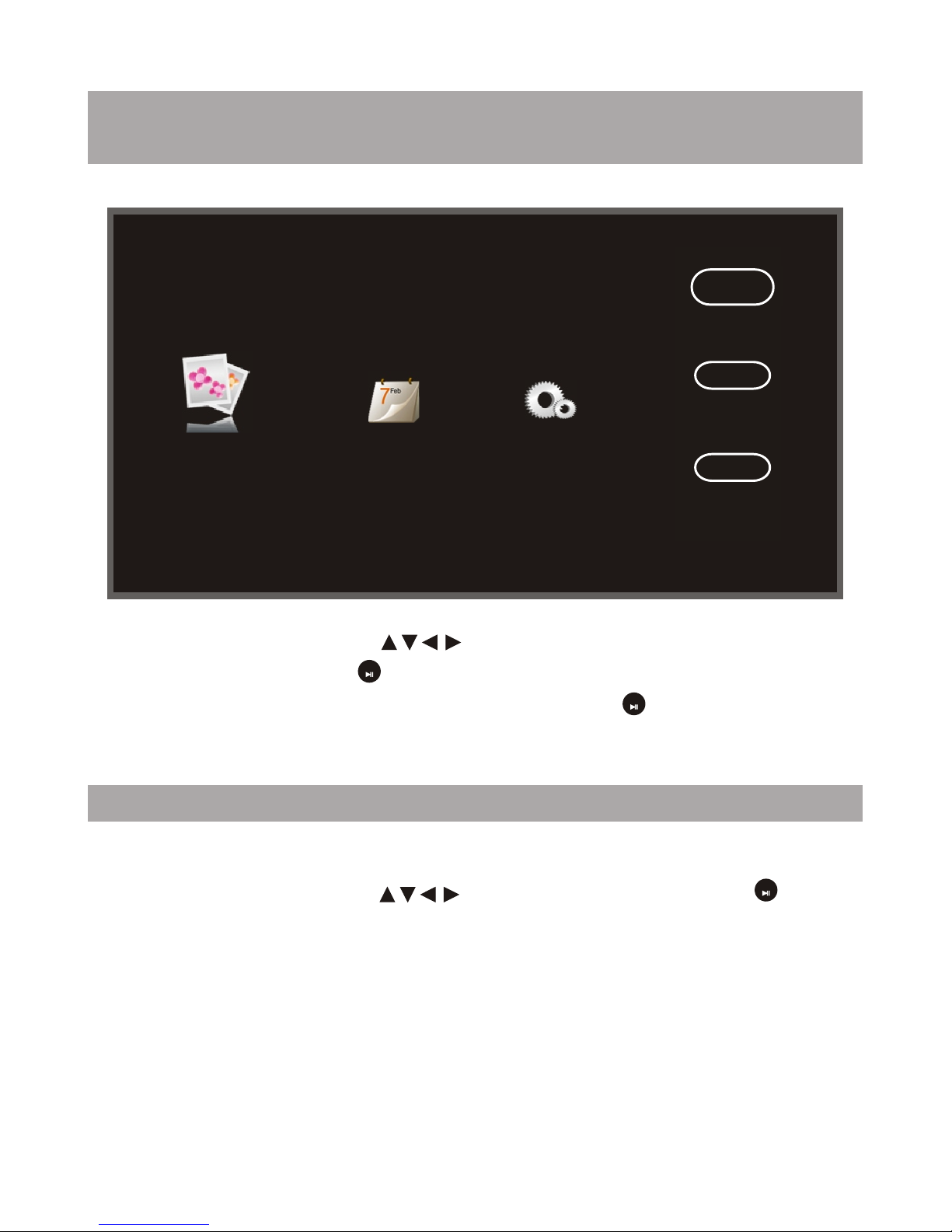

Using the directional arrows " ", highlight the desired SD/MMC/MS-
USB media device. press " " button to select one device, then you can
enter into Photo/Calender/Setting interface by press " " button.
OK
OK
When displaying the pictures, you can press "Esc" button to return to
thumbnail. And you can use " " to select the picture, press " " button
to browse the picture, you have selected.
OK
7

Setting
OK
OK
Photo Setup
Start Up Setting
Calendar Setup
System Setup
Press " " to select setting icon, press " " to enter.
Press "Setup" button on the remote control to enter setup menu when you are
at other menu.
In the Setup menu, press " " button to highlight the item. Press " " button
to access.
Press ESC to exit.
8

PHOTO SETUP
In the Photo Setup menu, press " " to highlight the item. Press " " to
change the settings. Press ESC to return the Setup menu.
Display Mode: Select image display mode (Slideshow, Thumbnail, Browse
Mode).
Display Ratio: Select image display size (Fit to Screen, Crop to Fill, Full
Screen).
Slideshow Duration: Select the duration of time (5Sec, 15Sec, 30Sec,
60Sec, 5Min, 15Min).
Slideshow Repeat : Select the manner of repeating photos (Once, Repeat).
Slideshow effect: Adjust the transition effect between eachimage in a
slideshow. Optional effect includes Random / S-curve / Partition / Erase /
Blinds / Random lines / Grid / Gross / Rect / Spiral / Close.
Photo From: select the resource of the Photo (All Dir/Current Dir).
Photo play sequence: Random/sequence.
Display Mode Slideshow
Display Ratio Crop to fill
Slideshow Duration 5Sec
Slideshow Repeat Repeat
Slideshow Effect Random
PhotoFrom All Dir
Photo Play Sequence Random
Photo Setup
9

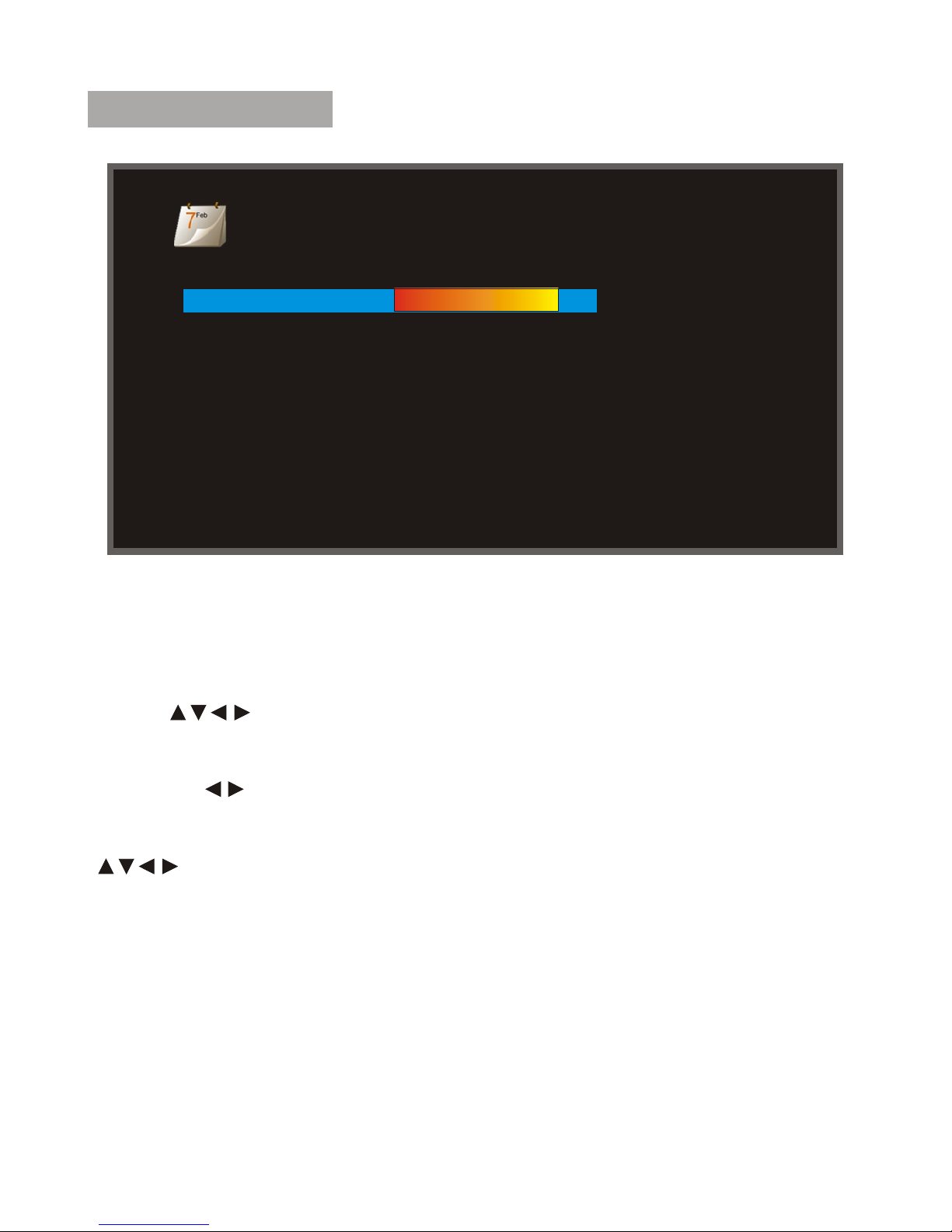

Calendar Setup
Calendar Setup
Display Mode Monthly Calendar
Date 01-01-2016
Clock Mode 12-hour
Clock Time 12:21AM
Display Mode : Select calendar display mode ( Monthly calendar/Calendar/
Clock)
Date : When the cursor position moving to the Icon,using the directional
arrows " " to adjust the date.
Clock Mode : When the cursor position moving to the Icon, using the
directional " " to adjust the Clock Mode(24hr,12hr).
Clock : When the cursor position moving to the Icon,using the directional
" " to adjust the time.
10

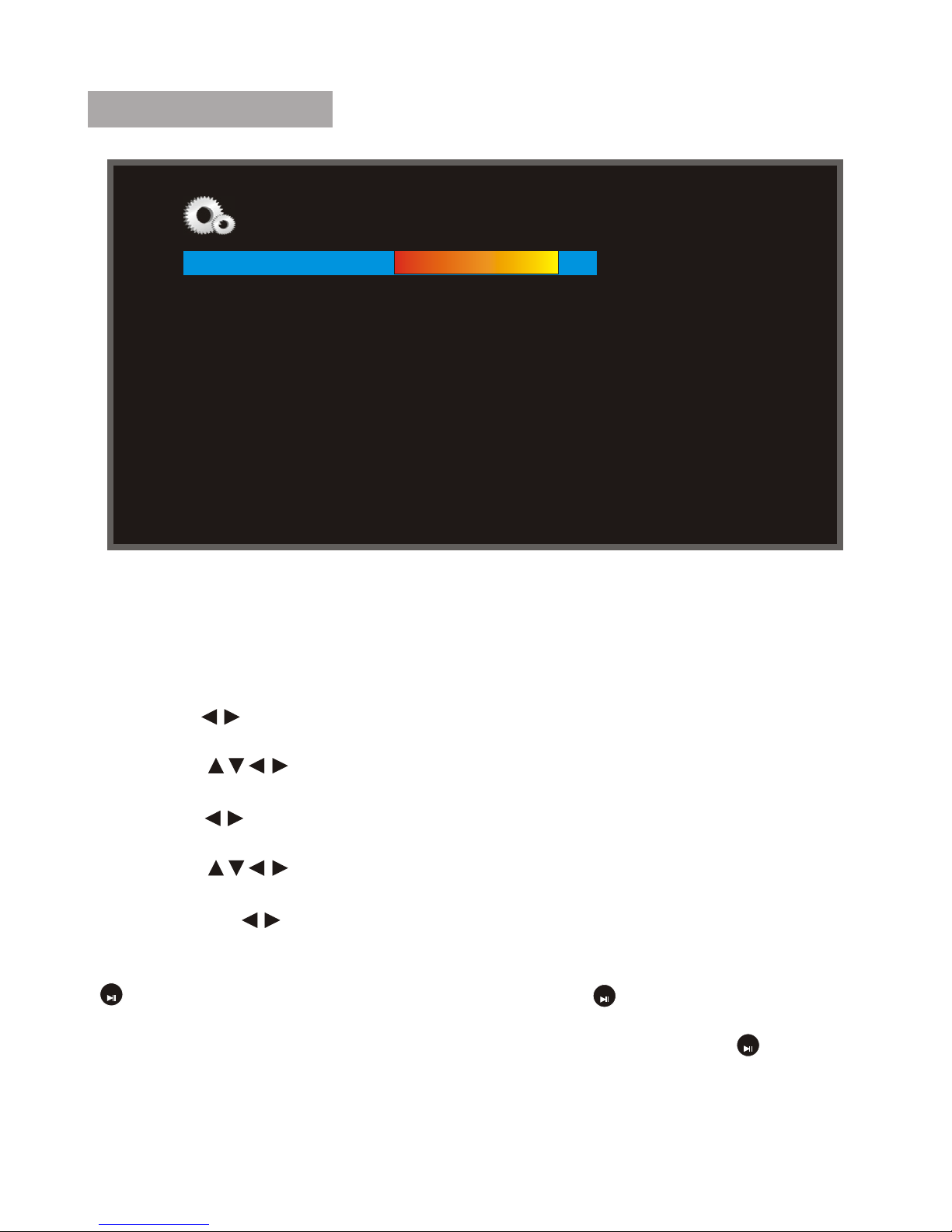

System Setup
Language : Select the on screen display language English, French , Spanish.
Brightness :Adjust screen brightness(between 1~16).
Contrast : Adjust screen contrast(between 1~16).
Saturation : Adjust screen saturation (between 1~16).
Auto Power On : When the cursor position moving to the Icon, using the
directional " " to select the unit auto Power on mode(on/off).
Auto Power-Up Time : When the cursor position moving to the Icon, using the
directional " " to select the unit auto Power on time.
Auto Power Off : When the cursor position moving to the Icon, using the
directional " " to select the unit auto Power off mode(on/off).
Auto Shut Time : When the cursor position moving to the Icon, using the
directional " " to select the unit auto Power off time.
Auto-Power Frequency : When the cursor position moving to the Icon, using
the directional " " to select the unit Auto-Power Frequency mode (Everyday
/weekday/Weekend/Once).
Reset default setting : When the cursor position moving to the Icon, pressing
" " to show the dialog,and select "YES", press " " to revert to the factory
settings.
Version : When the cursor position moving to the Icon, pressing" " to show
the dialog of the software version number.
System upgrade: using it to upgrand the system.
System Setup
Language English
Brightness(1-16)
Contrast (1-16)
Saturation (1-16)
Auto Power On
Auto Power-Up Time
Auto Power Off
Auto Shutdown Time
Auto-Power Frequency
Factory Reset Mode
Version
System upgrade
OK OK
OK
11
5
8
8
off
09:00AM
off
05:00PM
Weekday
...…
...…
...…

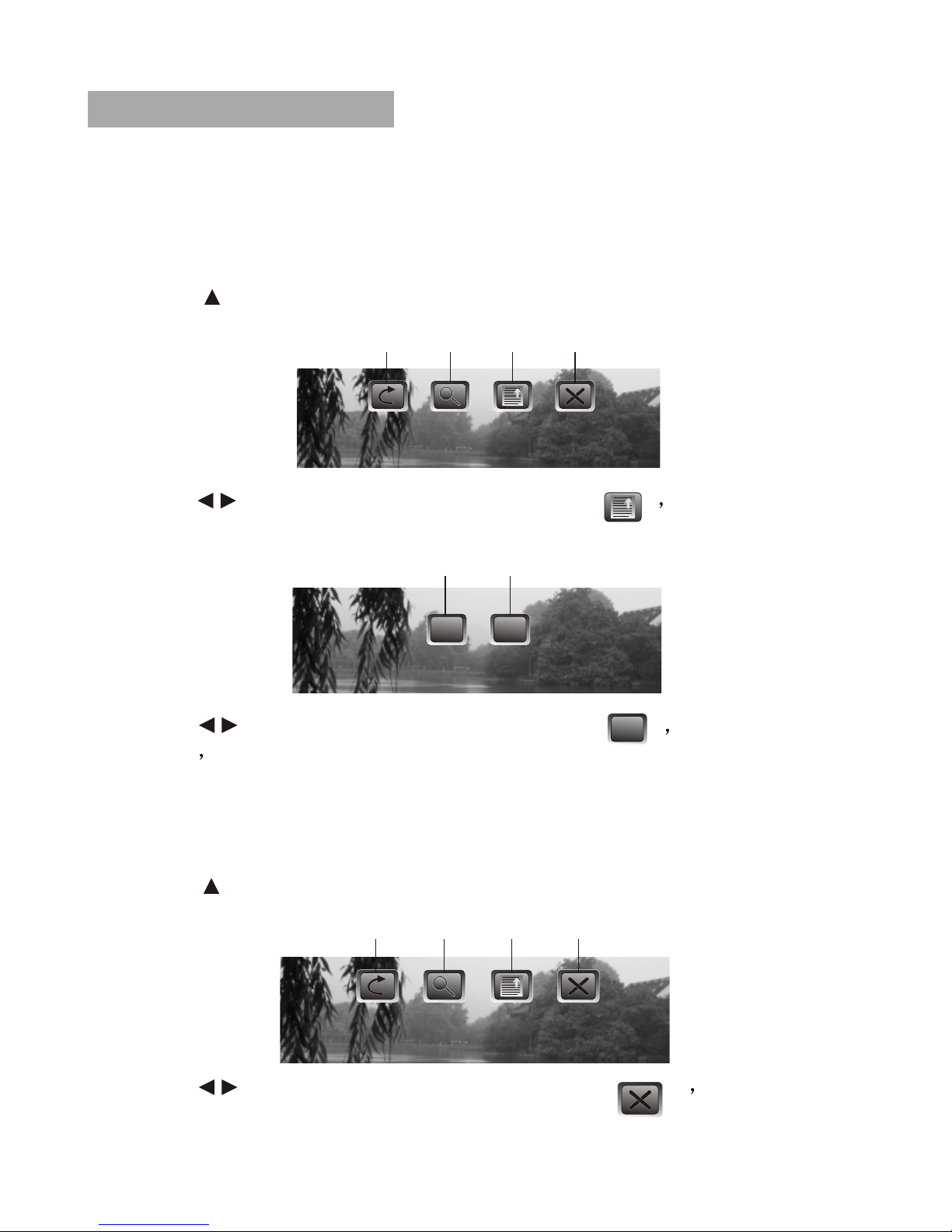

The user can copy images from the USB/SD/MMC/MS to frame , or delete
the images from USB/SD/MMC/MS .
Copy:
2. Press " " button,
3. It will display four options as follow:
4. Press" " button and "OK" button to select " " then press "OK"
button ,
5. It will display two options as below:
6. Press" " button and "OK" button to select " " then press "OK"
button
7."Copy Finished! " will display on the top left coner .
8. The image is copied to the frame storage .
Delete:
1. Choose the image you need , select "Browse Mode",
2. Press " " button,
3. It will display for options as follow:
4. Press" " button and "OK" button to select " " then press
"OK" button ,
5. The image is deleted from the USB/SD/MMC/MS .
1.Choose the image you need,press "OK" button in the remote, to select
"Browse Mode".
Copy and Delete
Rotate zoom copy delete
12
YES NO
YES NO
copy
delete
YES
Rotate zoom copy delete

Troubleshooting
Symptom Cause Corrective Actions
Digital Photo
Frame doesn't
power on
No photo files
on the memory
card
The file doesn't
play.
The power
connector to the
unit is not
securely
inserted.
Card is wrongly
inserted
Incompatible file
format
Make sure you connect the AC
adaptor to the frame properly.
When you connect the AC
adaptor to the frame and power
on the unit, even without a
memory card, you should see
the main menu. If you don't see
it, check if the power is
connected to the Digital Photo
Frame and make sure it is
securely attached.
Verify if the way you inserted
the card is correct. Make sure
the front label of the memory
card is facing AWAY from the
front of the unit. Do not force
the memory card into the slot.
Make sure there is at least one
supported image file format on
the memory card.
Compatible photo format: JPEG
13

Specifications
Type
Resolution
Output
Input
Working Temperature
Display Mode
File Format
Cards
Dimension
Weight
10.1 inch Digital Photo Frame
1024*600 Pixel
5V 1.0 A
AC100-240V~50/60Hz
0-40°C
16:9
JPEG
SD/MMC/MS
320*229*50.6 mm
0.943 kg
14
