Lamp / Ballast Guide
System Information

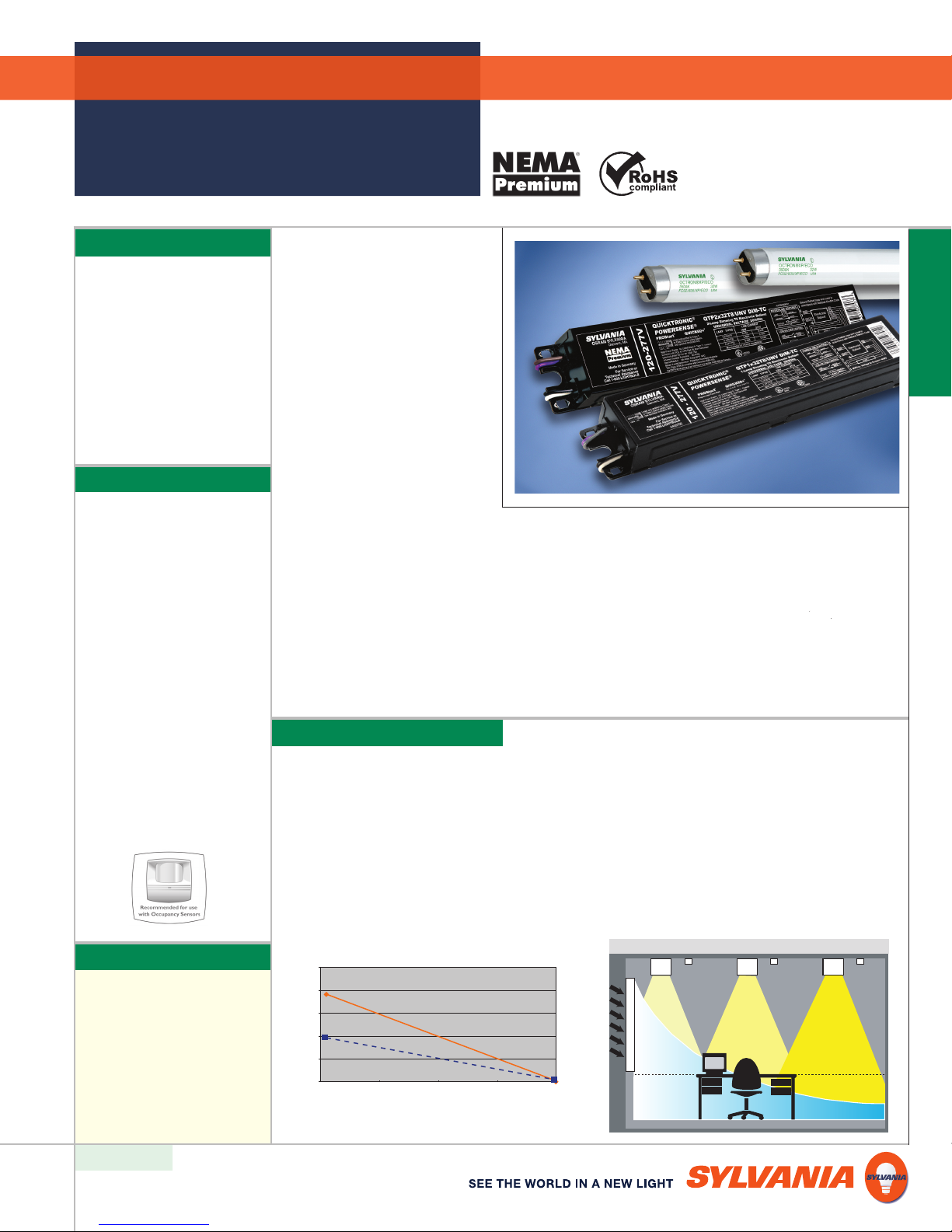

SYLVANIA QUICKTRONIC
POWERSENSE ballasts
are ideally suited for:
• Occupancy sensors
• Daylight harvesting
• Energy management
• Load shedding
• New construction
• Retrot
32W T8 - SYLVANIA OCTRON®lamps
1-lamp QTP1x32T8/UNV DIM
2-lamp QTP2x32T8/UNV DIM
3-lamp QTP3x32T8/UNV DIM
4-lamp QTP4x32T8/UNV DIM
Primary Lamp Types
FO32, FBO32 & FBO31
Also operates:
FO30/SS, FO28/SS, FO25/SS, FO25,
FO17, FBO24 & FBO16
SYLVANIA QUICKTRONIC High Efficiency,
POWERSENSE T8 electronic ballasts offer
several advantages:
• Wide Dimming Range: operate linear
fluorescent T8 lamps over a 100-5%
dimming range and provide true
versatility in controls selection.
• Industry’s Most Adaptable Dimming
Ballast: ballasts feature micro-controller
technology for compatibility with:
• low voltage controls
• power line uorescent dimmers
• any line voltage from 120V to 277V
• Unmatched Performance: patented
lamp detection technology that virtually
eliminates variations in brightness from
lamp-to-lamp and provides uniform
lighting throughout the dimming range.
At light levels of >75% unnecessary
lamp-coil power is turned off, delivering
energy efficiences comparable to non-
dimming Instant start electronic ballast.
This technology also eases installation
and troubleshooting by recognizing
failed lamps, faulty wiring or loose
connections, and shutting down.
When the problem is corrected,
the system restarts automatically.
• NEMA Premium Electronic Ballast
Program compliant. This program
promotes the use of high efficiency
T8 electronic ballasts by meeting
or exceeding the Ballast Efficiency
Factors, (BEF) established by the CEE,
(Consortium for Energy Efficiency). For
additional information on this program
go to: www.cee1.org or www.nema.org
These ballasts are RoHS compliant
and feature lead-free solder and
manufacturing process.
Setting the standard for quality,
QUICKTRONIC POWERSENSE ballasts
are covered by the QUICK 60+®
warranty, the first and most
comprehensive lamp & ballast
system warranty in the industry.
• Industry’s rst ballast that combines
dimming inputs from 0-10V and/
or two-wire AC dimming providing
maximum flexibility
• Compatible with low voltage and
power line fluorescent dimmers
• High Efciency
• NEMA Premium Electronic Ballast
Program compliant
• Lamp Detection Technology
• Universal voltage (120-277V)
• 100 - 5% Dimming Range
• PROStart®Programmed Rapid Start
• Anti-ash circuitry - turns on in
dimmed mode
• Operates at >42kHz
• QUICK 60+ ballast and lamp warranty
• RoHS compliant
• Lead-free solder and manufacturing
process
Key System Features
Application Information
ECS201R2 - 8/2011
QUICKTRONIC®POWERSENSE®T8
Universal Voltage Dimming Systems
www.sylvania.com
Fluorescent Controllable
Lighting Systems
High Efficiency Series
POWERSENSE
T8 DIM
DAYLIGHT HARVESTING SCENARIO
Fixture
1
Fixture
2
Fixture
3
Window / Natural Light Source
Desired Illuminance Er
Constant setpoint value
Light
Sensor 1
Light
Sensor 2
Light
Sensor 3
$30.00
$40.00
$50.00
$38.28
$19.80
$20.00
$10.00
$0.00
0% 25% 50% 75% 100%
Light Level (%)
* FO32/XP lamps with QUICKTRONIC T8 POWERSENSE ballast
* Based on 4000 hrs/yr, $0.11/kWh, and 120V operation
* Savings per Year (@Light Level) = Cost of operation (100% Light Level) - Cost of operation (@Light Level)
Savings per Year ($)
SAVINGS PER YEAR* vs LIGHT LEVEL
(QTP T8 Dimming Ballast)
4 Lamp Fixture
2 Lamp Fixture
QUICKTRONIC POWERSENSE ballasts operate from standard low
voltage (0-10VDC) fluorescent controllers or compatible 2-wire
power line fluorescent dimmers, making them ideal for individual
office lighting or automated building applications, both in new
construction and retrofit projects.
For the individual office or conference room, installation can be
streamlined by using a 2-wire power line fluorescent dimmer;
eliminating the need for additional control wires.
For more advanced systems, such as daylight harvesting or
building automation applications, standard low voltage devices
(0-10VDC, Class 1 or 2) are used to control the lighting system.
In this daylight harvesting example, each lighting fixture (or
xture row) is controlled by it’s own photosensor; regulating
the light output to compensate for changes in natural daylight.
Depending upon the specific application, energy savings of up
to 60% compared to fixed output T8 electronic systems can be
realized.
All QUICKTRONIC POWERSENSE ballasts include a line voltage
protection circuit, which protects the ballast in the event that line
voltage is inadvertently applied to the low voltage control inputs.

Height
25.4mm
(1.0")
Mounting
411.3mm
(16.2") Length
425mm
(16.7")
Width
43mm
(1.68")
QTP2x28T5/UNV DIM TCL
Warning
Install and wire these ballast and controls
in accordance with the National Electrical
Code (NEC), all applicable Federal, State and
local electrical codes, as well as the specific
instructions provided with the compatible
control that you purchased. Installation should
be performed by qualified personnel only.
These instructions are guidelines only.
Installation may vary for different controls/
fixtures/applications. Be sure to follow the
control instructions and all applicable codes
and standards when installing dimming
systems.
Please contact controls manufacturer listed
in the OSRAM SYLVANIA Inc. controls cross
reference for compatible controls and
instruction wiring.
NOTES:
1. Dimming ballasts source < 0.5mA
(0-10VDC control input).
2. Powerline controls must be rated for the
type (e.g. Fluorescent Phase-control)
and size (e.g. 600W, 1000W, 1500W &
2000W etc.) of the connected load. Do
NOT use incandescent powerline controls;
incandescent dimmers are not rated for
fluorescent loads and are NOT compatible
with POWERSENSE ballasts.
POWERSENSE
CONTROLS
Fluorescent Building
Controls Powerline 0-10 VDC Photo Occupancy Management
Manufacturer Controllers Controllers Cells Sensors Systems
Sylvania X X X X X
www.sylvania.com/controls
Acuity Brand Controls X X X X X
www.acuitybrandscontrols.com
Blue Ridge Technologies X X X X X
www.brtint.com
Cooper Greengate X X X X
http://greengate.coopercontrol.com
Encelium
X X X X
www.encelium.com
Hunt Dimming X X X
www.huntdimming.com
Lehigh Electric Products X X X
www.lehighdim.com
Leviton X X X X
www.leviton.com
Sensor Switch X X
www.sensorswitch.com
Siemens Building Technology X
http://sbt.siemens.com
Starfield Controls X X X X
www.starfieldcorp.com
Watt Stopper X X X X X
www.wattstopper.com
Please contact controls manfacturer to order/specify controls. For the latest controls list go to www.sylvania.com
Also, for more information, refer to the LCA (Lighting Controls Association) site: http://lightingcontrolsassociation.org
Control Specifications/model numbers may change.
Please consult manufacturers listed for their latest control models and to order their controls.
Controls Guide
QUICKTRONIC®POWERSENSE®Controls Information
T8 POWERSENSE
High Efficiency
OSRAM SYLVANIA
National Customer
Service and Sales Center
1-800-LIGHTBULB
(1-800-544-4828)
www.sylvania.com
Specifications subject to change without notice.
Dimensions:
1 & 2 lamp enclosure
Overall: 9.5" L x 1.68" W x 1.0" H (241 x 43 x 25 mm)
Mounting: 8.90" (226 mm)
Weight: 1.1 lbs each (500 g)
3 & 4 lamp enclosure
Overall: 16.7" L x 1.68" W x 1.0" H (425 x 43 x 25 mm)
Mounting:16.2" (411 mm)
Weight: 2.1 lbs each (950 g)
Wiring:
Leads Only
Mounting
Length
Length
Height
8.70 mm
Slot
Width
Input & Control
Wiring Options:
POWERLINE CONTROL
LOW-VOLTAGE CONTROL
LINE BLACK
NEUTRAL WHITE
INSULATE
UNUSED LEADS
VIOLET (+)
GREY (-)
VIOLET (+)
GREY (-)
LINE BLACK
NEUTRAL WHITE
0-10V DC
< 0.5 m A
Class 1 or
Class 2
POWERLINE CONTROL
LOW-VOLTAGE CONTROL
LINE BLACK
NEUTRAL WHITE
INSULATE
UNUSED LEADS
VIOLET (+)
GREY (-)
VIOLET (+)
GREY (-)
LINE BLACK
NEUTRAL WHITE
0-10V
DC
< 0.5 m A
Class 1 or
Class 2

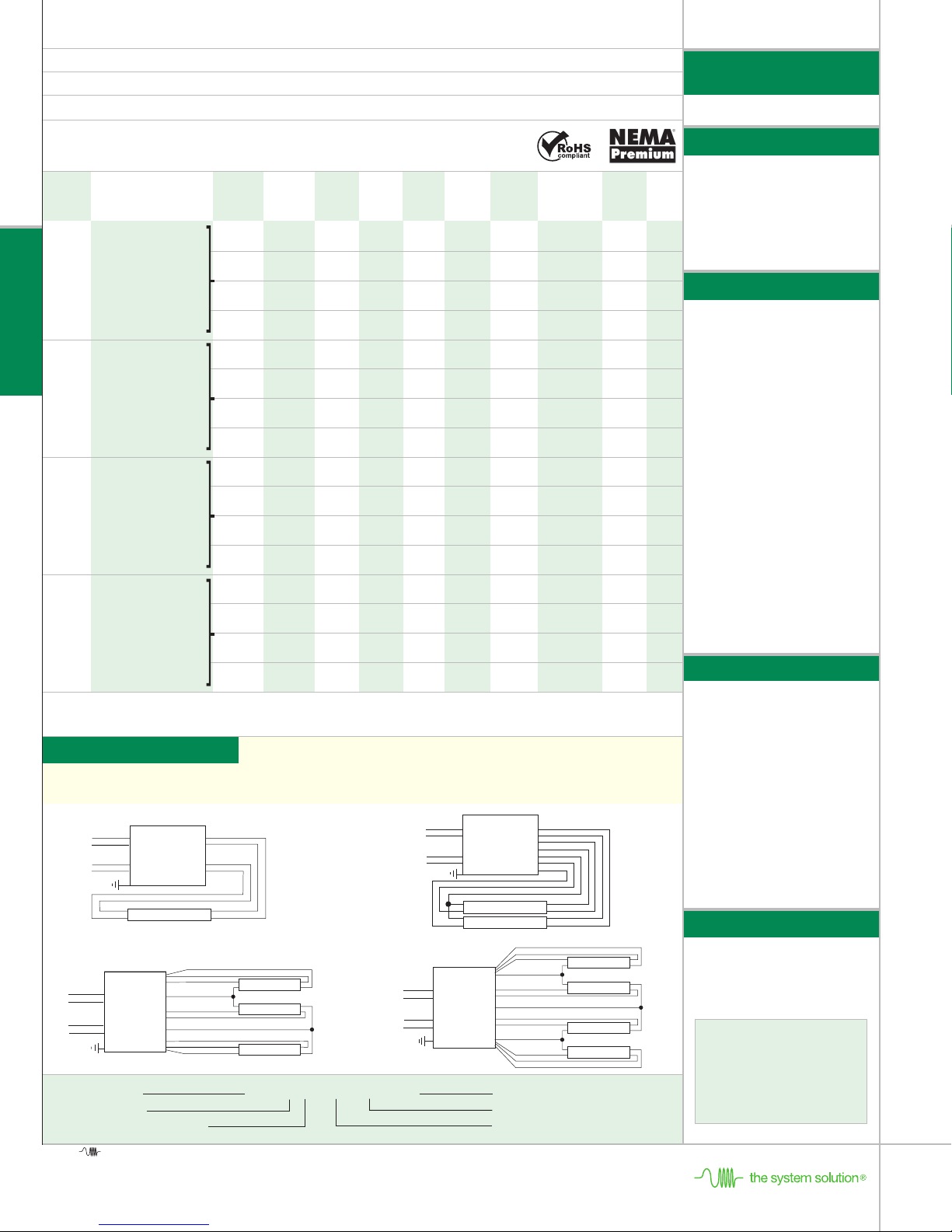

Catalog # Date Type
Project Prepared by
Comments
SPECIFICATION DATA

To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
2-wire Powerline Control with POWERSENSE Ballasts
Gray (-)
Neutral (White)
Black (Hot)
LINE
CAUTION:
For 2-wire Powerline wiring, individually insulate (cap-off)
all unused Violet & Gray leads as shown.
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
Gray (-)
To
Additional
Ballasts
2-wire
Fluorescent
Powerline Dimmer
Black
Maximum Input Current (A)
Item OSRAM SYLVANIA (# of gangs) Input Integral
Number Description Single Double Triple Voltage (V) Color Switch
45045 ELMC-SL-FLPCWALL/120-WH
45046 ELMC-SL-FLPCWALL/277-WH
Single Pole
White
White
120
277
5.0A 4.5A 4.0A
2.2A 2.0A 1.7A
POWERSENSE
WIRING & CONTROLS
Photo Sensor 0-10V Wiring Example
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
2-wire Powerline AND 0-10Vdc Control with POWERSENSE Ballasts
0-10V
Control
Gray (-)
Neutral (White)
120 or 277V
Black (Hot)
LINE
Gray
Violet
Class 1 or Class 2 circuit
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
Gray (-)
To
Additional
Ballasts
2-wire
Fluorescent
Powerline Dimmer
Black
0-10Vdc Low Voltage
Industry Standard Interface
• Daylight Harvesting
• Building Management
• Demand Response Override
Fluorescent AC Dimming
No Control Wires
• Occupant Wallbox Dimming
• Lighting Panel Dimming
• Excellent for Retrofit
Wallbox Style 0-10V Control with Power Switch Wiring Example
Industry’s 1st Ballast That Allows POWERLINE Fluorescent Control AND 0-10Vdc Control Input Simultaneously
Line
Voltage
Switch
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
0-10V DC Control with POWERSENSE Ballasts
0-10V
Control
Gray (-)
Neutral (White)
120 or 277V
Black (Hot)
Black
Black
LINE
Gray
Violet
Class 1 or Class 2 circuit
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
Gray (-)
To
Additional
Ballasts
On/Off
Switch (120/277V)
Slide Dimmer
0-10V
0-10Vdc
Wallbox
Control with
Line Voltage
Switch
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
Photo Sensor 0-10V Wiring Example
0-10V DC Control with POWERSENSE Ballasts
0-10V
Control
Gray (-)
Neutral (White)
120 or 277V
Black (Hot)
LINE
Gray
Violet
Class 1 or Class 2 circuit
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
Gray (-)
To
Additional
Ballasts
Sensor
0-10V
Standard
Line Voltage
Switch
Black
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
Photo Sensor 0-10V Wiring Example
0-10V DC Control with POWERSENSE Ballasts
0-10V
Control
Gray (-)
Neutral (White)
120 or 277V
Black (Hot)
LINE
Gray
Violet
Class 1 or Class 2 circuit
To
Fluorescent
Lamps
Violet (+) DIMMING
BALLAST
Black
White
Gray (-)
To
Additional
Ballasts
Sensor
0-10V
Standard
Line Voltage
Switch
Black
Powerline Control Specs:
Specification-grade controls are available for 120V or 277V
operation of controllable analog electronic fluorescent ballasts.
Controls must be suitably rated for both the type (e.g. Fluorescent
Phase-control) and size (e.g. 600W) of the connected load.
Examples: Leviton IPX series operate as
single pole or 3-way models. Available in
120V and 277V models. Leviton 6668-1W
(white) 120V single pole fluorescent dimmer.
Examples: Lithonia model ISD BC
or Leviton IP 710 Series (These
0-10V dc, 120/277V models can be
wired for single pole application
(shown); these models can also be
wired for 3-way applications.)
Wallbox Style 2-wire Powerline Control Wiring Example
QUICKTRONIC®POWERSENSE®T8 Dimming UNV - Dimming Control Wiring Examples
T8 POWERSENSE
High Efficiency
Specifications subject to change without notice.
OSRAM SYLVANIA National Customer Service and Sales Center 1-800-LIGHTBULB (1-800-544-4828) www.sylvania.com
Ballast Output Max.
Item OSRAM SYLVANIA Control Voltage Input Lamp
Number Description Type Method (VDC) Current (mA) Type
45030 ELSC-DLH-TVLAMP/BUS Sensor & Control for Analog 0-10V 6 T8 or T5 or T5HO
Daylight Harvesting
ELOGIC DAYLIGHT SENSOR ORDERING INFORMATION
ELOGIC™MANUAL CONTROL SLIDE FLUORESCENT PHASE CUT DIMMER
Catalog # Date Type
Project Prepared by
Comments
SPECIFICATION DATA

Catalog # Date Type
Project Prepared by
Comments
SPECIFICATION DATA
Output Wiring: Lamp wiring for dimming ballasts can differ significantly from non-dimming ballasts and from
other manufacturers dimming ballasts. Take care to connect lamp lead wires as shown on the applicable
ballast diagram. Lamp Seasoning: For optimal performance, fluorescent lamps may require seasoning for up to 12 hours prior to low temperature starting &
low level dimming. Refer to NEMA LSD 23-2002 Lighting Systems Division: Recommended Practice — Lamp Seasoning for Fluorescent Dimming Systems
Wiring Diagrams
Black
White
Black
White
Violet (+)
Grey (-)
Violet (+)
Grey (-)
Red
Red
Red
Red
Blue
Blue
Blue
Blue
LAMP 1
Yel/Blk
Yellow
Yellow
LAMP 1
LAMP 1
ELECTRONIC
BALLAST
ELECTRONIC
BALLAST
LAMP 2
BALLAST
ELECTRONIC
LAMP 1
LAMP 4
LAMP 3
LAMP 2
Yellow/Black
Yellow
Yellow
Red/Black
Red/White
Red
Red/White
Blue
Blue/White
Blue/White
Blue/Black
Grey (-)
Black
White
Violet (+)
Black
White
Black
White
Violet (+)
Grey (-)
Violet (+)
Grey (-)
Red
Red
Red
Red
Blue
Blue
Blue
Blue
LAMP 1
Yel/Blk
Yellow
Yellow
LAMP 1
LAMP 1
ELECTRONIC
BALLAST
ELECTRONIC
BALLAST
LAMP 2
Yel/Blk
Yellow
Yellow
Red/Black
Red/White
Red
Red/White
Blue
LAMP 1
LAMP 3
ELECTRONIC
BALLAST
Black
White
Violet (+)
Grey (-)
LAMP 2
1 lamp 2 lamp
3 lamp 4 lamp
POWERSENSE
T8 DIM
Performance Guide
High Efficiency, T8 Controllable Lighting Systems, UNV (120-277V)
Input Rated Ballast Input System1
Item OSRAM SYLVANIA Current Lamp Lumens No. of Factor System Mean Power (W) Efficacy
Number Description (AMPS) Type (lm) Lamps (BF) Lumens Lumens 120V 277V (lm/W) BEF2
50705 QTP 1x32T8/UNV DIM-TC 0.27/0.12 FO32XP 3000 1 0.88 2640 2480 30 30 88 2.93
0.05 150 140 8 8
0.24/0.11 FO30/SS 2850 1 0.88 2510 2360 28 28 90 3.14
0.05 145 135 8 8
0.22/0.10 FO28/SS 2725 1 0.88 2400 2255 25 25 96 3.52
0.05 135 130 8 8
0.20/0.09 FO25/SS 2475 1 0.88 2180 2045 23 23 95 3.83
0.05 125 115 7 7
50707 QTP 2x32T8/UNV DIM-TC 0.51/0.24 FO32XP 3000 2 0.88 5280 4965 59 57 93 1.54
0.05 300 280 14 14
0.48/0.20 FO30/SS 2850 2 0.88 5015 4715 55 53 95 1.66
0.05 285 270 14 14
0.43/0.18 FO28/SS 2725 2 0.88 4795 4510 51 49 98 1.80
0.05 275 255 13 13
0.39/0.16 FO25/SS 2475 2 0.88 4355 4095 45 44 99 2.00
0.05 250 235 13 13
50714 QTP 3x32T8/UNV DIM-TCL 0.73/0.30 FO32XP 3000 3 0.88 7920 7445 87 84 94 1.05
0.05 450 425 20 20
0.68/0.30 FO30/SS 2850 3 0.88 7525 7075 81 78 96 1.13
0.05 430 400 20 20
0.62/0.26 FO28/SS 2725 3 0.88 7195 6760 73 72 100 1.22
0.05 410 385 19 19
0.56/0.24 FO25/SS 2475 3 0.88 6535 6140 67 66 99 1.33
0.05 370 350 19 19
50716 QTP 4x32T8/UNV DIM-TCL 0.96/0.40 FO32XP 3000 4 0.88 10,560 9925 114 110 96 0.80
0.05 600 565 27 27
0.92/0.39 FO30/SS 2850 4 0.88 10,030 9430 107 104 96 0.85
0.05 570 535 26 26
0.82/0.35 FO28/SS 2725 4 0.88 9590 9015 98 95 101 0.93
0.05 545 510 25 25
0.74/0.32 FO25/SS 2475 4 0.88 8710 8190 91 89 98 0.99
0.05 495 465 24 24
Products are all 10-pack. *Striation might occur with SUPERSAVER lamps.
1: System Efficacy calculation based on lowest input power value.
2: Ballast Efficiency Factor (BEF) shown = (Ballast Factor x 100) divided by Input Power (Note: calculation based on lowest wattage value).
Starting Method: Programmed Rapid Start
Circuit Type: Series
Lamp Frequency: >40 kHz
Lamp CCF: Less than 1.7
Starting Temp: 50°F/10°C minimum
for OCTRON T8 lamps
Input Voltage: 120-277V, ±10%
Input Frequency: 50/60 Hz
THD: <10% @ Full Output
Power Factor: >98% @ Full Output
UL Listed Class P, Type 1 Outdoor
CSA or C/UL Certified
70°C Max Case Temperature
FCC 47CFR Part 18 Non-Consumer
Class A Sound Rating
RoHS compliant3
ANSI C62.41 Cat. A Transient Protection
Remote mounting (Max. wire length from
ballast case to lampholder)
• up to 8ft for full wattage T8s
• no remote mounting for SUPERSAVER
3 Complies with European Union Restriction
of Hazardous Substances Directive (Directive
EC 2002/95)
Specifications
Data based on F32T8
Item Number 50707 QTP 2 x 32T8 / UNV DIM-TC
QUICKTRONIC
Number of Lamps (1, 2, 3, 4)
System Type - DIMMING/Case Size
Line Voltage (120-277V)
Primary Lamp Wattage
System Life / Warranty
QUICKTRONIC products are covered by the
QUICK 60+®warranty, a comprehensive
lamp and ballast system warranty. For
additional details, refer to the QUICK 60+
warranty bulletin.
Data based on SYLVANIA OCTRON®lamps
shown. QUICKTRONIC®POWERSENSE
ballasts are also compatible with other
manufacturers equivalent lamp types that
meet ANSI specifications, including F17,
F25, F32, U-Bend equivalent lamps and
SUPERSAVER lamps.
T8 POWERSENSE®
High Efficiency
OSRAM SYLVANIA
National Customer
Service and Sales Center
1-800-LIGHTBULB
(1-800-544-4828)
www.sylvania.com
Control Information
QUICKTRONIC POWERSENSE ballasts are
compatible with a wide range of low voltage
(0-10VDC) and power line fluorescent controllers
available from various manufacturers.
Low Voltage Control Specs: Ballast will source
up to 0.5mA for 0-10VDC control purposes.
May be wired as a Class 1 or Class 2 circuit-
consult Local and National Electrical Codes.
Power Line Control Specs: Specification-
grade fluorescent controls are available
for 120V or 277V operation of controllable
analog electronic fluorescent ballasts.
Controls must be suitably rated for both the
type (e.g. Fluorescent Phasecontrol) and size
(e.g. 600W) of the connected load.
SYLVANIA, the system solution, QUICK60+, POWERSENSE, See the World in a New Light, PROStart, OCTRON and SUPERSAVER are registered trademarks of OSRAM SYLVANIA Inc.
ELOGIC is a trademark of OSRAM SYLVANIA Inc. QUICKTRONIC is a registered trademark of OSRAM AG. NEMA Premium is a registered trademark of National Electrical Manufacturers Association.
©2011 OSRAM SYLVANIA
Specifications subject to change without notice.
