Sylvania DVC841G User manual

Owner's nuaJ
Please read before gsingthis unit.
DVD/CD Player with Video Cassette Recorder
DVC841G iESPA/"O/, _C.,!,; _,,,*,,_,,
if you need additional operating assistance
after reading this owner's manual, please call
TOLL FREE :1=800=968=3429
or visit our web site at
http://www.SylvaniaConsumerElectronics.com
Remote control (NB177UD)
with two AA batteries
Audio/Video cables
(WPZ0102TM015 /
WPZ0102LTE01)
RF cable
(WPZ0901TM002)
Owner's Manual
(1VMN22700)
Precautions
Laser Safety ................................................................................. 2
[] Important Safeguards ................................................................ 3
Location and Handling ................................................................. 4
Avoid the Hazards of Electrical Shock and Fire .......................... 4
Moisture Condensation Warning .................................................. 4
About Copyright ........................................................................... 4
Notice for Progressive Scan Outputs ........................................... 4
Symbols Used in This Manual ..................................................... 4
Maintenance ................................................................................. 4
[] About the Video Cassettes and Discs ...................................... 5
Playable Video Cassettes ............................................................ 5
Playable Discs ............................................................................. 5
Unplayable Discs ......................................................................... 5
[] Connections ................................................................................ 6
RF Output Channel ...................................................................... 6
Hint for Cable Box or Satellite Box .............................................. 6
Connection to an Audio System .................................................. 6
Connection to a TV ...................................................................... 7
[] Preparation for Use .................................................................... 8
Turn on the Unit for the First Time ............................................... 8
To Add or Delete Channels ......................................................... 8
Clock Setup .................................................................................. 8
[] Function Overview ..................................................................... 9
Front Panel Indicator .................................................................... 9
VCR /DVD Switching .................................................................. 9
Front & Rear Terminals ................................................................ 9
Remote Control ........................................................................... 10
Installing the Batteries for the Remote Control ........................... 10
VCR Functions
[] Playback ..................................................................................... 11
[] Other Operations ....................................................................... 11
Index Search ............................................................................... 11
Time Search ................................................................................ 11
Auto Repeat ................................................................................ 12
[] Recording ................................................................................... 12
Recording & OTR (One Touch Recording) ................................. 12
Timer Recording ......................................................................... 12
Hints for OTR and Timer Recording ........................................... 13
Copying a Video Tape ................................................................ 14
DVD Functiens
[] Playback ..................................................................................... 15
[] WMA Playback ........................................................................... 16
[] On-Screen Display ..................................................................... 16
[] Search Functions ...................................................................... 17
Using Track Search .................................................................... 17
Using Title /Chapter Search ....................................................... 17
Using Time Search ..................................................................... 17
Marker Setup .............................................................................. 17
[] Repeat /Random /Programmed Playback ............................. 18
Repeat Playback /Repeat A-B Playback
Random Playback/Programmed Playback ............................... 18
[] Special Settings ......................................................................... 19
Subtitle Language /Audio Language /Camera Angle
Black Level Setting /Stereo Sound Mode /Virtual Surround 19
[] DVD Setup .................................................................................. 20
LANGUAGE Setting .................................................................... 20
DISPLAY Setting ......................................................................... 21
AUDIO Setting ............................................................................ 21
PARENTAL Setting ..................................................................... 22
OTHERS Setting ......................................................................... 22
Reset to the Default Setting (Except for PARENTAL Setting) 23
Information
[] Troubleshooting Guide ............................................................. 23
[] Specifications ............................................................................ 24
[] Language Code List .................................................................. 24
[] Limited Warranty ....................................................................... 24
[] Espa_ol ....................................................................................... 25
[] Quick Use Guide ........................................................................ 27
;i_ ggiiii!iggili!iiiigii_iiigiiiiii!ii!iigili!iiiigii_iiigiiiiii!ii!ilii!i............................................................................................ i!!!!! _
Cable
. ,g0
5,!!, ,.,?
[] (Back of TV)
Antenna Sabb%
signal
=
=
L_ Phase rder to "Connectiond' on page 6.
DVC841G E8A04UD.indd 1 2006/02/08 18:35:43

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
A a,
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL. ,&
The
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
caution marking is located on the rear of the cabinet.
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible
eye injury.
CAUTION:
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO
BEAM.
INSIDE, NEAR THE DECK MECHANISM.
LOCATION:
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications
to this equipment may cause harmful interference unless the modifications are expressly approved in the
manual. The user could lose the authority to operate this equipment if an unauthorized change or modifica-
tion is made,
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareH numerique de ia classe Best conforme a la norme NMB-003 du Canada.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR CVITER LES CHOC ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHEDANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
A NOTE ABOUT RECYCUNG
This product'spackagingmaterialsarerecyclableand can be reused.Pleasedisposeof any materials in accordancewithyour
local recyclingregulations,
Batteriesshouldnever be thrown awayor incineratedbut disposed ofin accordancewith your local regulationsconcerning
chemicalwastes.
Make your contribution to the environment!!!
•Used up batteries do not belong in the dust bin.
•You can dispose of them ata collection point for used up batteries or special wastes.
Contact your council for details.
For Customer Use:
Read carefully the information located at the back of this unit and enter below the Model No. and the Serial No. Retain this
information for future reference.
Model No.
Serial No. 2 EN
IDVC841G E8A04UD.indd 2 2006/02/08 18:35:43 I

i
1.
2.
3.
4.
5.
RTANT
Read Instructions - All the safety and operating instruc-
tions should be read before the appliance is operated.
Retain Instructions- The safety and operating instructions
should be retained for future reference.
Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.
Follow Instructions - All operating and use instructions
should be followed.
Cleaning - Unplug this video product from the wall outlet
before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninterrupted
service and, that for some specific reason, such as the
possibility of the loss of an authorization code for a CATV
converter, is not intended to be unplugged by the user for
cleaning or any other purpose, may exclude the reference
to unplugging the appliance in the cleaning description
otherwise required in item 5.
6. Attachments - Do not use attachments not recommended
by the video product manufacturer as they may cause
hazards.
7. Water and Moisture- Do not use this video product near
water, for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a
swimming pool, and the like.
8. Accessories - Do not place this video product on an
unstable cart, stand, tripod, bracket, or table. The video
product may fall, causing serious injury to a child or adult,
and serious damage to the appliance. Use only with a
cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the video product. Any mount-
ing of the appliance should follow the _0RTABLE CART WARNIt';G
manufacturer's instructions and should (Symbolpf /RETAC)
use a mounting accessory recommended
by the manufacturer. An appliance and
cart combination should be moved with
care. Quick stops, excessive force, and
uneven surfaces may cause the appli-
ance and cart combination to overturn, s3_2_A
9. Ventilation - Slots and openings in the cabinet are pro-
vided for ventilation and to ensure reliable operation of
the video product and to protect it from overheating, and
these openings must not be blocked or covered. The
openings should never be blocked by placing the video
product on a bed, sofa, rug, or other similar surface. This
video product should not be placed in a built-in installa-
tion such as a bookcase or rack unless proper ventilation
is provided or the manufacturer's instructions have been
adhered to.
10. Power Sources - This video product should be operated
only from the type of power source indicated on the
marking label. If you are not sure of the type of power
supply to your home, consult your appliance dealer or
local power company. For products intended to operate
from battery power, or other sources, refer to the
operating instructions.
11. Grounding or Polarization - This video product is
equipped with a polarized alternating-current line plug (a
plug having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to
fit, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
12. Power Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
13. Outdoor Antenna Grounding - If an outside antenna or
cable system is connected to the video product, be sure
the antenna or cable system is grounded so as to provide
some protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code, ANSI/
NFPA No. 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding
of the leadqn wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for
the grounding electrode. (Fig. A) :ii[i:
EXAMPLEOFARTERR_GROURO,RGI_ _;.,A
GROUNDING CONDUCTORS
(NEC SEC
CLAMP
S2898A ELECTRODE SYSTEM
(NEC ART 250 PART R)
14. Lightning - For added protection for this video product
during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This
will prevent damage to the video product due to lightning
and power-line surges.
15. Power Lines - An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with
them might be fatal.
16. Overloading - Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
17. Object and Liquid Entry - Never push objects of any kind
into this video product through any openings as they may
touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid of
any kind oil the video product.
18. Servicing - Do not attempt to service this video product
yourself as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
19. Damage Requiring Service - Unplug this video product
from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
video product.
c. If the video product has been exposed to rain or water.
d. If the video product does not operate normally by
following the operating instructions. Adjust only those
controls that are covered by the operating instructions
as an improper adjustment of other controls may result
in damage and will often require extensive work by a
qualified technician to restore the video product to its
normal operation.
e. If the video product has been dropped or damaged in
any way.
f. When the video product exhibits a distinct change in
performance this indicates a need for service.
20. Replacement Parts - When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer or have
the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or other
hazards.
21. Safety Check - Upon completion of any service or repairs
to this video product, ask the service technician to per-
form safety checks to determine that the video product is
in proper operating condition.
22. Heat - This video product should be situated away from
heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
EN
I DVC841G E8A04UD.indd 3 2006/02/08 18:35:44 I

• Do not stand this unit up vortically. Install this unit in a hori-
zontal and stable position. Do not place anything directly on
top of this unit. Do not place this unit directly oil top of the TV.
• Depending on the TV, noise or disturbance of the picture
and/or sound may be generated if this unit is placed too
close to your TV. In this case, please ensure enough space
between your TV and this unit.
• Do not cover or place this unit in enclosed spaces to prevent
excessive temperature build up.
• Do not place this unit in direct sunlight, or near heat sources.
• Depending on the environment, the temperature of this unit
may increase slightly. This is not a malfunction.
• Keep this unit away from strong magnetic objects.
• Do not place any object containing water or other liquids on
this unit. In the event that liquid should enter the cabinet,
unplug this unit immediately and contact the retailer or an
Authorized Service Center immediately.
• Do not remove this unit cabinet. Touching parts inside the
cabinet could result in electric shock and/or damage to this
unit. For service and adjustment inside the cabinet, call a
qualified dealer or an Authorized Service Center.
• Be sure to remove disc and video tape and unplug the AC
power cord from the output before carrying this unit.
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from
AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on this unit, unplug the power
cord immediately and take the unit to our Authorized Service
Center for servicing.
• Do not put your fingers or objects into the unit cassette holder.
Moisture may form inside this unit under the following conditions:
• immediately after a heater is turned on.
• In a steamy or humid room.
• When this unit is suddenly moved from a cold to warm envi-
ronment.
If moisture forms inside this unit, it may not operate
properly or damage the video tape. In such case, turn on
the power and wait for more than 2 hours for the moisture to
evaporate.
Unauthorized copying, broadcasting, public performance and
lending of discs are prohibited.
This product incorporates copyright protection technology that
is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and
other limited viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is
prohibited.
Consumers should note that not all high definition television
sets are fully compatible with this product and may cause
artifacts to be displayed in the picture. In case of picture prob-
lems with 525 progressive scan output, it is recommended
that the user switch the connection to the 'standard definition'
output. If there are questions regarding your TV set compat-
ibility with this 525p DVD player, please contact our customer
service center.
Note to CATV system installer
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground should be
connected to the grounding system of the building,
as close to the point of cable entry as practical.

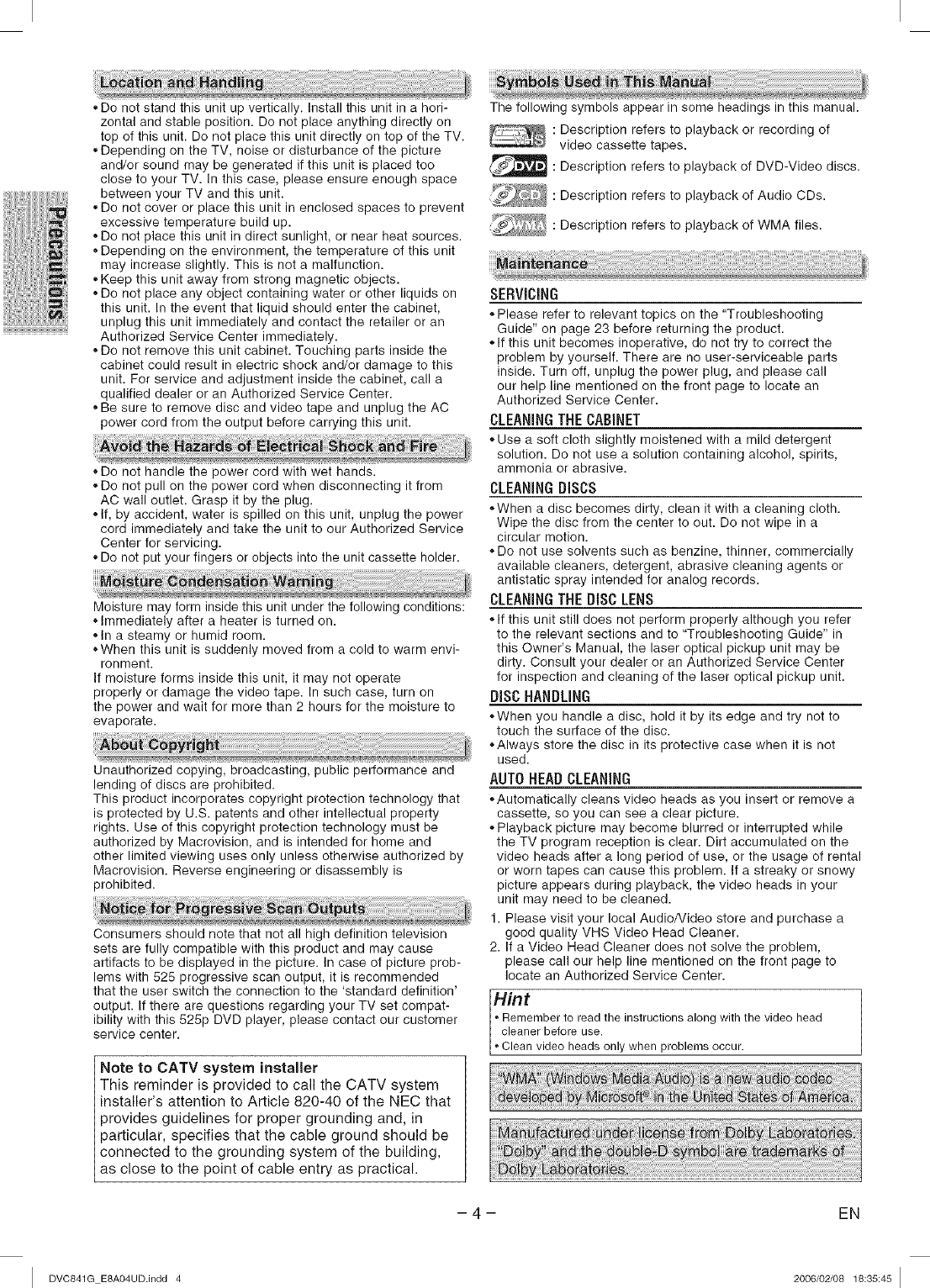

The following symbols appear in some headings in this manual.
_: Description refers to playback or recording of
video cassette tapes.
_: Description refers to playback of DVD-Video discs.
: Description refers to playback of Audio CDs.
: : Description refers to playback of WMA files.
SERVICING
• Please refer to relevant topics on the "Troubleshooting
Guide" on page 23 before returning the product.
• If this unit becomes inoperative, do not try to correct the
problem by yourself. There are no user-serviceable parts
inside. Turn off, unplug the power plug, and please call
our help line mentioned on the front page to locate an
Authorized Service Center.
CLEANING THE CABINET
• Use a soft cloth slightly moistened with a mild detergent
solution. Do not use a solution containing alcohol, spirits,
ammonia or abrasive.
CLEANINGDISCS
• When a disc becomes dirty, clean it with a cleaning cloth.
Wipe the disc from the center to out. Do not wipe in a
circular motion.
oDo not use solvents such as benzine, thinner, commercially
available cleaners, detergent, abrasive cleaning agents or
antistatic spray intended for analog records.
CLEANING THE DISC LENS
•If this unit still does not perform properly although you refer
to the relevant sections and to "Troubleshooting Guide" in
this Owner's Manual, the laser optical pickup unit may be
dirty. Consult your dealer or an Authorized Service Center
for inspection and cleaning of the laser optical pickup unit.
DISCHANDLING
.When you handle a disc, hold it by its edge and try not to
touch the surface of the disc.
• Always store the disc in its protective case when it is not
used.
AUTO HEAD CLEANING
• Automatically cleans video heads as you insert or remove a
cassette, so you can see a clear picture.
• Playback picture may become blurred or interrupted while
the TV program reception is clear. Dirt accumulated on the
video heads after a long period of use, or the usage of rental
or worn tapes can cause this problem. If a streaky or snowy
picture appears during playback, the video heads in your
unit may need to be cleaned.
1. Please visit your local Audio/Video store and purchase a
good quality VHS Video Head Cleaner.
2. If a Video Head Cleaner does not solve the problem,
please call our help line mentioned on the front page to
locate an Authorized Service Center.
Him
Remember to read the instructions along with the video head
cleaner before use.
[. Clean video heads onlywhen problemsoccur.
-4- EN
I DVC841G E8A04UD.indd 4 2006/02/08 18:35:45 I

AbouttheVideoCassettesand Discs
Use only cassettes marked _ with this unit.
Playable
discs
DVD-Video
"1,2,3,5,9
DVD-RW
DVD-R
"1,3,4,5,6,
8,9,1o
DVD+RW
DVD+R
"1,3,4,5,7,
8,9,1o
Audio CD
*3,5,9
CD-RW
CD-R
*3,4,5,8,9
Mark (logo)
VIDEO
o
R
D D
DmlTALAU_Ie mGITA_AUDm
Region code
@o@
Recorded Disc
signals size Disc types
12 cm
Digital video or
(MPEG2) 8 cm
Digital audio
Digital audio
or
WMA "11
12 cm
or
8 cm
is a trademark of DVD Format/Logo Licensing Corporation.
If you cannot play back a disc which bears one of the marks above, check the following notes.
"1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back.
*2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc's producers.
*3: Scratched or stained discs may not be played back.
*4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or spe-
cial properties o1discs.
*5: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them
back. Even if they are played back, the sound or video quality will be compromised.
*6: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand's DVD recorder. However,
depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may
not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying
the DVD recorder.
*7: Only the discs recorded in the video format and finalized can be played back.
Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at
all the picture or sound may not be smooth, etc.
*8: If the recorded portion of the disc is too small (less than 2 3/16 inches (55 mm) across), it may not play back properly.
*9: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.
"10: Discs Recorded in the VR (Video Recording) format cannot be played back.
"11: This DVD/CD player cannot playback the disc contents protected by Windows Media Digital Rights Management (DRM).
}
_ay._ Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in
Windows
MediaM the United States and/or other countries.
NEVER play back the following discs. Otherwise, malfunction may result!
DVD-RAM /DVD-Audio /CD-i /Photo CD /Video CD /DVD with region codes other than 1 or ALL/DTS-CD /DVD-ROM for
personal computers /CD-ROM for personal computers
On the following disc, the sound MAY NOT be heard.
Super Audio CD
NOTE: Only the sound recorded on the normal CD layer can be delivered.
The sound recorded on the high density Super Audio CD layer cannot be delivered.
Any other discs without compatibility indications 5 EN
I DVC841G E8A04UD.indd 5 2006/02/08 18:35:48 I

Connections
Please refer to "Basic TV Connection" on the front page before you use this unit.
if channel 3 has been already occupied
for broadcasting,
1) Set your TV to channel 4.
2) Insert a pre-recorded tape into this unit.
3) Press [OUTPUT] on the unit so that the
VCR OUTPUT light is lit.
,, If noise appears on the TV screen, press
[VCR/TV] on the remote control.
4) Press [PLAY I_] once.
5) After a few seconds, press and hold
[PLAY I_] on the unit for 3 seconds.
,,The RF output channel will change to
channel 4 from channel 3 and you will
see a playback picture.
,,When a picture does not appear on the
TV screen, repeat step 4.
6) Press [STOP Im] to stop playback.
Hint
*The RF output channel does
not changewhen you adjust
tracking during playback. Incase
RF output channel changes you
can easily switch it back just
startthe playback again then
press and hold [PLAY _] on the
unit for 3 seconds.
(Cableboxor ;;;_(Back ofDVDNCR) [_
Satellitebox)I_.111 l!l_==_lll
_atelliteor._ I _ _i.H
CableTV I[- II.,1_2___V_:_s1i5I11RF cable
Select this connection when you want to view or record a
scrambled channel. With this connection, channels cannot be
changed on the unit. You can view or record ONLY
the channels you have selected oil the cable box or the
satellite box.
While you are recording, only the recorded channel can beviewed.
To select channels of the cable box or satellite box
1)Turn on the unit by pressing [POWER], then press
[VCR/TV]. The POWER indicator on the front panel will
light, then press [SKIP/CH. _-I/A, NIT] to select
channel 3 or 4 (the same channel as the output channel o1
the cable box or satellite box).
• If you use the channel 4, you need to change the unit's
RF output to channel 4. Refer to "RF Output Channel".
2) At the TV, select channel 3 or 4 (the same channel as you
have selected at step 1).
3) On the cable box or satellite box, select the channel you
want to view or record.
Stereo system
.&. A,
Audio cable
(supplied)
AUDIO OUT
(Analog)
Analog audio
input jacks
Dolby Digital decoder,
MD deck or DAT deck
Digital audio
O i
iinput jack
Audio Coaxial "_Digital cable
(commercially
available)
D
DIGITAL I _°_,_q I I
AUDIOOUTI I I I
(DVD mode only)
Hint
Playing a DVD using incorrect settings may generate noise
dstort on and may a so damage the speaker.
Connecting to a Dolby Digital decoder
for Dolby Digital audio output.
Connecting to the other equipment
(an MD deck or DAT deck etc.)
without Dolby Digital decoder.
* To complete these settings, refer to pages 20-21.
Hint
*The audio sourceon a disc in a Dolby Digital Multichannel surround
formatcannot be recorded as digital sound by an MD or DATdeck.
*By hooking this unit upto a Multichannel Dolby Digital decoder,
you can enjoy high-quality Dolby Digital Multi channel surround
sound as heard in the movie theaters.
.Playing a DVDusing incorrect settings may generate noise
distortion and may also damage the speakers.
-6- EN
I DVC841G E8A04UD.indd 6 2006/02/08 18:35:49 I

Good picture Better picture
Audio cable(supplied)
or
DVD
DIGITAL AUtO _WDE_
AUDIOOUT OUT 0UT
AUDIO OUT
(Analog) (°)
Video cable
(supplied)
VIDEO OUT
S-Video cable _"
(commercially
available) _,
°v°1
S-ViDEO OUT
Best picture
Component Video cable
(commercially available)
COMPONENT VIDEO OUT
Hint
Connect this unit directly to the TV. If the Audio/Video cables are connected to aVCR, pictures may be distorted due to the copy
protection system.
*The COAXIAL, DVD AUDIO OUT, S-VIDEO OUT and COMPONENT VIDEO OUT jacks are only useful in DVD mode,
If your TV is compatible with 525 progressive scanning and you want to enjoy that high quality picture;
You must select tile connection Method 3 above and progressive scanning mode. To set the mode, set "PROGRESSIVE" to
"ON" in the SETUP menu, so that the PROGRESSIVE SCAN indicator on the front panel lights oil. See pages 20 to 21 for
more details.
When "PROGRESSIVE" is "ON", video signals from the unit's VIDEO OUT and S-VIDEO OUT jacks will be distorted or not
be output at all.
If your TV is not compatible with progressive scanning;
Use this unit in interlace mode and set "PROGRESSIVE" to "OFF" either in the SETUP menu or by pressing and holding
[PLAY I_] on the front of the unit for more than 5 seconds, so that the PROGRESSIVE SCAN indicator on the front panel
lights off.
After you have completed connections
Press the input selector button (usually TVNIDEO, INPUT or AUX) on your TV to switch an appropriate external input channel
(usually near channel 0) for viewing the picture from this unit. If the picture does not appear, also refer to the manual
accompanying your TV.
iNPUT MODES FOR COMMON TV BRANDS
Listed below are inputs for common brand name TV's.
Admiral: AUX Panasonic: TVNIDEO
Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93 RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93
GE: INPUT, TVNCR, 00, 90, 91,92, 93 Samsung: TV/VlDEO
Hitachi: INPUT, AUX Sanyo: VIDEO
JVC: VIDEO, VIDEO1, VIDEO2, VIDEO3 Sharp: 00
Kenwood: AUX Sony: VIDEO1, VIDEO2, VIDEO3
LXI-Series: 00 Toshiba: TV/GAME
Magnavox: AUX CHANNEL Zen th: 00
-7- EN
J DVC841G E8A04UD.indd 7 2006/02/08 18:35:51 J

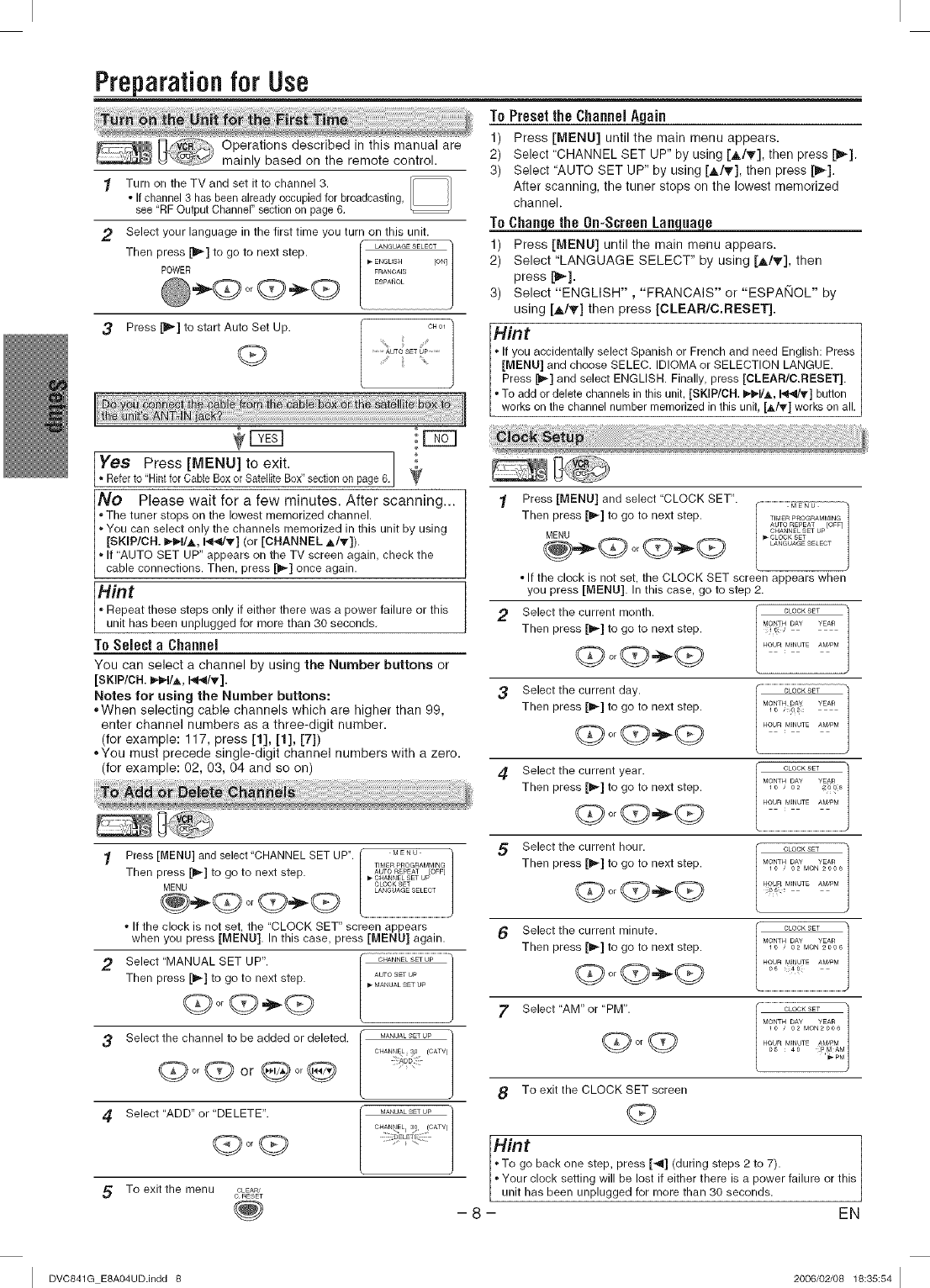

Preparationfor Use
Operations described in this manual are
mainly based on the remote control.
1Turn on the TV and set it to channel 3.
If channel 3 has been already occupied for broadcasting,
see "RF Output Channel" section on page 6.
2Select your language in the first time you turn on this unit.
Then press []_] to go to next step.
POWER
3Press []1_] to start Auto Set Up. CH 01
...........AUTO SET UP .........
_;_ il "%
Yes Press [MENU] to exit. ]
•Refer to "Hint for Cable Boxor Satellite Box"section on page 6.
No Please wait for a few minutes. After scanning...
The tuner stops on the lowest memorized channel.
• You can select only the channels memorized in this unit by using
[SKIP/CH. I_€,.I/A, I_._I/T] (or [CHANNEL A/T]).
.If "AUTO SET UP" appears on the TV screen again, check the
cable connections. Then. press [_] once again.
Hint
Repeat these steps only if either there was a power failure or this
unit has been unplugged for more than 30 seconds.
ToSelect a Channel
You can select a channel by using the Number buttons or
[SKIP/CH. I_-I/A, I_/T].
Notes for using the Number buttons:
•When selecting cable channels which are higher than 99,
enter channel numbers as a three-digit number.
(for example: 117, press [1], [1], [7])
• You must precede single-digit channel numbers with a zero.
(for example: 02, 03, 04 and so on)
1Press [MENU] and select"CHANNEL SET UP". [ MENU
press [1_-]to go to next step.. T_,_o_._, __ _._'_o'_'_[_r'i
Then
MENU _ l LCALOCK2gET ......
. If the clock is not set, the "CLOCK SET" screen appears
when you press [MENU]. In this case, press [MENU] again.
2Select"MANUAL SET UP".
Then press [_-] to go to next step.
Select the channel to be added or deleted.
@o,@er @o,@
Select "ADD" or "DELETE".
To exit the menu CLEAR,'
C RESET
ToPresetthe ChannelAqain
1) Press [MENU] until the main menu appears.
2) Select "CHANNEL SET UP" by using [_.hr], then press [_].
3) Select "AUTO SET UP" by using [A/T], then press [1_].
After scanning, the tuner stops on the lowest memorized
channel.
ToChange the On-Screen Lan_
1) Press [MENU] until the main menu appears.
2) Select "LANGUAGE SELECT" by using [At_F], then
press [1_-].
3) Select "ENGLISH", "FRANCAIS" or "ESPAIqOL" by
using [AJT] then press [CLEAR/C.RESET].
Hint
* If you accidentally select Spanish or French and need English: Press
[MENU] and choose SELEC. IDIOMA or SELECTION LANGUE.
Press [11_-]and select ENGLISH. Finally, press [CLEAR/C.RESET].
To add or delete channels in this unit, [SKIP/CH. _€_l/,&, I_'_/V] button
works on the channel number memorized in this unit, [ARt] works on all.
1Press [MENU] and select"CLOCK SET".
Then press [ID,-]to go to next step.
•If the clock is not set, the CLOCK SET screen appears when
you press [MENU]. In this case, go to step 2.
Select the current month. CLOCKSET
MONTH DAY YEAR
Then press [_] to go to next step. ,,
HOUR MINUTE AM'PM
Select the current day.
Then press [1_] to go to next step.
CLOCKSET
MONTH D_V YEAf_
HOUR M_NUTE _M!PM
4Select the current year.
Then press [1_] to go to next step.
5, Select the current hour.
Then press [_] to go to next step.
CLOOKSET
MONTH DAY YEAR
10 , 02 MON 2006
HOUR M_NUTE AM,gM
Select the current minute.
Then press [1_] to go to next step.
7Select"AM" or"PM".
CLOCKSET
MONTH DAY YEA_
10 , 02 MON 2006
HOUR M_UUTE _M!PM
_or_
8To exit the CLOCK SET screen
Hint
/" To go back one step. press [-,_] (during steps 2 to 7).
*Your clock setting will be lost if either there is a power failure or this
un t has been unp ugged for more than 30 seconds. EN
I DVC841G E8AO4UD.indd 8 2006/02/08 18:35:54 I

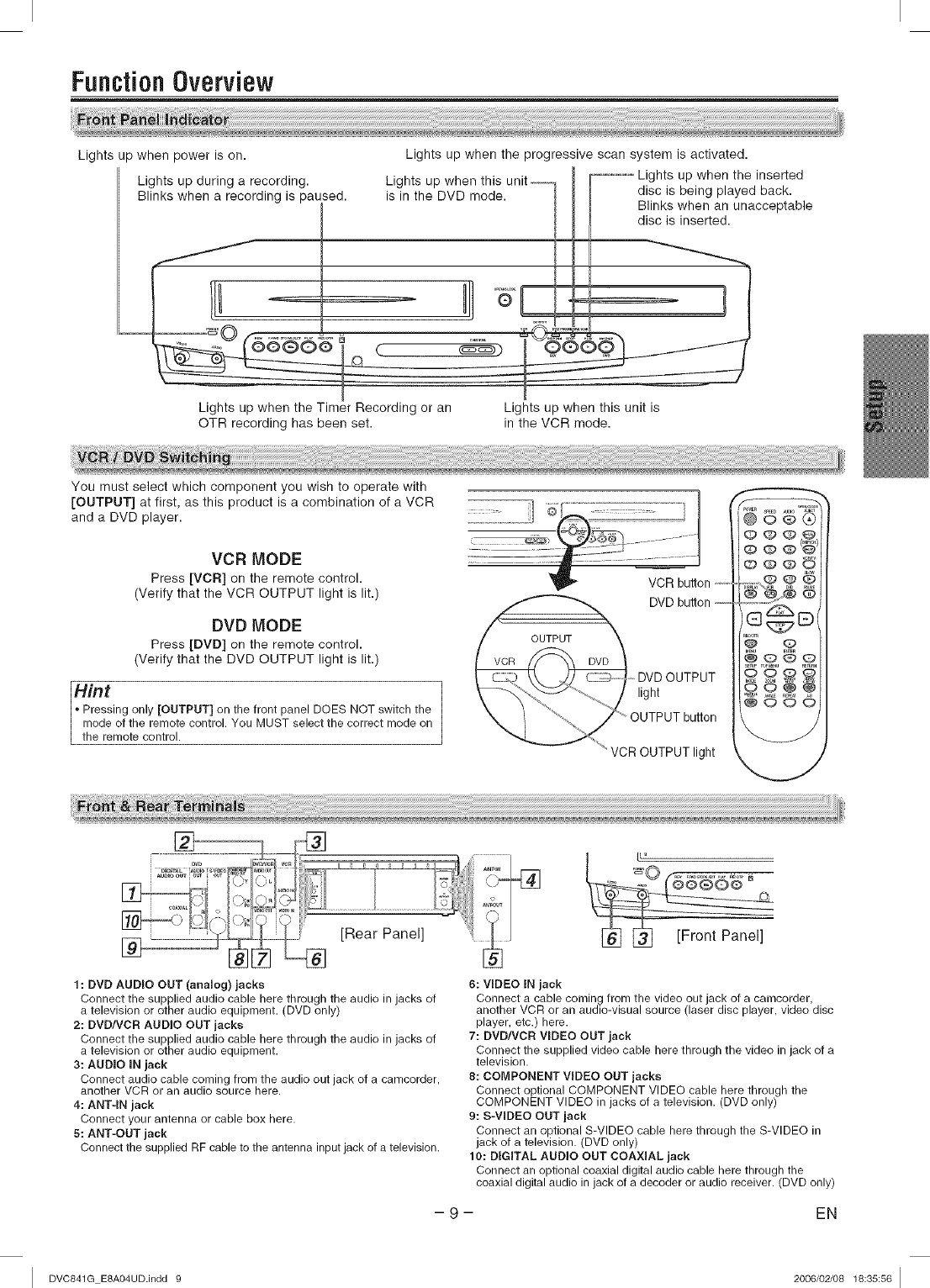

FunctionOverview
Lights up when power is on.
Lights up during a recording.
Blinks when a recording is paused.
}1 ....
I
Lights up when the Timer Recording or an
OTR recording has been set.
Lights up when the progressive scan system is activated.
Lights up when this unit-- - ....... Lights up when the inserted
is in the DVD mode. disc is being played back.
Blinks when an unacceptable
disc is inserted.
I
Lights up when this unit is
in the VCR mode.
You must select which component you wish to operate with
[OUTPUT] at first, as this product is a combination of a VCR
and a DVD player.
VCR MODE
Press [VCR] on the remote control.
(Verify that the VCR OUTPUT light is lit.)
DVD MODE
Press [DVD] on the remote control.
(Verify that the DVD OUTPUT light is lit.)
Hint
* Pressing only [OUTPUT] on the front panel DOES NOT switch the
mode of the remote control. You MUST select the correct mode on
the remote contro.
DVD button ---------
DVD OUTPUT
light
\ 'OUT UT utton
V_"_ VCR OUTPUT light
1: DVD AUDIO OUT (analog) jacks
Connect the supplied audio cable here through the audio in jacks of
a television or other audio equipment. (DVD only)
2: DVD/VCR AUDIO OUT jacks
Connect the supplied audio cable here through the audio in jacks of
a television or other audio equipment.
3: AUDIO IN jack
Connect audio cable coming from the audio out jack of a camcorder,
another VCR or an audio source here.
4: ANT-IN jack
Connect your antenna or cable box here.
5: ANT-OUT jack
Connect the supplied RF cable to the antenna input jack of a television.
6: VIDEO IN jack
Connect a cable coming from the video out jack of a camcorder,
another VCR or an audio-visual source (laser disc player, video disc
player, etc.) here.
7: DVD/VCR VIDEO OUT jack
Connect the supplied video cable here through the video in jack of a
television.
8: COMPONENT VIDEO OUT jacks
Connect optional COMPONENT VIDEO cable here through the
COMPONENT VIDEO in jacks of a television. (DVD only)
9: S-VIDEO OUT jack
Connect an optional S-VIDEO cable here through the S-VIDEO in
jack of a television. (DVD only)
10: DIGITAL AUDIO OUT COAXIAL jack
Connect an optional coaxial digital audio cable here through the
coaxial digital audio in jack of a decoder or audio receiver. (DVD only)
-9- EN
I DVC841G E8A04UD.indd 9 2006/02/08 18:35:56 I

Install two AA batteries (supplied)
matching the polarity indicated inside
battery compartment of the remote
control.
e%%
Keep in mind the following when using
the remote control:
* Make sure that there is no obstacle
between the remote control and the
remote sensor on the unit.
*The maximum operable ranges from
the unit are as follows.
- Line of sight: approx. 23 feet (7m)
-Either side of center:
approx. 16 feet (5m) within 30°
- Above: approx. 16 feet (5m) within 15°
-Below: approx. 10 feet (3m) within 30°
Hint
• Do not mix alkaline and manganese
batteries.
• Do not m x old and new batteries.
3utton Disc/Tape
0@@
@@@
0@@
@@
A-B
ANGLE
0
AUDIO
c RESET
®
DISPLAY
®
DVD
®
0
E_rER
000 0
MENU
®
MODE
®
OPEN,LOSE
t_ECT
@
PAUSE
POWER
RE@OTR
REPEAT
®
RETURN
SETUP
®
SKIP/OH SKIP/CH
@@
SLOW
SPEED
• To select chapter or title
directly.
• To search forward/back-
ward through a disc.
• To begin slow forward/reverse
playback in the pause mode.
• To repeat between your
chosen point A and B.
• To select carnera angles
on a disc.
• To select audio languages
on a disc.
• To clear the markers.
• To clear the numbers
entered incorrectly.
• To cancel the point for A-B
repeat.
• To display the current disc
mode.
• To select the DVD output mode.
• To activate the remote
control in DVD mode.
• To move the cursor and
determine its position.
• To call up the Menu on a
disc.
• To set black level on/off.
• To set virLual surround
on/off.
• To open or close the disc
tray.
• To pause disc playback.
• To advance playback one
frar'_le at a time.
• To begin disc playback.
• To turn the unit on/off.
• To play a chapter or title
repeatedly.
• To return to the previous
operation in menu.
• To search chapter, title or
time.
• To set or search gle markers.
• To call up the DVD setup
menu.
• To select track directly.
• To search forward/backward
through a disc.
• To repeat between your chosen
point A and B. (CD)
• To select STEREO, L-ch or R-ch.
(CD)
• To clear the markers. (CD)
• To remove status number in
program input.
• To clear the numbers entered
incorrectly.
• To cancel the point for A-B
repeat. (CD)
• To display the current disc mode.
• To select the DVD output mode.
• To activate the remote control in
DVD mode.
• To move the cursor and
determine its posgion.
• To call up the fib list. (WMA)
• To arrange the playing order or
play randomly.
• To set virtual surround on/off.
• To open or close the disc tray.
• To pause disc playback.
• To begin disc playback.
• To turn the unit on/off.
*To select channel.
,The +10 button has no
effect in VCR mode.
• To forward/backward a
tape.
m
m
m
• To exit the VCR Menu.
• To reset the tape counter.
• To display the current
tk'_le, tape counter, and
channel.
• To select an item
_ _'_ the VOR Menu.
on
• To advance to the
_} next VCR Menu.
_% _ .To go back one
\q_ step during dock
and timer setting.
• To call up the VCR Menu.
• To eject the video
cassette flora the VCR.
• To pause tape playback or
recording.
• To advance playback one
frame at a tirne.
• To begin tape playback.
• To play a track or disc repeat-
edly. (CD)
• To play a track, group or disc
repeatedly. (WMA)
• To return to 81e previous opera-
tion in menu.
• To search track.
• To search tirne. (CD)
• To set or search the markers. (CD)
• To turn the unit on/off.
• To start a recording or
One Touch Recording.
• To call up the index or
time search menu.
• To call up the DVD setup menu.
• To change channels.
• To skip chapters or titles. ,To skip tracks. .To adjust the tracking
manually during playback.
• To view the tape in slow
motion.
-- -- .To select the recording
speed.
• To stop playback. ,To stop playback. .To stop playback or
recording.
SU_T4TLE
_SE7 "To select subtitles on a ,To put the VCR into standby
disc. rnode for a Timer Recording.
TOPMENU "To call up the Top Menu "To return to the top file of the
highest hierarchy in the program
and file list. (WMA)
on adisc.
VCR "To seled the VCR output mode.
-- -- "To activate the remote
control in VCR rnode.
vcR,w "To select DVD position or "To select CD/WMA position or .To select VCR position or
O TV position. TV position. TV position.
ZOOM ,To magnify part of a
picture. (x2/x4)
- 10- EN
I DVC841G ESA04UD.indd 10 2006/02/08 18:36:02 I

Playback
Before:
Turn on the TV and set it to channel 3.
•If channel 3 has been already occupied for broadcasting, see "RF Output Channel" section on page 6.
1Insert a video 2To start playback
cassette into this unit.
3To stop playback 4To eject the cassette
OpBN_LO$_
,_JECT
OtherOperations
Hint
_When a tape
without record tab
is inserted, the unit
will start playback
automatically.
Tracking will be
automatically
adjusted upon play-
back. To adjust the
tracking manually,
press [SKIP/CH.
_I/A, H_I/_'] (or
[CHANNEL A/T]).
Tocueorreviewpicturedurin_Picture Search[
Use [lI_,-] or [_r'q]([F.FWD IIl_] or [REW _1.,_]).
• Press it again and the unit will search in super high speed.
(in the SLP mode only)
Tofreez_in la back Still mode_
Press [PAUSE |1]. Each time you press the button, the
picture will be forwarded by one frame.
,, If the picture begins to vibrate vertically in the still mode,
stabilize the picture by using [SKIP/CH. _/A, I_q_l,_] (or
[CHANNEL A,_]).
• If the picture is distorted or rolling vertically, adjust the
vertical hold control on your TV if equipped.
Hint
I * Still/Slow mode will be automatically canceled after 5 minutes to prevent damage to the tape and the video head.
[. To return to playback from the Picture Search/Still/Slow mode press [PLAY I_].
CounterReset
Press [CLEAR/C.RESET].
back in slow motion _Slow mode_
Press [SLOW] during playback or the still mode.
• If the noise bars appear on the TV screen, you can reduce it
by using [SKIP/OH. _/_,, _/'T] (or [CHANNEL A/T]).
Aeto Rewind
When a tape reaches its end during playback, fast-forward
or recording (except Timer Recording and One Touch
Recording), the tape will automatically rewind to the beginning.
After rewinding finishes, the unit will eject the tape.
You can skip the program backward and forward by the Index
Mark.
• Insert a tape into this unit.
1Press [SEARCH MODE] once.
...... [ 1
MODE INDEX SEARCH
You can search backward and forward a specific length of
time on a tape.
• Insert a tape into this unit.
1Press [SEARCH MODE] twice.
...... I 1
MODE TIME S_ARCH
_/-;r2
To select Index Mark I INDE_E_RCH1:::0'3::::_ 2
_or_ 01-20
CURRENT PROGRAM
IP_o.rle_,l P_o._IP_o._IP_o._I
02 03
o_ or or ........'Z'q 3
3Torewind
Tofastfo ard
0
4AfterstartsSearching,playback.it automatically _r PLAY_ 1
Hint
I°The Index Mark will be madeautomatically at the beginning of each recording. I
The time gap between Index Marks should be greater then 1 minute
for SP mode, 2 m nutes for LP mode and 3 m nutes for SLP mode. -11 -
Select the desired length of time for fast forwarding or
rewinding.
or _ O:01- 9:59-
(1 minute_9 hours and 59 minutes)
To rewind ,
To fast forward I
O
4After searching, it automatically starts playback.
I PLAYi_ 1
Hint for Index Search & Time Search
}• These functions are not available during recording.
I" Press [STOP ==] to stop the search.
If a tape ends during a search, your search will be canceled and
the tape will rewind to the beginning. EN
I DVC841G E8A04UD.indd 11 2006/02/08 18:36:04 I

This function will playback a tape repeatedly from the beginning when the tape reaches the end.
Press [MENU] and select
"AUTO REPEAT" during playback.
MENU Q
2Press [1_] to set
"AUTO REPEAT", "ON" or "OFF".
Q
MENU
TIMERPROGRAM_,IING
_AUTO REPEAT [ON]
CHANNELSETUP
CLOC_SET
LANGUAGESELECT
Hint
To cancel Auto Repeat, follow step 1above. Then, press [11_]so that "OFF" appears beside "AUTO REPEAT'. Press [CLEAR/C.RESET] to exit.
*If menu remains on the TV screen after step 2, press [CLEAR/C.RESET] to exit.
*The Auto Repeat playback will start automatically if you set "AUTO REPEAT" to "ON" in the stop mode.
Recording
Before: Turn on the TV and set it to channel 3.
* If channel 3 has been already occupied for broadcasting,
see '_RF Output Channel" section on page 6.
1Insert a cassette with
tab into this unit. 2Select the channel to record.
@O@
@ @ ® or (_)
OO0
3Press [SPEED] to select the desired tape speed.
SPEED
4Press [REC/OTR] repeatedly to select the
desired recording length.
REOIOTR
@
5, To stop recording 6 To eject the
recorded cassette
OPEN,CLOSE
,EJECT
SA _,
[]
®@®_i
I You CAN NOT dub a DVD to a videotape.
Tosto recordin tern oraril Pause mode)
Press [PAUSE I|].
During the rec-pause mode, five | marks appear on the TV screen. Each |
mark represents one minute.
* Press it again to resume recording.
Pause mode will be automatically canceled after 5 minutes to prevent damage
to the tape and the video head.
Hint
If you want to watch one channel while recording another...
I 1) Press [VCR/TV] to put the unit in TV position.
h 2) Select a channel you want to watch with the cable box or the satellite box.
* Insert a tape with its record tab into the unit.
1Press [MENU], then select "TIMER PROGRAMMING".
MENU
Available program number flashes.
Select an empty program number.
Then press [_-] to go to next step.
Select "ONCE", "DALLY" (Mon-Fri), or "WEEKLY".
Then press [t_.-]to go to next step. pROGRAMNUMBER1
_- ONCE
DAILY
WEEKLY
4Select the desired date.
Then press ['1_] to go to next step.
You can set a program one year in advance.
5Select the desired start time (hour).
Then press [1_] to go to next step.
Oo,Q
ONETIME PROGRAM "
-12- EN
I DVC841G E8AO4UD.indd 12 2006/02/08 18:36:06 I

Select "AM" or "PM".
Then press [_-] to go to next step.
7Repeatthe procedure in steps 5 and6 to set the endtime.
0
8Select the desired channel.
Then press [1_] to go to next step.
*if you have connected the unit to a cable box or satellite
box as the connection on page 6, select the VCR to
channel 3 or 4 (the RF output channel of the VCR). Then,
select the desired channel at the cable box or satellite box.
Leave the cable box or satellite box on for Timer Recording.
9Select the desired recording speed, then press
[CLEAR/C.RESET].
CLEAR'
CRESET
QorO ,-
To set another program after step 9, press [1_].
Then, continue with step 2.
10 Press [SUBTETLE/T-SET]to set timer standby mode.
_UBTITLE
TSET
• _] indicator on the front panel lights up. The unit will
change to the DVDmode.
Hint
• To go back one step, press [_1]during steps 3 to 9.
ToCheck:CorrectorCancela TimerProqram
1) Press [SUBTITLE/T-SET] then, [VCR] ell the remote
control.
2) Select main menu by pressing [MENU].
3) Select "TIMER PROGRAMMING" by using [_.,_], then
press [I_].
4) Select the program number which you want to check by
using [A.t_]. The details of the program you selected will
appear on the TV screen.
,,Go to the digit you want to change by using [_/1_].
Then, enter correct numbers by using [_./_r].
,,You may cancel the entire program by pressing [_l]
while the program number blinks.
5) Press [CLEAR/C.RESET] to exit.
6) Press [SUBTITLE/T-SET] to return to timer standby
mode.
To cancel a Timer Recordin inqjnj_Eqgress
Press [STOPfEJECT [] ,A] on the unit.
• Press [VCR] on the remote control before you set Timer Recording. Make sure the remote control is in the VCR
mode, then press [SUBTITLE/T-SET].
• If a tape is not in the unit or does not have the record tab, [] indicator on the front panel blinks and Timer Recording
cannot be performed. Please insert a recordable tape.
• When Timer Recordings are set, [] indicator on the front panel lights up. To use the VCR as usual until the time for the
recording, press [SUBTITLE/T-SET] so that [] indicator lights off. Press [VCR/TV] to choose the VCR position. Select either
VCR or DVD mode, then continue with the other features as described in this manual.
Alter an OTR or aTimer Recordinqbas been _erates as lollows:
• If a tape runs out before an OTR or a Timer Recording is finished, the unit ejects the tape. Press [SUBTITLE/T-SET] on the
remote control or [STOP/EJECT [] ,A] on the unit, then press [VCR] to activate the VCR function again.
• Once the unit turns to the timer standby mode, no VCR functions are available until [SUBTITLE/T-SET] is pressed.
• To cancel the timer standby mode, press [SUBTITLE/T-SET] ell the remote control or [STOP/EJECT [] ,A] on the unit, then
press [VCR] to activate the VCR function again.
• The mode of the unit and the remote control may differ (VCR mode or DVD mode) when you set Timer Recording or after
you canceled Timer Recording. Press [VOR] or [DVB] on the remote control to select your desired mode before you
operate.
When an OTR or aTimer Recordin_leted...
• If Auto Power Off for DVD has been activated and there are Timer Recordings on standby, the unit turns off automatically,
and [] indicator on the front panel lights to indicate the unit is in the timer standby mode.
• [] indicator on the front panel flashes if there are no more Timer Recordings on standby.
• If Auto Power Off for DVD has NOT been activated, the unit switches to the DVD mode and all the VCR functions will be
unavailable. All the DVD functions are available during OTR, timer standby mode and Timer Recording.
• Press [STOP/EJECT [] ,A] ell the front panel or [SUBTITLE/T-SET] ell the remote control to use the VCR when the unit is
off.
• Press [OUTPUT] on the front panel or [VCR] on the remote control to use the VCR when the unit is on. In case Timer
Recording is in standby mode, press [STOP/EJECT [] ,A] on the front panel or [SUBTITLE/T-SET] on the remote control,
and then press [OUTPUT] on the front panel or [VCR] on the remote control.
IfJLOUwant to rise the DVD _ a Timer Recerdinqor while [] indicator on the front panel is an or blinkinL
• Press [POWER] to turn on the unit. Press [DVD] on the remote control to choose DVD mode, then continue with the other
DVD features as described in this manual.
NOTE(for Timer Recording):
• If there is a power failure or the unit is unplugged for more than 30 seconds, clock and all timer settings will be lost.
- 13- EN
I DVC841G E8A04UD.indd 13 2006/02/08 18:36:07 I

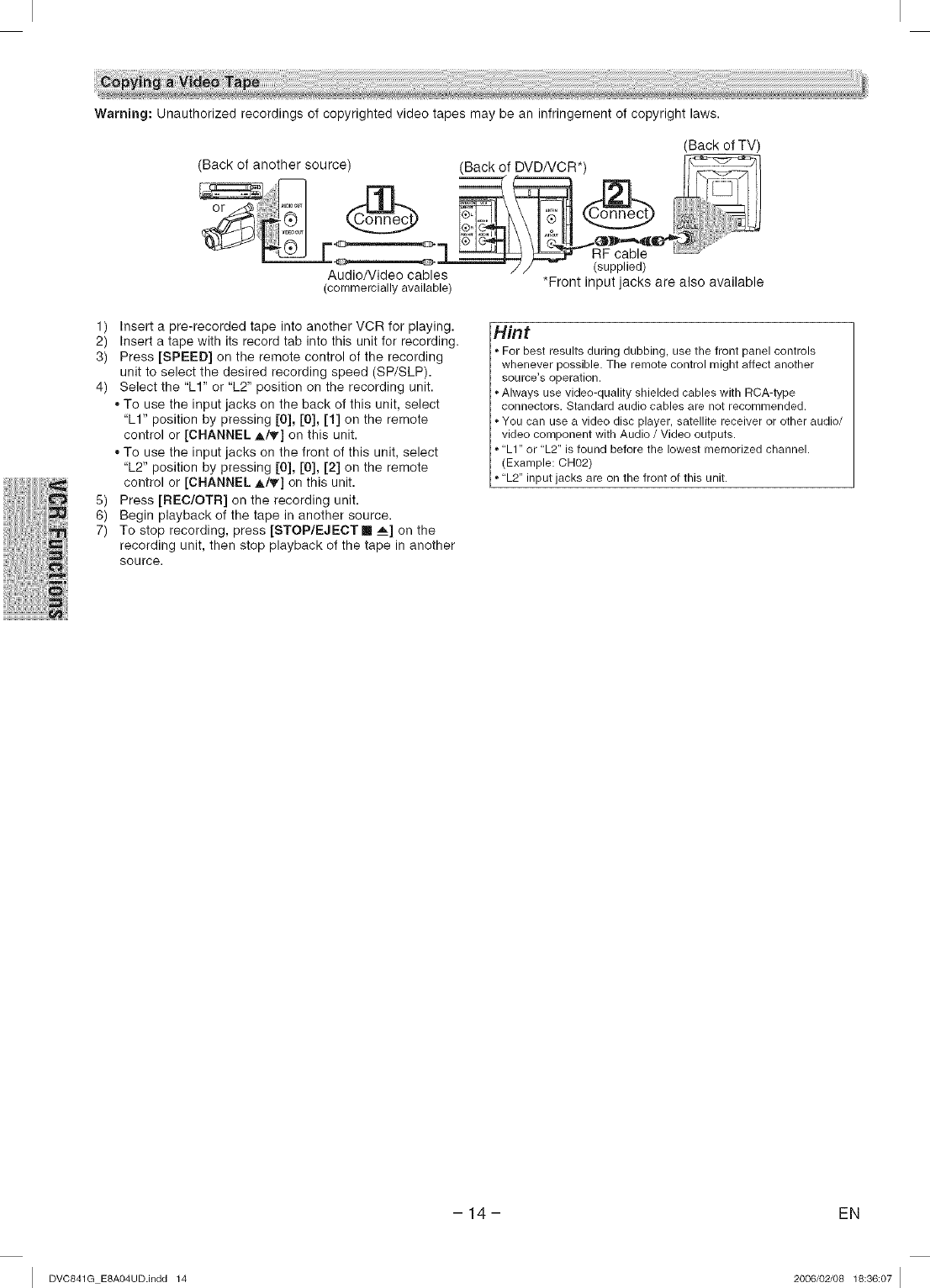

Warning: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.
(Back of another source)
Audio/Video cables
(commemially available)
(Back of TV)
*Front input jacks are also available
1) Insert a pre-recorded tape into another VCR for playing.
2) Insert a tape with its record tab into this unit for recording.
3) Press [SPEED] on the remote control of the recording
unit to select the desired recording speed (SP/SLP).
4) Select the "LI" or "L2" position on the recording unit.
,,To use the input jacks on the back of this unit, select
"LI" position by pressing [0], [0], [1] on the remote
control or [CHANNEL AhV] on this unit.
,,To use the input jacks on the front of this unit, select
"L2" position by pressing [0], [0], [2] on the remote
control or [CHANNEL _.f_'] on this unit.
5) Press [REO/OTR] on the recording unit.
6) Begin playback of the tape in another source.
7) To stop recording, press [STOP/EJECT [] __] on the
recording unit, then stop playback of the tape in another
SOUrCe.
Hint
*For best results during dubbing, usethe front panel controls
whenever possible.The remotecontrol might affect another
source's operation.
*Always use video-quality shielded cables with RCA-type
connectors. Standard audio cables are not recommended.
*You can use a video disc player, satellite receiver or other audio/
video component with Audio /Video outputs.
*"LI" or "L2" is found beforethe lowest memorizedchannel.
(Example: CH02)
*"L2" input jacks are on the front of this unit.
-14- EN
I DVC841G E8A04UD.indd 14 2006/02/08 18:36:07 I

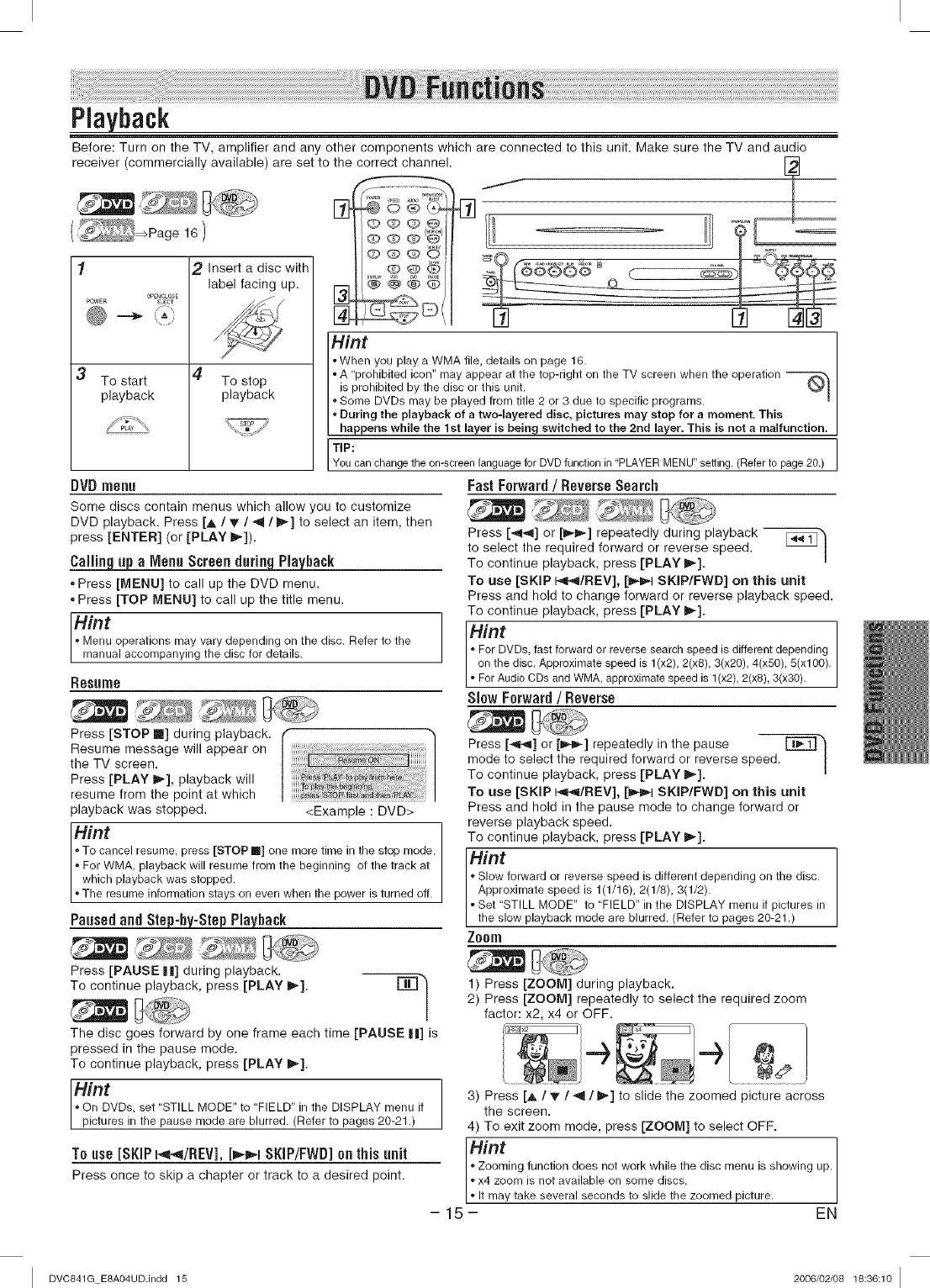

Playback
Before: Turn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio
receiver (commercially available) are set to the correct channel.
_Page 16 )
1
O_EN_LOSE
POWER _JECT
3To start
playback
2Insert a disc with
label facing up.
4To stop
playback
QO@O
/
DVDmenu
Some discs contain menus which allow you to customize
DVD playback. Press [_. /T/_/_] to select an item, then
press [ENTER] (or [PLAY _]).
Callin u a IVlenuScreen durinq Pla back
• Press [MENU] to call up the DVD menu.
• Press [TOP MENU] to call up the title menu.
Hint
Menu operations may vary depending on the disc. Refer to the
manua accompany ng the d sc for deta s.
Resume
Press [STOP !] during playback. _,
Resume message will appear on
the TV screen.
Press [PLAY _], playback will
resume from the point at which
playback was stopped. <Example : DVD>
Hint
I To cancel resume, press [STOP Ill] one more time in the stop mode. I
* For WMA, playback will resume from the beginning of the track at
I which playback was stopped. I
I * The resume information stays on even when the power is turned off. I
Paused and _back
Press [PAUSE ||] during playback.
To continue playback, press [PLAY I_-]. ILEJ}
|
The disc goes forward by one frame each time [PAUSE ||] is
pressed in the pause mode.
To continue playback, press [PLAY _].
Hint
On DVDs, set "STILL MODE" to "FIELD" in the DISPLAY menu if
pictures in the pause mode are blurred. (Refer to pages 20-21 .)
Hint
• When you play a WMA file, details on page 16.
A "prohibited icon" may appear at the top-right on the TV screen when the operation
is prohibited by the disc or this unit.
Some DVDs may be played from title 2 or 3 due to specific programs.
During the playback of a two-layered disc, pictures may step for a moment. This
happens while the 1st layer is being switched to the 2rid layer. This is not a malfunction.
TiP:
You can change the on-screen language for DVD function in 'PLAYER MENU" setting. (Refer to page 20.)
Fast Forward/Reverse Search
Press [-_1] or [_] repeatedly during playback [_ )
to select the required forward or reverse speed. |
To continue playback, press [PLAY _].
To use [SKIP 1_,9/REV], [_1_,4 SKIP/FWD] on this unit
Press and hold to change forward or reverse playback speed.
To continue playback, press [PLAY I_].
Hint
For DVDs, fast forward or reverse search speed is different depending
on the disc. Approximate speed is 1(x2), 2(x8), 3(x20), 4(x50), 5(xl 00).
For Aud e CDs and WMA, apprex mate speed s 1 x2,2 x8,3 x30.
SlowForward/Reverse
Press [_,q] or [_,,d_] repeatedly in the pause
mode to select the required forward or reverse speed. /
To continue playback, press [PLAY _].
To use [SKIP bq_/REV], Iliad SKiP/FWD] on this unit
Press and hold in the pause mode to change forward or
reverse playback speed.
To continue playback, press [PLAY _].
Hint
Slow forward or reverse speed is different depending on the disc.
Approximate speed is 1(1/16), 2(1/8), 3(1/2).
Set "STILL MODE" to "FIELD" in the DISPLAY menu if pictures in
the sow p ayback mode are burred. Refer to pages 20-21.
Zoom
1) Press [ZOOM] during playback.
2) Press [ZOOM] repeatedly to select the required zoom
factor: x2, x4 or OFF.
To use [SKIPI_,_/REV], [_1=,4SKIP/FWD] onlhis unil
Pressonce to skip a chapter or track to a desired point.
_O
3) Press [A, /V" /_/I_] to slide the zoomed picture across
the screen.
4) To exit zoom mode, press [ZOOM] to select OFF.
Hint
I "Zooming function does not work while the disc menu is showing up. I
x4 zoom is not available on some discs,
t may take severa seconds to s de the zoomed p cture.
- 15- EN
I DVC841G E8A04UD.indd 15 2006/02/08 18:36:10 I

WMAPlayback
WMA is a method of compressing files. You can copy WMA files on CD-R/RWs from the computer and play the files on this unit.
Insert a WMA-format disc, then the file list will automatically appear
on the TV screen. Press [MENU] when you want to call up the file
list again while WMA-format disc is already inserted.
1When selecting the folder: '
t-O
J
Press [1_-]when you want to go to the next hierarchy.
Press [_1] when you want to go back to the previous hierarchy
(except for the top hierarchy).
2To cancel WMA playback, press [STOP m].
Refer to "Resume" on page 15.
On-ScreenDisplay
Hint
• Some selections may take a while to be recognized.
Press [TOP MENU] to return to the first item.
Folders are known as Groups; files are known as Tracks.
Folders and WMA are displayed respectively as _ and E].
• A maximum of 255 folders or 999 files may be recognized in one
disc.
• Up to 8 hierarchies can be recognized in one folder. File in the 9th
or deeper hierarchies cannot be played back.
This player recommends the files recorded under the following
circumstances:
• Sampling frequency: 44.1kHz or 48kHz(WMA)
• Constant bit rate: 48kbps -192kbps(WMA).
• For WMA file recorded in Variable Bit Rate(VBR), the unit may not
display the actual elapsed time.
• Copyright protected WMA files will not play on this unit.
You can check the information about the current disc by pressing [DISPLAY] on the remote control.
_¥ Ir_Angle icon, appears only in a case
_ |multi-angel is available on the DVD
r%q r h_=t_==Current playback status
__Remalnlng time of the current chapter
_. _ Elapsed time of the current chapter
,OH(Chapter):
_!_ DISPLAY Current chapter number /Total chapters
i"'T-"_"" _'=========_ Remaining time of the current title
J_1 _Elapsed time of the current title
_TT(Title):
_!_ n_sP_Y Current title number /Total titles
___J_ r_Layer numbers, appears only when
r_q _playing a two-layered disc.
I_1 _ ,_ LI _ _ I L0: Layer 0 is playing
I I I I LI: Layer 1 is playing
I _-__Ourrent repeat setting, appears only
_ -- when the repeat setting is active.
__- C: Chapter repeat
__- T: Title repeat
A _ B: A-B repeat
'BIT RATE: The amount of audio
!_ _' and video data currently being read
oa2_oo2_s _/Current playback status
_'_T"_=_ _ Remaining time ofthe currenttrack
_ Elapsed time of the current track
_TR(Track):
DISPLAY
_ Current track number /Total tracks
_, ALL:
12] _O:_3:45.-_:45:40._T. _1_ Current track number /Total tracks
I _=='=T_ current repeat setting if active
_ I_ _- T: Track repeat
I _ _ A: All Tracks repeat
m I I A _- B: A-B repeat
| I B Remaining time of the entire disc
_( _ Elapsed time of the entire disc
[.int
When you are playing a disc in PROGRAM or RANDOM mode,
_PROGRAM (or RANDOM) will be displayed instead of [_. -16-
(
Current playback status
[ _ 1 The name of the file currentl in
play will be displayed.
I _ _- Title name based on tag
_- ,_. nlsP_ it/formation currently in play will be
_ d,splayed.
[__ Artist name based on tag
>/ | nlsP_ ir_formation currently in play will be
_!_ _ d,splayed.
_ TR(Track):
[] _ o:o_:_s _ T _'_ Current track number /Total tracks
_Current repeat setting, if active
-- _ T: Track repeat
__ G: Group (folder) repeat
_- A: Disc repeat
Elapsed playing time of the current
DISPLAY track
®
] or
(Only when you are playing a disc in PROGRAM or RANDOM mode.)
DISPLAY
®
EN
I DVC841G E8A04UD.indd 16 2006/02/08 18:36:13 I

SearchFunctions
SEARCH MODE does not work during Programmed or Random Playback.
!i!! ii .....
1Press [SEARCH MODE I.
SEARCH
NODE
®
SelecttracknumberbyusingtheNumberbuttonswithin30seconds.
OO@
QQ@
QQ@
@@
*For the disc with less than 10 tracks, press the track number directly•
*For discs with more than 10 but less than 99 tracks, to play single-
digit track, press [01 first, then the track number (e.g. for track 3,
press [0], [31). To play a double-digit track, press the track number•
*For discs with more than 100 tracks, to play a single or a double-digit track,
press [0[ first, then the track number (e.g. for track 3, press [0[, [0[, [3[, andfor
track 26, press [0[, [2], [6D. To play a triple-digit track, press the track number.
(
1Press [SEARCH MODE] repeatedly until the Time Search
display appears.
2Select a desired disc time by using the Number buttons within 30
seconds. o@@
o@@
o0@@
Hint
When there is no need to enter a number, "0" appears automatically.
For example, "0:0 : " appears in the Time Search display if the
I total time of the title or track is less than 10 minutes.
I * Press [CLEAR/C.RESET] to erase the incorrect input at step 2.
Using [SKIP/CH. HH/A, P4_/_ ]
1Press [SKIP/CH. _¢,-I/A, I_,11/'_'] during playback.
(_) Current Track
_, (TR)
SKIP I_ SKIP I_'1
Hint
[+101 can also bring the Track search display, except for the disc
with less than 10 tracks• For such a disc, track search can be done
by ust press ng the track number•
1Press [SEARCH MODE l once for the Chapter Search.
Press [SEARCH MODE l twice for the Title Search.
2Select title/chapter number by using the Number buttons
within 30 seconds.
@@@
@@@
@@
Using [SKIPICH. _V_, Pq_/_ ]
1Press [SKIP/CH. _-I/A, I.,_,q/'v] during playback.
(_) Current_Chapter(cH)
_..._ IOH1! _2JCN31CH4J
SKIP14_ SKIPi_'m
or
Current Title
_, (TT)
Imltr21_3ITT41
SKIP[_'_ SKIP1_[
(If the disc has no chapters)
Hint
Depending on the disc being played, this function can also be
performed by directly entering the desired chapter number with
the Number buttons. Refer to the manua accompany ng the dsc.-17-
This feature allows you to assign a specific point on a disc to
be called back later.
To set a marker
1Press [SEARCH MODE] repeatedly until the marker display
appears.
...... s_sssssD_ _
@ _ :2=221_.........
2Select a marker• !_
3Press [ENTER].
ENTER
To return to the marker later
1Press [SEARCH MODE] repeatedly until the marker display
appears. SEARCH
NODE
®
2Select the marker. _[_00°°01_°00[_ _/
3Press [ENTER] at the desired marker.
ENTER
To exit the marker screen
1Press [RETURN_MJ. RETURN
@
Hint
•The Marker display will disappear in about 30 seconds when there is no output.
•To clear a marker, select the marker to be cleared at step 2 in the
section "To set a marker" or "To return to the marker later" and
then press [CLEAR/C.RESET].
• Opening the disc tray or turning off the power will erase all markers•
Selecting "AC" at step 2 in the section "To set a marker" or "To
return to the marker later" will also erase all markers• EN
I DVC841G E8A04UD.indd 17 2006/02/08 18:36:16 I

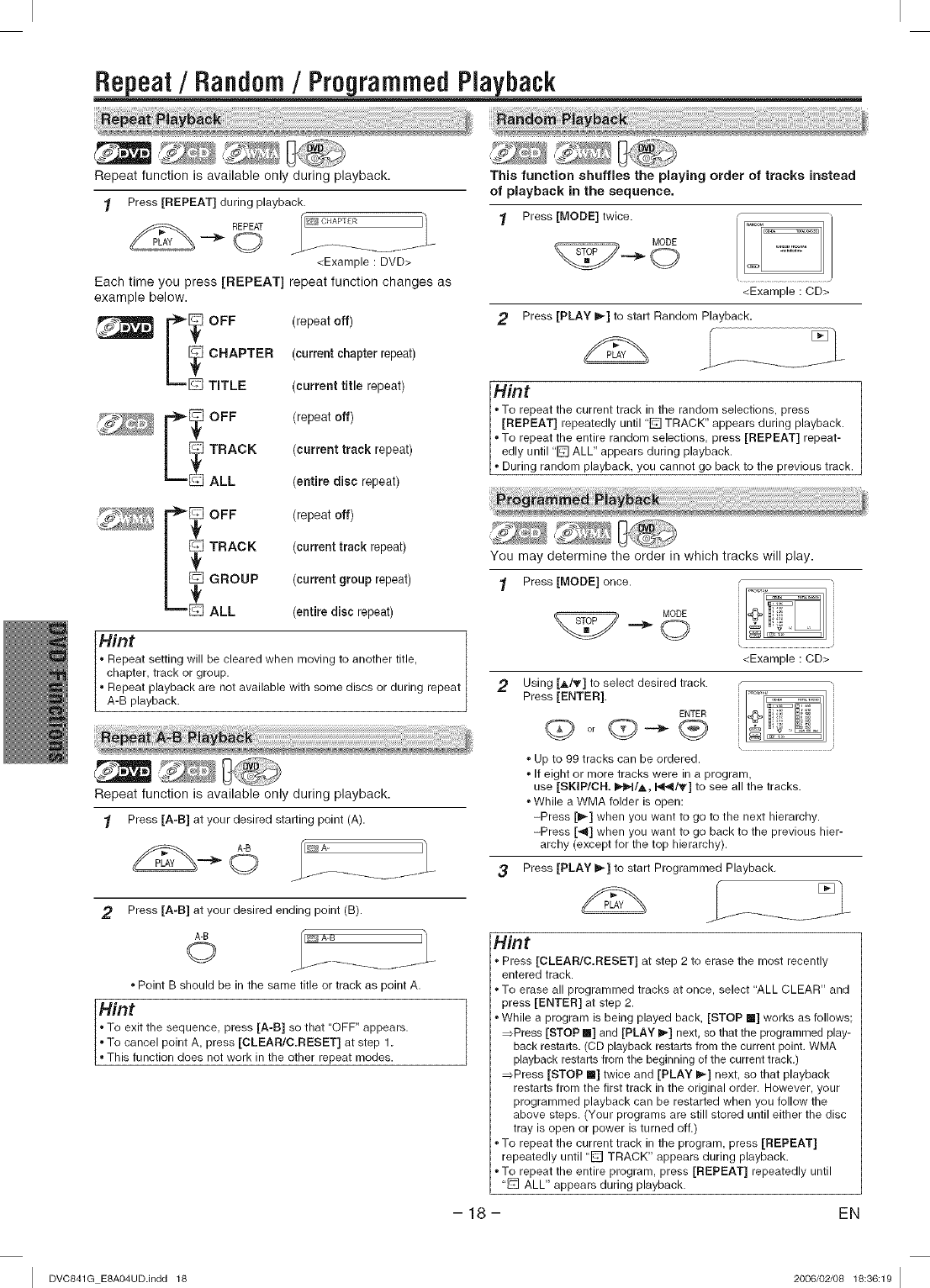

Repeat/Random/ProgrammedPlayback
"_i!iiiiiiiilliiiiiliiiill'kiiill _!! _
Repeat function is available only during playback.
1Press [REPEAT] during playback.
REPEAT IL}@2tCHAPTER
<Example : DVD>
Each time you press [REPEAT] repeat function changes as
example below.
r_ OFF (repeat off)
_ /_] CHAPTER (current chapter repeat)
L_D TITLE (current title repeat)
r,)_[_ OFF (repeat off)
LiTRACK (current track repeat)
ALL (entire disc repeat)
This function shuffles the playing order of tracks instead
of playback in the sequence.
1Press [MODE] twice.
<Example : CD>
2Press [PLAY _] to start Random Playback.
Hint
To repeat the current track in the random selections, press
• [REPEAT] repeatedly until "E] TRACK" appears during playback.
To repeat the entire random selections, press [REPEAT] repeat-
/ edly until "_ ALL" appears during playback.
[. During random playback, you cannot go back to the previous track.
Ii OFF (repeat off)
TRACK (current track repeat)
GROUP (current group repeat)
ALL (entire disc repeat)
Hint
Repeat setting will be cleared when moving to another title,
} chapter, track or group.
Repeat playback are not available with some discs or during repeat
A-B p ayback.
7:_Ss<85
(
Repeat function is available only during playback.
1Press [A-B] at your desired starting point (A).
2Press [A-B] at your desired ending point (B).
A-B
• Point B should be in the same title or track as point A.
Hint
} To exit the sequence, press [A-B] so that "OFF" appears.
[To cancel point A, press [CLEAR/C.RESET] at step 1.
Th s funct on does not work n the other repeat modes.
( (
You may determine the order in which tracks will play.
1Press [MODE] once.
MODE
Using [,_/_] to select desired track.
Press [ENTER]. ENTER
<Example : CD>
Up to 99 tracks can be ordered.
If eight or more tracks were in a program,
use [SKIP/CH. _,'_I/A, I_-_/_] to see all the tracks.
While a WMA folder is open:
-Press [1_-]when you want to go to the next hierarchy.
-Press [_1] when you want to go back to the previous hier-
archy (except for the top hierarchy).
Press [PLAY _,-] to start Programmed Playback.
Hint
Press [CLEAR/C.RESET] at step 2 to erase the most recently
entered track.
To erase all programmed tracks at once, select "ALL CLEAR" and
press [ENTER] at step 2.
While a program is being played back, [STOP m] works as follows;
_Press [STOP m] and [PLAY !_] next, so that the programmed play-
back restarts. (CD playback restarts from the current point. WMA
playback restarts from the beginning of the current track.)
_Press [STOP m] twice and [PLAY _] next, so that playback
restarts from the first track in the original order. However, your
programmed playback can be restarted when you follow the
above steps. (Your programs are still stored until either the disc
tray is open or power is turned off.)
To repeat the current track in the program, press [REPEAT]
repeatedly until "_ TRACK" appears during playback.
To repeat the entire program, press [REPEAT] repeatedly until
"[_] ALL" appears during playback.
-18- EN
I DVC841G E8A04UD.indd 18 2006/02/08 18:36:19 I

Special Settings
This unit allows you to select a subtitle language (ifavailable)
during DVD playback.
1Press [SUBTITLE/T-SET] during playback.
sNTBT'TTLE I[_ 1ENG/G
/
Each time you press [SUBTITLE/T-SET] subtitle language
changes as example below•
iiiiiii¸¸:!!tiii¸!!i!iiiiii!t!iiii!iltiliiiiii!itii¸tiii!iiii!iiiiif_iiiitiitiiiiiiiiiiiii_;;_ _ _ _ _ _ _ _ _
!_,!,!il; iiI
Some DVD discs may contain scenes which have _'_
been shot simultaneously from various angles. !You can change the camera angle if the angle
icon appears on the screen. If the "ANGLE ICON"
setting is "OFF" in the OTHERS menu, the angle icon will not
appear. (Refer to pages 20-22.)
1Press [ANGLE] during playback._"-_ _ / __-
_i OFF (no subtitles)
ENG (English subtitles)
FRE (French subtitles)
To set subtitle ON/OFF
1Press [SUBTITLE/T-SET] during playback.
Press [_] to select subtitle ON or OFF.
(2)
Adjust the Black Level Setting to make
the dark areas of the TV picture brighter.
1Press [MODE] during playback.
2Press [ENTER] to ENTER ..................
adjust the black level•
ON: Makes the dark areas brighter. /
OFF: Shows the original picture as recorded.
3Press [RETURN _,.J] to exit. RETURN
@
Hint
• It your language is not shown after pressing [SUBTITLE/T-SET] several
times, the disc may not have that language. However, some discs allow
subtitle language setting on the disc menu. (Operation varies depending
on the discs, so refer to the manual along with the disc.)
• When "NOT AVAILABLE" appears on the TV screen, it means no
subtitle is recorded on the scene.
• If you choose a language that has a three-letter-language code, the
code will be displayed every time you change the subtitle language
setting. If you choose any other languages, '---' will be displayed
instead. (Refer to page 24.)
• Some discs will only allow you to change the subtitle from the disc
menu. Refer to the manual accompanying the discs for details.
This unit allows you to select an audio language (if multiple
languages are available) during DVD playback.
1Press [AUDIO] to change audio language.
AUDIO
Each time you press [AUDIO], audio language changes as
example below.
_i ENG (English audio)
SPA (Spanish audio) 2
FRE (French audio)
3
Hint
* Some discs will only allow you to change the audio setting from the
disc menu. Refer to the manual accompanying the discs for details.
oWhen "OFF"appears on the TV screen, it meansaudio language is notavailable.
- If your language is not shown after pressing [AUDIO] several
times, the disc may not have that language. However, some discs
allow audio language setting on the disc menu. (Operation varies
depending on the disc, so refer to the manual along with the disc.) -19-
S_ This unit allows you to select a sound
mode during CD playback.
1Press [AUDIO] during CD playback.
AUDIO
Each time you press [AUDIO], sound mode changes as example below.
F_ STEREO (right and left channels are active)
L-ch (left channel is active)
E_ R-ch (right channel is active)
_l f. _" _i_ it!!¸¸ i¸
You can enjoy stereophonic virtual world on your existing 2
channel stereo system.
1Press [MODE] twice (once for CD and WMA) during playback.
MODE
Press [ENTER] for the desired effect.
ENTER
1: Natural effect
2: Emphasizedeffect
OFF: No effects (original sound)
Press [RETURN _ ] to exit. RETURN
Hint
For CD play back only
• Virtual Surround will not be effective if the sound mode is set to
something other than STEREO. Refer to "Stereo Sound Mode".
• When playing back 96kHz with Virtual Surround function, the sound
will be down sampling at 48kHz and output as digital audio. EN
I DVC841G E8A04UD.indd 19 2006/02/08 18:36:22 I

DVDSetup
QUICK SETUP Menu
You can select the "PLAYER MENU" "TV ASPECT'
1Press [SETUP] in the stop mode.
<SETUP MENU>
Confirm that "QUICK" is selected. ENTER
"PROGRESSIVE" or "DOLBY DIGITAL" from the QUICK SETUP menu quickly.
2Select the desired item.
I_ r_ _i_.,L_P2o[] StepS
I _,/J_ ....... "[_ I
_'_ !_o_!,_t _o_!_,_°x P21 [] Step 5
P21 [] Step 5
, Refer to the sections "PLAYER MENU", "TV ASPECT",
"PROGRESSIVE" or "DOLBY DIGITAL" on page 20 or 21.
dCUSTOM Menu t
You can change the settings of the unit.
on pages 20-21 indicates DVD Setup menus also accessible from the QUICK SETUP menu.
1Press [SETUP] in the stop
mode.
SETUP
<SETUP MENU>
I
3Select the desired item.
ENTER
ENTER
LANGUAGE menu DISPLAY menu AUDIO menu PARENTAL menu OTHERS menu
....... .... ISlV \I_ 1:
page 20 [] page 21 [] page 21 [] page 22 [] page 22 []
Follow steps 1 to 3 in the "CUSTOM Menu" section above.
4Select the desired item. ENTER 5Select the desired language.
m
LANGUAGE menu
AUDIO: ,,1 ,,2
Default: ORIGINAL)
Setsthe audio language.
SUBTITLE: .1 *2
Default: OFF)
Setsthe subtitlelanguage.
DiSC MENU: ,1
Default: ENGLISH)
Setsthe language in
DVD menu.
PLAYER MENU:
Default: ENGLISH)
Setsthe language for the
On-Screen Display.
EAUD_O
ENGUSH
FRENCH
/...............
I SUBTITLE
E_
ENGLISH
FRENCH
EDISC MENU
FRENCH
SPAMSH
/............
FP[AY ER MENU
FRAN_AIS
ESPANOL
ENTER
6 o exit the menu
SETUP
Hint
Language options are not available
with some discs.
If OTHER is selected in the AUDIO,
SUBTITLE or DISC MENU screen,
press four-digit numberto enter
thecode for the desired language.
(Refer to the language code list on
page24.)
Only the languages supported by the
disc can be selected.
2
Language settingfor Audio and
Subtitle are not available with some
discs.Then press [AUDIO] and
[SUBTITLE/T-SET]. Details are on
page 19.
- 20 - EN
I DVC841G E8A04UD.indd 20 2006/02/08 18:36:25 I
