Quick Reference
Introduction
The DC 694X-000 Converter (referred to hereafter as Converter)
is an optional add-on for the VRC 694X terminal. It is installed
between the terminal Filtered Power Cable and the terminal. In
addition to providing regulated power, it also provides isolation
from forklift electrical noise that can affect scanning (especially
long range scanning).
For detailed information on VRC 694X terminals, see the Quick
Reference Guide or Product Reference Guide for the terminal.
About this Guide
This guide provides basic information on the following topics:
•Parts on page 2
•Testing the Internal Power Harness on page 3
•Connecting the Converter on page 4
•Connecting the Converter Ground Stud on page 5
•Mounting the Converter on page 5
•Troubleshooting on page 6
•Technical Specifications on page 6
•Regulatory Information on page 7
•Service Information on backcover.

2
DC 694X-000
DC Converter
Parts
Important Information
The Converter must be used with a terminal equipped with the
new 3-wire internal Power Harness Assembly (p/n 25-38436-XX).
The third wire in the internal power harness provides access to the
terminal chassis ground. The Converter must also be used with
the Filtered Power Cable Assembly (p/n 25-50337-XX) standard
with all VRCs and also available separately.
Ground Stud
Power In Port
Terminal Connection

3
Quick Reference

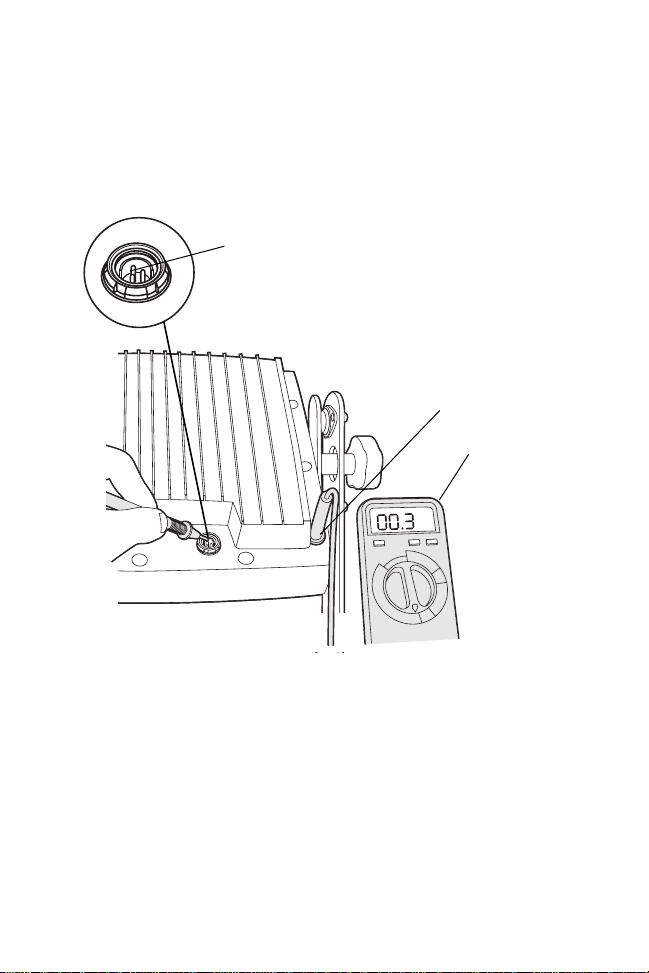

Testing the Internal Power Harness
To ensure that your terminal has the 3-wire internal Power
Harness Assembly, perform the following test:
1. Use a Multi-Meter set to the ohms scale.
2. Touch and hold one Multi-Meter test lead end onto Pin 3 on
the back of the terminal.
3. Insert the other Multi-Meter test lead end onto the chassis
screw on the back of the terminal.
If continuity is detected, then the terminal has the new 3-wire
internal Power Harness Assembly.
If continuity is not detected, then the terminal has the older 2-wire
internal Power Harness Assembly that must be changed.
Test Lead on Chassi
s
Screw
Pin 3
Multi-Meter

4
DC 694X-000
DC Converter
Note: Contact the Symbol Support Center to change the
Power Harness Assembly.
Connecting the Converter
The Converter connects between the Filtered Power Cable and
the terminal.
1. If the Filtered Power Cable is already connected to the termi-
nal, disconnect it and plug it into the Converter.
2. Plug the converter cable into the terminal. Ensure all cables
are seated properly.
Note: For additional information on the FIltered Power Cable
(p/n 25-50337-XX) refer to the Filtered Power Cable
Quick Reference Guide (p/n 72-51383-XX).
Connect to DC
Power Source
Filtered
Power Cable
Converter
Cable
Connect to
Forklift Ground
Terminal
Converter

5
Quick Reference

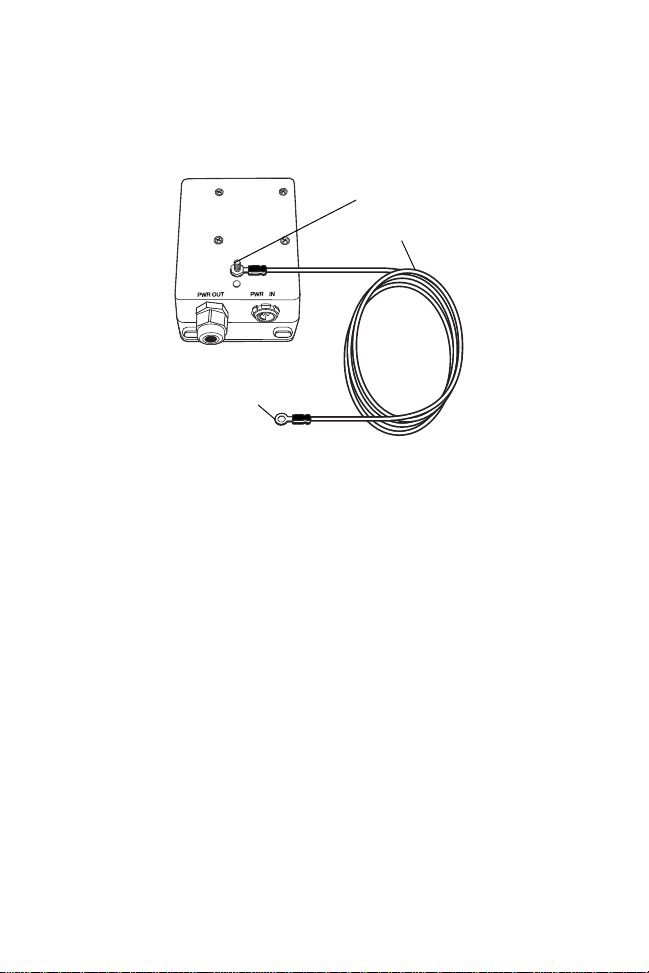

Connecting the Converter Ground Stud
1. Connect a ground wire (not provided) with a ring-terminal to
the stud on the Converter and torque the nut to 15 - 18 in/lbs.
2. Connecttheotherendofthegroundwirewith aring-terminal
to the forklift chassis.
Note: Ensure the connection point is a true metal ground sur-
face common to the forklift.
Mounting the Converter
1. Mount the converter using appropriate hardware (not provid-
ed) in a convenient secure location on the forklift.
Note: It is preferable to have the rear of the Converter touch-
ing a metal surface so it can act as a heat-sink. During
normal operation of the Converter, the rear of the box
becomes warm to the touch.
2. Carefully tie the cables down so they do not interfere with, or
affect the safe operation of, the forklift. The terminal can now
be powered on.
Ground to Forklift
Chassis
Ground Stud
Ground Wire

6
DC 694X-000
DC Converter
Troubleshooting
Technical Specifications
Symptom Possible Cause Action
Terminal is
unable to
power on.
Insufficient volt-
age. Ensure the Filtered Cable Assembly is connected to the
forklift power source and that it
has at least 36 volts DC. The
converter will not work if the
input voltage is less than 36
volts.
Cable not
plugged into the
Converter.
Ensure the Filtered Cable
Assembly is plugged securely
into the Converter box.
Cable not
plugged into the
terminal.
Ensure the Converter cable is
plugged securely into the ter-
minal.
Minimum DC input voltage 36 volts
Maximum DC input voltage 75 volts
Output voltage 12 volts DC
Maximum output current 6.25 amps

7
Quick Reference
Regulatory Information
All Symbol devices are designed to be compliant with rules and
regulations in locations they are sold and will be labeled as
required.
Any changes or modifications to Symbol Technologies equipment,
not expressly approved by Symbol Technologies, could void the
user's authority to operate the equipment.
Radio Frequency Interference Requirements
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for
help.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Tested to comply
with FCC Standards
FOR HOME OR OFFICE USE

8
DC 694X-000
DC Converter
Marking and European Economic Area (EEA)
Statement of Compliance
Symbol Technologies, Inc., hereby declares that this
device is in compliance with all the applicable Directives,
89/336/EEC, 73/23/EEC. A Declaration of Conformity may be
obtained from http://www2.symbol.com/doc/

9
Quick Reference
Warranty
(A) Warranty Symbol Technologies (hereafter “Seller”) hardware Products are warranted against defects in
workmanship and materials for a period of three (3) months from the date of shipment, unless otherwise
provided by Seller in writing, provided the Product remains unmodified and is operated under normal and
proper conditions. Warranty provisions and durations on software, integrated installed systems, Product
modified or designed to meet specific customer specifications (“Custom Products”), remanufactured
products, and reconditioned or upgraded products, shall be as provided in the applicable Product
specification in effect at the time of purchase or in the accompanying software license.
(B) Spare Parts Spare parts (i.e. parts, components, or subassemblies sold by Seller for use in the service
and maintenance of Products) are warranted against defects in workmanship and materials for a period of
thirty (30) daysfrom the date ofshipment. Spare parts may benew or originate from returned units under the
conditions set forth in subsection D below.
(C) Repair of Symbol-branded hardware For repairs on Symbol-branded hardware Products under this
Agreement, including repairs covered by warranty, the repair services provided are warranted against
defects in workmanship and materials on the repaired component of the Product for a period of thirty (30)
days from the shipment date of the repaired Product, or until the end of the original warranty period,
whichever is longer.
(D) Product Service Products may beserviced or manufactured withparts, components, or subassemblies
that originate from returned products and that have been tested as meeting applicable specifications for
equivalentnewmaterialand Products.Thesole obligation of Sellerfordefectivehardware Productsislimited
to repairor replacement (at Seller’s option) on a “return to servicedepot” basiswith prior Seller authorization.
Customer is responsible for shipment to the Seller and assumes all costs and risks associated with this
transportation; return shipment to the Customer will be at Seller's expense. Customer shall be responsible
for return shipment charges for product returned where Seller determines there is no defect (“No Defect
Found”), or for product returned that Seller determines is not eligible for warranty repair. No charge will be
made to Buyer for replacement parts for warranty repairs. Seller is not responsible for any damage to or loss
of any software programs, data or removable data storage media, or the restoration or reinstallation of any
software programs or data other than the software, if any, installed by Seller during manufacture of the
Product.
(E) Original Warranty Period Exceptforthe warranty applyingsolelytothe repairedcomponentarisingfrom
a repair service as provided in Section C above, the aforementioned provisions do not extend the original
warranty period of any Product that had either been repaired or replaced by Seller.
(F) Warranty Provisions The above warranty provisions shall not apply to any Product (i) which has been
repaired,tampered with, altered ormodified,except by Seller’s authorized service personnel;(ii) inwhich the
defects or damage to the Product result from normal wear and tear, misuse, negligence, improper storage,
water or other liquids, battery leakage, use of parts or accessories not approved or supplied by Symbol, or
failure to perform operator handling and scheduled maintenance instructions supplied by Seller; (iii) which
has been subjected to unusual physical or electrical stress,abuse, or accident,or forcesor exposure beyond
normal use within the specified operational andenvironmentalparametersset forth inthe applicable Product
specification; nor shall the above warranty provisions apply to any expendable or consumable items, such
as batteries, supplied with the Product.
EXCEPT FOR THE WARRANTY OF TITLE AND THE EXPRESS WARRANTIES STATED ABOVE,
SELLER DISCLAIMS ALL WARRANTIES ON PRODUCTS FURNISHED HEREUNDER INCLUDING ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE. ANY
IMPLIEDWARRANTIESTHATMAYBE IMPOSED BY LAW ARE LIMITED IN DURATIONTOTHE LIMITED
WARRANTY PERIOD. SOME STATES OR COUNTRIES DO NOT ALLOW A LIMITATION ON HOW LONG
AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS. IN SUCH STATES OR COUNTRIES, FOR
SUCH PRODUCTS, SOME EXCLUSIONS OR LIMITATIONS OF THIS LIMITED WARRANTY MAY NOT
APPLY.
The stated express warranties are in lieu of all obligations or liabilities on the part of Seller for damages,
including but not limited to, special, indirect or consequential damages arising out of or in connection with
the use or performance of the Product or service. Seller’s liability for damages to Buyer or others resulting
from the use of any Product or service furnished hereunder shallin no way exceedthe purchase priceof said
Product or the fair market value of said service, except in instances of injury to persons or property.

72-62197-01
Revision A — March 2003
Symbol Technologies, Inc. One Symbol Plaza Holtsville, NY 11742-1300
Service Information
Before you use the unit, it must be configured to operate in your facility’s network and
run your applications.
Ifyouhave aproblemrunningyourunit or usingyourequipment,contact your facility’s
Technical or Systems Support. If there is a problem with the equipment, they will
contact the Symbol Support Center:
For the latest version of this guide go to:http://www.symbol.com/manuals.
United States11-800-653-5350
1-631-738-2400 Canada 905-629-7226
United Kingdom 0800 328 2424 Asia/Pacific [phone]
Australia 1-800-672-906 Austria/Österreich 1-505-5794-0
Denmark/Danmark 7020-1718 Finland/Suomi 9 5407 580
France 01-40-96-52-21 Germany/Deutchland 6074-49020
Italy/Italia 2-484441 Mexico/México 5-520-1835
Netherlands/Nederland 315-271700 Norway/Norge [phone]
South Africa 11-8095311 Spain/España 91 324 40 00
Inside Spain
Sweden/Sverige 84452900 [phone]
Outside Spain
Latin America
Sales Support 1-800-347-0178 Inside US [phone] Outside US
Europe/Mid-East
Distributor Operations Contact local distributor or call [phone]
1Customer support is available 24 hours a day, 7 days a week.
