SERVICE MANUAL
DVR(HDD) with DVD Player
CSHP80G

IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1-1
Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2-1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
Handling Precautions for HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1

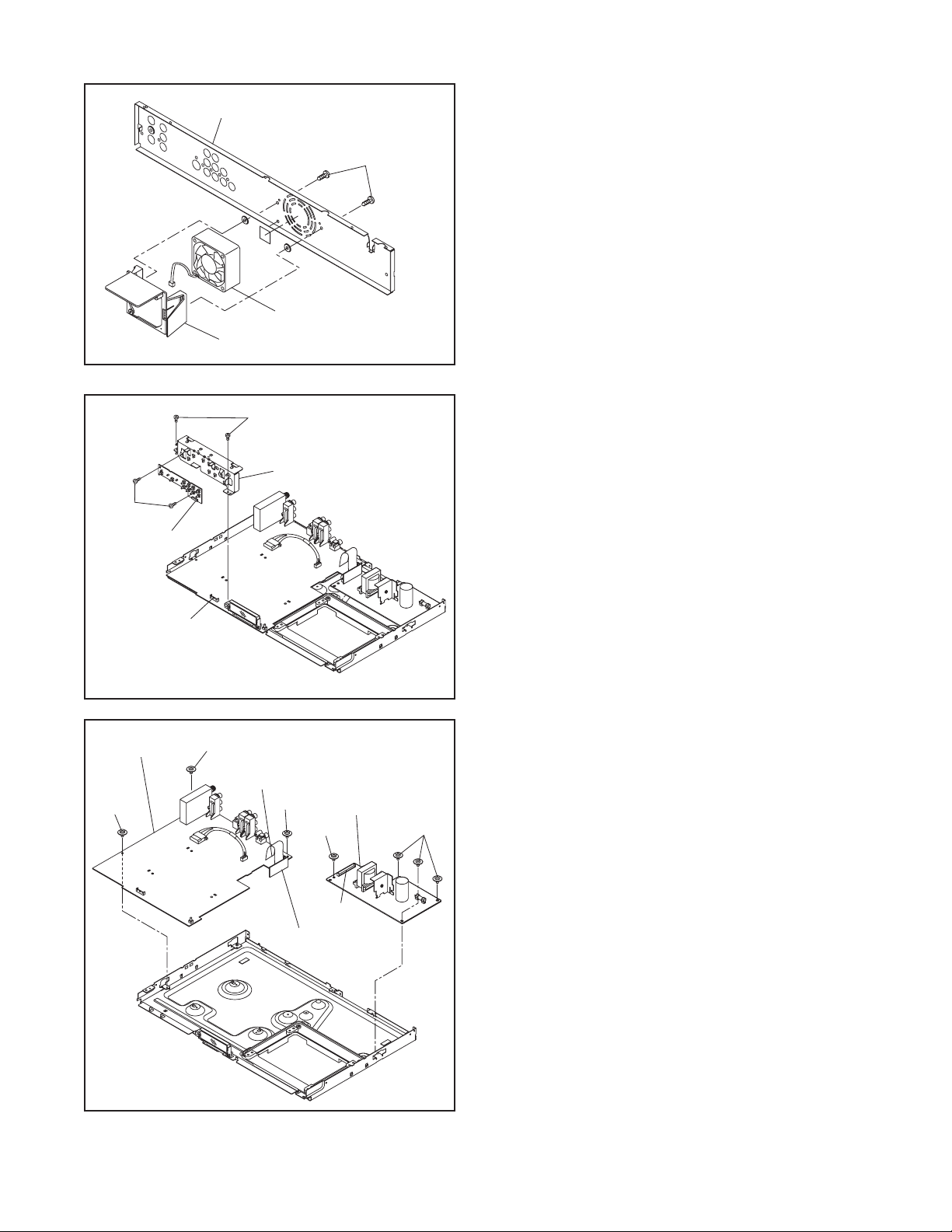

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1
How to Self-Check and Initialize the DVR with DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
Function Indicator Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1
Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14-1
IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16-1
Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19-1
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

1-1-1 E41A1SP
SPECIFICATIONS
NOTES:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply: AC120 V 60 Hz
3 Ambient temperature: 5 °C ~ 40 °C
ITEM
General
DVR Internal 3.5 inch HDD 80 GB
Power consumption 30W (standby: 2.5W)
Recording
Video recording format
Sampling frequency
Compression format 13.5MHz MPEG
Audio recording format
Sampling frequency
Compression format 48kHz Dolby Digital
Tuner
Receivable channels
VHF
UHF
CATV
2-13ch
14-69ch
C1-C125ch
Input/Output
Video input
Input level
Jacks
Input 1 (rear)
1 Vp-p (75Ω)
RCA jack
S-Video input
Y (Iuminance) - Input level
C (color) - Input level
Jacks
Input 1 (rear)
1 Vp-p (75Ω)
286 mVp-p (75Ω)
4 pin mini DIN
Audio input
During audio input
Jacks
Input 1 (rear)
2V rms (47kΩ)
RCA jacks
Component video output
Output level
Jacks Y: 1.0 Vp-p (75Ω), PB/CB, PR/CR: 0.7 Vp-p (75Ω)
RCA jacks
Video output
Output level
Jacks 1 Vp-p (75Ω) RCA jack
S-Video output
Y (Iuminance) - Output level
C (color) - Output level
Jack
1 Vp-p (75Ω)
286 mVp-p (75Ω)
4 pin mini DIN
Audio output
During audio output
Jacks
Output 1,2 L/R
2V rms (47kΩ)
RCA jacks
Digital audio output
Output level
Jack 500 mVp-p (75Ω) RCA jack
VHF/UHF antenna
input/output terminal VHF/UHF set 75Ω

1-2-1 E6NLSP
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Location: Top of DVD mechanism.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Drive Mechanism
Assembly
Laser Beam Radiation
Laser Pickup
Turntable
LASER RADIATION
WHEN OPEN. DO NOT
STARE INTO BEAM.
CAUTION

1-3-1 DVDN_ISP
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a #on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precautions when a set is being serviced.
Precautions during Servicing
A. Parts identified by the #symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation tape
2) PVC tubing
3) Spacers
4) Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.
F. Observe that the wires do not contact heat
producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type
connectors which connect the power cord and the
primary side of the transformer. When replacing
the transformer, follow these steps carefully and
precisely to prevent shock hazards.
Replacement procedure
1) Remove the old connector by cutting the wires
at a point close to the connector.
Important: Do not re-use a connector.
(Discard it.)
2) Strip about 15 mm of the insulation from the
ends of the wires. If the wires are stranded,
twist the strands to avoid frayed conductors.
3) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4) Use a crimping tool to crimp the metal sleeve at
its center. Be sure to crimp fully to the complete
closure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.

1-3-2 DVDN_ISP
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON):
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Clearance Distance (d), (d’)
120 V ≥3.2 mm (0.126 inches)
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V 0.15 µF CAP. & 1.5 kΩRES.
Connected in parallel i ≤0.5 mA Peak Exposed accessible parts
Chassis or Secondary Conductor
Primary Circuit
Fig. 1
d' d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BEarth Ground
Power Cord Plug Prongs
Z
Fig. 2

1-4-1 DVDN_SN
STANDARD NOTES FOR SERVICING

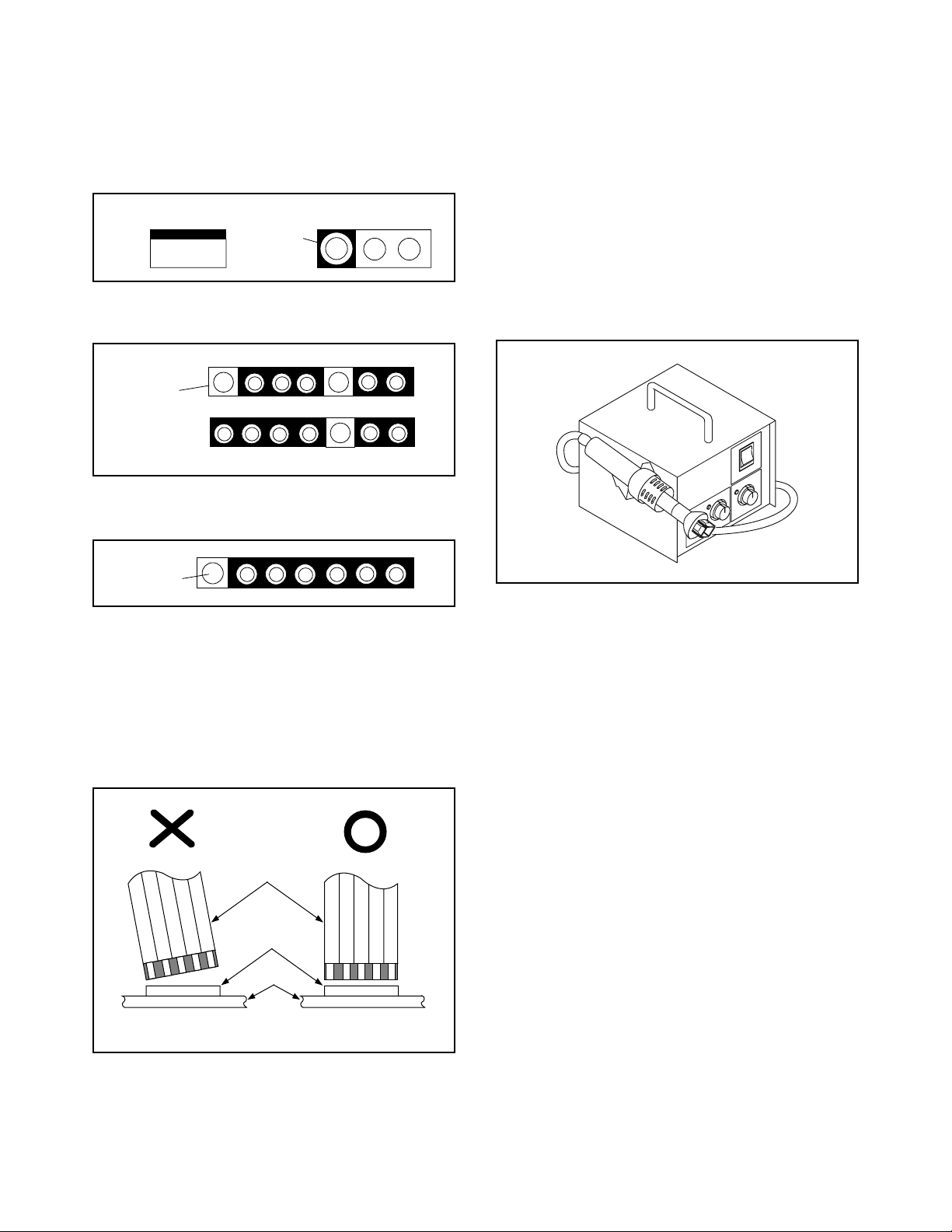

Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1

1-4-2 DVDN_SN
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4

1-4-3 DVDN_SN
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8

1-4-4 DVDN_SN
Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

1-5-1 DHDN_SN
HANDLING PRECAUTIONS FOR HDD
CAUTION:
1. SHOCK
a. Exposing HDD to shock may be the biggest
damaging factor. Please note that HDD is easily
damaged even if dropped from any height. Be sure
to place HDD on a shock-absorbent mat. Also, be
careful when transporting HDD.
b. Be careful not to subject HDD to any shock when
tightening screws for HDD replacement.
(Tighten screws manually, not with an electric
driver.)
2. MOISTURE
a. Moisture may also be a damaging factor. HDD is
semiclosed style. Sudden changes in ambient
temperature may cause moisture to form. Monitor
temperature and do not allow moisture to form on
the media surface. Also, when opening HDD
package, do so only after package is at ambient
temperature.
b. After replacing HDD, leave it to reach room
temperature (about 2 hours) for preventing dew
internal condensation, and then work necessary
task such as operation check.
3. STATIC ELECTRICITY
a. After removing HDD or taking replacement HDD
out of the protective bag (the replacement HDD is
packed in a protective bag), place HDD on a
conductive surface. A grounding band should be
worn when handling.
Both the conductive surface and grounding band
should be grounded.
b. Make sure that HDD is placed on main unit
completely and then let go of it, when assembling.
c. Do not put HDD on a packing bag. (for preventing
electrostatic damage)
4. OTHERS
a. Be careful so as not to do the followings.
Otherwise, HDD might be damaged.
-DO NOT disassemble HDD.
- When handling HDD, be sure to hold both sides
securely.
b. HDD should be stored, packed in the protective
bag, in suitable surroundings (i.e., no extreme
changes in temperature to avoid condensation).
c. When transporting HDD, be sure to use the
exclusive packing case (the replacement HDD
carton).
d. Do not stack HDDs.
e. Do not place vertically because HDD is unstable
and easy to fall.
Grounding Band

1-6-1 E41A1DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method Note:
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 6(S-1) = six Screws (S-1),
5(L-1) = five Locking Tabs (L-1)
(5): Refer to “Reference Notes.”
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note
[1] Top Cover D1 7(S-1) ---
[2] Front
Assembly D2 *6(L-1), *3(L-2) 1
[3] HDD
Assembly D3 4(S-2), *CN501, *CN601, *CN1071 ---
[4]
DVD
Mechanism
& DVD
Main CBA
D3 4(S-3), *CN401,
*CN601 ---
[5] HDD Main
CBA Unit D4 4(S-4), *CN601 ---
[1] Top Cover
[17] AV CBA
[15] SW CBA [2] Front
Assembly
[9] DVD
Main CBA
Unit
[10] DVD
Mechanism
[14] Rear
Panel
[18] Junction
CBA
[19] Power
Supply CBA
[16] PCB
Holder [3] HDD
Assembly
[7] HDD Unit
[6] HDD
Bracket
[4] DVD
Mechanism &
DVD Main
CBA
[12] Fan
Holder
[13] Fan Motor
[11] Rear
Panel Unit [8] ATA CBA
[5] HDD Main
CBA Unit
[6] HDD
Bracket D4 4(S-5) ---
[7] HDD Unit D4 ---------- 2
[8] ATA CBA D4 *CN3001, *CN3002 ---
[9] DVD Main
CBA Unit D5 2(S-6), *CN201, *CN301, Earth Plate
3
4
[10] DVD
Mechanism D5 ---------- ---
[11] Rear Panel
Unit D6 6(S-7), 4(S-8), *CN1052 ---
[12] Fan Holder D7 2(S-9) ---
[13] Fan Motor D7 ---------- ---
[14] Rear Panel D7 ---------- ---
[15] SW CBA D8 2(S-10), *CN1503 ---
[16] PCB
Holder D8 2(S-11) ---
[17] AV CBA D9 3(S-12), *CN2001 ---
[18] Junction
CBA D9 *Desolder ---
[19]
Power
Supply
CBA
D9 4(S-13) ---
↓
(1) ↓ (2) ↓ (3) ↓ (4) ↓ (5)
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note

1-6-2 E41A1DC
Reference Notes
1. Locking Tabs (L-1) and (L-2) are fragile. Be careful
not to break them.
1-1. Release four Locking Tabs (L-1).
1-2. Release three Locking Tabs (L-2) and
remove the Front Assembly.
2. Whenever you have replaced the HDD unit,
initialize the HDD unit. To initialize the HDD unit,
perform the following.
2-1. To put the DVR with DVD Player into the HDD
mode, press the [DVR] button on the remote
control unit.
2-2. To put the DVR with DVD Player into the self-
check mode, after pressing [ANGLE] button,
press the [3], [6], and [9] buttons on the
remote control in that order within three
seconds.
2-3. Press [ENTER] button. The DVR with DVD
Player is initialized and the power is turned
off automatically after two seconds.
3. CAUTION: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
3-1. Short the three short lands of FPC cable with
solder before removing the FFC cable
(CN201) from it. If you disconnect the FFC
cable (CN201), the laser diode of pickup will
be destroyed. (Fig. D5)
3-2. Disconnect Connectors (CN301). Remove
two Screws (S-6) with the Earth Plate and
remove the DVD Main CBA Unit. (Fig. D5)
4. CAUTION: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then
remove the solder from the three short lands of
FPC cable. (Fig. D5)
(S-1) (S-1)
(S-1)
[1] Top Cover
Fig. D1
Fig. D2
(L-2)
(L-1)
(L-1)
(L-1)
[2] Front
Assembly

1-6-3 E41A1DC
Fig. D3
(S-3) (S-3)
(S-3)
(S-2) (S-2)
CN501
CN601
CN401
CN1071
CN601
[3] HDD Assembly [4] DVD Mechanism &
DVD Main CBA
(S-4)
(S-4)
(S-5)
CN3001
CN3002
(S-5)
Fig. D4
[6] HDD Bracket
[7] HDD Unit
[8] ATA CBA
[5] HDD Main CBA Unit
(S-6)
(S-6)
[9] DVD Main CBA Unit
CN301
CN201
Earth Plate
Fig. D5
View for A
Short the three short lands by soldering.
(Either of two places.)
FPC Cable
[10] DVD Mechanism
A
(S-7)
(S-8)
(S-8)
(S-8)
CN1052
[11] Rear Panel Unit
Fig. D6

1-6-4 E41A1DC
Fig. D7
(S-9)
[12] Fan Holder
[13] Fan Motor
[14] Rear Panel
Fig. D8
[16] PCB Holder
[15] SW CBA
(S-11)
(S-10)
CN1503
Fig. D9
[19] Power
Supply CBA
[17] AV CBA
[18] Junction
CBA
(S-13)
(S-13)
(S-12)
Desolder
CN2001
(S-12)
(S-12)

1-6-5 E41A1DC
3. How to Eject Manually
1. Remove the Top Cover.
2. Rotate the gear in the direction of the arrow manually as shown below.
View for A
Rotate this roulette in
the direction of the arrow
A
DVD Mechanism

1-7-1 E41A1INT
HOW TO SELF-CHECK AND INITIALIZE THE DVR with DVD Player
1. Turn on the DVR with DVD Player recorder.
2. To put the DVR with DVD Player recorder into the HDD mode, press [DVR] on the remote control unit.
3. To put the DVR with DVD Player recorder into the self-check mode, after pressing [ANGLE] button, press the
[3], [6], and [9] buttons on the remote control in that order within three seconds.
Fig. a appears on the screen and all LEDs light.
Fig. a: Self-Check Mode Screen
4. Upon the self-check completion, Fig. b appears on the screen.
Fig. b: Screen of Finishing Self-Check Mode
Table 1: Description of Fig. a
INDICATION DESCRIPTION
HDD CONNECT STATUS (*1) Connecting Condition of HDD
HDD POWER ON HOURS (*2)
Value of HDD power on hours obtained from S.M.A.R.T. command. (If not obtainable,
value of HDD power on hours is “0”.)
Value in parentheses is the factory setting value. (If no setting, the value is “0”.)
BE Ver. (*3) B/E version
Sub Micon Ver. (*4) Sub micro controller version
Table 2: Indication of HDD self-check (*5)
INDICATION DESCRIPTION
OK Connection of HDD is normal.
NOT FOUND HDD drive cannot be found.
CABLE ERROR FFC cable between the ATA CBA and the HDD drive is not connected correctly.
Self-Analysys and Report
HDD CONNECT STATUS :
HDD POWER ON HOURS :
BE Ver. :
Sub Micon Ver. :
G6*******Q1U
NFQ2B**D1
*1
*2
*3
*4
"*******" differs depending on the models.
Self-Analysys and Report
HDD CONNECT STATUS : OK
HDD POWER ON HOURS : 100(40)
*5
*6
*7
BE Ver. :
Sub Micon Ver. :
FACTORY DEFAULT :
POWER OFF :
ENTER
POWER
G6*******Q1U
NFQ2B**D1
"*******" differs depending on the models.

1-7-2 E41A1INT
5. When the self-check mode is complete, press [POWER] button to turn the power off.
When initializing the DVR with DVD Player recorder, press [ENTER] button. Fig. c appears on the screen.
After two seconds, the power is turned off automatically.
Fig. c: Initialize Mode Screen
NOTE: When initializing, “Current Clock”, “Setup Changing Item”, “Channel Setup”, “Area Setup”, “Program” and
“HDD Contents” are initialized.
Table 3: Available button in self-check mode
BUTTON DESCRIPTION
ENTER (*6) Initialize (only when the self-check mode is complete)
POWER (*7) Turn the power off (when the self-check mode is complete)
OTHER Not available
Table 4: Description of *8 in Fig. c
INDICATION DESCRIPTION
ENTER Initialization preparation is complete.
WRITING Initializing
OK Initializing is finished normally.
"*******" differs depending on the models.
Self-Analysys and Report
HDD CONNECT STATUS : OK
HDD POWER ON HOURS : 100(40)
BE Ver. :
Sub Micon Ver. :
G6*******Q1U
NFQ2B**D1
FACTORY DEFAULT : *8WRITING

1-8-1 E41A1FW
FIRMWARE RENEWAL MODE
<DVD Section>
1. Turn the power on and remove the disc on the tray.
2. To put the unit into version up mode, press [DVD],
[9], [8], [7], [6], and [SEARCH] buttons on the
remote control unit in this order. The tray will open
automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.
The unit can also enter the version up mode with
the tray open. In this case, Fig. a will be shown on
the screen while the tray is open.
3. Load the disc for version up.
4. The unit enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.
The appearance shown in (*1) of Fig. c is
described as follows:
5. After programming is finished, the tray opens
automatically. Fig. e appears on the screen and
the checksum in (*2) of Fig. e appears on the VFD
(Fig. f).
At this time, no button is available.
6. Remove the disc on the tray.
7. Unplug the AC cord from the AC outlet. Then plug
it again.
8. Turn the power on by pressing the [POWER]
button and the tray will close.
9. Press [DVD], [1], [2], [3], [4], and [DISPLAY]
buttons on the remote control unit in that order.
Fig. g appears on the screen.
F/W Version Up Mode Model No : *******
VERSION : *.**
Please insert a DISC
for F/W Version Up.
EXIT: POWER
"*******" differ depending on the models.
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
VERSION : ************.ab6
Reading...
F/W Version Up Mode Model No : *******
VERSION : *.**
Fig. c Programming Mode Screen
"*******" differ depending on the models.
(*1)
Fig. d VFD in Programming Mode (Example)
No. Appearance State
1 Reading... Sending files into the memory
2 Erasing... Erasing previous version data
3 Programming... Writing new version data
VERSION : ************.ab6
Completed
SUM : 7ABC
F/W Version Up Mode Model No : *******
VERSION : *.**
"*******" differ depending on the models.
Fig. e Completed Program Mode Screen
(*2)
Fig. f VFD upon Finishing the Programming Mode (Example)
MODEL : *******
Version : *.**
Region : *
EXIT: POWEREEPROM CLEAR : CLEAR
Fig. g
"*******" differ depending on the models.

1-8-2 E41A1FW
10. Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.
When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.
11. To exit this mode, press [POWER] button.
<HDD Section>
1. Items necessary to use G6 Serial Firm
Up Software:
G6_SerialFwUp_Ver002.EXE
Save the above file into the local folder.
2. To change to the maintenance mode of
the DVR with DVD Player:
1. Connect the DVR with DVD Player and a PC in
serial.
2. Change the DVR with DVD Player to maintenance
mode.
3. Using the [CHANNEL] up/down buttons on the
remote control, select “4:SERIAL UPDATE” and
press [ENTER] on the remote control.
4. When “Please Press Enter Key” is displayed,
press [ENTER] on the remote control.
5. When the progress bar is displayed, the change is
complete on the DVR with DVD Player.
3. To start up the G6 Serial Firm Up
Software:
Com 1 has been selected as the default for the G6
Serial Firm Up Software.
Fig. i
MODEL : *******
Version : *.**
Region : *
EEPROM CLEAR : OK
EXIT: POWEREEPROM CLEAR : CLEAR
"*******" differ depending on the models.
Fig. h
Flash Write tab
Flash Write tab
