Symphonic SD200E User manual

SERVICE MANUAL
DVD PLAYER
OP/CL PLAY STOP POWER
SD200E

IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.
TABLE OF CONTENTS
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Laser Beam Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
System Control Timing Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
Mechanical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
Manufactured under license from Dolby Laboratories. "Dolby"
and the double-D symbol are trademarks of Dolby Laboratories.

1-1-1 E5900SP
SPECIFICATIONS
NOTES:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply : AC120 V 60 Hz
3. Load imp. : 100 k ohm
4. Ambient Temperature : +25 °C
ITEM CONDITIONS UNIT NOMINAL LIMIT
1. Video Output 75 ohm load Vpp 1.0 ± 0.1
2. Coaxial Digital Out 75 ohm load mVpp 500 ± 50
3. Audio (PCM)
3-1. Output Level 1 kHz 0 dB Vrms 2.0
3-2. S/N dB 120
3-3. Freq. Response
DVD fs=48kHz ± 0.5dB Hz 20~22 k
CD fs=44.1kHz ± 0.5dB Hz 20~20 k
3-4. THD+N
DVD 1 kHz 0dB % 0.004
CD 1 kHz 0dB % 0.0045

1-2-1 E5_LASER
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
LASER RADIATION
WHEN OPEN. DO NOT
STARE INTO BEAM.
CAUTION
LASER BEAM SAFETY PRECAUTIONS

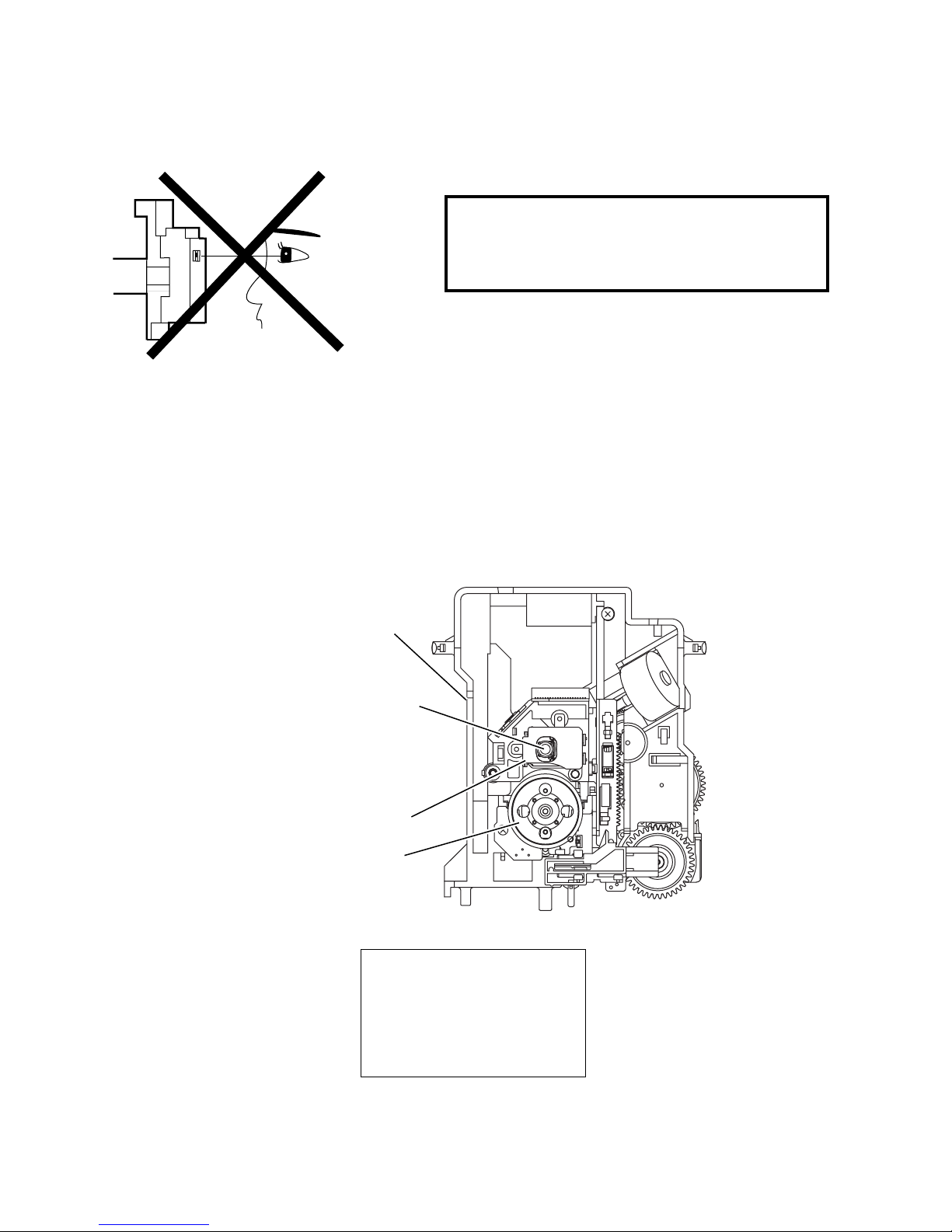

This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Location: Top of DVD mechanism.

1-3-1 DVD_SFN1
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evi-
dent from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a #on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review contin-
uously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor-
tant to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the #symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block-
ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder-
ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus-
ible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to pre-
vent shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo-
sure of the tool.
L. When connecting or disconnecting the internal con-
nectors, first, disconnect the AC plug from the AC
outlet.

1-3-2 DVD_SFN1
Chassis or Secondary Conductor
dd'
Primary Circuit Terminals
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BEarth Ground
Power Cord Plug Prongs
Z
1.5k 0.15 F
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original posi-
tions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol-
dered terminals, and between terminals and surround-
ing metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi-
nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
AC Line Voltage Clearance Distance (d), (d’)
120 V ≥3.2mm (0.126 inches)
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V 0.15µF CAP. & 1.5kΩ RES.
Connected in parallel i≤0.5mA Peak Exposed accessible parts
Fig. 1
Fig. 2

1-4-1 E5STA
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is indi-
cated as shown.
2. For other ICs, pin 1 and every fifth pin are indicated
as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.

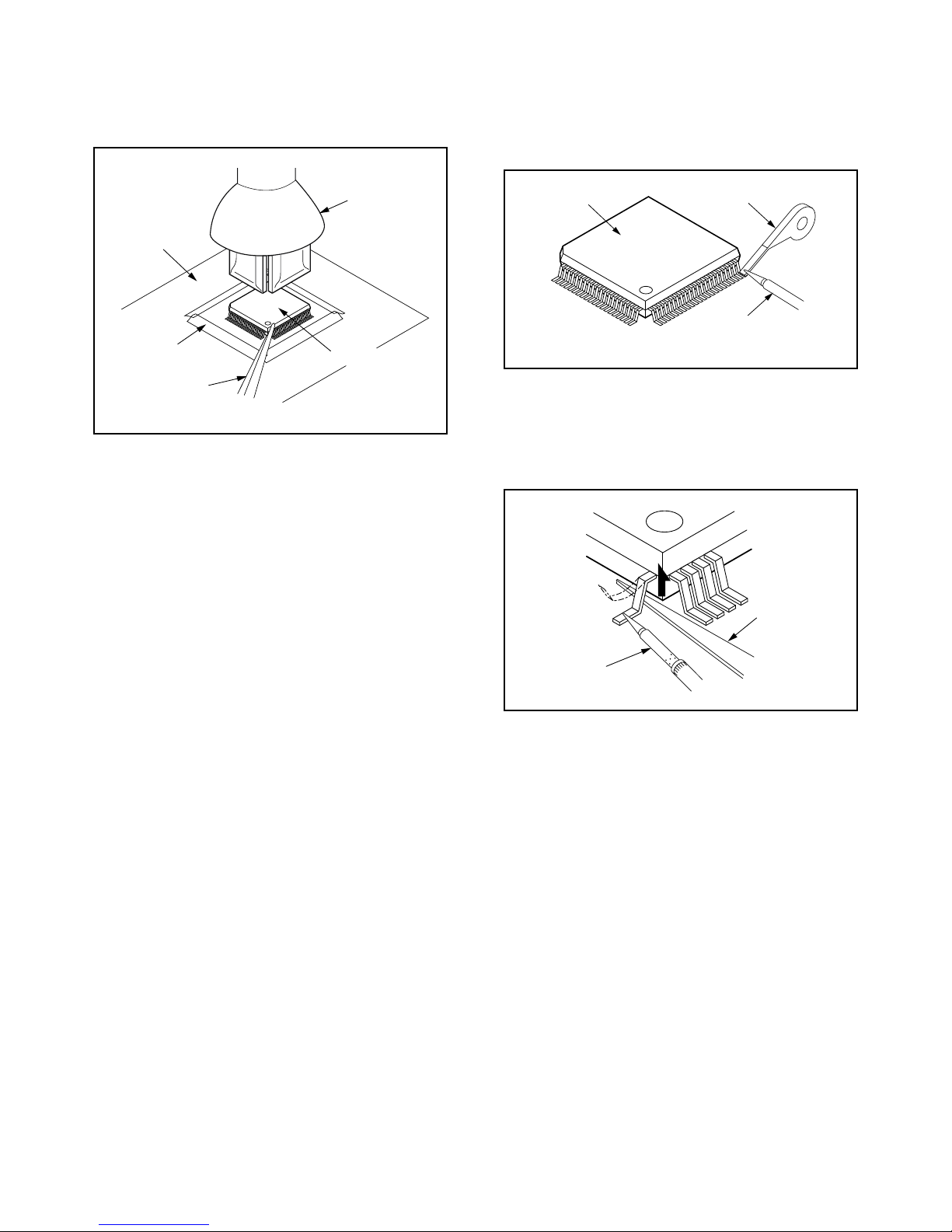

How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1

1-4-2 E5STA
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
With Soldering Iron:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Fig. S-1-2
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape Fig. S-1-3
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-4
Fine Tip
Soldering Iron
Sharp
Pin

1-4-3 E5STA
With Iron Wire:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5.
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA so
you can install a replacement flat pack-IC more
easily.
(2) The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Fig. S-1-5
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-6
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-7
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-8
Presolder
CBA
Flat Pack-IC

1-4-4 E5STA
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electro-
static charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is prop-
erly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
(1) Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body ground-
ing band, be careful to avoid contacting semi-con-
ductors with your clothing.
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

1-5-1 E5960DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5): Refer to “Reference Notes.”
About tightening screws
When tightening screws, tighten them with the follow-
ing torque.
Reference Notes
CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile.
Be careful not to break them.
1-1. Release three Locking Tabs (L-1). Then, release
three Locking Tabs (L-2).
1-2. Remove the Front Assembly.
CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc, during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
2-1. Short the three short lands of FPC cable with sol-
der before removing the FFC cable (CN201) from
it. If you disconnect the FFC cable (CN201), the
laser diode of pickup will be destroyed. (Fig. D4)
2-2. Disconnect Connectors (CN301), (CN401) and
(CN601). Remove two Screws (S-3A) and (S-3B)
and lift the DVD Main CBA Unit. (Fig. D4)
CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D4)
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note
[1] Top Case D1 2(S-1) -
[2] Front
Assembly D2 *3(L-1), *3(L-2) 1
1-1
1-2
[3] Reinforce
Plate D3 3(S-2) -
[4] DVD Main
CBA Unit D4
(S-3A), (S-3B)
*CN201, *CN301,
*CN401, *CN601
2
2-1
2-2
[5] DVD
Mecha
D4,
D5 4(S-4) 2
3
[6] AV CBA D6 3(S-5), 4(S-6), *3(L-3) -
↓
(1) ↓ (2) ↓ (3) ↓ (4) ↓ (5)
[1] Top Case
[2] Front Assembly
[3] Reinforce Plate
[4] DVD Main CBA Unit
[5] DVD Mecha
[6] AV CBA
Screws Torque
(S-1), (S-2), (S-3A),
(S-4), (S-5), (S-6) 0.45 ± 0.05 N·m
(S-3B) 0.38 ± 0.04 N·m

1-5-2 E5960DC

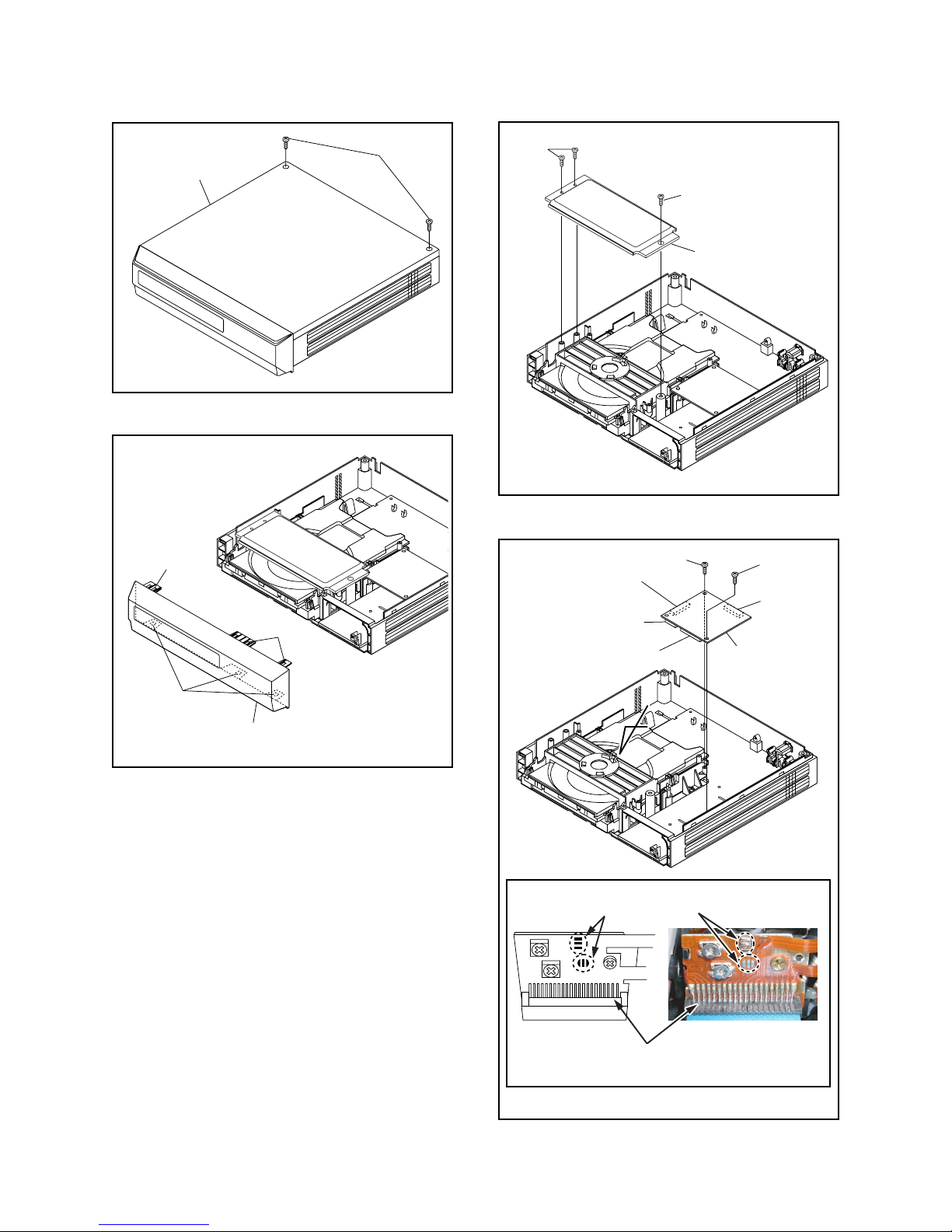

Fig. D1
[1] Top Case
(S-1)
[2] Front Assembly
(L-2)
(L-1)
(L-1)
Fig. D2
[3] Reinforce Plate
(S-2)
(S-2)
Fig. D3
[4] DVD Main
CBA Unit
(S-3B) (S-3A)
CN201
CN301
CN401
CN601
A
Short the three short lands by soldering.
(Either of two places.)
Connector
View for A
Fig. D4

1-5-3 E5960DC
[5] DVD Mecha
(S-4)
(S-4)
(S-4)
Fig. D5
[6] AV CBA
(S-5)
(S-5)
(L-3)
(S-6)
(L-3)
Fig. D6
A
View for A
Rotate this roulette in
the direction of the arrow
HOW TO EJECT MANUALLY (Method 1)
1. Remove the Top Case.
2. Remove the Reinforce Plate.
3. Rotate the roulette in the direction of the arrow as shown
below.

1-5-4 E5960DC
B
View for B
Turn the shaft along with
the opening clockwise.
Rear
Front
Opening
Shaft
(e.g. screwdriver)
HOW TO EJECT MANUALLY (Method 2)
1. Turn the unit over.
2. Insert the shaft less than a diameter of 3 mm (e.g. screw-
driver) straightly into the opening as shown.
3. Turn the shaft along with the opening clockwise.
4. Repeat steps 2 and 3 until the tray will open.
5. Pull the tray slowly with a hand.

1-6-1
BLOCK DIAGRAMS

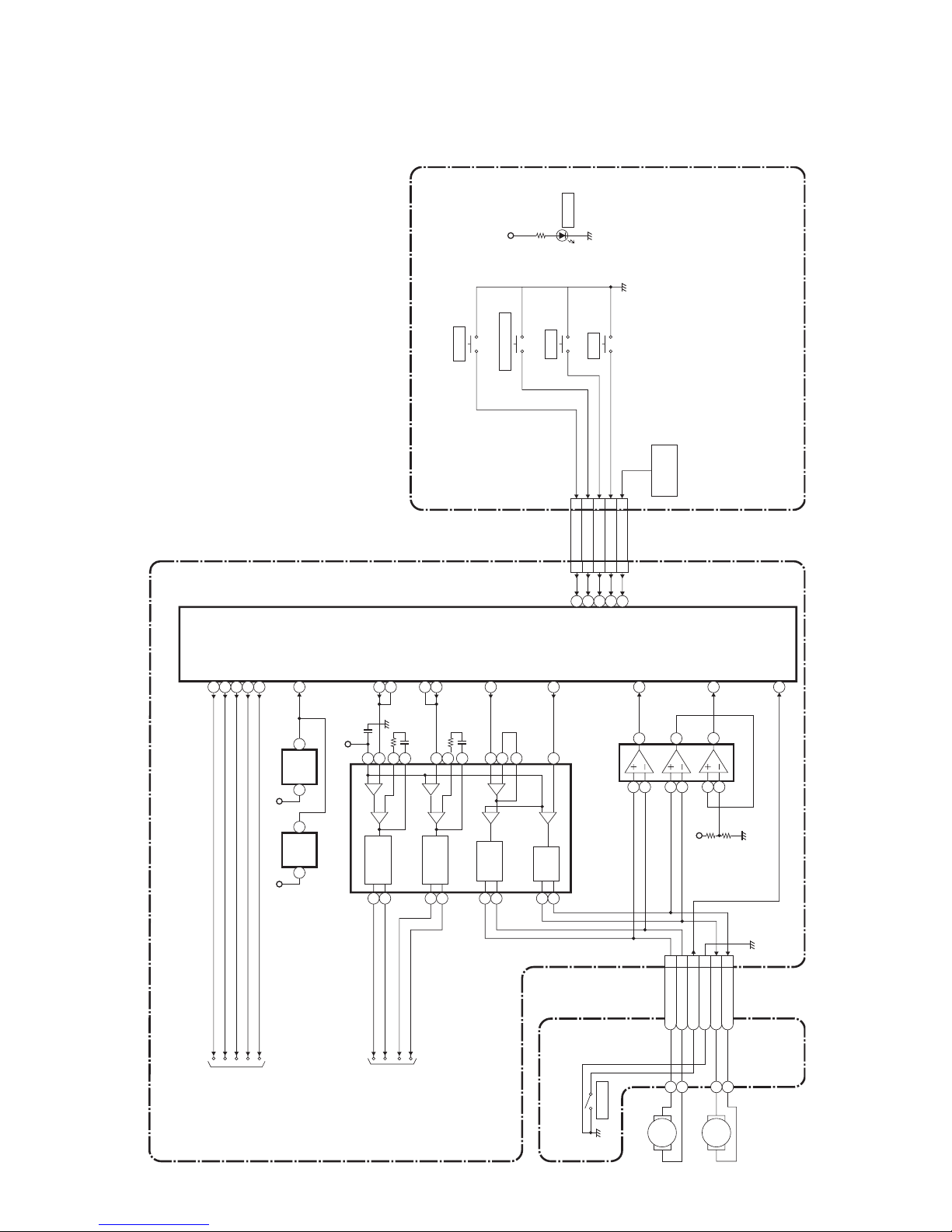

System Control / Servo Block Diagram
E5960BLS
IC301
(SERVO DRIVE)
CN301
M
SLED MOTOR
M
SPINDLE MOTOR
IC101
(MICRO CONTROLLER)
+
-
+
-
+
-
+
-
+
-
+
-
+
-
SLED MOTOR DRIVE
FOCUS ACTUATOR DRIVE
SPINDLE MOTOR DRIVE
TRACKING ACTUATOR DRIVE
147
TRAY-IN SLD75
SPDL
76
TRACKING DRIVE
148
FOCUS DRIVE
66
FS(+) FS(-) TS(+) TS(-)
57
ADAC-MD
56 ADAC-MC 86 ADAC-ML
ADAC-MC
ADAC-ML
PCM-SCLK
88
A-MUTE
ADAC-MD A-MUTE
163
PCM-SCLK
TRAY-IN
3SP(+) 4SP(-) 5TRAY-IN 6GND 7SL(-) 8SL(+)
VREF
RESET73
RESET
IC462
1 3
+3.3V
IC202 (OP AMP)
15 16 14 13 12 11 17 18 23
6 4 5 3 1 2
25
24
27
26
81 SL-AMP
143
SP-ROT
+3.3V
146
FD-OFST
139
TD-OFST
RESET
IC461
2 1
+3.3V
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
TO VIDEO/ AUDIO BLOCK DIAGRAM
DRIVE CBA DVD MAIN CBA UNIT
1
2
67
5 3
13 14
12
CN2002
REMOTE
SENSOR
RM2001
AV CBA
POWER 18 OPEN/CLOSE
19
STOP 20 PLAY 21 REMOTE 22
+5V
D2023 POWER
59POWER 60OPEN/CLOSE 82
STOP
67
REMOTE
61
PLAY
CN401
18 19 20 21 22
OPEN/CLOSE
SW2002
POWER
SW2003
STOP
SW2004
PLAY
SW2001

1-6-2
Digital Signal Process Block Diagram
E5960BLD
C16 D18
A17 B15 E14
F12
DVD-LD 8
CD-LD 10
PD-MONI 7
FS(+) 2
FS(-) 3
TS(+) 1
TS(-) 4
CN201 CN201 CN201
IC201 (SW)
IC101 (MICRO CONTROLLER)
FS
FS(+)
CD/DVD
FS(-)
TS(+)
TS(-)
TS
DETECTOR
CD/DVD 19
Q251,Q252
CD DVD
AMP
Q253,Q254
AMP
4
1 3
6
GND(DVD-PD)
6
GND(CD-PD)
5
GND(LD)
9
RF SIGNAL PROCESS CIRCUIT
DVD/CD FORMATTER
AUDIO I/F VIDEO I/F
NTSC/PAL ENCODER
DMA BCU
INST. ROM 32BIT
CPU
DATA RAM
INTERRUPT CONTROLLER
WATCH DOG TIMER
CPU I/F
TIMER
DECODER I/F
CPU I/F
READ MEMORY
DATA RAM
DSP DECODER
I/O PROCESSOR
INST. ROM DATA RAM INST. ROM
SERIAL
D/A
GENERAL I/O INTERRUPT CONTROLLER
TIMER WATCH DOG TIMER REMOTE CONTROL
32BIT CPU
STREAM I/F
EXTERNAL MEMORY I/F
ECC
UMAC
114 115 116 117 132 131 134 133 129 130
126 124 125 123
83
DEBUG
BCU
INST RAM
DATA RAM
D/A
149
158
Y
C
VIDEO-Y
VIDEO-C
177
SPDIF
170
PCM-BCK
171
PCM-DATA
169
PCM-LRCLK
23~51
SDRAM DATA(0-15)
SDRAM ADDRESS(0-10)
SDRAM ADDRESS(0-10)
217 238
~
1
18
252 256
~~
IC103 (FLASH ROM)
FLASH ROM
29 36 38 45
~
~
DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL DATA(AUDIO) SIGNAL
FDQ (0-15)
~
1 9
16 25 48
~
192~212
FADR (0-19)
SDRAM DATA(0-15)
PICK-UP UNIT
TO SYSTEM CONTROL/SERVO BLOCK DIAGRAM
DVD MAIN CBA UNIT
TO VIDEO /AUDIO BLOCK DIAGRAM TO VIDEO /AUDIO BLOCK DIAGRAM
IC501, IC502 (SDRAM)
SDRAM
2
12 39 49
~~
20 24 27 32
~~

1-6-3

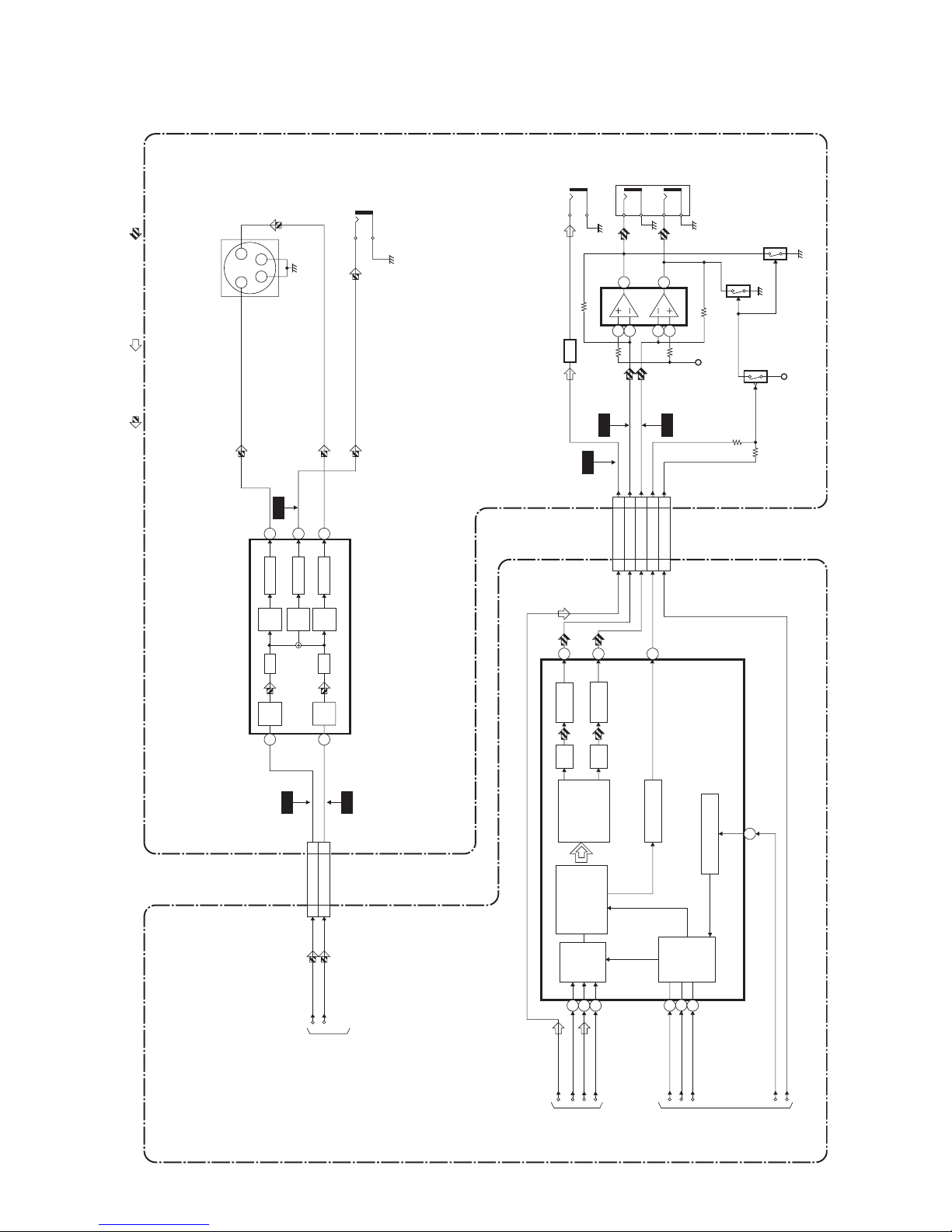

Video / Audio Block Diagram
E5960BLV
IC601 (AUDIO DAC)
7 8
11
DIGITAL AUDIO OUT
JK1202
JK1402
AMP
Q1351
IC1201
Q1201
Q1202
+5V
(AMP)
CN601 CN1601
14 13AUDIO-L 16 15
AUDIO-R
15 14A-R-MUTE 13 12A-MUTE
AUDIO-L OUT
1 2 3
13
14
15
16
SERIAL
PORT
SERIAL
CONTROL
4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
DAC LPF+AMP L-CH
R-CH
LPF+AMP
DAC
ZERO DETECT
SYSTEM CLOCK
1
2 67 5AUDIO-R
OUT
PCM-BCK SPDIF PCM-DATA PCM-LRCLK ADAC-MD ADAC-MC ADAC-ML PCM-SCLK
19 18
SPDIF
A-MUTE +3.3V
Q1204
3
WF6
WF4
WF5
AUDIO SIGNALDATA(AUDIO) SIGNAL
VIDEO SIGNAL
TO SYSTEM CONTROL /SERVO BLOCK DIAGRAM TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
DVD MAIN CBA UNIT AV CBA
CN601
87VIDEO-Y
10 9VIDEO-C
VIDEO-Y VIDEO-C
JK1401 S-VIDEO OUT
CN1601
3 4
2
1
IC1401 (VIDEO DRIVER)
13
4dB AMP 2dB
AMP
LPF DRIVER
YC
14
2dB AMP DRIVER
4dB AMP 2dB
AMP
LPF DRIVER
COMPOSITE VIDEO OUT
JK1402
3 115
TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM
WF1 WF2
WF3

1-6-4 E5960BLP
Power Supply Block Diagram
IC1006
(SHUNT REGULATOR) REG
AC1001 AC CORD F1001
1A 250V
LINE
FILTER
L1001
D1001, D1002 D1004, D1005
Q1003 Q1031
2 4 7
3 4
IC1001
ERROR VOLTAGE DET
T1001
11 12 13 15 14 16 17 18
SWITCHING
SWITCHING
CONTROL
1 2
6
BRIDGE
RECTIFIER
HOT
A V
F
HOT CIRCUIT. BE CAREFUL.
D1030
RECTIFIER
D1016
Q1016
Q1011
Q1002 CN2002
Q1004
EV+5V P-ON+10V EV+3.3V P-ON+5V P-ON+3.3V
1,2 EV+1.2V
3,4,5 EV+3.3V
8,9 EV+11V
7P-ON+5V 6P-ON+3.3V
17 PWRCON
+1.2V
REG.
IC1002
D1006
SCHOTTKY BARRIER SCHOTTKY BARRIER
D1008
NOTE :
The voltage for parts in hot circuit is measured using hot GND as a common terminal.
-REPLACE FUSE AS MARKED.
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE. RISK OF FIRE
"This symbol means fast operating fuse."
A V
F
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.
AV CBA
TO CN401
Q1014

1-7-1 SC_FN1
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replace-
ment components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such fea-
tures are identified by the mark " #" in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as speci-
fied in the parts list may create shock, fire, or other
hazards.
Notes:
1. Do not use the part number shown on these draw-
ings for ordering. The correct part number is
shown in the parts list, and may be slightly different
or amended since these drawings were prepared.
2. All resistance values are indicated in ohms
(K=103, M=106).
3. Resistor wattages are 1/4W or 1/6W unless other-
wise specified.
4. All capacitance values are indicated in µF
(P=10-6 µF).
5. All voltages are DC voltages unless otherwise
specified.

1-7-2 SC_FN2
LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING
PAG ES:
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE
SAME TYPE FUSE.
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE
DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.
3. Note:
(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts
list, and may be slightly different or amended since the drawings were prepared.
(2) To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:
5. How to read converged lines
6. Test Point Information
This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.
23
1
5.0
(2.5)
5.0
The same voltage for
both PLAY & STOP modes
Indicates that the voltage
is not consistent here.
PLAY mode
STOP mode
(Unit: Volt)
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to area "D3".
2. "1-B1" means that line number "1" goes to area "B1".
3
2
1
ABCD
1-B1
1-D3
AREA D3
AREA B1
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
A V
F
