symphony sleep SXELV User manual

NOTE
Base must be fully
assembled on the
oor - upside down.
WA NING
DO NOT TILT or LEAN base on
legs when turning base over.
FOOT
12+
HEAD
1
INST UCTIONS (continued on back)
CONNECTOR BAR
1
CONNECTOR BAR
2AB С
x22
D
HEAD
2
FOOT 2 HEAD 2
HEAD 1FOOT 1 1
2IMPO TANT
All 6 legs must be tightened
securely to elevation kit before
turning base over for use.
IMPO TANT
2 people are
recommended
for assembly.
HEAD
2
After removing HEAD 2 section from
box, cut yellow tie bands connecting
motor to frame. DO NOT cut the black
tie band holding the motor wire. Check
that the two pre-inserted bushings are
present before inserting bolt A. Insert
bolt A through HEAD 2 section and
secure with cotter pin B.
1
A
B
Slide CONNECTOR BARS 1 into both
sides of FOOT 1. Use bolts C to lightly
secure in place. Do not fully tighten.
Slide HEAD 1 section onto connector
bars. Sections and connector bars are
labeled with a number . Use bolts C
to attached and tighten all bolts.
2
1
11
С
1
1 1 1
1
FOOT
+
HEAD
С
Align mounting bracket holes all 6
holes on frame sections HEAD 1 and
FOOT 1 with the 6 leg holes of the
base. Secure to base using bolts C.
3
HEAD
BASE
1
FOOT
+1
BASE
С
W hile the base is upside down, route
motor whire under HEAD 2 section
and the base frame as illustrated
below. P lug motor cable into outlet
on control box indicated L IFT
M OTOR.
5
ROUTE UNDER THIS BAR BASE
HEAD 2ROUTE UNDER THIS BAR
L ift HEAD 2 section on each side.
Slide CONNECTOR BARS 2 into FOOT
2 section using bolts C to lightly
secure in place. Do not fully tighten.
G uide wheels from HEAD 2 section
into channels on HEAD 1 section.
Slide HEAD 2 onto CONNECTOR
BARS 2. Sections and connector bars
are labeled with a number .
Tighten all bolts.
4
2
С
HEAD
2
FOOT
+2
L IFT M OTOR

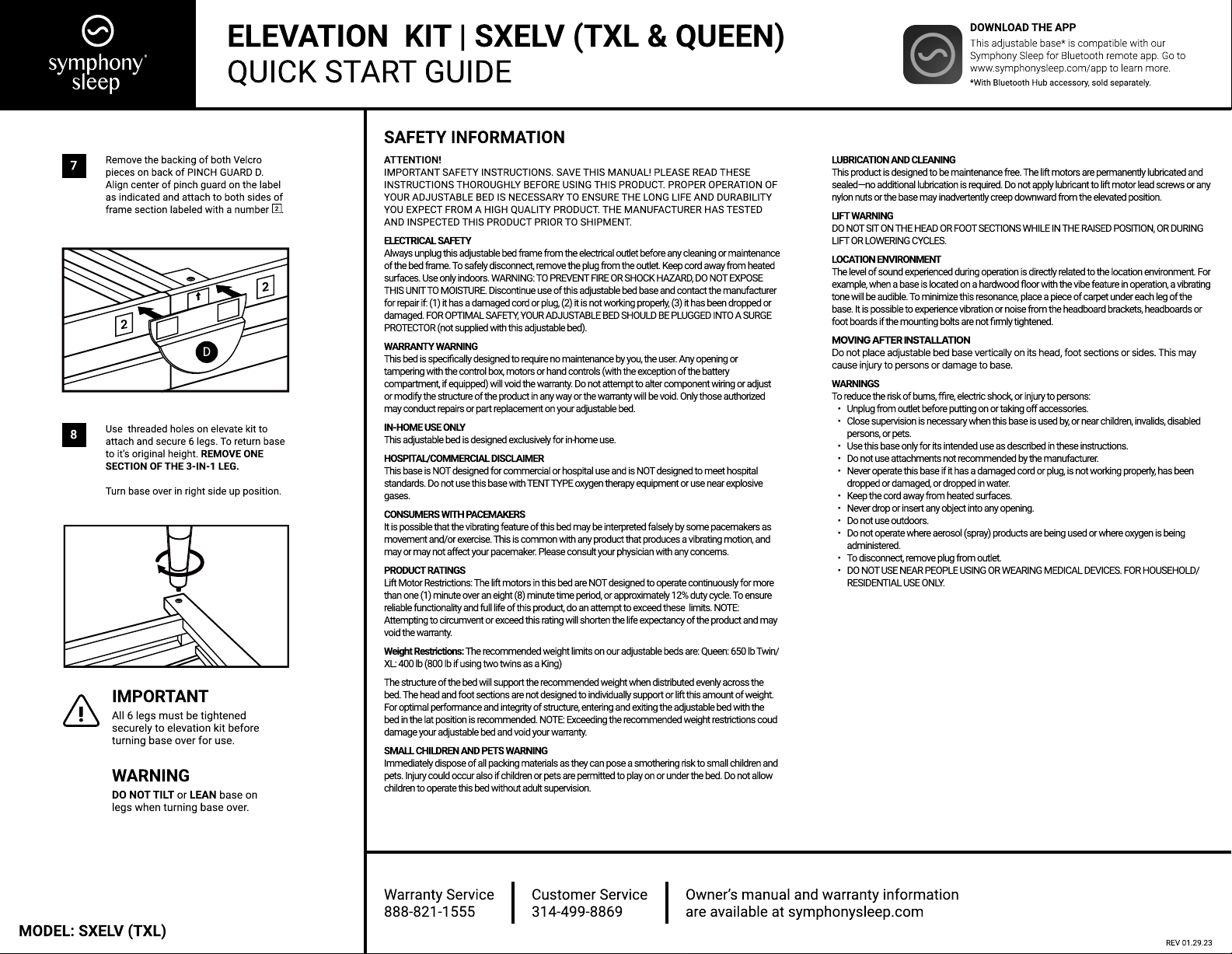

ELE V ATION K IT | S X EL V ( T X L & Q UEEN )
Q UIC K START G UIDE
DOWNLOAD T H E APP
This adjustable base* is compatible with our
Symphony Sleep for Bluetooth remote app. Go to
www.symphonysleep.com/app to learn more.
*W ith Bluetooth Hub accessory, sold separately.

SAFETY INFORMATION
ATTENTION
IMP RTANT SAFETY INSTRUCTI NS. SAVE THIS MANUAL! PLEASE READ THESE
INSTRUCTI NS TH R UGHLY BEF RE USING THIS PR DUCT. PR PER PERATI N F
Y UR ADJUSTABLE BED IS NECESSARY T ENSURE THE L NG LIFE AND DURABILITY
Y U EXPECT FR M A HIGH QUALITY PR DUCT. THE MANUFACTURER HAS TESTED
AND INSPECTED THIS PR DUCT PRI R T SHIPMENT.
ELECTRICAL SAFET
Always unplug this adjustable bed frame from the electrical outlet before any cleaning or maintenance
of the bed frame. To safely disconnect, remove the plug from the outlet. Keep cord away from heated
surfaces. Use only indoors. WARNING: T PREVENT FIRE R SH CK HAZARD, D N T EXP SE
THIS UNIT T M ISTURE. Discontinue use of this adjustable bed base and contact the manufacturer
for repair if: (1) it has a damaged cord or plug, (2) it is not working properly, (3) it has been dropped or
damaged. F R PTIMAL SAFETY, Y UR ADJUSTABLE BED SH ULD BE PLUGGED INT A SURGE
PR TECT R (not supplied with this adjustable bed).
WARRANTY WARNIN
This bed is specically designed to require no maintenance by you, the user. Any opening or
tampering with the control box, motors or hand controls (with the exception of the battery
compartment, if equipped) will void the warranty. Do not attempt to alter component wiring or adjust
or modify the structure of the product in any way or the warranty will be void. nly those authorized
may conduct repairs or part replacement on your adjustable bed.
IN-HOME USE ONL
This adjustable bed is designed exclusively for in-home use.
HOSPITAL/COMMERCIAL DISCLAIME
This base is N T designed for commercial or hospital use and is N T designed to meet hospital
standards. Do not use this base with TENT TYPE oxygen therapy equipment or use near explosive
gases.
CONSUMERS WITH PACEMA K ER 
It is possible that the vibrating feature of this bed may be interpreted falsely by some pacemakers as
movement and / or exercise. This is common with any product that produces a vibrating motion, and
may or may not affect your pacemaker. Please consult your physician with any concerns.
PRODUCT RATIN G
Lift Motor Restrictions: The lift motors in this bed are N T designed to operate continuously for more
than one (1) minute over an eight ( 8 ) minute time period, or approximately 12 % duty cycle. To ensure
reliable functionality and full life of this product, do an attempt to exceed these limits. N TE:
Attempting to circumvent or exceed this rating will shorten the life expectancy of the product and may
void the warranty.
W eight R estrictions: The recommended weight limits on our adjustable beds are: Queen: 650 lb Twin /
XL: 400 lb ( 800 lb if using two twins as a King)
The structure of the bed will support the recommended weight when distributed evenly across the
bed. The head and foot sections are not designed to individually support or lift this amount of weight.
For optimal performance and integrity of structure, entering and exiting the adjustable bed with the
bed in the lat position is recommended. N TE: Exceeding the recommended weight restrictions coud
damage your adjustable bed and void your warranty.
SMALL CHILDREN AND PETS WARNIN
Immediately dispose of all packing materials as they can pose a smothering risk to small children and
pets. Injury could occur also if children or pets are permitted to play on or under the bed. Do not allow
children to operate this bed without adult supervision.
LU B RICATION AND CLEANIN
This product is designed to be maintenance free. The lift motors are permanently lubricated and
sealed — no additional lubrication is required. Do not apply lubricant to lift motor lead screws or any
nylon nuts or the base may inadvertently creep downward from the elevated position.
LIFT WARNIN
D N T SIT N THE HEAD R F T SECTI NS WHILE IN THE RAISED P SITI N, R DURING
LIFT R L WERING CYCLES.
LOCATION EN V IRONMEN 
The level of sound experienced during operation is directly related to the location environment. For
example, when a base is located on a hardwood  oor with the vibe feature in operation, a vibrating
tone will be audible. To minimize this resonance, place a piece of carpet under each leg of the
base. It is possible to experience vibration or noise from the headboard brackets, headboards or
foot boards if the mounting bolts are not rmly tightened.
MOVING AFTER INSTALLATIO
Do not plac adjustabl b d bas v rtically on its h ad, foot s ctions or sid s. This may
caus injury to p rsons or damag to bas .
WARNIN G
To reduce the risk of burns,  re, electric shock, or injury to persons 
 Unplug from outlet before putting on or taking off accessories 
 Close supervision is necessary when this base is used by, or near children, invalids, disabled
persons, or pets 
 Use this base only for its intended use as described in these instructions 
 Do not use attachments not recommended by the manufacturer 
 Never operate this base if it has a damaged cord or plug, is not working properly, has been
dropped or damaged, or dropped in water 
 Keep the cord away from heated surfaces 
 Never drop or insert any object into any opening 
 Do not use outdoors 
 Do not operate where aerosol (spray) products are being used or where oxygen is being
administered 
 To disconnect, remove plug from outlet 
 D N T USE NEAR PE PLE USING R WEARING MEDICAL DEVICES. F R H USEH LD /
RESIDENTIAL USE NLY 
MODEL : S X EL V ( T X L )
REV 0 1.2 9 .23
7
Remove the backing of both Velcro
pieces on back of PINCH GUARD D.
Align center of pinch guard on the label
as indicated and attach to both sides of
frame section labeled with a number .
2
8
Use threaded holes on elevate kit to
attach and secure 6 legs. To return base
to it ’ s original height. REMO V E ONE
SECTION OF THE 3 -IN- 1 LE G . 
Turn base over in right side up position.
D
IMPORTANT
All 6 legs must be tightened
securely to elevation kit before
turning base over for use.
WARNIN G
DO NOT TILT or LEAN base on
legs when turning base over.
Warranty Servic 
888 - 8 21-1 555
Customer Servic 
31 4 - 4 99 - 886 9
wner ’ s manual and warranty informatio 
are available at symphonysleep.com
ELE V ATION K IT | S X EL V ( T X L & Q UEEN )
QUICK START GUIDE
DOWNLOAD THE APP
This adjustable base* is compatible with our
Symphony Sleep for Bluetooth remote app. Go to
www.symphonysleep.com/app to learn more.
* With Bluetooth Hub accessory, sold separately.
