User Guide
AT&T SB67080 Expansion Module
Expansion Module Overview . . . . . . . . . . . . . . . . 4
Monitoring Call Status . . . . . . . . . . . . . . . . . . . 5
Dialing Using Quick Dial . . . . . . . . . . . . . . . . . . 6
Dialing Other Extensions. . . . . . . . . . . . . . . . . . 7
Answering Remote Incoming Calls. . . . . . . . . . . . . 8
Expansion Module Settings . . . . . . . . . . . . . . . . 9
Using the Display Settings Menu. . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 11
Important Safety Instructions . . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . 15
For complete installation and configuration instructions,
see the SB67080 Expansion Module Installation and
Configuration Guide, available at
www.telephones.att.com/synapseguides.
Contents
4
4
Expansion Module Overview
The Synapse SB67080 Expansion Module adds to the functionality of your Synapse Deskset, enabling you
to monitor activity at other extensions and providing additional quick-dial keys. Depending on how your
Expansion Module is configured, you can monitor up to 24 extensions or access up to 24 additional
quick-dial entries.

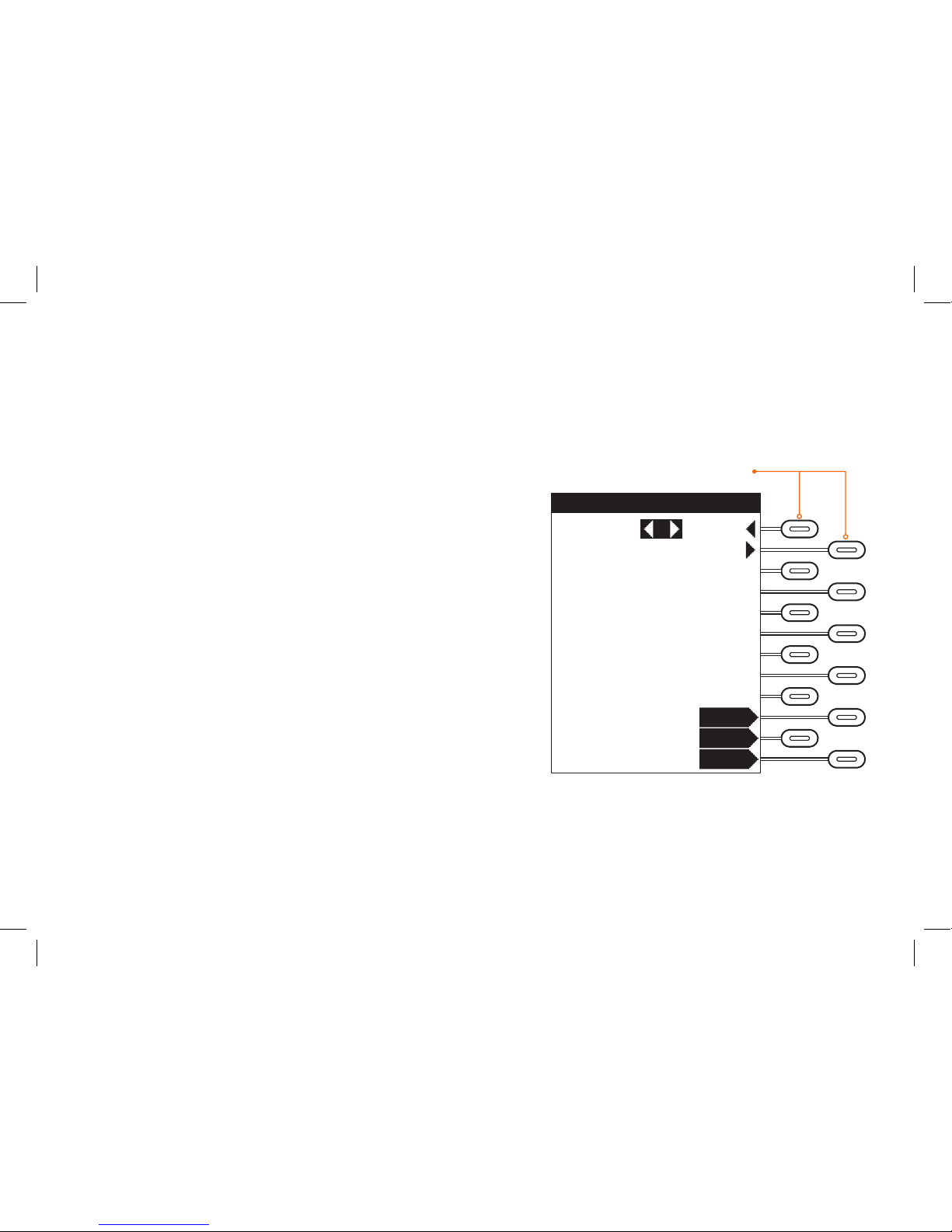

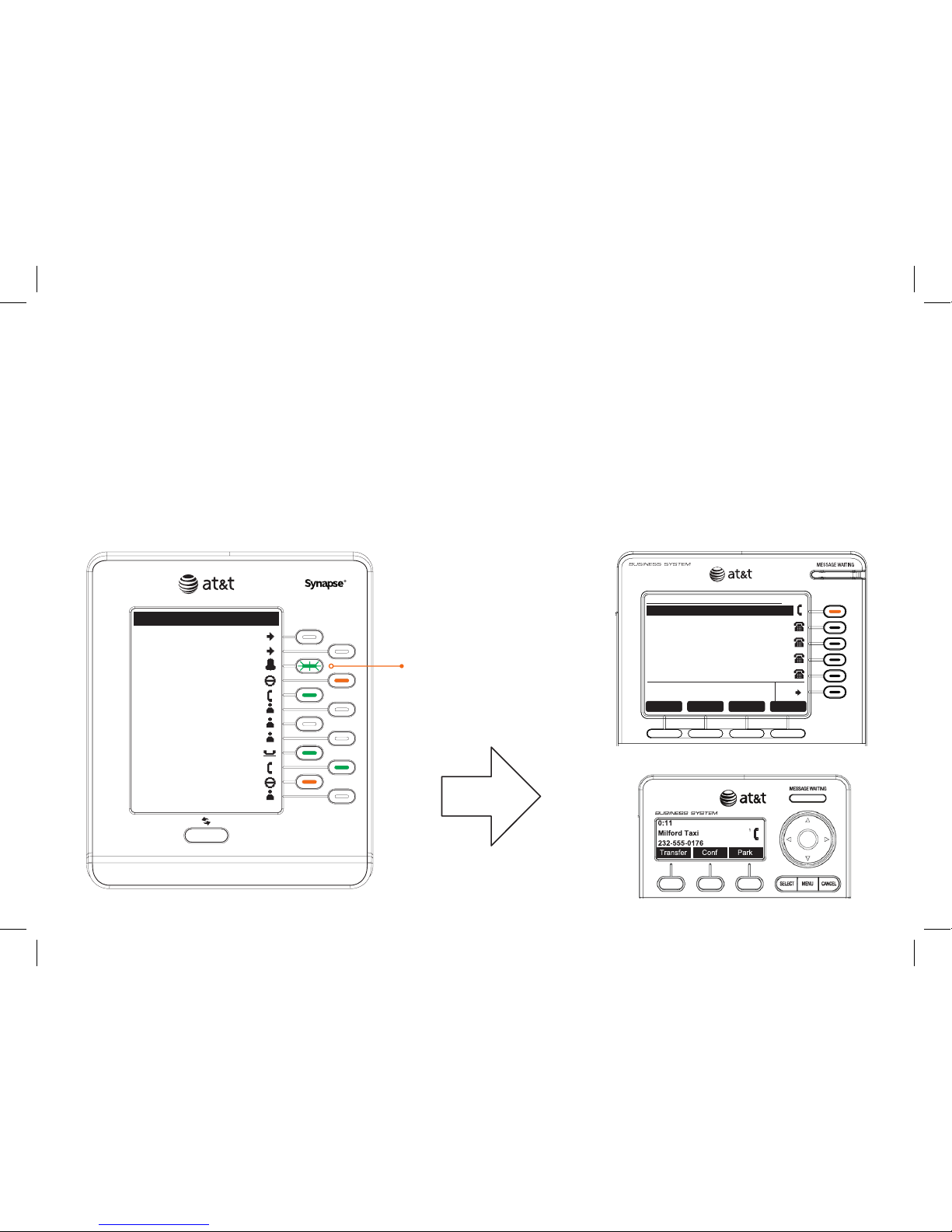

The front panel and screen of the Expansion Module are shown and described below.
Screen
Displays extension names,
call status, quick-dial entries,
and Expansion Module settings.
Module number (paired
Deskset extension number)
The Expansion Module dials
and answers calls through the
paired Deskset.
Shift Key
• Press to display the next page.
Each page shows 12 extensions
and/or quick-dial entries.
• Press and hold to access the
Settings menu.
Page Indicator
The screen shows 12
extensions and/or quick-dial
entries per page.
Feature Keys and LEDs
• Dial extensions and
external numbers.
• Answer incoming calls
to other extensions.
• Select Expansion Module
settings.
• LEDs indicate call status.
&KDUOLH-RKQVRQ
(0
0DU\:LOOLDPV
5REHUW%URZQ
/LQGD0LOOHU
$%&$FFRXQWDQWV
0LOIRUG7D[L
'DYLV&DWHUHU
5LFKDUG6HUOLQJ
'DYLG&DUWHU
$QJHOD0DUWLQ
*UDKDP%HOO
'U$SSOHWRQ
5
5
Monitoring Call Status
The Expansion Module enables you to monitor call activity at other extensions. Screen icons and Feature Key
LEDs indicate the current call status, as described below.
Icon LED Status Icon LED Status
Solid Green Dialing, on a phone
call, or paging
Solid
Orange
Deskset user has turned Do Not Disturb (DND)
on. You can still call the extension, but ringing
at the far end will be silenced.
Slow Green
Flash
On Hold Fast Orange
Flash
Incoming call while DND is on. You can answer
the call remotely (see page 8). You cannot
monitor any other call activity while the
extension has DND on.
Fast Green
Flash
Incoming Call.* You
can answer the call
remotely (see page 8).
None Idle—no activity on the phone, and DND is off.
None Indicates a quick-dial entry.
* If your Synapse system has been configured for Line Appearance mode, the Expansion Module does not
indicate a new incoming call on an external line. In Line Appearance mode, a Feature Key LED flashes green
for an incoming call when:
• the call is on the Intercom line
• the external call is forwarded to an extension through a Call Forward-No Answer setting
• the external call is transferred to an extension.
For more information about Line Appearance mode, see your Deskset User Guide, available at
www.telephones.att.com/synapseguides.
