Synology DX510 User manual

DX510 User’s Guide
DX51011022010

Table of Contents
TOC
3
5 Chapter 1: Get Started with DX510
5 Package Contents
6 Hardware Specications
6 Operating Requirements
7 Appearance
8 LED Behavior
9 Safety Instructions
11 Chapter 2: Set Up DX510
11 Tools and Parts for Hard Disk Installation

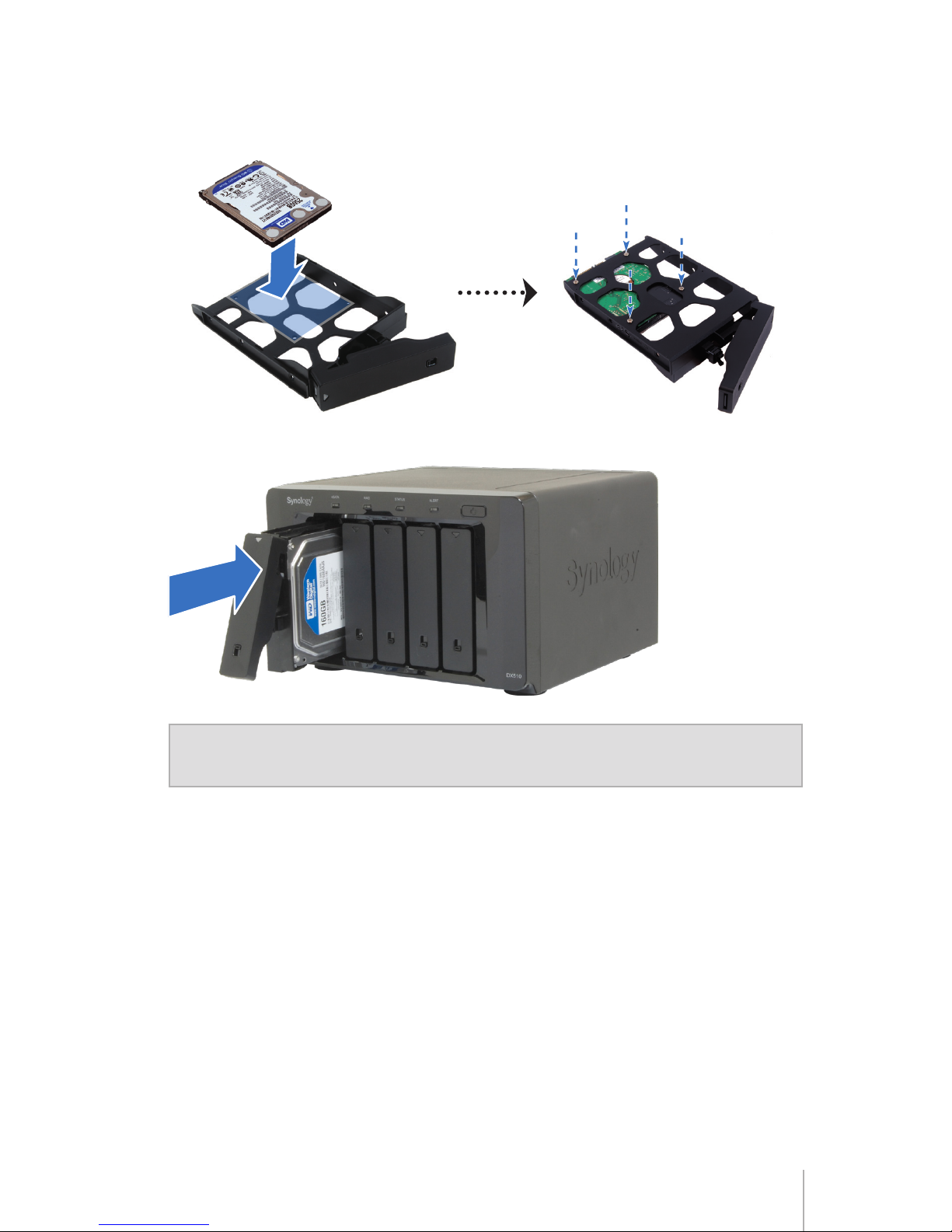

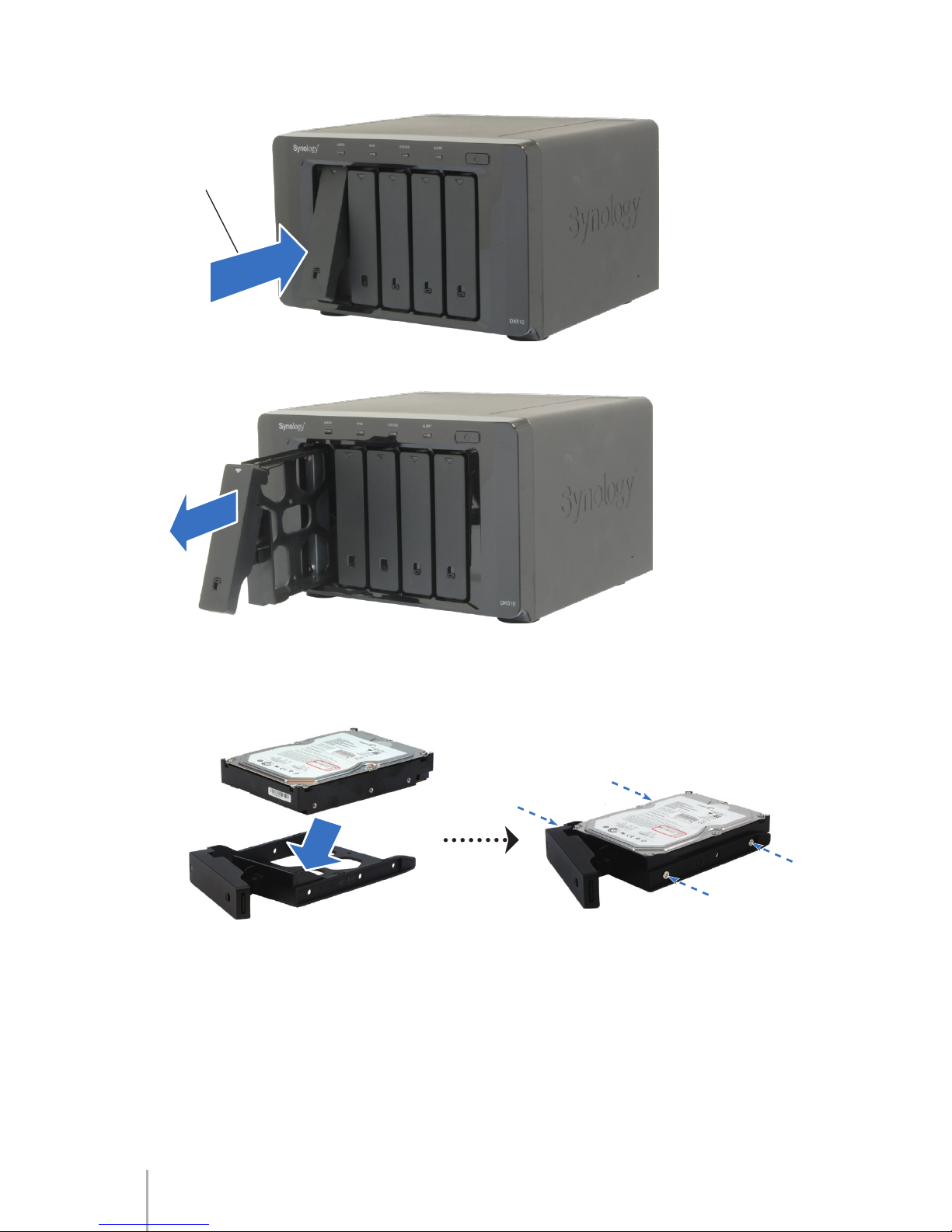

11 Install Hard Disks

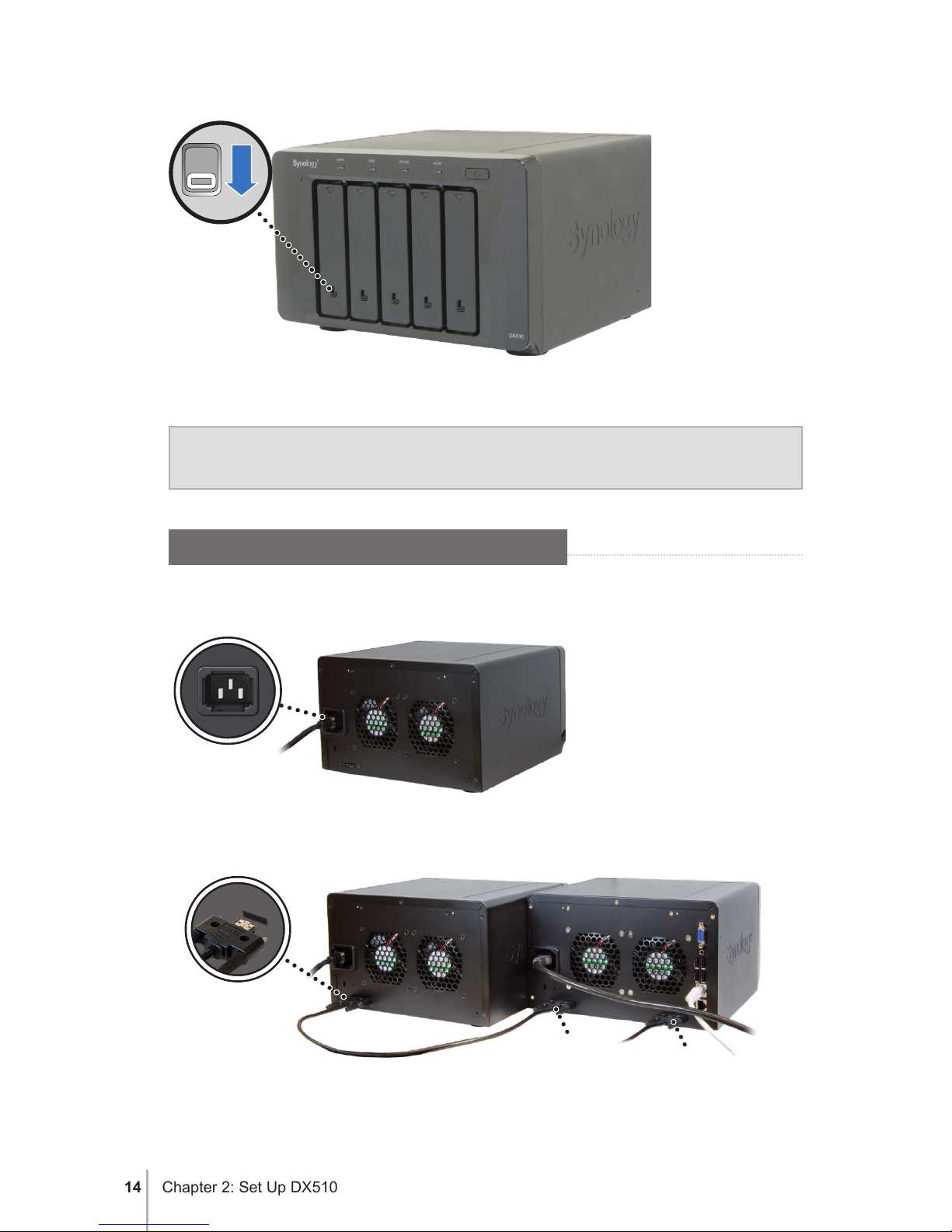

14 Connect with Synology DiskStation

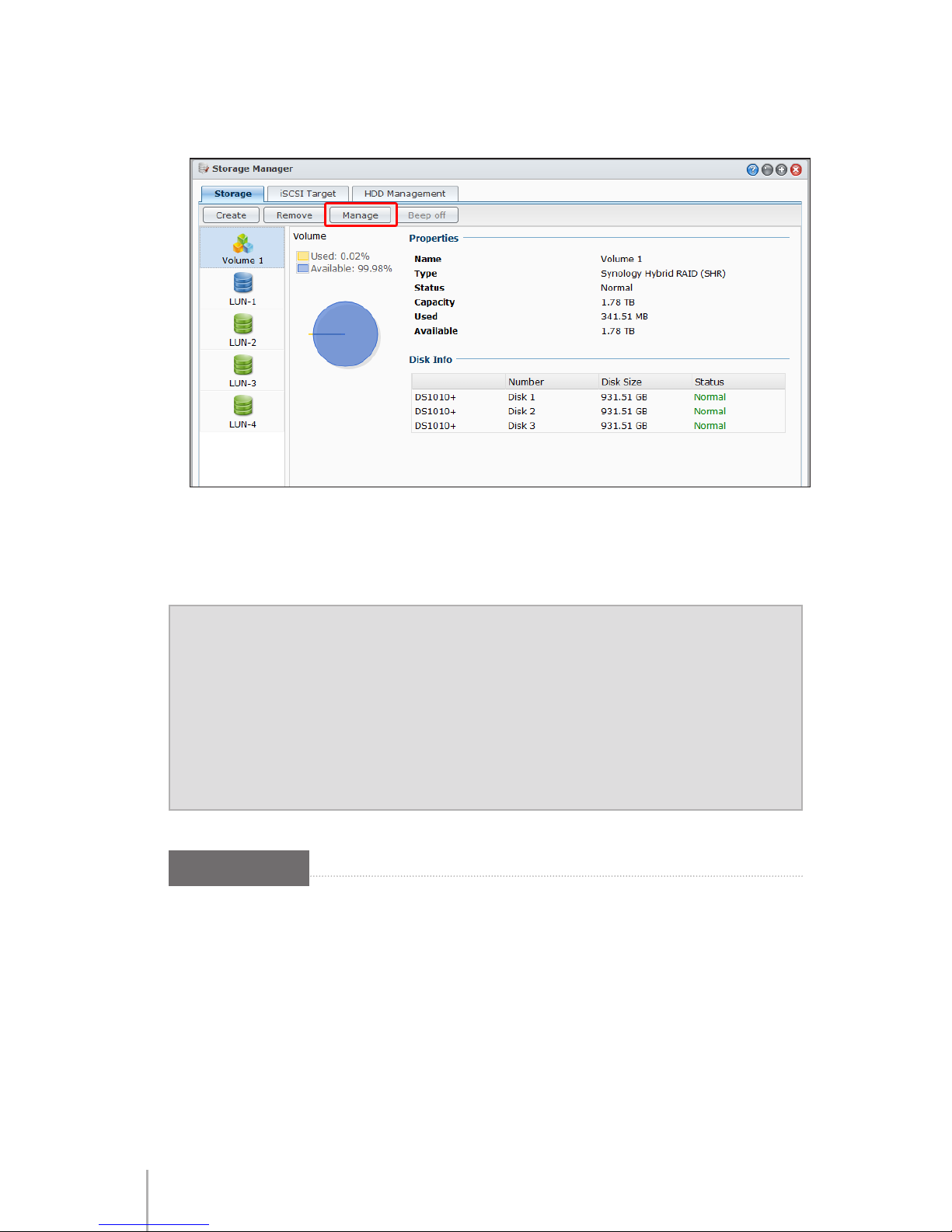

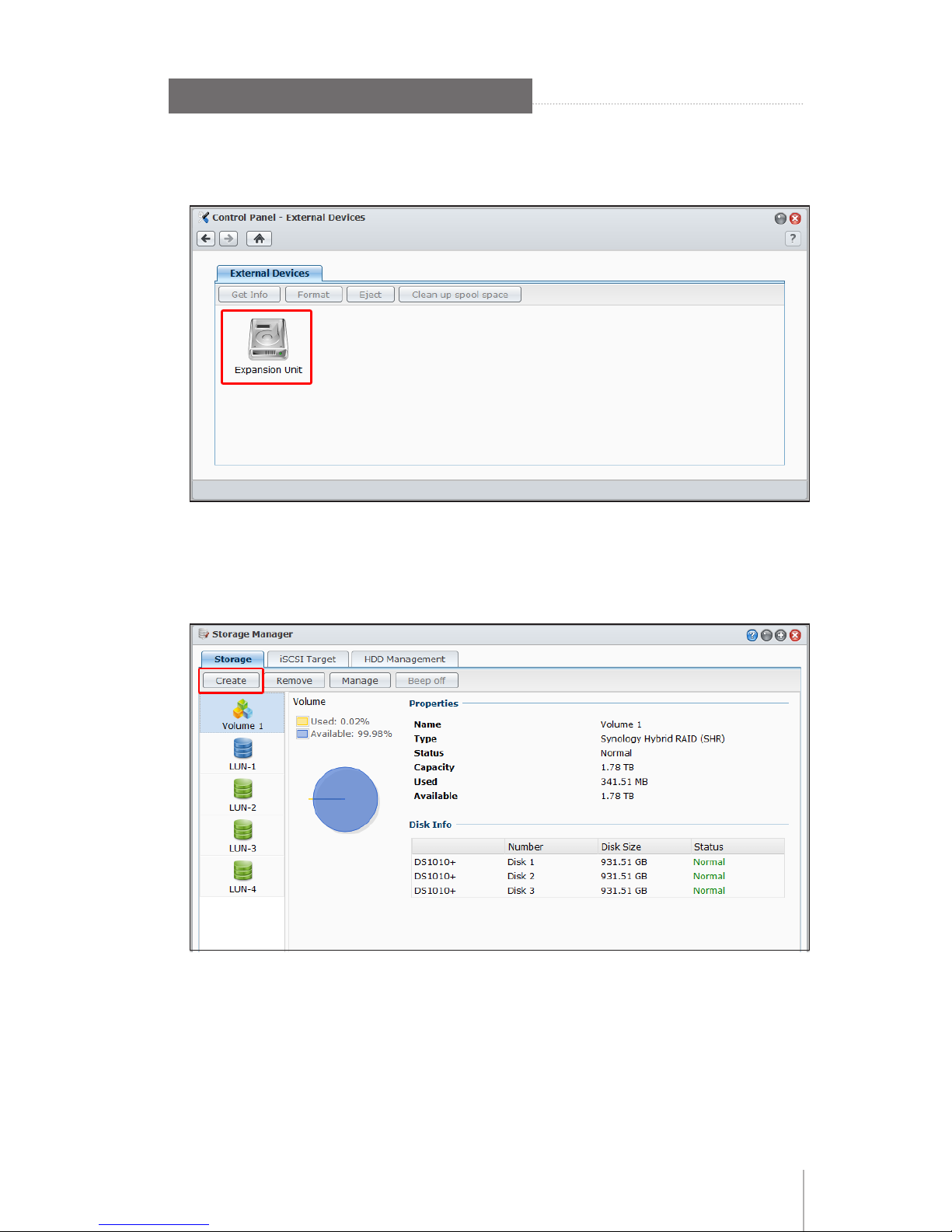

15 Work with Synology DiskStation
16 Learn More

1
5
Congratulations on your purchase of Synology DX510. This product is specially
designed for the storage expansion of Synology DiskStation DS1511+,
DS1010+, and DS710+. This user’s guide will guide you through the installation.
Package Contents
Before installation, please check the package contents to verify that you
have received the items below.
Main Unit AC power Cord
User’s Guide
Screws for 3.5”
Hard Drives x 24
Screws for 2.5”
Hard Drives x 24 eSata Cable
Get Started with DX510

6 Chapter 1: Get Started with DX510
Hardware Specications
Internal HDD 5X SATA(II)
eSATA Port # 1
Max Capacity (Internal HDD) 5X 2TB
Hot Swappable HDD Yes
Size (HxWxD) (mm) 157x248x233mm
Weight 4.10 kg
System Fan 2X (80x80mm)
Fan Speed High / Middle / Low (Hibernation)
Noise Level (Fan-only) 30dB (2500rpm)
Power Recovery Sync with server
AC Input Power Voltage 100V to 240V AC
Power Frequency 50 / 60Hz, Single Phase
HDD Temperature (Room: 27°C) 46°C ~ 47°C
HDD Temperature (Room: 40°C) 53°C ~ 55°C
Operating Temperature 5°C ~ 35°C (40°F ~ 95°F)
Storage Temperature -10°C ~ 70°C (15°F ~ 155°F)
Relative Humidity 5% to 95% RH
Maximum Operating Altitude 10,000 feet
Certication FCC Class B, CE Class B, BSMI Class B
Operating Requirements
Synology DiskStation DS1511+, DS1010+, or DS710+ with Synology
DSM2.2-1032 and onwards

Chapter 1: Get Started with DX510 7
Appearance
Front View
LED Indicators
POWER
Button
Hard Drive Tray
Hard Drive
Tray Lock
Back View
Power Port
eSATA Port RESET Button
Fan
Article Name Location Description
POWER Button Front
The POWER button is used to turn DX510 on or off.
Press and hold the button for 7 seconds to shut down
DX510.
Note: DX510 will be turned on or off automatically when
the connected Synology DiskStation powers on or off.
LED Indicators Front
The LED indicators are used to display the status of
the internal disks and the system. For complete details,
please refer to the next table: LED Behavior.
Hard Drive Tray Front The hard drive tray is designed for loading the hard
drives with DX510.

8 Chapter 1: Get Started with DX510
Article Name Location Description
Hard Drive
Tray Lock Front Each hard drive tray is equipped with one tray lock to
lock or unlock the tray to DX510.
eSATA Port Back The eSATA port is used to connect DX510 to DS1511+,
DS1010+, or DS710+.
Fan Back
The fan is built to exhaust waste heat out of DX510.
If the fan is not working, DX510 will “beep” every few
seconds.
RESET Button Back The RESET button is used to restore the settings to the
factory default.
Power Port Back The power port is where you connect the power cord to
DX510.
LED Behavior
LED Behavior Description
POWER Solid Blue Power is on
Off Power is off
eSATA Solid Green Synology DiskStation is connected
Off Synology DiskStation is disconnected
RAID
Solid Green Volume is created
Flashing Green Volume is degraded
Off Volume is crashed or not created
STATUS Solid Green System is functioning
Off System is not working
ALERT Solid Orange Fan is not working
Off Fan is functioning
Hard Disk
Status
(on tray)
Solid Green Disk is ready and idle
Flashing Green Disk is being accessed
Solid Orange Read/write or other errors are encountered
Off No internal disk is found

Chapter 1: Get Started with DX510 9
Safety Instructions
To use your Synology product safely, please follow these instructions and
warnings at all time.
Keep away from direct sunlight and away from chemicals. Make sure
the environment does not experience abrupt changes in temperature or
humidity.
Keep Synology product upright. Do not lay it down horizontally.
Do not place the Synology product close to any liquid.
Before cleaning, unplug the power cord rst. Wipe Synology product
with damp paper towels. Do not use chemical or aerosol cleaners to
clean it.
Do not place the Synology product on a cart, table, or desk, which is not
stable to avoid the product from falling over.
The power cord must plug in to the right supply voltage. Make sure that
the supplied AC voltage is correct and stable.
