Systium Technologies 545 User manual

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 545
Copyright © 2010, Systium® Technologies, LLC
PN: 90545-06
USER QUICK START GUIDE
Product Safety Warnings
WARNINGS
Ensure that the computer is disconnected from its power
source and from all telecommunications links, networks, or
modem lines whenever the chassis cover is removed. Do not
operate the computer with the cover removed.
AVERTISSEMENT
Assurez vous que le système soit débranché de son
alimentation ainsi que de toutes les liaisons de
télécomunication, des réseaux,et des lignes de modem avant
d’enlever le capot. Ne pas utiliser le système quand le capot
est enlevé.
WARNUNG
Das System darf weder an eine Stromquelle angeschlossen
sein noch eine Verbindung mit einer
Telekommunikationseinrichtung, einem Netzwerk oder einer
Modem-Leitung haben, wenn die Gehäuseabdeckung entfernt
wird. Nehmen Sie das System nicht ohne die Abdeckung in
Betrieb.
AVVERTENZA
Prima di rimuovere il coperchio del telaio, assicurarsi che il
sistema sia scollegato dall’alimentazione, da tutti i
collegamenti di comunicazione, reti o linee di modem. Non
avviare il sistema senza aver prima messo a posto il
coperchio.
ADVERTENCIAS
Asegúrese de que cada vez que se quite la cubierta del chasis,
el sistema haya sido desconectado de la red de alimentación y
de todos lo enlaces de telecomunicaciones, de red y de líneas
de módem. No ponga en funcionamiento el sistema mientras
la cubierta esté quitada

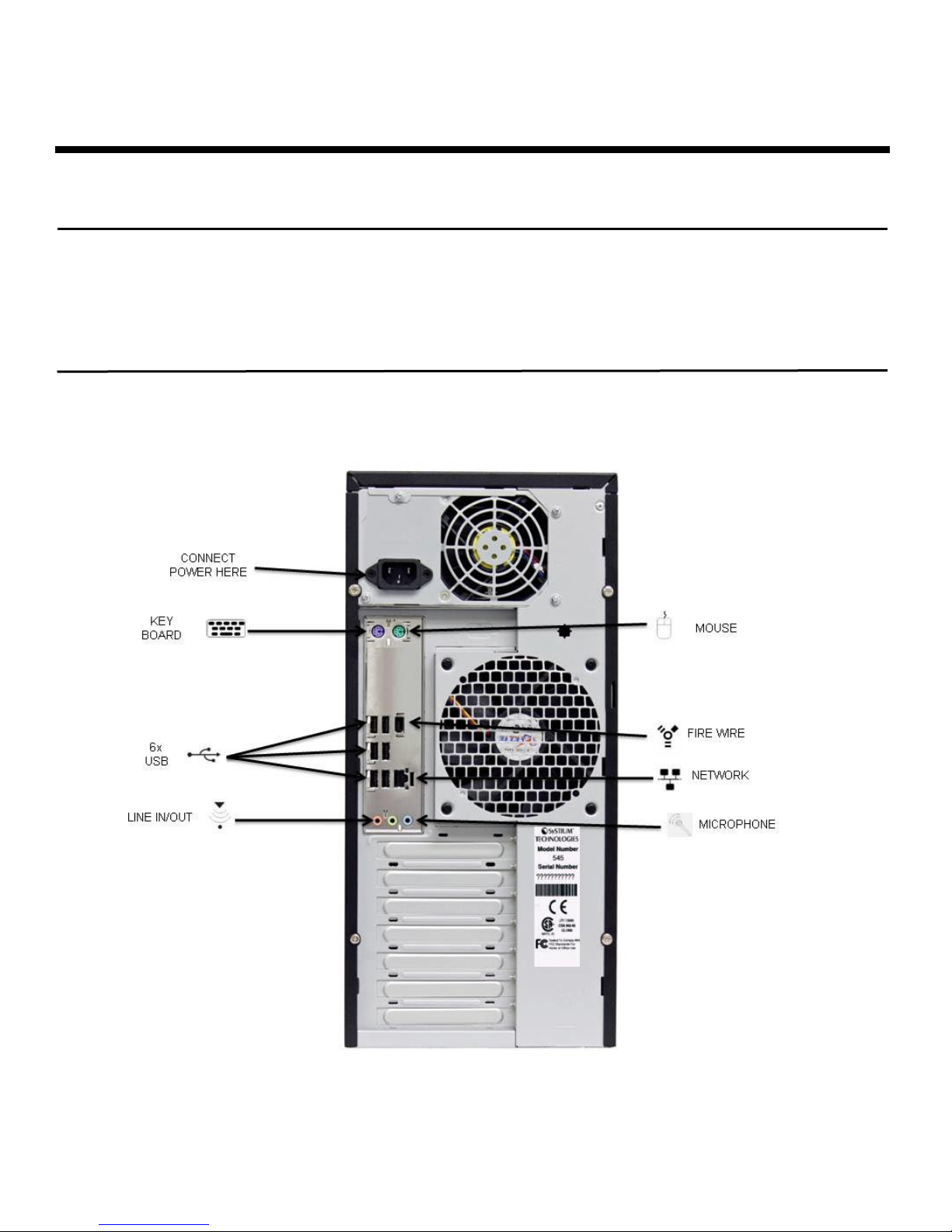

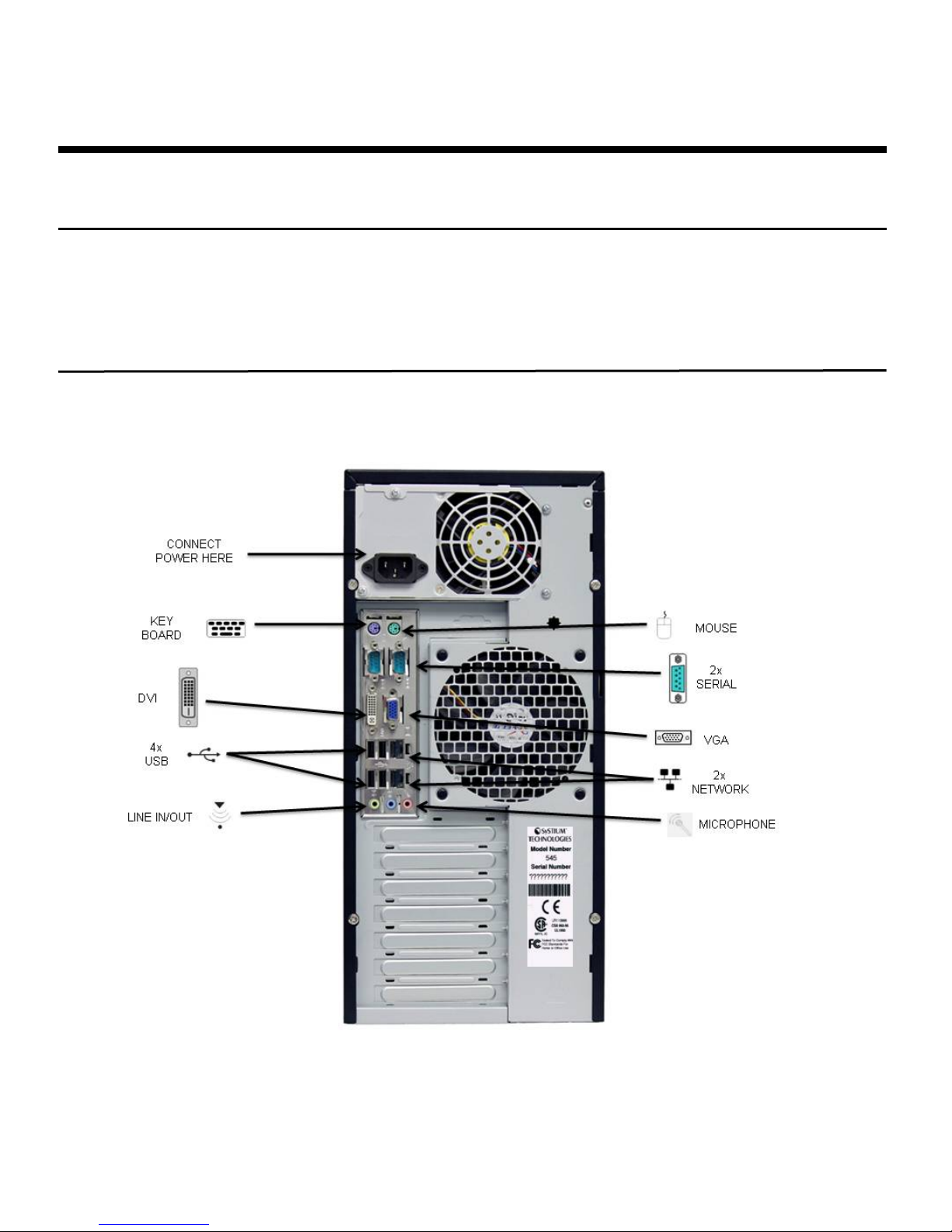

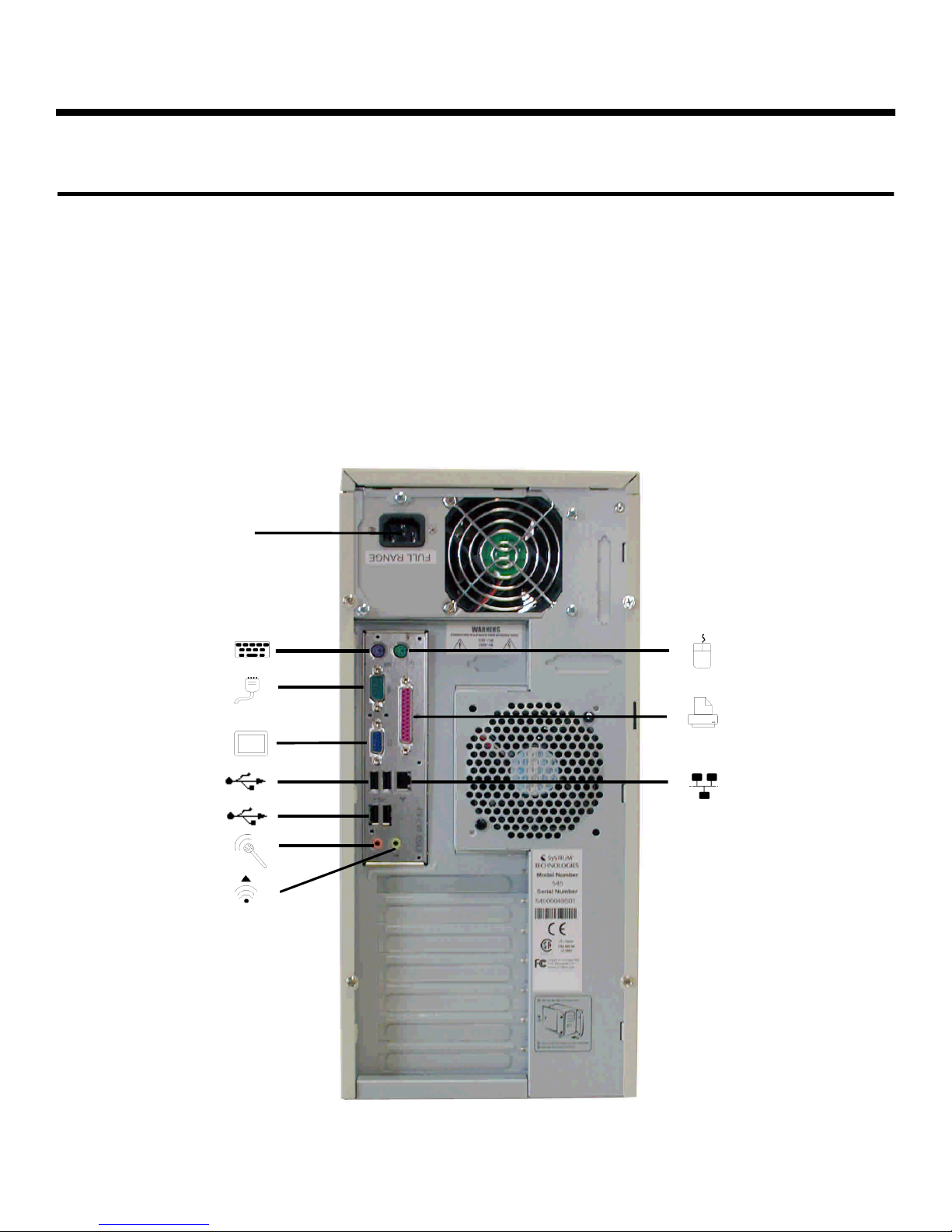

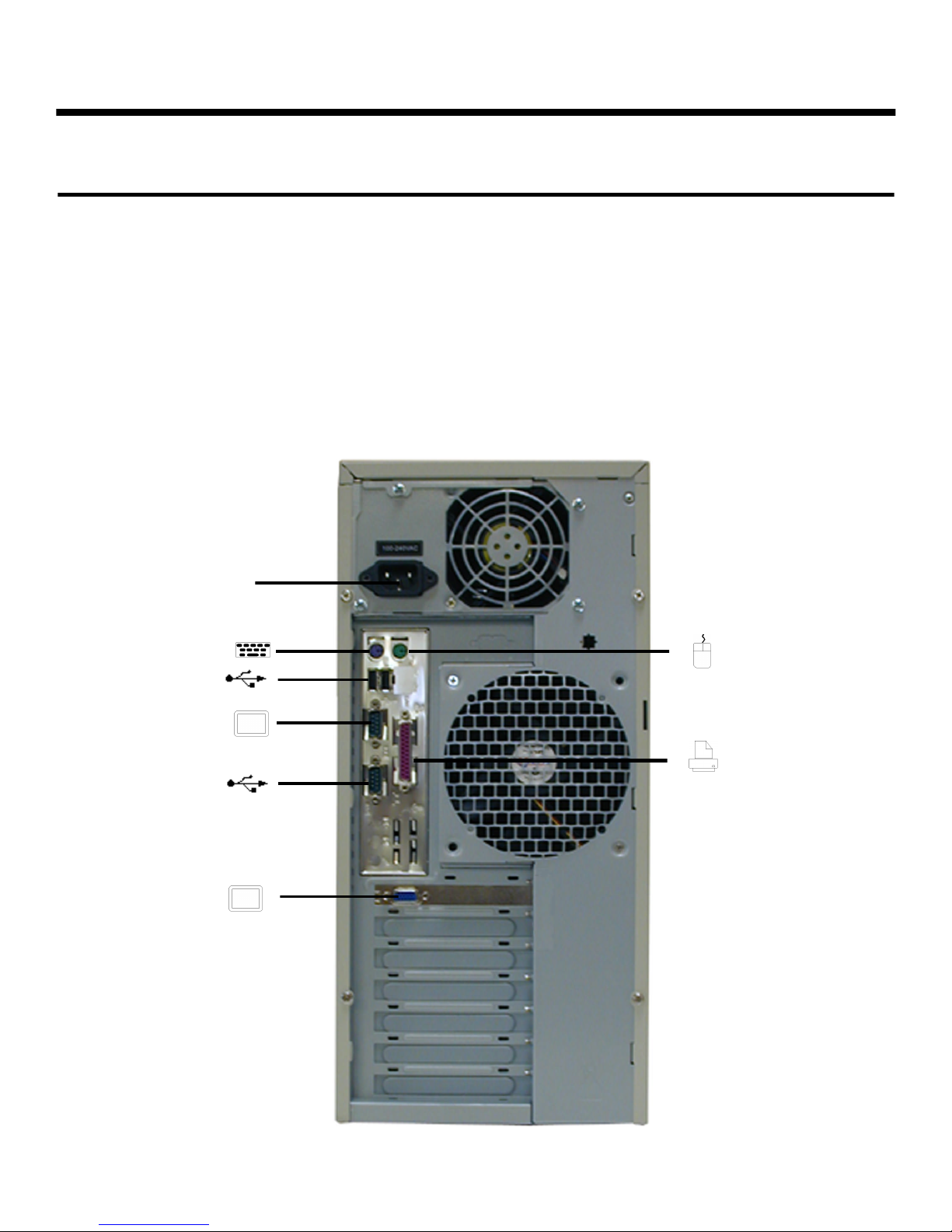

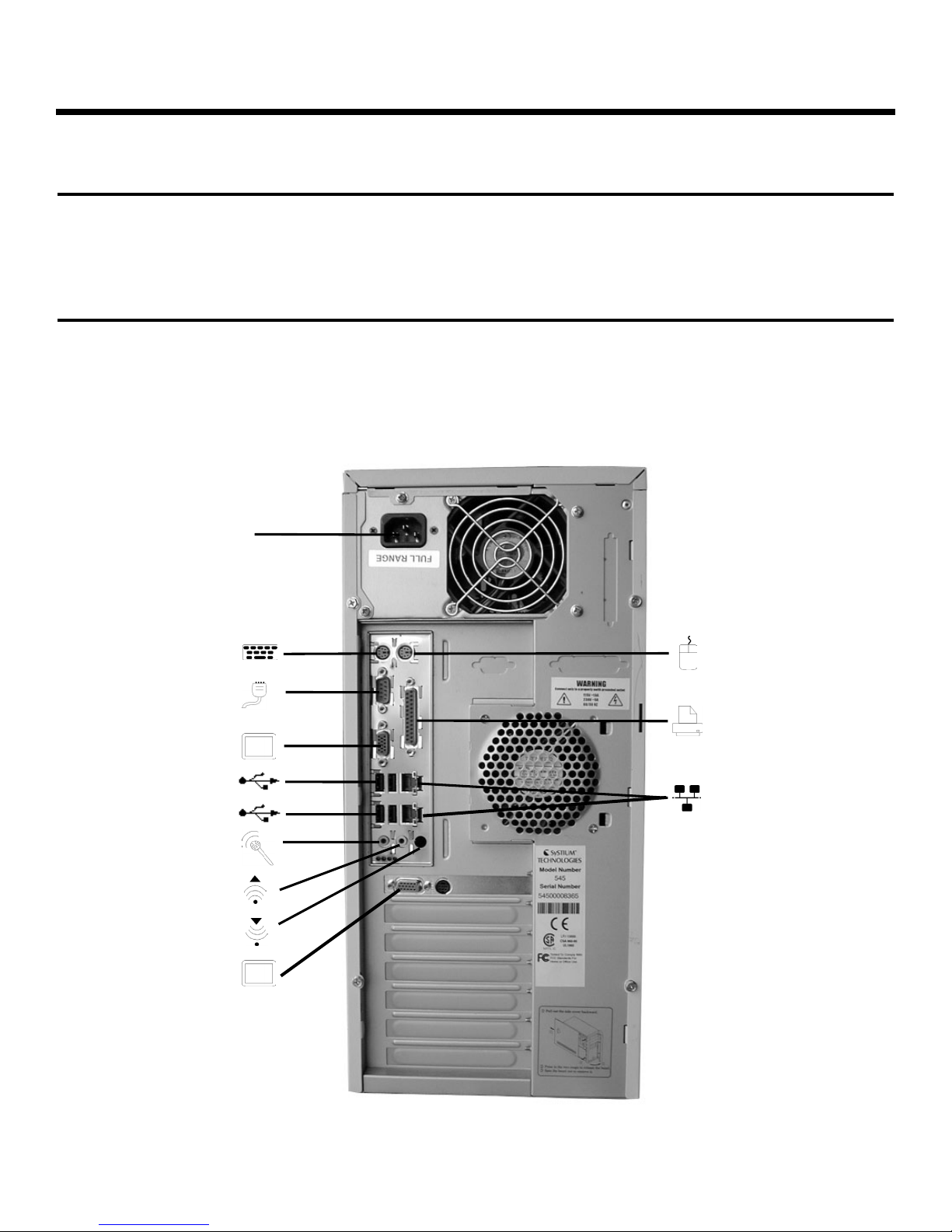

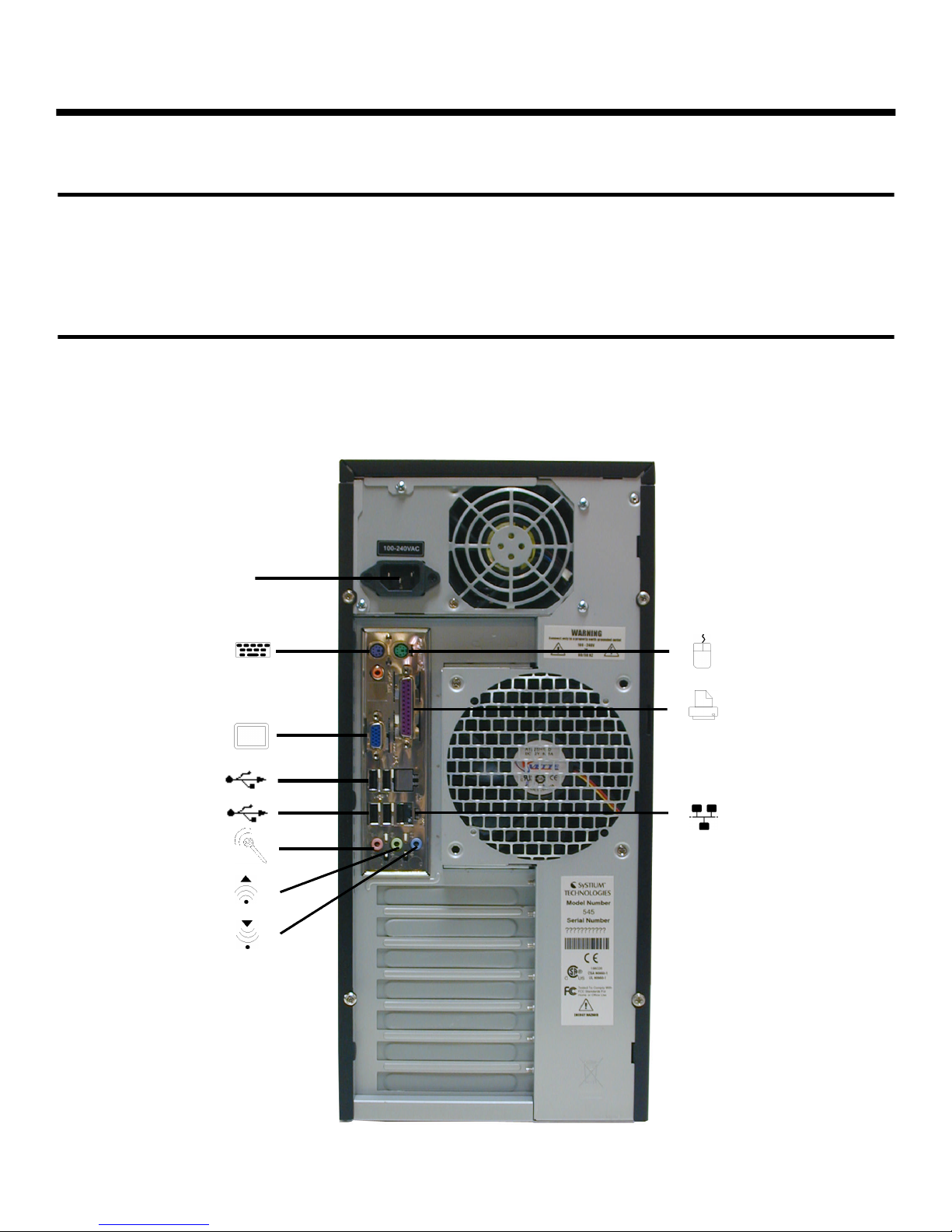

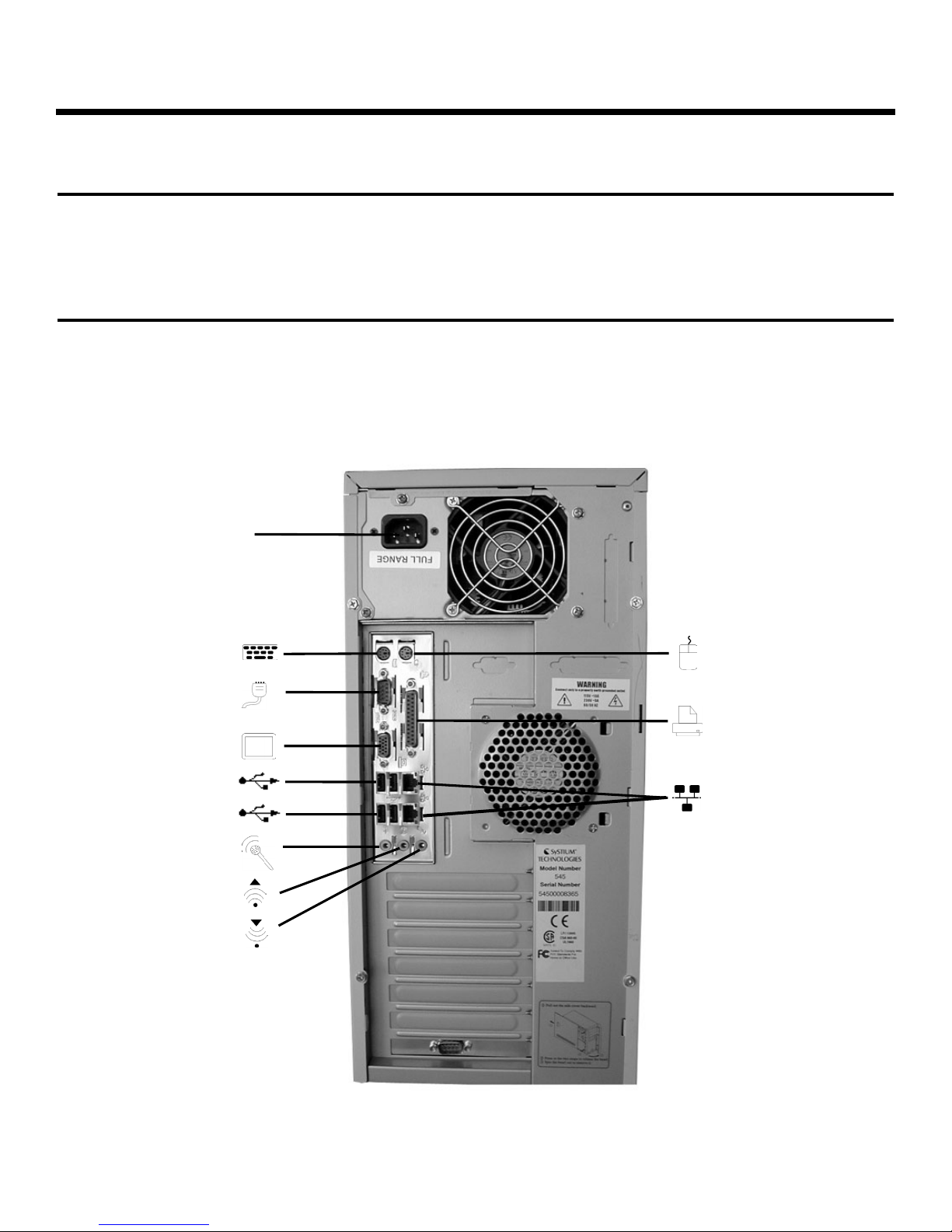

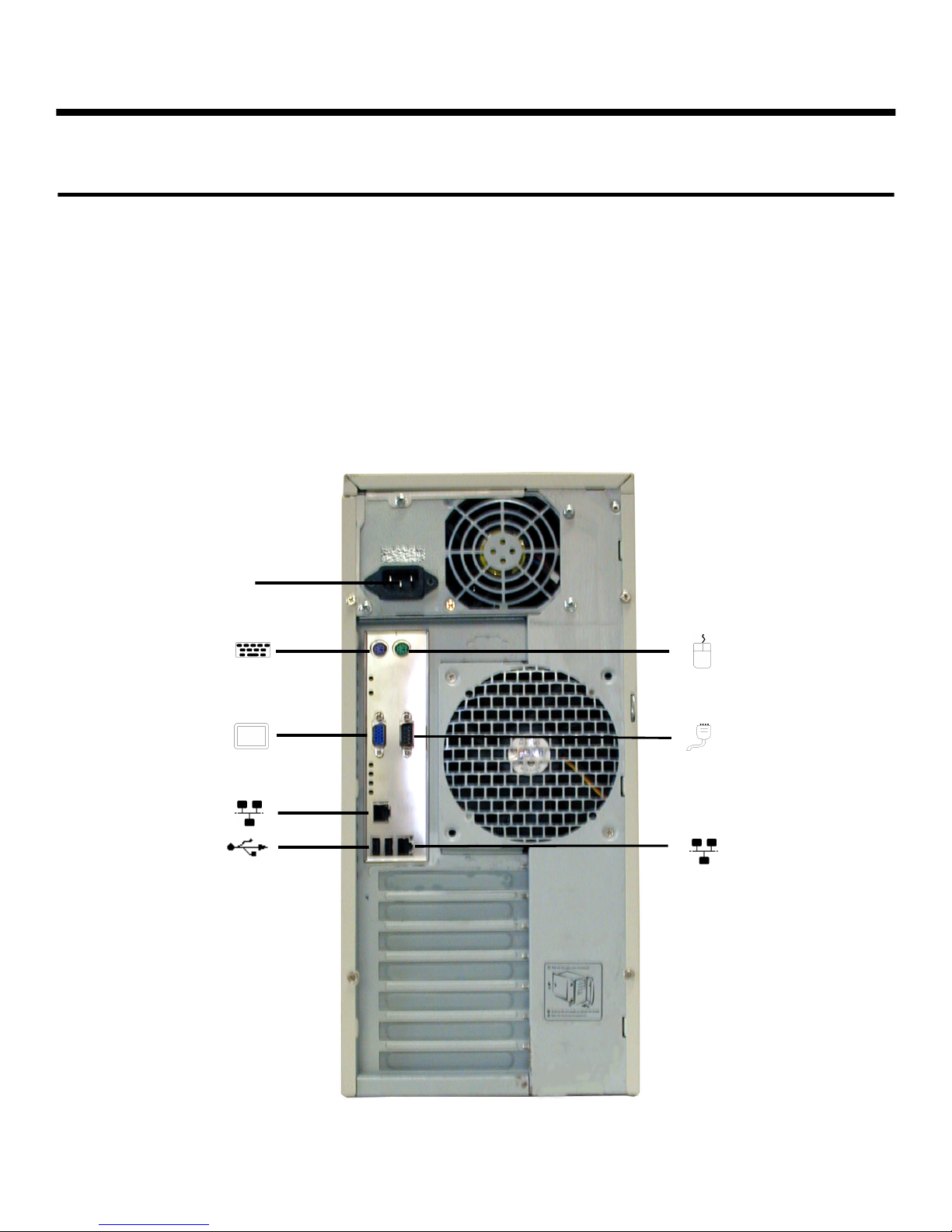

Connect the Peripheral & Power Cables
Connect the peripherals (Keyboard, Mouse, Video, etc.) required
for correct operation of the computer system. Refer to the
enclosed diagram of the specific Model 545 and motherboard
combination for the location and function of the various peripheral
connectors on the system. If you are unsure what model of
motherboard is installed, then locate the diagram that matches
the system. The function of the connectors is standard for
different motherboards.
NOTE
All of the external peripheral cables are designed such that the
connector can only be inserted in one orientation. Check the
orientation of the connector if the cable will not connect easily. Do
not use excessive force to connect a cable.
Check that the power cord supplied is designed and approved for
power connections. If you are unsure of the power cords
suitability, check with the safety approval agency in your region
of the world. If the power cable supplied is not suitable please
review the instructions in the section “Power Cord Replacement”.
Before connecting the power cord to the system make sure the
power supply is set for the correct voltage operating range for
your region. Refer to the enclosed diagram of the specific Model
545 and motherboard combination for the location and
instructions for setting the computer system’s operating voltage
setting.
Warning
The power supply voltage standby circuit is active when the
computer is turned off. Ensure that the computer is
disconnected from its power source and from all
telecommunications links, networks, or modem lines whenever
the chassis cover is removed. Do not operate the computer
with the cover removed.
Power Cord Replacement
WARNING
Do not attempt to modify or use the supplied AC power cord if
it is not the exact type required.
In some cases, the power cord supplied with this system may not be
compatible with the AC wall outlet in your region. If this is true, you must
obtain a suitable power cord that meets the following criteria:
The cord must be rated for use at the AC voltage available,
with a current rating that is at least 125% of the current rating
of the product.
The AC plug end must be terminated in a grounding-type male
plug designed for use in your region. The plug ends must be
labeled or marked to indicate they have been certified by an
agency acceptable in your region.
The connector at the product end must be an IEC 320, sheet
C13, female connector (or the equivalent EN 60 320
connector).
The cord must be less than 14.8 feet (4.5 meters) long and, for
use in Europe, be created with <HAR> (harmonized) or VDE
certified cordage.

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 545
Copyright © 2010, Systium® Technologies, LLC
PN: 90545-06
Turning on the Computer
Your computer is supplied with an advanced power supply that
allows the operating system to control the power supplies
operation. The power switch on the power supply is used to
initially enable power to the system. (See the enclosed
Installation Diagram) The front power switch is then used to turn
the system on or to put the system into a sleep mode. (See
Figure 1) The power switch can also be used to turn off the
computer before the operating system is completely loaded.
Power-on Self-Test
Each time you turn on the Computer, the power-on self-test
(POST) runs automatically and checks the system motherboard,
CPU module, memory, keyboard, and most installed peripheral
devices.
NOTE:
If the system halts before POST completes running and emits a beep
code indicating a fatal system error or displays a POST failure
message on the monitor, contact your service representative or
supplier for assistance.
The POST will also display the message “Press <F2> key if you
want to run SETUP.” You have about five seconds to press <F2>
to enter setup before the boot process will continue.
The computer will then start the operating system. Please refer to
the documentation supplied with the operating system for further
information on operating the computer.
Shutting off Your Computer
Your computer is equipped with a power supply that supports the
“Soft-OFF” feature of operating systems that support the ACPI
1.0 or APM standard 1.1 or higher. The “Soft-OFF” feature allows
the operating system to turn off the power supply automatically
once it is ready to shutdown the system. Operating systems that
support “Soft-OFF” include Microsoft Windows 2000 and
Windows XP.
Please refer to the manual supplied with you operating system to
determine how to shut down your computer.
NOTE
It is possible to turn the computer off using the front panel switch
while the computer has the operating system loaded and is
operational. Pushing in the power switch and holding the switch in
until the computer shuts off. Release the switch.
Caution
Doing this may result in a loss of data and corruption of the
computer operating system or application. The computer
should only be shut off using the front power switch when the
operating system becomes unavailable for shutting off the
computer.
WARNING
Your computer is never totally powered off unless the
computer is disconnected from the ac outlet. Never open the
computer without removing the AC power cord from the AC
inlet.
Front Panel Controls
The front panel of your computer contains the controls and
activity indicators used for daily operation. Your computer was
designed to place any peripherals that require daily access in a
convenient location at the front of the computer. Refer to Figure
1.
A. Power control switch. Press and release to turn on the
computer. Once the operating system is completely
loaded and the computer is operational the computer
should only be turned off using the operating system.
It is possible to turn the computer off using the front
panel switch while the computer has the operating
system loaded and is operational. Push in the power
switch and hold the switch in until the computer shuts
off. Release the switch.
B. Power on/off/Sleep light. Dual color LED is Green when
the computer is turned on. When you computer is ina
reduced power consumption mode, called “Sleep” this
LED will be Yellow. When the computer is in a powered
off state the LED is not on.
C. Hard disk light. Turns on when the computer reads or
writes data to a hard disk.
D. Bay for 5.25-inch device, shown with CD-ROM drive
installed.
E. Floppy diskette drive.
Figure 1

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 545
Copyright © 2010, Systium® Technologies, LLC
PN: 90545-06
BATTERY REPLACEMENT INSTRUCTIONS
HOW TO REPLACE THE BATTERY
WARNING
TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY
PARTS, DO NOT REMOVE THE COVERS WHILE THE
SYSTEM IS POWERED ON.
WARNING
Your computer is never totally powered off unless the
computer is disconnected from the ac outlet. Never open the
computer without removing the AC power cord from the AC
inlet.
TO REPLACE THE BATTERY, FOLLOW THESE STEPS:
1. Turn off all peripheral devices connected to the
computer. Turn off the computer. Disconnect the power
cord.
2. Remove the computer cover. Locate the battery on the
motherboard (see Figure B.1).
3. With a medium flat-bladed screwdriver, gently pry the
battery free from its socket.
Note the orientation of the “+” and “-” on the battery.
4. Install the new battery in the socket, orienting the “+”
and “-”correctly.
5. Replace the computer cover.
FIGURE B.1
NOTE
Do not expose batteries to excessive heat or fire. Keep all batteries
away from children. Spent batteries must be disposed of at an
approved recycling or disposal facility or in accordance with federal,
state, provincial, municipal or local environmental control
requirements. The customer agrees to abide by such disposal
requirements as may exist in their jurisdiction and to indemnify
SystiumTechnologies for any failure to do so.
WARNING
Danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the equipment manufacturer. Discard used batteries
according to manufacturer’s instructions.
ATTENTION
Il y a danger d’explosion s’il y a remplacement incorrect
de la batterie. Remplacer uniquement avec une batterie du
méme type ou d’un type recommandé par le constructeur.
Mettre au rebut les batteries usagées conformément aux
instructions du fabricant.
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af samme fabrikat og
type. Levér det brugte batteri tilbage til leverandøren.
ADVARSEL
Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes kun
batteri som anbefalt av apparatfabrikanten. Brukt batteri
returneres apparatleverandøren.
VARNING
Explosionsfara vid felaktigt batteribyte. Använd samma
batterityp eller en ekvivalent typ som rekommenderas av
apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda
paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin.
Hävitä käjtetty paristo valmistajan ohjeiden mukaisesti.

SySTIUM®TECHNOLOGIES MotherBoard ReadySM System • MODEL 545
Copyright © 2010, Systium® Technologies, LLC
PN: 90545-06
PRODUCT REGULATORY COMPLIANCE
Radio Frequency Interference Notice
(USA)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the grantee of
this device could void the user's authority to operate the equipment. The
customer is responsible for ensuring compliance of the modified product.
Only peripherals (computer input/output devices, terminals, printers, etc.)
that comply with FCC class B limits may be attached to this computer
product. Operation with noncompliant peripherals is likely to result in
interference to radio and TV reception.
All cables used to connect to peripherals must be shielded and grounded.
Operation with cables, connected to peripherals that are not shielded and
grounded may result in interference to radio and TV reception.
Manufacturer: Systium®Technologies, LLC
New Hope, MN
763-537-3600
Contact: Customer Support
NOTE
If a Class A device is installed within this system, then the system is to
be considered a Class A system. In this configuration, operation of
this equipment in a residential area is likely to cause harmful
interference.
Radio Frequency Interference
Notice (CDN)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Declaration of the Manufacturer or
Importer
This system is compliant with Low Voltage Directive 2006/95/EC
using the standard IEC60950-1 according to EN60950-
1:2006+A11:2009.
This system is compliant with EU directive 2004/108/EC using
the standards EN55022:2006+A1:2007 and EN55024:2003.
SAFETY COMPLIANCE
UL 60950-1 Second Edition; CSA60950-1-07 Second Edition
Information Technology Equipment - Safety - Part 1: General
Requirements
EN 60950-1:2006+A11:2007
The Standard for Safety of Information Technology Equipment
including Electrical Business Equipment. (European Union) “EN
60950 compliance”
IEC 60950-1:2001
The Standard for Safety of Information Technology Equipment
including Electrical Business Equipment. (International)
EMC COMPLIANCE
FCC Class B Title 47 of the Code of Federal Regulations, Parts 2
& 15, Subpart B, pertaining to unintentional radiators. (USA) “EMI
regulations” “FCC compliance”
CISPR 22: 2005/A1:2005)
Limits and methods of measurement of Radio Interference
Characteristics of Information Technology Equipment.
(International) “CISPR 22 compliance”
EN 55022: 2006+A1:2007
Limits and methods of measurement of Radio Interference
Characteristics of Information Technology Equipment. (Europe)
“EN 55022 compliance”
EN 55024-1: 2003 ITE Immunity Standard; Currently compliance
is determined via testing to EN61000-4 -2, -3, 4, 6, 8,11, 61000-
3-2, 3.
ICES-003, Issue 3 Interference-Causing Equipment Standard,
Digital Apparatus. (Canada)
Disclaimer Statement
SystiumTechnologies makes no warranty of any kind with regard
to this material, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose.
SystiumTechnologies assumes no responsibility for any errors
that may appear in this document. SystiumTechnologies makes
no commitment to update nor to keep current the information
contained in this document. No part of this document may be
copied or reproduced in any form or by any means without prior
written consent of SystiumTechnologies.
† Third-party brands and trademarks are the property of their
respective owners.

Check the Input Voltage Setting
The model 545-KP915GV configuration is supplied with a 300 or 430 watt power supply. The power supply will automatically detect and
adjust to the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON!
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
RADISYS KP915GV INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK
PARALLEL PRINTER
USB
SERIAL PORT
SPEAKERS
MICROPHONE
Copyright © 2006, Systium® Technologies, LLC
PN: 91181-01
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
USB
BUILT - IN VIDEO

Check the Input Voltage Setting
The model 545-LR915G/BY915GV configuration is supplied with a 300 or 430 watt power supply. The power supply will automatically
detect and adjust to the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON!
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
RADISYS LR915G/BY915GV INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK
PARALLEL PRINTER
USB
SERIAL PORT
SPEAKERS
MICROPHONE
Copyright © 2006, Systium® Technologies, LLC
PN: 91204-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
USB
BUILT - IN VIDEO

Check the Input Voltage Setting
The model 545-RB945G configuration is supplied with a 430 watt power supply. The power supply will automatically detect and adjust to
the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON!
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
RADISYS RB945G INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK
PARALLEL PRINTER
USB
SERIAL PORT
SPEAKERS
MICROPHONE
Copyright © 2006, Systium® Technologies, LLC
PN: 91203-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
USB
BUILT - IN VIDEO

Check the Input Voltage Setting
The model 545-ITOX GCB60-BX configuration is supplied with a 430 watt power supply. The power supply will automatically detect and
adjust to the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
ITOX GCB60-BX INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
PARALLEL PRINTER
USB
Copyright © 2007, Systium® Technologies, LLC
PN: 91259-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
USB
BUILT - IN VIDEO
AGP ADAPTER VIDEO

Check the Input Voltage Setting
The model 545-S3000AHconfiguration is supplied with a 430 watt power supply. The power supply will automatically detect and adjust to
the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
S3000AH INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK
USB
Copyright © 2007, Systium® Technologies, LLC
PN: 91248-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
NETWORK
BUILT - IN VIDEO SERIAL PORT

Check the Input Voltage Setting
The Model 545-G4V-620B/N configuration is supplied with a 300 or 430 watt power supply. The power supply will automatically detect and
adjust to the following input voltages:
115V AC or 230V AC
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
ITOX G4V-620B/N INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK (OPTIONAL)
PARALLEL PRINTER
USB
SERIAL PORT
SPEAKERS
LINE-IN
MICROPHONE
Copyright © 2003, Systium Technologies, LLC
PN: 91135-01
SySTIUMTM TECHNOLOGIES MOTHERBOARD READY SM SYSTEM • MODEL 545
USB
BUILT-IN VIDEO.

Check the Input Voltage Setting
The Model 545-SH845G/BG845G configuration is supplied with a 300 watt power supply. The power supply will automatically detect and
adjust to the following input voltages:
115V AC or 230V AC
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
SH845G/BG845G INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK (OPTIONAL)
PARALLEL PRINTER
USB
SERIAL PORT
SPEAKERS
LINE-IN
MICROPHONE
Copyright © 2003, Systium Technologies, LLC
PN: 91133-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READY SM SYSTEM • MODEL 545
USB
BUILT-IN VIDEO.
OPTIONAL ADD-IN CARD VIDEO.

Check the Input Voltage Setting
The model 545-BCM RX965Q configuration is supplied with a 430 watt power supply. The power supply will automatically detect and adjust
to the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON!
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
BCM RX965Q INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK
PARALLEL PRINTER
USB
SERIAL PORT
SPEAKERS
LINE
- IN
MICROPHONE
Copyright © 2007, Systium® Technologies, LLC
PN: 91242-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
USB
BUILT - IN VIDEO

Check the Input Voltage Setting
The model 545-BCM IN915GVE configuration is supplied with a 430 watt power supply. The power supply will automatically detect and
adjust to the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON!
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
BCM IN915GVE INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK
PARALLEL PRINTER
USB
SPEAKERS
LINE
- IN
MICROPHONE
Copyright © 2006, Systium® Technologies, LLC
PN: 91228-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
USB
BUILT - IN VIDEO

Check the Input Voltage Setting
The model 545-BCM RX945G configuration is supplied with a 430 watt power supply. The power supply will automatically detect and adjust
to the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON!
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
BCM RX945G INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK
PARALLEL PRINTER
USB
SERIAL PORT
SPEAKERS
LINE
- IN
MICROPHONE
Copyright © 2006, Systium® Technologies, LLC
PN: 91218-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
USB
BUILT - IN VIDEO

Check the Input Voltage Setting
The model 545-DG33FB configuration is supplied with a 430 watt power supply. The power supply will automatically detect and adjust to
the following input voltages: 100-240V AC
CAUTION: TO PREVENT ACCESS TO HIGH ELECTRICAL ENERGY PARTS, DO NOT REMOVE THE COVERS WHILE THE SYSTEM IS
POWERED ON
Connecting the Computer
Using the diagram on this page connect the required peripheral cables and power cord to the system.
DG33FB INSTALLATION DIAGRAM
CONNECT POWER CORD
KEYBOARD MOUSE
NETWORK
USB
SPEAKERS
LINE - IN
MICROPHONE
Copyright © 2008, Systium® Technologies, LLC
PN: 91272-00
SySTIUMTM TECHNOLOGIES MOTHERBOARD READYSM SYSTEM • MODEL 545
USB
BUILT - IN VIDEO
USB
1394 FIREWIRE

SySTIUM® TECHNOLOGIES MotherBoard ReadySM System • MODEL 545
Copyright © 2010, Systium Technologies, LLC
PN: 91553-00
Intel DG43NB INSTALLATION DIAGRAM
Check the Input Voltage Setting
CAUTION: TO PREVENT INJURY, DO NOT REMOVE ENCLOSURE COVERS WHILE THE SYSTEM IS POWERED ON.
Connecting the Computer
The Model 545 – Intel DG43NB configuration is supplied with a 430 watt power supply. The power supply is designed to be
connected to an IT power system and will automatically detect and adjust to the following input voltages: 100V AC to 240V AC.
The Intel DG43NB motherboard is installedas described in the Model 545 Assembly Guide.No extra steps are required.

SySTIUM® TECHNOLOGIES MotherBoard ReadySM System • MODEL 545
Copyright © 2010, Systium Technologies, LLC
PN: 91550-00
Intel DG43TF INSTALLATION DIAGRAM
Check the Input Voltage Setting
CAUTION: TO PREVENT INJURY, DO NOT REMOVE ENCLOSURE COVERS WHILE THE SYSTEM IS POWERED ON.
Connecting the Computer
The Model 545 – Intel DG43TF configuration is supplied with a 430 watt power supply. The power supply is designed to be
connected to an IT power system and will automatically detect and adjust to the following input voltages: 100V AC to 240V AC.
The Intel DG43TF motherboard is installed as described in the Model 545 Assembly Guide. No extra steps are required.

SySTIUM® TECHNOLOGIES MotherBoard ReadySM System • MODEL 545
Copyright © 2010, S y s t i u m Technologies, LLC
PN: 91552-00
Intel DH55HC INSTALLATION DIAGRAM
Check the Input Voltage Setting
CAUTION: TO PREVENT INJURY, DO NOT REMOVE ENCLOSURE COVERS WHILE THE SYSTEM IS POWERED ON.
Connecting the Computer
The Model 545 - Intel DH55HC configuration is supplied with a 430 watt power supply. The power supply is designed to be
connected to an IT power system and will automatically detect and adjust to the following input voltages: 100V AC to 240V AC.
The Intel DH55HC motherboard is installedas described in the Model 545 Assembly Guide.No extra steps are required.

SySTIUM® TECHNOLOGIES MotherBoard ReadySM System • MODEL 545
ITOXEL‐630INSTALLATIONDIAGRAM

ChecktheInputVoltageSetting
CAUTION: TO PREVENT INJURY, DO NOT REMOVE ENCLOSURE COVERS WHILE THE SYSTEM IS POWERED ON.
ConnectingtheComputer


The Model 545 – ITOX EL-630 configuration is supplied with a 430 watt power supply. The power supply is designed to be
connected to an IT power system and will automatically detect and adjust to the following input voltages: 100V AC to 240V AC.
The ITOX EL-630 motherboard is installed as described in the Model 545 Assembly Guide. No extra steps are required.
Copyright©2010,SystiumTechnologies,LLC
PN:91554‐00

