Tab FOUR.3 User manual

FOUR.3
User Manual

@Tab User Manual
___________________________________________________________________________________________________________________________
2
Contents
1．Using This Manual ……..……………………………………………….……….. 4
2．Safety Instructions ……………………………………………………………….. 5
3．Boxed Contents …………………………………………………………………….. 7
4．Hardware Specification …………………………………………….…….….… 7
5．Product Overview…………………………………………………………….….. 8
6. Connectivity …….………………………………………………………………….. 9
6.1 Connecting to a PC ……………………………….……….…………….... 9
6.2 Connecting an external USB device ……………...…….……….... 9
6.3 Connecting a micro SD Card ………………………….……………..… 9
7．Getting Started ………………………………………………….………………… 10
7.1 Charging the battery …………………………….……….…………….... 10
7.2 Startup ………………………………………………………….…….……….... 11

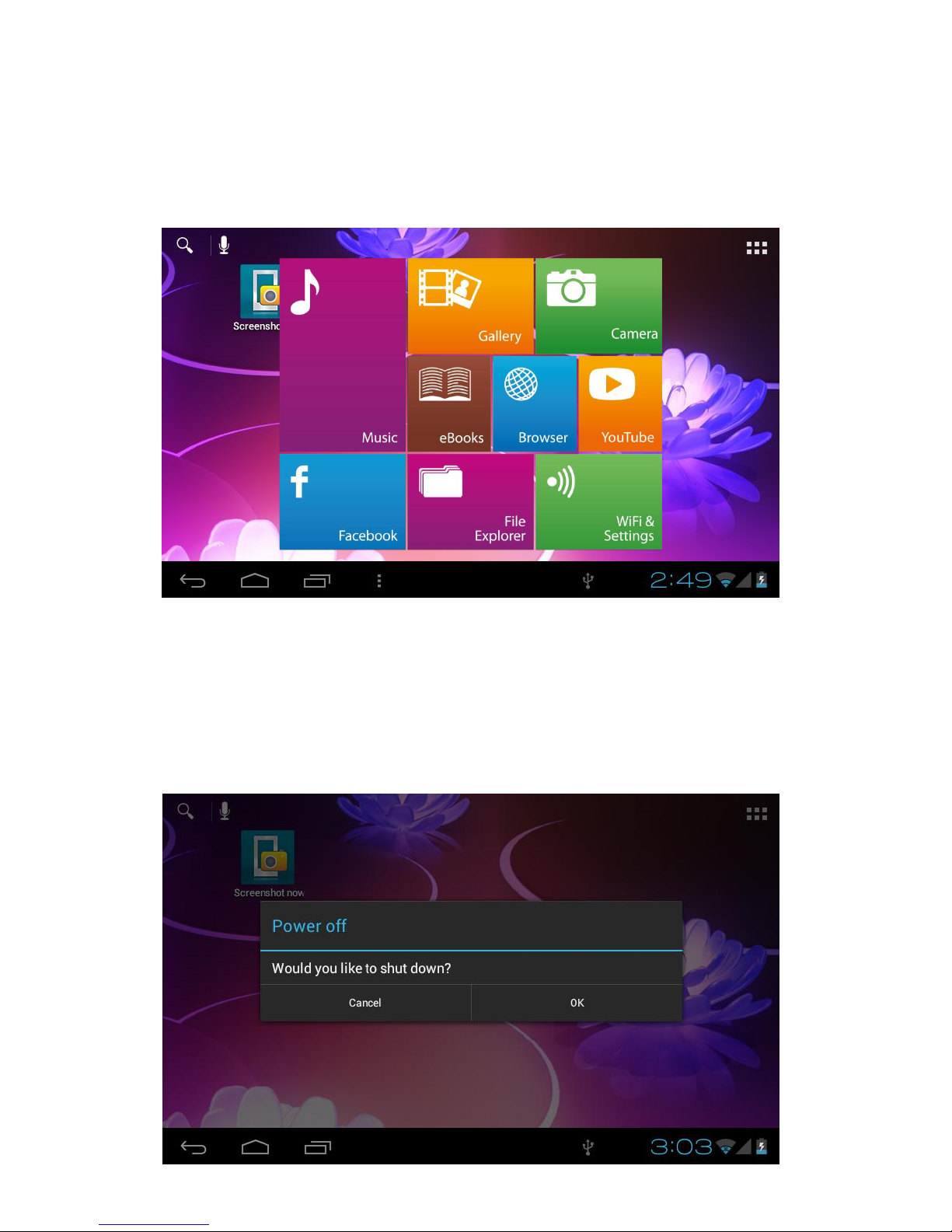

7.3 Shutdown …………………………………………………….………………… 11
7.4 Sleep Mode …………………………………………….……………………… 12
7.5 Configuring the Wallpaper ………………………………….…….……. 12
7.6 Desktop ……………………….………………………………….……………… 13
7.7 Applications ………………………………………………………….………… 14
7.8 Using the Touch Screen ……………………………………….……….…14
7.9 Using Google Search ………………………………………………………. 15
8．System Settings ………………………………………………………..………….. 17
8.1 Wireless & Networks ………………………………………….……….…. 17
8.2 Sound …………………………………………………………………….…….... 20
8.3 Display ………………………………………………………..……………….... 21
8.4 Storage …………………………………………………………….………….... 22
8.5 Battery …………………………………………………………..…………….... 23
8.6 Apps ………………………………………………………………………………. 23
8.7 Accounts & Sync …………………………………………………….…….… 24
8.8 Location Services ……………………………………………….…………… 25
8.9 Security ……………………………………………….…………………..…….. 26

@Tab User Manual
___________________________________________________________________________________________________________________________
3
8.10 Language & Input ……………………………….…………………………… 28
8.11 Backup & Reset ………………………………….…………………………… 28
8.12 Date & Time …………………………………………….….………………….. 30
8.13 Accessibility ………………………………………………………..…………… 31
8.14 Developer Options …………………………………………………….….… 32
8.15 About Tablet …………………………………………….…………………….. 33
9. Common Applications …………………………………………………..……… 33
9.1 Browser Internet Access …………………………………….…….…….. 33
9.2 Calculator ……………………………………………………….…………….… 34
9.3 Calendar ………………………………………………………….………..……. 34
9.4 Clock ………………………………………………………………..……..………. 35
9.5 Downloads ……………………………………………………….…………….. 35
9.6 Email ……………………………………………………………….……..………. 36
9.7 Gmail / Google Play Store ………………………………….……………. 38
9.8 1Mobile Market …………………………………………….……………….. 41
9.9 File Manager ………………………………………………….……………….. 42
9.10 Music …………………………………………………………….………..……… 43
9.11 Sound Recorder …………………………………………….………………… 43
9.12 Super-HD Video Player ………………………………….………………… 44
9.13 Camera ………………………………………………………….………..……… 45
9.14 Widgets Page ………………………………………………….………………. 46
10. Troubleshooting ……………………………………………………………..….… 47
11. Support………………………………………………………………..…..…………. 49
12. Copyright ………………………………………………………………..….……….. 50
13. Warranty Information ………………………………………………..………… 50
14. Licencing ..………………………………………………………………..……..…… 52
15. Correct disposal of this product ….…………………………..……..…… 53
16. Correct disposal of batteries ….………………………………..……..…… 53
17. Disclaimer ..……………………………………………………………...……..…… 54

@Tab User Manual
___________________________________________________________________________________________________________________________
4
1. Using This Manual
Congratulations on your purchase of this @Tab Tablet. This powerful and versatile
tablet brings the best of the web and mobile computing to your fingertips in a
lightweight, highly versatile platform that fits an active lifestyle. Built around the
Google Android 4.0 operating system, the @Tab gives you access to thousands of
useful and entertaining applications to enhance your mobile web experience.
With integrated wireless access and a highly responsive touchscreen, you can read
books and newspapers on the go; stay up-to-date on the latest news, sports, and
weather; manage your multimedia and business files; browse the web, and lots more.
Note: The @Tab doesn’t have built in 3G and can only access the internet when
connected to a wireless (Wi-Fi) network.
Read Me First
Please keep this manual for future reference.
Please read this manual and all safety instructions carefully before using your
@Tab to ensure safe and proper use.
The descriptions in this manual are based on the default settings of your device.
Images and screenshots used in this user manual may differ in appearance from
the actual product.
Formatting and delivery of this user manual is based on the Google Android 4.0
operating system and may vary depending on the device.
Content in this user manual may differ from the product, and is subject to
change without prior notice.
Available features and additional services may vary by device, software, or
service provider.
Applications and their functions may vary by country, region, or hardware
specification. @Tab are not liable for performance issues caused by third-party
applications.
@Tab are not liable for performance issues or incompatibilities caused by user
editing of system settings.
Software, wallpapers, images, sound sources, and other contents provided in
this device are licenced for limited use between @Tab and their respective
owners. Extracting and using these materials for commercial or other purposes
is an infringement of copyright laws. @Tab cannot be held liable for such
copyright infringement by the user.

@Tab User Manual
___________________________________________________________________________________________________________________________
5
Trademarks
@Tab and the @Tab logo are registered trademarks.
The Android logo, Google Search™, Google Maps™, Google Mail™, YouTube™, Android
Market™, and GoogleTalk™ are trademarks of Google, Inc.
Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide.
2. Safety Instructions
This user manual contains important safety instructions and information for proper
use of the device. Please follow the instructions in this manual carefully.
This is a high-density electronic product; please do not dismantle it by yourself.
Avoid shocks and do not let the device fall, as otherwise it may cause damage to
the device.
Do not use damaged power cords or plugs, or loose electrical sockets.
Do not touch the power cord with wet hands, or disconnect the charger by
pulling the cord.
Do not bend or damage the power cord.
Avoid using this product in the following environments: high and low
temperatures, humid environments, dusty environments, areas with strong
magnetic fields and prevent long-term exposure to the sun. In particular please
avoid leaving the device in the car during summer if the doors are closed.
To clean the product, gently wipe the product using a moist cotton cloth; the use
of other chemical cleaning is prohibited unless they are specifically designed for
this purpose. This product should be kept away from water droplets splashes, so
cups filled with liquids should not be placed near the product. Do not use
alcohol, thinners or petrol to clean the display.
If using the headset for a long time, high volume may cause permanent damage
to hearing.
Do not use headphones when going across a road, driving a motorcycle or
bicycle, in order to avoid traffic accidents.
Please use only the supplied battery, charger and accessories, the use of any
other type of product would be a breach of warranty regulations, and may be
dangerous.
Do not short-circuit the charger or the battery.
Do not drop or cause an impact to the charger or the battery.
Please deal with waste machinery and accessories according to local

@Tab User Manual
___________________________________________________________________________________________________________________________
6
environmental regulations.
If you have any questions about the use of this product, please contact your
local dealer or the customer service center of @Tab.
The Standby Time of the batteries may vary due to different environmental
influences.
Any loss of data caused by product damage, repair or through any other issues
relating to the device are not covered under warranty. Please ensure you make
timely backups of all your data.
Do not handle a damaged or leaking Lithium Ion (Li-Ion) battery. For safe
disposal of your Li-Ion batteries, contact your nearest authorised recycling
centre.
Handle and dispose of batteries and chargers with care. Never dispose of
batteries or devices in a fire. Follow all local regulations when disposing of used
batteries or devices.
Never place batteries or devices on or in heating devices, such as microwave
ovens, cookers, or radiators. Batteries may explode when overheated.
Never crush or puncture the battery. Avoid exposing the battery to high
external pressure, which can lead to an internal short circuit and overheating.
Touchscreen Precautions
For optimal use of the touch screen, remove the screen protection film before using
your device.
To avoid scratching the touch screen, do not use sharp tools.
Do not allow the touch screen to come into contact with other electrical devices.
Electrostatic discharges can cause the touch screen to malfunction.
Do not allow the touch screen to come into contact with water. The touch screen may
malfunction in humid conditions or when exposed to water.
Your touch screen has a layer that detects small electrical charges emitted by the
human body. For best performance, tap the touch screen with your fingertip. The
touch screen will not react to touches of sharp tools, such as a stylus or pen which
could damage and mark the screen.

@Tab User Manual
___________________________________________________________________________________________________________________________
7
3. Boxed Contents
1. @Tab Tablet
2. Quick Start Guide
3. USB Cable (for connecting to a PC and charging)
4. USB Adapter Cable (for connecting external USB devices)
4. Hardware Specification
Processor
High performance 1.0GHz Cortex A8 Processor
Supports hardware OpenGL 2.0 3D image acceleration
Memory
512MB DDR3 high-speed memory
Storage
4GB built-in with support for external micro SD card up to 32GB
Wireless
IEEE802.11b/g/n Wireless internet
USB
USB2.0 OTG high speed interface
Audio
3.5mm earphone interface, Built-in microphone
Screen
Size
4.3 inch capacitive multi touch TFT screen
Resolution
WVGA (480 x 272) with 16,000,000 colors
Operation
Capacitive multi touch screen
System
Android 4.0 “Ice Cream Sandwich”
Others
Size
(Length × Width × Thickness) 122 × 79 × 12mm
Weight
139g
Battery
Built-in lithium polymer battery 1400mAh

@Tab User Manual
___________________________________________________________________________________________________________________________
8
5. Product Overview
1.
Headphone Socket
2.
Micro SD Slot
3.
Microphone
4.
Micro USB Socket (Power-in)
5.
Power / Sleep Button
6.
Return Button
7.
Volume + / - Button
8.
Front Camera

@Tab User Manual
___________________________________________________________________________________________________________________________
9
6. Connectivity
6.1 Connecting to a PC
You can connect the @Tab directly to a PC or Laptop using the supplied USB cable.
Once connected to a PC, the @Tab will appear as a mass storage device allowing you
to access it in the same way you would a removable hard drive, with access via
explorer or my computer.
Using the USB cable, connect the mini USB connector to your @Tab.
1. Connect the USB connector to a PC or Laptop.
2. Open folders to view files.
3. Copy files from the PC or Laptop to your @Tab.
To disconnect the @Tab from a PC, click the USB device icon on the Windows task bar
and click the option to safely remove the mass storage device. Then remove the USB
cable from the PC. Failure to follow these instructions may result in loss of data on
your @Tab or damage to your device.
6.2 Connecting an external USB device
You can use a USB storage device to store additional files.
Note: Your device may not support some USB storage devices.
1. Using the USB Adapter Cable, connect the mini USB connector to your @Tab.
2. Connect a USB device to the USB connector on the Adapter Cable.
3. Open File Manager.
4. Touch the USB symbol to view files on the USB device.
6.3 Connecting a micro SD Card
You can insert a micro SD Card into your @Tab to store additional files. Capacities up
to 32GB are supported.
1. Insert a micro SD Card into the micro SD Card slot.
2. Open File Manager.
3. Touch the SD Card symbol to view files on the micro SD Card.

@Tab User Manual
___________________________________________________________________________________________________________________________
10
7. Getting Started
7.1 Charging the battery
The @Tab has a built-in battery. Before using the device for the first time, you must
fully charge the battery. The @Tab should be charged via the USB cable provided,
which can be connected to a PC or other USB charging source.
When your battery charge is low, the device will emit a warning tone and display a low
battery message. The battery icon will also be empty. If the battery charge becomes
too low, the @Tab will automatically power off.
If the battery is completely discharged, the @Tab will not turn on. Allow a depleted
battery to charge for a few minutes before you try to turn on the device.
Charging via USB
1. Connect the USB cable to the mini USB socket.
2. Plug the USB cable into a USB power source (power adapter, PC, Laptop etc.).
When it is charging, the battery symbol in the bottom right hand corner of the desktop
will show a charging (lightning) symbol .
When the battery is fully charged (no lightning symbol in the battery icon), unplug the
power adapter or USB cable from the @Tab and then from the power socket. To save
energy, unplug or turn off the power adapter at the socket, when not in use.
Note: You can use the @Tab while it is charging, but it may take longer to charge.
While the @Tab is charging, the touch screen may not function correctly. If this
happens, unplug the power adapter from the device in order to use it.
While charging, the @Tab may get warm. This is normal and should not affect your
device’s lifespan or performance.
If your @Tab is not charging properly, please contact support (see chapter 11).
Connecting the USB cable improperly may cause serious damage to the @Tab, the
power adapter or the USB power source.
Any damage caused by misuse is not covered by the warranty.

@Tab User Manual
___________________________________________________________________________________________________________________________
11
7.2 Startup
Press and hold the power key for 3 seconds until the @Tab starts to boot. Once it has
finished, the lock screen will be shown. To unlock, drag the “locked” symbol to the
right until it becomes an “unlocked” symbol.
Note: This screen may have different wallpaper; this can be customised by the user.
You will now be at the default desktop page.
7.3 Shutdown
Press and hold the power key until the Power off pop-up appears on the desktop.
Choose the OK option to power off the @Tab (as shown below).

@Tab User Manual
___________________________________________________________________________________________________________________________
12
7.4 Sleep Mode
During normal operation of the @Tab, press the power button once, to set the device
into sleep mode. The screen will be off, but the device will be in a state of readiness to
be used at any time. To wake the device up again, press the power button to resume
normal operation. When the @Tab is not in use, you can use this function in order to
conserve the battery.
7.5 Configuring the Wallpaper
To change the Wallpaper on the @Tab, press one finger on any empty area of the
desktop and after a few seconds the Choose wallpaper from pop-up will appear.
Selecting Live Wallpapers or Wallpapers will allow you to select from a number of
different options available as shown below.
Once you have chosen the wallpaper you would like, press the Set wallpaper button as
shown below.

@Tab User Manual
___________________________________________________________________________________________________________________________
13
7.6 Desktop
The @Tab runs the latest version of the Android Operating System. Version 4.0 has a
similar user interface to previous versions, but has been updated specifically for use
with tablet devices.
The main interface controls on the desktop are shown below:
Icon
Name
Description
Back
Opens the previous screen you were working in, even if it
was in a different app. Once you are back at the Home
screen, you can't go any further back through your history.
Home
Opens Home. If you’re viewing a left or right Home screen,
opens the central Home screen.
Recent Apps
Opens a list of thumbnail images of Apps you have worked
with recently. To open an App, touch it. To remove a
thumbnail from the list, swipe it left or right.
Menu Button
Allows easy access to the menu options for the current
application.
All Applications
Allows access to all your apps and widgets.
Battery Status
Shows the current battery capacity or if the @Tab is
currently charging.
Status Icons
Status icons to the left of the clock tell you which apps
have sent you notifications. Icons to the right of the clock
display the current wireless and network connection
strength, battery level etc.

@Tab User Manual
___________________________________________________________________________________________________________________________
14
The @Tab Shortcut Widget allows you to access the most important applications and
settings on your @Tab directly from the main home screen. Just tap one of the options
to go straight to the application or setting you want.
7.7 Applications
To access all the applications available on the @Tab, press the All Applications
symbol.
From this page you can run any application by touching the symbol for that application.
Each page of the applications list only shows 15 applications, in alphabetical order. To
access more applications, scroll the window to the left by swiping your finger from
right to left.
7.8 Using the Touch Screen
Use your fingers to manipulate icons, buttons, menus, the onscreen keyboard, and
other items on the touchscreen. You can also change the screen's orientation.
To select or activate something, touch it.
To type something, such as a name, password, or search terms, just touch where you
want to type. A keyboard will popup and allow you to type into the field.

@Tab User Manual
___________________________________________________________________________________________________________________________
15
Other common gestures include:
Touch & hold
Touch & hold an item on the screen by touching it and not lifting your
finger until an action occurs.
Drag
Touch & hold an item for a moment and then, without lifting your
finger, move your finger on the screen until you reach the target
position. For example, you can drag to reposition shortcuts on the
Home screen.
Swipe or slide
Quickly move your finger across the surface of the screen, without
pausing when you first touch (so you don't drag something instead). For
example, you can slide a Home screen left or right to view the other
Home screens.
Double-tap
Quickly tap twice on a webpage, map, or other screen to zoom. For
example, doubletap a webpage in Browser to zoom in, and double-tap
again to zoom out.
Pinch
In some apps (such as Maps, Browser, and Gallery), you can zoom in
and out by placing two fingers on the screen at once and pinching them
together (to zoom out) or spreading them apart (to zoom in).
7.9 Using Google Search
Google Search can help you find anything you need on your tablet or the web and is
available from the top of any Home screen on the @Tab. There are two options
available:
Speak search terms: Touch the Microphone icon .
After you say what you're looking for, the Browser will open with a list of search
results.
Type search terms: Touch Google.
As you type, suggestions appear below the Search box.
The first few suggestions attempt to complete what you are typing:
To search for a suggestion immediately, touch it.
To add a suggestion to the search field, touch the arrow to its right. You can then
keep on typing or choose further suggestions.

@Tab User Manual
___________________________________________________________________________________________________________________________
16
To search for the contents of the search field, touch the Return key on the right
side of the keyboard.
The Browser will open with a list of search results, and below the search term
suggestions are items found on your tablet:
A Maps marker indicates a business listing. Touch to view the listing, see its
location on a map, get directions or take other actions.
A Favorites icon identifies one of your bookmarks. Touch to open the
bookmarked page.
An App icon indicates one of your Apps. Touch to open the App.
A Book cover icon indicates one of your books. Touch to open that book.
A Music album icon indicates a song or other music you have downloaded to
your tablet. Touch to play that music.
A Video icon indicates one of your videos. Touch to play that video.
Set searchable items
To adjust where Google Search looks on your tablet:
1. On a Home screen, touch Google.
2. Touch the Menu icon and select Settings and make sure that Searchable
items is selected.
3. Check the items on your tablet that you want to include in searches.
Manage Google Search privacy settings
1. On a Home screen, touch Google.
2. Touch the Menu icon and select Settings and make sure that Google
Search is selected.
3. Adjust any of these settings:
Use Web History -Check to include suggestions based on previous searches
from your computer or other devices.
Manage Web History - Opens Browser to the web search history settings
associated with your Google Account.
Use My Location -Check to take account of your location in search results and
other Google services.

@Tab User Manual
___________________________________________________________________________________________________________________________
17
8. System Settings
To access all the available System Settings for the @Tab, click the Settings icon from
Application page. This will open the system settings interface. On the left hand side of
the screen are all the available settings options. Touching one of these groups allows
access to all the settings available within that group on the right hand side of the
screen.
8.1 Wireless & Networks
Wi-Fi is a wireless networking technology that can provide Internet access at distances
of up to 100 meters, depending on the Wi-Fi router and your surroundings. To use
Wi-Fi, you need to connect to a wireless access point, or "hotspot." Some hotspots are
open and you can simply connect to them. Others implement security features that
require a password to be entered in order to ensure that only authorized users can
connect.
Note: To extend the life of your battery between charges, turn off Wi-Fi when you are
not using it. You can also set your @Tab to disconnect automatically from Wi-Fi
networks when it is sleeping.
1. To enable Wi-Fi, slide the Wi-Fi switch to the right of Wi-Fi to the On position.
2. Once Wi-Fi has been turned on, the @Tab will automatically scan for available
Wi-Fi networks and display the names of those it finds. Secured networks are
indicated with a Lock icon. If the @Tab finds a network that you connected to
previously, it will automatically connect to it.

@Tab User Manual
___________________________________________________________________________________________________________________________
18
3. Find the right network and select it by touching the entry. If the network is secured,
you are prompted to enter a password. Make sure you enter the correct password,
otherwise the @Tab will not be able to connect to the network.
Where can the correct password be found?
If you are connecting to a Wireless Network which is provided by a router which
has been supplied by BT, Sky etc. then the password will be printed on a sticker on
the unit. Please ensure that you enter any letters using the correct case. Uppercase
letters must be entered in uppercase and lowercase letters must be lowercase.
If the router doesn’t have a sticker showing the password, you will have to ask
whoever setup the wireless network to provide you with the correct password to
connect to the network.
Once finished, the @Tab will now be connected to the network. Once connected,
you will see the wireless icon in status bar.

@Tab User Manual
___________________________________________________________________________________________________________________________
19
Add a Wi-Fi network
If your wireless network does not broadcast its name (SSID), or you are outside the
range of a Wi-Fi network, you can still add a Wi-Fi network so your @Tab will
remember it, along with any security credentials, and connect to it automatically
when it's in range.
1. Turn on Wi-Fi, if it's not already on.
2. Touch Add Network at the top of the screen.
3. Enter the SSID (name) of the network. If necessary, enter security or other
network configuration details.
4. Touch Save.
The information about the network is saved. Your @Tab will connect to this network
automatically the next time you come within range.
Forget a Wi-Fi network
You can make the @Tab forget about the details of a Wi-Fi network that you added, if
you no longer use it.
1. Turn on Wi-Fi, if it's not already on.
2. In the Wi-Fi settings screen, touch the name of the network.
3. Touch Forget in the dialog that opens.
Configure proxy settings for a Wi-Fi network
Some networks require you to connect to internal or external network resources via a
proxy server. By default, the Wi-Fi networks you add are not configured to connect via
a proxy, but you can change that for each Wi-Fi network you've added.
1. In the Wi-Fi settings screen, touch and hold the name of the network.
2. Touch Modify network in the dialog that opens.
3. Select Show advanced options.
4. If the network has no proxy settings, touch None under Proxy Settings. If it does,
touch Manual in the menu that opens.
5. Enter the proxy settings supplied by your network administrator.
6. Touch Save.
The proxy settings apply only to the Wi-Fi network you modified. To change the proxy
settings for other Wi-Fi networks, modify them individually.

@Tab User Manual
___________________________________________________________________________________________________________________________
20
8.2 Sound
The sound option allows access to all the sound settings available within the @Tab.
Within this option, you can make the following changes:
Volumes
This option allows you to configure the default volume settings for
Music, video, games & other media, Ringtone & notifications and
Alarms.
Silent Mode
This option allows you to Mute the @Tab or turn Silent Mode Off.
Default notification
Allows a different sound for notifications to be selected.
Touch sounds
This option allows you to turn the sound caused by touching the
screen off.
Screen lock sounds
This option allows you to turn the sound caused by unlocking the
screen off.
