iWorx® LCI3
2 502-050A, Effective: April 22, 2013
© 2013 Taco Electronic Solutions, Inc.
QUICK START GUIDE
The iWorx® Local Control Interface Quick Start Guide provides simplified application information for the Local Control
Interface Controller. The Guide is designed as a supplement to the Application Guide and is not intended as a substi-
tute for it.
The reader should understand basic HVAC concepts, intelligent environmental control automation, and basic LON-
WORKS networking and communications. This Application Manual is written for:
• Users who engineer control logic
• Users who set up hardware configuration
• Users who change hardware or control logic
• Technicians and field engineers of Taco Electronic Solutions, Inc.
APPLICABLE DOCUMENTATION
See the table below for additional documentation that may be applicable to this controller.
REPRESENTATIONS AND WARRANTIES
This Document is subject to change from time to time at the sole discretion of Taco Electronic Solutions, Inc. All
updates to the Document are available at www.taco-hvac.com. When installing this product, it is the reader’s responsi-
bility to ensure that the latest version of the Document is being used.
iWorx® products shall only be used for the applications identified in the product specifications and for no other pur-
poses. For example, iWorx® products are not intended for use to support fire suppression systems, life support sys-
tems, critical care applications, commercial aviation, nuclear facilities or any other applications where product failure
could lead to injury to person, loss of life, or catastrophic property damage and should not be used for such purposes.
Description Audience Purpose
iWorx® LCI3 Installation Guide, Docu-
ment No. 502-002
– Application Engineers
– Installers
– Service Personnel
– Start-up Technicians
– End user
Provides detailed instructions for installing and
troubleshooting the iWorx® Local Control Inter-
face.
iWorx® LCI3 Application Guide, Doc-
ument No. 505-050
– Application Engineers
– Installers
– Service Personnel
– Start-up Technicians
– End user
Provides detailed instructions for installing, con-
figuring, and operating the iWorx® Local Control
Interface.
http://www.iWorxWizard.com – Application Engineers
– Wholesalers
– Contractors
An on-line configuration and submittal package
generator based on user input. Automatically
generates bill of materials, sequence of opera-
tions, flow diagrams, wiring diagrams, points
and specifications.
Additional
Documentation
LonWorks FTT-10A Free Topology Transceiver User’s Guide, published by Echelon Corpo-
ration. It provides specifications and user instructions for the FTT-10A Free Topology Trans-
ceiver. See also: www.echelon.com/support/documentation/manuals/transceivers.

iWorx® LCI3
502-050A, Effective: April 22, 2013 3
© 2013 Taco Electronic Solutions, Inc.
Taco Electronic Solutions, Inc. will not be responsible for any product or part not installed or operated in conformity with
the Document and instructions or which has been subject to accident, disaster, neglect, misuse, misapplication, inade-
quate operating environment, repair, attempted repair, modification or alteration, or other abuse. For further informa-
tion, please refer to the last page of this Document for the company’s Limited Warranty Statement, which is also issued
with the product or available at www.taco-hvac.com.
OVERVIEW
The Local Control Interface is a touch screen graphical user interface that serves as the command center for the
iWorx® control network. It features remote access capability via Ethernet (World Wide Web or LAN), and an SD Card
input for future control expansion, product upgrades, or archiving of the databases on the Local Control Interface for
backup/restore purposes.
GETTING STARTED
The Local Control Interface screen may be in a sleep mode when accessed. To activate the screen, simply press on
the screen anywhere. The Local Control Interface now displays the following:
Password Entry
Using a stylus or fingertip, press the empty box beside “Enter Password”. A keyboard screen with alphanumeric char-
acters appears.
The Default Password is LCI3.
To enter the password:
1.Press the letters L C I and the numeral 3on the keyboard. This sequence provides the default password access.
2.Next, Press SAVE.
The display reverts to the Local Control Interface start page displayed above, with the addition of the password now
displayed in the data entry box.
Press ENTER on the Local Control Interface keyboard.
NOTE: If you are accessing the Local Control Interface remotely, do not press the Enter key on your computer.
Instead, click the Enter button using the mouse.

iWorx® LCI3
4 502-050A, Effective: April 22, 2013
© 2013 Taco Electronic Solutions, Inc.
Home Screen
You now see the Main Local Control Interface Home Screen Menu:
In the upper right hand corner, you see two buttons that say Prev and Home. Think of these keys as you would the
“Back” button and “Home” button on your web browser. You can revert to the Home Screen at any time by pressing the
Home button. To view the screen that you were working on previously, press the Prev key.
Auto Log Off Feature
The Local Control Interface has an auto log off feature. If no keys have been pressed within a programmable amount
of time after log on (factory default is ten minutes), the Local Control Interface automatically logs off. To re-access the
Main Menu, simply repeat the instructions for ”Password Entry” above.
Entering Time and Date
If the Local Control Interface has not been commissioned yet, you will need to enter the correct time and day. Remem-
ber that the Local Control Interface uses a military (24 Hour) time format. For example, 5:00 PM should be entered as
17:00. If the Time and Date have been entered, go to the next section, ”Selecting Controllers”.
To Enter the Time and Date:
1.Press the Utilities button on the Main Menu. You now see a button labeled LCI Setup.
2.Press the LCI Setup button.
3.You now see buttons for Time and Date. Press the Date Key.
4.Enter the correct Year, Time and Date. When you enter time, enter Hours first, press Save and then enter min-
utes. Remember that the display uses a 24-hour format.
5.If you are in a Daylight Savings Time Zone, Press the Daylight Savings button.
NOTE: You must press Save after each entry to save your selection.

iWorx® LCI3
502-050A, Effective: April 22, 2013 5
© 2013 Taco Electronic Solutions, Inc.
CONFIGURING ETHERNET COMMUNICATION
Summary
There are three basic LCI3 Ethernet configuration types which may be required for Ethernet communication. These
configurations types are Ethernet with Crossover cable, Intranet, and Internet.
This section provides quick start instruction for setting up each configuration type.
• Configure the LCI3 to communicate to a PC using a cross-over cable
• Configure the LCI3 to communicate to PCs on an Intranet.
• Configure the LCI3 to communicate to PCs on the Internet.
NOTE: The LCI3 is capable of communicating to other LCI3s and may also send e-mail via the ethernet.
Those applications are addressed in another section of this document. In addition, these procedures are
intended for individuals who are experienced with PC's and routers.
Using a cross-over cable from a PC
The following procedure may be used to allow a PC to communicate to an LCI3 using a cross over cable. In this case,
the PC and LCI3 must both reside on the same network and therefore must have the same subnet address. This exam-
ple uses Windows 7 as the operating system. Please refer to the PC user manual or IT technician if setting up with a
different operating system.
Procedure
1.Determine the PC’s IP address and subnet address; See also Figure 1 for Windows appearance.
• Right click on the "Network" icon on the PC's desktop. Choose Properties.
• Choose Change Adaptor Settings.
• Right click on Local Area Connection and choose Properties.
• Click on Internet Protocol Version 4 (TCP/IPv4) and select Properties.
• Note the IP and Subnet address
2.Now that the PCs address and subnet are known the LCI3 can be configured by doing the following.
• Sign-on to the LCI3
• Select ‘Utilities’ from the Home screen
• Select ‘Network Setup’ from the Utilities screen
• Select ‘Ethernet Settings’ from the Network Setup screen
• Set ‘Enable DHCP’ to NO
• Enter an IP address for the LCI3: This address should be the same as your PC with the last number being dif-
ferent. Example: PC: 10.0.1.59 --> make the LCI3 10.0.1.60
• Enter the same subnet as your PC
• Depress ‘Save’
3 To establish communication perform the following.
• Connect the cross-over cable to your PC and the LCI3
• Launch Internet Explorer or your preferred web browser
• Type the following in the address line:
http://10.0.1.60/lci3/firstpage
• The LCI3’s sign-on screen should now be displayed on the PC screen.

iWorx® LCI3
6 502-050A, Effective: April 22, 2013
© 2013 Taco Electronic Solutions, Inc.

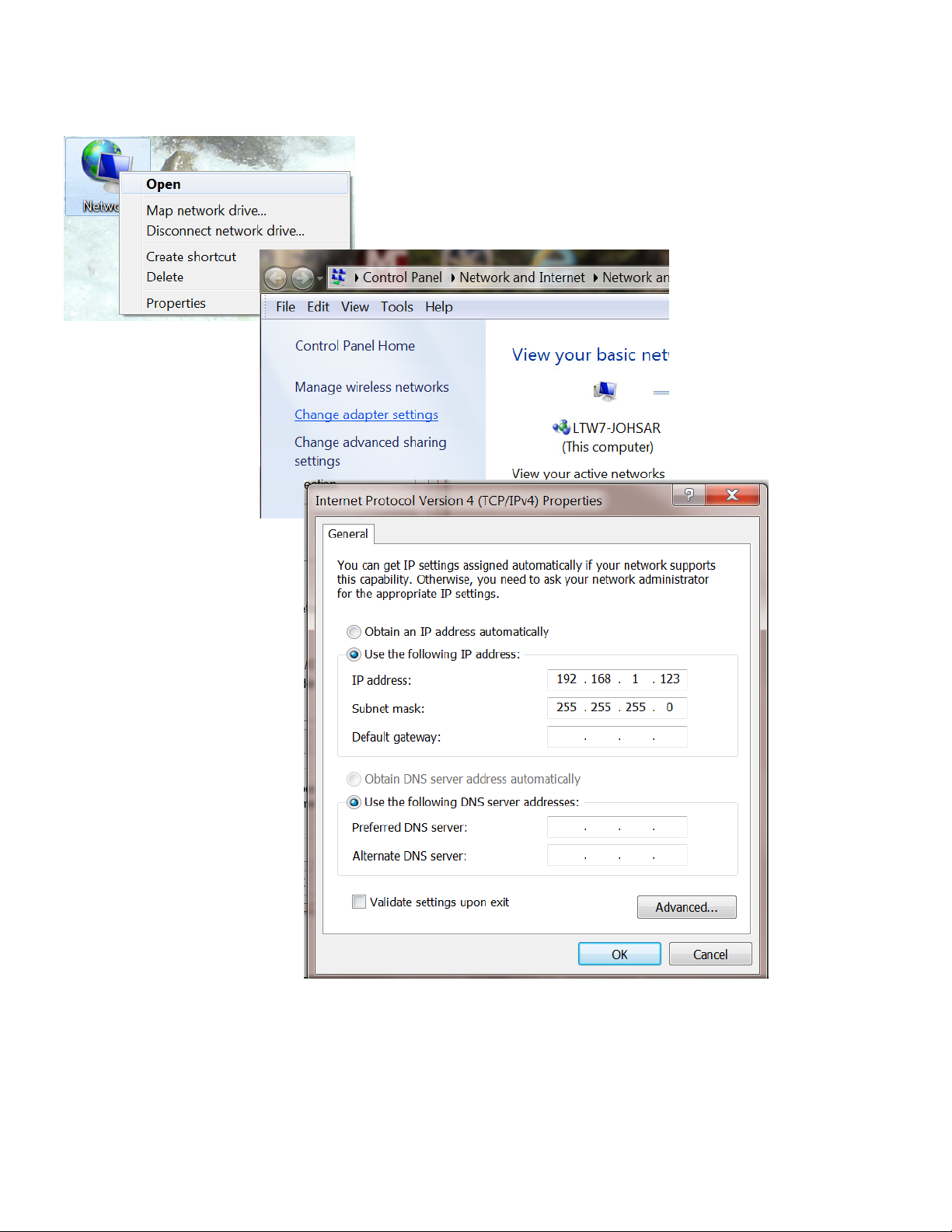

Figure 1: IP Configuration on Microsoft Windows 7

iWorx® LCI3
502-050A, Effective: April 22, 2013 7
© 2013 Taco Electronic Solutions, Inc.
Configuring Intranet Communications
The following procedure may be used to allow the LCI3 to communicate to all PC's on the same network ( i.e. in the
same building with no external communications). In this case, the PC's and LCI3 must all reside on the same network
and therefore must have the same subnet address. This example uses Windows 7 as the operating system. Please
refer to the PC user manual or IT technician if setting up with a different operating system.
Procedure
1.Determine the PC’s IP address and subnet address; See also Figure 1 for Window appearance.
• Right-click on the Network icon on the PC's desktop. Choose Properties.
• Select Change Adaptor Settings.
• Right-click on Local Area Connection and choose Properties.
• Click on Internet Protocol Version 4 (TCP/IPv4) and select Properties.
NOTE 1: Please note the IP and Subnet address
NOTE 2: If there is an IT department the information can be obtained from them and they will also provide
you with an IP address that can be used for the LCI3.
NOTE 3: All devices on the network must have a unique IP address.
2.Now that a PC’s address and subnet are known or have been provided by the IT department, the LCI3 can be
configured by doing the following.
• Sign-on to the LCI3
• Select ‘Utilities’ from the Home screen
• Select ‘Network Setup’ from the Utilities screen
• Select ‘Ethernet Settings’ from the Network Setup screen
• Set ‘Enable DHCP’ to NO
• Enter an IP address for the LCI3: This address should be the same as a PC with the last number being differ-
ent. Example:
PC 10.0.1.59 --> make the LCI3 10.0.1.60. The address may also be obtained from the IT department.
NOTE: All devices on the network must have a unique IP address.
• Enter the proper subnet as found on the PC or as provided from the IT department
• Depress ‘Save’
3.To establish communication perform the following.
From a PC on the network, launch Internet Explorer or your preferred web browser
Using the IP address from step 2, type the following in the address line: http://10.0.1.60/lci3/firstpage
The LCI3s sign-on screen should now be displayed
Configuring Internet (WWW) Communications
The following procedure may be used to allow the LCI3 to communicate to any PC on the internet. The router refer-
enced in the example is a LinkSys router, default router addresses and settings may vary based on the router manufac-
turer.
Procedure
1.This example assumes that the router has already been installed and connected to the Internet and is functioning
properly.
2.Connect the LCI3 to the network that the router is also connected.
3.Verify the LCI3 obtained the IP addresses automatically from the router.
• Sign-on to the LCI3
• Select ‘Utilities’ from the Home screen
• Select ‘Network Setup’ from the Utilities screen

iWorx® LCI3
8 502-050A, Effective: April 22, 2013
© 2013 Taco Electronic Solutions, Inc.
• Select ‘Ethernet Settings’ from the Network Setup screen
• Verify ‘Enable DHCP’ is set to Yes
• If set to NO, set to Yes and ‘Save’. Now Verify an IP address has been automatically placed in the following
fields; IP address, Subnet mask, Default Gateway, Primary DNS, Secondary DNS and External Gateway.
• Now that the IP addresses have been automatically set, disable DHCP (Set to NO). By setting this to “NO”
the LCI3 can always be accessed from the internet using this address.
4.Configure the router so the LCI3 can be accessed from the www
• Launch Internet Explorer or your preferred web browser
• Type http://192.168.1.1 in the address line and then press ‘enter’
• Enter the router password
• Select the ‘Application and Gaming’ tab. Other routers may have a ‘Setup’ or ‘Port Forwarding’ tab.
• Using one of the unused entries fill in the following information fields
• Application=LCI3
• Start=80
• End=80
• Protocol=TCP
• IP address=enter the external address as found in LCI3 or as supplied by an IT professional
• Enable=check the box and then save.
LCI3 QUICK-START ISP ETHERNET SET UP
Summary
Before beginning, please ensure that the LCI3 can be accessed by using the Internet. If the LCI3 has not yet been con-
figured for remote communications via the Internet please reference “Configuring Ethernet Communication” on page 5.
This section provides LCI3 Quick-start ISP setup instructions. It explains how to:
• Configure the LCI3 to communicate to an ISP
• Configure the LCI3 to send alarms via email
• Configure the LCI3 to selectively send emails
NOTE: This section assumes that the LCI3 is already connected to the Internet.
Configuring an Email Proxy
The following procedure should be used only when there are multiple LCI3 controllers on the network, to configure
them to send all alarms through a single LCI3 controller. Disregard this section if there is only one LCI3 on the network.
Procedure
1.The following information is either chosen by you, your customer or provided by the ISP.
• Proxy Emailer – If multiple LCI3s are networked together and alarms are to be tunneled to a single LCI3 for
emailing, enter the LCI3s IP address or Site name in this field. This field is left blank if there are not multiple
LCI3s on the network.
2.The information field described in step 1 needs to be entered into the LCI3. To enter the information perform the
following.
• Sign-on to the LCI3
• Select ‘Utilities’ from the Home screen
• Select ‘Network Setup’ from the Utilities screen
• Select ‘Email Parameters’ from the Network Setup screen
• All fields with the exception of Proxy Emailer need to have valid information entered

iWorx® LCI3
502-050A, Effective: April 22, 2013 9
© 2013 Taco Electronic Solutions, Inc.
• Depress ‘Save’
Configuring the Email addresses
The following procedure should be used to enter the email addresses into any LCI3 that is desired to send alarm
emails.
Procedure
Determine who should receive the emails and follow the procedure below to enter the addresses into the LCI3.
• Sign-on to the LCI3
• Select ‘Utilities’ from the Home screen
• Select ‘Network Setup’ from the Utilities screen
• Select ‘Email Addresses’ from the Network Setup screen
• The ‘From’ field needs to contain the email address that is associated with the Username and Password that
the LCI3 uses to gain access with the ISP.
• Enter the email address for the Recipient
• Optional; Enter the email address for the CC Recipient
• Optional; Enter the email address for the Bcc Recipient
• Depress ‘Save’
Configuring selected alarms to be emailed
The following procedure should be used to select the alarms that will be emailed. Most often the alarms that are
selected are critical in nature and require immediate attention. Some examples of critical alarms are; Fan Failure,
Mixed Low limit (freeze condition), Smoke detection and Communication failures to name a few.
NOTE: All alarms are enabled by default. Alarms need not be disabled if controllers are not installed that
support the alarm.
Procedure
1.Determine which alarms you would like to have annunciated to the email addresses previously entered.
• Sign-on to the LCI3
• Select ‘Utilities’ from the Home screen
• Select ‘Network Setup’ from the Utilities screen
• Select ‘Alarms to Email’ from the Network Setup screen
• Once in the ‘Alarm Email Setup’ screen use the ‘Next, Prev, Top and Bottom’ buttons to navigate to all avail-
able alarms
• All alarms are enabled by default
• Click on the alarm to disable it from being emailed
SELECTING CONTROLLERS
To enter the correct settings for a controller, it must first be part of your control network. When you press the Con-
troller button, all of the properly-commissioned controllers on your network will be shown.
If the controllers appear when you press Controller, proceed to the next section, ”Adjusting Controllers”.
If no controllers appear when you press Controller, then you must introduce the controllers onto the network.
To place a controller on the network:

iWorx® LCI3
10 502-050A, Effective: April 22, 2013
© 2013 Taco Electronic Solutions, Inc.
1.A service switch is located on the top left side of each controller. To access the switch, a small non-conductive
object may be used to momentarily close the switch by inserting it into the slot of the enclosure. Alternatively, the
switch may be accessed by removing the cover. After the switch is pressed, the LCI3 beeps once to indicate a
new controller has successfully been added to the network. It may be now viewed at the LCI3's controller screen.
2.Repeat this process for every controller on the system.
You now see every controller on your network when you press Controllers on the Local Control Interface.
ADJUSTING CONTROLLERS
You can configure any controller on the network from the Local Control Interface. Keep in mind that controllers may
also be renamed and may actually describe the equipment being controlled. For example: Second Floor, First Floor,
Kitchen, and so on.
To program a controller from the Local Control Interface:
1.Press the Controller key. The Local Control Interface displays a list of the controllers on the network, as
shown below. If there are more controllers than can be displayed on one screen, click Next at the bottom of the
display to show more controllers.
Press anywhere on
any row to choose
that controller.
