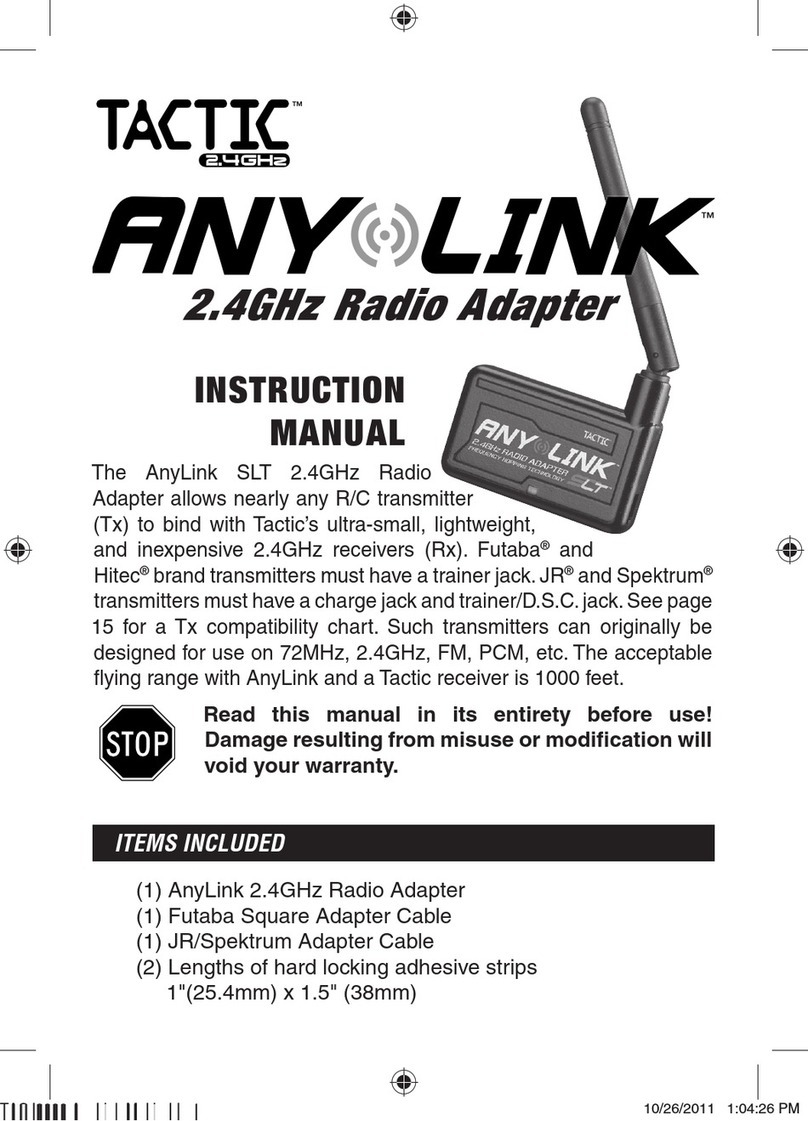

Tactic Any Link User manual

The AnyLink SLT™2.4GHz Radio
Adapter allows many R/C aircraft
transmitters (Tx) to link with Tactic’s ultra-
small, lightweight, and inexpensive 2.4GHz receivers (Rx), and
Transmitter-Ready™(Tx-R™) aircraft. Compatible transmitters can
originally be designed for use on 72MHz, 2.4GHz, FM, PCM, etc.
The maximum flight range in any application is 1000 feet.
Read this manual in its entirety before use!
Damage resulting from misuse or modification will
void your warranty.
ITEMS INCLUDED
(1) AnyLink 2.4GHz Radio Adapter
(1) Futaba®Square Adapter Cable (TACM0001)
(1) JR
®
/Spektrum
®
DX6, DX6i, DX7 Adapter Cable (TACM0002)
(2) Hard Locking Adhesive Strips
INSTRUCTION
MANUAL
2.4GHz Radio Adapter2.4GHz Radio Adapter
™
™

2
TX COMPATIBILITY AND CORDS
All compatible transmitters must have a trainer/DSC jack. An
adapter cable connects AnyLink to the Tx trainer jack. The
included cable with two plugs is for Futaba®and Tower Hobbies®
transmitters having a square trainer jack (except Futaba 12Z,
14MZ, 18MZ, and 4YF on 2.4GHz). The remaining cable is for JR®,
Spektrum®DX6, DX6i, DX7, and Graupner®MX-16 transmitters.
Refer to the chart below to determine which cable is required
for a Tx to function with AnyLink. See your local hobby retailer to
purchase optional cables TACM0003, 0004, 0005, and 0007.
AnyLink Tx Compatibility Chart
4YF (72MHz), 4YBF, 6EX, 6J, 7C, 8FG, 9C, 10C, 12FG
Futaba®
Hitec®
Spektrum®
JR®
Tower
Hobbies®
Graupner®
DX6, DX6i, DX7
DX4e, DX5e, DX7s, DX8, DX10t, DX18
4TH, 6XM
4FM, 6FM
4VF, 5U, 6A, 6DA, 6H, 6YF, 6YG, 7NFK, 8U, 9Z
4YF (2.4 GHz), 12Z, 14MZ, 18MZ
Neon, Flash (4sx, 5, 5sx), Focus (4, 6), Laser (4, 6),
Optic 5 (72MHz), Optic 6 (72MHz, 2.4GHz),
Eclipse 7 (72MHz), Prism (7, 7X)
Aurora 9
Optic 5 (2.4GHz), Optic 6 Sport, Eclipse 7 (2.4GHz)
All aircraft transmitters with trainer jack
INCLUDED
INCLUDED
INCLUDED
INCLUDED
INCLUDED
TACM0003
TACM0003
TACM0003
TACM0004
TACM0007*
TACM0005*
TACM0005*
Required
Cable
*Includes a rechargeable 6.6V LiFe battery. LiFe-compatible charger required.
MX-16
This chart is current as of the date of the printing of this manual.Transmitters
not listed may or may not be compatible with AnyLink. Check Tx-Ready.
com/anylink-chart.html for the most updated compatibility chart.

3
ANYLINK SETUP
IMPORTANT! Remove the airplane’s propeller prior to
setting up AnyLink to work with the flight system. Failure
to do so could result in personal injury if the motor turns
unexpectedly. Make sure all batteries are fully charged prior to
operation. Make sure all connections are solid physically and
cannot easily become dislodged at any time. AnyLink must be
used with aTx having a throttle stick that does NOT automatically
spring back to center.
1. Using the included hard locking
mounting strips, mount AnyLink high
on the rear of the Tx, extending its
antenna upwards from the top of the Tx
as much as possible as shown at right.
Also note the location of AnyLink’s
INPUT jack.
2. Remove the Rf module or crystal,
or disable the Rf section in the host
Tx if possible.
3. Leave the Tx’s own antenna in a
retracted or folded position.
4. For computer radios make sure the modulation is set to PPM mode.
5. Move the throttle stick to minimum; leave all other sticks at center.
6. Go to the appropriate section below depending on the brand of
transmitter being used.
FUTABA AND TOWER HOBBIES RADIOS
1. Carefully connect the appropriate cable to the Tx trainer jack.
NOTE: For Futaba’s 12Z, 14MZ, 18MZ, and 4YF on 2.4GHz,
refer to the instructions included with the required optional Power
Adapter TACM0007 for specific setup details.
2. Connect the cable’s 3-pin connector to AnyLink’s INPUT jack.
Input Jack
Cable

4
3. Turn the Tx power switch on. For computer radios having the
option to transmit a signal when Tx power is turned ON, make sure
“YES” is selected.
4. AnyLink should sound one beep and its LED should illuminate.
5. Skip to the COMPATIBLE RECEIVERS section on page 5.
HITEC RADIOS
1. Connect the appropriate cable to the Tx trainer jack. NOTE:
For Optic 5, Optic 6 Sport, and Eclipse 7 transmitters on 2.4GHz,
refer to the instructions included with the required optional
Power Adapter TACM0005 for specific setup details. For Aurora
9 transmitters, refer to the instructions included with the required
optional cable TACM0004 for specific setup details.
2. Connect the cable’s 3-pin connector to AnyLink’s INPUT jack.
3. Turn the Tx power switch on.
4. AnyLink should sound one beep and its LED should illuminate.
5. Skip to the COMPATIBLE RECEIVERS section on page 5.
JR, SPEKTRUM, GRAUPNER MX-16 RADIOS
IMPORTANT! NEVER turn the JR, Spektrum, or Graupner
Tx power switch to the ON position at any time when using
with AnyLink! Doing so will cause AnyLink to stop transmitting its
signal and result in a loss of control of the model. When flying is
finished and power has safely been removed from the model and
AnyLink, it’s also necessary to disconnect the plug from the
transmitter’s trainer/DSC jack to prevent accidental full discharge
of the transmitter’s own battery.

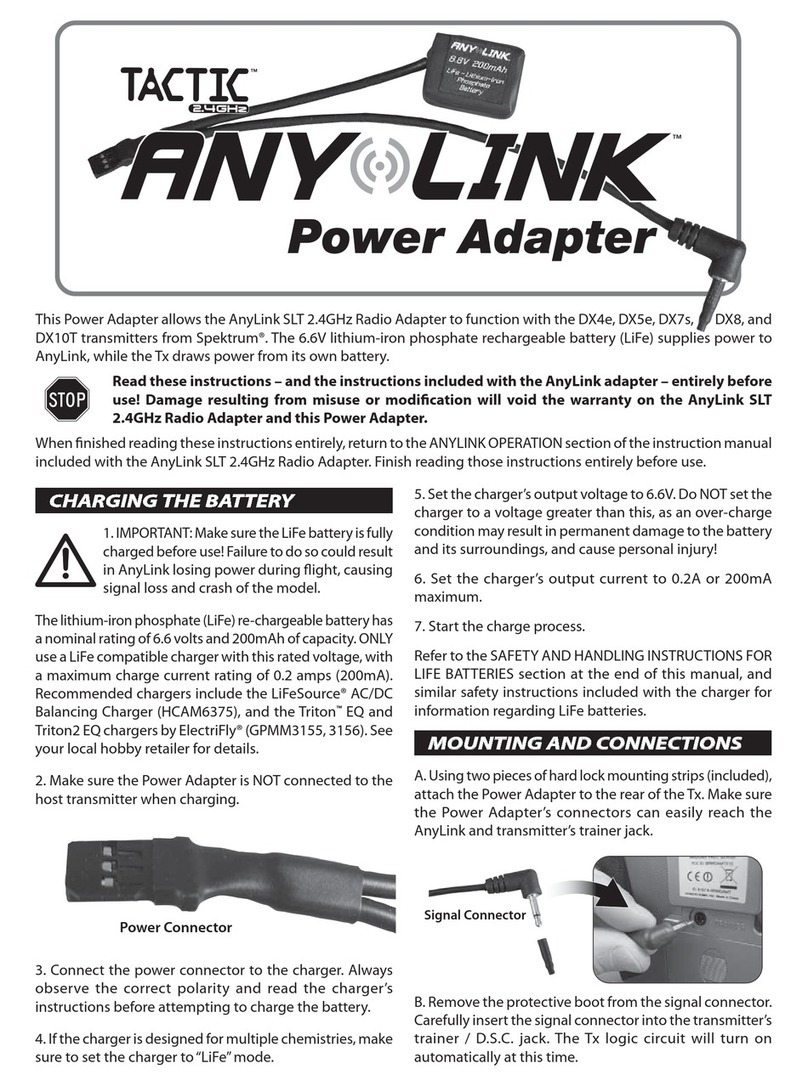

1. Connect the appropriate cable to the Tx trainer jack. The
transmitter’s logic circuit will turn on automatically. NOTE: For
Spektrum DX4e, DX5e, DX7s, DX8, DX10t, and DX18 transmitters,
refer to the instructions included with the required optional Power
Adapter TACM0005 for specific setup details.

5
2. Insert the 3-pin connector into AnyLink’s INPUT jack.
3. Connect the cable’s remaining plug to the Tx charge jack.
4. AnyLink should sound one beep and its LED should illuminate.
5. Proceed to the next section.
COMPATIBLE RECEIVERS
AnyLink is compatible with Tactic brand 2.4GHz receivers such
as the 6-channel TR624 (TACL0624) and 3-channel TR324
(TACL0324). AnyLink is also compatible with receivers included in
Select Scale Transmitter-Ready™(Tx-R™) aircraft, and Micro Tx-R
aircraft. AnyLink is not compatible with non-Tactic brand receivers.
Skip the next section if using Futaba, Hitec, or Tower Hobbies transmitters.
FLYING Tx-R AIRCRAFT WITH JR, SPEKTRUM, GRAUPNER
Select Scale Tx-R aircraft include a Tactic Rx with servos
already connected. Micro Tx-R aircraft include a board with an
integrated Tactic receiver and servo connections. The channels
in Tx-R aircraft are arranged in the following order: CH1=aileron,
CH2=elevator, CH3=throttle, CH4=rudder. However, JR, Spektrum,
and Graupner radios transmit channels in a different order.
Therefore, it’s necessary to re-configure AnyLink to “Alternate
Channel Mapping” so JR, Spektrum, and Graupner transmitters
can properly control Tx-R aircraft.
ALTERNATE CHANNEL MAPPING
1. Center the sideways trim for the left stick, and move the left stick
to the bottom-left or bottom-right corner and HOLD in this position.
IMPORTANT: If Tx channel 4 has been re-assigned in the transmitter’s
menu (e.g. aileron and rudder channels were swapped), or if the Tx is
set to stick mode 3 or 4 (with aileron on the left stick, and rudder on
the right stick), it will be necessary to instead center the sideways trim
on the right stick, and move and hold the right stick in the bottom-left
or bottom-right corner.

6
2. Cycle power on AnyLink by removing – then re-inserting the
3-pin connector in the INPUT jack.
3. AnyLink’s LED will turn on. Wait 5 seconds and AnyLink will
sound three tones •••.
4. Release the stick back to neutral position. AnyLink should sound
two tones ••to indicate the order of channels has been changed
as shown in the chart below.
CHANNEL 2 ElevatorThrottle
CHANNEL 3 ThrottleAileron
CHANNEL 1 Elevator Aileron
CHANNEL 4 RudderRudder
FUTABA, HITEC
ALTERNATE CHANNEL MAPPING
JR, SPEKTRUM, GRAUPNER
5. Check all controls. If all channels from the Tx are not properly
mapped, or Alternate Channel Mapping is no longer desired,
repeat steps 1 through 4 to return all channels back to factory
defaults, at which point AnyLink will sound one tone * after power
is re-applied.
NOTE: If the Alternate Channel Mapping mode cannot be entered
for any reason, changing the servo connections at the Tactic Rx to
properly match the controls of the Tx could still allow AnyLink to
function properly with your Tx (but is not possible with Micro Tx-R
aircraft).

7
BINDING TO A TACTIC Rx
To use AnyLink with a Micro Tx-R airplane, skip to the next section.
Otherwise, when binding to a Tactic brand Rx or Select Scale Tx-R
aircraft, AnyLink’s factory default setting is to pass all channels
to the Rx in the same order as from the host Tx, as shown in the
chart below:
CHANNEL 2 AileronElevator
CHANNEL 3 ElevatorThrottle
CHANNEL 1 Aileron Throttle
CHANNEL 4 RudderRudder
BINDING WITH A TACTIC Rx
FUTABA, HITEC JR, SPEKTRUM, GRAUPNER
1. With power already applied to the Tx/AnyLink as explained
earlier, move the Tx throttle stick to MINIMUM.
2. Apply power to the Tactic Rx.
3. Insert a small diameter screwdriver into the hole on the Rx
marked “BIND”. Press and hold the pushbutton until the Rx LED
glows red and then turns off after about one second.
4. Release the “BIND” button. The LED will turn on if linking was
successful. This link should remain intact for future uses, in which
case the Rx LED will turn on immediately when power is applied
to the Rx. If the link did not remain intact, repeat this binding
procedure.
5. Confirm all servo controls function properly according to inputs
on the Tx sticks.
6. If you do not wish to set a failsafe in the Tactic Rx, skip to the
SYSTEM CHECK AND OPERATION section on page 10.

8
Failsafe: All Tactic TR624 receivers include a failsafe function,
where Rx CH3 deflects to 0% (minimum) which should stop
motor function if the Rx loses signal. The deflection position
of this servo can be changed manually, if desired. All other
channels will hold their last position. If using a JR, Spektrum, or
Graupner Tx and the Rx enters failsafe, the throttle channel will
go to “hold” (NOT 0% throttle), because Tactic Rx CH3 deflects
to 0% position but JR, Spektrum, and Graupner transmitters
use CH1 to control throttle. To re-configure AnyLink to pass
through channels in the proper order for JR, Spektrum, and
Graupner transmitters and allow the throttle control to be set for
a specific failsafe position, see the Alternate Channel Mapping
section on page 5 and return here when that procedure has
been completed. IMPORTANT! Confirm the Tx servo reversing
settings are in the correct position for the application.
To manually set the failsafe in a Tactic Rx:
A. Make sure the model’s ESC is NOT armed. If using a
combustion engine, make sure it’s NOT running.
B. Move the Tx throttle stick to the desired failsafe position.
C. Press and hold the Rx “BIND” button until the Rx LED
blinks twice.
D. Release the BIND button. The Rx LED should stay
illuminated to indicate the Rx is now linked, with the
throttle failsafe in the new position as set above.
E. Skip to the SYSTEM CHECK AND OPERATION section
on page 10 .

9
AUTO-BINDING ANYLINK TO MICRO Tx-R AIRCRAFT
These procedures apply if using Futaba, Hitec, and Tower Hobbies
transmitters, in addition to JR, Spektrum, and Graupner transmitters
which have been re-configured to Alternate Channel Mapping as
described earlier.
When power is originally applied to a Micro Tx-R aircraft, the built-in
Rx will automatically search for the strongest signal being emitted
from any Tactic 2.4GHz transmitter (including TTX402, TTX404,
TTX440, TTX600, or AnyLink) and link to that signal. There are no
bind buttons to press to establish this link. A link is established when
the red LED on the board illuminates.
Later, if power is re-applied to the same Micro Tx-R aircraft while
multiple Tactic transmitters are operating simultaneously – including
the original transmitter “A” - the Micro Tx-R aircraft will attempt to re-
bind with transmitter “A”. However, if power is re-applied to the Micro
Tx-R aircraft while a signal is being emitted from a different Tactic
Tx, the Micro Tx-R aircraft will now automatically link to the new Tx
(transmitter “B”). To re-establish the link with transmitter “A”, repeat
this process but apply power only to transmitter “A” before applying
power to the Micro Tx-R aircraft.
Try these tips if the Micro Tx-R aircraft has difficulty linking with
AnyLink when multiple Tactic signals are present:
1. Pre-link your AnyLink and Micro Tx-R aircraft before arriving at
the flying site.
2. Turn on the Tx/AnyLink before applying power to the Micro Tx-R
aircraft.
3. Wait for other pilots flying Tactic to remove power from their Tx/
AnyLink before attempting to link.
4. Move further away from other Tactic transmitters before powering
your equipment.

10
SYSTEM CHECK AND OPERATION
Check the general operation of the system and all flight equipment
before attempting a flight.
WARNING! With the aircraft on the ground, make sure
the throttle stick remains at the minimum position and is
not accidentally moved. NOTE: Micro Tx-R aircraft have a
throttle arming procedure which does require movement of the
throttle channel during setup (see instructions included with the
Micro Tx-R aircraft).
RANGE CHECK: Determine the safe operating distance from the Tx
to the Rx. Place the aircraft on the ground and walk 100 feet (30m)
away from the model. Confirm that smooth, interference-free control
of all surfaces exists.
FAILSAFE CHECK: If using the failsafe feature, test for proper
operation as follows:
1. Prepare a way to quickly disconnect the battery/ESC connection if
power needs to be cut immediately.
2. Have an assistant hold the aircraft in place on a test stand, with
hands away from the motor.
3. Apply power to the system and test the motor and flight gear for
general operation.
4. Remove power from the Tx/AnyLink.
5.Observe the model’s surfaces to ensure they move to the previously
set failsafe positions.
6. If failsafe operation is correct, re-connect power to the system as
explained earlier and prepare for flight. If the failsafe function does
not operate correctly, re-check the LINKING WITH A TACTIC Rx
and SYSTEM CHECK AND OPERATION sections and re-try.
7. After the flight is complete, remove power from the flight system as
soon as possible.

11
INACTIVITY ALARM AND POWER-DOWN PROCEDURES
If the Tx sticks are not moved for 4 minutes, AnyLink will sound
tones to alert that power is still ON and AnyLink is still transmitting
a signal. After power has safely been removed from the model,
power must be removed from AnyLink. For Futaba, Hitec (except
Optic 5 and 6 Sport and Eclipse 7 on 2.4GHz), and Tower Hobbies
transmitters, turn the Tx power switch OFF.
For JR, Spektrum, and Graupner transmitters, and Hitec Optic 5
and 6 Sport and Eclipse 7 on 2.4GHz, disconnect AnyLink’s power
plug from the Tx charge jack. AnyLink’s LED will turn off. Also
remember to remove the plug from the Tx trainer jack.
SPECIFICATIONS
Compatible Rx’s: Tactic brand receivers
Frequencies: 2.403 – 2.480GHz
Modulation: FHSS spread spectrum
Power indicator: LED with audible tones
Inactivity alarm: audible tones after 4 minutes of Tx stick inactivity
Output power: < 0.1W
Case dimensions: 64 x 36 x 12mm (2.5 x 1.4 x 0.5")
Weight: 24g (0.85 oz.)
IMPORTANT WARNINGS AND PRECAUTIONS
●Do not allow water or moisture inside AnyLink.
●Do not operate R/C model aircraft near power lines, radio or cell
phone towers, roads or automobiles, buildings, or pedestrians.
●Do not operate R/C equipment if you are physically impaired as
it could pose a safety hazard to yourself or others in the area.
●Do not allow small children to operate/control model R/C
equipment without the supervision of an adult.
● Do not allow the Tx’s throttle stick to accidentally be moved away
from the “off” or minimum position while the model’s engine/motor
is running.

12
●Do not allow chemicals to come in contact with any parts of
AnyLink. Substances such as glow fuel, gasoline, CA glue, etc.
could permanently damage the case and electronic components.
●Always follow the Academy of Model Aeronautics National
Model Aircraft Safety Code when operating an R/C aircraft.
TROUBLESHOOTING
RANGE IS SHORT:
Interference – Check Rx installation and servo connections.
Low Tx or Rx battery – Replace the batteries or recharge as needed.
AnyLink case and/or antenna not oriented properly – Rotate AnyLink on
Tx, or re-direct position of the antenna.
Rx location – Relocate the Rx to a different position in the model for
better reception.
RUN TIME IS SHORT:
Low Tx battery – Replace or recharge the batteries.
POWER IS APPLIED TO ADAPTER BUT SERVOS DO NOT FUNCTION:
Tx or Rx batteries are low – Replace or recharge the batteries.
Rx switch off – Turn on the ESC or switch harness.
Switch harness or ESC is connected incorrectly – Check all connections
and the ESC instruction manual.
Rx not bound to AnyLink – Perform binding process again.
INTERFERENCE OR SERVOS GLITCHING:
Out of range – Operate the model more closely to the Tx.
AnyLink case not oriented properly – Rotate AnyLink on Tx.
Rx or ESC location – Relocate the Rx and/or ESC away from the engine,
motor, servos, or linkages for better reception.
WRONG CONTROL SURFACES MOVE IN RESPECT TO TX INPUT:
Repeat all steps in AnyLink Operation section on page 4.
CONTROL SURFACE MOVES IN THE WRONG DIRECTION:
Reverse the position of the Tx’s reversing switch for the appropriate channel.
ONLY ONE SERVO GLITCHES:
Servo is bad – Replace or repair the servo.

13
FCC STATEMENT
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions. (1) This device may not
cause harmful interference. (2) This device must accept any
interference received, including interference that may cause
undesired operation.
FCC Rf Radiated Exposure Statement: The equipment complies
with FCC Rf radiation exposure limits set forth for an un-controlled
environment. This equipment should be installed and operated
with a minimum distance of 20 centimeters between the radiator
and your body.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
CE COMPLIANCE INFORMATION FOR THE EUROPEAN UNION
Instructions for Disposal of Waste Equipment by Private
Users in the European Union: This symbol on the product or its
packaging indicates this product must not be disposed of with other
household waste. Instead, it is the user’s responsibility to dispose of
their waste equipment by handing it over to a designated collection
point for the recycling of waste electrical and electronic equipment.
The separate collection and recycling of your waste equipment at
the time of disposal will help to conserve natural resources and
ensure that it is recycled in a manner that protects human health
and the environment. For more information about where you can
drop off your waste equipment for recycling, please contact your
local city office, your household waste disposal service or location
where you purchased the product.

14
Declaration of Conformity:
Product: Tactic AnyLink SLT 2.4GHz Radio Adapter Item number:
TACJ2000
Equipment class: 1
Tactic AnyLink SLT 2.4GHz Radio Adapter:
The objects of the declaration described here are in conformity with
the requirements of the specifications listed below, following the
provisions of the European 2006/95/EC Low Voltage Directive:
EN 60950-1:2006 + A11: 2009 + A1: 2010
The objects of the declaration described here are in conformity with
the requirements of the specifications listed below, following the
provisions of the European R&TTE directive 1995/5/EC:
ETSI EN 300 328 V1.7.1 (2006-10)
Technical requirements for radio equipment
ETSI EN 301 489-1 V1.8.1 (2008-04), 301 489-17 V2.1.1 (2009-05)
General EMC requirements for radio equipment
Tactic
c/o Hobbico®, Inc.
2904 Research Road
Champaign, IL USA 61826
CE COMPLIANCE INFORMATION FOR THE EUROPEAN UNION
The associated regulatory agencies of the following countries recognize the noted certifications
for this product as authorized for sale and use.
UK DE DK BG SE FI
EE LV LT PL CZ SK HU
RO SI AT IT ES PT IE
NL LU MT CY GR
1313

15
1-YEAR LIMITED WARRANTY – *U.S.A. AND CANADA ONLY
Tactic warrants this product to be free from defects in materials and
workmanship for a period of one (1) year from the date of purchase. During
that period, Tactic will, at its option, repair or replace without service charge
any product deemed defective due to those causes. You will be required to
provide proof of purchase (invoice or receipt). This warranty does not cover
damage caused by abuse, misuse, alteration or accident. If there is damage
stemming from these causes within the stated warranty period, Tactic will,
at its option, repair or replace it for a service charge not greater than 50%
of its then current retail list price. Be sure to include your daytime telephone
number in case we need to contact you about your repair. This warranty
gives you specific rights. You may have other rights, which vary from state
to state.
For service on your Tactic product, send it post paid and insured to:
HOBBY SERVICES
3002 N. Apollo Dr., Suite 1
Champaign, IL 61822
Tel: [phone] (9:00am - 5:00pm CST, M-F)
E-mail: [e-mail]
●This product is suitable only for people of 14 years and older.
This is not a toy!
●WARNING: CHOKING HAZARD - May contain small parts.
Keep away from children under 3 years. Please retain
packaging for future reference.
●No part of this manual may be reproduced in any form without
prior permission.
●The contents of this manual are subject to change without
prior notice.
●Tactic is not responsible for the use of this product.
© 2012 Hobbico, Inc. Made in China TACJ2000MNL v2.0
tacticrc.com
Tx-Ready.com Patent Pending
