tado° Smart AC Control User manual
START HERE
2 3
WELCOME
Hello!
Meet your tado° Smart AC Control. Instead of using a remote control you can now control your air
conditioner with the tado° mobile app and let it adapt to you and your fellow residents’ location.
This guide will introduce the Smart AC Control to you and give an overview of the functions.
4 5
Adhesive strips
for wall mounting
USB power plug
Micro USB power cord
US adaptor UK adaptor EU adaptor
ACCESSORIES
LED touch display to show current information
and settings
Infrared (IR) control signal emission window
Micro USB connector for power supply
Table Mount Cable Exit
Wall Mount Cable Exit
Areas for adhesive strips
Cable guides
DEVICE
6 7
GET STARTED:
1. DOWNLOAD THE MOBILE APP 2. INSTALL VIA MOBILE APP
8 9
beep!
3. SET YOUR SMART SCHEDULE
meet your needs.
Choose your AC settings for when you are home.
Set your wake-up and bed times.
The tado° Smart AC Control needs direct visual contact to your air conditioner just like your remote
control. Please make sure that you do not block the tado° when interacting with it.
IMPORTANT
Modes Times
20°
Home
Off
OFF
Sleep
Away
Living room
100%8:42 AM
HOME MODES
AWAY MODE
Add home mode
Add sleep mode
SLEEP MODES
Off
Off
Edit DoneCancel
Mode
Always Active
Start 7:00 AM
10:00 PMEnd
20°
Away active if nobody is home
100%8:42 AM
10:00 PM7:00 AM
10 11
3 SEC3 SEC
ACTIVATE AND SKIP BETWEEN MENU PAGES
Touch the front of the device to activate the
display and skip between the individual settings
pages.
Current
Temperature
Current tado°
Mode
AC ON / OFF AC Mode
Touch the up or down arrow to change the
settings on screen.
Skipping to next
menu page
Waiting for the
CHANGE SETTINGS
or
Setting changes will only be kept temporarily
until the next mode is activated.
12 13
2 SEC
QUICKLY TURN AC POWER ON OR OFF
Press and hold for 2 seconds to toggle AC
MOBILE APP – HOME SCREEN
Outside Weather
Room Temperature
Room Humidity
AC Settings
Residents’ Relative
Location
Message Timeline
You have changed the Home Mode.
8:08 AM:
14 15
MOBILE APP – NAVIGATION
Gives an overview of all
rooms with tado° Smart
AC Control and access
to the app settings.
Lets you quickly change
the AC settings of the
current mode.
AC settings and time
blocks.
MOBILE APP – CONTROL PANEL
Open the control panel by pressing the AC
settings on the main screen.
The settings will be kept until you reset it.
Presence detection and time blocks will be
ignored.
Set a timer to keep the setting changes for a
Here you can change the AC settings for your
depending on your AC.
Version 2.0.1
22Cool
Living room
28
OFF
Bedroom
100%8:08 AM
32°
26 55%
Living room
22°
AC Power
Apply
Cancel
ON
Reset all settings
Timer
Manual
Cool
Fan
Heat
Dry
Auto
You have changed the Home Mode.
8:08 AM:
32°
26 55%
Living room
22°
AC Power
Apply
Cancel
ON
Reset all settings
Timer
Manual
Cool
Fan
Heat
Dry
Auto
16 17
As long as somebody is home then these
modes are active – which depends on the
scheduled time blocks.
These modes control the AC operation at night
when somebody is home. Choose if the AC
Becomes active as soon as everybody has left
home. Decide on the AC settings for this mode.
MOBILE APP – AUTOMATIC MODES
Each mode can have its own AC settings.
MOBILE APP – SMART SCHEDULE
each time block. These blocks only become
active if somebody is detected at home.
Create schedules for each individual weekday or
one for all weekdays.
Back Monday Edit
00:00 – 07:00
07:00 – 12:00
12:00 – 22:00
22:00 – 24:00
Off
22°
Away active if nobody is home
100%8:08 AM
Off
18
DISPLAY ELEMENTS
Somebody is
detected at home.
Using temporary
changes
Somebody is
detected at home and
Sleep is scheduled.
Using temporary
changes
Nobody is detected
at home.
Using temporary
changes
Timer is counting
down.
Settings kept
permanently
Current room temperature
AC Power is OFF AC Power is ON
AC Mode COOL AC Mode FAN
(Not all ACs)
AC Mode HEAT
(Not all ACs)
AC Mode AUTO
(Not all ACs)
AC Mode DRY
(Not all ACs) Setpoint temperature
Fan Speed
Fan Speed
AUTOMATIC
Swing ON Swing OFF
19
20 21
Your Smart AC Control is
updating.
Just wait until the update is done. This
can take up to 15 minutes.
Your Smart AC Control is
Start the installation in your tado° app.
Your Smart AC Control is
scanning for Wi-Fi networks.
Please wait for a few seconds until the
scan is done.
Wi-Fi SSID of this Smart AC
Control.
This is the name of the Wi-Fi network you
Smart AC Control (e.g. tado4567).
A phone or table is connected
to the Access Point of the
Smart AC Control.
Proceed with the Setup in your Mobile
App and type in your Wi-Fi credentials.
DISPLAY ELEMENTS
Your Smart AC Control is
connecting to your local Wi-Fi
network.
Just wait until it is connected to your
Wi-Fi network.
Your Smart AC Control is
connected to our server.
Smart AC Control cannot
connect to the Wi-Fi.
Make sure your Wi-Fi is running and you
typed in the correct Wi-Fi credentials.
If you keep getting this error please use
tado.com/support
Smart AC Control cannot
connect to the Internet.
Make sure you can reach the Internet
22 23
Problems or questions?
SUPPORT
Limited Warranty will not apply to the extent prohibited by applicable law. For a full description of your
legal rights you should refer to the laws applicable in your jurisdiction and you may wish to contact a
relevant consumer advisory service.
enclosed product that the product contained in this box (“Product”) will be free from defects in
materials and workmanship for a period of two (2) years (or one (1) year for Factory Refurbished
Products) from the date of delivery following the original retail purchase (the “Warranty Period”). If
return of the Product and refund the money actually paid by the original purchaser for the Product.
your sole and exclusive remedy for breach of this Limited Warranty. Any Product that has either been
repaired or replaced under this Limited Warranty will be covered by the terms of this Limited Warranty
for the longer of ninety (90) days from the date of delivery or the remaining Warranty Period. This
Period will not be extended in duration or expanded in coverage for any such transfer.
receive a full refund.
LIMITED WARRANTY &WW LIABILITY
24 25
of the intention to claim by visiting tado.com/support during the Warranty Period and providing a
below). tado° will bear all costs of return shipping to owner and will reimburse any shipping costs
shipping costs.
This warranty does not cover the following (collectively “Ineligible Products”): Products marked
the product). tado° recommends that you use only authorized service providers for maintenance or
invalidate this Limited Warranty.
ANY IMPLIED WARRANTIES OR CONDITIONS TO THE DURATION OF THIS LIMITED WARRANTY.
FROM OR RELATED TO THIS LIMITED WARRANTY OR THE PRODUCT WILL NOT EXCEED THE
AMOUNT ACTUALLY PAID FOR THE PRODUCT BY THE ORIGINAL PURCHASER.
THE TADO° ONLINE SERVICES (“SERVICES”) PROVIDE YOU INFORMATION (“PRODUCT
INFORMATION”) REGARDING YOUR TADO PRODUCTS OR OTHER PERIPHERALS CONNECTED
TO YOUR PRODUCTS (“PRODUCT PERIPHERALS”). THE TYPE OF PRODUCT PERIPHERALS
THAT MAY BE CONNECTED TO YOUR PRODUCT MAY CHANGE FROM TIME TO TIME. WITHOUT
OR PRODUCT. PRODUCT INFORMATION PROVIDED BY THE SERVICES IS NOT INTENDED
NOTIFICATION PROVIDED THROUGH THE SERVICE IS NOT INTENDED AS A SUBSTITUTE FOR
PARTY MONITORING SERVICE THAT MONITORS ALARM STATE.
Some jurisdictions do not allow limitations on how long an implied warranty lasts or exclusions/limitations
26 27
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
operation.
authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
proximity to the antenna shall not be less than 20cm during normal operation.
All rights reserved.
tado.com
WR-UG-03
Table of contents
Popular Remote Control manuals by other brands
Panasonic
Panasonic CZ-RD52CP user manual
Jay electronique

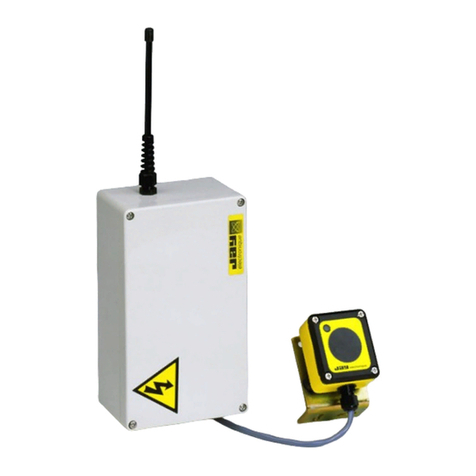

Jay electronique UR Series Installation and user technical manual
