TAG Heuer DOCKING GPS - GSM User manual

______________________________
P R O F E S S I O N A L T I M I N G
DOCKING GPS – GSM
User Manual
Version 07/2012

1. General
The GPS Docking is equipped with a Li-Ion accumulator ensuring exceptional autonomy for the
Chronoprinter 540, even at very low temperatures (-20°C / -4° F).
A satellite detection module « GPS » ensures the automatic Time of Day synchronization and
precision control.
A GSM communication modem allows wireless connection between two CP540’s through the mobile
telephone network.
RESET button - in case of a problem with the Docking. To RESET, press the mini contact located
under the identification plate of the Docking.
Use a small blunt instrument to gently depress.
Input
« Master Slave »
S
y
stem A
Output
« Master Slave »
S
y
stem A

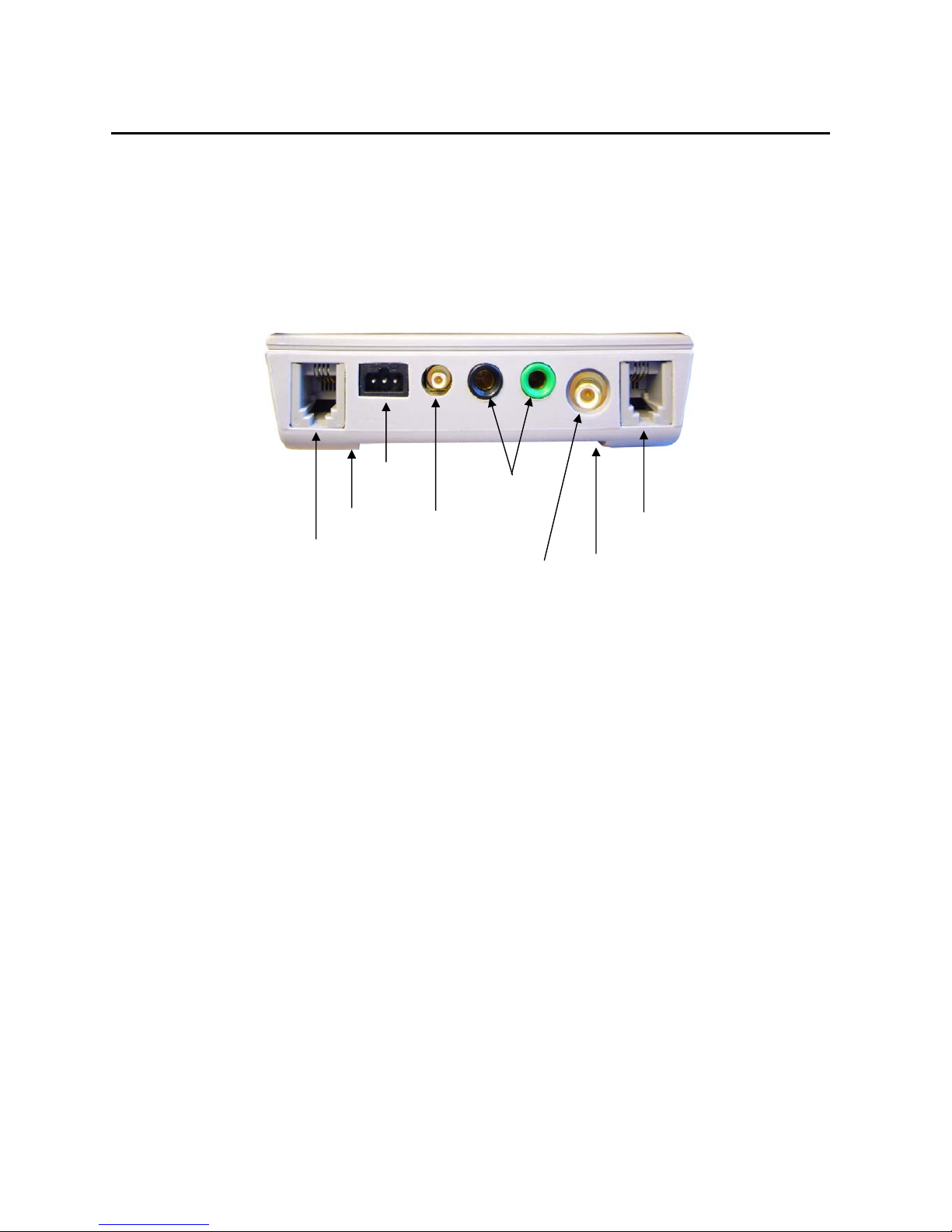

Power
Antenna GPS
Connector
Output
Top Minute
Charge LED
Reset
Antenna GSM
Connector

2. Important recommendation
To guarantee the security of your timekeeping, it is necessary to use your CP 540 with the internal
batteries in a charged state
Do not forget to charge the Docking before its use (see « How to charge the Docking »)
If the system is not used for several days, we recommend that you disconnect the Docking from the
Chronoprinter, and remove the batteries from the CP 540.
Do not forget to replace the « red blanking plug into the DOCKING » on the CP 540 to protect its
connector.
Protect the Docking with its original packing.
We recommend you to use the synchronization by GPS between two CP 540, which are
communicating Modem to Modem. The precision is thus guaranteed for your timing.
If you do not wish to use the Synchronization by GPS, please be sure to input the same date and time
on both systems before synchronizing them.
IMPORTANT
It is essential to update the software inside the CP 540 + Docking before initial use.
You will find the software version on our internet site (www.tagheuer-timing.com).
3. Docking connection
Remove the « DOCKING red blanking plug » from the CP 540 which gives access to the docking
connector.
Place the « DOCKING red blanking plug » on the Docking at the reserved position under the female
connector.
Place the CP 540 on the DOCKING and press firmly to ensure a good connection.

4. How to Use GPS
Carefully connect the GPS antenna cable in the socket (21).
The GPS antenna must be installed in a clear open place (outdoor) with an unobstructed view of the
sky in order to correctly receive the satellite signals generated by the GPS system.
Menu GPS (ON/OFF)
oSelect GPS ON and confirm
oSelect the time difference between GMT time and your time zone (ex GMT – 2, in the west of
GMT or GMT + 2 in the east of GMT).
oValidate your choice (this information is stored in memory).
oThe display shows initially GPS Searching, then GPS Active as soon as it locates several
satellites.
oGPS Searching is also printed with the indication GPS UTC Delta = 16 sec. Then GPS
ready for Synchro.
oValidate 2times under GSP to make the Synchro (mode Synchro)
The synchronization of Time of the Day with the correct date is automatically made.
REMARK
UTC TIME
The time provided by the satellites is GPS (terrestrial hours) of a certain number of seconds
(16 seconds since July 2012).
This information is transmitted by satellites every 12,5 mins.
It remains in the GPS almanac, this allows fast synchronization.
WARNING
When you remove the GPS antenna connector, hold the connector firmly. Never remove or hold
by the cable.

5. Remarks on GPS
►If GPS signal is Lost (poor positioning of the antenna), the printer indicates:
- Synchro GPS lost
- The time of day
The display time of day will flicker along with GPS LOST.
If the GPS signal is synchronized again, the printer indicates (repositioning of the antenna)
- GPS Active
- Synchro GPS found
- Time of the day
- DEV 3.0 µsec (for example)
Remark:
Automatic resynchronization of the time base of the CP 540 (temporary loss of GPS signal) is
acceptable in conditions where the drift of the time does not exceed 100 µsec (1/10'000 of a
second).
In case of resynchronization, the drift (DEV) is always printed.
If the drift value is over 100 µsec, the base time of the CP 540 is the reference for the rest of the
time keeping. The GPS can be switched OFF.
►If the Docking is disconnected the printers indicates:
- Docking disconnected
- Synchro GPS lost
- Time of the day
When the Docking is reconnected the printer indicates
- Docking Connected with its serial number and Software version
- GPS Searching with GPS UTC Delta = 16sec
- GPS Active
- Synchro GPS founded
- Time of the Day
- DEV 2.4 µsec (for example)

6. How to use the GPRS transmission
ATTENTION
The SIM Card should not have PIN number. Please disable any SIM PINs via your SIM
provider instructions.
6.1.Software Setup

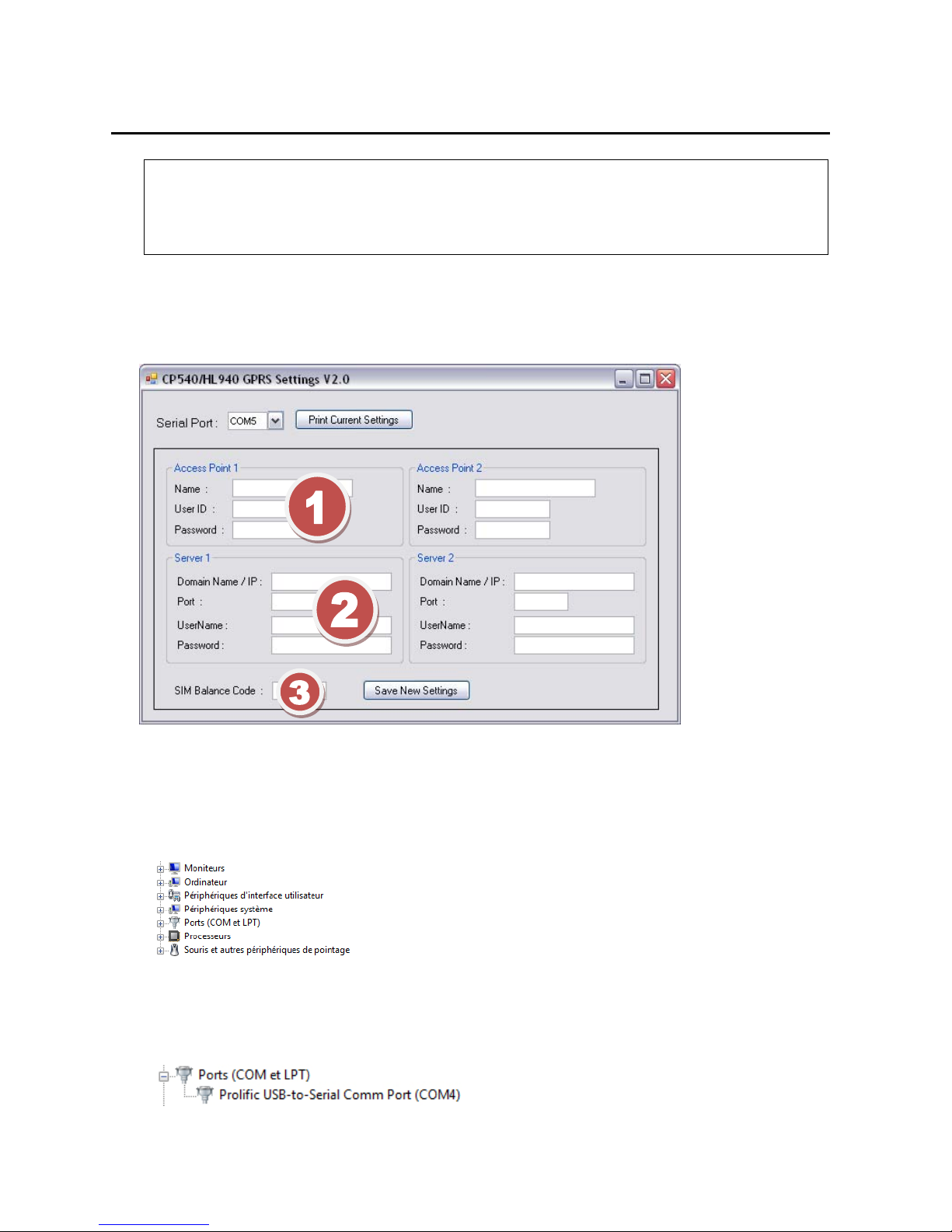

In order to set all connection information into your device. Connect your Chronoprinter 540 on your
laptop and fire up the software: GPRS_settings.exe
Select the COM Port attribuated by your computer.
Open up Device Manager. Right click on "My Computer"
and select properties (at the bottom of the list that pops up).
Click on the "Hardware" tab.
Click on the "Device Manager" button and a something similiar to this picture should appear.
Click on the '+' sign on the left of the "Ports (COM & LPT) to expand it.
The list of printer and Serial ports available will be shown.
Make a note of those.

- 1) The Acces Point:
This information is provided by your mobile broadband supplier.
Here are some example below (note that they can change anytime).
Please refer to your SIM Card supplier or phone dealer.
- 2) The Server:

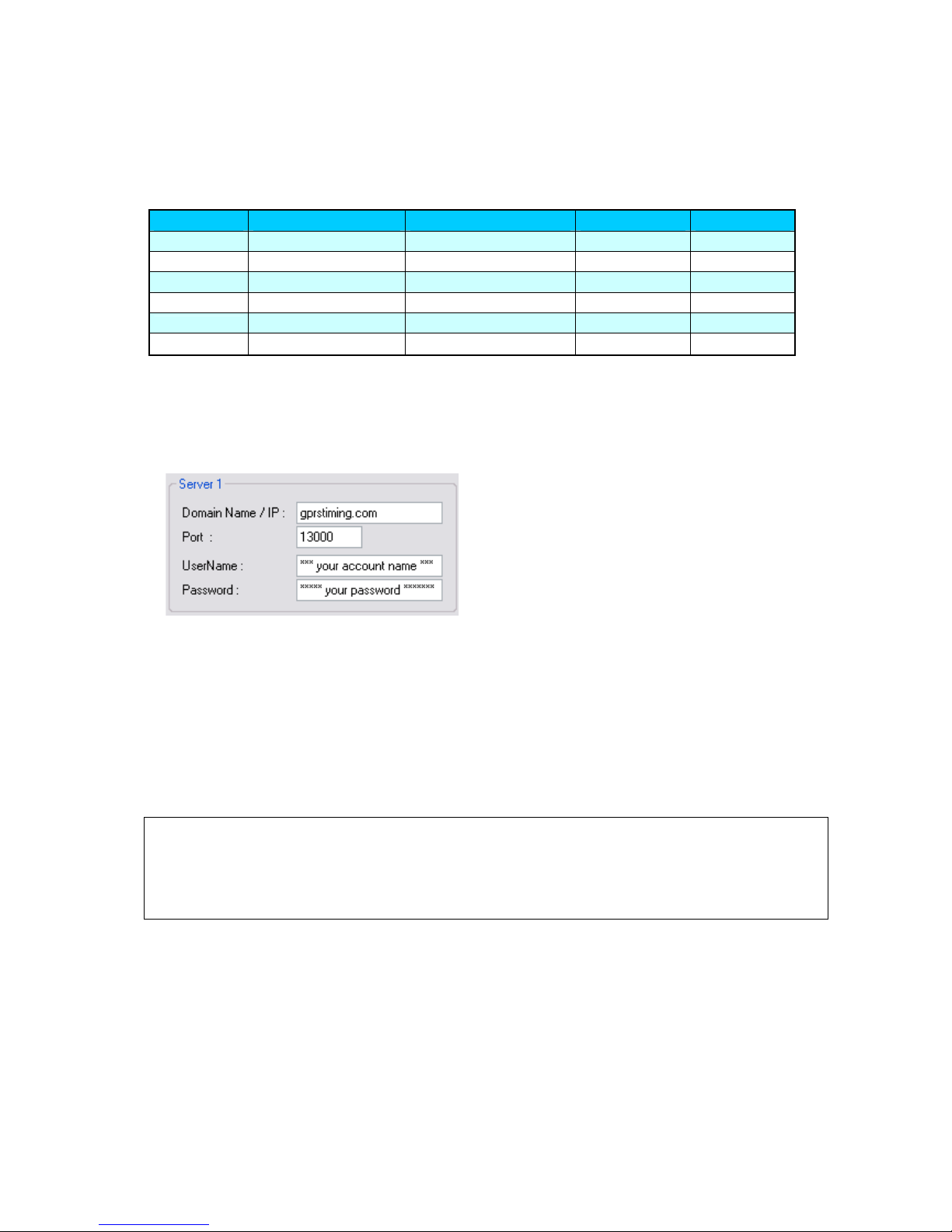

If you use the GPRS Server provided by TAG Heuer Professional Timing, the following settings
won’t change:
Please contact use on info tagheuer-timing.com if you need a new account.
- 3) SIM Balance code:
It’s the Prepaid internet Data sim balance check.
This call number (or code) is provided by your mobile broadband provider.
ATTENTION
Ensure that you saved all settings inside your device.
Wait until the printed information comes on the Chronoprinter 540
Country Operator Acces Point Name Username / ID Password
France Bouygues Telecom mmsbouygtel.com [blank] [blank]
Italy Vodafone Omnitel web.omnitel.it [blank] [blank]
UK Orange UK orangeinternet [blank] [blank]
Switzerland Swisscom gprs.swisscom.ch [blank] [blank]
Poland ERA Tak Tak erainternet [blank] [blank]
Germany D1 T-Mobile internet.t-d1.de td1 gprs

6.2.GPRS Computer interface
Fire up “GPRS Interface_vx.x.x.exe”
This Software should run on the background (local machine) as the Timing Software.
Software ID Number: Computer ID set on the server
Server Address: gprstiming.com
Server Port: 13000
User name and Password: Your personal account ID
6.3.Timing Software Setup
On your Timekeeping software: Set the Timing Device to CP540 with the IP Address 127.0.0.1 if the Software
is running on the Computer were the CP540 Server is launched.
Setup in MSport Pro
Setup in Elite V3
The IP address 127.0.0.1 is a special purpose address reserved for use on each computer. 127.0.0.1 is
conventionally a computer's loopback address. Network software and utilities can use 127.0.0.1 to access a
local computer's TCP/IP network resources.
You are now ready to receive your Timing data with the GPRS linkage.

How to insert the SIM Card in the Docking
Use a Standard SIM Card (annual subscription) or with pre-payment.
To guarantee a bidirectional communication between CP 540’s, it is necessary to have two GSM Docking
stations, with SIM cards with a different telephone number.
Proceed to the following steps:
- Unscrew the 5 screws on the back of the Docking with a Phillips screwdriver N° 1.
- Carefully, remove the upper cover.
- Place the SIM Card from the top into the support, with the 45° angle at Top Left. Push the card gently
downwards.
- Replace the upper cover, return the Docking and secure gently the 5 screws while checking that the
two parts are well positioned. Press on the top of the Docking when you tighten the screws.
WARNING
Tighten all the screw slightly then, while being conscious that you screw in plastic, tighten a little
more, without over tightening (risk of damage to the plastic).
We advise against the repeated opening and the closing of the Docking.
For the Pre-paid SIM Card, it is generally possible to top-up the SIM Card via the internet.
Choose a telecom company with wider broadcast coverage.
It is also possible to have a SIM Card with an annual subscription.
Do not forget to write your phone number on the back of the Docking (for top up prepaid cards)

7. Information
The GSM – GPS Docking has « banana » output connector to provide a signal TOP-MINUTE which is
useful to synchronize other timing systems.
If the GPS is used only for the CP 540, it is recommended to wait 4 – 5 mins before to switching it
OFF (« memorize » the GPS precision)
The GSM – GPS Docking has an Input / output « Master / Slave ». This mode of synchronization
between several CP 540’s is very useful for the timekeeper, to guarantee absolute precision between
different systems.
For example: System A (Master) and the back-up system B (Slave).
Connect the CP 540 A « Master » to CP 540 B « Slave » with the special cable HL540-11.
The CP 540 A is synchronized with the Time of Day, manually or with GPS.
The CP 540 B is automatically synchronized by the CP 540 A by choosing Master/Slave in the
Synchro Menu.
If the Main system A is disconnected or communication fails, the back-up system B will operate with its
own time of base.
The Drift (DEV) described later « Synchronization by GPS » is also into the mode. Thus, if the Main
System A is again operational, it will take its main function as Master if the Drift is lower that 100 µsec.
All information is of course printed.

8. How to charge the Docking accumulator
The Docking can be charged seperately or connected to a CP 540.
Charge the docking with the power supply HL 540-1 from the CP 540
Connect the power supply to the POWER connector of the Docking (connector 3 poles).
The LED located at the bottom of the Docking allows you to see the charging status.
oLED is red during the charge (6 hours for a complete charge)
oLED is green when the docking is fully charged
When the CP 540 is used with the Docking, the external power supply should be connected to the CP
540.
WARNING
The Docking should be not charged in temperatures lower than 0°C / 32°F.
Remarks:
The charging status of the Docking is displayed on the CP540 LCD if charged together.
If the Docking is too discharged, the batteries of the CP 540 will power the system. If the power is too
low, the Time on the LCD will flicker and the printer will print « Low battery » before to switching OFF
automatically.
When the charge indicator of the Docking shows 50% on the LCD (Docking Menu), you still have at least
4 hours of autonomy.

9. Technical specification
General oOperating condition -20°C to +60°C
oExternal power supply 12Vdc
oTop minute output (optocoupler)
oConnector IN / OUT for Master / Slave (2 x RJ13)
Accumulator
oType 7.4V Li-Po 2700mAh
oCharging condition 0° to +40°C
oCharging current 500mA (~5.5 hours)
GPS oPrecision +/- 50 n seconds (+/- 50 x 10-9 sec)
oCurrent consumption when activated 30 mA (when GPS is actived)
o12 channels, continuous tracking receiver.
oConnector for external antenna
GSM oQuad-band EGSM 850 / 900 / 1800 / 1900 MHz
oOutput Power
Class 4 (2W) from 850 / 900 MHz
Class 1 (1W) from 1800 / 1900 MHz
oData transmission
CDS, 9600 Bds, V.92, V.110 (Modem)
GPRS Class 10
oStandby consumption : 63 mA
oAverage consumption in Modem Mode: 197 mA
oConnector for external antenna

TAG Heuer
PROFESSIONAL TIMING
6A Louis-Joseph Chevrolet
2300 la Chaux-de-Fonds
Switzerland
Tel : [phone]
Fax : [phone]
E-mail: [email protected]
Http: //www.tagheuer-timing.com
