tagarno FHD UNO User manual

VERSION: 1.8 | 2019-05-08
1
Digital Microscope Solutions
CONTENTS
1. INTENDED USE 2
2. WARNINGS 2
3. TIPS 2
4. YOU HAVE RECEIVED 3
5. ASSEMBLING 4
6. CONNECTING 6
7. OPERATION 7
8. SETUP MENU 10
9. SYSTEM UPDATE 15
MANUAL | TAGARNO FHD UNO
10. LICENSE ACTIVATION 17
11. TECHNICAL SPECIFICATIONS 18
12. SYSTEM REQUIREMENTS 21
13. MAINTENANCE 22
14. WARRANTY 22
15. LICENSE AGREEMENT 22
16. ERGONOMIC RECOMMENDATIONS 22
17. DECLARATION OF CONFORMITY 23
18. COMPLIANCE STATEMENTS 24
Go to tagarno.com/productmanuals to nd manuals and tutorial videos.

2
1. Read the manual before you use the product
2. Use the product only as specied, or the protection supplied by the product can
be compromised
3. Do not position the equipment so that it is difcult to operate the disconnecting
device (appliance inlet of external power supply, equipment input connector)
4. If fluids are spilled on the product, turn the system off immediately by pulling the power
supply out of the electrical outlet
5. In case of re close to the microscope, please turn off and disconnect the system
6. Avoid subjecting the lens to sharp or hard objects
7. Please do not connect the microscope, if visible damages appear
8. Do not dismantle any parts of the microscope, except where noted in the manual
9. Never disassemble or clean internal optical surfaces
10. Use only the power supply provided from TAGARNO
11. Always turn off the system before unplugging, when possible
WARNINGS
The product is a digital magnifying system consisting of a camera unit, PCBs, mechanical
parts and a power supply. The product is intended for marketing worldwide and is designed for
manual visual inspection.
INTENDED USE
Read all safety information before you use the product.
Please pay attention when you see a warning label on the product.
This product is for indoor use only.
You must not discard this electrical/electronic product in domestic household waste.
Please dispose at your local recycling centre.
1. Avoid touching the lens glass
2. Use both hands to move the XY table
3. Use both hands to adjust the height of the product
1. INTENDED USE
2. WARNINGS
3. TIPS
12. Do not touch the light source. It gets hot when using the product
13. Do not look directly into the light source
14. Connect the power plug to a grounded power outlet
WARNING: This is a Class A product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take appropriate measures.

3
Rod, washers, screws USB memory stickManual Camera arm
USB 3.0 A-B cablePower supplyHexagon tool
4. YOU HAVE RECEIVED
OPTIONS
XPLUS FHD
control box
XKEY control box Base XY table
HDMI - HDMI cable

4
TIP!
Find the "How to Install" tutorial video here:
www.tagarno.com/installuno
Assemble base and rod with washer and screw.
Lock the camera arm and screw the washer on top of the rod.
Place the camera arm on the rod.
The complete microscope with base.
ASSEMBLING | BASE (1/2)
5. ASSEMBLING

5

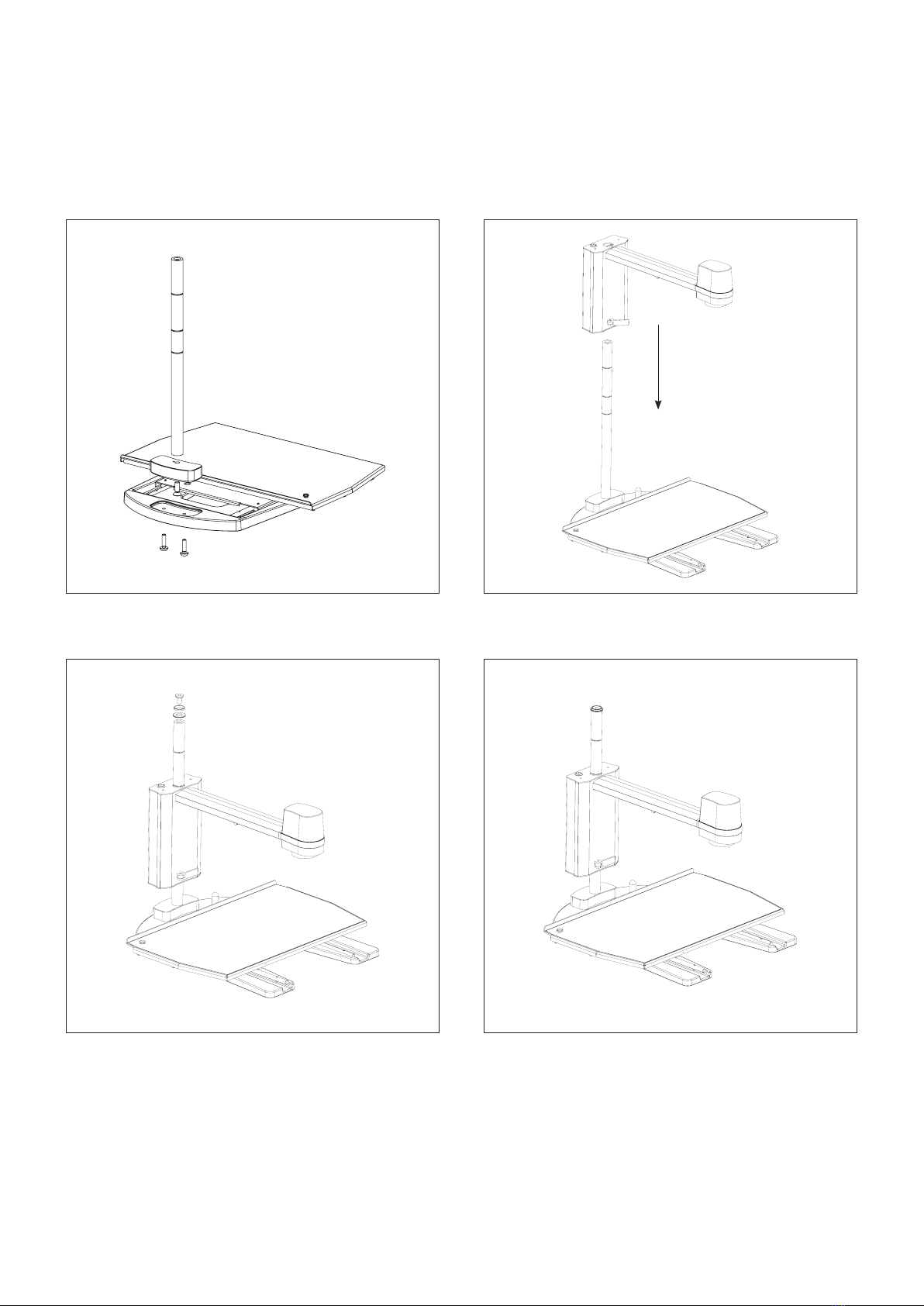

Assemble XY table, block and rod with three screws.
Lock the camera arm and screw the washers on top of the rod.
Place the camera arm on the rod.
The complete microscope with XY table.
ASSEMBLING | XY TABLE (2/2)

6
5.
6.
8.
1.
2.
7.
3.
4.
6. CONNECTING
CONNECTING | BASE + XY TABLE (1/3)
Connect USB 2.0 (see options below) (1+2), control box (3),
monitor (4), ethernet (5), USB 3.0 (6), ESD (Only black models) (7)
and power supply (8) in that order.
USB 2.0 (1+2): Keyboard, mouse, USB key, USB hard drive, scanner
Connect keyboard and mouse in the USB 2.0 inputs (only for use
with some applications). Keyboard and mouse need to be HID
compliant.
You can also use the USB inputs for a USB key, USB hard drive
and/or barcode scanner. If necessary use a USB hub to get
multiple USB ports.
Connector Description Type Connect to Specication
1+2 USB 2.0 input USB 2.0 Type A Socket Keyboard
Mouse
USB key
USB hard drive
Barcode scanner
USB 2.0 Host. Output: 5V 500mA
3Control box D-SUB 9-Pin Female Control box Output: 3.3V 6A Max
Use only control boxes supplied by TAGARNO
4Output HDMI Standard Type A Monitor HDMI Out 1080p60
5Ethernet RJ-45 Ethernet wall socket Ethernet LAN, 100BASE-TX/1000BASE-T
6USB 3.0 output USB 3.0 Type B Socket Computer USB 3.0 Device. Self-powered
7ESD Snap Socket, 10mm ESD Grounding point ESD Grounding point. Only black models
8Power supply
(DC)
DC Jack Power socket Input: 12V 1.3A
Use only the power supply provided by TAGARNO:
Brand/Model: Mean Well/GSM40A12
Protection Class I
Input: 100-240V 1.0-0.5A, 50/60Hz
Overvoltage category ll
Output: 12V 3.34A Max
HDMI - HDMI cable
Live image
The microscope can be connected directly to a monitor.
Live image and image capturing through USB3.0 / 3rd part software.
See system recommended (third-party) under system requirements.
You are still able to connect monitor(s) as described above.
Live image
/ image capture
USB3.0

7
TIP!
Find the "How to Use" tutorial video here:
www.tagarno.com/useuno
Power on/off.
OPERATION | BASE + XY TABLE (1/3)
Lock the camera arm at the ring that ts the lens you are using.Adjust the height of the camera arm according to the mounted lens.
The three coloured rings on the rod mark the correct focus height for
a +3, +4 or +5 lens respectively.
Blue
Red
Black
7. OPERATION
Lens Ring colour Lens to object distance
+3 Blue 333 mm/13.1”
+4 Red 250 mm/9.8”
+5 Black 200 mm/7.9”
Lens to object distance with a +10 lens is 100 mm/3.9”.

8
XPLUS FHD Control box for TAGARNO FHD functions.
Do only connect equipment distributed by TAGARNO.
Dimensions
H: 45mm/1.8" | W: 120mm/4.7" | D: 150mm/5.9".
On screen display (OSD)
The on-screen display provides you with the relevant information
when you push a button on the control box or Setup menu.
For instance if you change the level of magnication, the white
balance, iris, etc. In this way you always know which function you are
activating and which parameters you are using.
Setup menu
Access the Setup menu by pressing the round center
button for 1 second. See separate section regarding
the Setup menu.
Snapshot function
To take a picture and transfer it to USB or your microscope
internal storage, press the image capture button until you
hear a beep. Long press on the same button will save an
image with graphics, causing the live image to freeze for a
few seconds. This button also turns Auto Snapshot on/off
when activated via the Setup menu.
When taking a picture, an information window will appear
for a few seconds showing the le name and storage
location.
Zoom
Push this button on the control box to zoom in.
Push this button on the control box to zoom out.
The magnication level will show via On Screen Display.
Auto exposure mode
Auto exposure mode prioritizes the exposure time
which is optimal for the selected video format. In good
lighting conditions the microscope will reduce the iris
instead of the exposure time to improve the depth of view.
Manual focus
Turn autofocus off by pushing both zoom buttons (plus
and minus) on the control box at the same time until you
hear a beep. You can now adjust focus manually with the
help of the zoom buttons.
Push this button on the control box to adjust focus if you
wish to focus on something very close.
Push this button on the control box to adjust focus if you
wish to focus on something that is farther away.
To turn the autofocus on again, simply push both zoom
buttons (plus and minus) at the same time until you hear
a beep. The focus values will show via On Screen Display.
Save image on USB memory stick
The image will be saved on the inserted USB memory stick.
However, if your USB memory stick is not compatible with your
microscope, a pop-up warning will instead ask you to format your
USB memory stick (for more information, see section 5 in Set-up
Menu).
When clicking OK, a second pop-up will ask you to conrm your
selection. All les on the USB memory stick will be deleted once
formatting begins. Formatting time will vary.
Press the image capture button again to take a new photo and
save it directly to your USB memory stick.
Save image on microscope
If a USB memory stick is not attached, the image is saved internally
on the microscope, provided the share le mode is turned on.
Otherwise, an error message will appear and you are not able to
save images.
To access the les on the microscope, follow descriptions regarding
le sharing in section 2 in SETUP MENU.
OPERATION | XPLUS FHD CONTROL BOX (2/3)

9
Memory Function (Preset Button)
To save a favourite setting, press the "P" button.
A Preset Manager menu appears. Here you can choose
which of the 6 presets to use/overwrite, this is done by
marking and choosing save for the given preset. To prevent
users from accidentally overwriting a saved preset, please
see section Setup Menu.
To use a preset, simply press "P" and press the center
button to choose the preset you want to recall.
The preset values will show via On Screen Display.
To rename a preset, simply choose the given preset in the
Preset Manager and press "F2". Complete the renaming by
pressing "Enter". Please note that presets can be renamed
regardless of whether the presets are locked or not.
Laser pointer (TAGARNO FHD TREND)
Press this button to turn the laser pointer on/off.
You will hear a warning when turning the laser pointer on.
NB! Never look directly into the laser pointer. The laser
pointer can only be used with lenses +3, +4 and +5.
If you are using another TAGARNO unit than TAGARNO
FHD TREND, a window on the screen will provide you with
information.
Light on/off
Press and hold this button to turn the light on/off.
When the light is turned on/off, a white balance calibration
will be performed automatically.
Application shortcut
Program an individual application shortcut by long-
pressing the button and choosing a listed application.
You are now able to quickly access this application by
short-pressing the button.
Factory default directs to the Ruler application with both
horizontal og vertical ruler activated.
Multi Function Buttons
When the Setup menu is deactivated, you are able to use
the Multi Function Buttons to control the iris, gain and
exposure time.
Press the center button to switch between auto and
manual exposure mode.
491190 - Folie til XPLUS FHD - 13-06-2017
Zoom
Push this button on the control box to zoom in.
Push this button on the control box to zoom out.
The magnication level will show via On Screen Display.
Manual Focus
Turn autofocus off by pushing both zoom buttons (plus
and minus) on the control box at the same time. You
can now adjust focus manually with the help of the
zoom buttons.
Push this button on the control box to adjust focus if you
wish to focus on something very close.
Push this button on the control box to adjust focus if you
wish to focus on something that is farther away.
To turn the autofocus on again, simply push both zoom
buttons (plus and minus) at the same time.
The focus values will show via On Screen Display.
Multi Function Buttons
Use the Multi Function Buttons to control the iris, gain
and exposure time.
Press the center button to switch between auto and
manual exposure mode. When the On Screen Display is
open, all four arrows can be used for navigating the menu
and adjustment of settings.
The window will automatically close after 3 seconds
inactivity.
XKEY Control box for TAGARNO FHD functions.
Do only connect equipment distributed by TAGARNO.
Dimensions
H: 22mm/0.87" | B: 61mm/2.40" | D: 100mm/3.94"
OPERATION | XPLUS FHD + XKEY CONTROL BOX (3/3)

10
The setup menu in your TAGARNO FHD microscope provides you
with 2 entrances to setup your microscope exactly as you like it.
Access the Setup menu by pressing the round center
button on the control box for approx. 1 second.
The 5 possibilities are:
1. Camera settings 2. General settings
3. Applications 4. Information
5. On/off
To navigate in the set-up menu, use the multi function
buttons on the control box.
When applicable, sliding the button to the right, will activate
the feature. Sliding the button left will deactivate the
functionality.
Exit setup menu
You can always exit the setup menu by pressing the center button on
the control box for 1 second or by choosing Exit in the Setup menu.
Same procedure is valid regardless of the menu option accessed.
1. CAMERA SETTINGS
1. White balance calibrate
Perform an automatic white balance adjustment in order to get
colors displayed correctly on screen. There must be a white object
present in the camera’s eld of view when the white balance is being
adjusted. A white balance calibration is made each time the camera
is turned on, to adjust to the given light conditions.
NB! If the camera’s eld of view does not contain a white object,
when the unit is turned on, the white balance will be incorrect and it
will be necessary to perform the white balance adjustment process
as described previously.
2. Optimal working distance
This setup works in 3 steps and needs to be carried out on a flat
surface. Take 3 zoom levels into consideration to perform as precise
measurements as possible. The magnication settings prior to
performance will be restored.
3. Closeup Lens
Indicate which lens is mounted on your TAGARNO microscope,
to get the right magnication levels displayed in the On Screen
Display when zooming in and out.
4. Start magnication
Choose the start magnication level you want your TAGARNO
microscope to automatically set when turning your system on.
5. Lock magnication
Lock your magnication level, so your microscope is always
working at your start magnication level and you are not able to
manually zoom in/out.
6. High contrast
This feature can be activated to visually enhance the edges of an
object.Deactivated by default.
7. Wide dynamic range
When this option is selected and auto exposure mode is active, the
camera uses individual exposure settings for dark and light areas. This
option can be useful to reduce glare when inspecting blank objects.
8. Picture ip
Select if you want to display your image on screen as placed below
the camera or flipped 180 degrees horizontally.
9. IR lter
Turn Infrared lter off when using Infrared ring light.
To use regular ring lights turn the Infrared lter on.
10. White balance calibration at LED light change
Switch on if you want an automatic white balance calibration to be
performed when LED light is changed.
Switch off if you do not want an automatic white balance calibration to
be performed when LED light is changed
8. SETUP MENU
SETUP MENU (1/5)

11
11. Video format
Choose between various available video formats:
1080p60 / 1080p50 / 1080p30 / 1080p25
12. Image format
Choose between different image formats when saving an image via
USB. Available formats are TIFF, PNG, JPEG or BMP
13. Image prex
Replace the default image prex (img_) preceding the date and time
stamp in lenames of captured images. This feature requires an
attached keyboard.
14. Assign image name
When this setting is active, the microscope will prompt for an image
name before storing a captured image.
NB! When using an attached scanner to name captured images on the
TAGARNO FHD microscopes we advise that the scanner is connected
directly to one of the two USB ports on the microscope.
It is not recommended to connect the scanner to an attached USB Hub
unless it has been thoroughly tested. The communication through some
hubs can unfortunately introduce data loss resulting in one or more
random characters missing in the scanned image name.
15. Image preview
This feature allows users to quickly inspect and capture images of new
samples. When an image is captured the default behavior is to preview
the image at the center of the display for 5 seconds. Image preview
can now be disabled, which will display a more discrete text box for 3
seconds.
2. GENERAL SETTINGS
1. Ruler color
Set the ruler color to your prefered color choice to separate it from your
displayed object. Choose between 6 different colors: YELLOW, BLUE,
RED, BLACK, WHITE AND GREEN.
2. Lock presets
When this feature is enabled, users are prevented from accidentally
overwriting presets in the Preset manager.
The XPLUS control box can therefore simply be removed. The operator
can instead use an attached numerical USB keyboard to operate the
digital microscope.
3. File share mode
Activate le share mode which enables you to save images in the
internal storage of the microscope. Access the les via computers on
the same network as your microscope.
To minimize security risk, it is highly recommended to disable SMB 1.0
support on any Windows based operating system on your corporate network.
You do this by accessing Programmes and Features in your Control Panel.
Access les saved on microscope
To access the les on the microscope, make sure the Ethernet cable is
correctly connected and follow descriptions below.
NB: The serial number is available on the system label and via the System
information window in the microscope Setup menu.
SETUP MENU (2/5)

12
Access les with Windows operation system:
• Open the File Explorer and type: \\tagarno-snxxxxx
Access les with macOS operation system:
• Open the Connect to server window and type:
smb://tagarno-snxxxxx/
• Press connect
In both cases a window will appear and you can type:
• User name: \public (Windows) or public (MAC)
• Password: pub1234
Double click the images folder and you will be able to save,
view, copy, move and rename images.
4. Auto capture mode
To automatically capture images in a certain interval, activate the auto
image capture mode.
5. Auto interval
Set the function to automatically capture images in a certain interval.
Intervals start from 10 seconds and up. Start/stop the interval capturing
by pressing the image button on the control box.
6. Monitor auto detect
Turn off to manually set monitor width
7. Monitor width
Manually set your monitor width, if you do not wish to use the automatic
monitor auto detect, which is read by default. This automatically
changes the magnication level shown in the OSD. Please note that
manually changing the Monitor width while Monitor auto detect is
enabled, will disable the Monitor auto detect function.
8. System units
Choose to display metrics or imperial units when using the microscope.
9. Numeric format
Here you can select the numeric format based on your preference.
Choose between 1,234.56, 1.234,56 or 1 234,56.
10. System language
The following languages are available as system language:
Chinese, Danish, English, French, German, Hungarian, Italian, Japanese,
Korean, Polish, Romanian, Russian and Spanish.
11. Keyboard layout
Select your horizontally language by pressing buttons left or right on the
XPLUS control box. The available languages are listed alphabetically.
The microscope is by default set to GB. The available languages are:
BE, DE, DK, ES, FI, FR, GB, HU, IL, IT, NO, PL, PT, RO, RU, SE, US.
12. Foot switch conguration
With this function, you can choose between Zoom Only and Zoom/
Focus on the foot switch.
Zoom/Focus is the default conguration. Setting the option to Zoom
Only allows you to zoom in/out with the foot switch, even if the
microscope is set in Manual focus mode by the control box.
13. Time
Set the current time, which will affect the time registered when saving
images.
14. Date
Set the current date, which will affect the date registered when saving
images.
SETUP MENU (3/5)

13
3. APPLICATIONS
30-day trial license
Select any of the unlicensed applications to start your 30-day trial
license. This allows you to test the apps for free for a period of 30 days.
You can see the state of the Trial license in the System Information of
the microscope.
Once the trial license has ended, the apps will be unaccessable. You
can of course purchase full access to the apps by contacting your
distributor.
Manuals and videos
Go to tagarno.com/application-manuals to nd application manuals
and tutorial videos.
1. Focus stacking
In the Applications menu point, you are able to turn on the Image Focus
Stacking feature, enabling you to stack images with different focuses on
top of each other, creating one ultra-sharp image.
2. Measurement application
This application enables you to perform precise measurements such as
line, radius or angle measurements directly from the microscope.
3. Ruler
Turn the Ruler application on horizontally, vertically or both directions
and get a ruler displayed on top of your live image on screen.
4. Watermark
Create an info eld on captured images with an image prex, time
stamp, horizontal eld of view, microscope model plus serial number
and/or import and add a custom dened watermark. The watermark
will then appear on all captured images.
5. Verication lines
This application provides you with an opportunity to quality check
objects based on accurate calibrated measures by placing vertical and/
or horizontal lines as a layer on top of your object, directly from the
microscope.
6. Image Analysis
Choose one of the three Image Analysis apps in the drop down menu
when entering this application.
7. Image Comparison
The app enables you to compare a sample or live image to a reference
image in various ways.
SETUP MENU (4/5)

14
4. INFO
1. System information
This enables you to see model number, serial number, rmware versions,
URL path to download the latest rmware, state of the Trial license and
other information about the product.
2. Storage information
When choosing this function, an information window will show the
internal storage capacity on the microscope and, if connected, the USB
memory stick. If no internal storage compacity on the USB memory stick
is displayed, please format (see section 5 below).
3. System update
See separate section about System Update.
4. Restore factory default settings
Restore the system to the factory default settings, all your personal
settings will be erased, including calibrations and images.
5. Format USB storage
This TAGARNO FHD device is designed to only support USB storages
with a FAT32 formatted le system. If your USB storage does not
currently have this le system, use this function to format the USB
storage. A second pop-up will ask you to conrm your selection. Please
notice that all les on the USB memory stick will be deleted once
formatting begins. Formatting time will vary.
5. OFF
1. Power off
Turn the TAGARNO microscope off.
Menu options, layout and messages might slightly vary from one version
of this microscope to another. Please contact your TAGARNO distributor
if you have any questions regarding your TAGARNO microscope.
SETUP MENU (5/5)

15
This is a step by step guide to perform a system update on your
TAGARNO FHD TREND, PRESTIGE or UNO.
• To install a new application or updates to your TAGARNO, you
need to perform a system update on your current microscope.
• To perform a system update, a system update le needs to be
installed directly on the microscope.
• In some cases, you need a license key generated from the serial
number of the microscope in order to activate the application
after installation.
See the license key section for further explanation on how to
request and activate a license.
Note: In some cases, it is necessary to complete more than one
system update processes, if an update contains substantial
improvements and considerable le sizes.
Follow the few steps below to perform a system update to your
TAGARNO microscope.
STEP 1: DOWNLOAD INSTALLATION FILE
1. Locate and access the installation le(s) via this link:
tagarno.com/rmware-download
2. Download the installation le(s) to a blank USB memory stick
(FAT32 formatted)
3. If the le(s) is in a ZIP folder, unzip the les and make sure that
only the correct installation le(s) or previous system update
les appear on the memory stick.
Note: File names always have the following format:
tagarno_fhd_system_vx_xx.image
tagarno_fhd_system_vx_xx.system
tagarno_fhd_system_vx_xx.update
(x_xx denoting the system version)
The installation le(s) is identical for TAGARNO FHD TREND/
PRESTIGE/UNO.
STEP 2: PLUG IN THE USB MEMORY STICK
1. Plug the USB memory stick into one of the two USB 2.0 inputs
at the back of the microscope. Leave the other USB 2.0 input
empty.
USB 2.0 input
STEP 3: START INSTALLATION
1. The system update process is initiated in the Setup menu - Info
- System Update
A. Access the Setup menu by pressing the round center
button on the XPLUS FHD control box until the Setup
menu appears
B. To navigate in the Setup menu, use the multi function
buttons on the XPLUS FHD control box
C. Go to the fourth menu point (Info) in the top menu and
access it by pressing the round center button
D. Navigate to System Update and choose it by pressing
the round center button
SYSTEM UPDATE
SYSTEM UPDATE (1/2)
SYSTEM UPDATE (1/2)
9. SYSTEM UPDATE

16
STEP 4: PERFORM INSTALLATION
Screen dialogues will now guide you through the update process
1. A System Update Warning appears - Read the warning and
press OK to start the system update.
Note: At this point, the update process can be cancelled safely by
pressing Cancel.
NB: Do not switch off or disconnect the microscope during
a system update. This will damage your device and render
it useless.
2. When the system update le has been read and validated,
information about the new version is shown. Wait for the
system to update.
3. When the system update is complete, the microscope will
automatically restart.
Note: The microscope might switch off after restart. In that case,
turn it back on manually.
4. After restarting the microscope the system might need to be
updated again by following the same procedure as described
above entering system update
STEP 5: VERIFY INSTALLATION
1. Verify the system update by checking that the Application
version (displayed in the Setup menu - Info - System
information) matches the version of the system update le.
STEP 6: ACCESS THE APPLICATION
If a new application is available, a new menu point will appear in the
Setup menu under pt. 3 Applications, showing the new application.
Note: To activate the application after installation, you need a unique
license key generated from the microscope serial number.
See the license activation section for further explanation on how to
activate your license.
After activating your license, you are now able to access and use the
new application or feature.
Please see the user manual for further information regarding the use
of TAGARNO applications.
If you have trouble performing a system update please contact the
TAGARNO distributor from which you have purchased the product or
send an e-mail to [email protected].
SYSTEM UPDATE (2/2)
SYSTEM UPDATE (2/2)

17
A. Access the Setup menu by pressing the round center
button on the XPLUS FHD control box until the Setup
menu appears
B. To navigate in the Setup menu, use the multi function
buttons on the XPLUS FHD control box
C. Go to the fourth menu point (Info) in the top menu and
access it by pressing the round center button
D. Navigate to System Update and choose it by pressing
the round center button
STEP 4: PERFORM ACTIVATION
6. A System Update Warning appears - Read the warning and
press OK to start the system update.
7. Press Conrm and the update will be processed. Please do not
press the control box unless the installation menu tells you to.
STEP 5: ACCESS THE APPLICATION
After activating your license you are now able to access and use the
new application.
Please see the user manual for further information regarding the use
of TAGARNO applications and features.
If you have trouble activating the application, please contact the
TAGARNO distributor from which you have purchased the product.
After installation of a TAGARNO application, you might need to
activate a unique license key le to be able to access and use the
application.
To activate a license key on your TAGARNO microscope, follow the
steps below:
Note: The license can only be paired with the microscope which
has the serial number stated in your license. The license can not be
removed and transfered to another microscope.
STEP 1: DOWNLOAD LICENSE KEY FILE
1. You will receive an e-mail with a unique license key le after
placing an order, receiving an activation code and requesting
the license via tagarno.com/request-license
Note: If you are missing your license key le, please contact
[email protected] to retrieve the le.
2. Download the license key le to a blank USB memory stick
(FAT32 formatted)
3. If the le is in a ZIP folder, unzip the folder and make sure that
only the correct license le and no ZIP folders appear on the
memory stick.
STEP 2: PLUG IN THE USB MEMORY STICK
4. Plug the USB memory stick into one of the USB 2.0 inputs at
the back of the microscope. Leave the other input empty during
license activation.
USB 2.0 input
STEP 3: START ACTIVATION
5. The activation process is initiated in the Setup menu - Info -
System Update
10. LICENSE ACTIVATION

18
TECHNICAL SPECIFICATIONS | BASE (1/3)
11. TECHNICAL SPECIFICATIONS
H
W
D
Work depth
Work height
Dimensions H: 464mm/18.3", D: 499 mm/19.6”, W: 300 mm/11.8”
Weight 5,2 kg/11.46 lbs
Camera resolution FHD 1080p, 1920x1080@25/30/50/60Hz
Camera zoom 20x optical
Work height Min: 200mm/7.87”, Max: 415mm/16.34”
Work depth 370mm/14.57”
Auto Monitor Detect Yes
Plug connection 2 x USB 2.0 Type A Socket USB 3.0 output Type B Socket
Control box D-SUB 9-Pin Female ESD Snap Socket, 10mm
Monitor output HDMI Standard Type A Power supply DC Jack
Ethernet RJ-45
Power requirements Line voltage 100 - 240V 10%
Line frequency 50/60Hz
AC current consumption (typ.) 150mA/100V 70mA/240V
DC current consumption (typ.) 1.3A/12V
Environmental conditions Temperature Storage -5 to 60oC / 23 to 140oF
Operation 5 to 40oC / 41 to 104oF
Humidity range Storage 20 to 90% RH non-condensing
Operation 30 to 80% RH non-condensing
Altitude 0 to 2000m / 0 to 6500ft above sea level
Pollution degree 2

19
TECHNICAL SPECIFICATIONS | XY TABLE (2/3)
H
W
D
Work depth
Work height
Dimensions H: 503 mm/19.8”, D: 508 mm/20”, W: 518 mm/20.4”
Weight 11.0 kg/24.3 Ibs
Camera resolution FHD 1080p, 1920x1080@25/30/50/60Hz
Camera zoom 20x optical
Work height Min: 200mm/7.87”, Max: 406mm/16.34”
Work depth 370mm/14.57”
Auto Monitor Detect Yes
Plug connection 2 x USB 2.0 Type A Socket USB 3.0 output Type B Socket
Control box D-SUB 9-Pin Female ESD Snap Socket, 10mm
Monitor output HDMI Standard Type A Power supply DC Jack
Ethernet RJ-45
Power requirements Line voltage 100 - 240V 10%
Line frequency 50/60Hz
AC current consumption (typ.) 150mA/100V 70mA/240V
DC current consumption (typ.) 1.3A/12V
Environmental conditions Temperature Storage -5 to 60oC / 23 to 140oF
Operation 5 to 40oC / 41 to 104oF
Humidity range Storage 20 to 90% RH non-condensing
Operation 30 to 80% RH non-condensing
Altitude 0 to 2000m / 0 to 6500ft above sea level
Pollution degree 2

20
LENSES Dimensions Lens to object distance Magnication on 24" monitor
+3 52mm/2.3” 333 mm/13.1” 1.4x - 29x
+4 (Included) 52mm/2.3” 250 mm/9.8” 1.9x - 38x
+5 52mm/2.3” 200 mm/7.9” 2.3x - 47x
+10 52mm/2.3” 100 mm/3.9” 4.5x - 92x
RECOMMENDED MONITOR FORMAT
Panel format 16:9 (Widescreen)
How to link DVI or HDMI input
Response time 2 ms
Signal format FHD 1920x1080
TECHNICAL SPECIFICATIONS (3/3)
FEATURES
Use manual or auto focus Lock magnication Set auto interval Access storage information
Use manual or auto iris, gain
and exposure time
Activate Picture flip Activate monitor auto detect Perform a system update
Activate IR lter Set monitor width Restore factory default settings
Take a snapshot Activate white balance
calibration at LED light change
Choose system units Turn microscope off
Save and access presets Select numeric format Focus stacking (Optional)
Turn light on/off Choose video format Choose system language Measurement application
(Optional)
Perform white balance
calibration
Choose image format Choose keyboard layout
Type image prex Select foot switch conguration Activate Ruler
Set optimal working distance Choose ruler color Set time Watermark (Optional)
Choose a close up lens Activate le share mode Set date Verication lines (Optional)
Turn wide dynamic range on/off Turn high contrast on/off Image preview Image comparison (Optional)
Set start magnication Activate auto capture mode Access system information
ACCESSORIES
Lens, +3, +4, +5, +10 Ultra Violet ring light Circular tilting table Dust cover
Magnetic lens ring Infrared ring light Height Adjustment Table Coaxial light
XPLUS FHD Control box FHD monitor per request XY table Glass table
XKEY Control box Mounting arm for monitor Backlight kit Foot switch
Table mount monitor arm Flexarm Ring light kit Wall mount monitor arm
Cleaning kit
MINIMUM & MAXIMUM ZOOM MINIMUM MAXIMUM
Lens X-Direction Y-Direction X-Direction Y-Direction
+3 376 mm / 14.80’’ 211.50 mm / 8.33’’ 18.60 mm / 0.73’’ 10.46 mm / 0.029’’
+4 287 mm / 11.30’’ 161.40 mm / 6.36’’ 14.20 mm / 0.56’’ 7.99 mm / 0.022’’
+5 229 mm / 9.02’’ 128.80 mm / 5.07’’ 11.30 mm / 0.45’’ 6.36 mm / 0.018’’
+10 117 mm / 4.61’’ 65.80 mm / 2.59’’ 5.80 mm / 0.23’’ 3.26 mm / 0.009’’
