tagarno FHD PRESTIGE User manual

VERSION: 2.4 | FIRMWARE 5.20 | 2020-09-15
1
CONTENTS
1. INTENDED USE 2
2. WARNINGS 2
3. TIPS 2
4. YOU HAVE RECEIVED 3
5. ASSEMBLING 4
6. CONNECTING 5
7. OPERATION 6

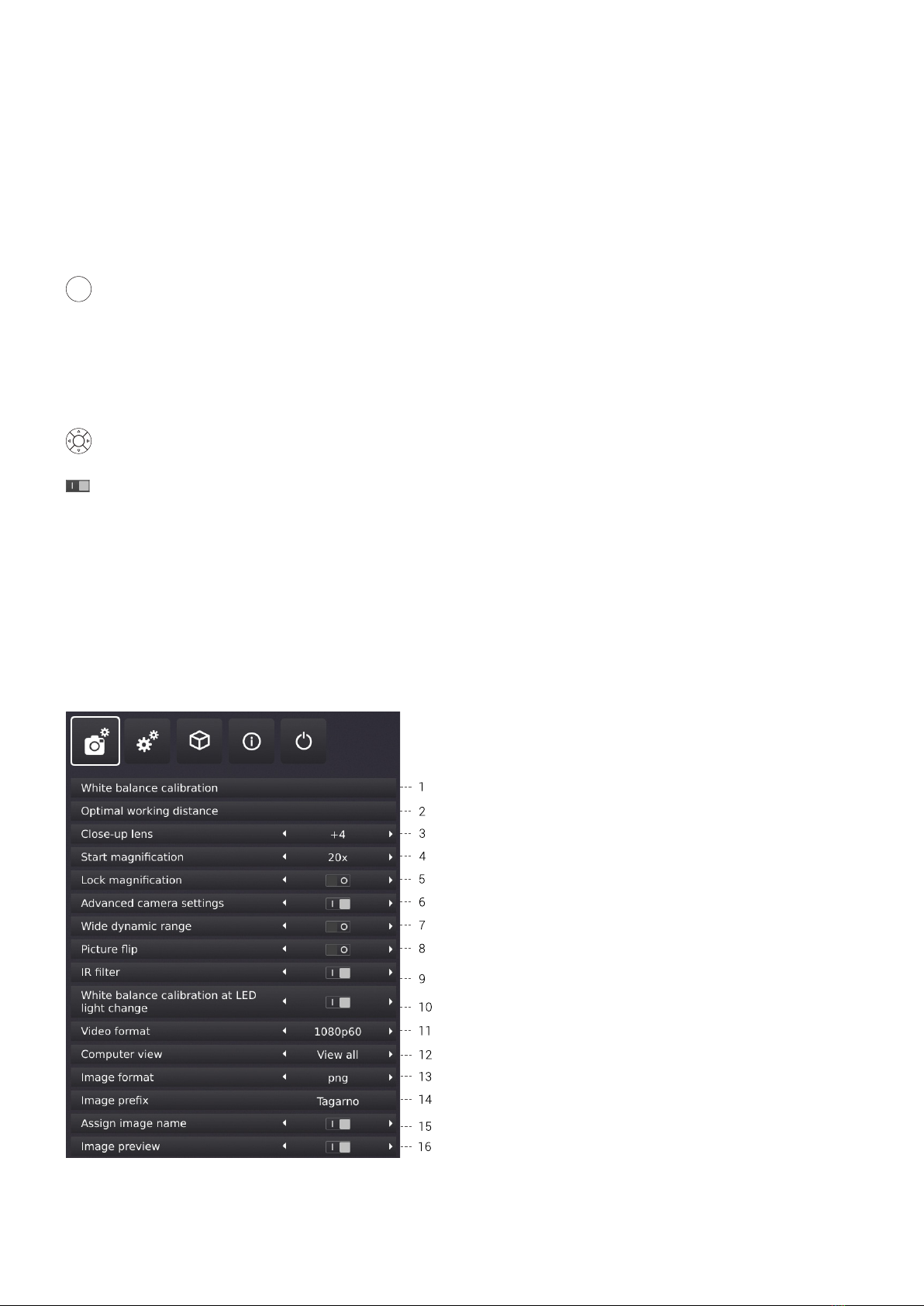

8. SETUP MENU 10

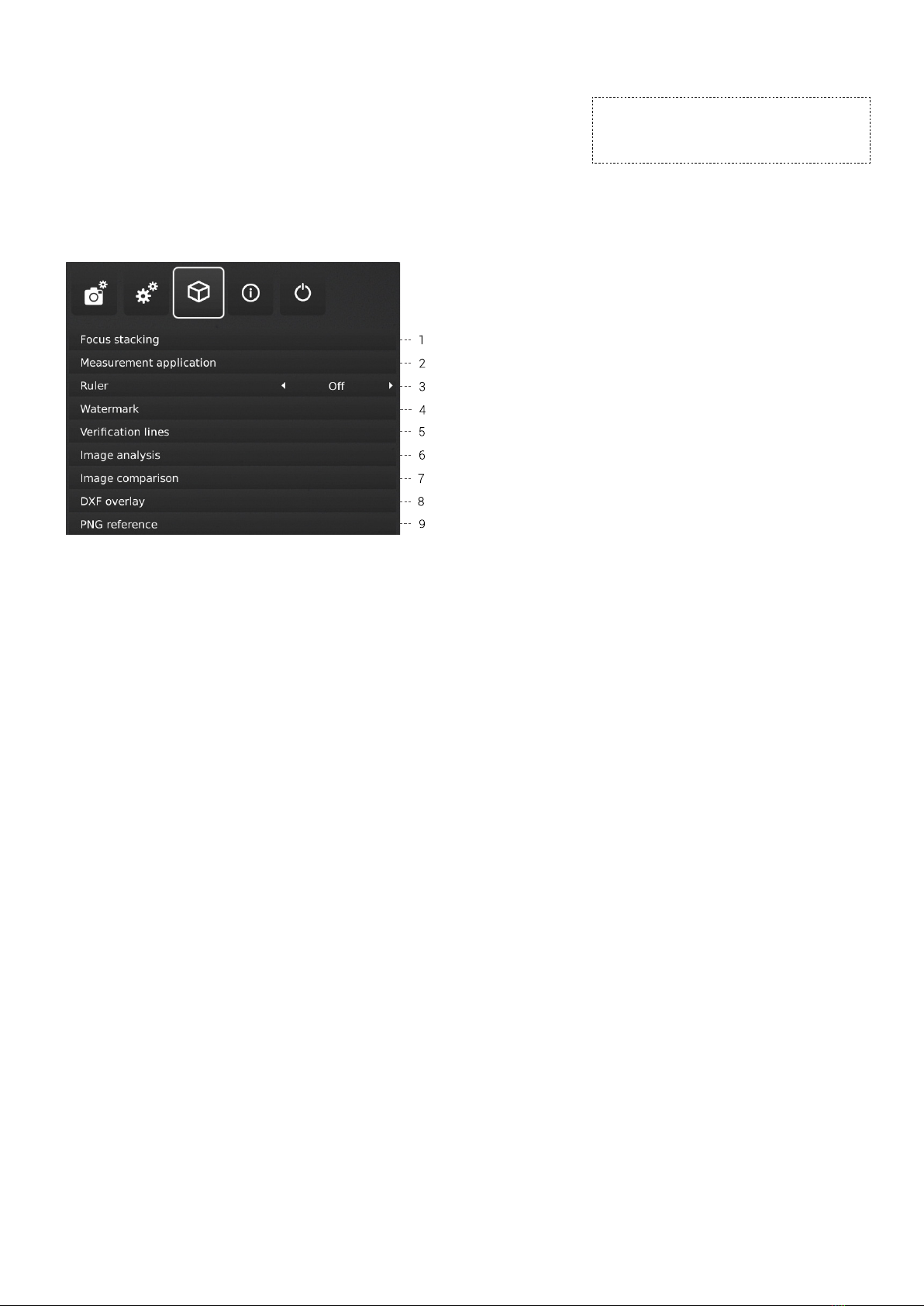

9. STANDARD APPS 15

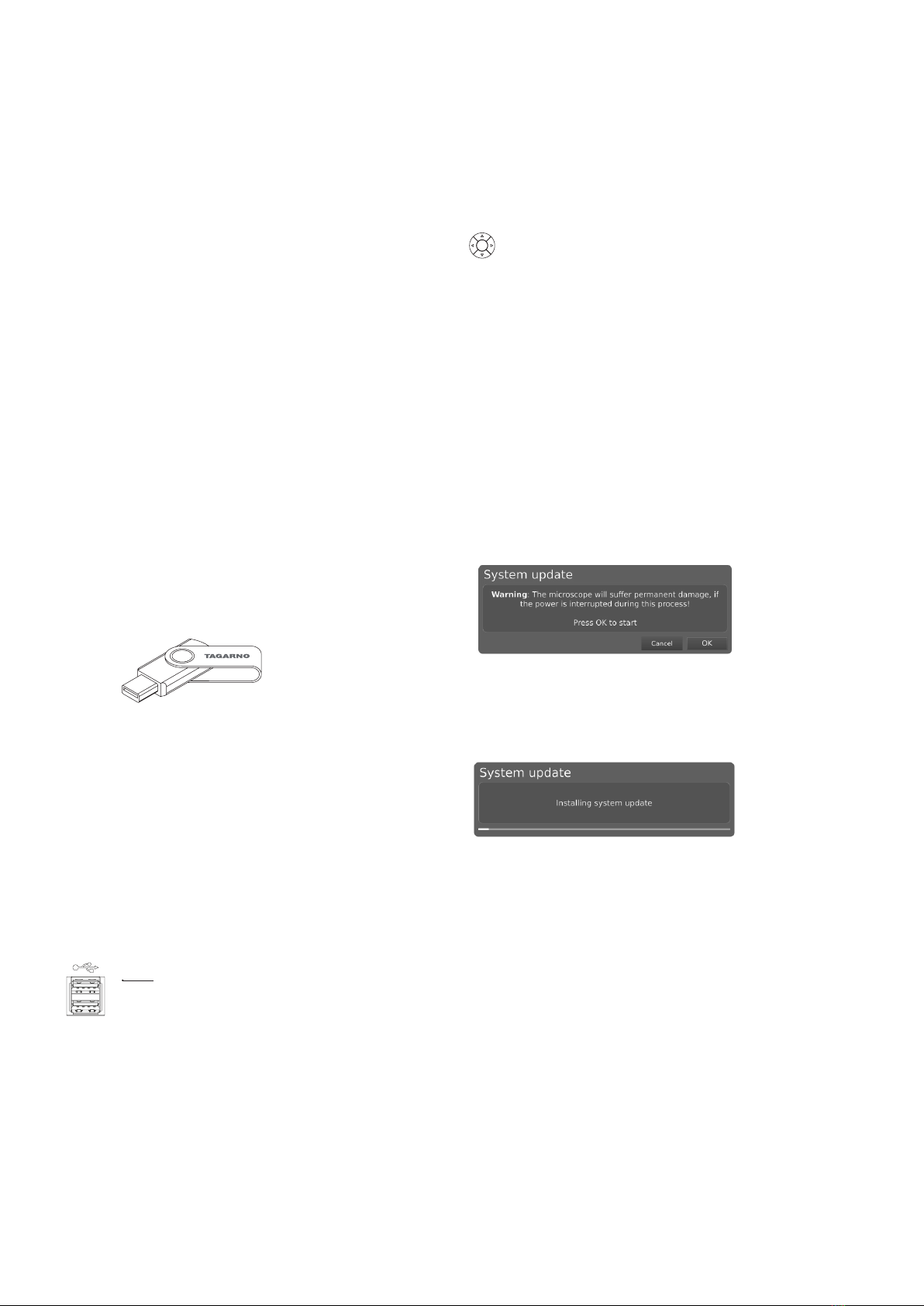

11. SYSTEM UPDATE 18
12. LICENSE ACTIVATION 20
13. TECHNICAL SPECIFICATIONS 21
14. PC REQUIREMENTS 23
15. MAINTENANCE 24
16. WARRANTY 24
18. ERGONOMIC RECOMMENDATIONS 24
19. DECLARATION OF CONFORMITY 25
20. COMPLIANCE STATEMENTS 26
MANUAL | TAGARNO FHD PRESTIGE
Go to tagarno.com/productmanuals to nd manuals and tutorial videos.

2
1. Read the manual before you use the product
2. Use the product only as specied, or the protection supplied by the product can
be compromised
3. Do not position the equipment so that it is difcult to operate the disconnecting
device (appliance inlet of external power supply, equipment input connector)
4. If fluids are spilled on the product, turn the system off immediately by pulling the power
supply out of the electrical outlet
5. In case of re close to the microscope, please turn off and disconnect the system
6. Avoid subjecting the lens to sharp or hard objects
7. Please do not connect the microscope, if visible damages appear
8. Do not dismantle any parts of the microscope, except where noted in the manual
9. Never disassemble or clean internal optical surfaces
10. Use only the power supply provided from TAGARNO
11. Always turn off the system before unplugging, when possible
WARNINGS
The product is a digital magnifying system consisting of a camera unit, PCBs, mechanical
parts and a power supply. The product is intended for marketing worldwide and is designed for
manual visual inspection.
INTENDED USE
Read all safety information before you use the product.
Please pay attention when you see a warning label on the product.
This product is for indoor use only.
You must not discard this electrical/electronic product in domestic household waste.
Please dispose at your local recycling centre.
1. INTENDED USE
2. WARNINGS
3. TIPS
12. Do not touch the light source. It gets hot when using the product
13. Do not look directly into the light source
14. Connect the power plug to a grounded power outlet
WARNING: This is a Class A product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take appropriate measures.
1. Avoid touching the lens glass
2. Use both hands to adjust the height of the product

3
SMART GUIDE
USB Hub
Lens 1x Plan Magnetic lens kit
Ring light white Diffusor lens kit Fresnel lens kit
(100 mm for Lens 1x Plan)
4. YOU HAVE RECEIVED
Smart guide Camera arm with lens BaseRod, washers, screw
OPTIONS
XPLUS FHD control box
Power supply USB A-B 3.0 cable Hex keys x 3HDMI - HDMI cable USB memory stick
Lights control box
Polarizer kit

4

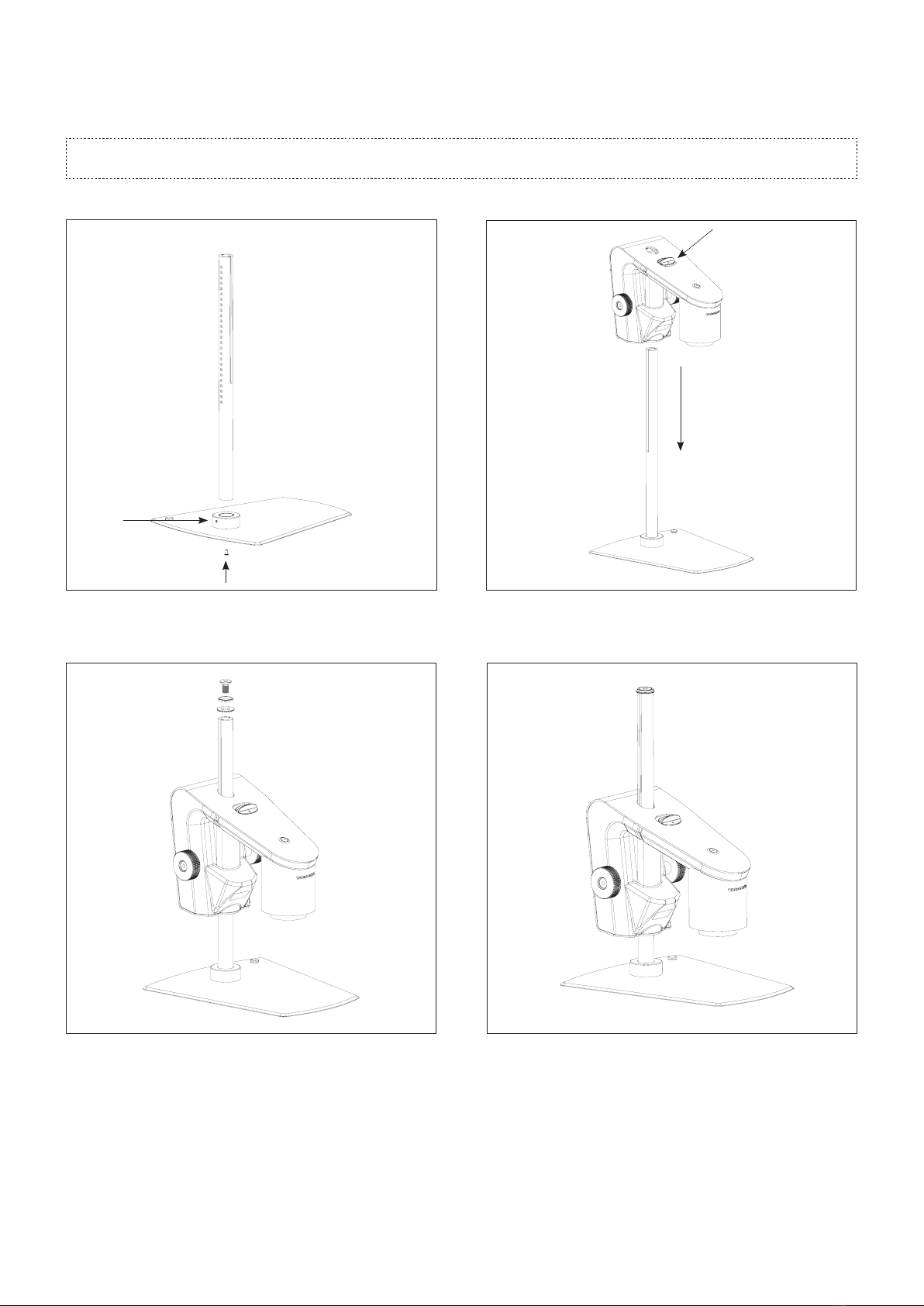

Assemble base and rod with the screw. Tighten the rod both below
the base vertically and horizontally on top of the base.
Fasten the two washers with the screw on top of the rod.
Pull the release button and place the camera arm on the rod.
The complete microscope with base.
5. ASSEMBLING
TIP!
Find the "How to Install" tutorial video here: www.tagarno.com/installprestige

5
6.
8.
1.
2.
7.
3.
4.
5.

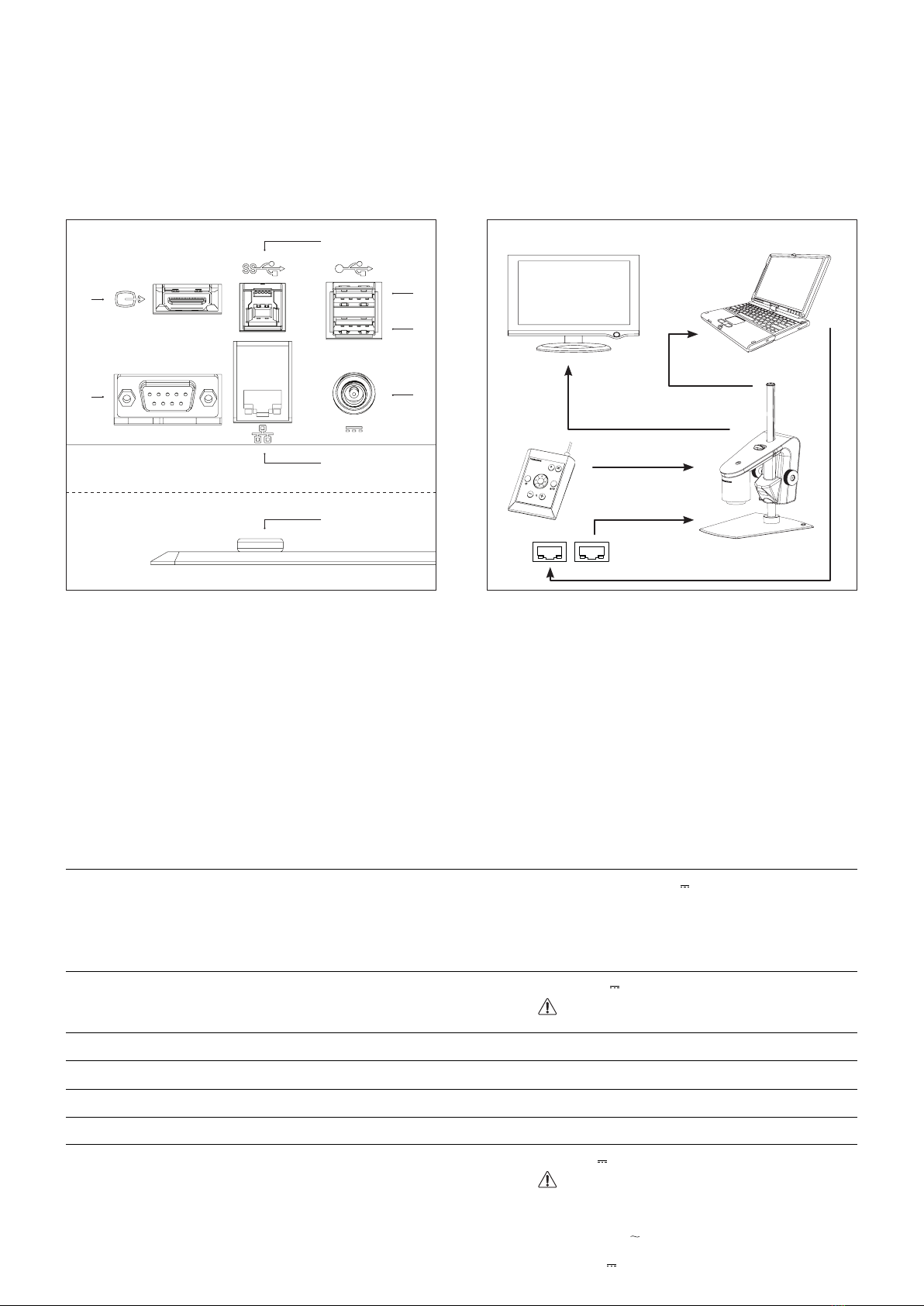

6. CONNECTING
Connect USB 2.0 (see options below) (1+2), control box (3),
monitor (4), ethernet (5), USB 3.0 (6), ESD (Only black models) (7)
and power supply (8) in that order.
USB 2.0 (1+2): Keyboard, mouse, USB key, USB hard drive, scanner
Connect keyboard and mouse in the USB 2.0 inputs (only for use
with some applications). Keyboard and mouse need to be HID
compliant.
When more than 2 USB plugs are needed, use a USB hub. If you
have received a USB hub with your purchase, remove the foil,
connect it to one of the USB ports and attach it to the back of the
microscope.
Connector Description Type Connect to Specication
1+2 USB 2.0 input USB 2.0 Type A Socket Keyboard
Mouse
USB key
USB hard drive
Barcode scanner
USB 2.0 Host. Output: 5V 500mA
3Control box D-SUB 9-Pin Female Control box Output: 3.3V 6A Max
Use only control boxes supplied by TAGARNO
4Output HDMI Standard Type A Monitor HDMI Out 1080p60
5Ethernet RJ-45 Ethernet wall socket Ethernet LAN, 100BASE-TX/1000BASE-T
6USB 3.0 output USB 3.0 Type B Socket Computer USB 3.0 Device. Self-powered
7ESD Snap Socket, 10mm ESD Grounding point ESD Grounding point. Only black models
8Power supply
(DC)
DC Jack Power socket Input: 12V 1.7A
Use only the power supply provided by TAGARNO:
Brand/Model: Mean Well/GSM40A12
Protection Class I
Input: 100-240V 1.0-0.5A, 50/60Hz
Overvoltage category ll
Output: 12V 3.34A Max
HDMI - HDMI cable
Live image
The microscope can be connected directly to a monitor.
Live image and image capturing through USB 3.0 / 3rd part software.
See system recommended (third-party) under system requirements.
You are still able to connect monitor(s) as described above.
NB: Do not connect the HDMI cable to a PC.
Live image
/ image capture
USB 3.0
Ethernet cable
D-SUB
Ethernet cable (or WiFi)

6
OPERATION | ADJUSTMENTS AND POWER (1/4)
Power on/off.
Place the camera arm in the appropriate height according to the
lens you are using.
Adjust the friction according to your personal preference.
7. OPERATION TIP!
Find the "How to Use" tutorial video here:
www.tagarno.com/useprestige

7

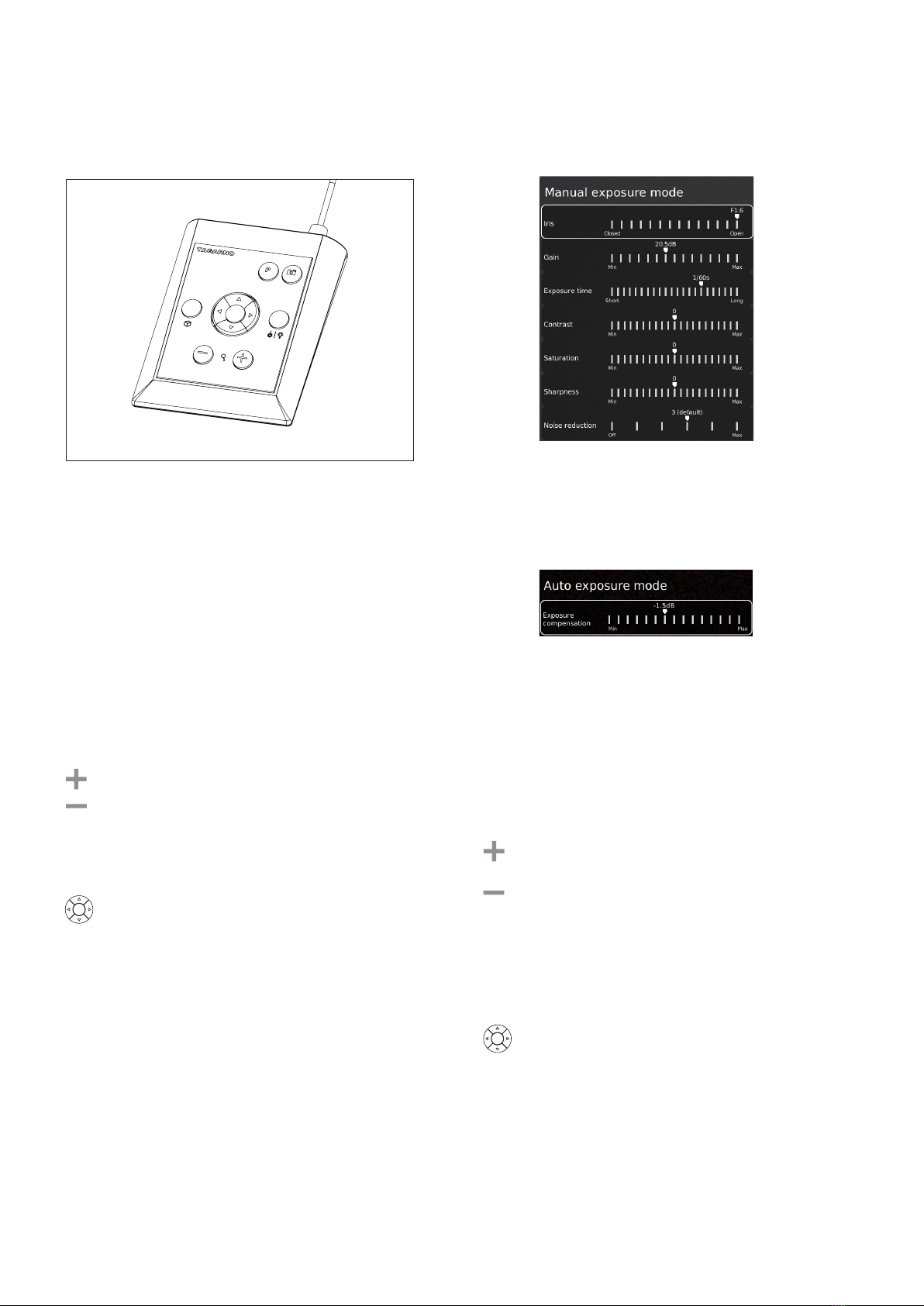

XPLUS FHD Control box for TAGARNO FHD functions.
Do only connect equipment distributed by TAGARNO.
Dimensions
H: 45mm/1.8" | W: 120mm/4.7" | D: 150mm/5.9".
On screen display (OSD)
The on-screen display provides you with the relevant information
when you push a button on the control box or Setup menu.
For instance if you change the level of magnication, the white
balance, iris, etc. In this way you always know which function you are
activating and which parameters you are using.
These settings will also be activated in Auto exposure mode.
Otherwise, exposure compensation is the only setting
visible. Iris, gain and exposure time will automatically be
adjusted to recommended settings and cannot be adjusted
in this mode.
Wait a few seconds for the menu to close and save your
settings.
Manual focus
Turn autofocus off by pushing both zoom buttons (plus
and minus) on the control box at the same time until you
hear a beep. You can now adjust focus manually with the
help of the zoom buttons.
Push this button on the control box to adjust focus if you
wish to focus on something very close.
Push this button on the control box to adjust focus if you
wish to focus on something that is farther away.
To turn the autofocus on again, simply push both zoom
buttons (plus and minus) at the same time until you hear
a beep. The focus values will show via On Screen Display.
Setup menu
Access the Setup menu by pressing the round center
button for 1 second. See separate section regarding
the Setup menu.
Zoom
Push this button on the control box to zoom in.
Push this button on the control box to zoom out.
The magnication level will show via On Screen Display.
Manual and Auto exposure mode
Open current exposure mode menu with key arrows up
and down in standard magnication mode or any active
application. Then, navigate the menu with arrows up and
down and adjust each setting with key arrows left and
right.
Switch between Manual and Auto exposure mode with a
short press to the round center button.
In Manual exposure mode, you can manually adjust the
iris, gain and exposure time with key arrows left and right.
Activate advanced camera settings in the microscope
camera settings to also enable contrast, saturation,
sharpness and noise reduction adjustment.
OPERATION | XPLUS FHD CONTROL BOX (2/4)

8
Preset Function
To save a favorite setting, press the "P" button.
A Preset Manager menu appears. Here you can choose
which of the 10 presets to use/overwrite. This is done by
marking and clicking the right hand icon to save the given
preset. To prevent users from accidentally overwriting
a saved preset, lock presets in the microscope general
settings.
To use a preset, simply press "P" on the control box and
press the center button to choose the preset you want to
recall. Alternatively, use key number 0-9 on a keyboard
or numpad.
491190 - Folie til XPLUS FHD - 13-06-2017
Save image on USB memory stick
The image will be saved on the inserted USB memory stick.
However, if your USB memory stick is not compatible with your
microscope, a pop-up warning will instead ask you to format your
USB memory stick (for more information, see section 4 in Setup
Menu).
When clicking OK, a second pop-up will ask you to conrm your
selection. All les on the USB memory stick will be deleted once
formatting begins. Formatting time will vary.
Press the image capture button again to take a new photo and
save it directly to your USB memory stick.
Save image on microscope
If a USB memory stick is not attached, the image is saved internally
on the microscope, provided the share le mode is turned on.
Otherwise, an error message will appear and you are not able to
save images.
To access saved les, see manual section ACCESS SAVED FILES.
Snapshot function
To take a picture and transfer it to USB or your microscope
internal storage, press the image capture button until you
hear a beep. Long press on the same button will save an
image with graphics, causing the live image to freeze for a
few seconds. This button also turns Auto Snapshot on/off
when activated via the Setup menu.
When taking a picture, an information window will appear
for a few seconds showing the le name and storage
location.
The preset values will show via On Screen Display.
To rename a preset, choose the given preset in the
Preset Manager and press F2. Complete the renaming by
pressing "Enter". Please note that presets can be renamed
regardless of whether the presets are locked or not.
Laser pointer (TAGARNO FHD TREND)
Press this button to turn the laser pointer on/off.
You will hear a warning when turning the laser pointer on.
NB! Never look directly into the laser pointer. The laser
pointer can only be used with lenses +3, +4 and +5.
If you are using another TAGARNO unit than TAGARNO
FHD TREND, a window on the screen will provide you with
information.
Light on/off
Press and hold this button to turn the light on/off.
Application shortcut
Program an individual application shortcut by long-
pressing the button and choosing a listed application.
You are now able to quickly access this application by
short-pressing the button.
Factory default directs to the Ruler application with both
horizontal og vertical ruler activated.
Multi Function Buttons
When the Setup menu is deactivated, you are able to use
the Multi Function Buttons to control the iris, gain and
exposure time.
Press the center button to switch between auto and
manual exposure mode.
OPERATION | XPLUS FHD CONTROL BOX (3/4)

9
When using a keyboard, you can use the shortcuts below to
operate your TAGARNO FHD digital microscope.
NB: These shortcuts only work when you are not using one of the
applications or renaming a photo.
Open menu and navigate menu (arrows)
Use the up and down arrows to open the microscope menu. These
arrow can also be used to move up and down the menu.
Use the right and left arrows to choose between the different
settings in the microscope menu.
Activate an application or submenu by pressing Enter. If you have
selected Exit, pressing Enter will close down the menu.
Activate presets (number keys 0-9)
Using number keys 0-9 will activate Preset 1 to 10. Press number
key 1 to activate Preset 1, key 2 to activate Preset 2 and so on.
Press number key 0 to activate Preset 10.
NB: The applications may have app specic shortcuts as well. To
learn more about these, we refer to the application manuals.
OPERATION | KEYBOARD (4/4)

10
The setup menu in your TAGARNO FHD microscope provides you
with 2 entrances to setup your microscope exactly as you like it.
Access the Setup menu by holding the round center
button on the XPLUS FHD control box until the Setup menu
appears.
The Setup menu contains 5 submenus:
1. Camera settings 2. General settings
3. Applications 4. Information
5. On/off
To navigate in the set-up menu, use the multi function
buttons on the control box.
When applicable, sliding the button to the right, will activate
the feature. Sliding the button left will deactivate the
functionality.
Exit setup menu
You can always exit the setup menu by pressing the center button on
the control box for 1 second or by choosing Exit in the Setup menu.
Same procedure is valid regardless of the menu option accessed.
1. CAMERA SETTINGS
1. White balance calibration
Perform an automatic white balance adjustment in order to get
colors displayed correctly on screen. There must be a white object
present in the camera’s eld of view when the white balance is being
adjusted. A white balance calibration is made each time the camera
is turned on to adjust to the given light conditions.
NB: If the camera’s eld of view does not contain a white object,
when the unit is turned on, the white balance will be incorrect and it
will be necessary to perform the white balance adjustment process
as described previously.
2. Optimal working distance
This setup works in 2 steps and needs to be carried out on a flat
surface. Follow the on-screen directions to nd the optimal working
distance. The magnication settings prior to performance will be
restored.
3. Close-up Lens
Indicate which lens is mounted on your TAGARNO microscope,
to get the right magnication levels displayed in the On Screen
Display when zooming in and out.
4. Start magnication
Choose the start magnication level you want your TAGARNO
microscope to automatically set when turning your system on.
5. Lock magnication
Lock your magnication level, so your microscope is always
working at your start magnication level and you are not able to
manually zoom in/out.
6. Advanced camera settings
When activated, the advanced camera settings can be modied in
detail for optimum visual inspection result. Deactivated by default.
7. Wide dynamic range
When this option is selected and auto exposure mode is active, the
camera uses individual exposure settings for dark and light areas. This
option can be useful to reduce glare when inspecting reflective objects.
NB: If the camera live image is grainy, increase Exposure
compensation in Auto exposure mode.
8. Picture ip
Select if you want to display your image on screen as placed below
the camera or flip it 180 degrees.
9. IR lter
Turn Infrared lter off when using Infrared ring light.
To use regular ring lights turn the Infrared lter on.
10. White balance calibration at LED light change
Switch on if you want an automatic white balance calibration to be
performed when LED light is changed. Deactivated by default.
Switch off if you do not want an automatic white balance calibration to
be performed when LED light is changed.
SETUP MENU (1/5)
8. SETUP MENU

11
11. Video format
Choose between various available video formats:
1080p60 / 1080p50 / 1080p30 / 1080p25
12. Computer view
Choose between Camera only (default) and View all. If View all is
selected, menus and applications will be overlayed on the live video
of the USB 3.0 output. This feature allows you to use a computer to
display the microscope live image and screen share the output during
video conferences.
13. Image format
Choose between different image formats when saving an image.
Available formats are TIFF, PNG, JPG or BMP
14. Image prex
Replace the default image prex (img_) preceding the date and time
stamp in lenames of captured images. This feature requires an
attached keyboard.
15. Assign image name
When this setting is active, the microscope will prompt for an image
name before storing a captured image.
NB! When using an attached scanner to name captured images on the
TAGARNO FHD microscopes we advise that the scanner is connected
directly to one of the two USB ports on the microscope.
It is not recommended to connect the scanner to an attached USB
Hub unless it has been thoroughly tested. The communication through
some hubs can unfortunately introduce data loss resulting in one or
more random characters missing in the scanned image name.
16. Image preview
This feature allows users to quickly inspect and capture images of new
samples. When an image is captured the default behavior is to preview
the image at the center of the display for 5 seconds. Image preview
can now be disabled, which will display a more discrete text box for 3
seconds.
2. GENERAL SETTINGS
1. Ruler color
Set the ruler color to your prefered color choice to separate it from
your displayed object. Choose between 6 different colors: Yellow, Blue,
Red, Black, White and Green. The chosen color will also be used in the
Verication Lines app (see section 3, APPLICATIONS).
2. Lock presets
When this feature is enabled, users are prevented from accidentally
overwriting presets in the Preset manager.
The XPLUS control box can therefore simply be removed. The operator
can instead use an attached numerical USB keyboard to operate the
digital microscope.

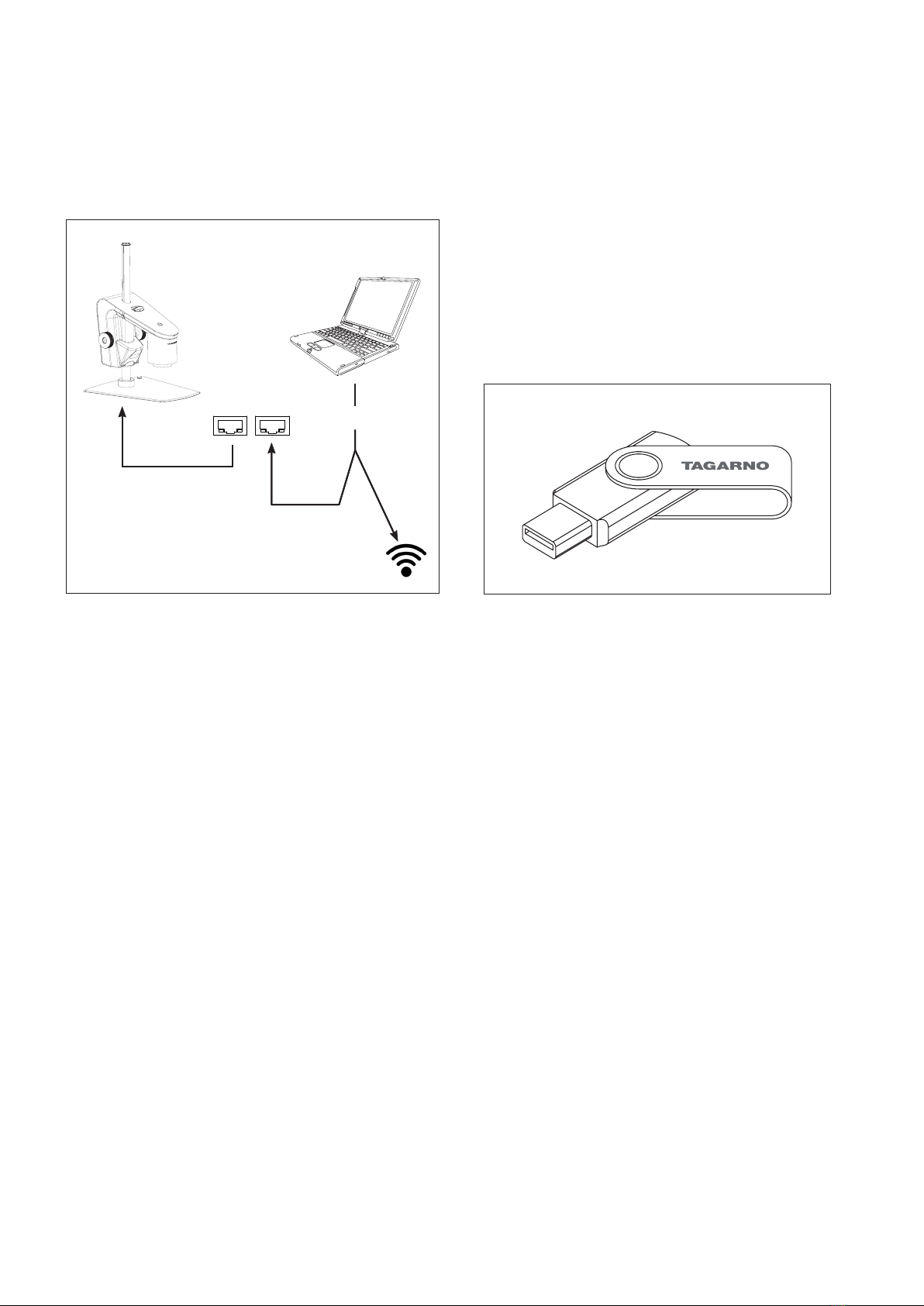

3. File share mode
Activate File share mode to save images to the internal storage of the
microscope. The images can then be accessed via computers on the
same network as the microscope.
To access photos saved on the internal storage, see section ACCESS
SAVED FILES.
NB: To minimize security risk, it is highly recommended to disable SMB
1.0 support on any Windows based operating system on your corporate
network. You do this by accessing Programmes and Features in your
Control Panel.
SETUP MENU (2/5)

12
4. Auto capture mode
To automatically capture images at a certain interval, activate the auto
image capture mode.
5. Auto interval
Set the function to automatically capture images at a certain interval.
Intervals start from 2 seconds and up. Start/stop the interval capturing
by pressing the image button on the control box.
6. Monitor auto detect
Turn off to manually set monitor width
7. Monitor width
Manually set your monitor width, if you do not wish to use the automatic
monitor auto detect, which is enabled by default. This automatically
changes the magnication level shown in the OSD. Please note that
manually changing the Monitor width while Monitor auto detect is
enabled, will disable the Monitor auto detect function.
8. System units
Choose to display metric or imperial units when using the microscope.
9. Numeric format
Here you can select the numeric format based on your preference.
Choose between 1,234.56, 1.234,56 or 1 234,56.
10. System language
The following languages are available as system language:
Chinese, Danish, English, French, German, Hungarian, Italian, Japanese,
Korean, Polish, Romanian, Russian and Spanish.
11. Keyboard layout
Select your horizontally language by pressing buttons left or right on the
XPLUS control box. The available languages are listed alphabetically.
The microscope is by default set to GB. The available languages are:
AF, AL, AT, BE, BR, BW, CA, CD, CZ, DE, DK, EE, ES, FI, FR, GB, HR, HU, IS,
IT, LT, LV, ME, MT, NL, NO, PH, PK, PL, PT, RO, RU, SE, SI, SK, SN, TZ, US,
VN and ZA.
12. Foot switch conguration
With this function, you can choose between Zoom Only and Zoom/
Focus on the foot switch.
Zoom/Focus is the default conguration. Setting the option to Zoom
Only allows you to zoom in/out with the foot switch, even if the
microscope is set in Manual focus mode by the control box.
13. Scale bar
Scale bar indicates the size of an inspected object. The scale bar will
operate in standard magnication and in all activate applications, except
for Verication lines and Measurement application. The scale bar will
adjust to match current magnication level. Activated by default.
NB: The scale is approximate and does not take lens distortion into
account.
14. Time
Set the current time, which will affect the time registered when saving
images.
15. Date
Set the current date, which will affect the date registered when saving
images.
SETUP MENU (3/5)

13
3. APPLICATIONS
30-day trial license
Select any of the unlicensed applications to start your 30-day trial
license. This allows you to test the apps for free for a period of 30 days.
You can see the state of the Trial license in the System Information of
the microscope.
Once the trial license has ended, only purchased licenses will remain
available. You can of course purchase full access to all apps by
contacting your distributor.
Manuals and videos
Go to www.tagarno.com/productmanuals to nd application manuals
and tutorial videos.
1. Focus stacking
In the Applications menu point, you are able to turn on the Image Focus
Stacking feature, enabling you to stack images with different focuses on
top of each other, creating one ultra-sharp image.
For more info, see manual section STANDARD APPS.
2. Measurement application
This application enables you to perform precise measurements such as
line, radius or angle measurements directly from the microscope.
3. Ruler
Turn the Ruler application on horizontally, vertically or both directions
and get a ruler displayed on top of your live image on screen.
For more info, see manual section STANDARD APPS.
4. Watermark
Create an info eld on captured images with an image prex, time
stamp, horizontal eld of view, microscope model plus serial number
and/or import and add a custom dened watermark. The watermark
will then appear on all captured images.
For more info, see manual section STANDARD APPS.
5. Verication lines
This application provides you with an opportunity to quality check
objects based on accurate calibrated measures by placing vertical and/
or horizontal lines as a layer on top of your object, directly from the
microscope.
6. Image analysis
Choose one of the three Image Analysis apps in the drop down menu
when entering this application: Color analyzer, Particle analyzer and
Speck Counter.
7. Image comparison
The app enables you to compare a sample or live image to a reference
image in various ways.
8. DXF overlay
Import a DXF le and add it as overlay on top of your live image. You can
also search for component names in the DXF le with this app.
9. PNG reference
Import a PNG le and add it as overlay on top of your live image. The
PNG le can be recalled via the Preset feature.
TIP!
Find the application manuals here:
www.tagarno.com/productmanuals
SETUP MENU (4/5)

14
4. INFO
1. System information
This enables you to see model number, serial number, rmware versions,
URL path to download the latest rmware and product manuals, state of
the Trial license, all permanently installed licenses and other information
about the product.
2. Storage information
When choosing this function, an information window will show the
internal storage capacity on the microscope and, if connected, the USB
memory stick.
3. System update
See separate section about System Update.
4. Restore factory default settings
Restore the system to the factory default settings, all your personal
settings will be erased, including calibrations and images.
5. Format USB storage
This TAGARNO FHD device is designed to only support USB storages
with a FAT32 formatted le system. If your USB storage does not
currently have this le system, use this function to format the USB
storage. A second pop-up will ask you to conrm your selection. Please
notice that all les on the USB memory stick will be deleted once
formatting begins. Formatting time will vary.
6. Ruler calibration
Perform a linear calibration of the Ruler app using printable TAGARNO
calibration rulers if the mounted lens is not available in the microscope
camera settings. If a calibration is not performed, the Ruler app will be
inaccurate.
Supported lenses are +3, +4, +5, +10 or Plan - 1x.
NB: Make sure to use the calibration ruler matching the mounted lens as
different lenses require different rulers.
NB: The system can only support one +10 lens at a time.
5. OFF
1. Power off
Turn the TAGARNO microscope off.
Menu options, layout and messages might slightly vary from one version
of this microscope to another. Please contact your TAGARNO distributor
if you have any questions regarding your TAGARNO microscope.
SETUP MENU (5/5)

15
1. FOCUS STACKING
With Focus stacking, you can stack images with different focuses on
top of each other to create one ultra-sharp image.
1. Magnication level
Set the magnication level of choice by using arrows up or down.
The actual magnication level is displayed inside the zoom option and
can also be typed if a keyboard is connected.
Plus/minus buttons on the control box are active as an alternative to
using the onscreen zoom menu point.
2. Focus 1: Focus setting far
Manually set focus to the part of the object farthest away.
3. Focus 2: Focus setting near
Manually set focus to the nearest part of the object.
4. Steps
Choose number of images to stack between 5 and 50.
Available intervals: 5, 10, 15, 20, 30, 40, 50
5. Quality
• Normal: This is the default fast mode with a typical
processing speed of 8 seconds for 15 images.
• High: In this mode the processing speed is reduced and
15 images can take up to 13 seconds.
By extending the image processing time, visual artifacts are reduced
and the image quality increased.
6. Start
Press Start to start the process. Wait until the menu displays Done.
7. Save image
Choose this option to save the image. The image save settings will
adapt from setup chosen from the general camera settings.
To access saved les, see manual section ACCESS SAVED PHOTOS.
8. Exit
Close application.
NB: Long pressing the center key on the control box will close the
Focus stacking application or cancel an ongoing focus stacking.
All current settings used during Focus stacking, except zoom level,
are persisted during power down.
2. RULER
With Ruler, you can add vertical and/or horizontal rulers in a variety of
colors on top of your live image.
Get started with the app
Before using the application, make sure to specify which lens is
currently mounted on the microscope in the microscope camera
settings.
If the mounted lens is not available in the microscope camera
settings, please perform a ruler calibration. For more information, see
section 4 in SETUP MENU.
Ruler direction
Turn the Ruler application on in the Applications menu with the left
and right arrow buttons on the XPLUS control box. Choose between
Horizontal, Vertical or Both.
Turn off
Turn the ruler off by once again accessing Ruler option under the
Applications menu point and choose Off.
System units
Choose your preferred system units (metric or imperial) under the
General settings menu point in the setup menu.
Ruler color
Set the ruler color to your prefered color to separate it from your
displayed object. Go to the Ruler color option under the General
settings menu point in the setup menu.
Choose between 6 different colors: Yellow, blue, red, black, white and
green.
Manual focus setting
When the Ruler is chosen, the system will automatically start in
manual focus setting to focus on the part of the object furthest away.
If needed, manually adjust the focus by adjusting the height of the
microscope to get the desired object in focus. Then, use the zoom in
and zoom out buttons to ne adjust the focus.
9. STANDARD APPS
STANDARD APPS (1/2)

16
STANDARD APPS (2/2)
If encountering problems nding focus, please use “Optimal Working
Distance” in the microscope camera settings menu, before using the
Ruler app.
Save image with or without graphics
It is also possible to save an image with the Ruler graphics by long-
pressing the image button on the control box. Short-pressing the
button will save the image without graphics.
To access saved les, see manual section ACCESS SAVED PHOTOS.
3. WATERMARK
With Watermark, your saved images will have an info eld containing
specications from the time of use (time stamp, horizontal eld of
view, microscope model and serial number) and/or a custom dened
watermark (e.g.: logo or CONFIDENTIAL).
When activated, the watermark will appear on all captured images.
Creating a Watermark
To use Watermark, create a PNG le that measures 1920x1080px
and give it a le name ending with “.png”. We recommend using GIMP,
which is a free graphics editor or Adobe Photoshop.
1. Enable or disable all settings
Choose to enable or disable all watermark settings at the same time.
2. Enable or disable info eld
Enable or disable an info eld, automatically stating an image prex
(default or as stated under Camera settings), time stamp, horizontal
eld of view plus microscope model and serial number.
3. Enable or disable a custom watermark
Choose to enable or disable the latest imported custom watermark.
4. Import a custom watermark
At this stage, you are able to import a custom watermark by inserting
a USB memory stick into the microscope containing a watermark le.
It is possible to import only one custom watermark at a time. This
means that if you wish to change the current watermark, you need to
follow the steps above to import a new watermark.
NB: It is only possible to import watermarks from USB storages with
a FAT32 formatted le system. If your USB storage does not currently
have this le system, a dialogue box allows you to format the USB
storage. A second pop-up will ask you to conrm your selection.
Please notice that all les on the USB memory stick will be deleted
once formatting begins. Formatting time will vary.
After importing, you can see a preview of the watermark before
closing the dialogue box.
To access saved les, see manual section ACCESS SAVED PHOTOS.

17
Access les saved on USB memory stick
Unplug the USB memory stick from the microscope and insert it
in a computer. Here, you'll be able to save, view, copy, move and
rename les.
Access les saved on microscope
To access les saved on the internal storage of the microscope, the
microscope itself must be connected to a network. Use one of the
two methods below:
Method 1
- Connect the cable from the wall socket to the microscope. Then,
connect a computer to the same network either by cable or WiFi.
Method 2
- Connect a computer and the microscope to a stand-alone router
without internet acess to create a closed network. This solution is
useful if you cannot connect the microscope to your network
Regardless of method, verify that an IP address of the microscope
is displayed in the microscope System information. If no IP address
is stated, check that all cables are connected correctly or consult a
network administrator.
Afterwards, follow the description below matching your operating
system to access the les:
NB: xxxxx denotes the microscope serial number which is available
on the product label and via the System information window in the
microscope Setup menu.
Access les with Windows operation system:
• Open the File Explorer and type: \\tagarno-snxxxxx
Access les with mac operation system:
• Open the Connect to server window and type:
smb://tagarno-snxxxxx/
• Press connect
Ethernet cable
Choose one
Ethernet cable
WiFi
In both cases, a window will appear and you can type:
• User name: \public (Windows) or public (mac)
• Password: pub1234
Here, you'll be able to save, view, copy, move and rename les.
10. ACCESS SAVED FILES

18
This is a step by step guide to perform a system update on your
TAGARNO FHD TREND, FHD PRESTIGE or FHD UNO.
• To install a new application or updates to your TAGARNO, you
need to perform a system update on your current microscope.
• To perform a system update, a system update le needs to be
installed directly on the microscope.
• In some cases, you need a license key generated from the serial
number of the microscope in order to activate the application
after installation.
See the license key section for further explanation on how to
request and activate a license.
Note: In some cases, it is necessary to complete more than
one system update processes, if an update contains substantial
improvements and considerable le sizes. The microscope will notify
you if this is needed.
Follow the few steps below to perform a system update to
your TAGARNO microscope.
STEP 1: DOWNLOAD INSTALLATION FILE
1. Locate and access the installation le(s) via this link:
www.tagarno.com/rmware-download
2. Download the installation le(s) to a USB memory stick
(FAT32 formatted)
3. If the le(s) is in a ZIP folder, unzip the les and make sure that
only the correct installation le(s) or previous system update
les appear on the memory stick.
Note: File names always have the following format:
tagarno_fhd_system_vx_xx.image
tagarno_fhd_system_vx_xx.system
tagarno_fhd_system_vx_xx.update
(x_xx denoting the system version)
The installation le(s) is identical for TAGARNO FHD TREND/
PRESTIGE/UNO.
STEP 2: PLUG IN THE USB MEMORY STICK
1. Plug the USB memory stick into one of the two USB 2.0 inputs
at the back of the microscope.
USB 2.0 input
STEP 3: START INSTALLATION
1. The system update process is initiated in the Setup menu - Info -
System Update
A. Access the Setup menu by holding the round center
button on the XPLUS FHD control box until the Setup
menu appears
B. To navigate in the Setup menu, use the multi function
buttons on the XPLUS FHD control box
C. Go to the fourth menu point (Info) in the top menu,
navigate to System Update and choose it by pressing the
round center button
SYSTEM UPDATE (1/2)
11. SYSTEM UPDATE

19
STEP 4: PERFORM INSTALLATION
Screen dialogues will now guide you through the update process
1. A System Update Warning appears - Read the warning and
press OK to start the system update.
Note: At this point, the update process can be cancelled safely by
pressing Cancel.
NB: Do not switch off or disconnect the microscope during
a system update. This will damage your device and render
it useless.
2. When the system update le has been read and validated,
information about the new version is shown. Wait for the
system to update.
3. When the system update is complete, the microscope will
automatically restart.
Note: The microscope might switch off after restart. In that case,
turn it back on manually.
4. After restarting the microscope, the system might need to be
updated again by following the same procedure as described
above entering system update
STEP 5: VERIFY INSTALLATION
1. Verify the system update by checking that the Application
version (displayed in the Setup menu - Info - System
information) matches the version of the system update le.
STEP 6: ACCESS THE APPLICATION
If a new application is available (either through the 30 day trial
license of after application installation), a new menu point will
appear in the Setup menu under pt. 3 Applications, showing the new
application.
Note: To activate an application after installation, you need a unique
license key generated from the microscope serial number.
See the license activation section for further explanation on how to
activate your license.
After activating your license, you are now able to access and use the
new application or feature.
Please see the user manual for further information regarding the use
of TAGARNO applications.
If you have trouble performing a system update please contact the
TAGARNO distributor from which you have purchased the product or
send an e-mail to [email protected].
SYSTEM UPDATE (2/2)

20
A. Access the Setup menu by pressing the round center
button on the XPLUS FHD control box until the Setup
menu appears
B. To navigate in the Setup menu, use the multi function
buttons on the XPLUS FHD control box
C. Go to the fourth menu point (Info) in the top menu
D. Navigate to System Update and choose it by pressing
the round center button
STEP 4: PERFORM ACTIVATION
6. A System Update Warning appears - Read the warning and press
OK to start the system update.
7. Press OK and the update will be processed. Please do not press
the control box unless the installation menu tells you to.
STEP 5: ACCESS THE APPLICATION
After activating your license you are now able to access and use the
new application.
Please see the user manual for further information regarding the use
of TAGARNO applications and features.
If you have trouble activating the application, please contact the
TAGARNO distributor from which you have purchased the product.
After purchasing a TAGARNO application, you need to activate it with
a unique license key le.
To activate a license key on your TAGARNO microscope, follow the
steps below:
Note: The license can only be paired with the microscope which
has the serial number stated in your license. The license can not be
removed and transfered to another microscope.
STEP 1: DOWNLOAD LICENSE KEY FILE
1. You will receive an e-mail with a unique license key le after
placing an order, receiving an activation code and requesting
the license via www.tagarno.com/request-license
Note: If you are missing your license key le, please contact
[email protected] to retrieve the le.
2. Download the license key le to a USB memory stick (FAT32
formatted)
3. If the le is in a ZIP folder, unzip the folder and make sure that
only the correct license le and no ZIP folders appear on the
memory stick. Make sure to also place the license le in the
root of the USB.
STEP 2: PLUG IN THE USB MEMORY STICK
4. Plug the USB memory stick into one of the USB 2.0 inputs at
the back of the microscope. Leave the other input empty during
license activation.
USB 2.0 input
STEP 3: START ACTIVATION
5. The activation process is initiated in the Setup menu - Info -
System Update
12. LICENSE ACTIVATION
