Installation & User Guide
About this manual
This manual is a comprehensive guide for TAIDEN
Video Tracking System, mainly includes functions and
interface descriptions of High Quality Speed Dome
Camera and Speed Dome Camera Control Keypad,
connection and installation of system devices, system
setup and operation instructions.
The manual is divided into the following chapters:
Chapter 1: High Quality Speed Dome Camera
An overview of the connection, installation and matters
need attention of HCS-3313C High Quality Speed
Dome Camera.
Chapter 2: Speed Dome Camera Control Keypad
Detailed descriptions of features, operation and
matters need attention of HCS-3311A Speed Dome
Camera Control Keypad.
This manual is applicable to:
HCS-3313C
High Quality Speed Dome Camera (ceiling)
HCS-3311A
Speed Dome Camera Control Keypad

1
Chapter 1 High Quality Speed Dome Camera
1.1 Overview
High speed presetting dome PTZ camera (hereinafter
referred to as "camera") is a high-tech monitoring
product of a collection of high resolution color camera,
universal variable speed pan/tit and multifunctional
decoder, CUP processors, and memory chips in one.
The camera minimizes the connection between parts of
the system as well as the installation process, which
greatly improves the reliability of the system. The
camera is designed and installed based on easy
installation.
Features
■Built-in super backlighting equalizer, super low
illumination color camera
■Built-in high-speed dome and decoder
■Built-in direct-drive motor, smoothly rotating even at
a low speed
■64 predefined positions and automatic scan
monitoring
■Colorful output signal in PAL mode
■Horizontal 360° continuous rotation, Vertical 90°
rotation
■Mounting: ceiling-mounting
Technical Specifications
Power supply DC 12±3 V
Power consumption Daytime: 15 W
Nighttime: 40 W
Resolution 480 lines
Optical zooming 18 x (4 mm-64 mm)
Electrical zooming 12 x
Lowest illumination 0.7 Lux
SNR ≥50 dB (AGC off)
Horizontal angle 360°
Vertical angle 90°
Horizontal highest rotary
speed 360°/s
Vertical highest rotary
speed 90°/s
Predefined position 64
Installation Ceiling-mounting
Fix hole positioning
diagram
Dimensions Ø146×205 mm
Weight 1.1 kg

2
1.2 External cable connection method
Camera external inlet cables are all connected to
RS485 lightning protection adapter, which is connected
to the camera through a 0.8-meter-long RJ45 cable
with crystal heads at both ends.

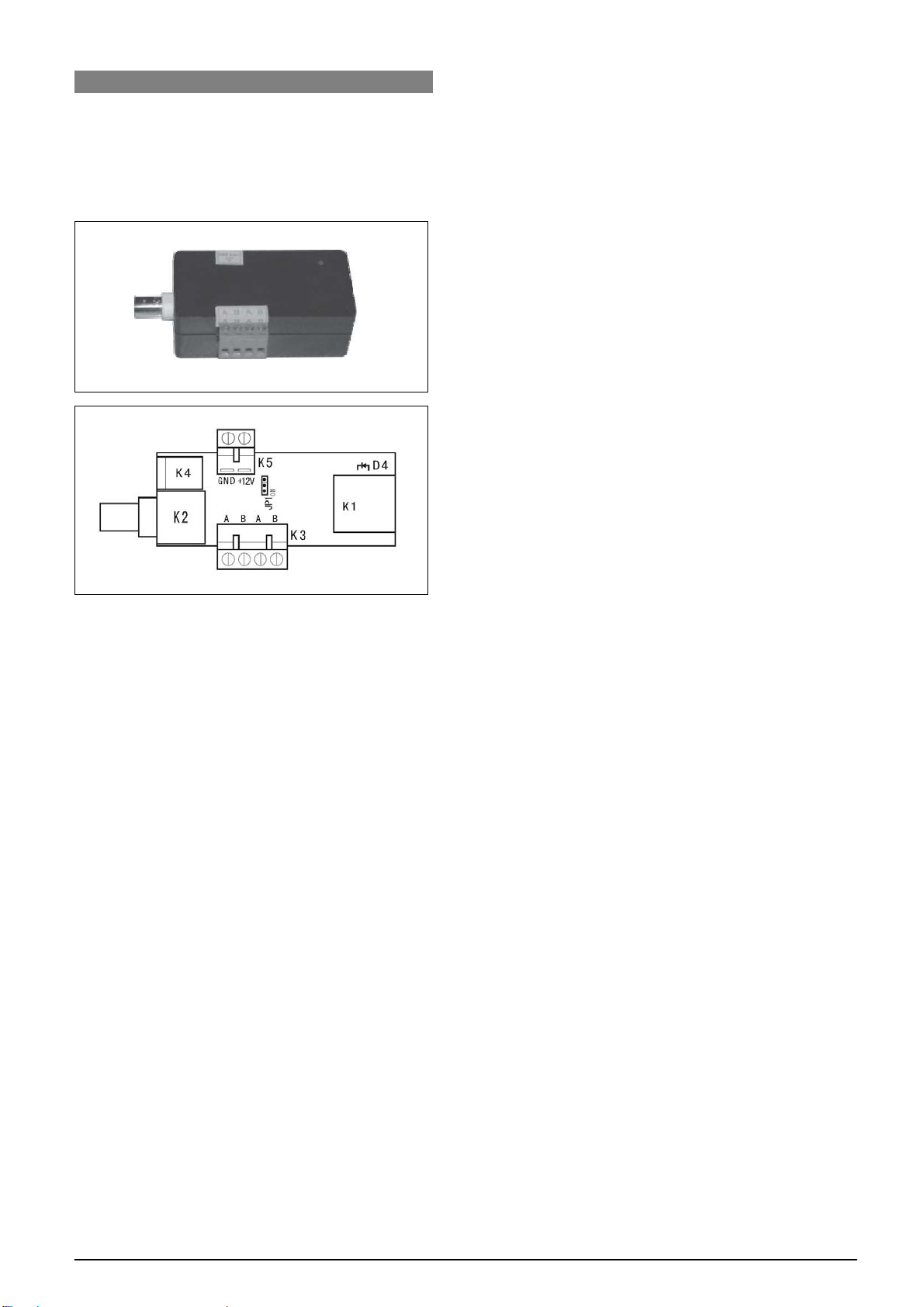

Fig 1.1 RS485 lightning protection adapter
K1: RJ45 socket
K2: NC socket
K3: Output and input terminal of RS485
(output and input can be arbitrary selected)
K4: 12VDC input terminal
K5: 12VDC input terminal
JP1: BUS matching resistor of RS485
D4: Status indicator
Power connector
Please carefully check the power supply voltage and
current. The power supply voltage for the camera is
12VDC and the current must be 2A or more. External
power supply should be connected to 12VDC input
terminal (any one of K4 or K5, but can not connect
both at the same time).
RJ45 cable
Connect one end of RJ45 cable (supplied
accessories) to RJ45 socket of the camera and
another end of RJ45 cable to K1 socket.
Video cable
Video signal is transmitted through a coaxial cable
with its BNC plug connecting to K2 socket.
BUS connection of RS485 lightning protection
adapter
Data cable is connected to K3, output terminal is
connected to next device in BUS. Positive pole and
negative pole of data cable are connected to "A" and
"B" terminal respectively.

3
1.3 Protocol and address code setup
Control protocol, baud rate and camera address code
should be configured before installation. There are two
switches on PCB.
1.3.1 Switch for protocol and baud rate
Setup protocol and baud rate
Switch for camera type
Switch for NTSC/PAL
1.3.2 Setup address code
Address code of the camera should be configured
before using. Address code (ID) can be setup through
ten-digital dial switch on PCB which uses binary 8421
code. Maximum encoded address is 255, switch ON
stands for 1, OFF for 0.
Setup address code
№1 2 3 4 5 6 7 8
Address
code
1 2 4 8 16 32 64 128
The definition of address code is listed in above table:
switch №1 stands for route 1, switch №2 for route 2,
switch №3 for route 4, etc. To set required route №,
just switch corresponding switch to ON. If the required
route number can not be represented by one switch,
just sum up needed switches.
For example: for route 1, switch №1 to ON.
Another example: for route 37, switch №1, 3, 6 (stands
for 1, 4 and 32 respectively) to ON.
Switch status
PRO0
(Pin1)
PRO1
(Pin2)
PRO2
(Pin3)
Protocol/Baud rate
ON ON ON KN, 9600
Switch status
ZM0
(Pin4)
ZM1
(Pin5)
Camera
OFF OFF SONY
ON OFF SANYO
OFF ON CNB
ON ON LG
Switch status
NT/PAL(Pin6)
Camera
standard
OFF NTSC
ON PAL
Note:
)Factory default protocol is KN, baud rate is
9600, camera type is SONY, camera
standard is PAL, need not modify.
)Factory default address code is 1;
)Please make sure that dial switch is in correct
place, otherwise the camera may be out of
control;
)Please confirm that you can control the
camera before installation.

4
Chapter 2 Speed Dome Camera Control Keypad
2.1 Overview
The keyboard is a tiny, easy to use, clear and small
direct-control keyboard. It can control multiple cameras
with full functionality through RS485 BUS. If you use
control systems from other company, due to that
different platforms have different specific operation
method. Generally, control system manufacturer's
operation manual shall prevail. In some cases there will
be some special requirements and method of operation,
check with the dealer to obtain necessary information
of the control system platform.
Features
■Cooperating with Video Switcher Unit to control 16
cameras directly
■Built-in LCD
■Camera No. and speed parameter visible
■Directly control camera's action
Up, down, left, right
Zoom in/out
■Directly switch the image among multiple cameras
■Communication protocol: RS-485
■Power supply: DC 9V to 12 V
■Power consumption: 1 W
■Dimensions: w×d×h(mm)：263×175×60
■Weight: 0.6 kg
2.2 Connection between keyboard and
system
Fig 2.1 Keyboard cable
1&2——DC power input DC 9 V-12 V (V+)
3&4——Control cable A
5&6——Control cable B
7&8——Power ground
①External power supply should be connected to
12VDC input terminal of RS485 lightning
protection adapter (any one of K4 or K5, but can
not connect both at the same time);
②Connect one end of RJ45 cable (supplied
accessories) to RJ45 socket of the camera and
another end of RJ45 cable to K1 socket of RS485
lightning protection adapter;
③Connect A, B terminal of RS485 BUS to A, B
terminal of system BUS respectively. Up to 32
decoders or other devices (high speed camera, or
constant speed camera) can be connected to BUS.
④Control BUS should use shielded twisted-pair
cable with shield ground. Thickness of the cable is
related to required BUS length. For long distance,
thick cable (0.75-1mm2) should be used; for short
distance, thin cable with diameter≥0.2 mm2 can be
used.

5
2.3 Keyboard instructions
1. Select communication protocol
After the keyboard plugged in external cable, just press
"F4" key and current selected communication protocol
will be displayed on screen.
Protocol definition:
“KN” – Kenian protocol, baud rate: 9.6 K
“Pelco-P” - P protocol, baud rate: 9.6 K
“Pelco-D” - D protocol, baud rate: 2.4 K
“HD-SC” - Shanghai security protocol,
baud rate: 9.6K
“VC” - Germany VC protocol, baud rate: 9.6K
“Pelco-P” - P protocol (continuously sending),
baud rate: 9.6K
Please do not confuse two Pelco-P protocol.
2. Select camera
a. Select any one of the cameras: press 1-16 digital
keys, then press "CAM" key. Selected camera
number will be displayed on screen.
b. Select next camera: press "+1" key;
c. Select previous camera: press "-1" key.
For example, press "2" key and then press "CAM" key,
then camera 2 is selected. Press "+1" key to select
camera 3, or press "-1" key to select camera 1.
3. Camera control
a. Select camera;
b. Press "Z+", "Z-", "F+", "F-" or use rocker to control
camera.
4. Preset camera
a. Select camera (1-16);
b. Adjust camera to preset position;
c. Press "F1" key and then press "8" key;
d. Enter preset position number (1-64);
e. Press "PRE" key.
5. Recall preset position
Preset position can be recalled in several ways:
1> Manually:
a. Select camera;
b. Enter preset position number you want to recall;
c. Press "CALL" key to recall.
2> Automatically
a. Select camera;
b. Enter maximum preset position number (2-16),
default value is 8;
c. Press "RUN" key, several preset positions of the
camera will be recalled in turn;
d. Press "DWL" key to adjust dwell time between
1-60 s;
e. Stop recalling: select camera, and then press
"HOLD" key or shake the rocker to stop recalling.

www.taiden.com
TAIDEN INDUSTRIAL CO.,LTD.
Copyright by TAIDEN
Last Revision: 08/2012
